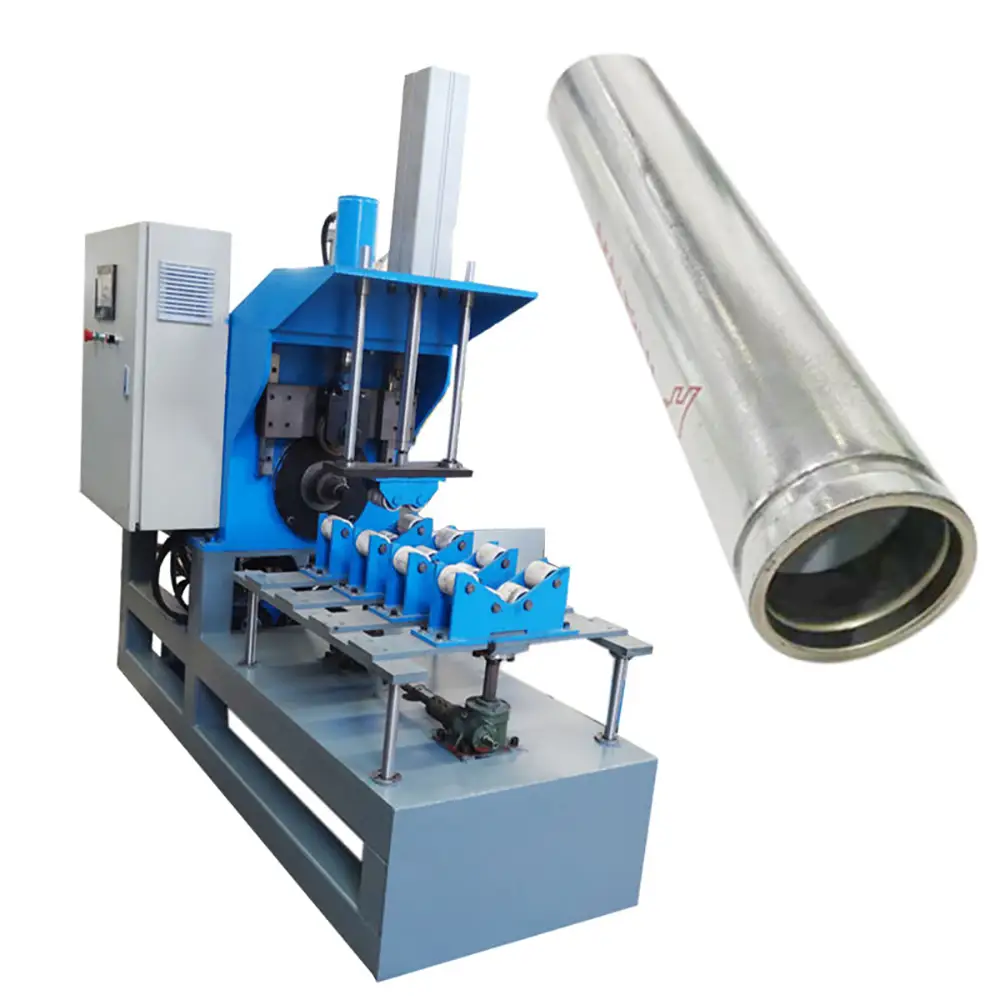

Single Station Semi-Automatic Pipe End Grooving Machine

item	value
power (kw)	5.5
core components	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
voltage	380/415V or customized
weight (kg)	1500
warranty	1 Year
place of origin	China
	Shandong
brand name	soar
video outgoing-inspection	Provided
machinery test report	Provided
dimension(l*w*h)	1.5x1.1x1.5M
key selling points	Easy To Operate
Product name	semi automatic pipe grooving machine
Function	Fire pipe pressure groove
customized serve	avaliable
Application	Pipe Grooving
Control	PLC
Condition	New
Marketing Type	Ordinary Product
Warranty of core components	1 Year

The Single Station Semi-Automatic Pipe End Grooving Machine is an industrial pipe processing machine designed to form accurate circumferential grooves near the ends of compatible round pipes and tubes. With a single working station and semi-automatic operating configuration, it provides a practical solution for manufacturers that need controlled and repeatable pipe end grooving without the complexity of a fully automatic production line.

Pipe end grooving is widely used when pipe sections are prepared for compatible mechanical grooved couplings and fittings. A properly formed groove provides the connection point required by the corresponding coupling system. Consistent groove position, forming quality, and pipe alignment are therefore important for downstream pipe assembly.

Single Station Pipe End Grooving

The single-station configuration provides a focused processing area for pipe end groove forming. It is suitable for workshops and production facilities that process pipe sections individually and require a stable, repeatable grooving operation.

The operator can place the pipe into the working station, align and clamp the workpiece, initiate the grooving operation, and remove the finished pipe after the cycle. The exact operating sequence depends on the machine configuration.

Semi-Automatic Operation

Semi-automatic operation combines operator-controlled loading and unloading with mechanically controlled grooving functions. This design can reduce repetitive manual effort while maintaining a straightforward operating process.

It is particularly suitable for manufacturers that require more productivity and consistency than manual grooving but do not necessarily need a fully automated feeding and production system.

Pipe End Groove Forming

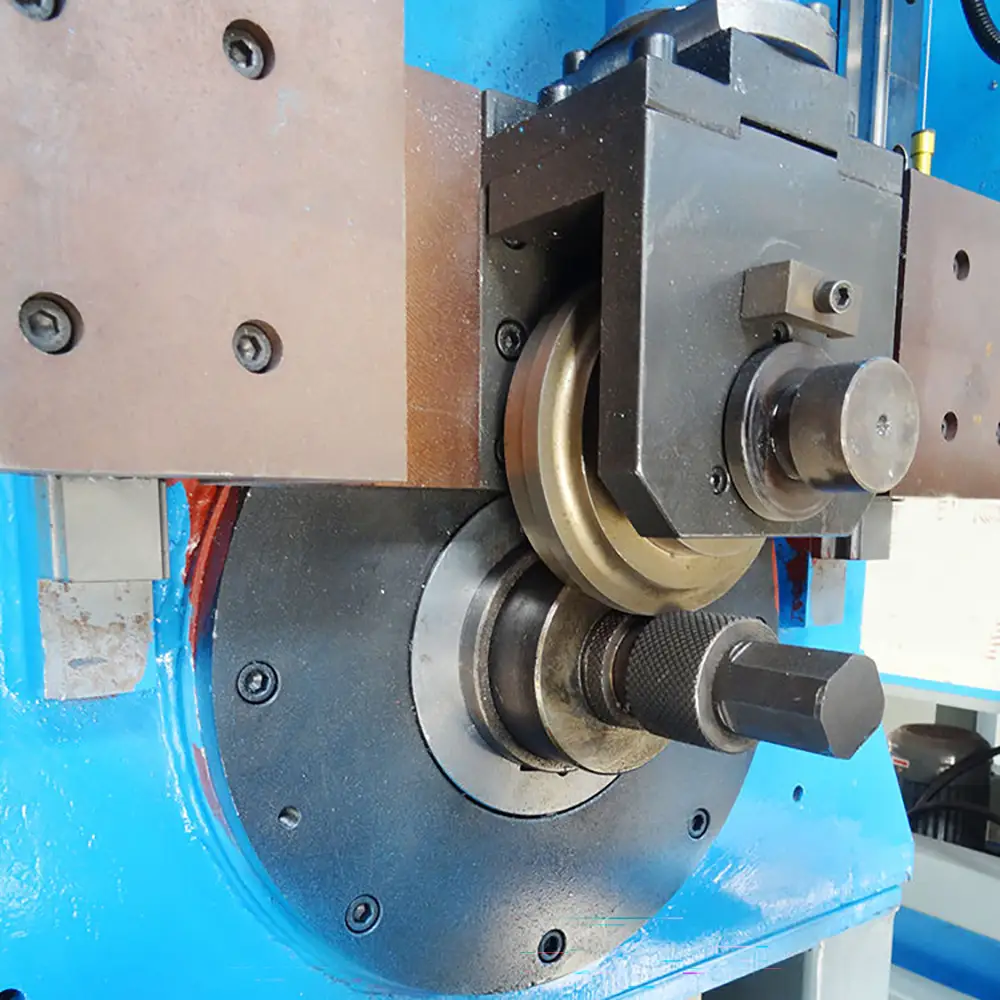

The machine forms a circumferential groove near the end of a compatible pipe. Depending on the machine design, the groove can be produced through controlled rolling or pressing rather than conventional cutting.

The groove-forming process is designed to provide repeatable processing when the correct rollers, dies, pipe supports, and machine parameters are selected according to the pipe material and dimensions.

Accurate Groove Positioning

The location of a pipe-end groove is important when the finished pipe is intended for use with a compatible grooved coupling. Consistent positioning helps simplify downstream assembly and maintain repeatable production results.

The machine provides controlled positioning and clamping to help keep the pipe properly aligned during the grooving cycle. Production settings should be established according to the required groove location and connection specifications.

Stable Pipe Clamping

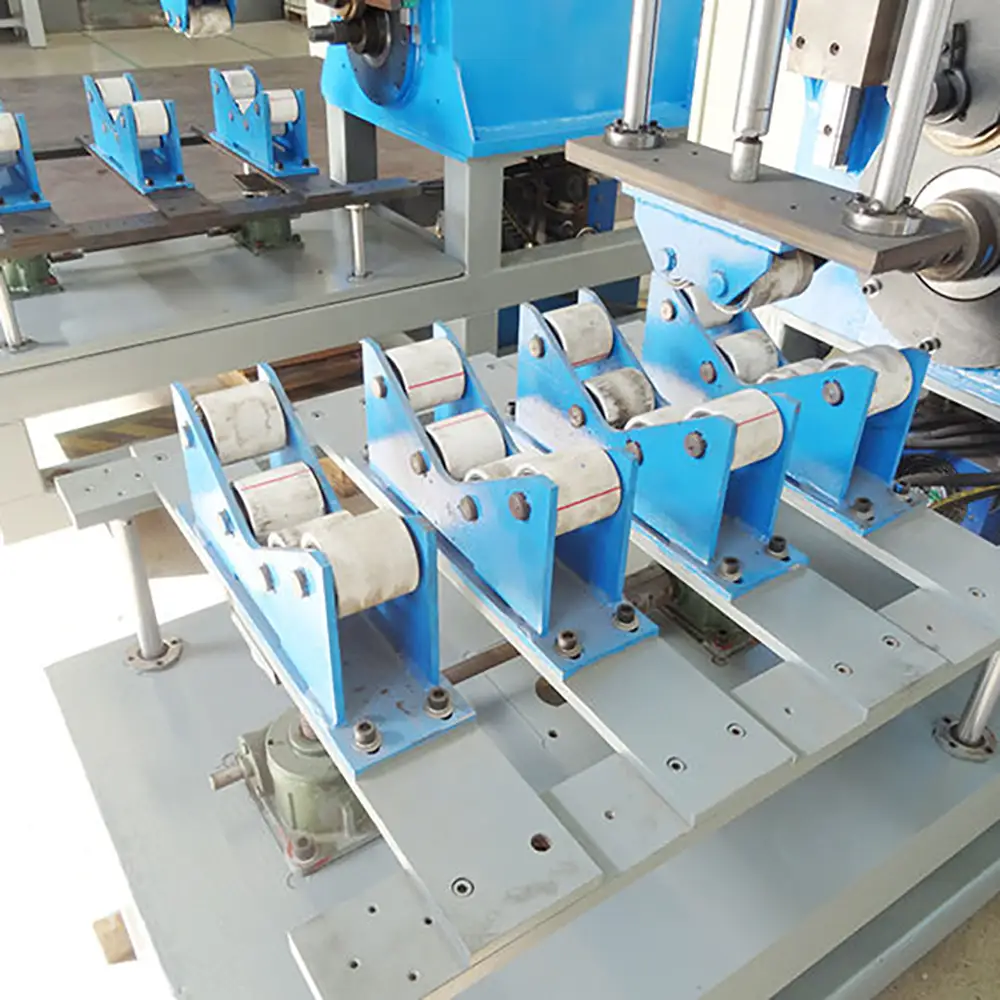

Stable clamping helps prevent unwanted pipe movement during groove forming. The machine can be equipped with suitable clamps or fixtures according to the pipe diameter and application.

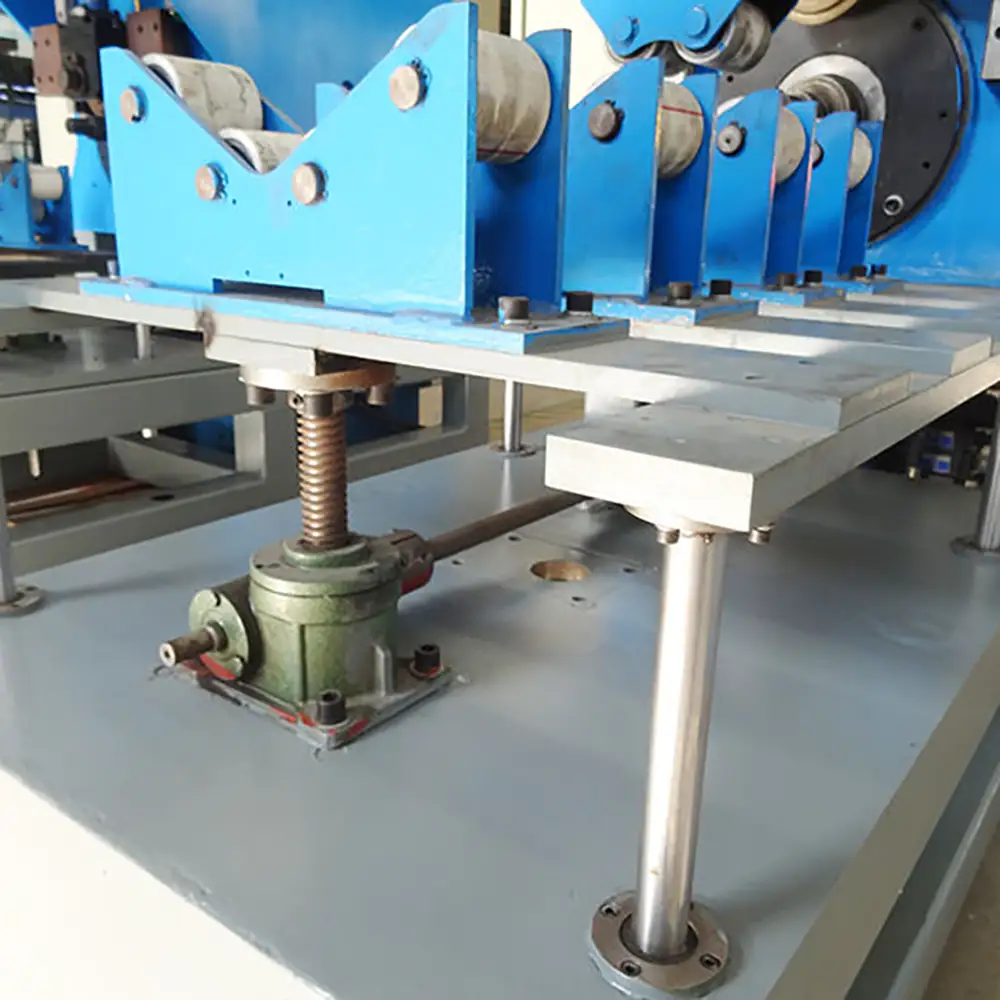

For longer pipe sections, additional external supports may be used to help maintain alignment and improve workpiece handling. Proper clamping is especially important when consistent groove geometry is required across a production batch.

Steel Pipe End Grooving

The machine is suitable for compatible steel pipe applications, including certain carbon steel and galvanized steel pipes. Different pipe materials and wall thicknesses may require different grooving rollers and processing parameters.

For specialized materials such as stainless steel, machine suitability should be evaluated according to the actual pipe specifications and tooling requirements.

Fire Protection Pipe Applications

Grooved pipe connections are commonly used in suitable fire protection and sprinkler piping systems. The machine can prepare compatible steel pipe ends for grooved coupling systems used in these applications.

The exact groove dimensions should follow the requirements of the selected coupling and piping system. Machine configuration and tooling should be confirmed according to the pipe material, diameter, wall thickness, and required groove profile.

HVAC And Mechanical Piping

Pipe end grooving is also applicable to suitable HVAC and mechanical piping systems where compatible grooved connections are specified. The machine can help manufacturers prepare repeated pipe sections for downstream installation.

Consistent groove location can help improve the efficiency of pipe assembly and simplify production quality inspection.

Water Supply And Industrial Piping

Compatible grooved pipe systems are also used in water supply, utility, and industrial piping applications. The semi-automatic grooving machine can be used to process suitable pipe ends according to the requirements of the intended connection system.

Application suitability depends on the pipe material, dimensions, groove profile, and coupling specifications.

Efficient Batch Pipe Processing

For factories processing repeated quantities of pipe sections, a semi-automatic machine can provide a practical balance between manual operation and automated processing.

Operators can focus on loading and unloading workpieces while the machine performs the controlled grooving process. This can help reduce repetitive physical operations and improve production workflow.

Consistent Groove Quality

Repeatable groove quality is important when pipes are manufactured for use with compatible couplings. Stable pipe clamping, controlled forming force, and suitable tooling can help improve consistency between workpieces.

Regular inspection of groove dimensions, groove location, pipe end condition, and surface quality can further support production quality control.

Flexible Tooling Configuration

Different pipe diameters and wall thicknesses may require different grooving rollers, clamps, dies, and fixtures. The machine can be configured according to the intended pipe range and production requirements.

Customers can provide pipe samples, technical drawings, outside diameter, wall thickness, material type, groove dimensions, and coupling requirements for tooling evaluation.

Compact Production Solution

Compared with more complex multi-station or fully automatic systems, a single-station semi-automatic machine can provide a practical solution for workshops with moderate production volumes or flexible product requirements.

It can be integrated into existing pipe fabrication workflows without requiring a highly automated material handling system.

Reduced Operator Workload

Manual pipe grooving can require repeated physical effort and careful control of the workpiece. Semi-automatic operation allows the machine to perform the main groove-forming process after the pipe has been correctly positioned.

This can help reduce repetitive labor and allow operators to concentrate on material handling, quality inspection, and machine monitoring.

B2B Customized Pipe Processing

The Single Station Semi-Automatic Pipe End Grooving Machine is suitable for pipe processing companies, fire protection equipment manufacturers, HVAC contractors, steel pipe suppliers, mechanical fabrication shops, and industrial equipment manufacturers.

For B2B customers, machine and tooling configurations can be discussed according to pipe specifications, production volume, groove requirements, and existing factory workflow.

Key Features
Single Working Station
Semi-Automatic Pipe Grooving
Pipe End Groove Forming
Controlled Groove Positioning
Stable Pipe Clamping
Controlled Forming Operation
Suitable For Round Pipes
Steel Pipe Processing
Flexible Grooving Tooling
Consistent Batch Processing
Reduced Manual Labor
Customized Machine Configuration
Main Applications
Steel Pipe End Grooving
Fire Sprinkler Pipes
Fire Protection Piping
Galvanized Steel Pipes
HVAC Piping
Water Supply Pipes
Mechanical Piping
Industrial Pipelines
Utility Piping
Grooved Coupling Connections
Pipe Fabrication
Pipe End Processing
FAQs
1. What Is A Single Station Semi-Automatic Pipe End Grooving Machine?

It is a pipe processing machine with one working station designed to form circumferential grooves near the ends of compatible pipes using a semi-automatic operating process.

2. What Is Pipe End Grooving Used For?

Pipe end grooving is used to prepare compatible pipes for mechanical grooved couplings, fittings, valves, and other connection components.

3. What Does Single Station Mean?

Single station means the machine has one primary pipe processing position where the workpiece is clamped and grooved.

4. What Does Semi-Automatic Operation Mean?

The operator typically handles workpiece loading and unloading, while the machine performs the controlled grooving operation according to the configured parameters.

5. Can It Process Steel Pipes?

Yes. Compatible carbon steel and galvanized steel pipes can be processed with appropriate tooling and machine settings.

6. Can It Be Used For Fire Sprinkler Pipes?

Yes. It is suitable for compatible fire sprinkler and fire protection pipes where grooved mechanical connections are specified.

7. Can It Process Different Pipe Sizes?

Yes, within the applicable range of the specific machine model. Different pipe diameters and wall thicknesses may require different tooling.

8. Is The Groove Cut Or Rolled?

Depending on the machine design, pipe grooves can be formed through controlled rolling or pressing rather than conventional cutting.

9. Can The Machine Be Customized?

Yes. Grooving rollers, clamps, dies, fixtures, and other tooling can be configured according to pipe specifications and production requirements.

10. What Information Is Needed Before Ordering?

Customers should provide pipe material, outside diameter, wall thickness, pipe length, groove dimensions, coupling requirements, production volume, and samples or drawings when available.

Why Choose Us
Professional Pipe End Grooving Equipment

We provide industrial pipe processing equipment designed for repeatable and efficient pipe end groove forming in manufacturing environments.

Practical Single-Station Design

The single-station configuration provides a straightforward solution for workshops and factories that need reliable pipe end processing without a complex multi-station production system.

Semi-Automatic Production

Semi-automatic operation helps reduce repetitive manual work while keeping loading and unloading procedures flexible for different pipe products.

Customized Grooving Tooling

We can configure suitable rollers, clamps, dies, fixtures, and pipe supports according to pipe diameter, material, wall thickness, and groove requirements.

Sample-Based Technical Support

Customers can provide pipe samples, drawings, dimensions, material information, and coupling requirements for application evaluation before machine selection.

Factory-Direct Service

We support international pipe suppliers, fire protection companies, HVAC manufacturers, contractors, distributors, and OEM customers with technical communication and machine configuration assistance.

Export And After-Sales Support

We provide technical documentation, operating guidance, export packaging, shipping coordination, spare-part support, and after-sales technical assistance for international customers.
