Automatic Hydraulic Pipe Grooving Machine for Round Pipe

 Automatic Hydraulic Pipe Grooving Machine | Round Pipe Groover

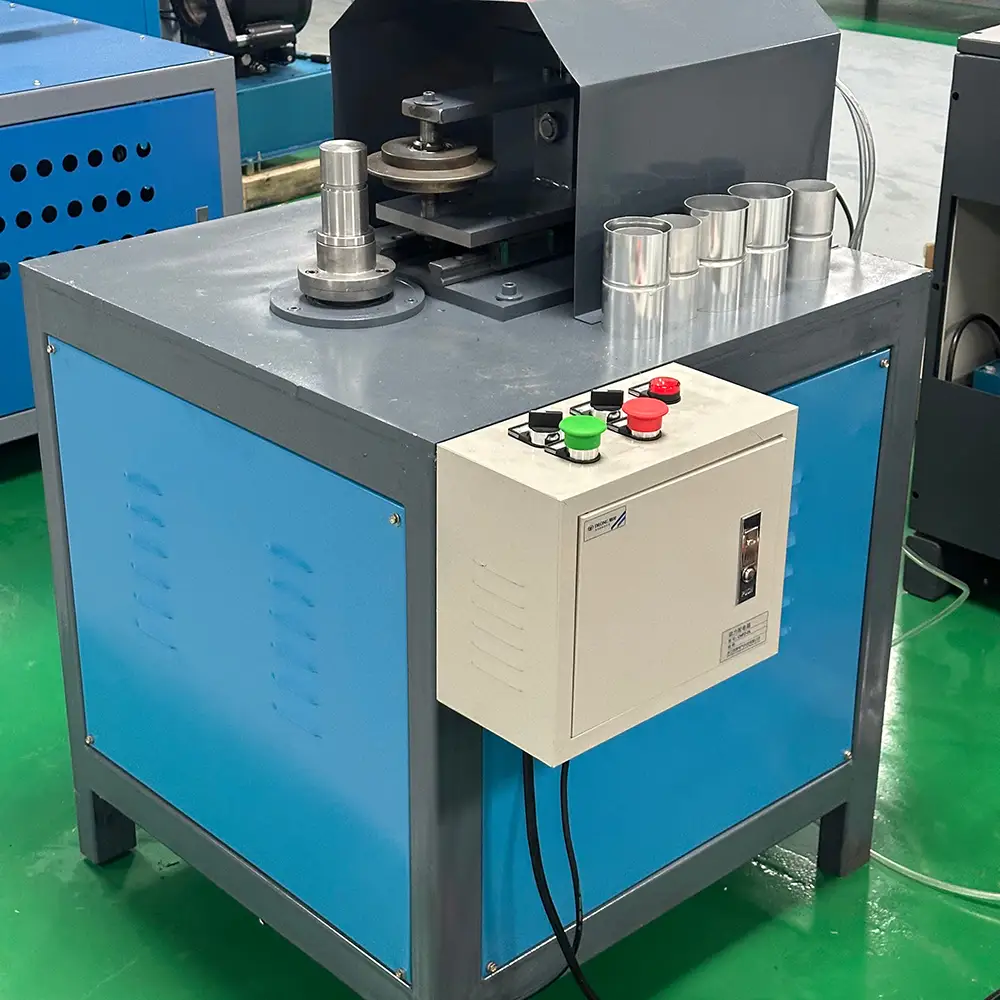

The Automatic Hydraulic Pipe Grooving Machine for Round Pipe is an industrial pipe processing machine designed for efficient and consistent groove forming on compatible round pipes and tubes. Using hydraulic force and an automatic operating system, the machine provides a practical solution for manufacturers that need repeatable pipe grooving for fire protection, HVAC, water supply, mechanical piping, and industrial pipeline fabrication.

Pipe grooving is an important preparation process for applications using compatible grooved couplings and fittings. By forming a circumferential groove around the outside of a pipe, the machine can prepare suitable pipe sections for mechanical connection systems. Stable clamping, accurate positioning, and controlled hydraulic pressure help support consistent groove formation during repeated production.

Automatic Hydraulic Pipe Grooving

The machine combines automatic operation with hydraulic groove forming technology. Hydraulic force provides controlled forming pressure, while the automatic operating sequence helps reduce repetitive manual operations.

Depending on the machine configuration, the operator can position the round pipe, secure the workpiece, start the grooving cycle, and remove the processed pipe after completion. This workflow can improve production organization and reduce operator workload during batch processing.

Designed For Round Pipes

The machine is specifically designed for compatible round pipes and tubes. Round pipe geometry allows the grooving rollers to form a circumferential groove around the pipe surface.

Different pipe diameters, wall thicknesses, and materials may require different rollers, dies, clamps, or machine settings. Customers should provide detailed pipe specifications when selecting the appropriate machine configuration.

Hydraulic Groove Forming

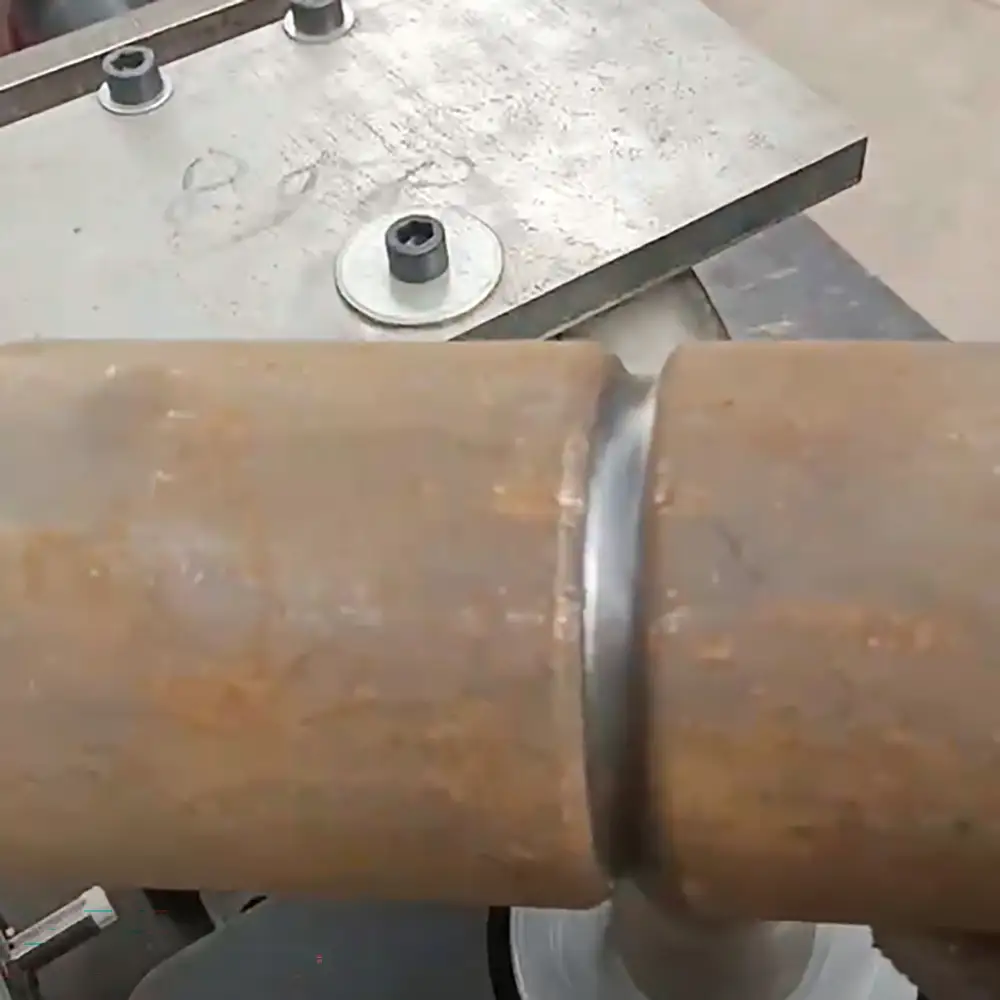

The hydraulic system applies controlled force during the groove-forming operation. Rather than conventional cutting, roll grooving generally forms the groove through controlled deformation of the pipe wall.

Controlled hydraulic operation can provide stable processing for repeated pipe sections. Proper pressure, roller selection, and processing parameters should be established according to the pipe material, dimensions, and required groove profile.

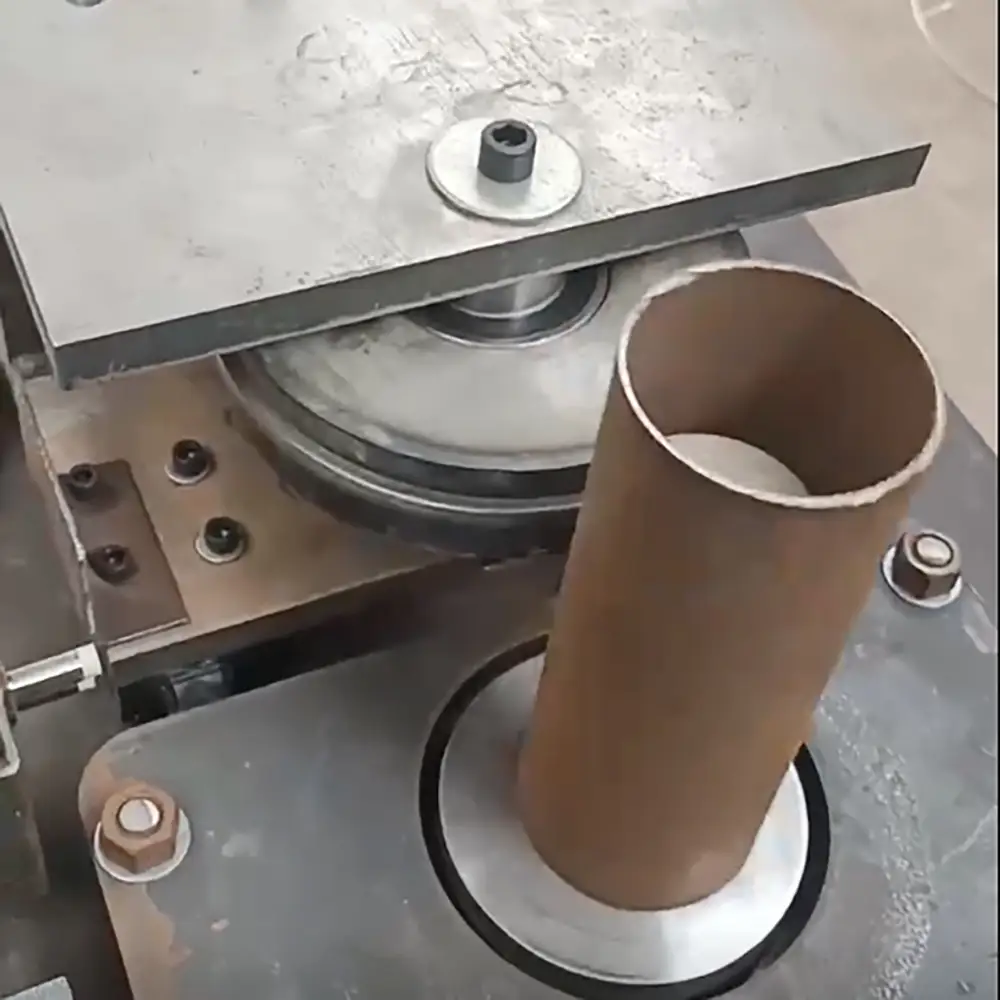

Stable Pipe Clamping

Stable clamping is essential for accurate pipe grooving. The workpiece needs to remain properly positioned during the forming process to help maintain groove alignment and dimensional consistency.

The machine can be equipped with suitable clamping components according to the pipe diameter. For longer or heavier round pipes, additional pipe supports can also be considered to improve handling stability.

Accurate Groove Positioning

The groove must be positioned correctly relative to the pipe end when the finished pipe is intended for use with compatible couplings or fittings. The machine provides controlled positioning to help process repeated workpieces consistently.

Accurate positioning is especially useful for manufacturers producing large quantities of pipes with the same groove location and specifications.

Automatic Pipe Grooving Cycle

Automatic operation can simplify the production process by coordinating key processing steps. Depending on the machine configuration, functions may include pipe positioning, clamping, hydraulic grooving, and cycle completion.

Automated operation helps reduce repetitive manual adjustment and allows operators to concentrate on workpiece loading, unloading, quality inspection, and machine monitoring.

Fire Protection Pipe Applications

Grooved steel pipes are commonly used in suitable fire protection and sprinkler piping systems where compatible grooved connection components are specified. The machine can process compatible round steel pipes for these applications.

Pipe material, dimensions, groove profile, and coupling requirements should be confirmed before production to ensure that the machine and tooling are appropriate for the intended application.

HVAC And Mechanical Piping

Round steel pipes with grooved connections can also be used in suitable HVAC and mechanical piping applications. Efficient groove forming can help pipe manufacturers prepare repeated sections for downstream installation.

The machine can support production environments where consistent groove positioning and repeatable processing are important.

Water Supply And Utility Piping

The machine is suitable for compatible water supply and utility pipe applications where grooved mechanical connections are used. Grooved pipe systems can simplify certain installation and maintenance processes.

The exact suitability depends on the pipe material, dimensions, connection system, and project requirements.

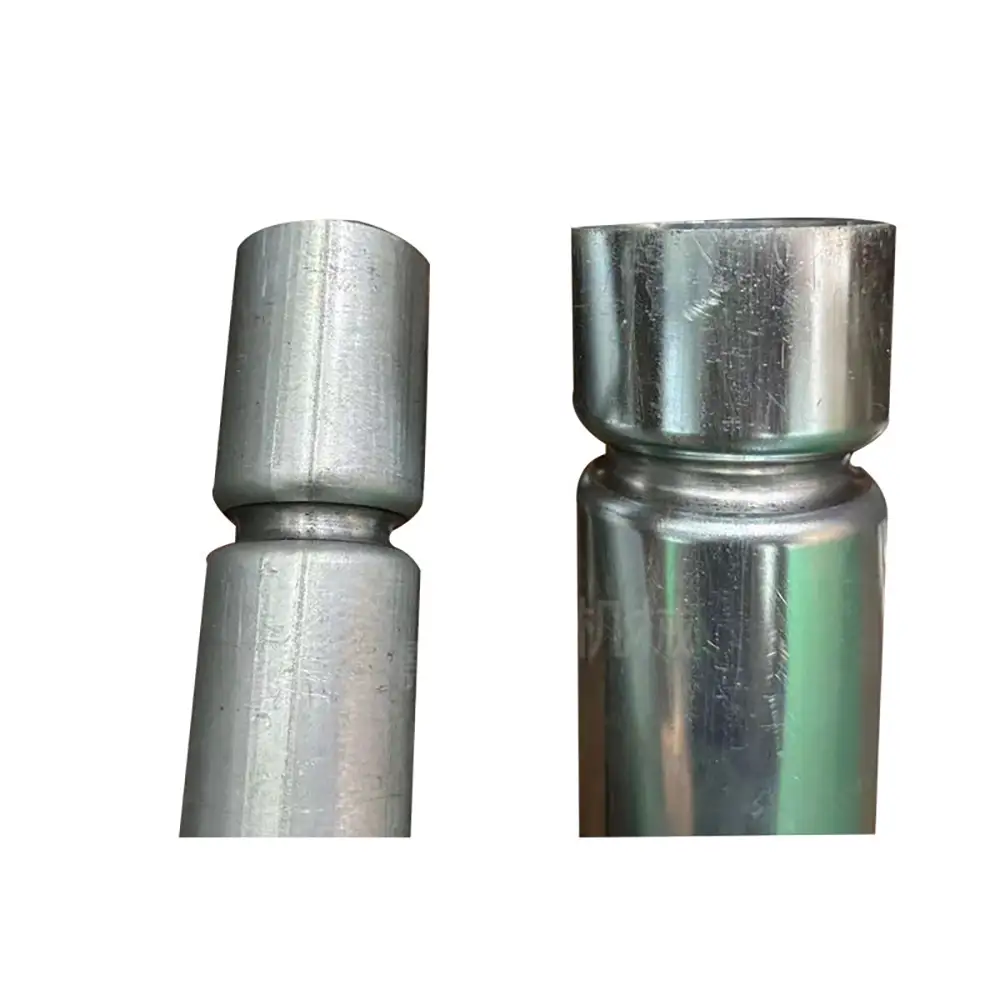

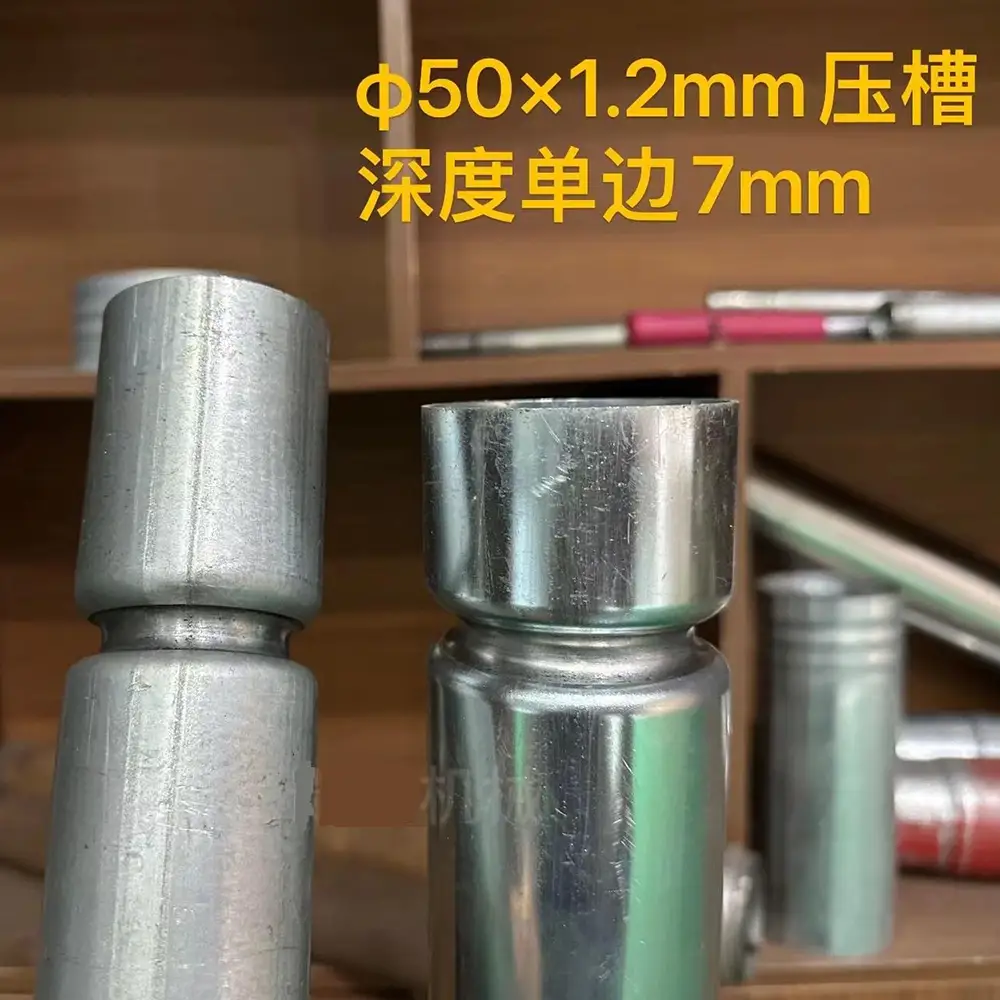

Steel And Galvanized Pipe Processing

Depending on the machine configuration and tooling, compatible carbon steel and galvanized steel round pipes can be processed. Galvanized pipe requires suitable tooling and processing parameters to help maintain consistent groove formation.

Different pipe materials may have different hardness and wall characteristics. Testing and parameter adjustment are recommended before high-volume production.

Efficient Batch Production

Automatic hydraulic grooving is particularly useful for manufacturers processing repeated quantities of round pipes. Once the appropriate tooling and machine settings have been established, operators can follow a consistent production cycle.

Reducing repetitive manual operations can help improve workflow efficiency and allow production personnel to focus on material handling and quality control.

Consistent Groove Quality

Consistent groove geometry is important for pipe sections that will later be assembled with compatible couplings. Stable clamping, controlled hydraulic forming, and appropriate tooling can help reduce variation between processed pipes.

Regular inspection of groove dimensions and pipe condition can further support quality control during production.

Flexible Tooling

Different pipe sizes and materials may require dedicated grooving rollers and supporting tooling. The machine can therefore be configured according to the required pipe range and groove specifications.

Customized tooling may include grooving rollers, clamps, fixtures, pipe supports, and other components needed for specific production requirements.

Industrial Pipe Fabrication Solution

The Automatic Hydraulic Pipe Grooving Machine is suitable for pipe fabrication factories, fire protection equipment manufacturers, HVAC contractors, mechanical pipe suppliers, steel pipe processors, and industrial equipment manufacturers.

It provides a practical B2B solution for companies that require repeatable round pipe groove forming without relying entirely on manual processing.

Customized B2B Configuration

Every pipe grooving application can have different requirements. Pipe diameter, wall thickness, material, pipe length, groove dimensions, production volume, and coupling type can all affect machine configuration.

Customers can provide pipe samples, technical drawings, dimensions, material specifications, and production requirements. Based on this information, suitable grooving tooling and machine configuration can be evaluated.

Key Features
Automatic Hydraulic Pipe Grooving
Round Pipe Processing
Hydraulic Groove Forming
Automatic Operating Cycle
Stable Pipe Clamping
Accurate Groove Positioning
Controlled Forming Pressure
Consistent Groove Formation
Flexible Grooving Rollers
Suitable For Steel Pipes
Reduced Manual Labor
Customized Machine Configuration
Main Applications
Round Steel Pipes
Galvanized Steel Pipes
Fire Sprinkler Pipes
Fire Protection Piping
HVAC Piping
Water Supply Pipes
Mechanical Piping
Industrial Pipelines
Utility Piping
Pipe Fabrication
Grooved Coupling Connections
Steel Pipe Processing
FAQs
1. What Is An Automatic Hydraulic Pipe Grooving Machine?

It is an industrial machine that uses hydraulic force and an automatic operating cycle to form circumferential grooves on compatible round pipes.

2. Can It Process Round Steel Pipes?

Yes. The machine is designed for compatible round steel pipes, with tooling selected according to pipe diameter, wall thickness, and material.

3. Can It Process Galvanized Pipes?

Yes. Suitable galvanized steel pipes can be processed when the machine is equipped with appropriate grooving rollers and properly adjusted parameters.

4. What Is The Purpose Of Pipe Grooving?

Pipe grooving creates a circumferential groove that can be used for compatible mechanical grooved couplings and fittings.

5. Is Hydraulic Grooving Better Than Manual Grooving?

Hydraulic operation provides controlled forming force and can reduce repetitive manual effort. The appropriate system depends on pipe specifications and production requirements.

6. Can It Be Used For Fire Sprinkler Pipes?

Yes. It can be used for compatible fire sprinkler and fire protection pipe applications where grooved mechanical connections are specified.

7. What Pipe Sizes Can It Process?

The applicable pipe diameter range depends on the specific machine model and tooling. Customers should provide the pipe outside diameter and wall thickness for confirmation.

8. Can Different Pipe Materials Be Processed?

Depending on configuration, suitable carbon steel, galvanized steel, and other compatible metal pipes may be processed.

9. Can The Machine Be Customized?

Yes. Grooving rollers, clamps, fixtures, pipe supports, and other tooling can be configured according to specific pipe processing requirements.

10. What Information Should I Provide Before Ordering?

Provide pipe material, outside diameter, wall thickness, pipe length, groove dimensions, coupling requirements, production volume, and samples or drawings when available.

Why Choose Us
Professional Hydraulic Pipe Grooving Equipment

We provide industrial pipe grooving solutions designed for efficient and repeatable round pipe processing in manufacturing environments.

Automatic Production Configuration

Automatic operating functions can reduce repetitive manual operations and help manufacturers establish a more consistent pipe processing workflow.

Customized Grooving Tooling

We can configure grooving rollers, clamps, fixtures, and pipe supports according to pipe diameter, material, wall thickness, and groove requirements.

Application-Based Technical Support

Customers can provide pipe samples, technical drawings, material information, and production requirements for machine selection and tooling evaluation.

Factory-Direct Supply

We work with international pipe processors, fire protection suppliers, HVAC companies, industrial manufacturers, distributors, and OEM customers.

Export And After-Sales Service

We provide technical documentation, operating guidance, export packaging, shipping coordination, spare-part support, and after-sales technical assistance for international customers.
