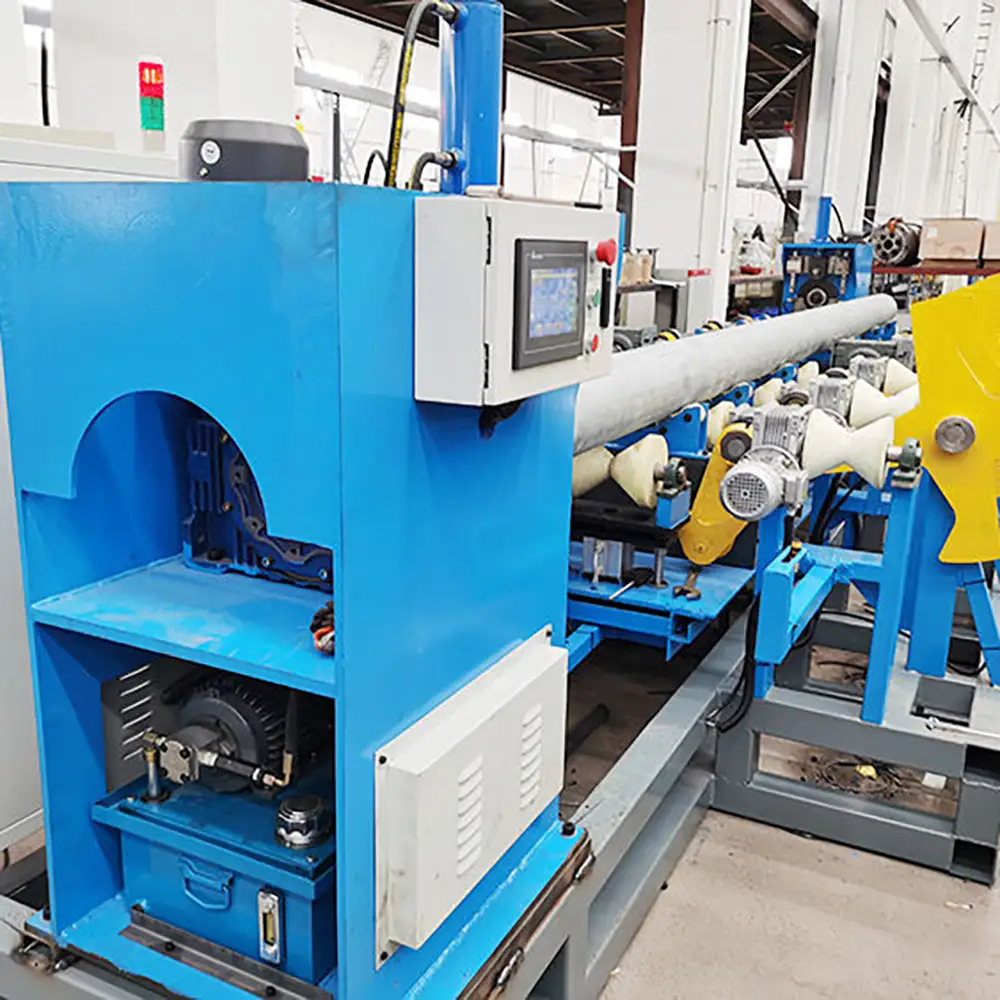

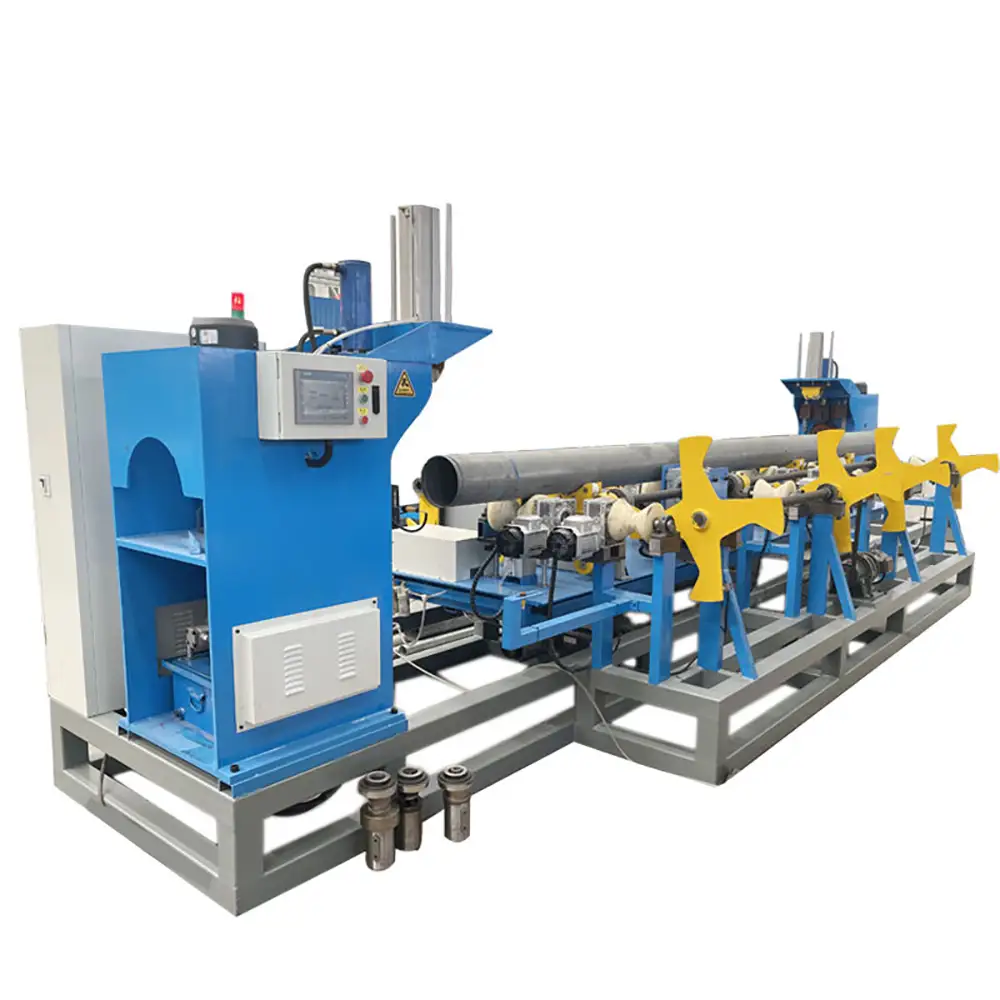

Automatic CNC Pipe Grooving Machine High Precision Pipe Grooving Equipment

The automatic grooving machine is an automated equipment designed for grooving processing of pipes. It precisely controls the pressure of the pressing wheel and feeding speed through a numerical control system to
press standard grooves at the end or designated position of the pipe. These grooves are used to match with clamps during pipeconnection, enabling fast and sealed splicing.

power (kw)	18kw
warranty	1 Year
place of origin	SHANDONG,CHINA
brand name	SOAR
dimension(l*w*h)	8.2*5*2M
key selling points	Automatic
Grooving station	2
Pipe diameter	42-220mm
Pipe Length	Standard length1.8-6m
Pipe thickness	less 6mm
Way to control	Touch screen input, PLC programming control

The Automatic CNC Pipe Grooving Machine High Precision Pipe Grooving Equipment is an advanced industrial pipe processing solution designed for automatic and accurate groove forming on suitable steel and metal pipes. By combining CNC control with an automated grooving mechanism, the machine helps manufacturers achieve repeatable pipe processing and improve production efficiency.

Grooved pipe connections are widely used in fire protection, HVAC, water supply, industrial pipelines, and mechanical piping systems. Accurate groove dimensions and positioning are important when pipes are assembled with compatible grooved couplings and fittings. This CNC pipe grooving machine provides a controlled production solution for factories and pipe fabrication companies requiring consistent groove processing.

Automatic CNC Pipe Grooving

The machine uses a CNC-controlled operating system to coordinate the pipe positioning and grooving process according to programmed parameters and machine configuration.

Automatic control reduces repetitive manual operations and helps establish a more consistent processing cycle. Once the appropriate tooling and parameters are set, operators can monitor the machine while focusing on material loading, unloading, inspection, and production management.

High Precision Groove Processing

Precision is an important requirement for grooved pipe manufacturing. The CNC control system helps coordinate the machining sequence and positioning process to achieve repeatable groove results when the machine is correctly configured.

Groove dimensions depend on the pipe material, diameter, wall thickness, tooling, and required connection specification. Customers should provide technical drawings or groove requirements when requesting a specific configuration.

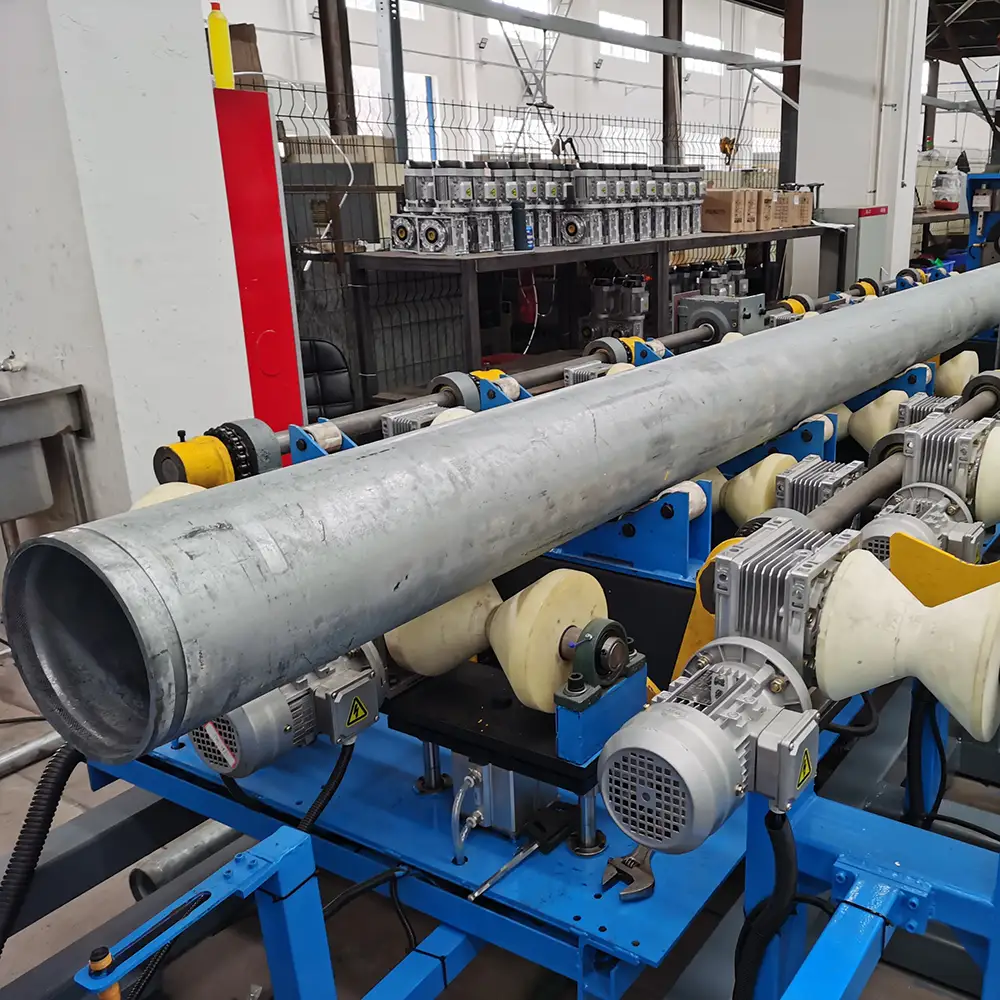

CNC Steel Pipe Grooving

The machine is primarily designed for suitable steel pipe groove forming applications. During processing, the pipe is securely positioned while the grooving mechanism applies controlled forming force to create the required groove.

Roll grooving forms the groove through controlled deformation of the pipe wall rather than conventional material removal. Proper roller selection and machine adjustment are important for achieving the required groove profile.

Automatic Pipe Positioning

Automatic pipe positioning can help reduce repetitive manual adjustment during production. Suitable fixtures, supports, sensors, or positioning mechanisms can be incorporated according to the machine configuration.

Stable positioning is especially important for production environments where multiple pipes need to be processed with consistent groove locations.

Consistent Groove Location

For grooved coupling applications, the groove must be positioned correctly relative to the pipe end. CNC-controlled processing can help maintain repeatable groove positioning across production batches.

This is useful for pipe manufacturers and fabrication companies producing standardized pipe sections for fire protection, HVAC, water supply, and industrial pipeline projects.

Fire Protection Pipe Applications

Grooved steel pipe systems are widely used in fire sprinkler and fire protection installations. The machine can be used for suitable groove processing of fire protection pipes before coupling and assembly.

It is suitable for manufacturers and contractors handling repeated quantities of fire sprinkler pipe, fire hydrant pipe, and other compatible grooved steel pipe products.

HVAC And Mechanical Piping

HVAC systems and mechanical piping projects may also use grooved steel pipe connections for suitable applications. CNC pipe grooving equipment can help improve the consistency of pipe-end preparation.

For HVAC pipe fabrication workshops, automated grooving can reduce repetitive manual operations and help create a more organized production workflow.

Water Supply And Industrial Pipelines

The machine can be applied to suitable steel pipes used in water supply systems, industrial pipelines, commercial buildings, warehouses, and mechanical installations.

CNC control is particularly useful when a factory needs repeatable processing across multiple batches of pipe products.

Efficient Batch Production

Manual pipe grooving can become time-consuming when large quantities of pipe sections must be processed. Automatic CNC operation can reduce repetitive handling and help maintain a stable production cycle.

Operators can manage multiple production steps while the machine performs programmed grooving operations, depending on the specific automation configuration.

Flexible CNC Programming

CNC control allows suitable processing parameters to be configured according to different pipe specifications and production requirements. The exact programming functions depend on the machine control system and configuration.

Different pipe diameters, wall thicknesses, groove profiles, and processing positions may require corresponding tooling and parameter settings.

Stable Pipe Clamping

Accurate grooving requires the workpiece to remain stable during forming. The machine can be equipped with suitable clamping and support components to reduce pipe movement.

For long or heavy pipes, additional supports may be integrated into the production line according to the pipe dimensions and factory layout.

Flexible Grooving Tooling

Different pipe specifications require appropriate rollers, dies, supports, and other grooving components. The machine can be configured with suitable tooling for the intended application.

Customers can provide pipe diameter ranges, material specifications, wall thickness, groove dimensions, and coupling requirements for technical evaluation.

Improved Production Quality

CNC-controlled processing can help reduce variations associated with repetitive manual operation. Consistent positioning, controlled movement, and appropriate tooling contribute to repeatable pipe groove processing.

Routine inspection of groove dimensions and machine components remains important for maintaining production quality.

Industrial Production Solution

The automatic CNC pipe grooving machine is suitable for pipe manufacturers, fire protection equipment suppliers, HVAC contractors, mechanical fabrication companies, pipeline contractors, and industrial workshops.

Its automated configuration makes it suitable for production environments where repeatability, process control, and efficient pipe preparation are important.

B2B Customized Manufacturing

Different customers may have different pipe sizes, groove profiles, connection standards, production volumes, and automation requirements. Therefore, machine configuration should be selected according to the actual application.

Customers can provide pipe samples, drawings, dimensions, material information, groove specifications, and production requirements. Based on these details, suitable CNC grooving equipment and tooling can be evaluated.

Key Features
Automatic CNC Pipe Grooving
High Precision Groove Processing
CNC Steel Pipe Grooving
Automatic Pipe Positioning
Controlled Groove Forming
Stable Pipe Clamping
Consistent Groove Location
Flexible CNC Programming
Customized Grooving Tooling
Efficient Batch Production
Reduced Manual Handling
Industrial Pipe Processing Design
Main Applications
Fire Sprinkler Pipes
Fire Fighting Pipes
Fire Protection Pipelines
Steel Water Pipes
HVAC Piping
Mechanical Piping
Industrial Pipelines
Commercial Building Pipelines
Warehouse Fire Protection Systems
Steel Pipe Fabrication
Pipe Processing Workshops
Pipeline Manufacturing
FAQs
1. What Is An Automatic CNC Pipe Grooving Machine?

It is an industrial pipe processing machine that uses CNC control and an automatic grooving mechanism to form accurate and repeatable grooves on suitable steel and metal pipes.

2. What Does CNC Control Do?

CNC control coordinates suitable machine movements and processing parameters to help automate the pipe grooving cycle and improve repeatability.

3. Is It Suitable For Steel Pipes?

Yes. The machine is primarily designed for suitable steel pipe groove forming. Material compatibility should be confirmed according to the machine configuration.

4. Is It Suitable For Fire Sprinkler Pipes?

Yes. Suitable fire sprinkler and fire protection steel pipes can be processed when their dimensions and groove requirements match the machine and tooling.

5. Can It Process Different Pipe Sizes?

Yes. Different pipe sizes can be supported when appropriate grooving rollers, fixtures, supports, and machine parameters are provided.

6. Does The Machine Automatically Position The Pipe?

Automatic positioning functions can be configured depending on the machine model. Suitable fixtures, supports, and positioning mechanisms may be used according to production requirements.

7. Can Groove Dimensions Be Customized?

Yes. Suitable tooling and CNC parameters can be selected according to pipe dimensions and required groove specifications.

8. Is It Suitable For Mass Production?

Yes. Automatic CNC operation is suitable for repetitive pipe grooving and batch production where consistent processing is required.

9. Can The Machine Be Integrated Into A Production Line?

Depending on the configuration, automatic feeding, pipe support, positioning, and other equipment can be integrated into a larger pipe processing workflow.

10. How Do I Select The Right CNC Grooving Machine?

Provide pipe diameter, length, material, wall thickness, groove dimensions, connection requirements, production volume, and desired automation level. These details help determine the appropriate machine configuration.

Why Choose Us
High Precision CNC Pipe Processing

We provide CNC-controlled pipe processing equipment designed for accurate and repeatable groove forming on suitable steel and metal pipes.

Automatic Production Configuration

Automatic positioning and CNC-controlled grooving can reduce repetitive manual operations and support efficient batch pipe processing.

Customized Tooling

Different pipe diameters and groove requirements may require specific rollers, fixtures, supports, and tooling. We can recommend suitable configurations based on customer specifications.

Factory-Direct Supply

We provide international customers with machine selection support, technical communication, export packaging, shipping coordination, operating documentation, and after-sales service.

Application-Based Technical Support

Customers can provide pipe samples, drawings, dimensions, groove specifications, and production requirements for technical evaluation before ordering.

Production-Oriented Solutions

We focus on practical pipe processing solutions for fire protection, HVAC, water supply, industrial pipeline, and pipe fabrication applications.
