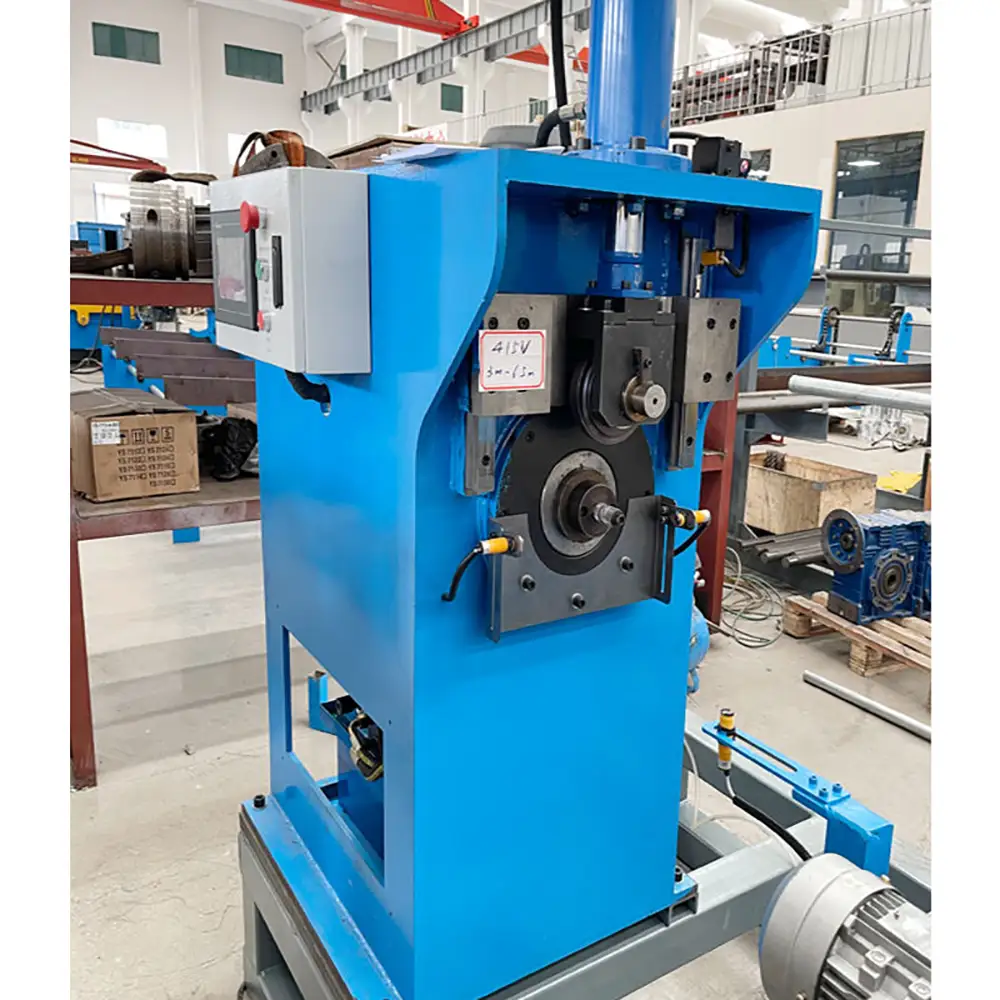

Automatic Double Heads Grooving Machine Fire Pipeline Loading Feed and Rolling groove Machine

1 PLC control
2 Double stations (or multiple stations).
3 Automatic conveying pipe
4 Press grooves on both sides separately
5 Automatic stacking after finishing pressing the groove

The Automatic Double Heads Grooving Machine Fire Pipeline Loading Feed And Rolling Groove Machine is an industrial pipe processing system designed for automatic pipe loading, feeding, positioning, and rolling groove forming. With a double-head grooving configuration, the machine provides an efficient solution for manufacturers processing compatible fire protection pipes and other industrial steel pipelines.

Pipe grooving is commonly used to prepare pipe sections for compatible mechanical grooved couplings and fittings. By forming a circumferential groove on the pipe, the machine can prepare suitable pipe ends for downstream connection and installation. Automatic material handling and controlled rolling groove forming can help reduce repetitive manual work while improving production consistency.

No	Item	parameter	note
1	structure type	Four-station host, electric mechanical feeding mechanism
2	Alveolar range	20-204mm, pipe length 1.8-6m	can be customized
3	Tube thickness	Max 6mm
4	Flare flanging	More than 1-3mm of pipe diameter, proportional to pipe diameter and thickness
5	Pressure groove size	Meet the industry standard CJ/T156-2001 standard
6	way to control	Touch screen input, PLC programming control
7	Pressure roller configuration	20-60, 65--80, 100--150, 204mm
8	Power	Feeding motor       1.5KW	One piece
		Adjust the aligned motors   0.37KW	One piece
		Rotating arm motor   1.5KW	three piece
		Roller lifting motor  0.75KW	Two piece
		Roller motor      0.37KW	Two piece
		Feeding mechanism lifting  0.55KW	One piece
		Spindle motor    4.0KW	Two piece
		Oil pump motor     1.5KW	Two piece
		Actual average power consumption 8KW
9	power supply	Three-phase four-wire system
10	Measure	8.2x5x2m
11	Productivity	An average one for piece each minute.

Automatic Double Head Pipe Grooving

The double-head configuration allows the machine to perform grooving operations using two processing heads according to the machine's specific design. This structure can help improve production efficiency when repeated pipe sections require organized groove processing.

The two grooving heads may be configured for simultaneous or coordinated processing depending on the machine model and production requirements. The exact working sequence should be confirmed according to the machine configuration.

Automatic Fire Pipeline Processing

The machine is designed for suitable fire protection and sprinkler pipeline applications where grooved mechanical connections are specified. Automatic loading and feeding help move pipe sections into the processing area with less manual handling.

For fire pipeline production, accurate groove location and consistent groove forming are important for subsequent coupling installation. The appropriate groove dimensions should follow the requirements of the selected coupling system.

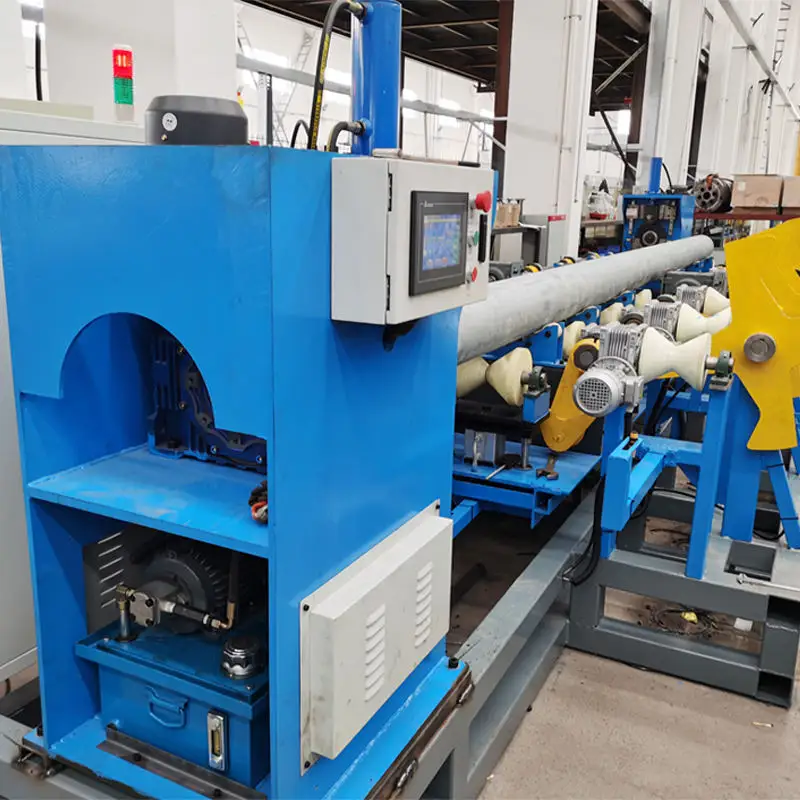

Automatic Pipe Loading

The automatic loading system transfers raw pipe sections from the material loading area toward the feeding and processing section. This reduces the need for operators to manually lift and place each individual pipe.

Loading components can be configured according to pipe length, diameter, weight, and factory workflow. Suitable supports and guides help maintain stable material movement throughout the production cycle.

Automatic Pipe Feeding

After loading, the feeding system moves the pipe into the required processing position. Controlled feeding helps maintain repeatable positioning and reduces interruptions between individual pipe sections.

For batch production, automatic feeding can provide a continuous material flow to the grooving station. The exact feeding method depends on the pipe specifications and machine configuration.

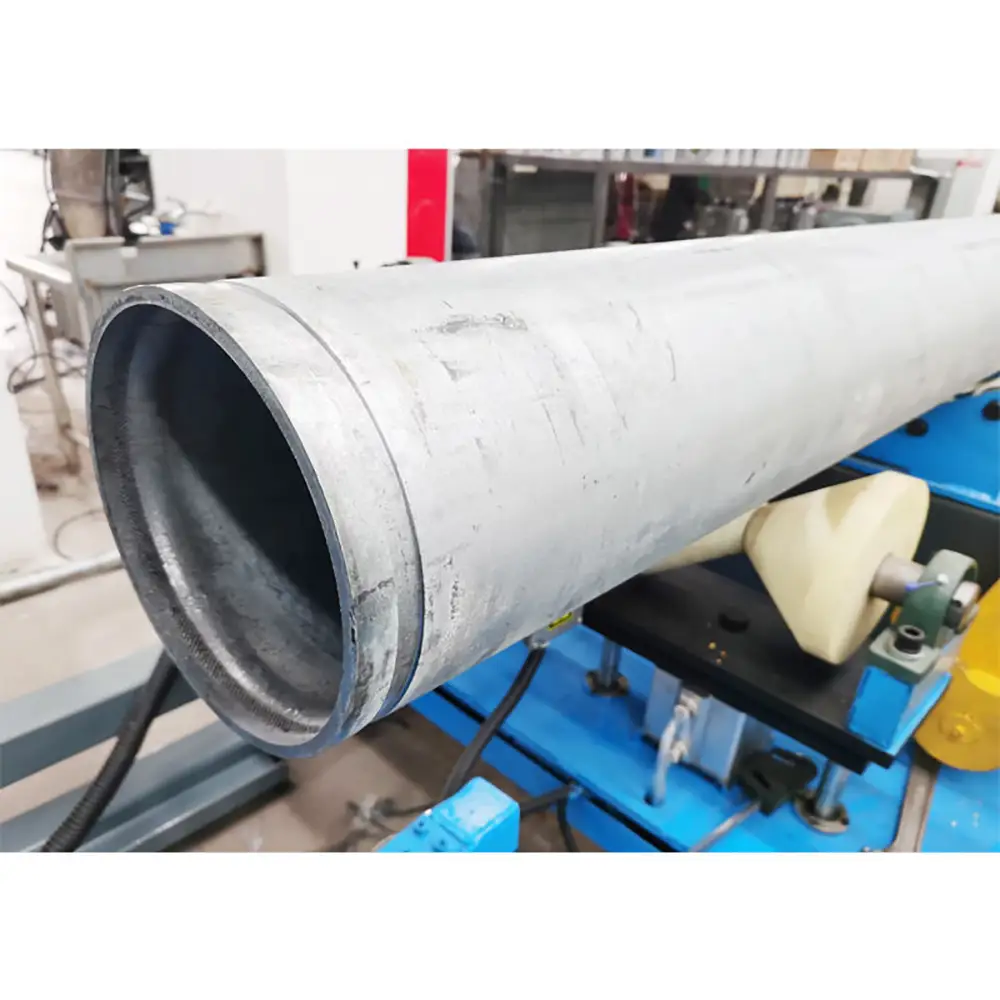

Rolling Groove Forming

The machine uses a rolling groove process to form a circumferential groove on compatible pipe surfaces. Instead of removing material through conventional cutting, the groove is generally formed through controlled deformation using a grooving roller.

Rolling groove forming can provide an efficient process for repeated pipe preparation. Proper roller selection, pipe support, clamping, and processing parameters are important for achieving consistent results.

Double Head Processing Efficiency

A double-head design can provide additional processing flexibility compared with a single-head configuration. Depending on the machine structure, the two heads can support coordinated processing of pipe ends or other programmed groove operations.

This design is particularly useful for production environments where large quantities of standardized pipe sections need to be processed efficiently.

Accurate Pipe Positioning

The pipe must be positioned correctly before the rolling groove operation begins. Automatic feeding and positioning components help place the pipe according to the configured processing parameters.

Consistent positioning is important when the finished pipes are intended for repeated use with compatible couplings, fittings, valves, or other grooved connection components.

Stable Pipe Clamping

Stable clamping prevents unnecessary pipe movement during groove forming. The machine can be equipped with suitable clamps, supports, guides, and fixtures according to the pipe diameter and length.

Long or heavy fire pipeline sections may require additional support during loading, feeding, and grooving to maintain stable alignment.

Fire Sprinkler Pipe Applications

Grooved pipe systems are widely used in suitable fire protection and sprinkler piping applications. The machine can process compatible steel pipes for projects requiring grooved mechanical connections.

The exact groove profile, dimensions, and pipe specifications should be matched to the selected coupling and piping system. Machine tooling should be evaluated according to pipe material, diameter, wall thickness, and production requirements.

Galvanized And Carbon Steel Pipes

Depending on the machine configuration and tooling, compatible galvanized steel and carbon steel pipes can be processed. Galvanized surfaces require suitable rollers and processing parameters to help maintain consistent groove formation.

Different pipe materials and wall thicknesses can respond differently to rolling pressure. Proper machine adjustment and testing are recommended before large-scale production.

High-Efficiency Batch Production

Automatic loading, feeding, positioning, and rolling grooving can help reduce repetitive material handling in high-volume production environments.

Operators can focus on monitoring the machine, checking finished pipe quality, replenishing raw materials, and performing routine maintenance rather than manually positioning every pipe.

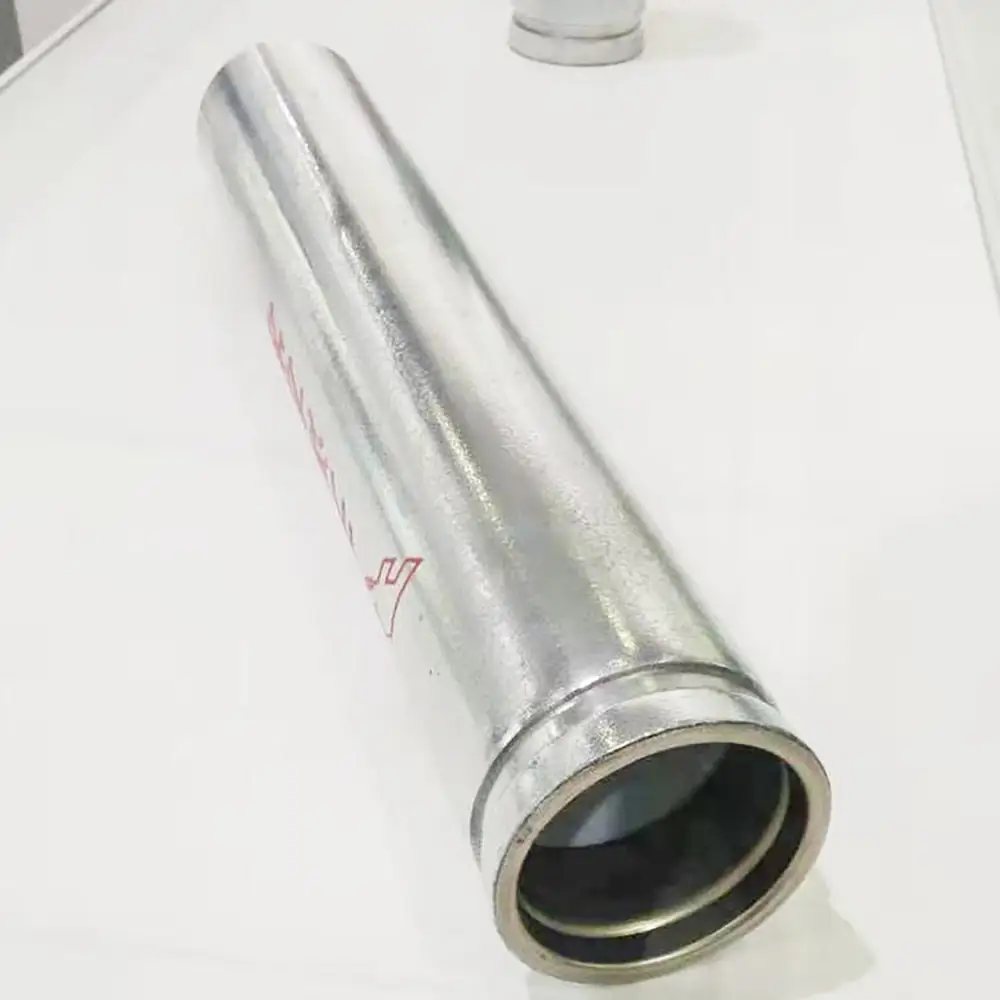

Consistent Groove Formation

Consistent groove formation is important for pipes intended for compatible grooved connection systems. Automatic positioning, stable clamping, controlled rolling force, and suitable tooling can help improve repeatability across production batches.

Regular inspection of groove location, dimensions, pipe end condition, and surface quality can further support production quality control.

Flexible Pipe Processing

The machine can be configured for suitable pipe sizes and materials according to the production application. Different diameters and wall thicknesses may require different grooving rollers, clamps, guides, and machine settings.

Customers can provide pipe samples, technical drawings, outside diameter, wall thickness, pipe length, groove requirements, and production volume for machine configuration evaluation.

Reduced Manual Labor

Manual pipe grooving can require workers to repeatedly load, position, clamp, and remove heavy pipe sections. Automatic loading and feeding can significantly reduce repetitive material handling.

This can help improve operator efficiency while allowing production personnel to concentrate on machine supervision and quality inspection.

Integrated Pipe Processing Workflow

By combining pipe loading, feeding, positioning, and rolling groove forming into one automated system, the machine can simplify the production workflow.

An integrated system can be especially useful for pipe fabrication factories that process large quantities of similar fire pipeline sections and need a stable, repeatable production cycle.

Industrial Pipeline Applications

In addition to fire protection piping, suitable grooved pipe processing can be used in HVAC, water supply, mechanical piping, industrial fluid transport, utility pipelines, and other applications where compatible grooved connection systems are used.

Application suitability depends on pipe material, dimensions, groove requirements, and the specifications of the selected connection components.

Customized B2B Pipe Grooving Solution

The Automatic Double Heads Grooving Machine is suitable for fire protection pipe manufacturers, steel pipe processors, pipeline equipment suppliers, HVAC manufacturers, mechanical contractors, and industrial OEM factories.

Customers can provide pipe samples, technical drawings, material specifications, groove dimensions, production volume, and factory layout information. These details can be used to evaluate suitable loading, feeding, grooving, and tooling configurations.

Key Features
Automatic Double Head Grooving
Automatic Pipe Loading
Automatic Pipe Feeding
Fire Pipeline Processing
Rolling Groove Forming
Automatic Pipe Positioning
Stable Pipe Clamping
Consistent Groove Formation
Galvanized Steel Pipe Compatibility
High-Efficiency Batch Production
Reduced Manual Material Handling
Customized Machine Configuration
Main Applications
Fire Protection Pipelines
Fire Sprinkler Pipes
Fire Fighting Pipes
Galvanized Steel Pipes
Carbon Steel Pipes
Grooved Coupling Connections
HVAC Piping
Water Supply Piping
Mechanical Piping
Industrial Pipelines
Pipeline Fabrication
Steel Pipe Processing
FAQs
1. What Is An Automatic Double Head Pipe Grooving Machine?

It is an automated pipe processing machine equipped with two grooving heads for controlled groove forming on compatible pipes.

2. What Does The Double Head Design Provide?

The double-head structure can provide additional processing efficiency and flexibility, depending on the machine's specific working configuration.

3. Does The Machine Automatically Load Pipes?

Yes. An automatic loading system can transfer pipe sections from the loading area into the feeding and processing system according to the machine configuration.

4. Does It Automatically Feed The Pipe?

Yes. The automatic feeding system can move and position compatible pipes for the grooving operation, reducing repetitive manual handling.

5. What Is Rolling Groove Forming?

Rolling groove forming creates a circumferential groove through controlled deformation using a grooving roller rather than conventional material removal.

6. Can It Process Fire Sprinkler Pipes?

Yes. It is suitable for compatible fire sprinkler and fire protection pipe applications where grooved mechanical connections are specified.

7. Can It Process Galvanized Steel Pipes?

Yes. Compatible galvanized steel pipes can be processed with suitable rollers and machine parameters.

8. Can Different Pipe Sizes Be Processed?

Different pipe diameters and wall thicknesses may require different rollers, clamps, guides, or machine configurations. Exact specifications should be confirmed before ordering.

9. Can The Loading And Feeding System Be Customized?

Yes. Loading racks, feeding components, pipe supports, guides, clamps, and positioning systems can be configured according to pipe dimensions and factory requirements.

10. What Information Is Needed For Machine Selection?

Provide pipe material, outside diameter, wall thickness, pipe length, groove dimensions, coupling requirements, production volume, and samples or drawings when available.

Why Choose Us
Integrated Automatic Pipe Grooving Solution

We provide automated equipment combining pipe loading, feeding, positioning, clamping, and rolling groove forming for efficient industrial pipe processing.

Double Head Processing Design

The double-head configuration provides additional processing flexibility for manufacturers handling repeated quantities of pipe sections.

Automatic Loading And Feeding

The material handling system can be configured to reduce repetitive manual pipe handling and create a more organized production workflow.

Customized Grooving Tooling

We can configure grooving rollers, clamps, guides, fixtures, and supports according to pipe diameter, material, wall thickness, and groove requirements.

Sample-Based Technical Support

Customers can provide pipe samples, drawings, dimensions, material information, and production requirements for machine and tooling evaluation.

Factory-Direct B2B Supply

We support international fire protection suppliers, pipe manufacturers, distributors, contractors, industrial manufacturers, and OEM customers.

Export And After-Sales Service

We provide technical documentation, operating guidance, export packaging, shipping coordination, spare-part support, and after-sales technical assistance.
