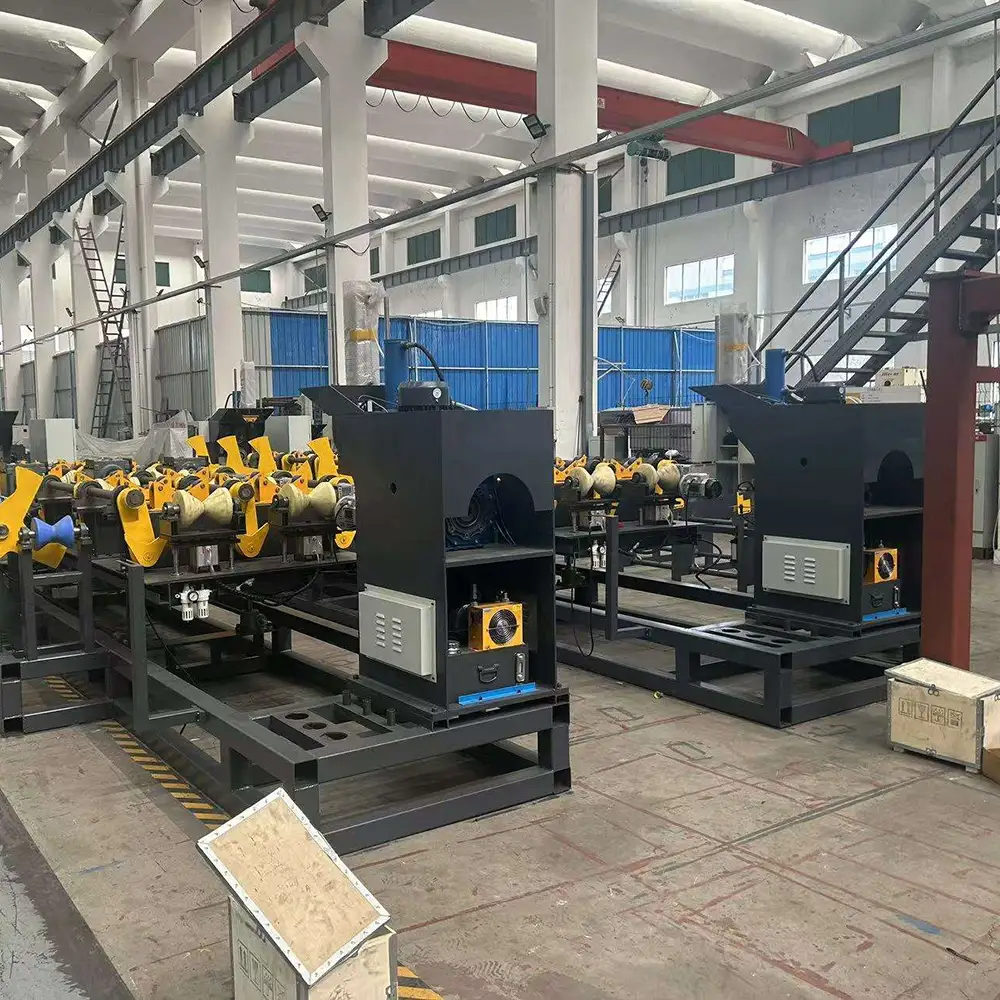

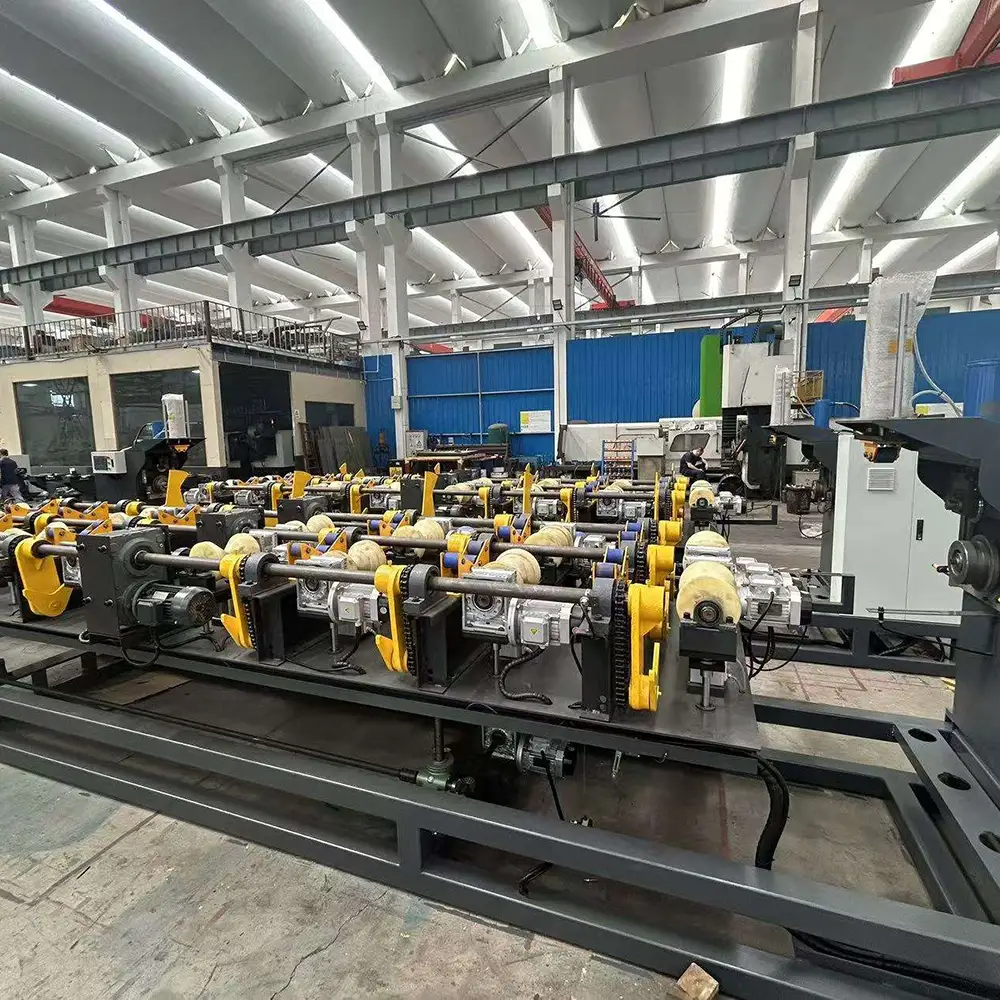

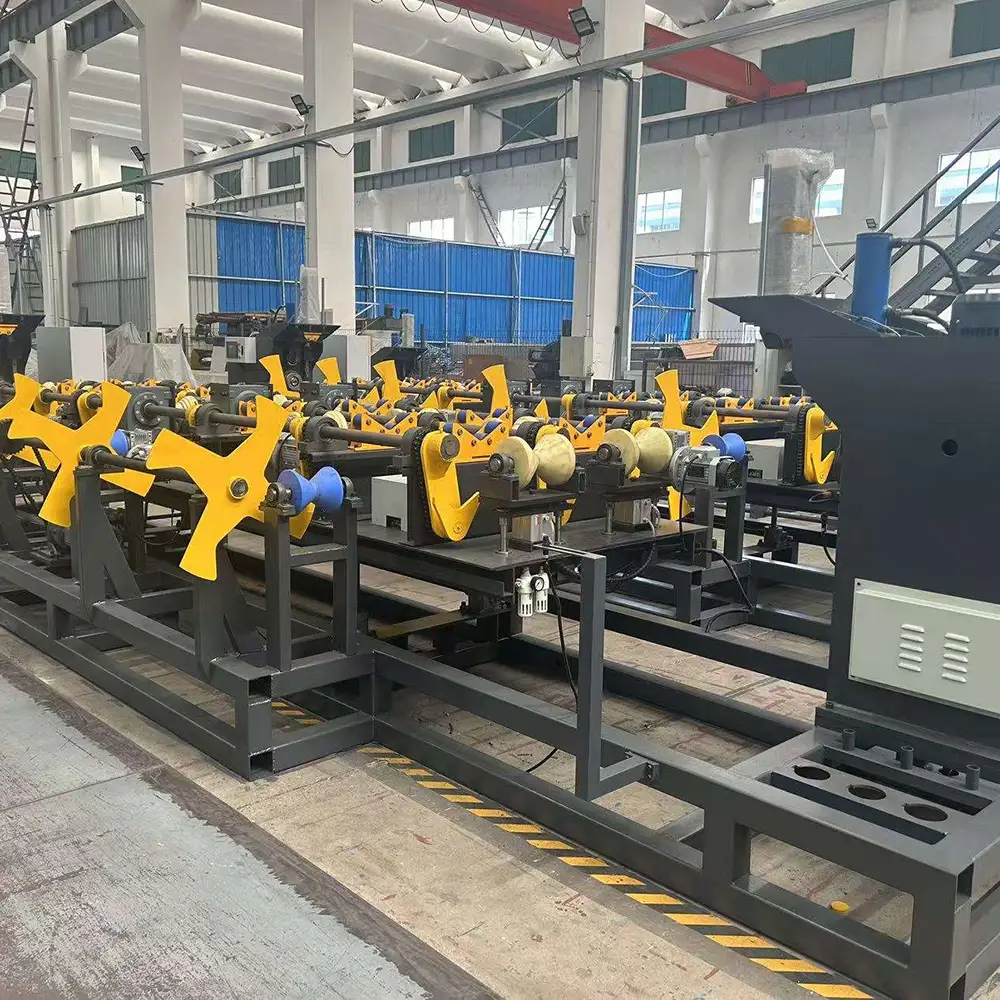

Automatic CNC Grooving Machine for Pipe High Precision Pipe Grooving Equipment

The Automatic CNC Grooving Machine for Pipe | High Precision Equipment is an industrial pipe processing machine designed for accurate and repeatable groove forming on suitable steel and metal pipes. Combining CNC control with automatic grooving technology, the equipment provides controlled positioning, stable workholding, and consistent groove processing for pipe fabrication and industrial production.

Grooved pipe connections are widely used in fire protection, HVAC, water supply, mechanical piping, and industrial pipeline systems. Accurate groove formation helps ensure compatibility with suitable grooved couplings and fittings. This automatic CNC grooving machine provides manufacturers and contractors with a production-oriented solution for reducing repetitive manual work while improving processing consistency.

power (kw)	18kw
warranty	1 Year
place of origin	SHANDONG,CHINA
brand name	SOAR
dimension(l*w*h)	8.2*5*2M
key selling points	Automatic
Grooving station	2
Pipe diameter	42-220mm
Pipe Length	Standard length1.8-6m
Pipe thickness	less 6mm
Way to control	Touch screen input, PLC programming control

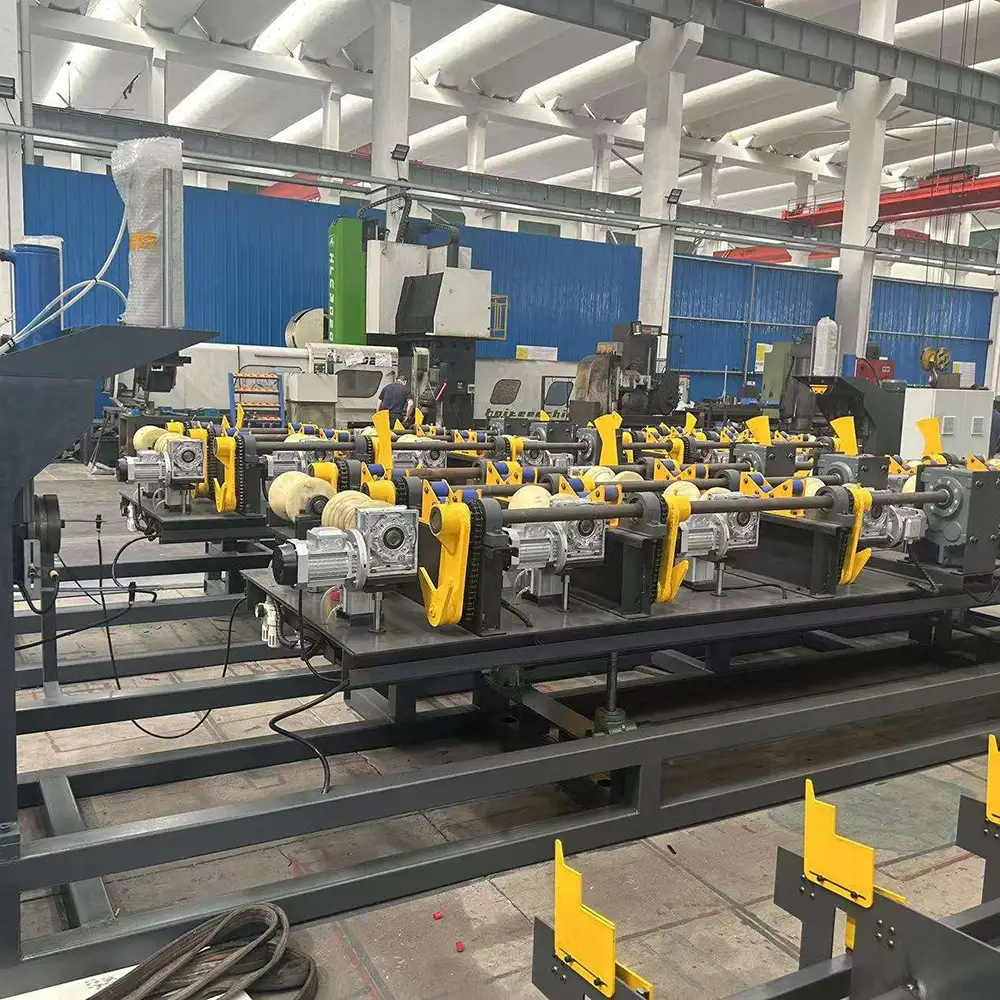

Automatic CNC Pipe Grooving

The machine uses CNC control to coordinate the pipe grooving process according to configured processing parameters. Depending on the machine model, automated functions can include positioning, clamping, groove forming, and other processing steps.

CNC automation helps reduce repetitive operator adjustments and provides a more consistent production sequence. Operators can focus on loading and unloading, quality inspection, and machine monitoring.

High Precision Groove Processing

High precision is important when producing grooved pipes for compatible coupling systems. CNC-controlled movement helps maintain repeatable processing positions when the machine is correctly configured and maintained.

The actual groove dimensions depend on pipe material, diameter, wall thickness, grooving rollers, and connection requirements. Customers should provide technical drawings or groove specifications for specific applications.

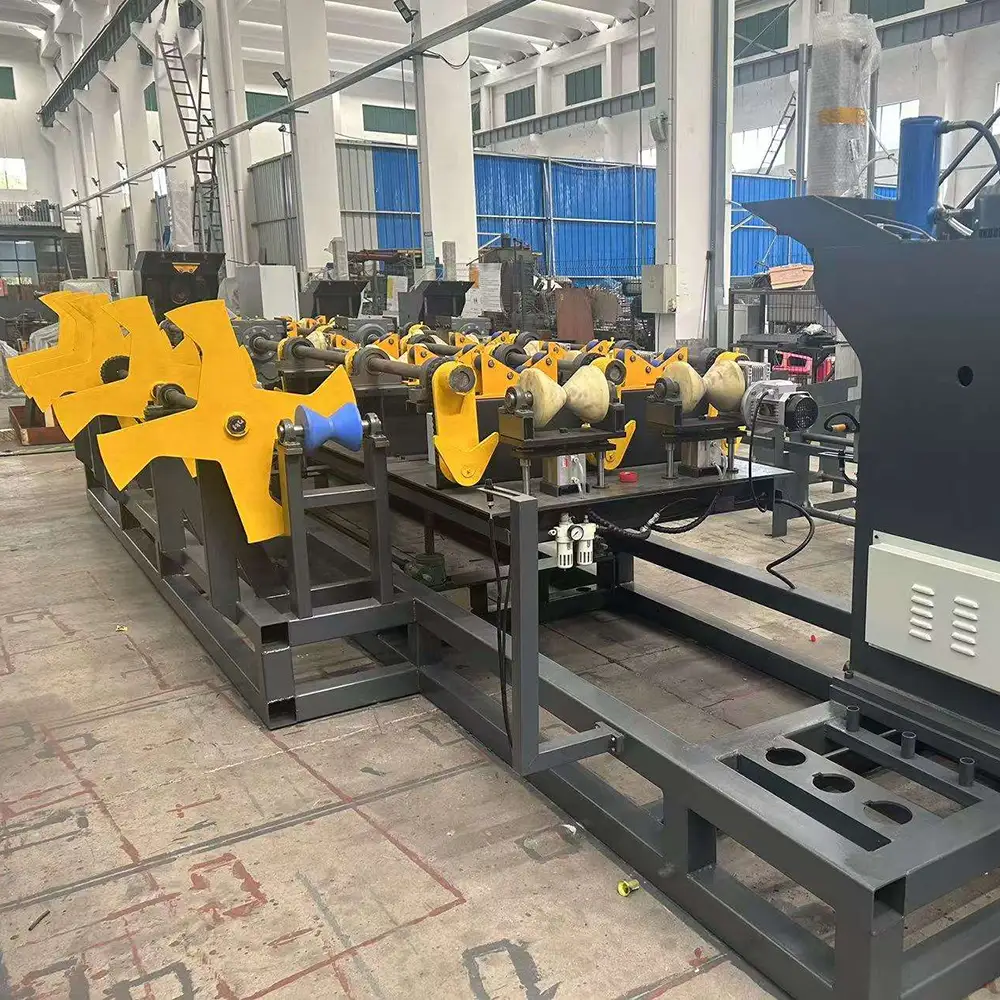

CNC Steel Pipe Grooving

The machine is designed primarily for suitable steel pipe grooving. During operation, the pipe is positioned and securely supported while the grooving mechanism applies controlled forming force.

Roll grooving generally forms the groove through controlled deformation of the pipe wall rather than conventional cutting. Correct tooling selection and machine adjustment are important for achieving the required groove profile.

Automatic Pipe Positioning

Automatic or controlled positioning helps maintain the correct groove location on the pipe. Depending on the machine configuration, suitable clamps, fixtures, supports, sensors, or positioning mechanisms can be used.

This reduces repetitive manual measurement and adjustment, especially when processing large batches of similar pipe sections.

Stable Pipe Clamping

Stable workholding is essential for consistent groove formation. The machine can be equipped with suitable clamping and support components to minimize unwanted pipe movement during processing.

For long or heavy pipes, additional pipe supports can be integrated into the production setup according to pipe dimensions and factory layout.

Consistent Groove Location

The position of the groove relative to the pipe end is important when using compatible grooved couplings. CNC-controlled positioning can help maintain repeatable groove locations across production batches.

This is useful for manufacturers producing standardized fire protection pipes, HVAC pipes, water pipes, and industrial pipeline components.

Fire Protection Pipe Applications

Grooved steel pipes are widely used in suitable fire sprinkler, fire hydrant, and fire protection systems. The machine can be used for compatible pipe grooving applications before coupling and installation.

Fire protection pipe manufacturers can use automatic CNC processing to establish a more consistent workflow for repeated pipe-end preparation.

HVAC Pipe Processing

Suitable grooved steel pipes are also used in HVAC and mechanical piping applications. Automatic CNC grooving can help prepare pipe sections for commercial buildings, factories, warehouses, and industrial facilities.

Controlled processing helps reduce repetitive manual operations in HVAC pipe fabrication workshops.

Water Supply And Industrial Pipelines

The machine can process suitable steel pipes used in water supply, industrial cooling, utility pipelines, and mechanical installations.

Different pipe materials, diameters, wall thicknesses, and groove profiles may require different tooling and processing parameters.

Efficient Batch Production

Manual grooving requires repeated pipe positioning, clamping, and groove forming. Automatic CNC operation can reduce repetitive labor and help establish a more efficient batch production process.

For manufacturers handling regular quantities of grooved pipes, automated processing can help improve workflow organization and production repeatability.

CNC Processing Control

CNC control allows suitable processing parameters and movement sequences to be configured according to the machine model and pipe application.

This provides greater control over repeatable production compared with purely manual pipe grooving. The exact programming and control functions depend on the selected CNC system.

Flexible Grooving Tooling

Different pipe specifications require appropriate grooving rollers, dies, fixtures, and supports. The machine can be configured according to the intended pipe range and groove requirements.

Customers can provide pipe diameter, wall thickness, material, groove dimensions, and coupling specifications for tooling evaluation.

Reduced Manual Handling

Automatic pipe grooving reduces repetitive operator movements during the processing cycle. Operators can concentrate on material handling, machine monitoring, groove inspection, and production management.

This can be beneficial for factories with continuous or batch pipe fabrication requirements.

Consistent Production Quality

CNC control, stable clamping, accurate positioning, and suitable grooving tooling can help reduce processing variations between individual pipe sections.

Regular inspection of groove dimensions and maintenance of rollers, clamps, hydraulic or mechanical components, and other wear parts are recommended for stable operation.

Industrial Pipe Fabrication

The machine is suitable for pipe fabrication workshops, steel pipe manufacturers, fire protection equipment suppliers, HVAC contractors, mechanical contractors, and industrial pipeline companies.

It can be incorporated into production workflows where repeatable and controlled pipe groove processing is required.

Customized B2B Solution

Different customers may have different pipe diameters, materials, wall thicknesses, groove profiles, production volumes, and automation requirements.

Customers can provide pipe samples, drawings, technical specifications, groove requirements, and production targets. Based on this information, suitable CNC grooving equipment and tooling can be evaluated.

Key Features
Automatic CNC Pipe Grooving
High Precision Groove Processing
CNC Steel Pipe Grooving
Automatic Pipe Positioning
Stable Pipe Clamping
Controlled Groove Forming
Consistent Groove Location
Flexible CNC Processing
Customized Grooving Tooling
Efficient Batch Production
Reduced Manual Handling
Industrial Pipe Fabrication Solution
Main Applications
Fire Protection Pipes
Fire Sprinkler Pipes
Fire Hydrant Pipes
Steel Water Pipes
HVAC Piping
Mechanical Piping
Industrial Pipelines
Commercial Building Pipelines
Warehouse Fire Protection Systems
Steel Pipe Fabrication
Pipe Processing Workshops
Pipeline Manufacturing
FAQs
1. What Is An Automatic CNC Grooving Machine For Pipe?

It is an industrial machine that uses CNC control and an automatic grooving mechanism to form accurate and repeatable grooves on suitable steel and metal pipes.

2. What Are The Benefits Of CNC Pipe Grooving?

CNC control can automate positioning and processing sequences, reduce repetitive manual adjustments, and help improve groove processing consistency.

3. Can It Process Steel Pipes?

Yes. The machine is primarily designed for suitable steel pipe grooving applications. The actual pipe size and material range depends on the machine configuration and tooling.

4. Is It Suitable For Fire Protection Pipes?

Yes. Suitable fire sprinkler, fire hydrant, and fire protection steel pipes can be processed when their specifications match the machine and tooling.

5. Can It Process Different Pipe Sizes?

Yes. Different pipe sizes can be processed when appropriate rollers, clamps, supports, and machine parameters are selected.

6. Can The Groove Position Be Controlled?

Yes. CNC positioning and suitable workholding components can help maintain a consistent groove position relative to the pipe end.

7. Can Groove Dimensions Be Customized?

Suitable rollers and CNC processing parameters can be selected according to pipe diameter, wall thickness, material, and required groove specifications.

8. Is The Machine Suitable For Mass Production?

Yes. Automatic CNC grooving is suitable for repetitive and batch production where consistent processing and efficient workflow are required.

9. Can It Be Integrated Into A Pipe Production Line?

Depending on the configuration, the machine can be combined with suitable feeding, pipe support, inspection, and handling equipment.

10. What Information Is Needed For Machine Selection?

Provide pipe material, diameter range, wall thickness, length, groove dimensions, connection requirements, production volume, and desired automation level. These details help determine the appropriate configuration.

Why Choose Us
High Precision CNC Pipe Processing

We provide CNC-controlled pipe grooving equipment designed for accurate and repeatable groove forming on suitable steel and metal pipes.

Automatic Production Technology

Automatic positioning, clamping, and groove forming can reduce repetitive manual work and help establish a stable production workflow.

Flexible Tooling Configuration

Different pipe sizes and groove specifications may require dedicated rollers, fixtures, and supports. We provide tooling recommendations based on actual customer requirements.

Factory-Direct Supply

We support international customers with machine selection, technical communication, export packaging, shipping coordination, operating documentation, and after-sales service.

Application-Based Technical Support

Customers can provide pipe samples, drawings, dimensions, groove specifications, and production requirements for technical evaluation before ordering.

Production-Oriented Solutions

Our equipment is designed for practical pipe fabrication applications including fire protection, HVAC, water supply, mechanical piping, and industrial pipelines.
