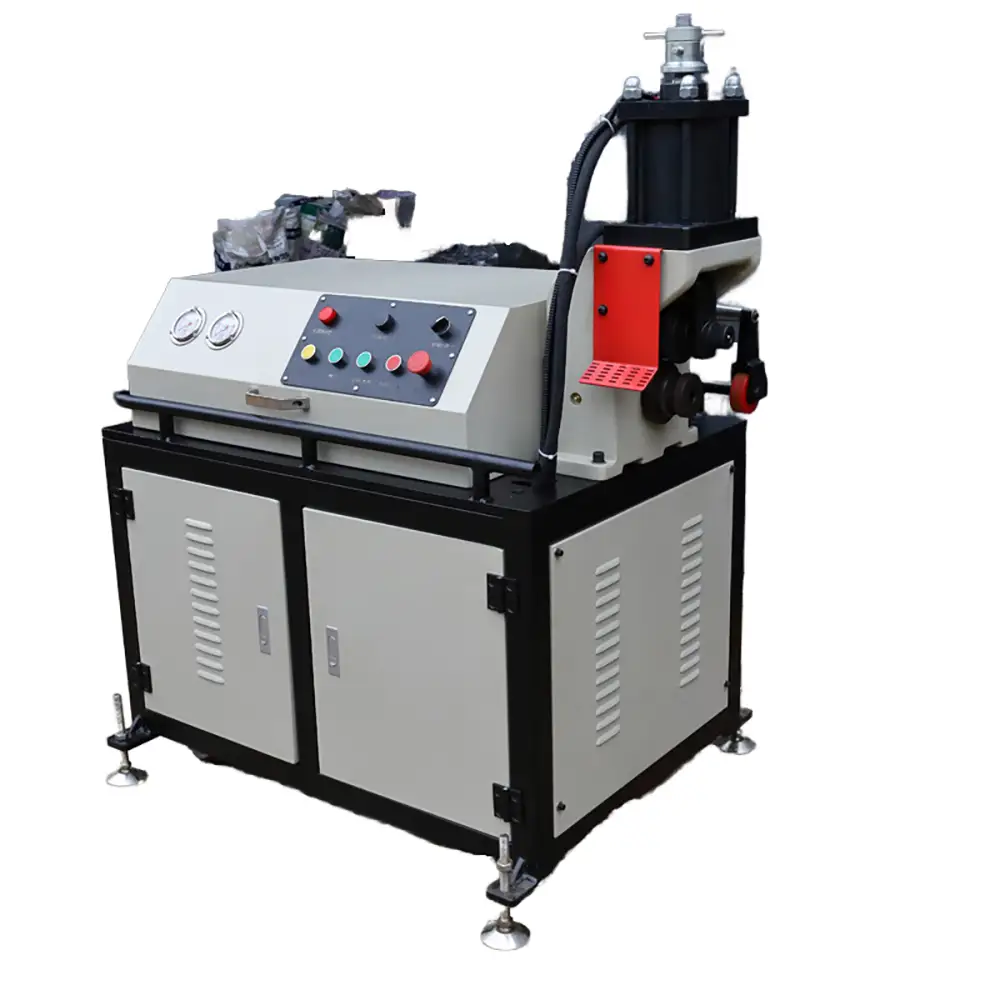

Button-type Fully Automatic Grooving Machine, Suitable for Round Pipes with a Diameter of 2＂ to 12＂

The Button-Type Fully Automatic Grooving Machine for 2"-12" Round Pipes is an industrial pipe processing machine designed for automatic and consistent groove forming on suitable round steel and metal pipes. With a processing range of approximately 2 to 12 inches, the machine provides an efficient solution for pipe fabrication applications where repeatable groove positioning and stable production are required.

Grooved pipe connections are widely used in fire protection, sprinkler systems, HVAC, water supply, mechanical piping, and industrial pipeline applications. A fully automatic grooving machine can reduce repetitive manual operations and help manufacturers establish a more efficient pipe processing workflow.

The button-type operating structure provides a practical control method for machine operation. Depending on the specific configuration, automatic functions may include pipe positioning, clamping, groove forming, and cycle control.

item	value
power (kw)	0.75
voltage	380V
weight (kg)	455
dimension(l*w*h)	125*100*150CM
key selling points	Automatic
Color	White and black
Grooving Capacity	2“ to 12” (DN50 to DN300, 60 to 325) steel pipes (optional 16")
Output Speed	23RPM
Pipe Maximum Thickness	10mm

Fully Automatic Pipe Grooving

The machine is designed to automate the main groove-forming process for compatible round pipes. Once the pipe is correctly positioned and the machine parameters are configured, the automatic cycle can reduce repetitive manual intervention.

This makes the equipment suitable for factories and workshops processing repeated batches of similar pipe sections. Automatic operation can help improve production consistency while allowing operators to focus on loading, unloading, inspection, and equipment monitoring.

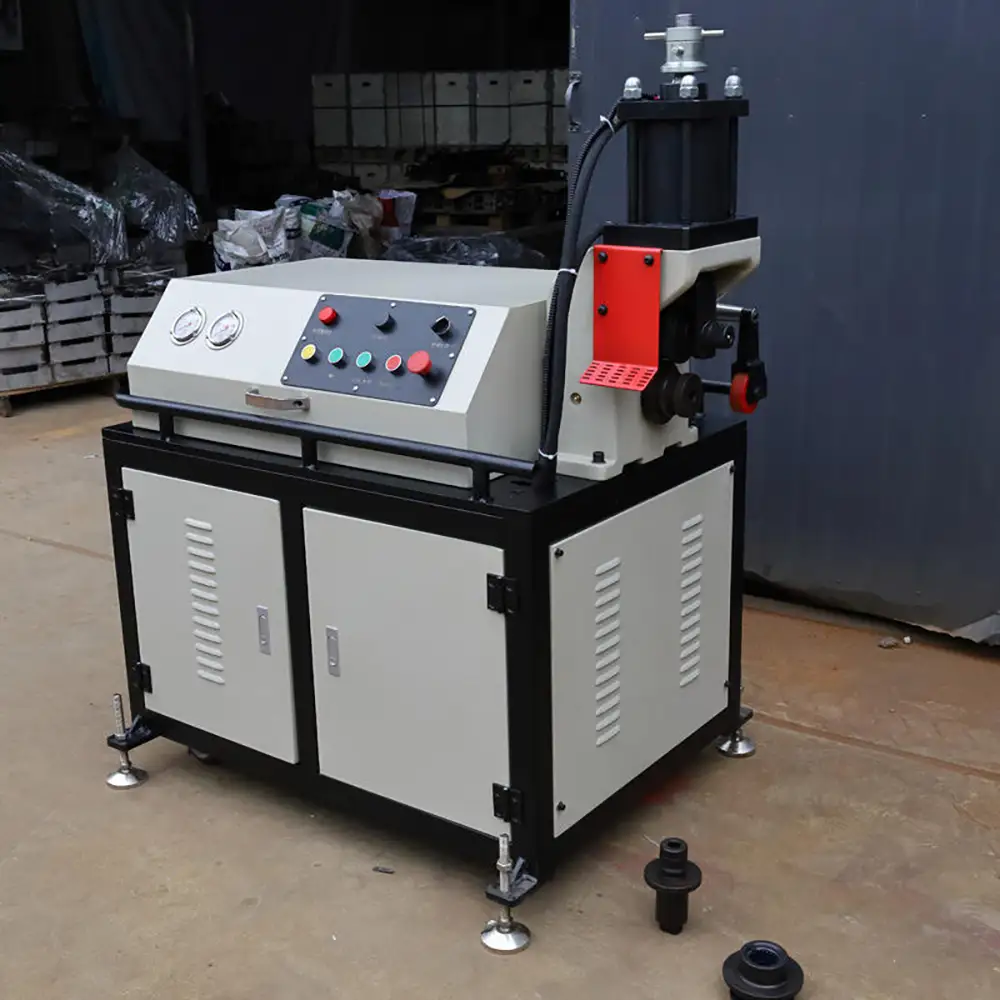

Button-Type Operating Design

The button-type control design provides a straightforward operating method for production environments. Operators can use the machine controls to initiate or manage the appropriate processing cycle according to the machine configuration.

A simple control structure can be particularly useful in workshops where operators need practical and repeatable machine operation without unnecessary complexity.

2"-12" Round Pipe Processing

The machine is designed for compatible round pipes within the 2"-12" size range. This range covers many commonly used pipe dimensions in fire protection, HVAC, water supply, construction, and mechanical piping.

Actual pipe diameter, wall thickness, material, groove profile, and production requirements should be confirmed according to the selected machine model and tooling configuration.

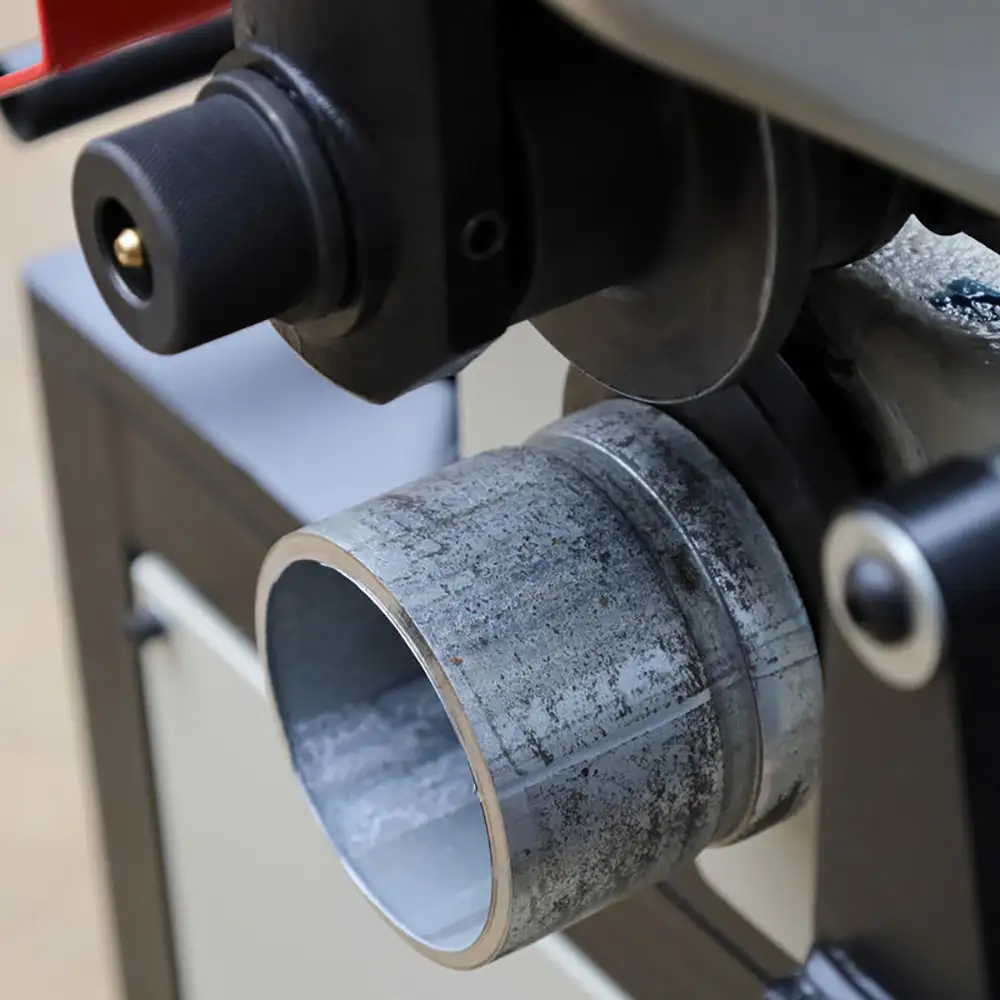

Round Pipe Groove Forming

The grooving process forms a circumferential groove around the outside of the pipe. Suitable rollers or forming tools apply controlled mechanical pressure to create the required groove profile.

Roll grooving generally forms the groove through controlled deformation rather than conventional cutting. Correct tooling and machine adjustment are important for achieving consistent results.

Stable Pipe Clamping

Stable pipe clamping helps keep the workpiece in the correct position during groove forming. Suitable clamps and supports can reduce unwanted pipe movement while the grooving mechanism applies forming force.

For longer pipes, additional supports can be used according to the pipe length, weight, diameter, and workshop layout.

Automatic Pipe Positioning

Automatic or controlled positioning can help maintain a consistent groove location relative to the pipe end. This is particularly useful for repeated production of pipe sections intended for compatible grooved coupling systems.

Consistent positioning can reduce repetitive manual measurement and help improve the efficiency of batch processing.

Consistent Groove Formation

Uniform groove dimensions are important when grooved pipes are assembled with compatible couplings and fittings. Stable clamping, suitable rollers, controlled forming pressure, and correct pipe positioning can contribute to repeatable groove quality.

During production, operators should periodically inspect groove depth, width, position, and pipe condition according to the applicable technical requirements.

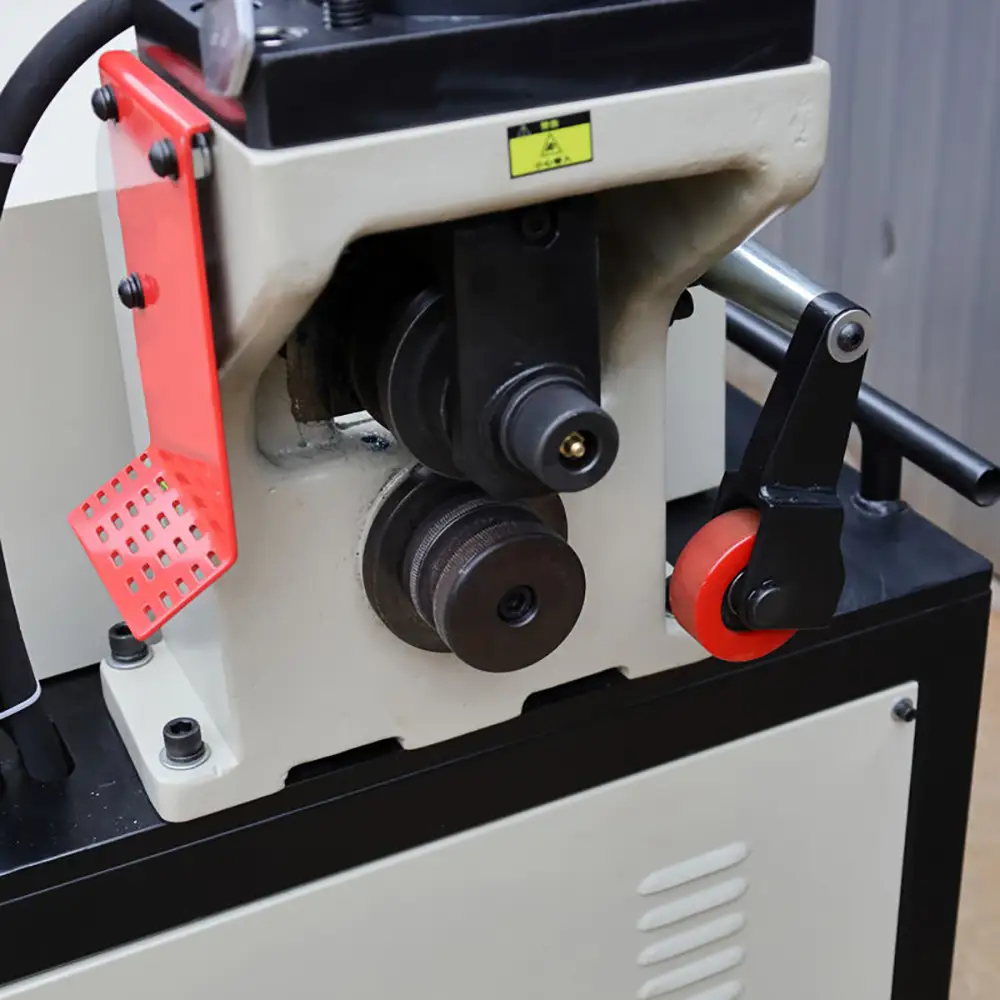

Fire Protection Pipe Applications

Fire protection and sprinkler piping are important applications for pipe grooving equipment. Suitable round steel pipes can be processed to prepare them for compatible grooved connection systems.

The machine can support production workflows for fire protection contractors, sprinkler pipe suppliers, pipe fabrication companies, and equipment manufacturers.

HVAC And Mechanical Piping

Grooved piping is also used in suitable HVAC, chilled-water, mechanical, and building service applications. The 2"-12" processing range provides flexibility for many common pipe sizes.

Different HVAC projects may use different pipe materials, wall thicknesses, and connection requirements, so appropriate tooling should be selected for each application.

Water Supply Applications

The machine can be used for suitable water supply and utility piping where grooved pipe connections are required.

For water piping applications, the pipe material, diameter, wall thickness, and groove specifications should be matched with the machine configuration and tooling.

Efficient Batch Production

Manual pipe grooving requires repeated positioning, clamping, measuring, and mechanical operation. A fully automatic grooving machine can reduce these repetitive tasks and help establish a more efficient production cycle.

For factories processing large quantities of similar round pipes, automation can improve workflow organization and reduce unnecessary operator handling.

Reduced Manual Labor

Automatic processing reduces the amount of repetitive manual work required during groove forming. Operators can concentrate on material handling, production inspection, machine monitoring, and routine maintenance.

This can be beneficial for manufacturers seeking to improve labor utilization while maintaining a controlled pipe fabrication process.

Flexible Grooving Tooling

Different pipe diameters and wall thicknesses may require different rollers, clamps, fixtures, and support components. The machine can be configured according to the intended pipe range and groove requirements.

Customers can provide pipe samples, dimensions, material information, wall thickness, groove drawings, and production requirements for tooling evaluation.

Suitable For Steel And Metal Pipes

The machine is primarily intended for compatible round steel and metal pipe applications. Depending on the machine configuration, suitable galvanized steel or other compatible pipe materials may also be processed.

Material properties and surface condition should be considered when selecting rollers and processing parameters.

Industrial Pipe Fabrication

The machine is suitable for pipe fabrication workshops, fire protection contractors, HVAC companies, mechanical contractors, steel pipe suppliers, construction companies, and industrial pipeline manufacturers.

It can be integrated into production processes involving pipe cutting, end preparation, grooving, inspection, handling, and packaging.

Customized B2B Production Solution

Different customers may have different pipe sizes, groove requirements, production volumes, and automation needs. A customized machine configuration can therefore be evaluated according to the actual application.

Customers can provide pipe diameter, wall thickness, material, length, groove specifications, production volume, and desired automation level. These details help determine suitable tooling and machine configuration.

Key Features
Fully Automatic Pipe Grooving
Button-Type Machine Operation
2"-12" Round Pipe Range
Automatic Pipe Positioning
Stable Pipe Clamping
Controlled Groove Forming
Consistent Groove Location
Suitable For Round Steel Pipes
Flexible Grooving Tooling
Efficient Batch Production
Reduced Manual Labor
Industrial Pipe Processing Solution
Main Applications
Round Steel Pipes
Fire Protection Pipes
Fire Sprinkler Pipes
HVAC Pipes
Water Supply Pipes
Mechanical Piping
Galvanized Steel Pipes
Industrial Pipelines
Construction Piping
Commercial Building Piping
Pipe Fabrication Workshops
Grooved Pipe Production
FAQs
1. What Is A Button-Type Fully Automatic Grooving Machine?

It is an industrial machine designed to automatically form circumferential grooves on suitable round pipes using a button-type operating and control system.

2. What Pipe Sizes Can It Process?

The machine is designed for compatible round pipes from approximately 2 to 12 inches. The exact outside diameter and wall thickness range should be confirmed for the selected model.

3. Can It Process Round Steel Pipes?

Yes. Suitable round steel pipes can be processed when their dimensions and material specifications match the machine and tooling.

4. Can It Process Galvanized Steel Pipes?

Suitable galvanized steel pipe applications may be supported depending on the machine configuration, roller design, pipe dimensions, and surface condition.

5. What Is The Advantage Of Fully Automatic Operation?

Automatic operation can reduce repetitive manual positioning and groove-forming tasks while helping establish a more consistent production cycle.

6. What Does Button-Type Mean?

Button-type refers to the machine's practical button-operated control structure used for operating or initiating the appropriate processing functions.

7. Is It Suitable For Fire Sprinkler Pipes?

Yes. Compatible steel pipes used for fire protection and sprinkler systems can be processed when their specifications match the machine and required groove profile.

8. Can Different Pipe Sizes Be Used?

Yes. Different pipe sizes within the machine's working range can be processed with appropriate tooling and machine adjustments.

9. Is It Suitable For Mass Production?

Yes. Fully automatic grooving is suitable for repetitive and batch production where consistent groove processing and reduced manual handling are important.

10. What Information Is Needed For Machine Selection?

Provide pipe diameter, wall thickness, material, pipe length, groove dimensions, intended connection system, production volume, and application. Pipe samples or drawings are also useful for technical evaluation.

Why Choose Us
Specialized Automatic Grooving Equipment

We provide industrial pipe grooving machinery for suitable steel, galvanized steel, and other compatible round pipe applications.

Fully Automatic Production

Automatic positioning, clamping, and groove forming can reduce repetitive operator work and support a more stable production workflow.

Flexible 2"-12" Configuration

The 2"-12" working range makes the machine suitable for many common pipe sizes used in fire protection, HVAC, water supply, and mechanical piping.

Customized Tooling

Grooving rollers, clamps, fixtures, supports, and other components can be selected according to pipe dimensions and groove requirements.

Factory-Direct B2B Service

We support overseas customers with equipment selection, technical communication, machine configuration, export packaging, shipping coordination, and after-sales assistance.

Application-Based Technical Support

Customers can provide pipe samples, drawings, material information, groove specifications, and production requirements so that suitable machine and tooling options can be evaluated before ordering.
