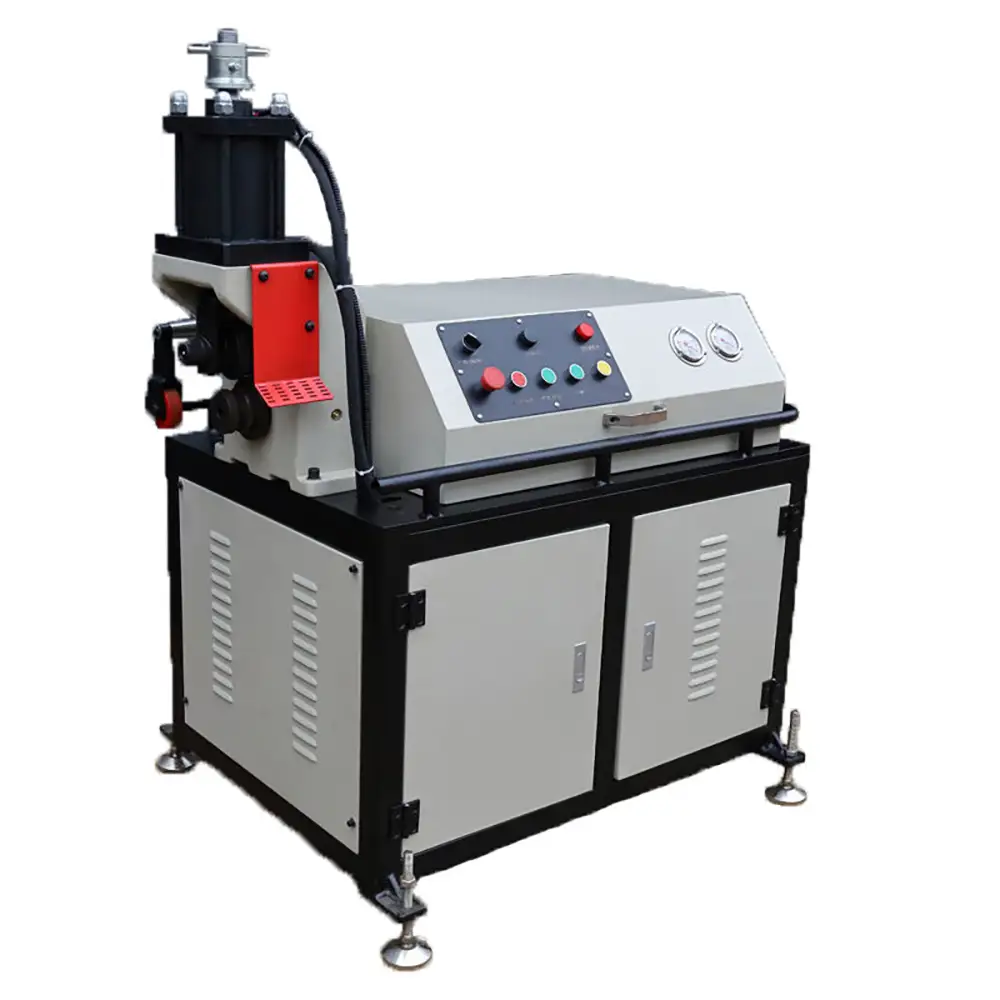

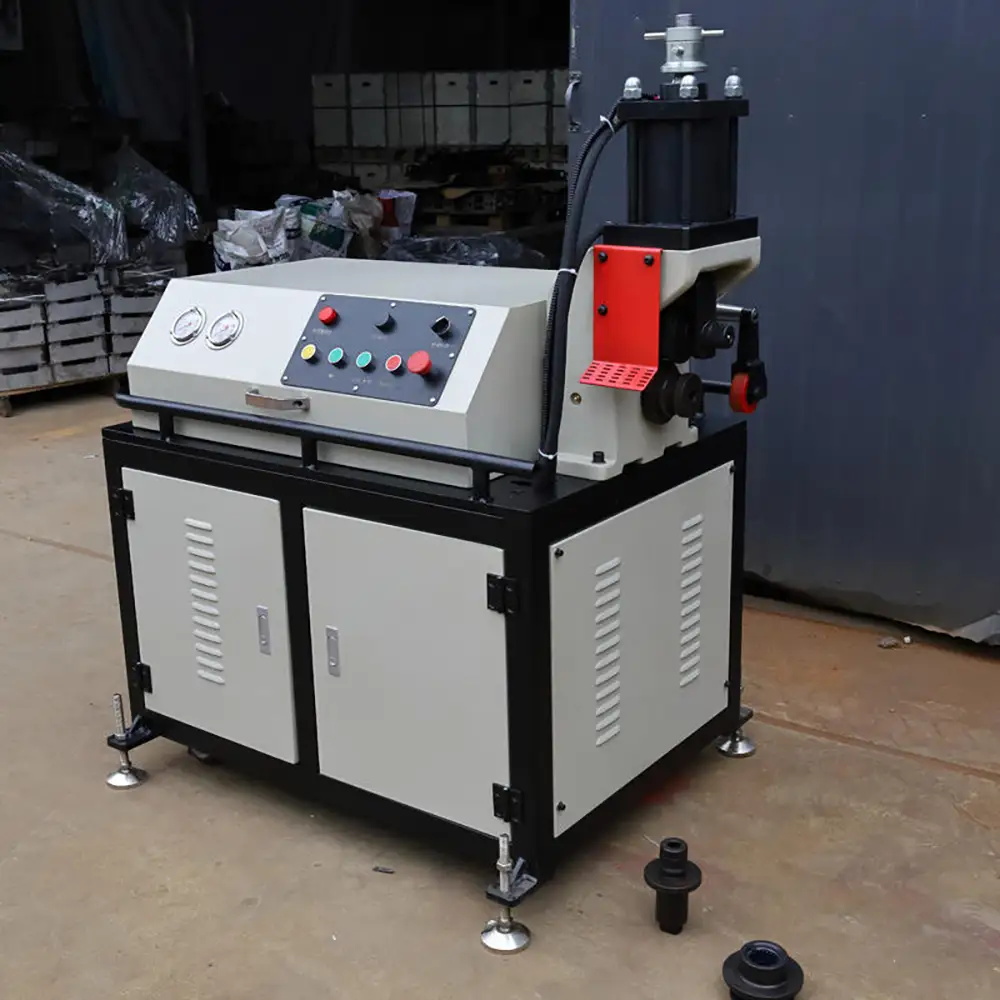

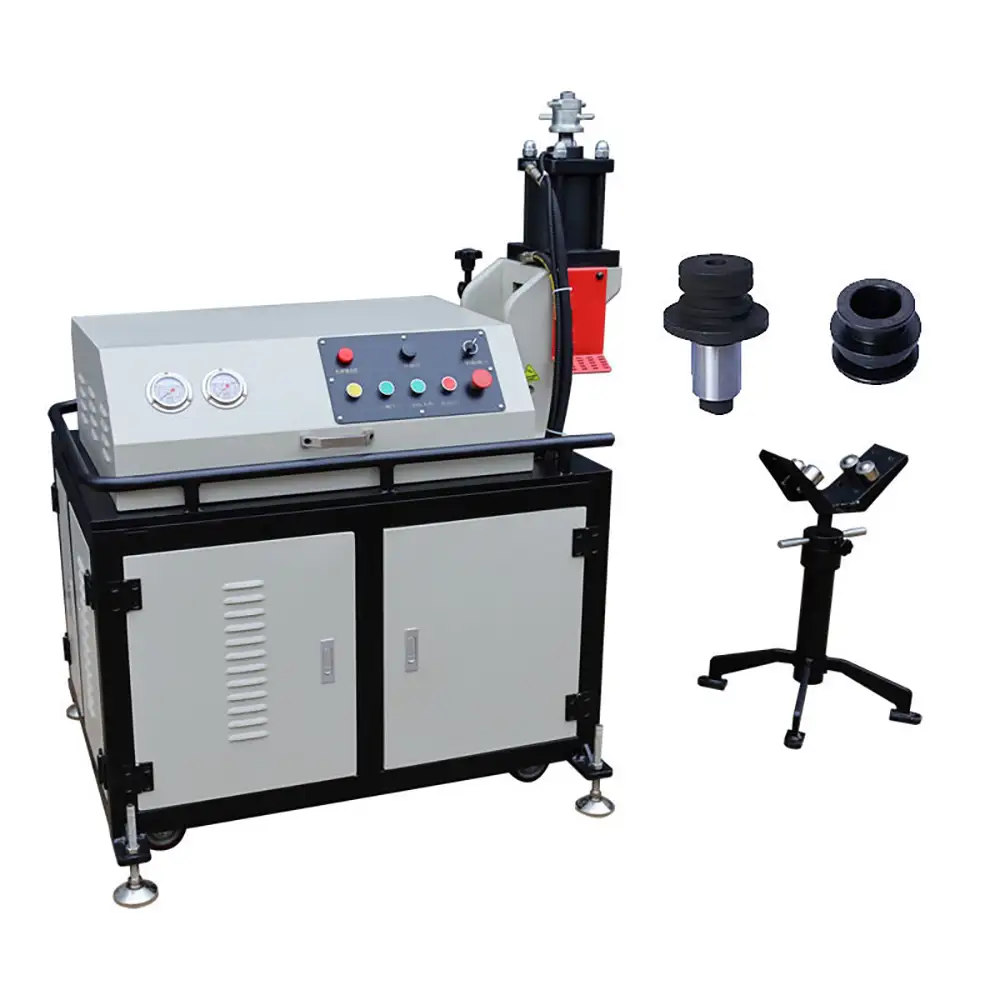

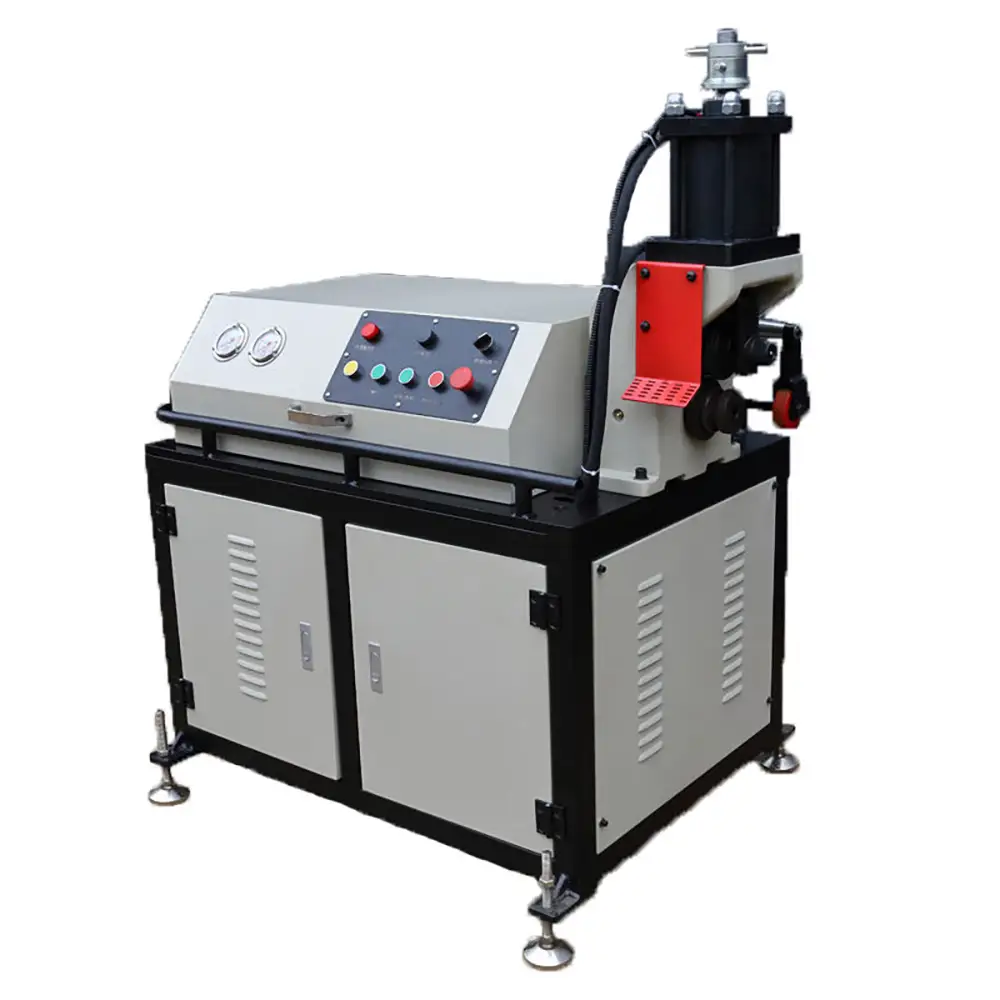

2-12Inch Small Fully Automatic Grooving Machine Creasing Machine

  The 2"-12" Small Fully Automatic Grooving Machine Creasing Machine is a compact industrial pipe processing machine designed for efficient groove forming on suitable round steel and metal pipes. With a working range of approximately 2 to 12 inches, this equipment provides a practical solution for workshops, contractors, pipe fabricators, and manufacturers that need automatic and repeatable pipe grooving.

Pipe grooving, sometimes referred to as pipe creasing or groove forming, is commonly used to prepare compatible pipes for mechanical grooved coupling systems. Compared with conventional manual processing, a fully automatic grooving machine can reduce repetitive operations and help establish a more consistent production cycle.

Small Fully Automatic Pipe Grooving

The compact machine design makes the equipment suitable for workshops and production areas where floor space is important. Despite its smaller format, the machine is designed to provide automatic groove forming for compatible pipe sizes within its specified working range.

Depending on the machine configuration, automatic functions may include pipe positioning, clamping, grooving, and cycle control. This allows operators to focus on material handling, inspection, and machine monitoring.

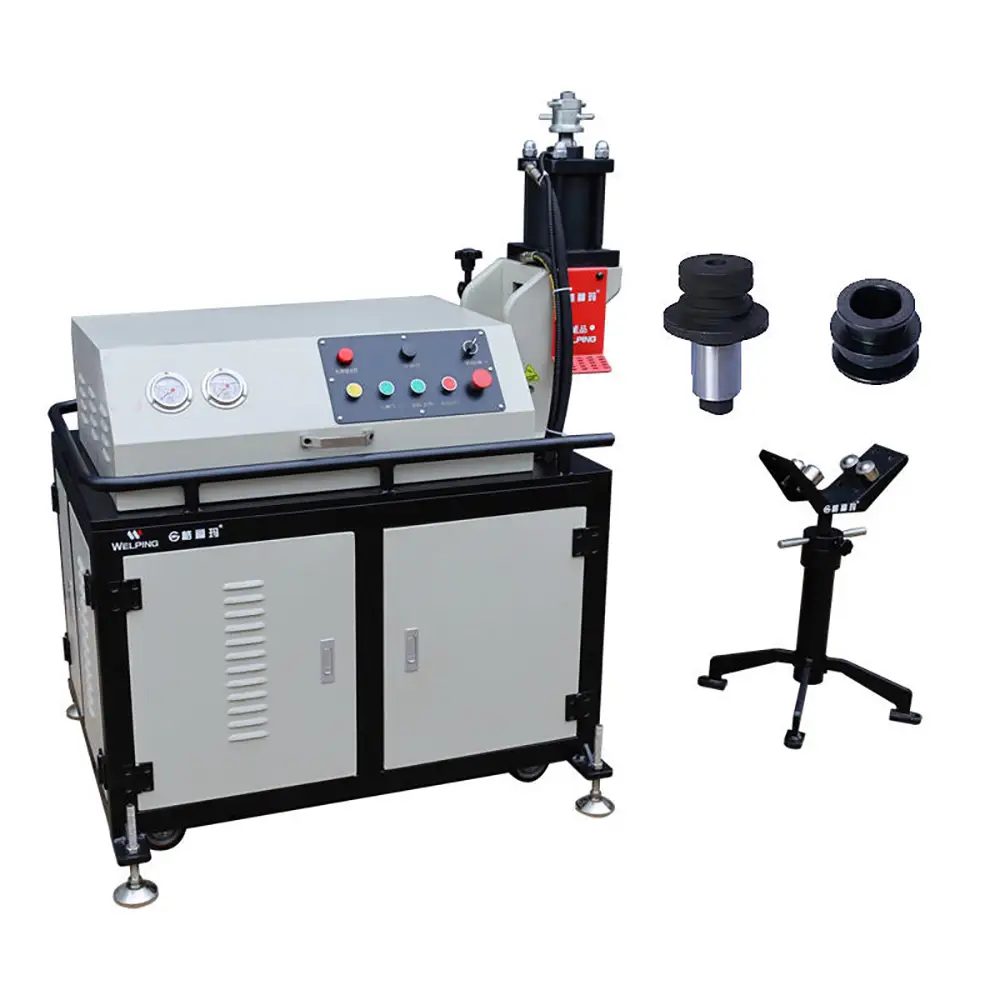

2"-12" Pipe Processing Range

The machine is designed for compatible round pipes from approximately 2 to 12 inches. This range covers many common pipe sizes used in fire protection, HVAC, water supply, construction, and mechanical piping.

The actual pipe outside diameter, wall thickness, material, and groove profile should be confirmed according to the selected machine model and tooling configuration.

Automatic Pipe Creasing And Groove Forming

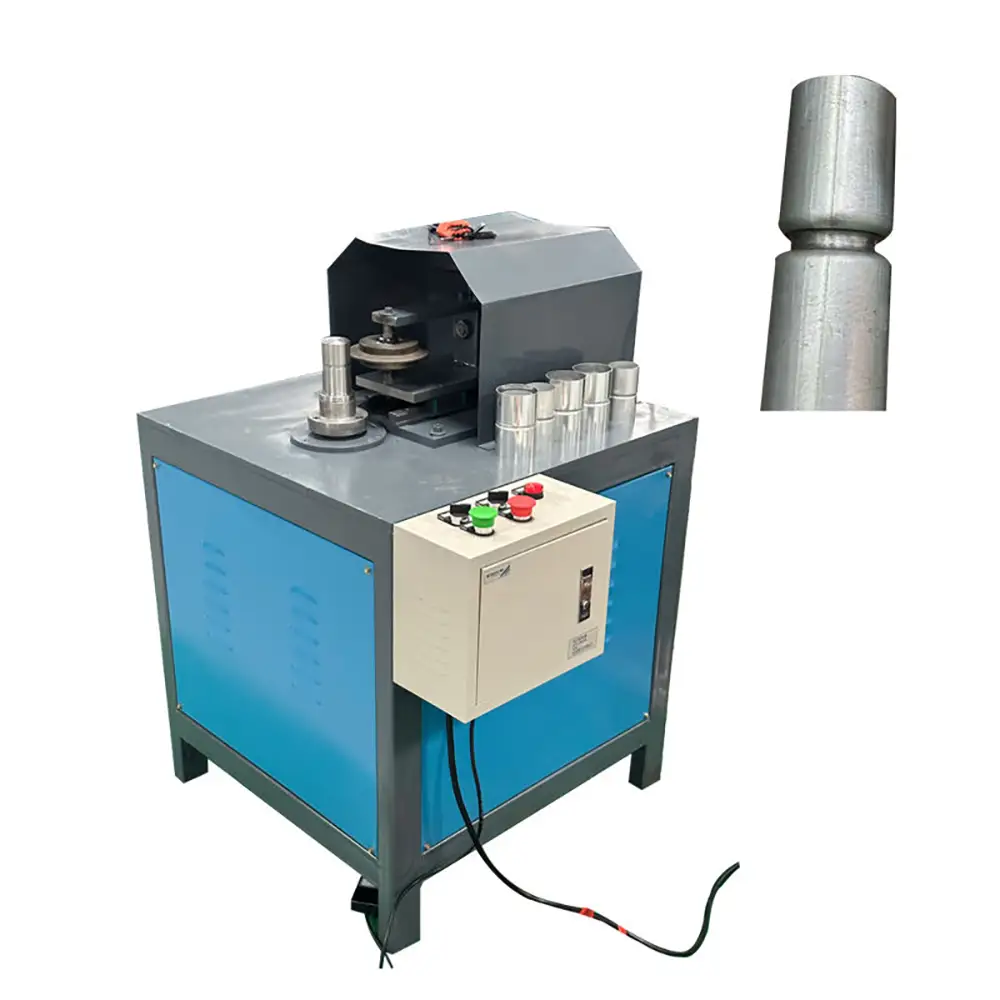

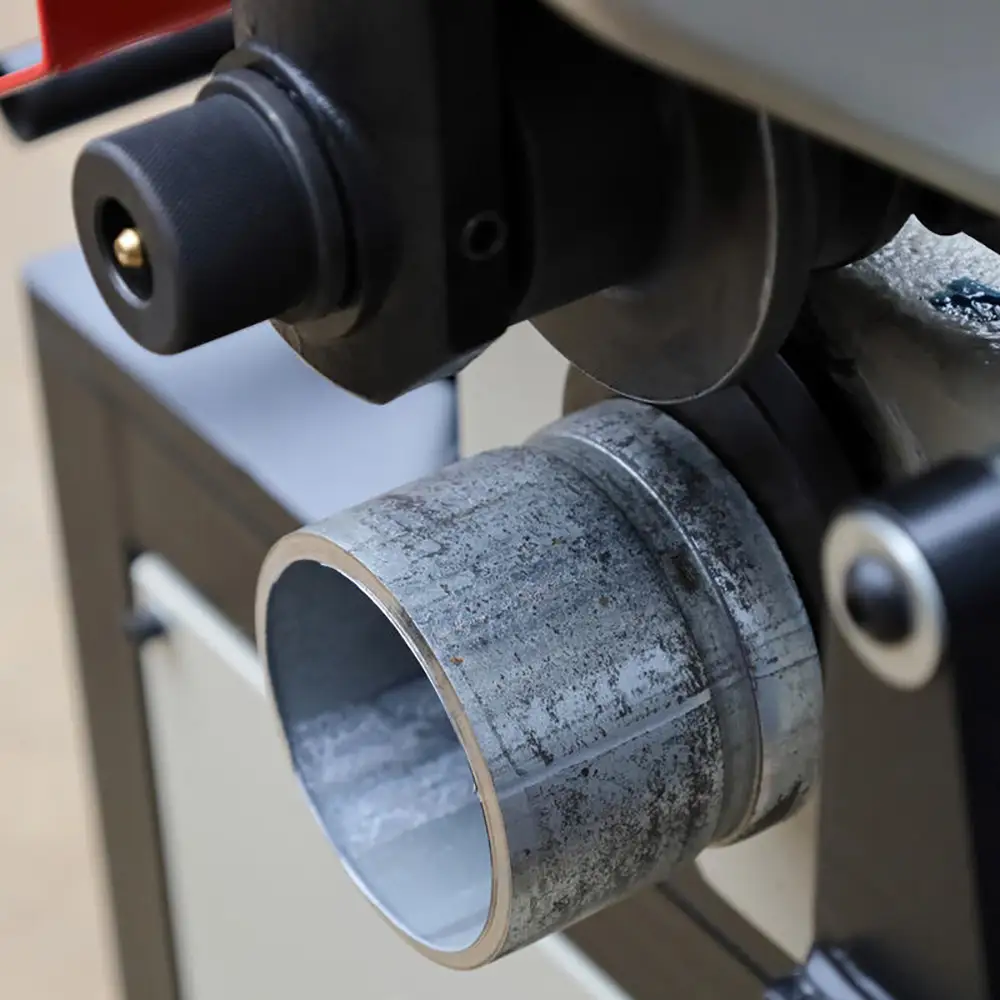

In some markets, pipe grooving may also be described as pipe creasing or groove pressing. The machine creates a circumferential groove around the pipe using controlled mechanical forming.

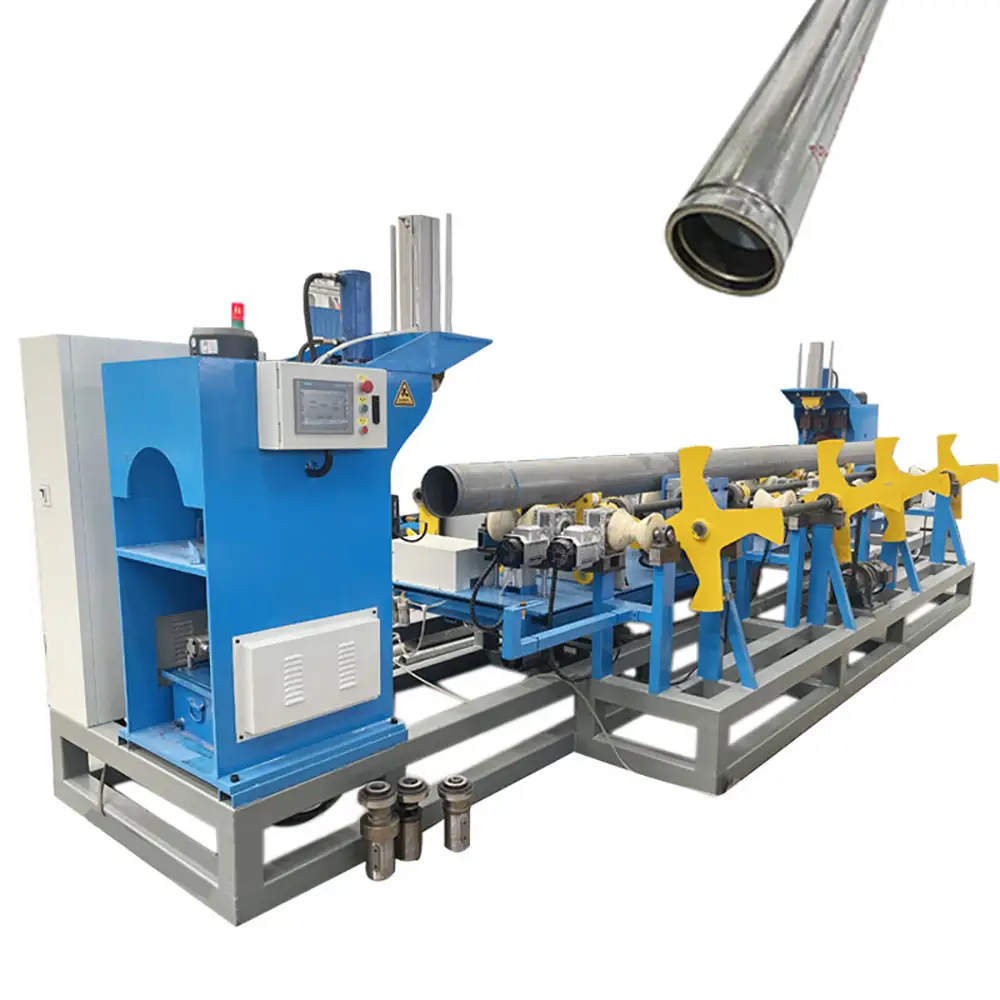

Unlike conventional cutting, roll grooving generally forms the groove by controlled deformation of the pipe wall. Appropriate rollers, forming force, and machine settings are required for different pipe specifications.

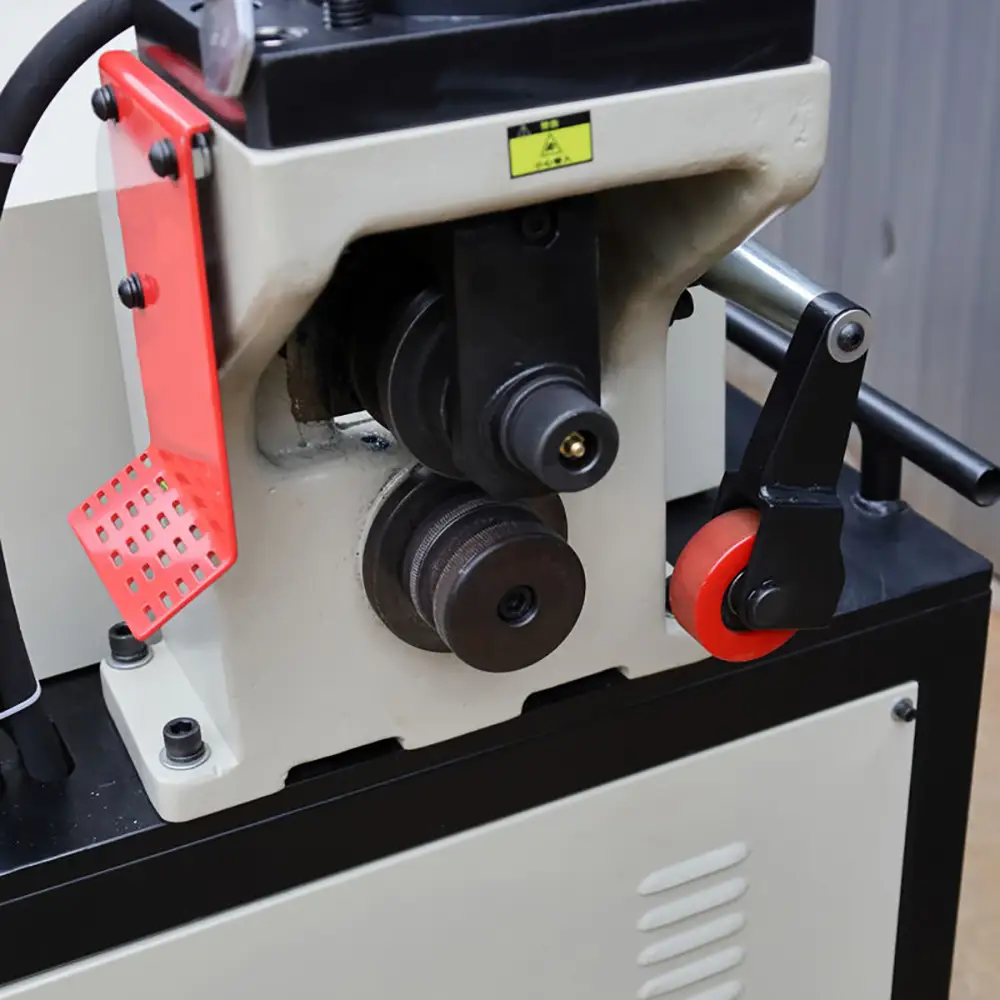

Stable Pipe Clamping

Stable clamping is important for maintaining consistent groove quality. The machine uses suitable workholding components to hold the pipe while the grooving mechanism applies controlled forming pressure.

Correct clamping can help reduce pipe movement and improve the repeatability of groove position and dimensions.

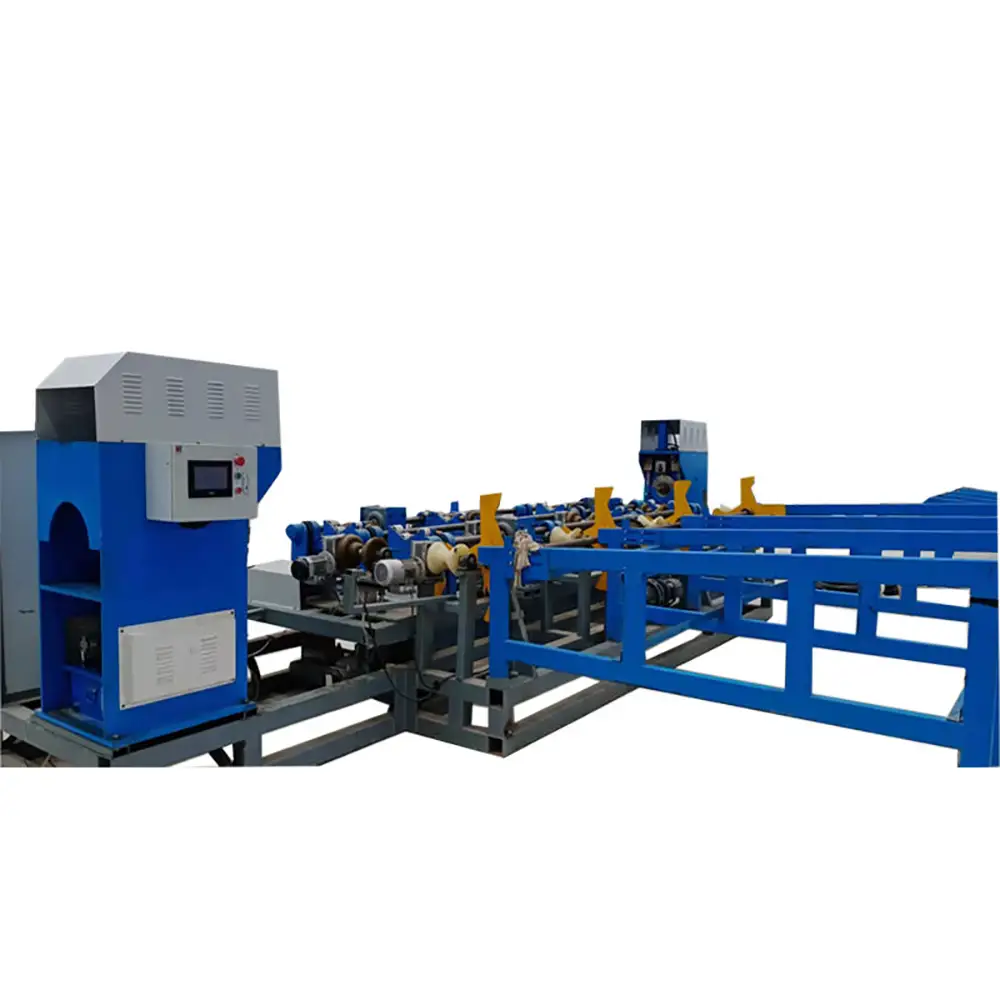

Automatic Pipe Positioning

Automatic or controlled positioning helps locate the pipe correctly before groove forming. This can reduce repetitive manual measurement and adjustment during batch production.

Consistent groove positioning is particularly useful when pipe sections are intended for compatible grooved couplings and fittings.

Compact Workshop Design

The small design is suitable for pipe fabrication workshops, maintenance facilities, construction sites, and production areas where equipment footprint is an important consideration.

A compact machine can also simplify workshop organization while providing dedicated pipe grooving capabilities.

Consistent Groove Formation

Consistent groove dimensions are important for compatible grooved pipe connection systems. Proper pipe positioning, stable clamping, suitable rollers, and controlled forming parameters can help maintain repeatable results.

Operators should regularly inspect groove depth, width, location, and pipe condition according to the applicable technical requirements.

Fire Protection Pipe Applications

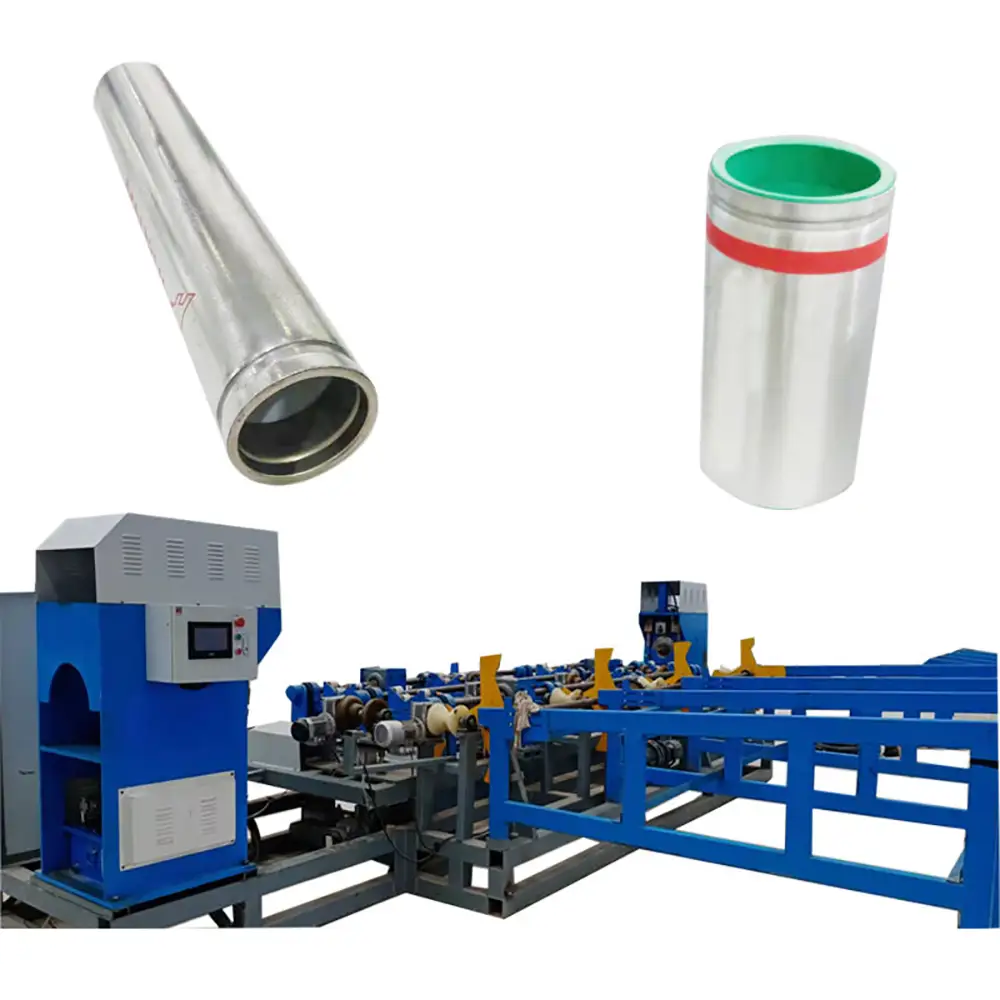

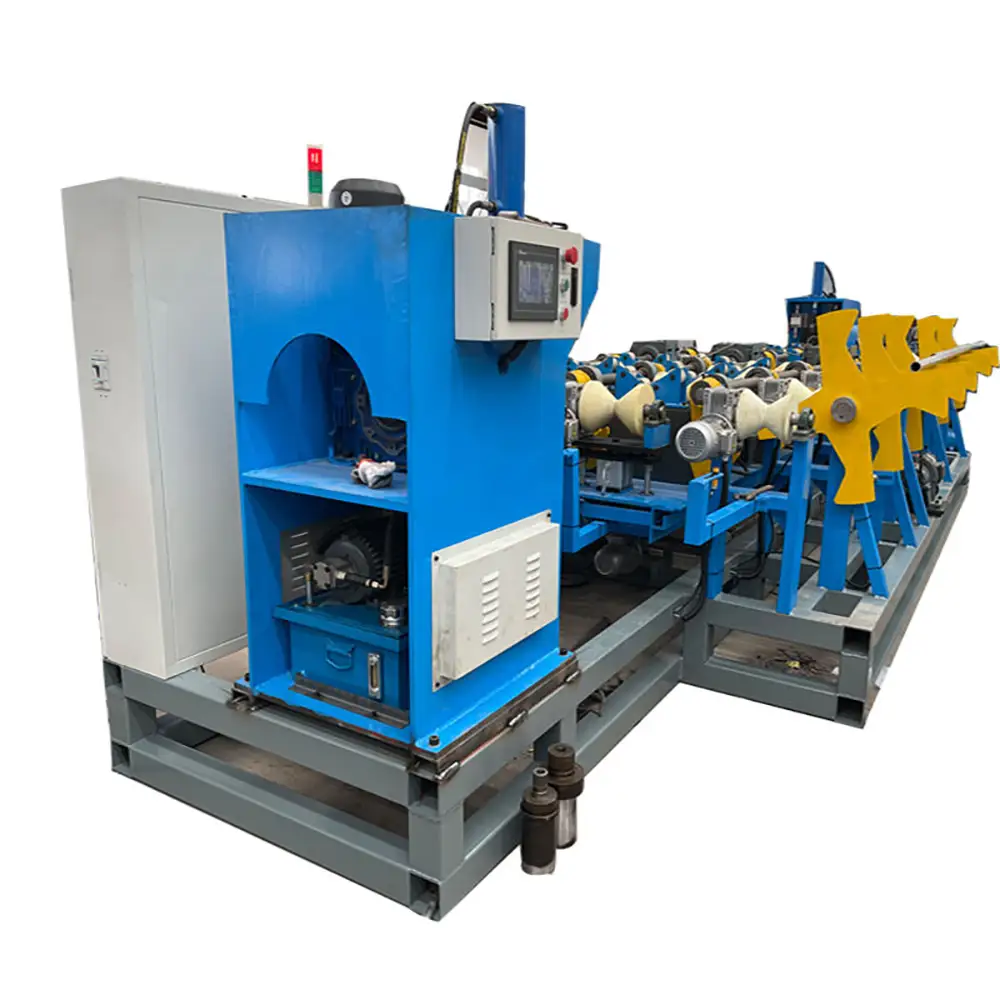

Pipe grooving equipment is widely used in suitable fire sprinkler and fire protection pipe preparation. Compatible steel pipes can be grooved before installation with suitable mechanical couplings.

The machine can support pipe preparation workflows for fire protection contractors, sprinkler system suppliers, and pipe fabrication companies.

HVAC And Mechanical Piping

Grooved steel pipes are also used in suitable HVAC, chilled-water, mechanical, and building service applications.

The 2"-12" range provides flexibility for many common medium-sized piping applications. Pipe material, wall thickness, and groove specifications should be matched with the machine configuration.

Water Supply And Utility Piping

The machine can be used for compatible water supply, utility, and industrial pipe applications requiring circumferential groove formation.

Different pipe systems may use different groove dimensions and connection requirements, so suitable tooling should be selected according to the intended application.

Efficient Batch Production

Manual grooving can require repeated pipe measuring, positioning, clamping, and groove forming. Fully automatic operation can reduce repetitive manual tasks and improve workflow efficiency.

For factories and contractors processing multiple pipe sections, automatic operation can provide a more organized and repeatable production process.

Reduced Operator Workload

The machine reduces the amount of repetitive physical work required during pipe grooving. Operators can concentrate on loading and unloading pipes, checking groove quality, monitoring the machine, and performing routine maintenance.

This can improve labor utilization in workshops with regular pipe processing requirements.

Flexible Grooving Tooling

Different pipe diameters and wall thicknesses may require different rollers, clamps, fixtures, and supports. Tooling can be selected according to the intended 2"-12" pipe range and groove specifications.

Customers can provide pipe samples, technical drawings, dimensions, wall thickness, material information, and groove requirements for tooling evaluation.

Suitable For Steel And Galvanized Pipes

The machine is primarily intended for compatible steel pipe applications. Depending on the selected configuration, suitable galvanized steel and other compatible metal pipes may also be processed.

The pipe material, coating, diameter, wall thickness, and surface condition should be considered when selecting appropriate rollers and processing parameters.

Practical Industrial Operation

The machine is designed for repeated use in pipe fabrication workshops and other industrial environments. Its automatic processing structure helps simplify routine pipe grooving operations.

Regular cleaning, lubrication, inspection of rollers and clamps, and replacement of worn components can help maintain stable equipment performance.

Customized  Configuration

Pipe processing requirements vary between customers. Different pipe sizes, materials, groove profiles, production volumes, and automation requirements may require different machine configurations.

Customers can provide pipe diameter, wall thickness, material, length, groove dimensions, production capacity, and application details so that suitable equipment and tooling can be evaluated.
