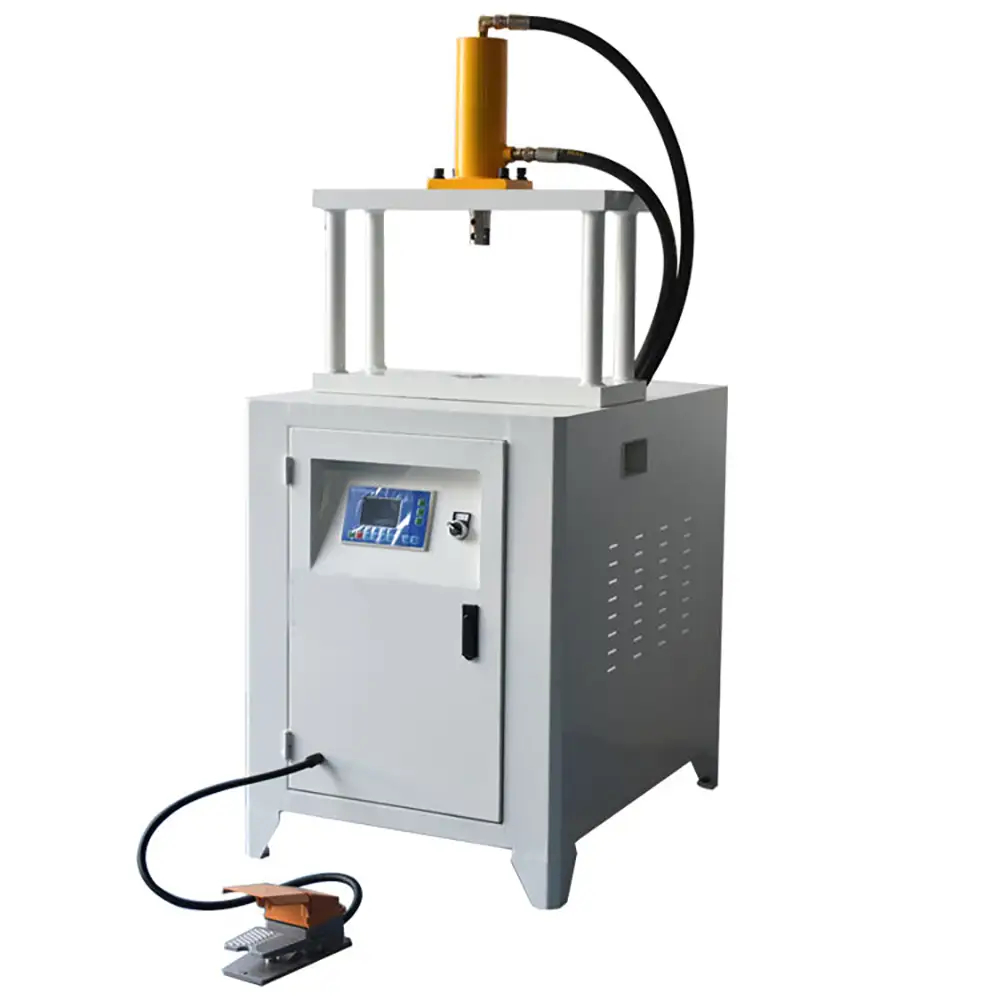

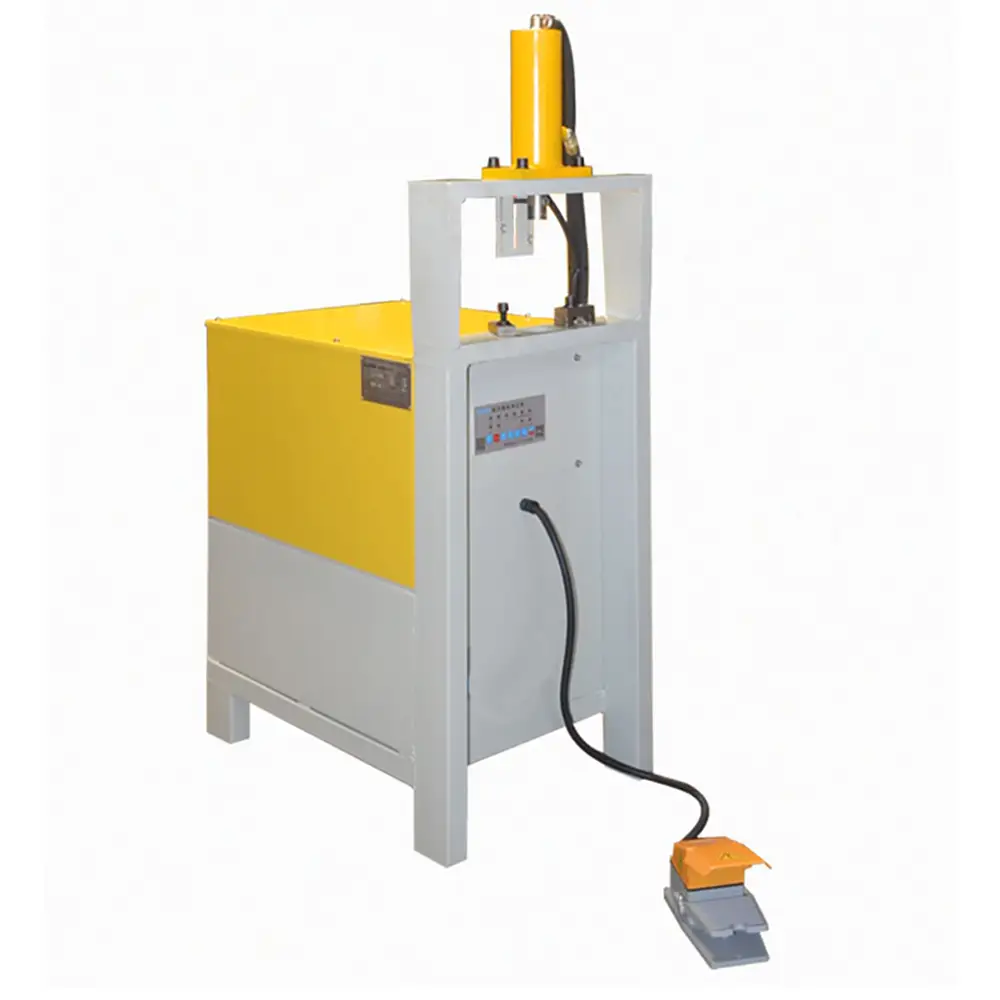

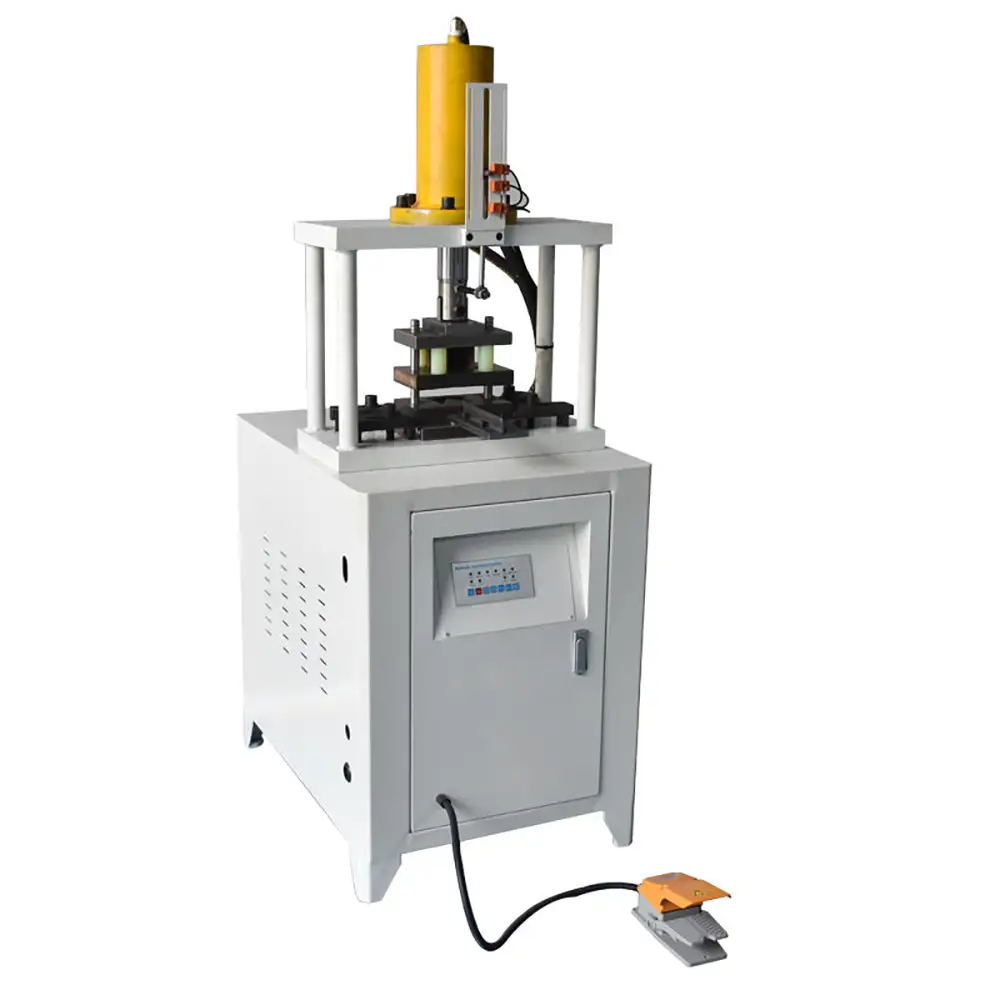

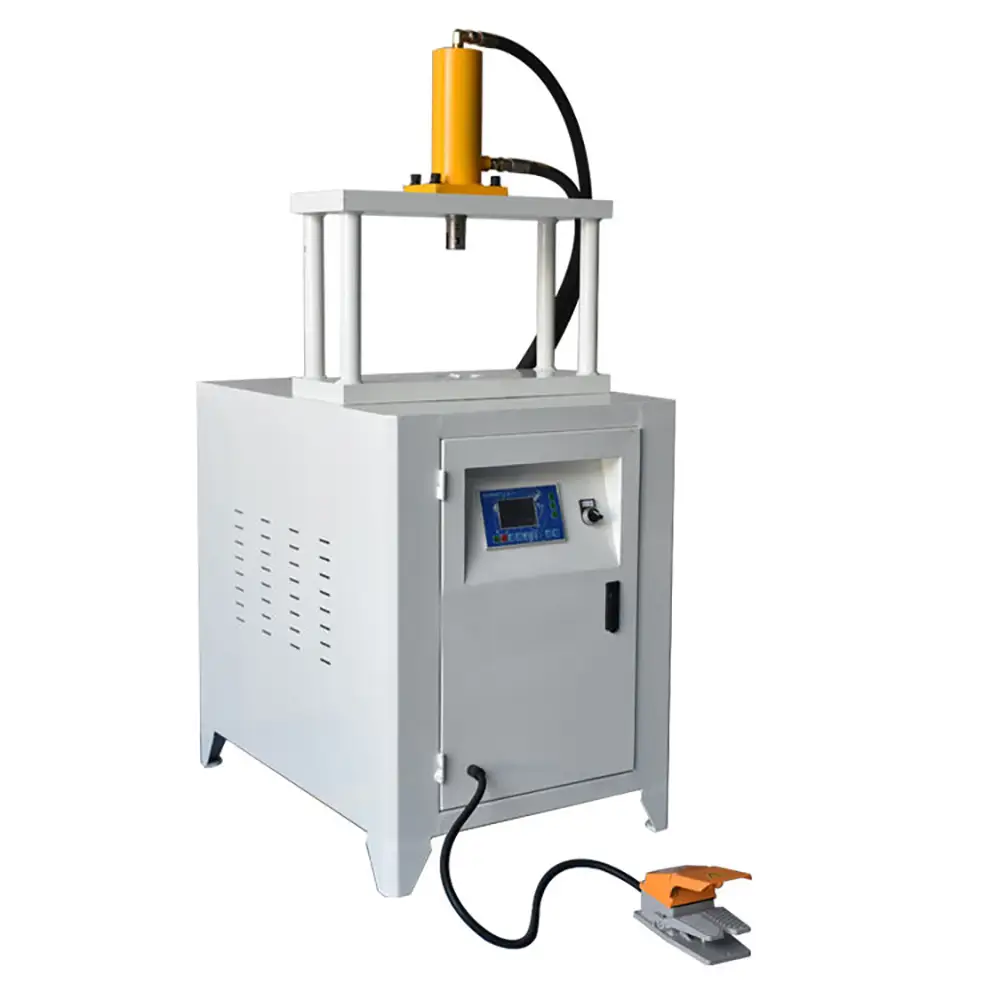

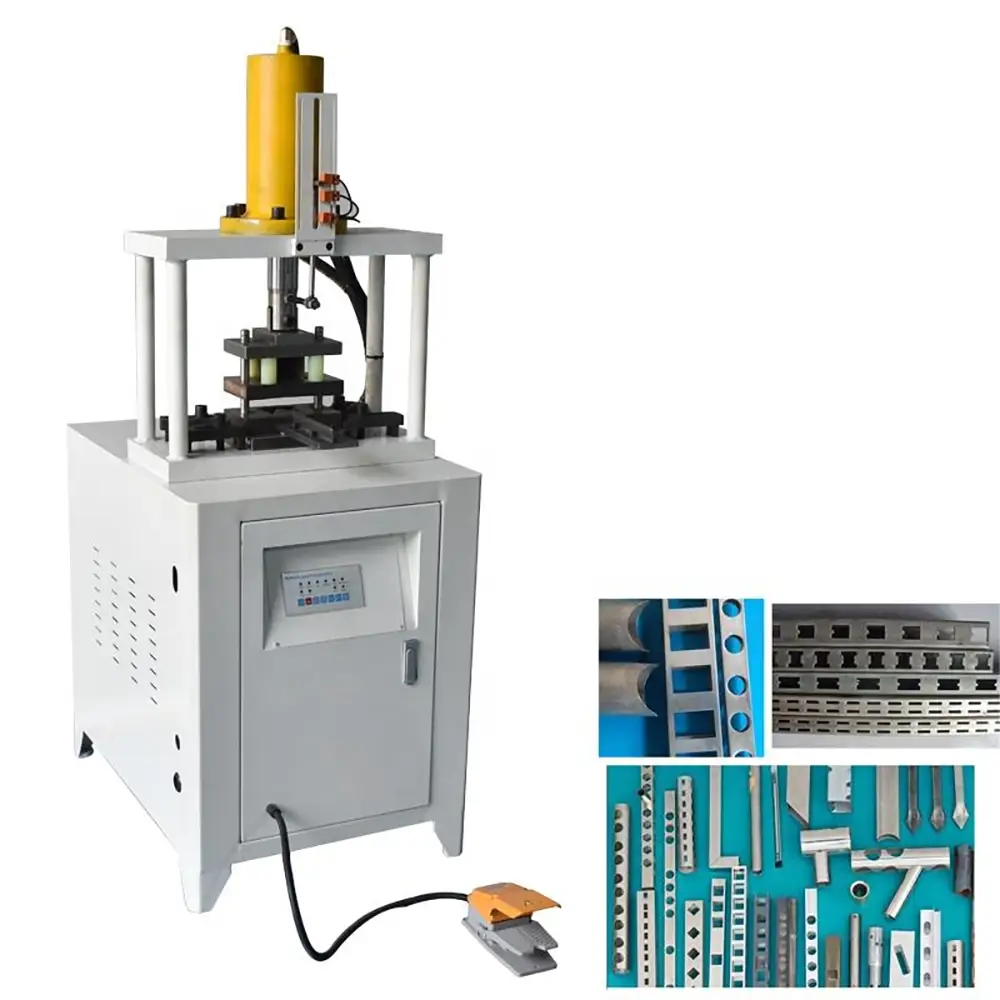

Single Hydraulic Pipe Punching Hole Tube End Cutting Notch Forming Machine Technical Parameters

Pressure (ton) Max Punching thickness Nominal force(Kn) Power (KW) Stroke(mm) Model SS(mm) MS(mm) 5 1 1.2 50 3 70 H5A, H5B, H5C, 8 1.6 2 80 4 100 H8A, H8B, H8C, 15 2.4 3 150 4 120 H15A, H15B, H15C,H15D 20 4 5 200 5.5 150 H20A, H20B, H20C,H20D, H20E 2.

Pressure (ton) Max Punching thickness Nominal force(Kn) Power
(KW)
Stroke(mm) Model
SS(mm) MS(mm)
5 1 1.2 50 3 70 H5A, H5B, H5C,
8 1.6 2 80 4 100 H8A, H8B, H8C,
15 2.4 3 150 4 120 H15A, H15B, H15C,H15D
20 4 5 200 5.5 150 H20A, H20B, H20C,H20D, H20E
25 5 6 250 5.5 150  H20A, H20B, H20C,H20D, H20E and so on
