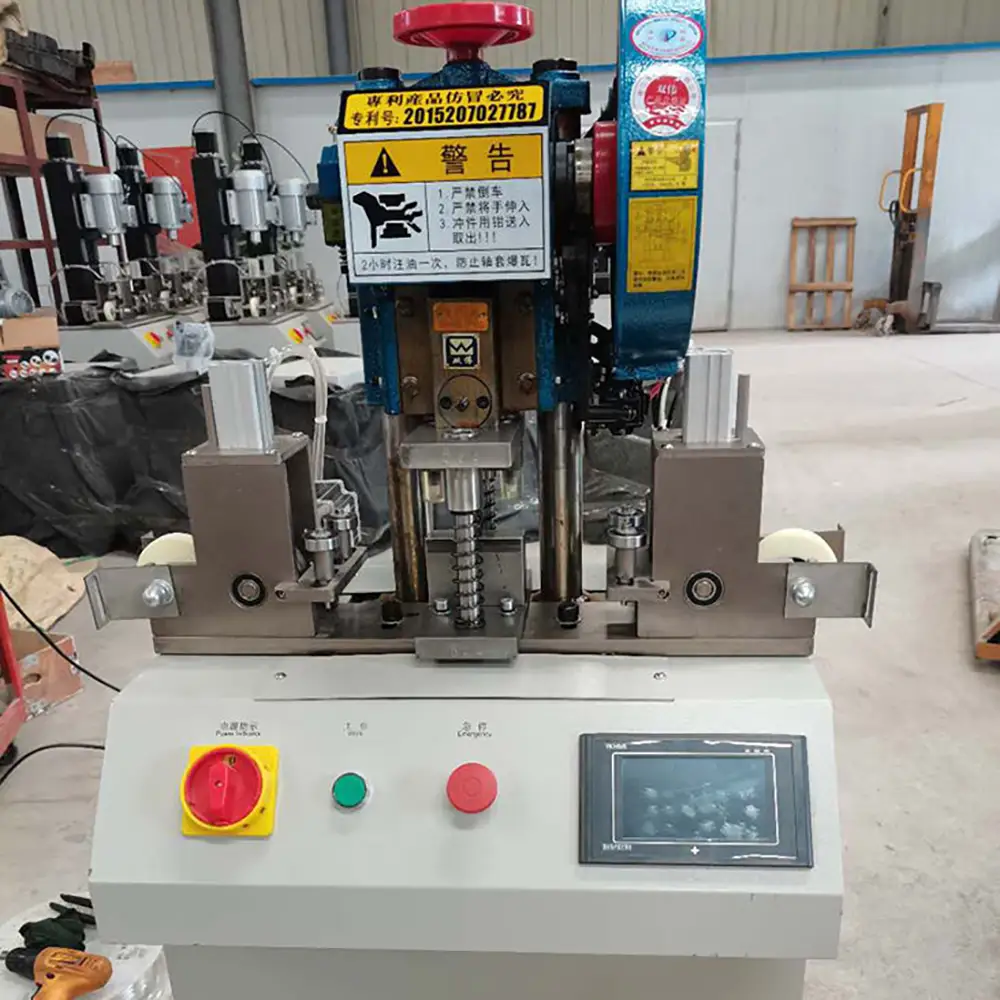

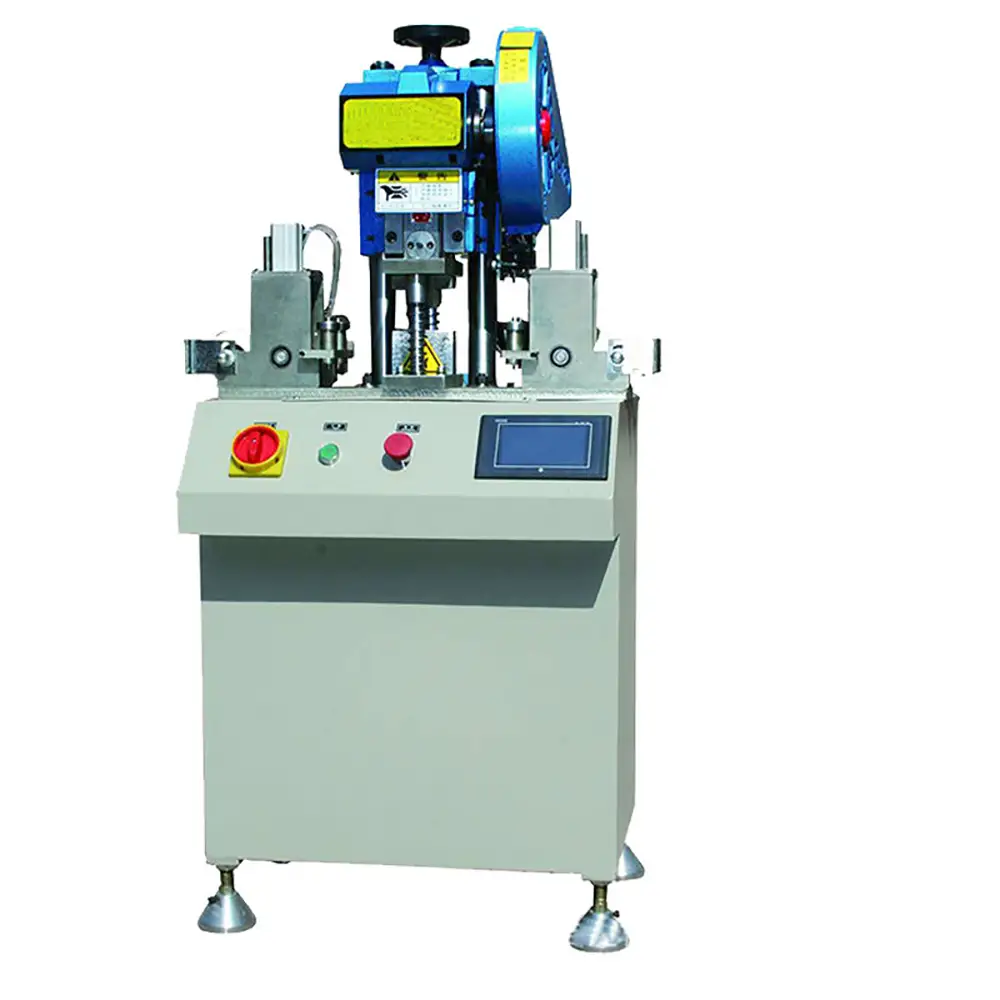

Vertical Blinds Punching Machine Aluminium Punching Machine Blind Punching Machine

This machine is used for aluminum alloy and PVC plastic profiles Blinds punching ; CNC control system, punching distance can be adjusted numerically
1)Feeding method: After the workpiece is automatically fed by electric/pneumatic clamping, it is automatically fed out according to hole distance.
2)Feeding method: Adopt PLC control precision motor to automatically control feeding
3)Movement mode: left and right feeding mode/automatic/emergency stop/clamping

The Vertical Blinds Punching Machine Aluminum Punching Machine Blind Punching Machine is a specialized metal profile processing solution designed for efficient punching of aluminum profiles, vertical blind components, blind rails, and other suitable lightweight metal sections. It is developed for manufacturers that require accurate, repeatable holes and consistent positioning during vertical blind and aluminum profile production.

Vertical blind manufacturing often requires multiple holes, slots, mounting openings, and other repeated features along aluminum profiles. Performing these operations manually can increase labor requirements and make consistent positioning more difficult. A dedicated blind punching machine provides a more standardized production method for repetitive profile punching.

The machine can be configured according to the profile dimensions, hole pattern, tooling requirements, and production workflow. Actual punching capacity and processing performance depend on the aluminum alloy, profile geometry, wall thickness, hole dimensions, tooling, feeding method, and machine configuration.

Specialized Vertical Blind Punching

Vertical blinds commonly use aluminum or other metal profiles as rails, tracks, carriers, or structural components. These profiles may require accurately positioned holes for brackets, mounting components, hardware, or assembly features.

A dedicated vertical blinds punching machine helps manufacturers establish a repeatable punching process. Once the profile is properly positioned and the appropriate punch and die are installed, operators can process repeated hole patterns more efficiently.

The machine is suitable for manufacturers producing vertical blinds, window covering systems, aluminum profiles, and related components.

Aluminum Profile Punching

Aluminum is widely used in window covering and profile applications because of its lightweight characteristics and suitability for extrusion. However, aluminum profiles can have different wall thicknesses, cross-sectional shapes, and alloy properties.

The punching tooling should therefore be selected according to the actual profile. Proper punch and die clearance can help achieve cleaner holes and reduce deformation around the punched area.

For customers processing several aluminum profile models, interchangeable tooling or customized punch sets can be considered to support different production requirements.

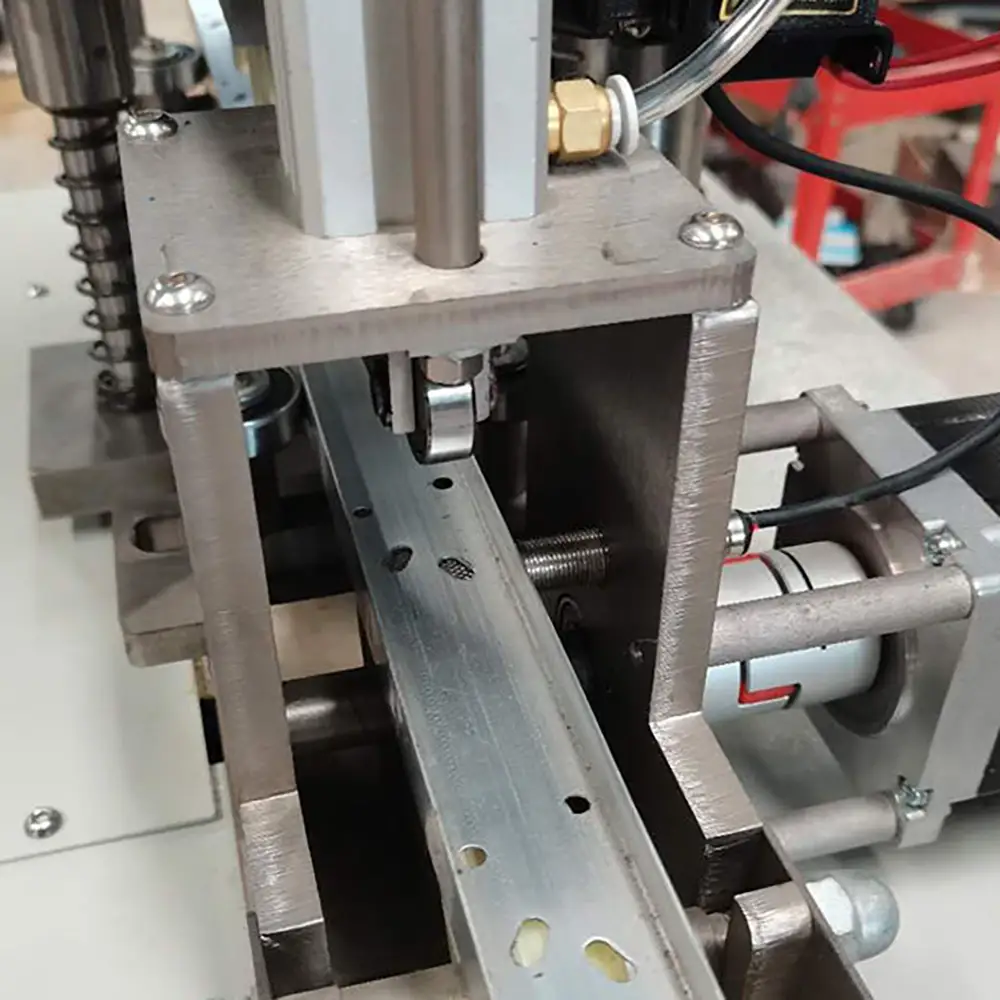

Blind Profile Hole Punching

Blind profiles may require holes at predetermined intervals or specific locations. Consistent positioning is important because the holes must align with brackets, fasteners, carriers, mounting components, or other parts during final assembly.

A blind punching machine can support standardized hole patterns through appropriate positioning systems, measuring scales, guides, fixtures, or automatic feeding configurations.

The exact positioning method depends on the machine design and the customer's production requirements. For specialized profiles, customized fixtures can help hold the extrusion securely during punching.

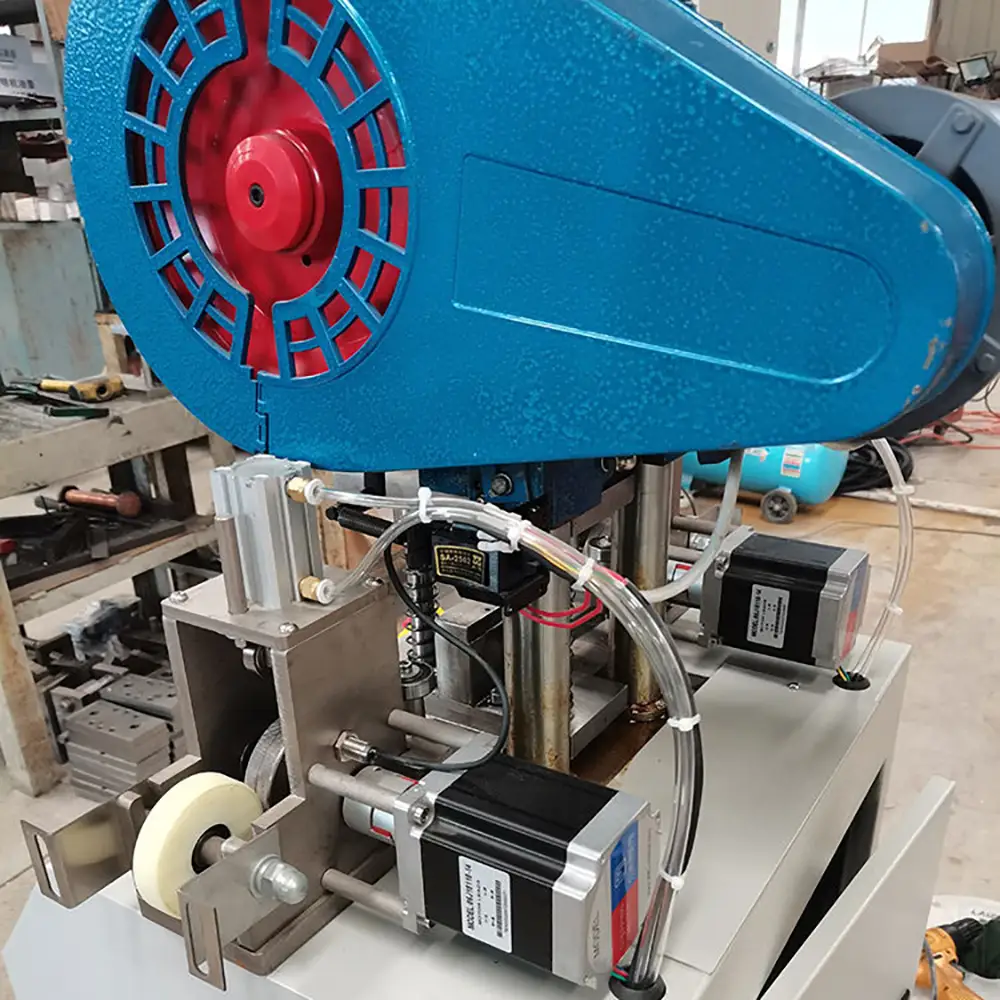

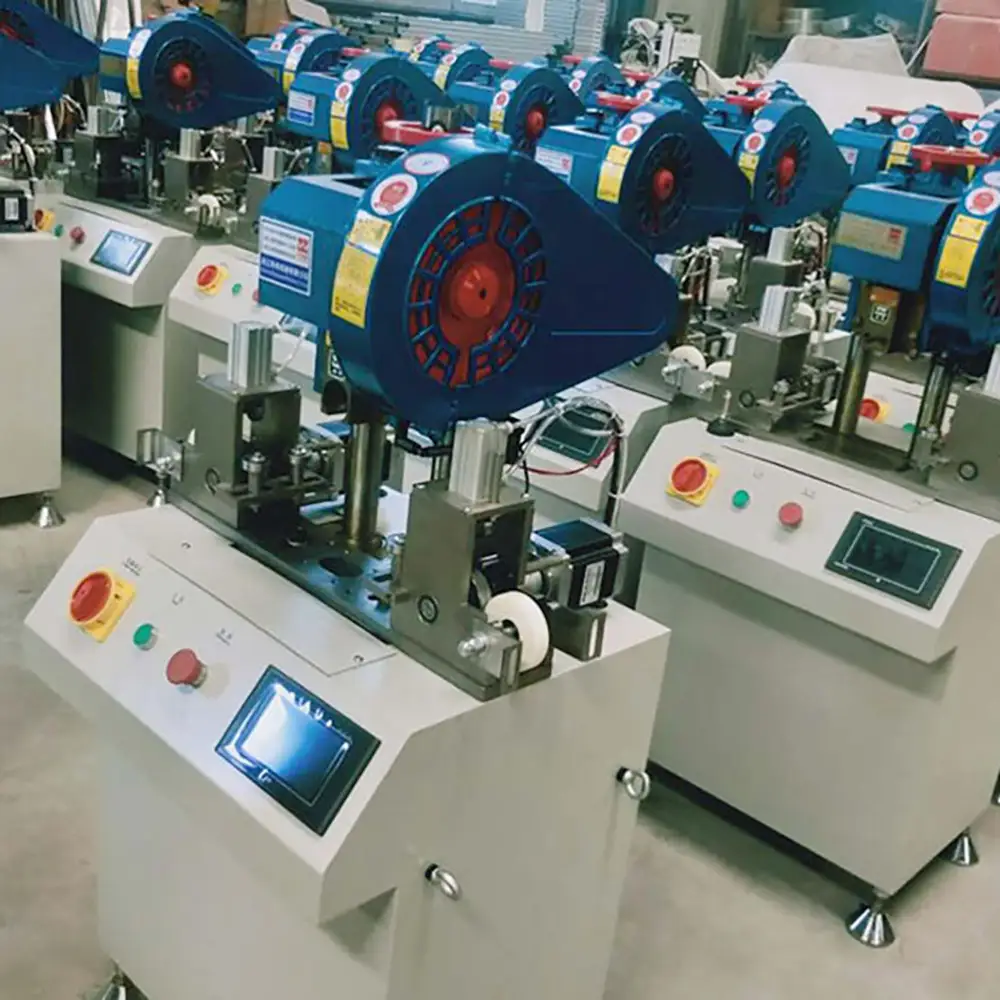

Automatic Feeding Options

Depending on the configuration, an automatic feeding system can be integrated into the production process. Automatic feeding can reduce repetitive manual handling and help maintain a more consistent processing sequence.

For higher-volume production, the feeding system can work together with positioning and punching operations to create a more efficient workflow.

Automatic feeding does not necessarily mean completely unmanned production. Operator loading, inspection, tooling adjustment, material replenishment, and other manual operations may still be required depending on the machine configuration.

Efficient Production Workflow

The basic production process generally involves loading the aluminum profile, positioning it against the designated reference point, activating the punching operation, and advancing the profile for the next hole position.

For repeated production, a standardized setup can reduce unnecessary manual measuring and marking. This can improve workflow efficiency and make production easier to manage.

The machine can be used in small workshops as well as larger aluminum profile and window covering manufacturing facilities. Production efficiency depends on profile length, hole quantity, hole spacing, feeding method, punching cycle, and operator workflow.

Applications in Vertical Blind Manufacturing

This type of punching equipment can be used for a variety of vertical blind and aluminum profile applications, including:

Vertical blind rail punching

Aluminum blind profile punching

Blind track hole punching

Window covering profile processing

Aluminum extrusion punching

Curtain and blind hardware production

Blind mounting profile punching

Aluminum channel punching

Window covering component manufacturing

Lightweight metal profile processing

The machine may also be adapted for other compatible aluminum profiles with similar punching requirements.

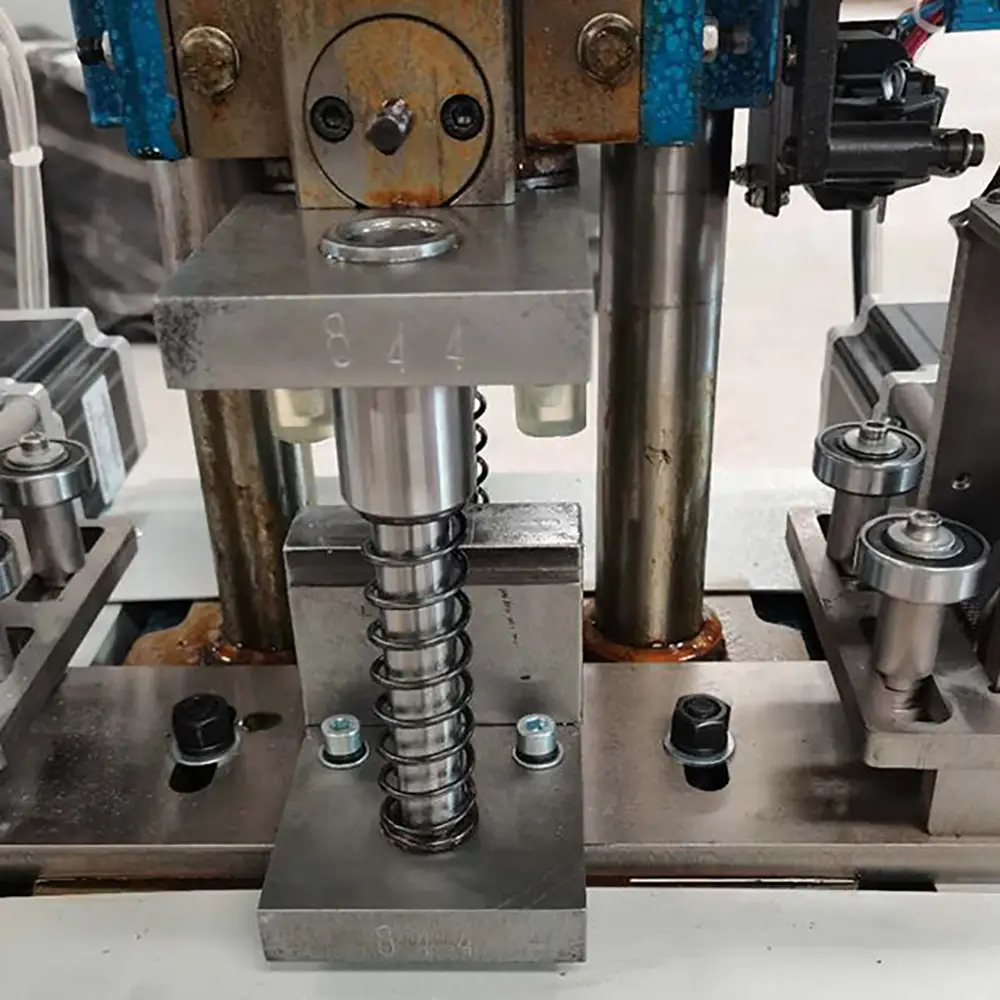

Tooling and Punch Design

Tooling is one of the most important elements of a profile punching system. The punch must match the required hole size and shape, while the die must provide appropriate support for the material.

Depending on the product, holes may be round, rectangular, elongated, or another customized shape. Special punches and dies can be manufactured for specific blind profile designs.

Customized tooling can also be useful when customers have several hole patterns or profile models. Tooling changes should be performed according to the machine manufacturer's operating procedures.

Profile Positioning and Accuracy

Accurate hole positioning is essential for vertical blind components because the finished profile must fit correctly with other hardware during assembly.

Positioning accuracy depends on the machine structure, feeding system, fixtures, measuring method, tooling condition, profile straightness, and operator procedure.

For repetitive production, suitable guides and fixtures can help maintain consistent profile alignment. Customers with strict dimensional requirements should conduct production testing with their actual aluminum profiles before finalizing the machine configuration.

Suitable Materials

The machine is primarily intended for suitable aluminum profiles and other compatible lightweight metal sections. Depending on the machine configuration, some models may also process other non-ferrous or thin metal profiles.

The actual material range depends on profile dimensions, alloy, hardness, wall thickness, and tooling. Customers should provide material specifications and profile drawings for proper evaluation.

Maintenance and Operation

Regular maintenance helps maintain stable punching performance. Operators should inspect punches, dies, guides, fixtures, feeding components, fasteners, and other machine parts according to the manufacturer's maintenance schedule.

Punches and dies should be checked for wear because damaged or worn tooling can affect hole quality and profile deformation. Aluminum chips and production debris should also be removed from the working area regularly.

Operators should follow appropriate machine safety procedures, including safe material handling, guarding requirements, emergency-stop procedures, and personal protective equipment where applicable.

Custom & OEM Solutions

Different vertical blind manufacturers may use different profile dimensions, hole patterns, spacing requirements, and production methods. We can support Custom & OEM solutions based on specific product requirements.

Customization may include punching tooling, profile fixtures, automatic feeding systems, positioning mechanisms, machine tables, control configurations, and other application-specific components.

Customers can provide aluminum profile drawings, hole dimensions, hole spacing, material specifications, and production volume for machine evaluation.

Why Choose Us

Dedicated Blind Punching Solution
Designed around the repetitive hole punching requirements of vertical blinds and related aluminum profiles.

Aluminum Profile Processing
Suitable for compatible aluminum extrusion profiles used in window coverings and blind systems.

Repeatable Hole Positioning
Appropriate fixtures, guides, and positioning systems can help maintain consistent punching locations.

Automatic Feeding Options
Automatic feeding configurations can help reduce repetitive manual profile handling for suitable production applications.

Customized Punching Tooling
Punches and dies can be designed according to hole size, hole shape, profile geometry, and production requirements.

Flexible Application Range
Suitable for vertical blind rails, tracks, aluminum profiles, window covering components, and related products.

OEM & Custom Manufacturing
Machine configurations, fixtures, tooling, feeding systems, and positioning solutions can be customized for specific projects.

B2B Industrial Support
Suitable for manufacturers, distributors, wholesalers, blind production companies, aluminum profile processors, and industrial buyers.

FAQs

1. What is a vertical blinds punching machine?

It is a specialized punching machine designed to produce repeated holes or other openings in suitable vertical blind profiles, rails, tracks, and related aluminum components.

2. Can this machine punch aluminum profiles?

Yes. The machine is designed primarily for suitable aluminum profiles, with the tooling selected according to profile dimensions, alloy, wall thickness, and hole requirements.

3. What types of vertical blind components can be processed?

Potential applications include blind rails, tracks, mounting profiles, aluminum channels, and other compatible vertical blind components.

4. Can the hole spacing be customized?

Yes. Hole spacing can be configured according to the product design and the machine's positioning or feeding system.

5. Can different hole shapes be produced?

With appropriate custom tooling, different hole shapes and sizes may be produced. The feasibility depends on the profile and machine configuration.

6. Does the machine have automatic feeding?

Automatic feeding can be available depending on the selected configuration. Buyers should confirm the feeding method and automation level for their specific machine.

7. Can one machine process different aluminum profiles?

Potentially, provided the profiles are within the machine's working range and suitable tooling and fixtures are available.

8. Is this machine suitable for high-volume production?

It can support repetitive production when the feeding, punching, tooling, and positioning systems are appropriately configured for the required production volume.

9. How accurate is the punching process?

Actual positioning accuracy depends on the machine structure, feeding system, tooling, fixtures, profile dimensions, and operating conditions. Production testing is recommended for critical tolerances.

10. Can customized punches and dies be supplied?

Yes. Custom punch and die tooling can be considered for specific hole sizes, shapes, profile designs, and production requirements.

11. What information should I provide for a quotation?

Provide the aluminum profile drawing, profile dimensions, material and alloy, wall thickness, hole diameter, hole spacing, hole pattern, and expected production volume.

12. Can you provide OEM solutions?

Yes. Custom & OEM solutions can include tooling, fixtures, feeding systems, positioning mechanisms, controls, and other application-specific configurations.
