Semi Automatic Single Punching Station Pressing Cutting and Punching Hole Machine 15A for Greenhouse Fastening

Pressure (ton)	Max Punching thickness		Nominal force(Kn)	Power (KW)	Stroke(mm)	Model
	SS(mm)	MS(mm)
5	1	1.2	50	3	70	H5A, H5B, H5C,
8	1.6	2	80	4	100	H8A, H8B, H8C,
15	2.4	3	150	4	120	H15A, H15B, H15C,H15D
20	4	5	200	5.5	150	H20A, H20B, H20C,H20D, H20E
25	5	6	250	5.5	150	H20A, H20B, H20C,H20D, H20E and so on

Machine Technical parameter

Model	H3A	5A	8A	15A	20A	25A
Motor power(kw)	1.5	3.0	4.0	4/5.5	5.5/7.5	7.5
Nominal pressure(KN)	30	50	80	150	200	250
Stroke(mm)	701	70	100	120	150	150
Punching hole diameter(mm)	30	50	50	50	50	50
Punching thickness(mm)	0.8	1.2	2.0	3.0	4.0	5.0

 A= single punchin stations, B= double punching stations, C,DE... and so on
3 mean 3 ton, 5 mean 5ton, ........
for example. if you need two different moulds, change one single head machine with tow mould, change them when do different job
the second option  is  one double heads machine install tow moulds, no need change and install moulds again

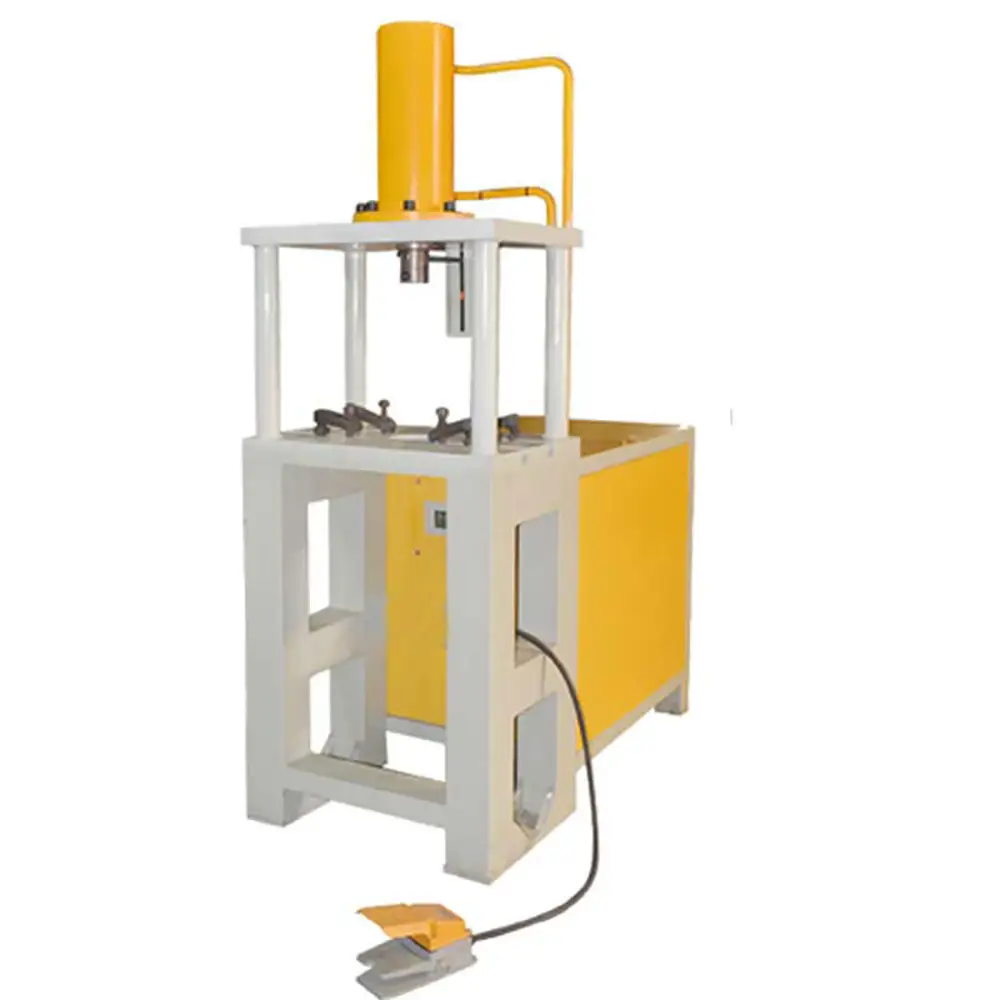

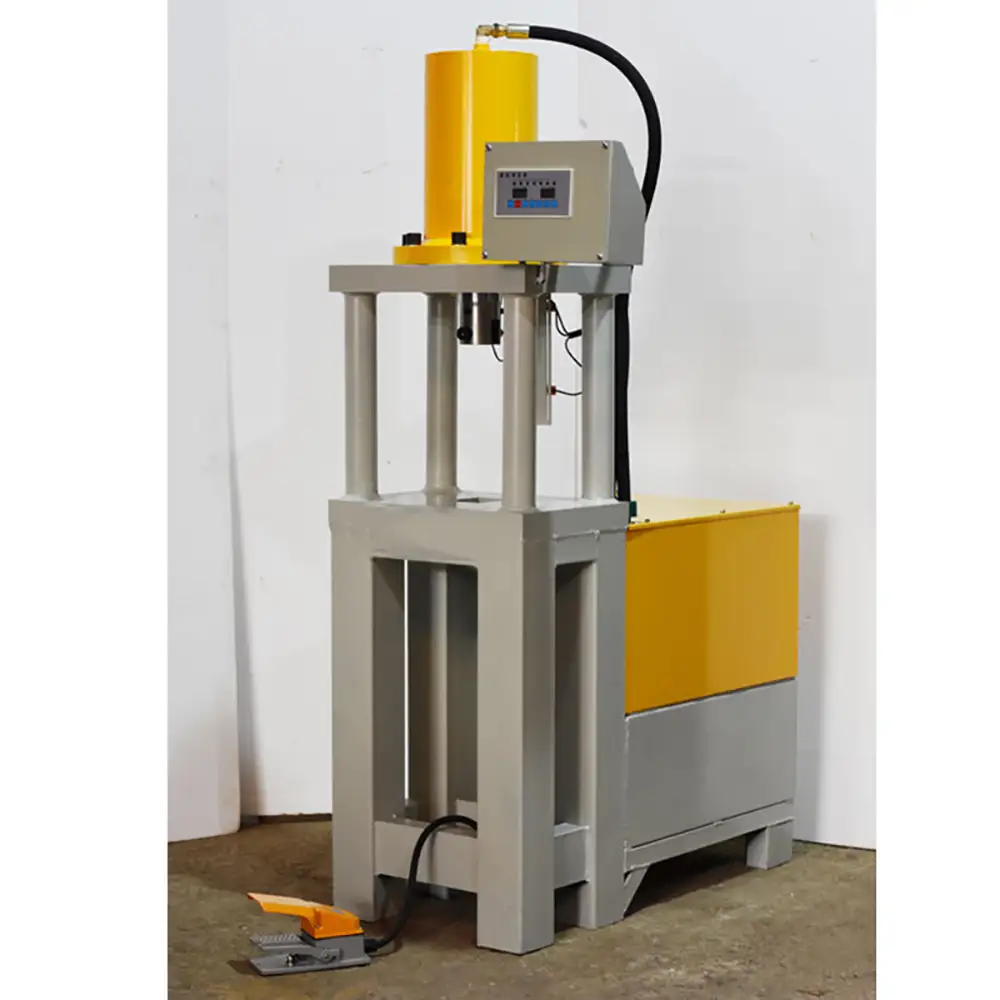

The Semi Automatic Single Punching Station 15A Greenhouse Fastening Pressing Cutting and Punching Machine is designed for efficient processing of greenhouse fastening components, metal strips, profiles, brackets, and related hardware used in agricultural greenhouse construction. Combining pressing, cutting, and hole punching operations in one compact machine, this equipment provides a practical solution for manufacturers and greenhouse hardware suppliers looking to improve production efficiency and maintain consistent processing quality.

The 15A machine features a single punching station and a semi-automatic working concept. Instead of relying entirely on separate cutting, punching, and pressing equipment, operators can use an integrated processing workflow to complete multiple operations on suitable workpieces. This can help reduce handling between machines, simplify production processes, and improve workshop organization.

Semi Automatic Single Punching Station Design

The single-station configuration provides a straightforward structure for greenhouse fastening production. The operator positions the workpiece, activates the processing cycle, and removes the finished component after the operation is completed. Depending on the machine configuration and tooling, the equipment can perform punching, pressing, and cutting operations required for specific greenhouse fastening products.

A single punching station is particularly useful for manufacturers with stable product designs and repetitive production requirements. Tooling can be configured according to the required hole shape, hole position, cutting profile, or pressing operation. This makes the machine suitable for dedicated greenhouse hardware production as well as small- and medium-batch metal fabrication.

Punching and Hole Making for Greenhouse Fasteners

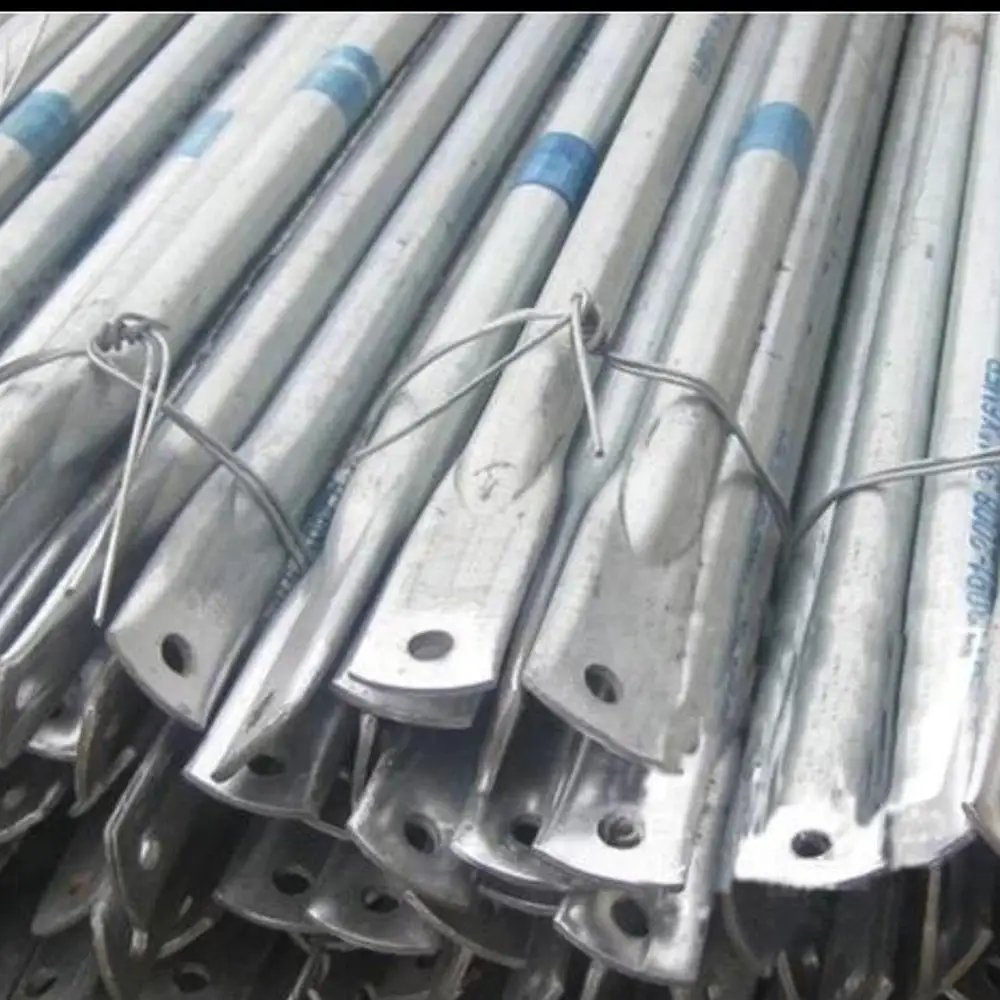

Hole punching is an important operation in the production of greenhouse fastening components. Greenhouse structures commonly require brackets, clips, connecting pieces, fixing plates, and other metal components with accurately positioned holes for assembly.

The 15A punching system can be configured for suitable metal materials and workpiece dimensions according to the application. The punching tool creates holes through controlled mechanical force, providing a repeatable production process for high-volume fastening components.

For different products, the punch and die can be selected according to hole diameter, material thickness, shape, and production requirements. Buyers should confirm the actual punching capacity with the manufacturer before ordering, since performance depends on material strength, thickness, tooling, and machine configuration.

Pressing and Forming Operations

In addition to punching, the machine can support pressing operations for suitable greenhouse fastening parts. Pressing can be used to shape, bend, flatten, or form specific sections of a component according to the product design.

Integrating pressing into the production process can reduce the need to transfer workpieces between separate machines. This is especially useful when several operations must be performed repeatedly on the same type of greenhouse hardware.

The actual pressing capability depends on the machine's working force, tooling design, material characteristics, and required forming geometry. Custom punches, dies, fixtures, and workholding solutions can be considered for specialized applications.

Integrated Cutting Function

The cutting function provides another important operation for greenhouse metal hardware processing. Suitable metal strips, profiles, or components can be cut to the required length or shape as part of the production workflow.

By combining cutting and punching functions, the machine can help streamline production from raw material preparation to finished fastening components. This can reduce manual material movement and improve consistency between production batches.

The appropriate cutting method and tooling depend on the material type, cross-sectional dimensions, thickness, and required cutting profile. Customers should provide detailed workpiece information when requesting a machine configuration.

Applications in Greenhouse Manufacturing

Greenhouse construction requires many types of metal fastening and connection components. These include greenhouse clips, fixing plates, brackets, support components, connector pieces, fastening strips, and other custom hardware.

The 15A machine can be used in production environments serving:

Agricultural greenhouse manufacturers

Greenhouse hardware factories

Metal fastening component suppliers

Agricultural equipment manufacturers

Light metal fabrication workshops

Greenhouse installation hardware suppliers

Custom metal component manufacturers

Small and medium batch production facilities

Its compact processing concept makes it suitable for workshops where space, operator efficiency, and production flexibility are important considerations.

Suitable Materials

The machine can be configured for processing suitable metal materials commonly used in greenhouse fastening applications. Depending on the tooling and machine configuration, potential materials may include carbon steel, galvanized steel, stainless steel, aluminum, and other compatible metal strips or profiles.

Material thickness and hardness directly influence punching and cutting performance. Galvanized steel, for example, may require appropriate tooling and processing parameters to maintain hole quality and reduce premature tool wear.

For new applications, sample testing is recommended to verify hole quality, cutting performance, forming results, tooling life, and overall production efficiency.

Production Efficiency

A semi-automatic machine can provide a balance between manual operation and automated production. Operators retain control over material positioning and inspection while the machine performs repetitive processing actions.

For manufacturers producing the same or similar greenhouse fastening parts, a dedicated single-station machine can simplify production management. Standardized tooling and repeatable operating procedures can help reduce variation between parts and support more consistent output.

The actual production rate depends on material feeding, workpiece dimensions, hole quantity, cutting requirements, pressing operations, operator workflow, and machine cycle settings.

Tooling and Customization

Tooling is one of the most important factors in punching and forming performance. The 15A machine can be configured around the customer's specific greenhouse fastening component.

Possible customization areas may include punching dies, cutting tools, pressing tools, positioning fixtures, material guides, workpiece supports, control functions, and other machine components.

Customers can provide drawings, photographs, samples, material specifications, and production requirements. Based on this information, the manufacturer can evaluate a suitable tooling and machine configuration.

Operation and Maintenance

Regular maintenance helps maintain stable machine performance. Operators should keep the punching area clean, inspect tooling regularly, check fastening components, lubricate applicable moving parts according to the manufacturer's instructions, and monitor hydraulic or mechanical components where applicable.

Punches and dies are consumable tooling components and may require replacement or sharpening depending on material and production volume. Correct alignment is also important because improper tooling alignment can affect hole quality and accelerate wear.

Operators should always follow the machine's operating manual and use appropriate guards, emergency-stop systems, and personal protective equipment required for the specific configuration and working environment.

Custom & OEM Greenhouse Fastening Solutions

For greenhouse hardware manufacturers, Custom & OEM production is an important advantage. A machine can be developed around a specific fastening component rather than forcing the product to fit a standard process.

OEM solutions may include custom punching tools, cutting dies, pressing dies, positioning fixtures, feeding arrangements, and production layouts. This makes the 15A platform suitable for manufacturers developing proprietary greenhouse fastening products or processing multiple component designs.

Why Choose Us

Greenhouse Hardware Application Experience – We focus on practical metal processing solutions for agricultural and industrial fastening applications.

Integrated Processing – Punching, pressing, and cutting functions can be combined to simplify repetitive production operations.

Single Station Configuration – The compact single-station design is suitable for dedicated and repeatable component processing.

Custom Tooling Support – Punches, dies, fixtures, guides, and other tooling can be designed around the customer's workpiece.

Semi Automatic Operation – The machine provides a practical balance between operator control and repetitive mechanical processing.

B2B OEM Capability – Custom machine configurations can be developed for greenhouse hardware manufacturers, distributors, and industrial buyers.

Application-Based Recommendations – Machine configuration can be evaluated according to material, thickness, dimensions, hole requirements, and production volume.

Export-Oriented Service – We support overseas buyers with product consultation, technical communication, customization, and production coordination.

FAQs

1. What is the 15A greenhouse fastening machine?

The 15A is a semi-automatic machine designed for suitable greenhouse fastening components and related metal processing operations, including punching, pressing, and cutting.

2. What does the single punching station mean?

It means the machine uses one primary punching station for the specified punching operation. Tooling can be configured according to the workpiece requirements.

3. Can it punch holes in greenhouse metal strips?

Yes. With suitable punches, dies, and machine configuration, it can process compatible metal strips used for greenhouse fastening components.

4. Can the machine cut and punch in one production process?

The machine is designed to integrate suitable cutting and punching operations, with the exact sequence depending on the machine configuration and product requirements.

5. What materials can be processed?

Potential materials include suitable carbon steel, galvanized steel, stainless steel, aluminum, and other compatible metals, subject to machine capacity and tooling.

6. Can the punching tooling be customized?

Yes. Custom punches and dies can be developed according to hole diameter, shape, position, material thickness, and product design.

7. Is this machine fully automatic?

No. It is described as a semi-automatic machine, meaning the operator participates in material loading, positioning, or other process steps.

8. Can it process different greenhouse fastening products?

Yes, within the machine's capacity. Different products may require different punches, dies, fixtures, or tooling configurations.

9. How do I select the correct configuration?

Provide the workpiece drawing or sample, material type, material thickness, hole dimensions, cutting requirements, and expected production volume.

10. Can OEM greenhouse fastening machines be produced?

Yes. Custom & OEM solutions can be considered for specialized greenhouse hardware production requirements.

11. How can I maintain the punching tools?

Keep punches and dies clean, maintain correct alignment, inspect wear regularly, and follow the manufacturer's recommended maintenance procedures.

12. What information should I provide before purchasing?

Provide product drawings or samples, material specifications, dimensions, required hole patterns, cutting requirements, production volume, and any special pressing or forming requirements.
