Pipe End Fish Mouth Forming Machine Tube Punching Machine 8B

The 8B Pipe End Fish Mouth Forming Machine Tube Punching Machine is designed for specialized processing of metal pipe and tube ends where a fish-mouth or saddle-shaped profile is required. By combining tube end forming and punching-related processing into a dedicated machine, the equipment provides an efficient solution for manufacturers working with tubular components for metal fabrication, frames, structures, furniture, machinery, and other industrial applications.

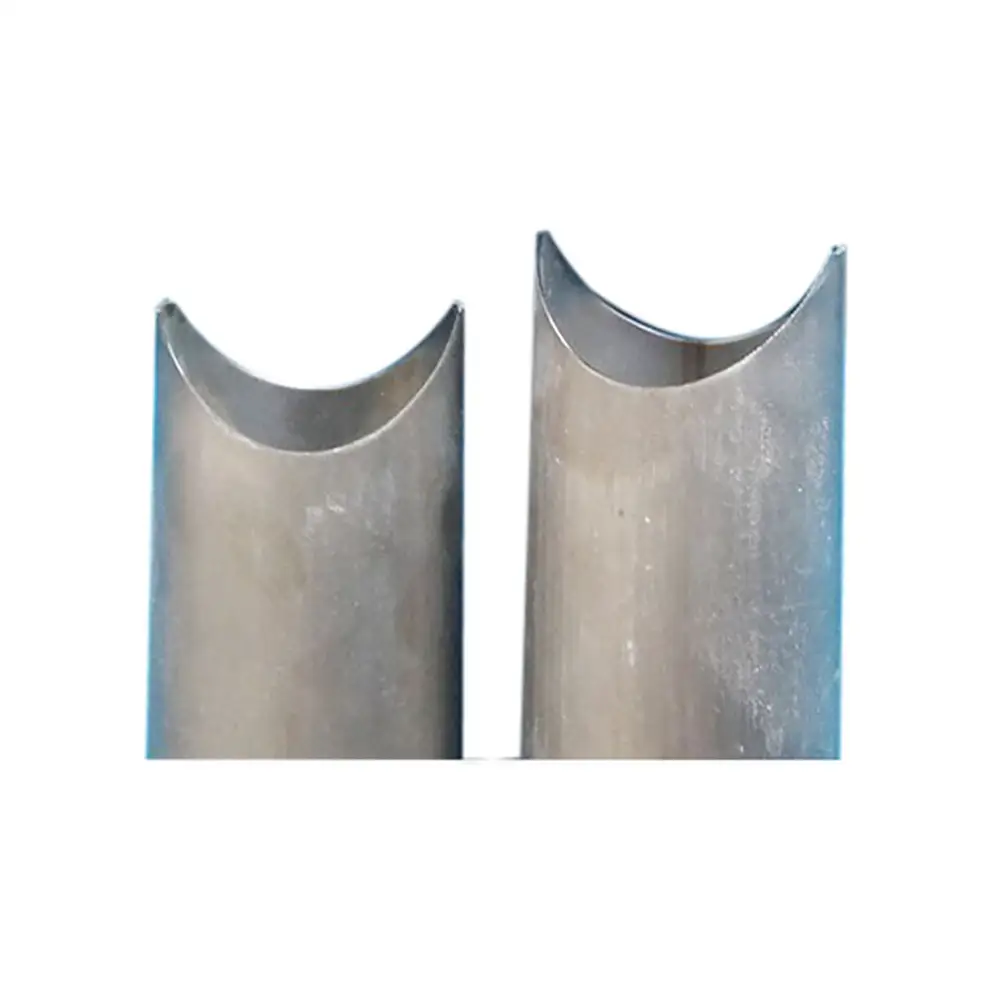

A fish-mouth pipe end is commonly used when one tube needs to connect, fit, or intersect with another tube. Instead of leaving a flat tube end, the end is formed or processed into a profile that can better match the surface of another round or tubular component. This type of preparation can simplify assembly, welding, and positioning while improving the overall fit between connected tubes.

The 8B model provides a compact production solution for workshops and manufacturers that need repeatable pipe-end processing. The actual forming capacity, compatible tube dimensions, hole geometry, tooling configuration, and production cycle depend on the specific machine configuration and workpiece requirements.

Pipe End Fish Mouth Forming

The primary function of this machine is fish-mouth forming at the end of a pipe or tube. Fish-mouth processing is particularly useful when two tubular components intersect at an angle and require a matching joint.

During processing, the tube is positioned against the appropriate tooling or fixture. The machine then applies the forming or punching force required to create the specified end profile. Proper positioning and tooling alignment are important for achieving consistent results from one workpiece to the next.

For production involving different tube diameters, wall thicknesses, materials, or intersection angles, suitable tooling should be selected according to the actual application. Customers can provide tube drawings, samples, dimensions, and joint requirements when requesting a machine configuration.

Tube Punching Machine Design

The 8B can also be used as a dedicated tube punching solution for suitable applications. Tube punching can create openings or end features required for assembly, fastening, positioning, or subsequent fabrication.

Compared with manual drilling or cutting methods, a dedicated punching process can provide a more repeatable production method for repetitive tube components. The punch and die arrangement can be designed around the required hole shape and workpiece geometry.

Actual punching performance depends on tube material, wall thickness, cross-sectional dimensions, punch diameter, tooling design, and machine force. Buyers should confirm the required processing specifications before selecting the final configuration.

Tube End Processing for Fabrication

Tube end processing is an important operation in many metal fabrication industries. When tubular components are connected by welding, accurate preparation of the tube end can improve fit-up and reduce unnecessary manual adjustment.

The fish-mouth profile can help create a closer interface between intersecting tubes. This is useful for tubular frames, support structures, equipment frames, handrails, racks, agricultural machinery, and other fabricated assemblies.

A dedicated machine can also help standardize the preparation process when the same tube design is produced repeatedly.

Suitable Pipe and Tube Materials

The machine can be configured for processing suitable metal tubes and pipes, depending on its tooling and working capacity. Potential materials may include carbon steel, mild steel, stainless steel, galvanized steel, aluminum, and other compatible tubing materials.

Different materials have different forming and punching characteristics. Stainless steel may require different tooling considerations from mild steel, while aluminum may require attention to deformation and surface quality.

For this reason, sample testing is recommended when processing a new material or unusual tube specification.

Tube Sizes and Tooling

Pipe and tube dimensions are important when selecting fish-mouth forming equipment. Outside diameter, wall thickness, tube length, material hardness, required end shape, and intersection angle all influence tooling requirements.

The machine can be equipped or customized with suitable punches, dies, forming tools, positioning fixtures, and supports according to the product design.

For manufacturers processing multiple tube sizes, interchangeable tooling may be considered where supported by the machine configuration. This can provide greater flexibility for different production orders.

Applications

The 8B Pipe End Fish Mouth Forming Machine can be used in a variety of tubular metal fabrication applications, including:

Metal tube frame manufacturing

Steel furniture production

Bicycle and fitness equipment

Motorcycle and automotive components

Agricultural machinery

Greenhouse structures

Steel structures

Handrails and guardrails

Pipe racks and storage systems

Machinery frames

Construction components

Custom tubular assemblies

The exact application range depends on tube dimensions, material, tooling, and machine capacity.

Benefits for Production

A dedicated fish-mouth forming machine can reduce the need for repeated manual cutting, grinding, filing, or fitting of tube ends. For manufacturers producing large quantities of similar components, consistent tooling can help standardize the end profile.

The machine can also improve workflow organization by concentrating tube-end processing into a dedicated workstation. Operators can establish standardized positioning and inspection procedures for repetitive production.

Actual productivity depends on loading and unloading time, tube dimensions, forming requirements, tooling, machine cycle, and operator experience.

Accuracy and Repeatability

Consistent tube positioning is essential for repeatable fish-mouth processing. Proper fixtures and tooling help maintain the relationship between the tube centerline and the forming tool.

For welded assemblies, consistent tube-end geometry can make subsequent fitting and welding easier. However, the final joint quality also depends on tube dimensional tolerances, welding procedures, fixture accuracy, and operator technique.

Manufacturers should evaluate finished samples before mass production to confirm the required profile and fit.

Custom & OEM Solutions

The 8B Pipe End Fish Mouth Forming Machine can be considered for Custom & OEM tube processing requirements. Different products may require different end profiles, punching patterns, tube diameters, or positioning arrangements.

OEM customization may include forming dies, punching tools, tube fixtures, positioning guides, supports, machine controls, and other application-specific components.

Customers can provide CAD drawings, tube samples, product dimensions, material specifications, required hole patterns, and production quantities. This information helps the manufacturer evaluate the appropriate machine and tooling solution.

Operation and Maintenance

Operators should keep the working area clean and inspect punches, dies, forming tools, and fixtures regularly. Tooling should be correctly aligned and securely installed before production.

Regular inspection can help identify tool wear, deformation, loose components, or alignment problems before they affect production quality. Lubrication and maintenance should follow the manufacturer's recommendations for the specific machine configuration.

Because punching and forming involve significant mechanical force, operators should use appropriate guards, emergency-stop systems, and personal protective equipment according to the machine design and local workplace requirements.

Why Choose Us

Specialized Tube Processing – The machine is designed around pipe and tube end forming and punching applications.

Fish-Mouth Forming Capability – Suitable tooling can create specialized tube-end profiles for intersecting tubular components.

Dedicated Production Solution – A dedicated machine can reduce repetitive manual tube-end preparation.

Custom Tooling – Punches, dies, fixtures, and forming tools can be developed according to customer requirements.

Wide Application Potential – Suitable for tubular structures, frames, furniture, machinery, agricultural equipment, and other fabrication industries.

OEM & Custom Support – Machine configurations can be adapted for specific tube sizes, materials, and production processes.

B2B Manufacturing Service – We support manufacturers, distributors, fabricators, and overseas industrial buyers.

Application-Based Recommendations – Machine selection can be based on actual tube dimensions, material, end profile, punching requirements, and production volume.

FAQs

1. What is a fish-mouth pipe end?

A fish-mouth pipe end is a specially formed or cut tube end designed to fit against another tubular or round component, commonly for welding or structural assembly.

2. What is the 8B Tube Punching Machine used for?

The 8B is designed for suitable pipe and tube end processing, particularly fish-mouth forming and punching applications.

3. Can the machine process round tubes?

Yes, the machine is intended for suitable pipe and tube applications. The exact diameter range should be confirmed according to the machine configuration.

4. Can it process square or rectangular tubes?

This depends on the specific tooling and machine design. Customers should provide the tube cross-section before ordering.

5. What materials can be processed?

Suitable materials may include carbon steel, mild steel, stainless steel, galvanized steel, and aluminum, depending on machine capacity and tooling.

6. Can the fish-mouth tooling be customized?

Yes. Custom forming and punching tooling can be designed according to the required tube dimensions and end profile.

7. Can it make holes in tubes?

Yes, suitable tube punching operations can be performed when the machine is configured with the appropriate punch and die.

8. Can one machine process different tube sizes?

Potentially, depending on the tooling and fixture design. Different tube sizes may require interchangeable tooling or dedicated fixtures.

9. Is this machine fully automatic?

The machine configuration should be confirmed for the specific model. The product is generally positioned as a dedicated tube processing machine, and automation level depends on the supplied configuration.

10. What information is needed for customization?

Provide tube diameter, wall thickness, material, tube length, fish-mouth shape, hole dimensions, processing angle, drawings, samples, and expected production volume.

11. Is sample testing available?

Sample testing can be discussed based on the customer's tube material, dimensions, and required finished profile.

12. What industries use fish-mouth tube forming?

Common applications include steel structures, furniture, bicycle manufacturing, agricultural machinery, automotive components, equipment frames, handrails, racks, and tubular fabrication.
