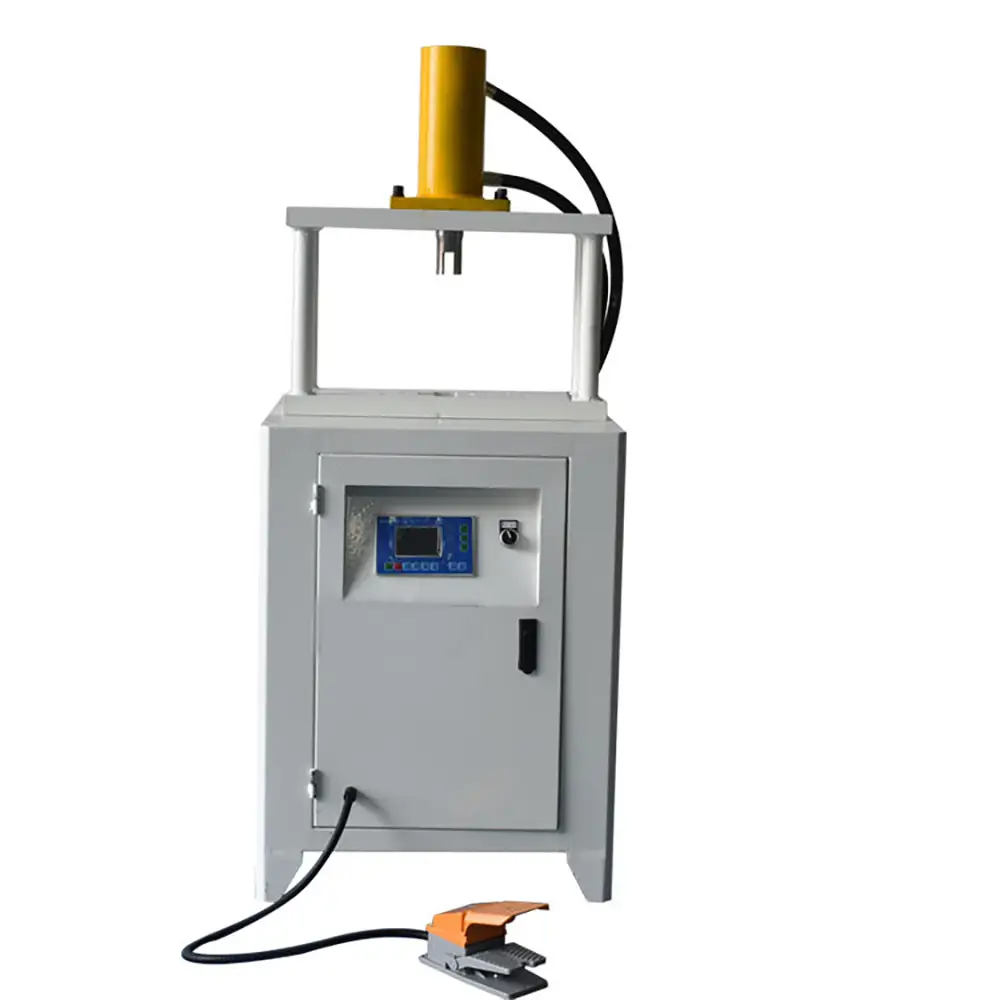

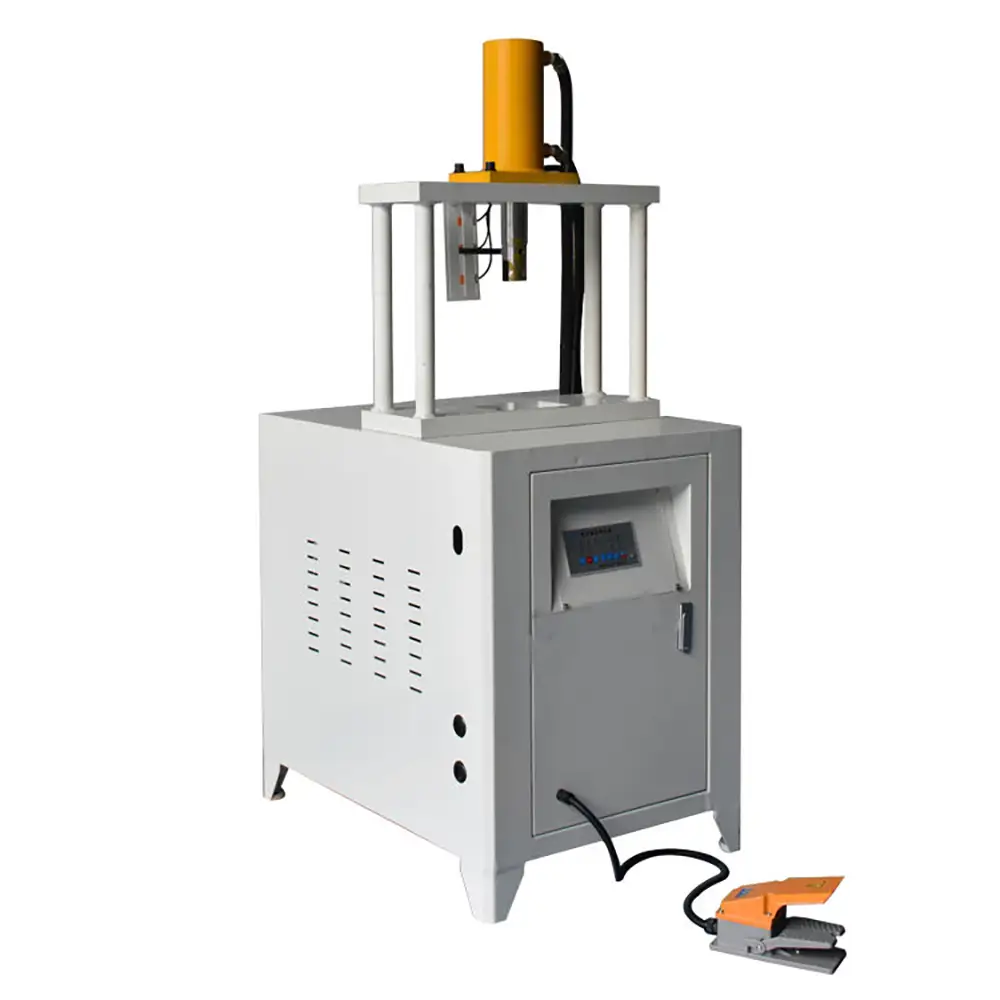

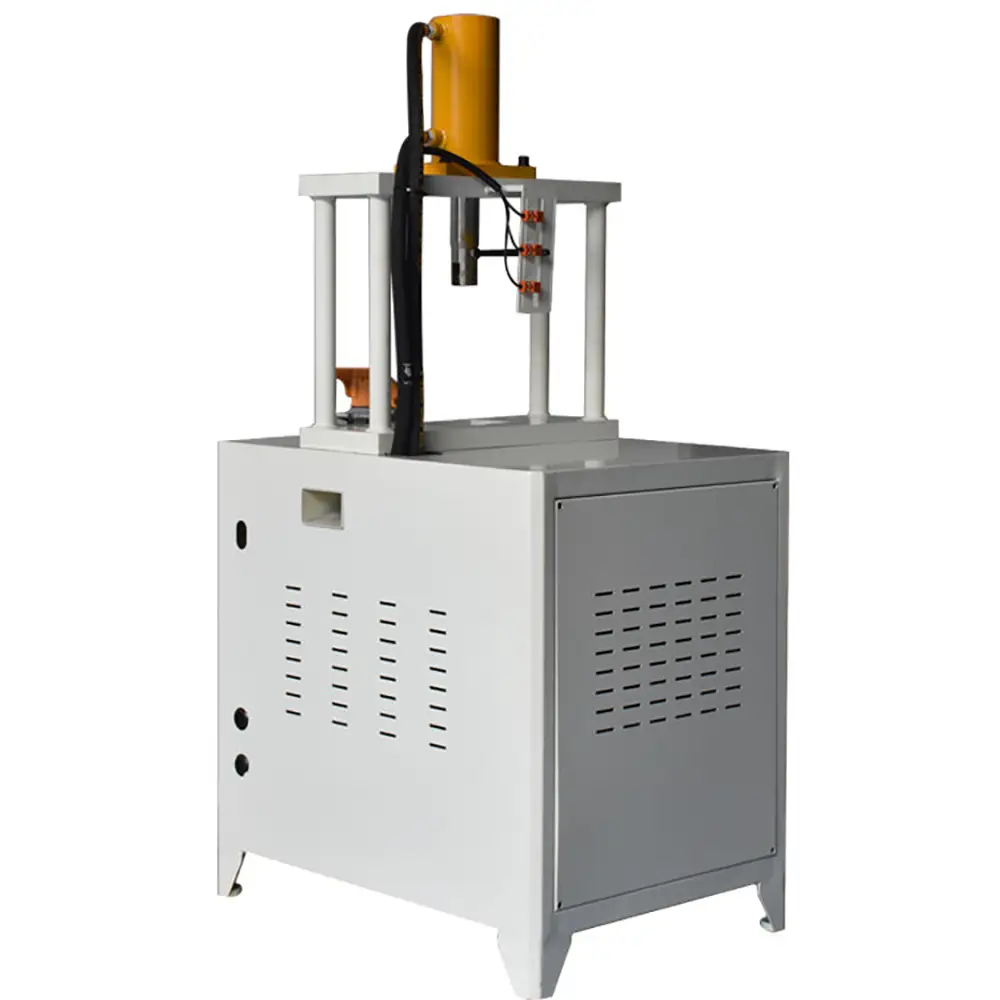

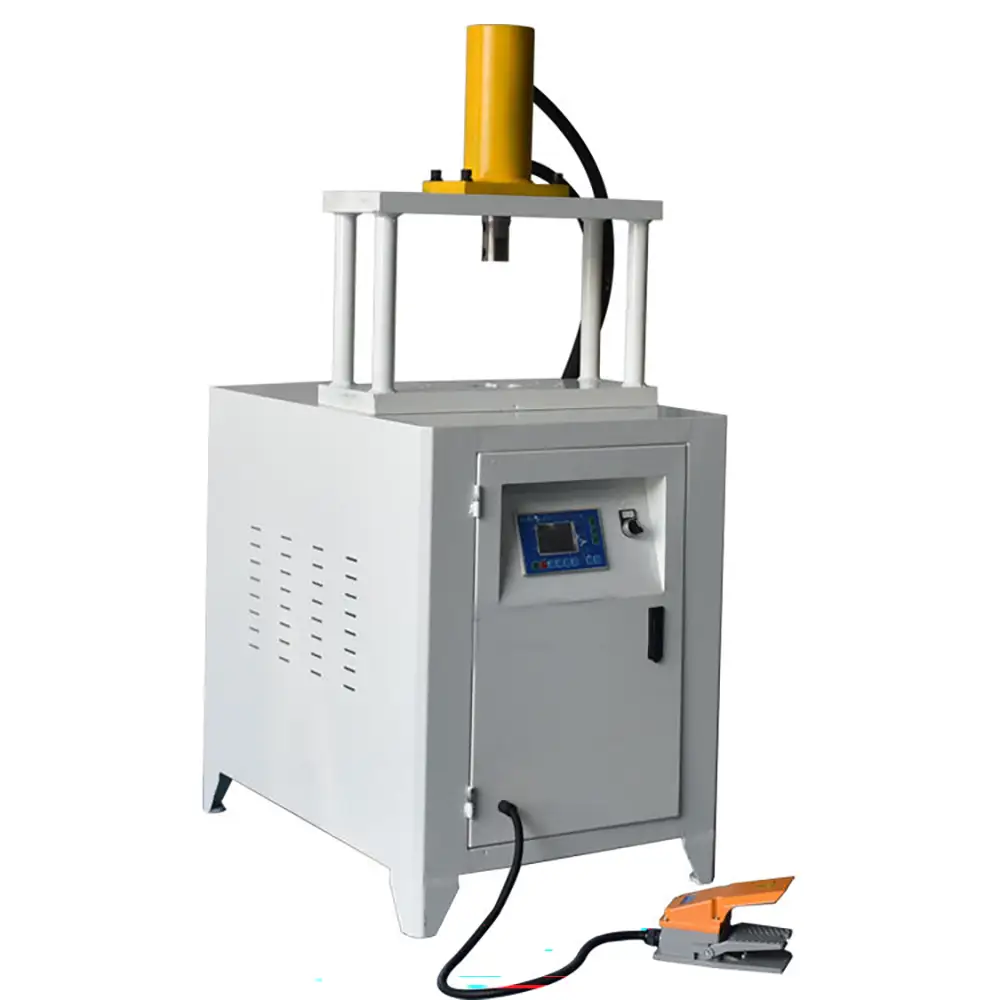

Punching Machine for Stainless Steel / Steel Aluminium Profile Punch Hole Machine

1 feed pipe by manual,there is scaleplate to help Make sure the hole distance is the same
2 fit to carbon steel, stainless steel , copper, aluminum,glass fiber steel and so on
3 hole shape: round, square, rectangle, ellipse, and notch
4 punching type. half(one wall/side), through(two side/wall)

The Punching Machine for Stainless Steel / Steel Aluminum Profile is designed for efficient and repeatable hole punching in stainless steel,carbon steel,aluminum profiles,and other metal sections. It provides a practical solution for manufacturers that need clean,consistent holes during the fabrication of profiles,frames,brackets,structural components,and industrial parts. By combining stable workholding with dedicated punching tooling,the machine can help improve production efficiency while reducing repetitive manual drilling operations.

Profile punching is widely used in industries where holes must be positioned consistently along a metal section. Compared with manual drilling,an appropriate punching machine can provide a more standardized production process,especially when the same hole size and position are required across large quantities of workpieces. The actual punching capacity,hole diameter,and suitable material thickness depend on the machine configuration,punch and die set,material strength,and hydraulic or mechanical system.

Pressure (ton)	Max Punching thickness		Nominal force(Kn)	Power (KW)	Stroke(mm)	Model
	SS(mm)	MS(mm)
5	1	1.2	50	3	70	H5A, H5B, H5C,
8	1.6	2	80	4	100	H8A, H8B, H8C,
15	2.4	3	150	4	120	H15A, H15B, H15C,H15D
20	4	5	200	5.5	150	H20A, H20B, H20C,H20D, H20E
25	5	6	250	5.5	150	H20A, H20B, H20C,H20D, H20E and so on

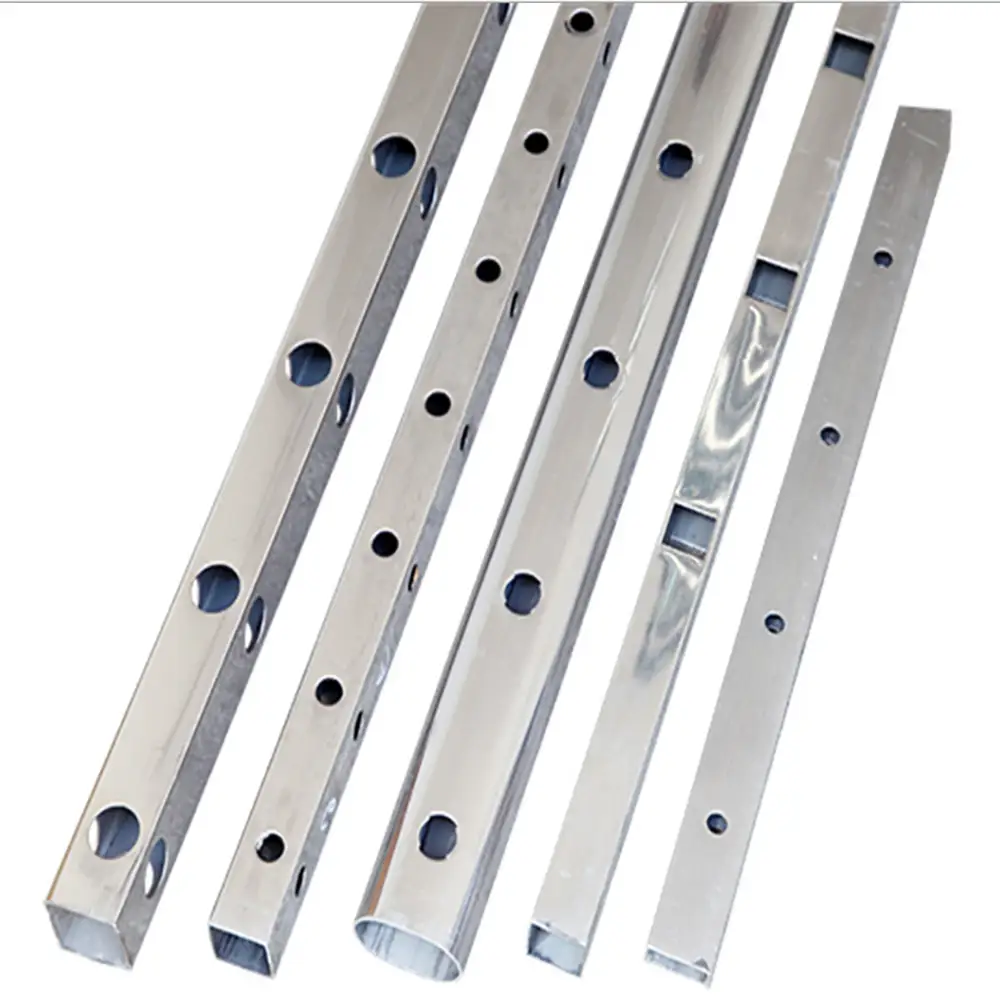

Stainless Steel Profile Punching

Stainless steel is commonly used for frames,architectural components,industrial equipment,fixtures,brackets,and fabricated structures. Punching stainless steel requires suitable tooling and sufficient machine force because stainless steel can have relatively high strength and work-hardening characteristics. With properly selected punches,dies,and operating parameters,the machine can be configured for repeatable hole production in stainless steel profiles.

The punching process can be used for round holes,slotted holes,or other customized shapes when compatible tooling is supplied. Custom punch and die designs can also be considered for special hole geometries or production requirements.

Steel Profile Hole Punching

Steel profiles are widely used in structural fabrication,construction,agricultural equipment,storage systems,frames,guardrails,and general metalworking. A steel profile punching machine can process selected flat sections,channels,angles,tubes,or other profiles according to the machine's tooling and workholding configuration.

Consistent positioning is particularly important when punched components will later be assembled with bolts,fasteners,brackets,or other structural parts. A stable workpiece fixture helps maintain repeatable hole locations and can simplify downstream assembly.

Aluminum Profile Punching

Aluminum profiles are common in doors and windows,solar structures,industrial frames,display systems,automation equipment,and lightweight fabricated products. Aluminum is softer than many steel grades,but it can still require carefully selected punch clearance and tooling to achieve clean holes without excessive deformation.

The machine can be configured for different aluminum profile applications depending on profile dimensions,hole patterns,and production requirements. For manufacturers processing several profile sizes,custom fixtures and tooling can help make changeovers more convenient.

Efficient Metal Hole Punching

The machine is suitable for repetitive hole-making applications where production consistency is important. Instead of manually measuring and drilling every hole,operators can use positioning fixtures,scales,stops,templates,or customized workholding systems to establish a repeatable processing position.

For larger production runs,this can help reduce unnecessary setup and handling time. The overall productivity depends on hole size,material thickness,profile dimensions,tooling,feeding method,operator workflow,and machine configuration.

Punches,Dies,and Custom Tooling

Punches and dies are key components of any profile punching machine. Proper clearance between the punch and die is important for achieving a suitable hole edge and reducing unnecessary tooling wear. Different materials and thicknesses may require different tooling configurations.

For special applications,we can discuss custom punches,dies,fixtures,positioning systems,and profile supports. OEM and ODM solutions are available for customers who need equipment adapted to specific stainless steel,steel,or aluminum profiles.

Applications

This metal profile punching machine can be used in a wide range of fabrication applications,including aluminum extrusion processing,stainless steel fabrication,steel structure manufacturing,window and door profile production,solar mounting structures,industrial frames,metal brackets,racking systems,guardrails,furniture components,agricultural machinery,and general metal fabrication.

It can also be integrated into a production line where punching is combined with cutting,drilling,bending,forming,or other profile-processing operations. The specific integration method depends on the production layout and required workflow.

Materials and Workpiece Compatibility

The machine can be configured for selected stainless steel,carbon steel,mild steel,aluminum,and other suitable metal profiles. Before production,material grade,profile dimensions,wall thickness,hole diameter,and hole shape should be confirmed so the appropriate punching force and tooling can be selected.

For demanding applications,production samples can be evaluated before finalizing the machine configuration. This helps verify hole quality,workpiece positioning,tooling selection,and processing suitability.

Quality and Repeatability

Consistent workpiece positioning is essential for producing uniform hole patterns. A properly designed fixture can reduce movement during punching and help maintain dimensional consistency from one workpiece to another.

Quality control should include checking hole diameter,hole position,edge condition,profile deformation,and overall workpiece dimensions. Actual results depend on material properties,tooling condition,machine setup,and operating parameters.

Maintenance and Operation

Regular maintenance helps keep the punching machine operating reliably. Operators should inspect punches and dies for wear,keep the working area clean,and check hydraulic or mechanical components according to the machine configuration. Fasteners,fixtures,and moving components should also be inspected periodically.

Tool wear should be monitored because worn punches can affect hole quality and increase processing resistance. Proper lubrication and maintenance procedures should follow the equipment manufacturer's recommendations.

Safety

Operators should receive appropriate training before using the machine. Hands should be kept away from the punching area during operation,and suitable guards,emergency stops,and protective devices should be used where provided. The machine should be installed and operated according to applicable workplace safety requirements and the manufacturer's instructions.

Why Choose Us

Multi-Material Processing – Designed for selected stainless steel,steel,and aluminum profile punching applications.

Repeatable Hole Production – Stable tooling and workholding can help maintain consistent hole positions and quality.

Custom Tooling Support – Punches,dies,fixtures,and positioning systems can be customized for specific applications.

Wide Application Range – Suitable for structural profiles,aluminum extrusions,frames,brackets,guardrails,and general fabrication.

Production-Focused Design – Built around efficient repetitive punching workflows to reduce unnecessary manual drilling.

OEM & ODM Solutions – Machine configurations can be adapted to specific profile dimensions,processing requirements,and production layouts.

B2B Export Experience – Suitable for manufacturers,metal fabricators,distributors,and industrial equipment buyers.

Complete Technical Communication – We can help confirm material,profile dimensions,hole requirements,tooling,and machine configuration before production.

FAQs

1. What materials can this punching machine process?

It can be configured for selected stainless steel,carbon steel,mild steel,aluminum profiles,and other suitable metal materials. Compatibility depends on material strength,thickness,profile geometry,and machine capacity.

2. Can it punch stainless steel profiles?

Yes. The machine can be configured for stainless steel profile punching with appropriate punches,dies,and machine capacity.

3. Can it punch aluminum profiles?

Yes. Aluminum profiles are a common application. Suitable tooling and clearance should be selected according to the aluminum grade,profile dimensions,and hole requirements.

4. What types of holes can it make?

Depending on the tooling,the machine may produce round,rectangular,slotted,or customized holes. The available hole shapes should be confirmed according to the required tooling.

5. Can the punching position be customized?

Yes. Positioning stops,fixtures,scales,templates,and customized workholding systems can be considered for different profile applications.

6. Can the machine process different profile sizes?

Potentially yes. The actual range depends on the machine throat,work area,tooling,and fixture configuration. Multiple profile sizes should be confirmed before ordering.

7. Is this machine suitable for mass production?

It can be used for repetitive production where the material,profile,and tooling are compatible. Actual production speed depends on the punching cycle,feeding method,workpiece size,and operator workflow.

8. Can you provide custom punches and dies?

Yes. Custom punches and dies can be developed or configured for specific hole sizes,shapes,and production requirements.

9. Can the machine be integrated with other equipment?

Yes. Depending on the configuration,it may be integrated into a production line involving profile cutting,drilling,bending,forming,or other fabrication processes.

10. How do I choose the correct machine?

Provide the material type,profile dimensions,material thickness,hole diameter,hole shape,hole position,and expected production volume. These details help determine the appropriate machine and tooling configuration.

11. How should the punching tools be maintained?

Punches and dies should be inspected regularly for wear,damage,and incorrect clearance. Keeping the tooling clean and properly maintained helps support consistent hole quality.

12. Can you provide OEM or customized solutions?

Yes. Custom and OEM solutions can include machine configuration,tooling,fixtures,feeding systems,positioning systems,and other production-specific requirements.
