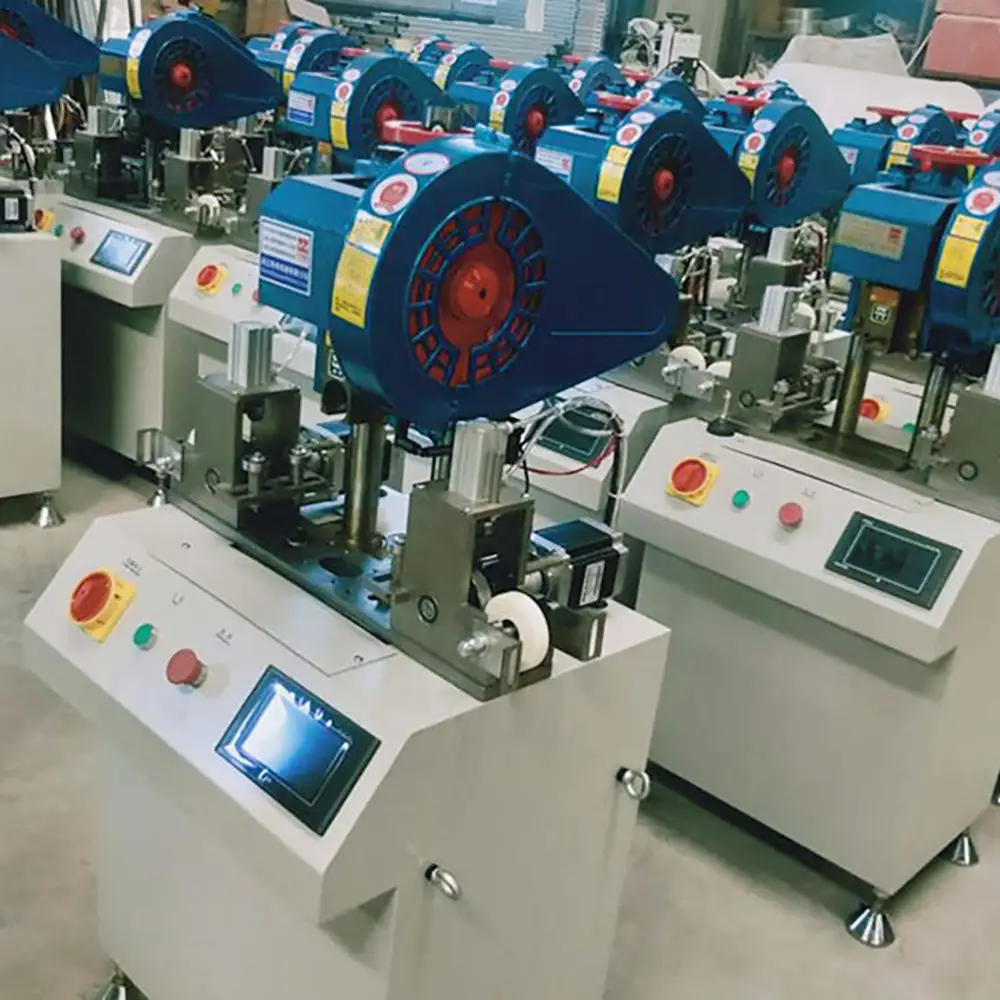

Shutter Punching Machine Automatic Feeding Aluminum Profile Punching Machine

 Shutter Punching Machine Automatic Feeding Aluminum Profile Punching Machine

The Shutter Punching Machine Automatic Feeding Aluminum Profile Punching Machine is designed for efficient, repeatable hole punching and profile processing in aluminum shutter manufacturing and other aluminum extrusion applications. By combining an automatic feeding system with a dedicated punching mechanism, the machine helps manufacturers process long aluminum profiles with consistent positioning, repeatable hole patterns, and improved production efficiency.

Aluminum shutters, roller shutters, window shutters, doors, curtain systems, and architectural profiles often require multiple holes or repeated punching operations. Manual drilling or individual punching can require significant labor and may lead to inconsistent hole positions. An automatic feeding aluminum profile punching machine provides a more organized production method by feeding profiles into the punching area according to the selected processing sequence.

The machine can be configured for different aluminum profile sizes, hole shapes, hole diameters, and punching patterns according to the production requirements. Custom punches, dies, guides, fixtures, and positioning components can be developed for specific aluminum shutter profiles and extrusion designs.

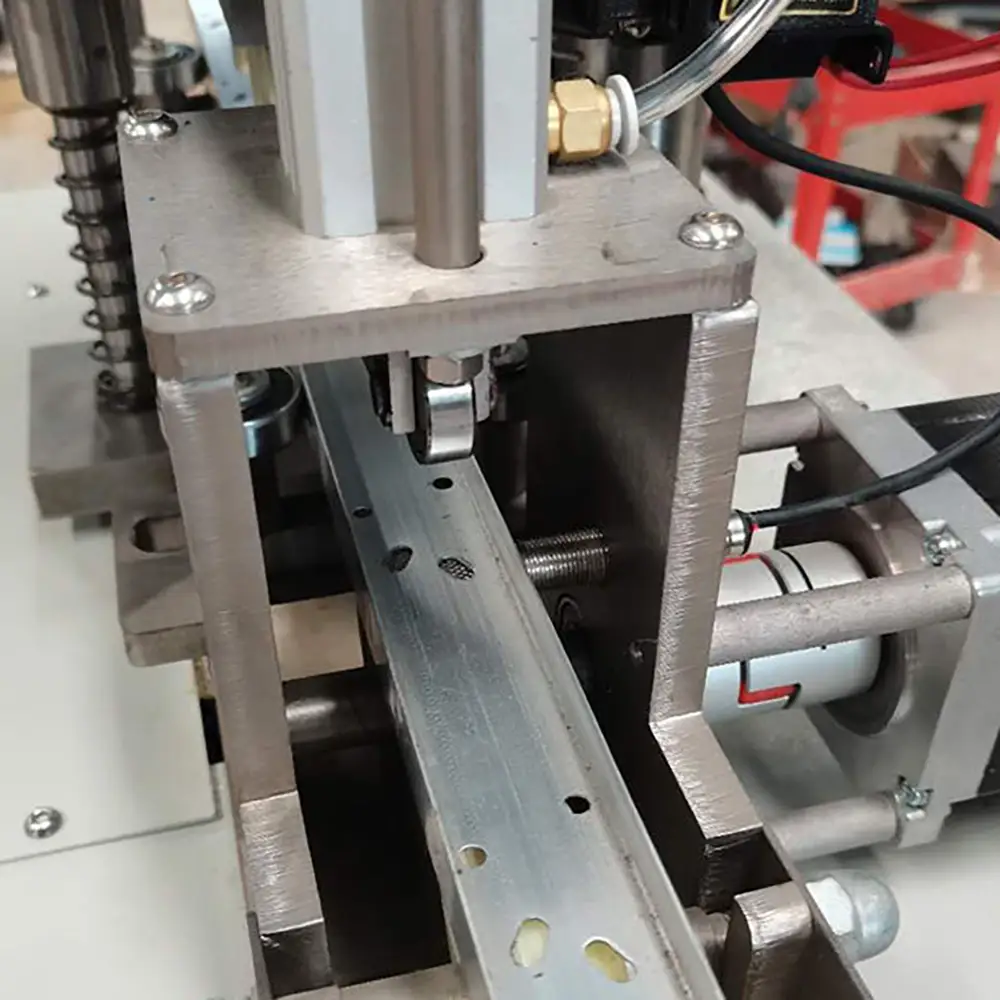

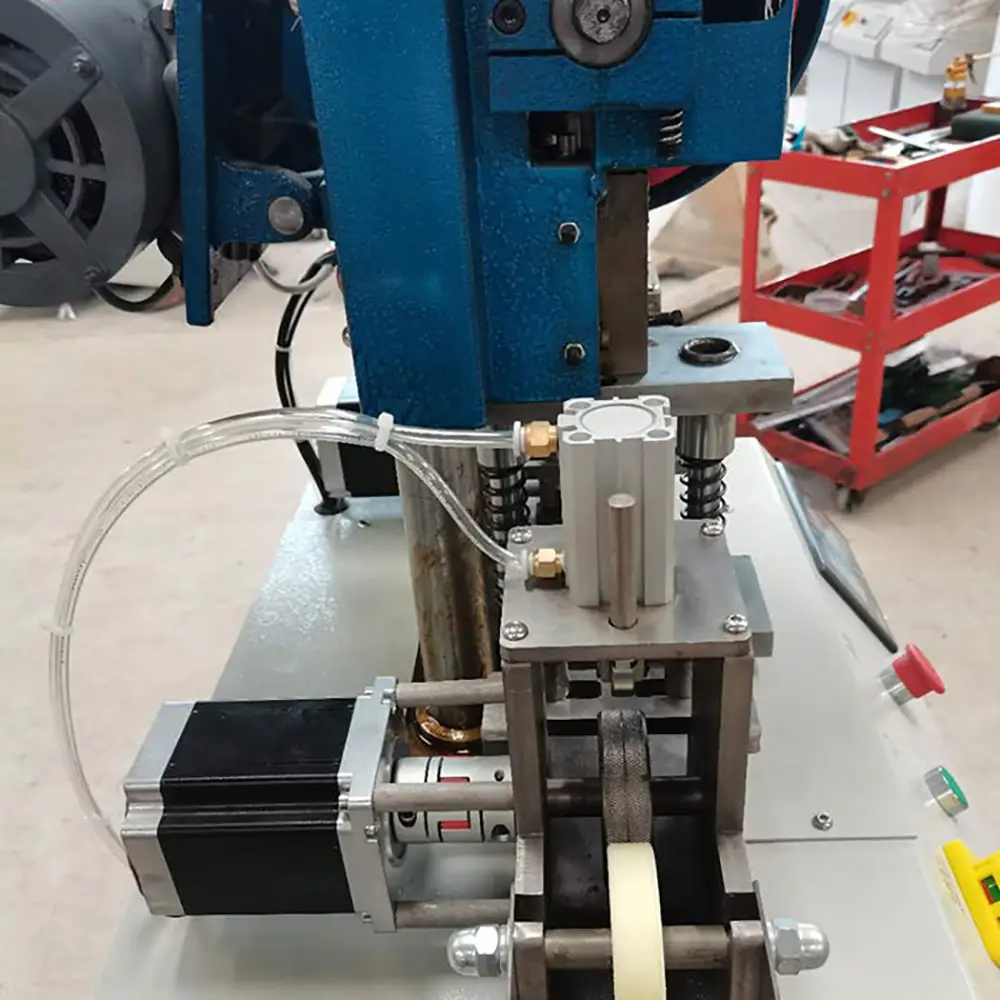

Automatic Feeding System

One of the main advantages of this aluminum profile punching machine is its automatic feeding capability. Instead of manually positioning every section before each punching operation, the feeding system helps move the aluminum profile through the processing area in a controlled and repeatable manner.

Automatic feeding can reduce repetitive manual handling and improve workflow consistency, especially when processing large quantities of similar profiles. Depending on the machine configuration, the feeding and positioning system may be integrated with mechanical, pneumatic, servo, or other control components.

The actual feeding length, positioning accuracy, profile dimensions, and production speed depend on the selected machine configuration, tooling, profile geometry, and production requirements.

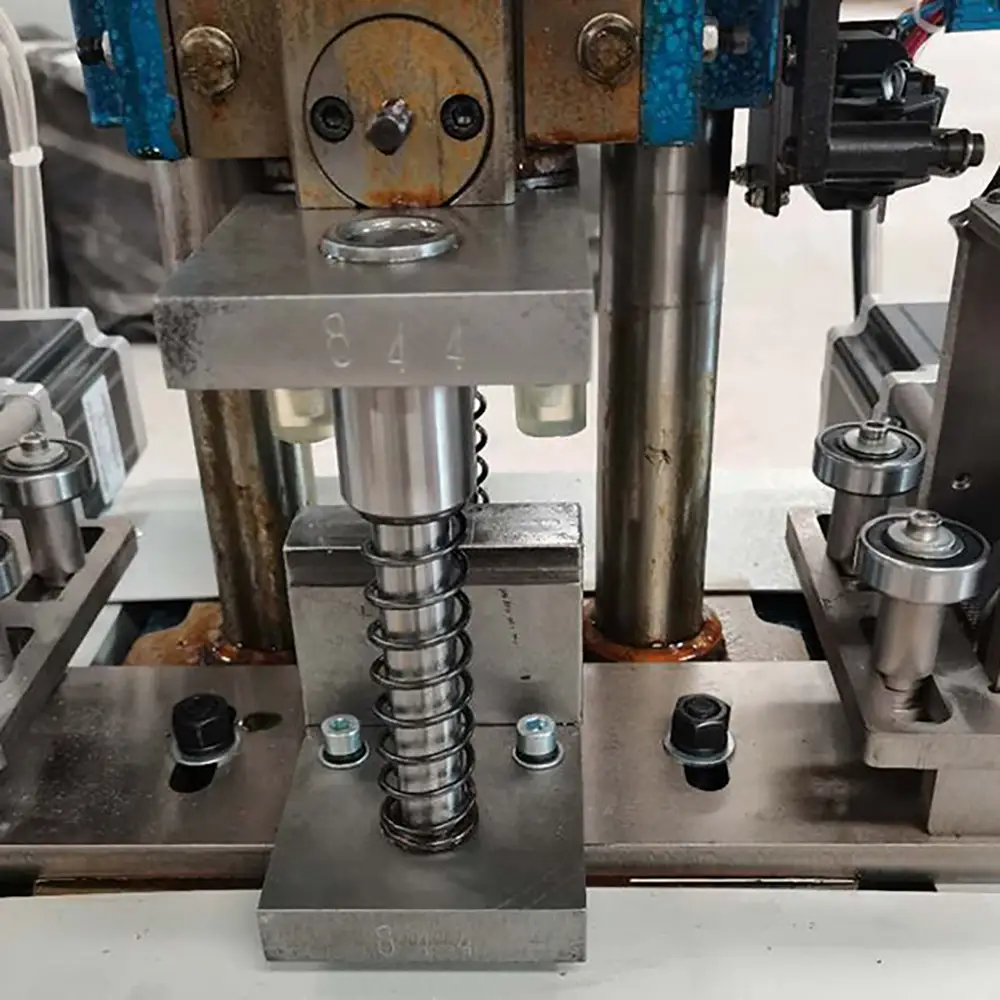

Aluminum Profile Punching

The machine is suitable for punching holes in aluminum profiles used for shutters, window systems, doors, frames, and other fabricated components. Punching provides a fast way to create repeated holes without requiring separate drilling operations for every position.

For aluminum extrusion profiles, proper tooling design is particularly important because profiles may have different wall thicknesses, cavities, channels, and cross-sectional shapes. The punch and die should be matched to the profile geometry to provide clean holes while supporting stable production.

Custom tooling can be developed for different hole diameters, slot shapes, hole arrangements, and profile designs. This makes the equipment suitable for manufacturers producing multiple shutter or aluminum profile models.

Shutter Manufacturing Applications

Automatic shutter punching equipment is commonly used in production lines for aluminum roller shutters, window shutters, doors, architectural components, and related systems. It can support repeated hole-making operations required for assembly, fastening, mounting, and component connection.

Typical applications may include:

Aluminum Roller Shutter Profiles

Aluminum Window Shutters

Aluminum Door Profiles

Roller Shutter Components

Aluminum Extrusion Profiles

Architectural Aluminum Profiles

Window And Door Components

Aluminum Frames

Curtain And Shading Systems

Customized Aluminum Fabrication

For manufacturers with high-volume orders, automated profile feeding can help reduce repetitive handling and establish a more consistent production workflow.

Efficient Production Workflow

The basic working process normally involves loading the aluminum profile, positioning or guiding the profile, feeding it into the punching station, performing the programmed or configured punching operation, and moving the processed profile to the next position or discharge area.

Compared with manual hole drilling, a dedicated punching machine can simplify repeated operations. Once the correct tooling and positioning method have been established, operators can focus more on material loading, quality inspection, tooling checks, and production management.

Production efficiency depends on the profile length, hole quantity, hole pattern, feeding distance, punching method, tooling configuration, operator workflow, and machine settings.

Stable Hole Positioning

Consistent hole positioning is important for aluminum shutters because the holes often need to align with other components during final assembly. The automatic feeding and positioning system helps establish repeatable processing conditions.

Profile guides, fixtures, stops, sensors, and other positioning components can be incorporated according to the machine design. For customized production, the tooling and positioning structure can be adapted to the actual cross-section of the aluminum profile.

Manufacturers should conduct sample testing before mass production to confirm hole dimensions, positioning, tooling compatibility, and finished-profile quality.

Tooling And Customization

Different aluminum profiles require different punching solutions. A narrow shutter profile may require a different punch and die from a larger structural extrusion. The hole diameter, hole shape, material thickness, profile cavity, and required spacing all influence tooling selection.

We can support Custom & OEM solutions including customized punches and dies, profile guides, feeding systems, fixtures, positioning components, and machine configurations.

For buyers with several aluminum profile models, interchangeable tooling can also be considered where suitable. This can help one machine support multiple production requirements while maintaining a consistent manufacturing process.

Suitable Materials

The primary application is aluminum profile punching, especially aluminum extrusion profiles used in shutters and architectural products. Depending on the machine configuration and tooling, other non-ferrous metal profiles may also be considered.

Material compatibility should always be confirmed according to profile alloy, wall thickness, cross-sectional design, hardness, and required hole dimensions. Testing is recommended before finalizing the production configuration.

Quality Control

Consistent punching quality depends on several factors, including punch and die condition, profile positioning, feeding stability, machine setup, material properties, and tooling clearance.

Regular inspection of hole diameter, hole location, burr condition, profile deformation, and overall appearance can help maintain stable production quality. Punches and dies should be inspected periodically because worn tooling may increase burrs or reduce dimensional consistency.

A properly matched punching system can help manufacturers reduce unnecessary secondary drilling and improve the repeatability of common profile processing operations.

Maintenance And Operation

Routine maintenance helps keep the automatic aluminum profile punching machine operating reliably. Operators should regularly inspect the punching tooling, feeding mechanism, profile guides, fasteners, sensors, electrical components, and other wear parts.

The machine should be operated according to the manufacturer's instructions. Lubrication, cleaning, tooling replacement, and adjustment should be performed according to the actual machine configuration and working conditions.

Before changing punches or dies, operators should follow the applicable shutdown and safety procedures. Emergency stops, guards, electrical protection, and other safety features should be used according to the specific machine configuration and local workplace requirements.

Why Choose Us

Specialized Aluminum Profile Solutions — We understand the processing requirements of aluminum extrusion and shutter profiles and can develop suitable punching configurations.

Automatic Feeding Technology — Automatic profile feeding helps reduce repetitive manual positioning and supports a more consistent production workflow.

Custom Punching Tooling — Punches, dies, guides, fixtures, and positioning components can be customized according to your aluminum profile and hole pattern.

OEM And ODM Support — We provide customized machine solutions for manufacturers, distributors, wholesalers, and industrial buyers.

Flexible Production Applications — The equipment can be configured for different shutter profiles, aluminum extrusions, hole patterns, and production requirements.

B2B Export Experience — We support international buyers with machine configuration, technical communication, packaging, and export coordination.

Production-Focused Design — The machine is developed to support repeatable profile processing and efficient handling of repetitive punching operations.

Custom & OEM Service — From tooling and feeding systems to machine configuration, we can work with buyers to develop a solution based on their actual production requirements.

Frequently Asked Questions

1. What is a shutter punching machine?

A shutter punching machine is industrial equipment designed to create holes or other punched features in shutter profiles, commonly aluminum extrusion profiles used for roller shutters, windows, doors, and related products.

2. What is an automatic feeding aluminum profile punching machine?

It is a punching machine equipped with an automatic feeding system that moves aluminum profiles into the punching area for repeatable hole-making operations.

3. Can the machine punch aluminum extrusion profiles?

Yes. The machine is primarily designed for aluminum profile punching. The appropriate punch, die, guide, and fixture should be selected according to the profile design.

4. Can different hole sizes be processed?

Different hole sizes can generally be supported through suitable punching tooling. The actual available range depends on the machine and customized punch-and-die configuration.

5. Can the machine process different aluminum shutter profiles?

Yes, customized tooling and profile guides can be developed for different profile shapes and dimensions, subject to machine capacity and tooling requirements.

6. Does automatic feeding improve production efficiency?

Automatic feeding can reduce repetitive manual positioning and handling, which may improve workflow consistency and productivity in repetitive production.

7. Can the machine punch a customized hole pattern?

Yes. Customized punches, dies, positioning systems, and feeding configurations can be designed for specific hole patterns and aluminum profile requirements.

8. Can one machine process multiple profile models?

This depends on the machine design and tooling system. With interchangeable or customized tooling, one machine may support multiple compatible profile models.

9. Is this machine suitable for roller shutter production?

Yes. It can be used for aluminum roller shutter profiles and related components requiring repeated hole punching operations.

10. How do I choose the right punching tooling?

Tooling should be selected according to the aluminum alloy, profile dimensions, wall thickness, hole diameter, hole shape, spacing, and required production volume.

11. Can you provide OEM customization?

Yes. Custom & OEM solutions can include punches, dies, fixtures, profile guides, feeding systems, positioning components, and other machine configurations.

12. How should I confirm the machine configuration before ordering?

Provide your aluminum profile drawings or samples, material information, required hole dimensions, hole pattern, production quantity, and automation requirements. These details allow the machine configuration and tooling to be evaluated more accurately.
