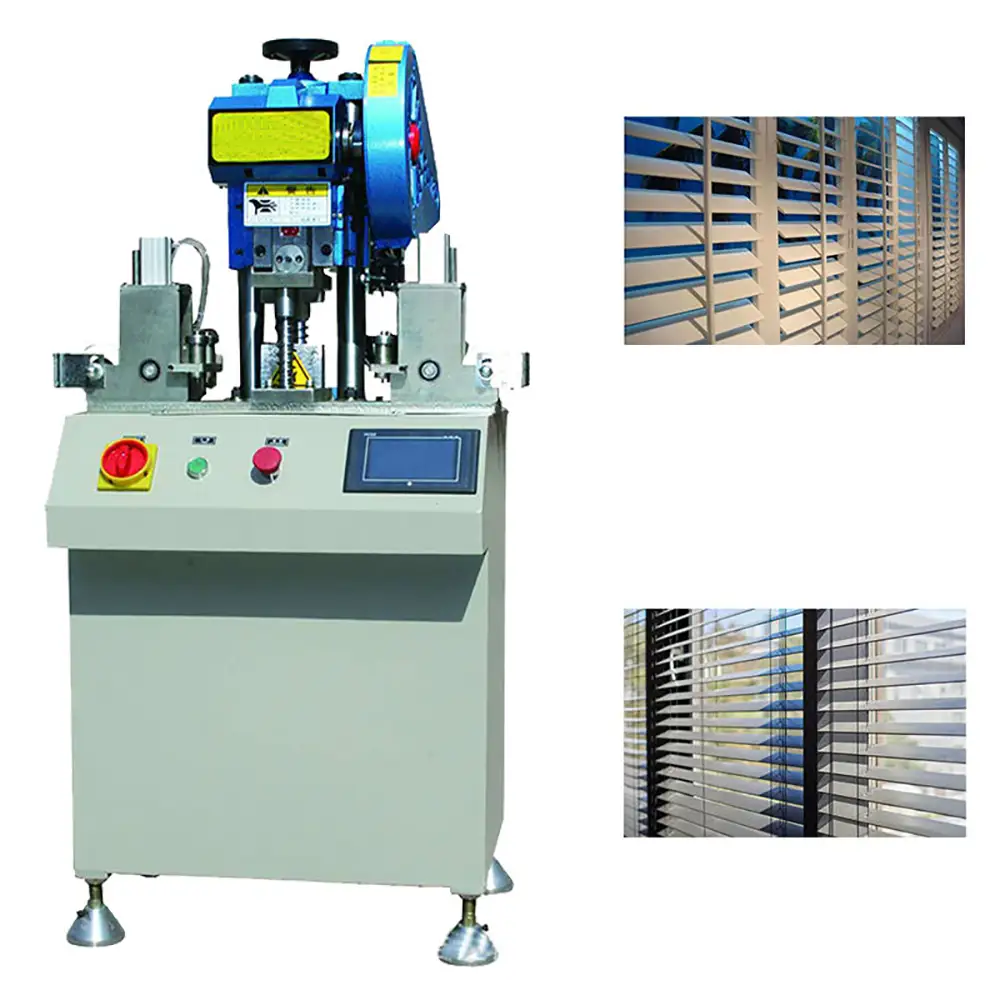

Automatic Feeding Aluminum Profile Punching Machine Shutter Punching Machine

 Automatic Feeding Aluminum Profile Punching Machine

The Automatic Feeding Aluminum Profile Punching Machine is designed for efficient and repeatable hole punching in aluminum profiles, shutter profiles, window and door components, and other compatible extruded metal sections. By combining automatic material feeding with controlled punching operations, the machine provides a practical production solution for manufacturers that process large quantities of standardized aluminum profiles.

Aluminum extrusion products are widely used in windows, doors, shutters, architectural systems, furniture, industrial frames, and construction components. Many of these profiles require accurately positioned holes, slots, mounting openings, or connection points before assembly.

Traditional manual drilling and punching can require repeated measuring, marking, positioning, and workpiece handling. An automatic feeding punching machine can simplify these repetitive processes and help improve production consistency.

The actual punching capacity, profile dimensions, hole size, feeding length, production speed, and automation functions depend on the specific machine configuration, tooling, material properties, and customer requirements.

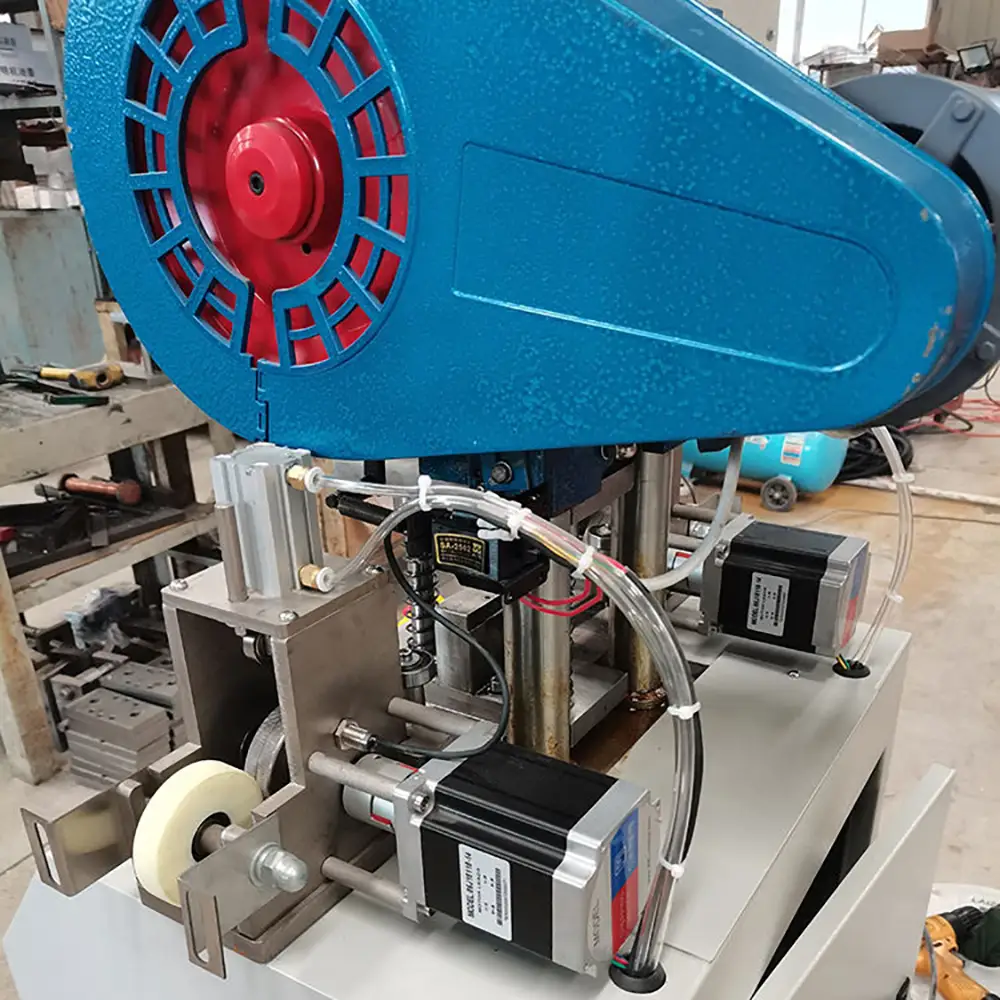

Automatic Feeding System

The automatic feeding system is one of the key features of this type of equipment. It is designed to move aluminum profiles into the punching area according to the selected production process.

Automatic feeding can reduce repetitive manual loading and positioning work. For high-volume production, controlled feeding can also help maintain more consistent processing intervals and reduce unnecessary material handling.

The exact feeding method depends on the machine configuration. Depending on the design, the system may use guides, rollers, clamps, positioning mechanisms, or other material-handling components.

For profiles with different lengths or cross-sectional shapes, suitable feeding and positioning components should be selected according to the actual product.

Aluminum Profile Punching

Aluminum profiles often require holes for screws, brackets, fasteners, connectors, hinges, handles, or assembly components.

A dedicated punching machine uses suitable punches and dies to create the required openings in a controlled process.

The quality of the punched hole depends on material alloy, profile thickness, hole diameter, tooling geometry, punch and die clearance, positioning accuracy, and machine settings.

For aluminum extrusion profiles with complex cross-sections, dedicated tooling and profile fixtures can help maintain correct positioning during punching.

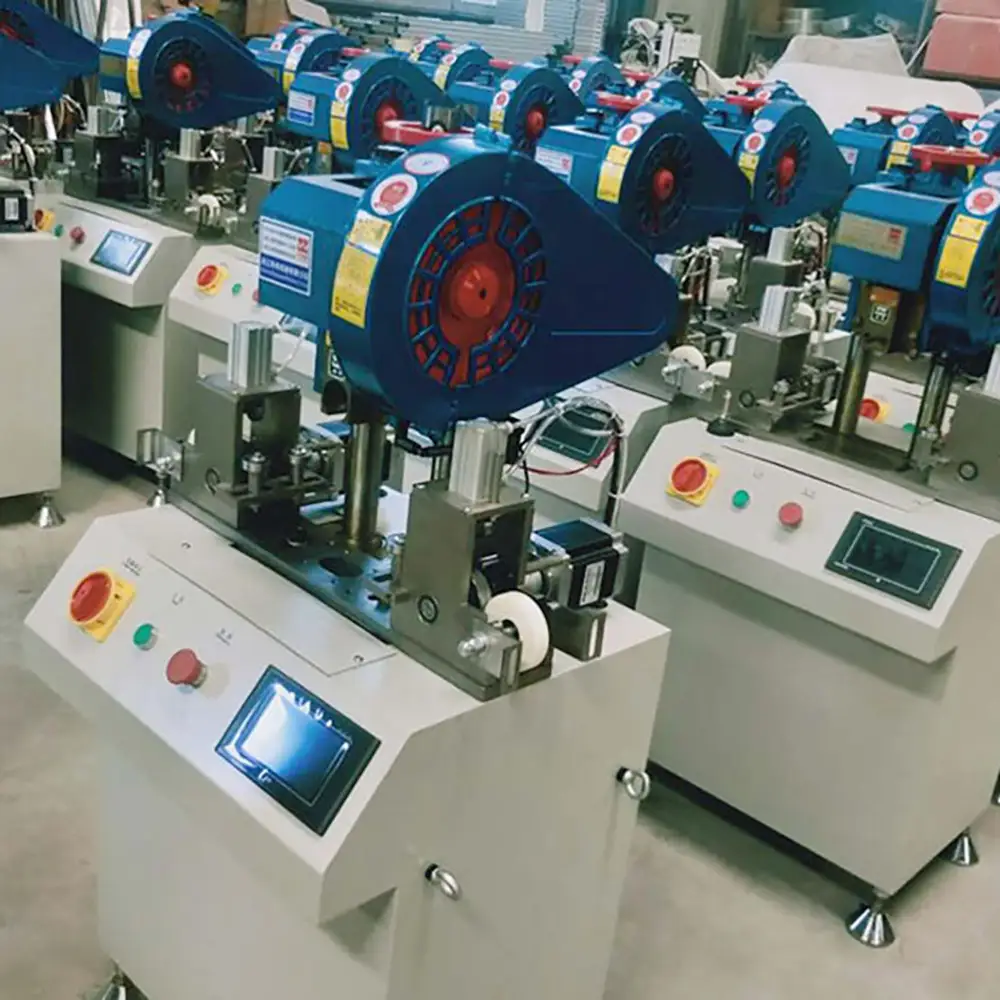

Shutter Punching Machine Application

The machine is particularly suitable for aluminum shutter profile processing. Aluminum shutters may require repeated holes or openings at specific positions for assembly and installation.

A dedicated shutter punching machine can help standardize the processing of similar profiles and reduce manual drilling work.

Potential applications include:

Aluminum shutters

Roller shutters

Window shutters

Door profiles

Aluminum blinds

Architectural profiles

Window and door systems

Aluminum framing components

Construction profiles

Furniture profiles

The exact applications depend on the profile dimensions and tooling configuration.

Aluminum Extrusion Processing

Aluminum extrusion profiles are available in many different shapes and sizes. Some profiles have flat surfaces, while others include channels, grooves, ribs, or hollow sections.

Because of this variation, workholding and tooling must be selected according to the specific profile.

Custom punches, dies, profile supports, guides, and fixtures can be developed for specialized aluminum extrusion applications.

Customers should provide profile drawings or samples when requesting a customized punching solution.

Hole Positioning and Repeatability

Consistent hole positioning is important for aluminum profile assembly. Incorrect hole locations can make installation difficult or cause problems during connection with other components.

Automatic feeding combined with a suitable positioning system can help establish repeatable punching positions.

Actual positioning accuracy depends on the machine structure, feeding mechanism, tooling, profile straightness, fixture design, and material consistency.

For critical applications, first-piece inspection and sample testing should be performed to confirm the required hole position and dimensional tolerance.

Punching Tooling

Punches and dies are essential to the performance of an aluminum profile punching machine. Tooling should be selected according to the aluminum alloy, profile geometry, wall thickness, hole size, and required production volume.

Custom tooling can be designed for:

Round holes

Square holes

Rectangular openings

Slot holes

Mounting holes

Repeated hole patterns

Profile-specific openings

Dedicated tooling can improve production repeatability and simplify the processing of standardized profiles.

Production Efficiency

Automatic feeding can help improve workflow efficiency in high-volume aluminum profile manufacturing.

Instead of manually positioning every profile, the operator can load the material and configure the machine according to the required processing sequence.

Production efficiency depends on profile length, hole quantity, feeding distance, punching cycle, tooling arrangement, loading and unloading method, and operator workflow.

For large production runs, dedicated tooling and optimized feeding systems can help reduce setup time and repetitive manual operations.

Suitable Aluminum Materials

The machine is primarily designed for compatible aluminum profiles and extrusions. Different aluminum alloys may have different strength and deformation characteristics.

Potentially compatible materials may include common architectural aluminum profiles, industrial extrusion profiles, shutter profiles, window and door profiles, and other suitable aluminum sections.

The actual material range should be confirmed through testing based on alloy, profile geometry, wall thickness, and required hole dimensions.

Applications in Construction and Manufacturing

Aluminum profiles are widely used in construction, architectural systems, furniture, transportation, machinery, and industrial manufacturing.

This punching machine can support production of:

Aluminum window components

Door frame profiles

Roller shutter profiles

Architectural systems

Aluminum furniture components

Industrial framing

Solar-related aluminum profiles

Equipment frames

Display systems

Customized aluminum components

The machine can therefore serve manufacturers producing standardized aluminum profile products for different markets.

Quality Control

Quality control should include inspection of hole diameter, hole position, hole spacing, profile deformation, surface condition, and overall dimensional consistency.

Aluminum profiles can be sensitive to excessive punching force or incorrect tooling. Proper punch and die selection helps reduce unwanted deformation and surface damage.

Operators should inspect punches and dies regularly. Tool wear can affect hole geometry and punching quality.

For production orders, first-piece inspection and periodic quality checks can help maintain consistent results.

Maintenance and Safety

Regular maintenance is important for reliable operation. Operators should inspect feeding rollers, guides, clamps, punches, dies, bearings, electrical components, hydraulic or pneumatic systems where applicable, and other machine components according to the manufacturer's maintenance recommendations.

Aluminum chips and production debris should be removed from the working area.

Operators should receive appropriate training before using the machine. Guards, emergency stops, electrical protection, and other safety functions should be checked according to the actual machine configuration and applicable local requirements.

Custom & OEM Solutions

The Automatic Feeding Aluminum Profile Punching Machine can be customized for specific shutter and aluminum extrusion applications.

Customization may include feeding length, profile fixtures, punch and die sets, hole patterns, positioning systems, automatic feeding arrangements, and other production functions.

Customers can provide CAD drawings, profile samples, material specifications, hole dimensions, hole spacing, and production quantities.

This allows the machine to be developed around the actual product rather than relying only on a standard configuration.

The equipment is suitable for aluminum profile manufacturers, shutter factories, window and door manufacturers, architectural suppliers, wholesalers, distributors, purchasing agents, and international B2B buyers.

Why Choose Us

Automatic Profile Feeding — Reduces repetitive manual loading and supports a more consistent production workflow.

Aluminum Profile Punching — Designed for punching holes and openings in compatible aluminum extrusion profiles.

Shutter Manufacturing Solution — Suitable for aluminum shutter, roller shutter, window, and door profile applications.

Custom Tooling — Punches, dies, guides, fixtures, and profile supports can be customized.

Repeatable Hole Positioning — Automatic feeding and dedicated fixtures can help maintain consistent processing positions.

Production Efficiency — Supports batch processing of standardized aluminum profiles with reduced manual handling.

OEM & ODM Support — Machine configurations can be developed according to customer drawings, samples, and production requirements.

B2B Industrial Equipment — Suitable for manufacturers, wholesalers, distributors, aluminum suppliers, and purchasing agents.

FAQs

1. What is an automatic aluminum profile punching machine?

It is a machine designed to automatically feed and punch holes or openings in compatible aluminum extrusion profiles.

2. What is the machine used for?

It can be used for aluminum shutters, window and door profiles, architectural components, industrial extrusion profiles, furniture components, and other aluminum products requiring repeated holes.

3. Can it punch aluminum shutter profiles?

Yes. The machine can be configured for compatible aluminum shutter and roller shutter profiles using suitable tooling and fixtures.

4. What types of holes can it produce?

Depending on the tooling, it may produce round, square, rectangular, slot, mounting, or other customized openings.

5. Can the feeding system be customized?

Yes. Feeding length, guides, rollers, clamps, positioning systems, and other components can be customized according to the profile and production requirements.

6. Can different aluminum profiles be processed?

Yes, provided that the profile dimensions, material properties, and tooling are within the machine's configured processing range.

7. Can custom punches and dies be supplied?

Yes. Custom punch and die sets can be designed according to hole size, hole shape, profile geometry, and production requirements.

8. Is the machine fully automatic?

The machine is designed with automatic feeding, but the exact level of automation depends on the selected configuration and production process.

9. Can it process long aluminum profiles?

It can be configured for long profiles when the feeding, support, positioning, and machine dimensions are suitable for the required workpiece length.

10. How can aluminum profile deformation be minimized?

Proper punch and die clearance, suitable tooling, stable profile support, correct positioning, and appropriate punching parameters can help reduce deformation.

11. How do I select the right machine?

Provide the aluminum alloy, profile drawing or sample, profile dimensions, wall thickness, hole size, hole spacing, required feeding length, and production quantity.

12. Can you provide OEM punching solutions?

Yes. OEM solutions can include customized tooling, feeding systems, fixtures, hole patterns, positioning mechanisms, and machine configurations based on customer requirements.
