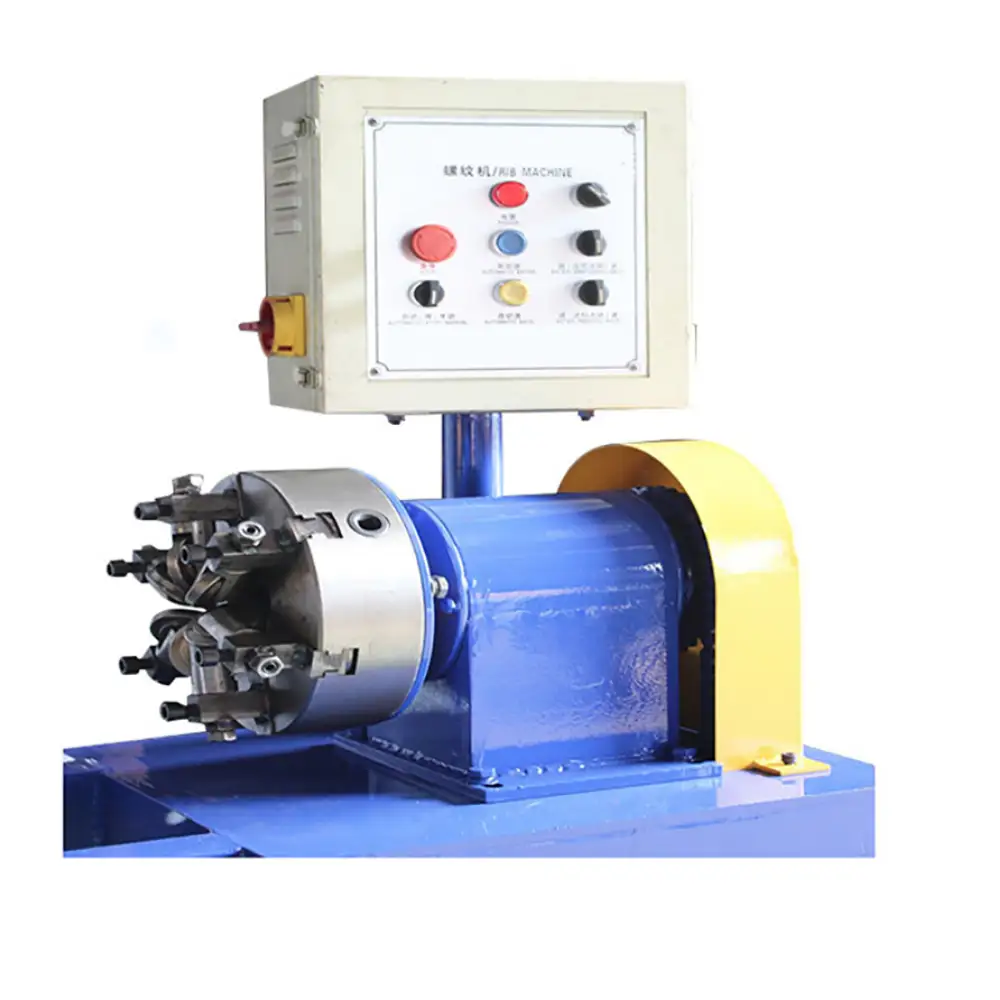

Semi-Automatic Twisting Machine for Stainless Steel Round Pipes

 Semi-Automatic Twisting Machine for Stainless Steel Round Pipes

The Semi-Automatic Twisting Machine for Stainless Steel Round Pipes is designed for controlled twisting,torsion,and forming of suitable round metal pipes and tubes. It is particularly suitable for manufacturers and metalworking shops that produce decorative stainless steel components,architectural metalwork,furniture parts,railings,and customized tubular products.

Twisting is a forming process that changes the orientation or geometry of a tube through controlled rotational force. Unlike conventional cutting or drilling,the process modifies the shape of the metal while retaining the main tubular structure.

The semi-automatic configuration provides a practical balance between operator control and machine-assisted forming. The operator can load and position the tube,select the required settings,and initiate the twisting process while the machine performs the controlled rotational forming operation.

The actual tube diameter,wall thickness,twisting length,rotation angle,and material range depend on the machine configuration and tooling.

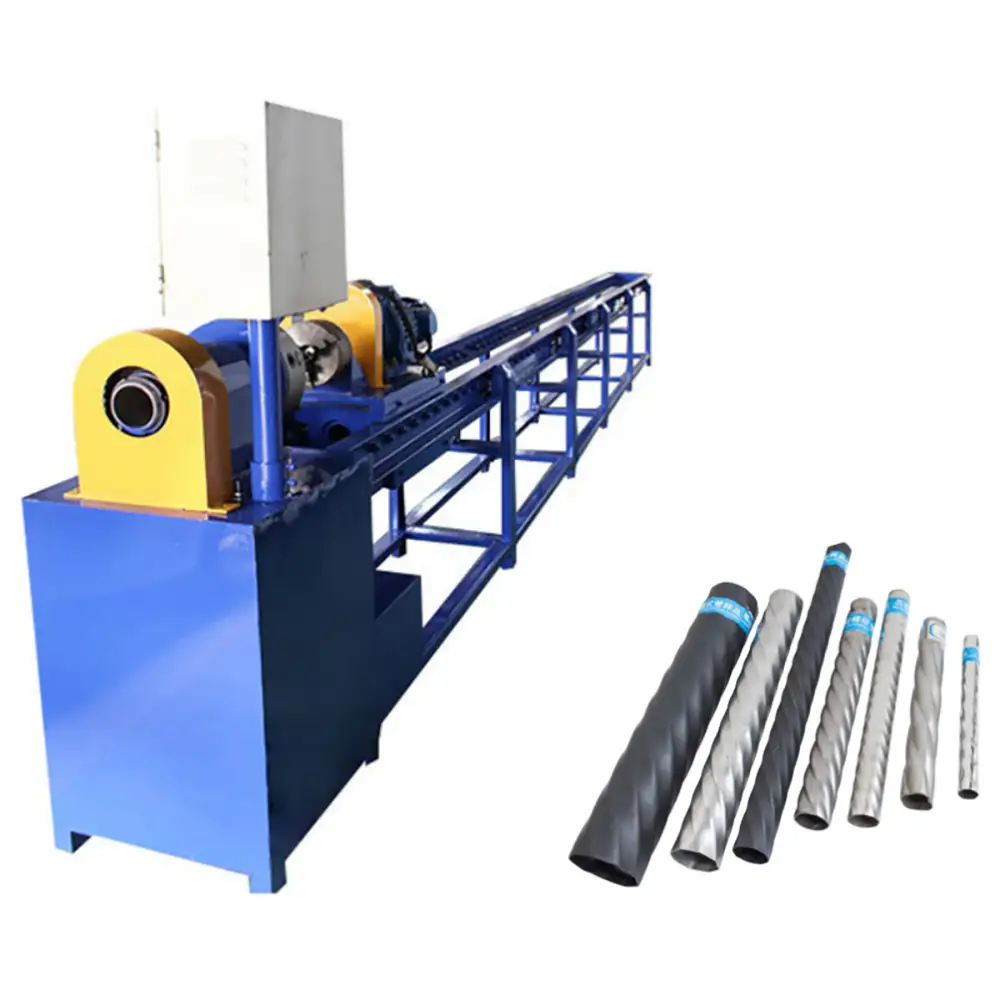

Stainless Steel Round Pipe Twisting

Stainless steel round pipes are commonly used in applications where corrosion resistance,durability,and appearance are important. However,stainless steel can require controlled forming because different grades have different strength and work-hardening characteristics.

The twisting machine applies controlled rotational force to the workpiece to create the required torsional profile.

Depending on the tooling and machine configuration,the pipe may be twisted along a selected section rather than throughout its entire length.

The finished appearance depends on tube dimensions,material grade,twisting angle,forming length,clamping method,and machine settings.

For decorative applications,the process can create visually distinctive tubular patterns for architectural and furniture products.

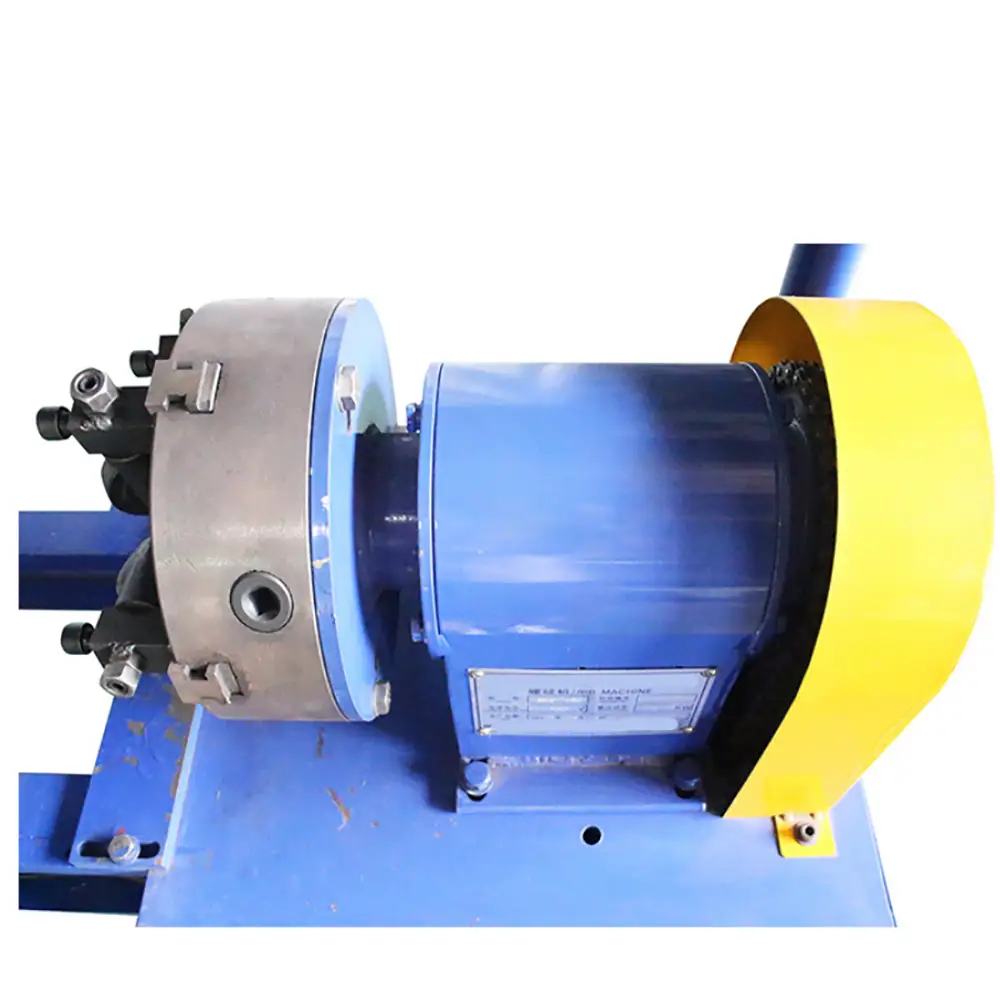

Round Tube Twisting Process

During a typical twisting operation,the round pipe is positioned between the machine's holding and forming components.

One section of the tube is secured while the forming mechanism applies controlled rotational movement to another section.

The tube is gradually twisted to the required angle or profile.

The amount of deformation must be controlled according to the material and tube dimensions. Excessive torsion can cause wrinkling,local deformation,cracking,or other unwanted results.

For production work,the first sample should be inspected before processing a larger batch.

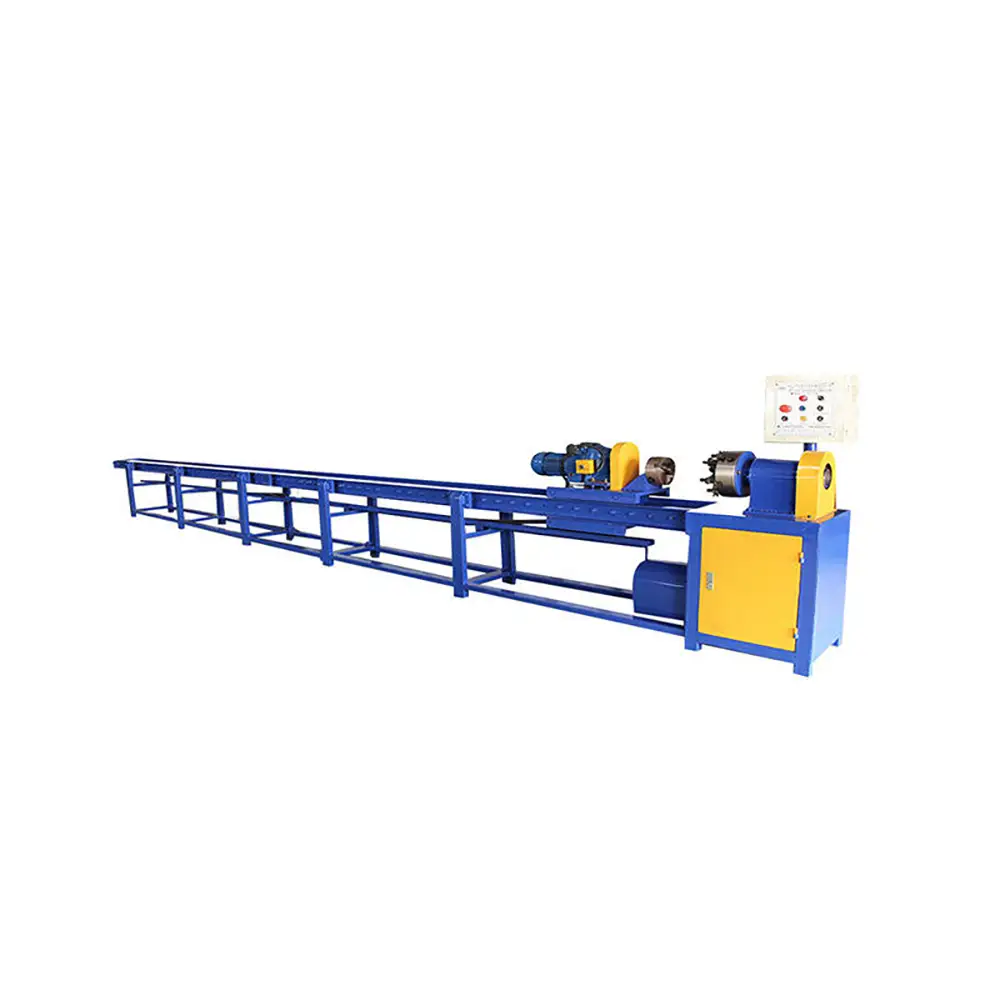

Semi-Automatic Operation

The semi-automatic design allows operators to maintain control over material loading and workpiece handling while the machine assists with the twisting cycle.

A typical operating sequence may include:

Preparing the stainless steel round pipe.

Positioning the pipe in the machine.

Securing the workpiece with the appropriate fixture.

Setting the required twisting parameters.

Starting the machine-assisted twisting cycle.

Inspecting the finished tube.

Removing the formed workpiece.

This workflow can reduce repetitive manual twisting work while still allowing operators to adapt the machine to different products.

Actual cycle time depends on tube dimensions,material properties,twisting angle,forming length,loading method,and machine configuration.

Decorative Metal Tube Applications

One important application of tube twisting is decorative metal fabrication.

Twisted stainless steel pipes can be used to create distinctive visual effects in architectural and furniture products.

Potential applications include:

Decorative railings

Stair handrails

Metal fences

Gates

Balcony railings

Furniture frames

Chair and table components

Architectural partitions

Decorative columns

Interior metal structures

Custom metal sculptures

Stainless steel decorative products

The exact appearance of the finished tube depends on the forming parameters and tube geometry.

For decorative products,the surface condition of the stainless steel should also be considered before processing.

Architectural Metalwork

Architectural metalwork often requires customized shapes rather than simple straight tubes.

A twisting machine can provide manufacturers with another method of creating visual variation in tubular components.

Twisted round tubes can be incorporated into railings,barriers,gates,decorative screens,and other architectural structures.

For projects requiring consistent patterns,the machine can help establish a repeatable twisting process.

However,final structural suitability should always be evaluated according to the application,material,and engineering requirements.

Furniture Tube Processing

Metal furniture manufacturers can also use tube twisting for customized furniture components.

Applications may include chair frames,table bases,decorative supports,display fixtures,and other tubular furniture parts.

Stainless steel round tubing is particularly useful for furniture because it combines corrosion resistance with a clean appearance.

The twisting operation can add visual detail without requiring additional decorative components.

For repeated production,consistent fixtures and machine settings can help maintain similar twisting profiles across multiple parts.

Materials and Tube Specifications

Although the machine is designed for stainless steel round pipes,the appropriate configuration may also be evaluated for other compatible metals.

Potential materials may include:

Stainless steel

Carbon steel

Mild steel

Aluminum

Copper

Other suitable metal alloys

Material strength,ductility,and wall thickness affect the required twisting force.

Important tube specifications include outside diameter,wall thickness,material grade,total length,twisting length,and required rotation angle.

Customers should provide these details when requesting a machine quotation.

Twisting Angle and Forming Length

The required twisting angle is an important factor in machine selection.

Some applications may require a relatively small torsional deformation,while decorative products may require a more pronounced twisted appearance.

The available twisting range depends on the machine's mechanical structure,drive system,clamping method,and control configuration.

The length of the section being twisted also affects the forming result. A longer forming section may produce a different appearance from a short concentrated twist.

For customized applications,customers should provide drawings or samples showing the required finished geometry.

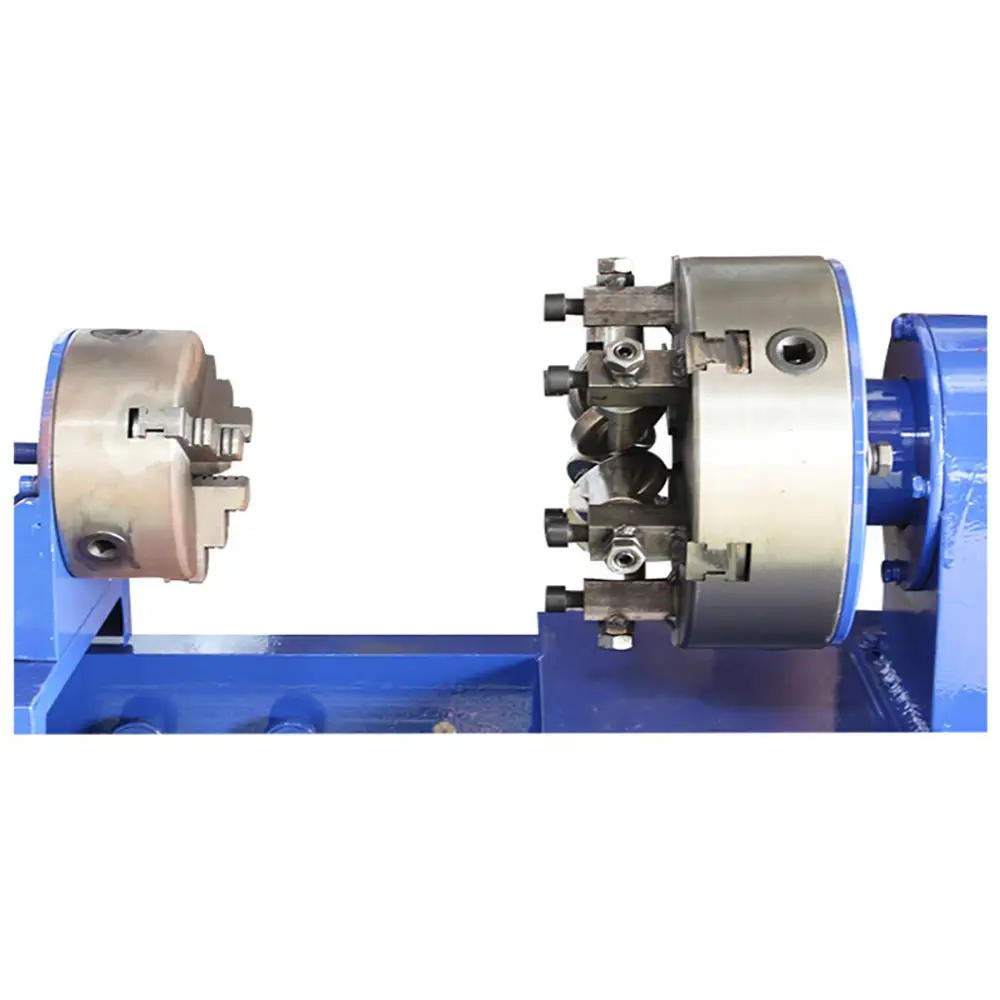

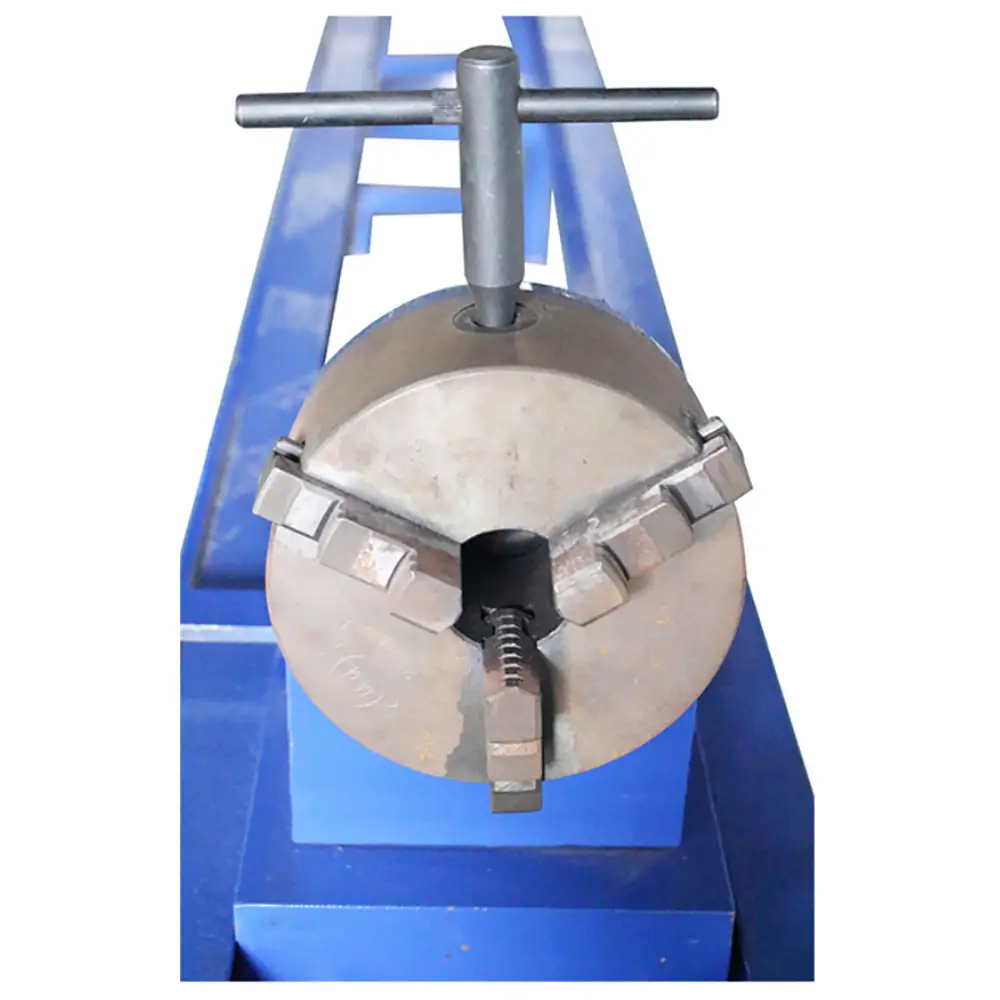

Workholding and Tooling

Stable workholding is essential for controlled tube twisting.

The tube should be properly supported and clamped so that it does not slip during the forming process.

Different tube diameters may require different fixtures or clamping components.

Custom tooling can be developed for specific stainless steel pipe dimensions and product designs.

For OEM applications,fixtures can be designed around the customer's tube dimensions,production requirements,and desired twisting profile.

Production Efficiency

A semi-automatic twisting machine can improve production efficiency by reducing manual forming operations.

For small workshops,it can provide a dedicated solution for customized stainless steel tube products.

For larger manufacturers,it can be integrated into a broader metal tube processing workflow.

Actual production output depends on tube length,material,diameter,wall thickness,twisting angle,loading time,tool changes,and operator workflow.

Standardized workholding and repeatable settings can help improve production consistency.

Surface Quality

Stainless steel surfaces are often an important part of the finished product.

During twisting,the workpiece should be properly supported to reduce unnecessary surface marking.

Tooling contact surfaces should be kept clean and maintained according to the machine manufacturer's recommendations.

For decorative stainless steel products,additional polishing or finishing may be performed after twisting depending on the required appearance.

Customers should specify whether the final product requires brushed,polished,mirror,or other surface finishes.

Quality Control

Quality inspection can include checking:

Twisting angle

Tube diameter

Wall deformation

Twisted length

Overall dimensions

Surface condition

Fixture marks

Repeatability between parts

The first workpiece should be inspected after changing the tube size,material,tooling,or machine settings.

For high-precision applications,the required dimensional tolerances should be provided before selecting the machine.

Maintenance and Safety

Regular maintenance helps maintain stable twisting performance.

Operators should inspect clamps,fixtures,drive components,rotating mechanisms,bearings,electrical components,and other machine parts according to the manufacturer's maintenance recommendations.

The forming area should be kept clean and free of unnecessary materials.

Because twisting equipment generates mechanical movement and rotational force,operators should keep hands away from moving components during operation.

Appropriate protective equipment and workplace safety procedures should be followed. Emergency-stop functions,guards,and other safety features depend on the specific machine configuration.

Custom and OEM Solutions

Different customers may require different tube diameters,twisting angles,forming lengths,and decorative profiles.

The machine can therefore be configured with customized fixtures,clamping systems,forming tooling,and control functions where appropriate.

For OEM and ODM projects,customers can provide tube drawings,samples,material specifications,required twisting angle,and production volume.

This information helps determine the suitable machine configuration and tooling solution.

Why Choose Us

Stainless Steel Tube Twisting – Designed for controlled twisting of suitable stainless steel round pipes and tubes.

Semi-Automatic Operation – Combines machine-assisted twisting with flexible operator handling.

Decorative Metal Applications – Suitable for railings,gates,furniture,and architectural tubular products.

Controlled Rotary Forming – Applies controlled torsional movement to create repeatable tube profiles.

Flexible Tube Materials – Suitable configurations can be evaluated for stainless steel,carbon steel,aluminum,copper,and other compatible metals.

Custom Fixtures & Tooling – Workholding and forming components can be customized for specific tube dimensions.

Production Flexibility – Suitable for custom products,small-batch production,and recurring tube forming applications.

OEM & B2B Support – Suitable for manufacturers,distributors,wholesalers,metal fabricators,and international machinery buyers.

FAQs

1. What is a stainless steel pipe twisting machine?

It is a metal forming machine designed to apply controlled rotational force to a suitable stainless steel pipe or tube to create a twisted or torsional profile.

2. Can it twist round stainless steel pipes?

Yes. The machine is specifically designed for suitable round stainless steel pipes and tubes within its configured operating range.

3. What is the purpose of tube twisting?

Tube twisting can create decorative shapes,custom tubular profiles,and specialized components for architectural,furniture,and metal fabrication applications.

4. Is the machine fully automatic?

The described configuration is semi-automatic. The operator may still perform loading,positioning,and unloading tasks.

5. What materials can be twisted?

Depending on the machine configuration,it may process stainless steel,carbon steel,mild steel,aluminum,copper,and other compatible metals.

6. Can it twist different tube diameters?

Different tube diameters may require different fixtures or tooling. The applicable diameter range should be confirmed according to the machine model.

7. Can the twisting angle be customized?

The available twisting range depends on the machine design and control system. Customers should provide the required angle or finished shape for evaluation.

8. Is it suitable for decorative railings?

Yes. Twisted stainless steel tubes can be used for decorative railings,handrails,gates,fences,and architectural metalwork.

9. Can it be used for furniture manufacturing?

Yes. It can be evaluated for suitable chair frames,table bases,display fixtures,and decorative furniture tube components.

10. What affects twisting quality?

Material grade,tube diameter,wall thickness,twisting angle,forming length,clamping stability,tooling,and machine settings all affect the finished result.

11. Can the fixtures be customized?

Yes. Custom fixtures and clamping components can be designed for specific tube dimensions and production requirements.

12. What information should I provide for a quotation?

Provide tube material,grade,outside diameter,wall thickness,length,required twisting angle,twisting length,finished shape,and expected production volume. Drawings or samples are recommended for customized applications.
