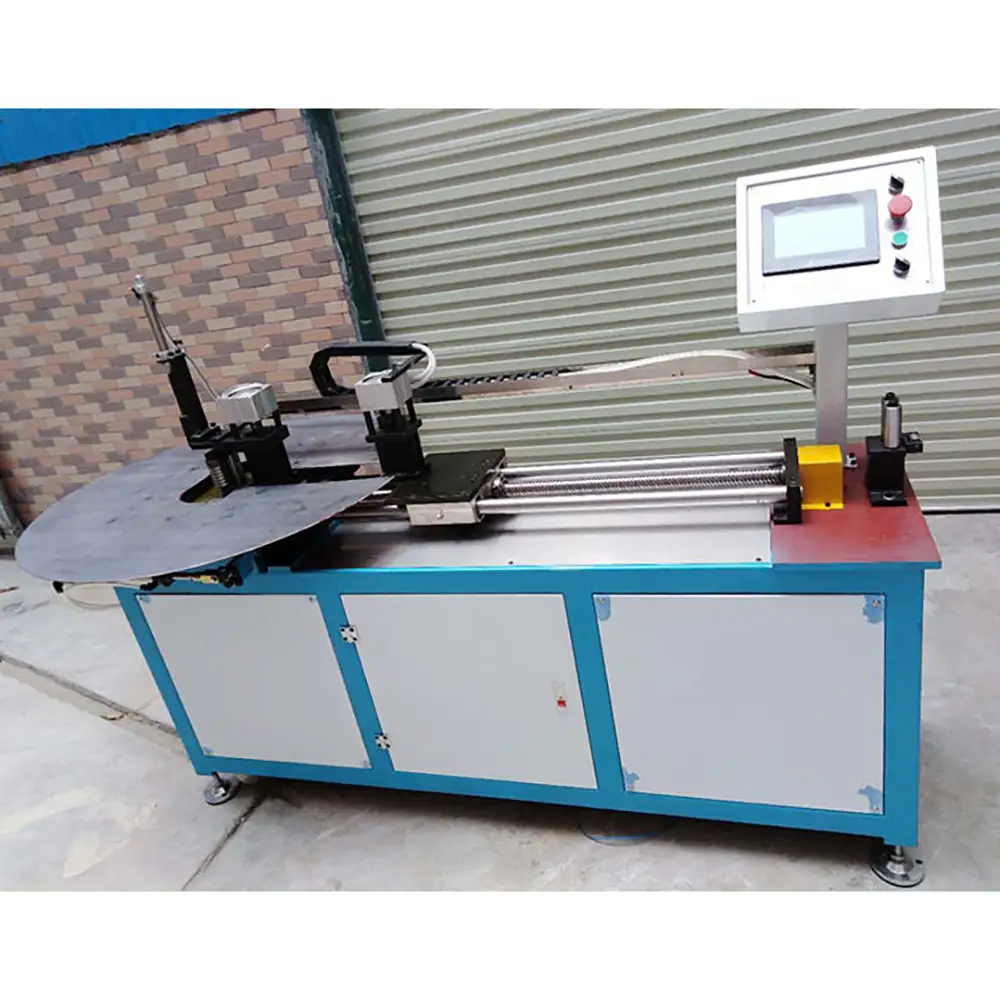

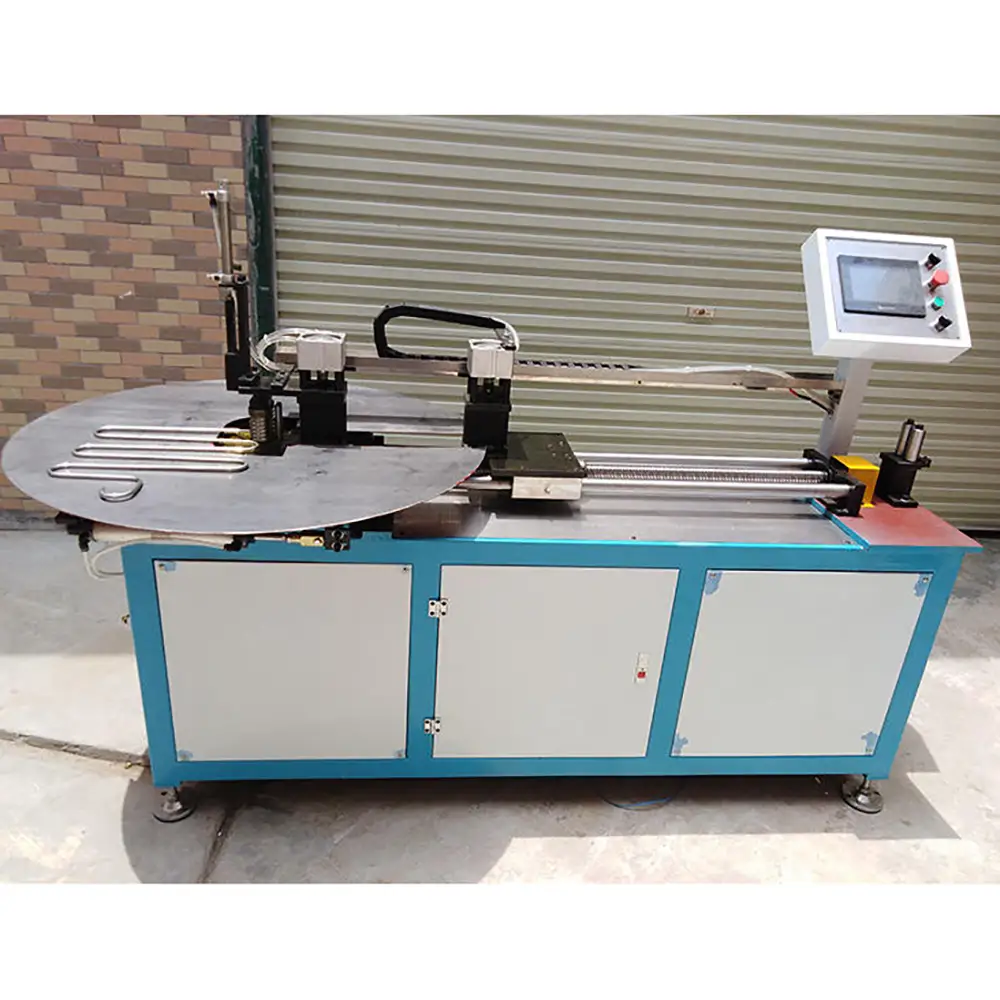

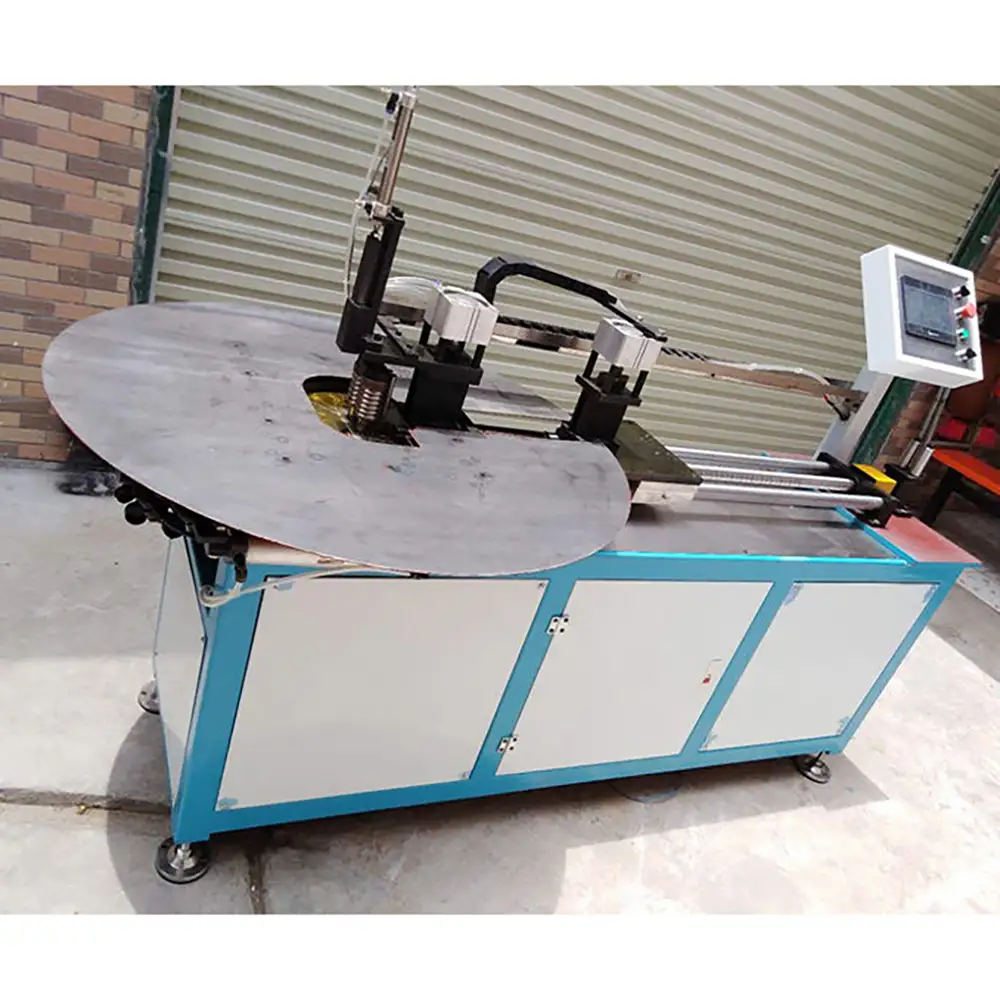

Refrigeration System Copper Tube Serpentine S Bending Equipment

The serpentine bender is widely used for Aluminum tube bending process. Widely used for condenser, evaporator, heat exchanger making. Compare to traditional manual bending work, the semi-automatic bending machine can process up to 10-12 grouped tubes in one time bending according to various tube diameters, the work efficiency is much more upgraded, and the finished tube presents good appearance as per requirements.

	Parameter	Data
1	Tube Material	Aluminum/copper
2	Tube Diameter	Φ3-12mm
3	Tube Wall Thickness	0.3-1.0mm
4	Bending Capacity	1-12 pcs / cycle
5	Bending Angle	1~190 degree
6	Bending Radius	R15~R35
7	Bending Times	Up to 110 times/cycle
8	Feeding length	0-700mm/time, max. 3 times
9	Worktable Size	Φ1800mm

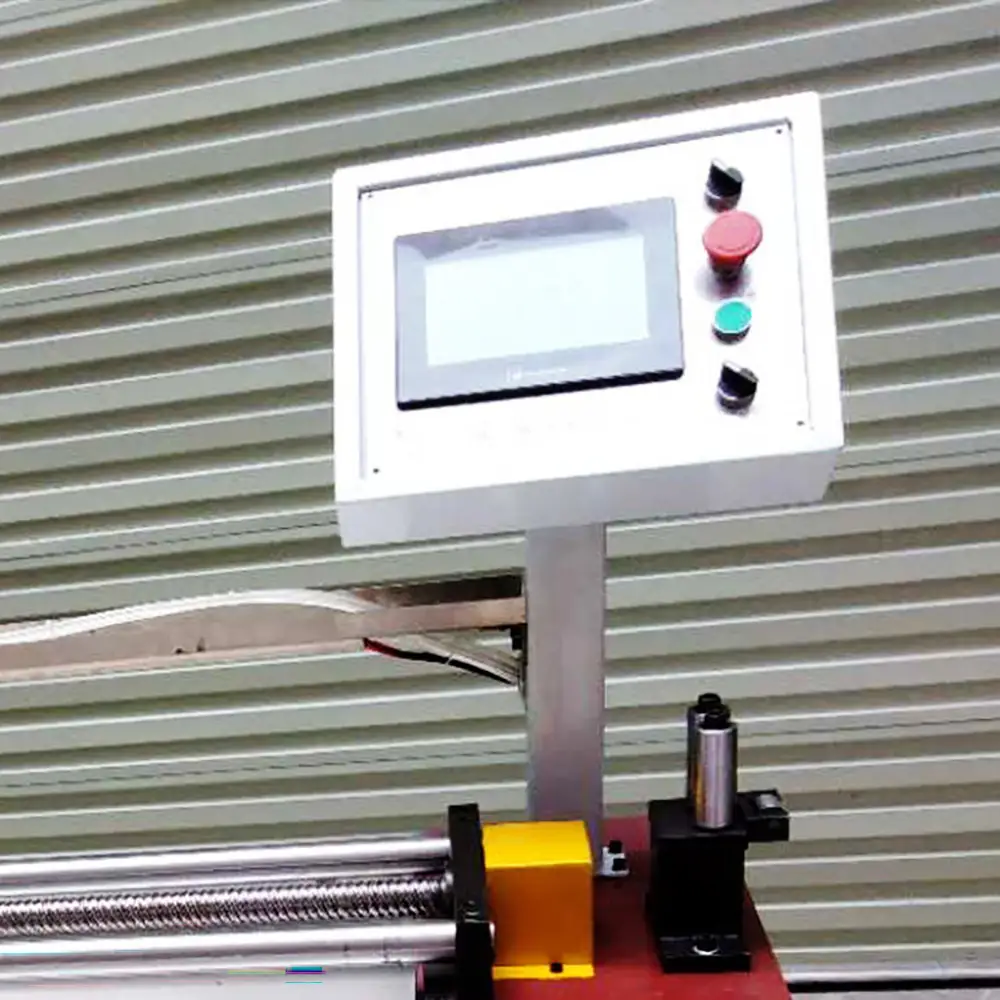

10	Control System	PLC control / Touch Screen
11	Motor Power	5.0KW
12	Electric System	380V, 50Hz, 3Phae (Customized)
13	Dimension	2200 x 1000 x 1580 mm (Excluded Table)
14	Weight	About 1300 KG

Refrigeration System Copper Tube Serpentine S Bending Equipment

The Refrigeration System Copper Tube Serpentine S Bending Equipment is designed for forming suitable copper tubes into serpentine,S-shaped,and other curved configurations used in refrigeration,HVAC,heat exchanger,and thermal equipment applications. The machine provides a dedicated solution for manufacturers that need consistent tube bending while maintaining the required geometry of copper tubing.

Copper tubes are widely used in refrigeration and heat transfer systems because of their thermal conductivity,corrosion resistance,and suitability for many tube-processing applications. However,producing repeated serpentine or S-shaped configurations manually can require considerable operator skill and careful measurement.

A dedicated copper tube bending machine can help standardize the forming process and improve repeatability for production batches. The actual tube diameter,wall thickness,bending radius,and forming capability depend on the machine configuration and tooling.

Serpentine Copper Tube Bending

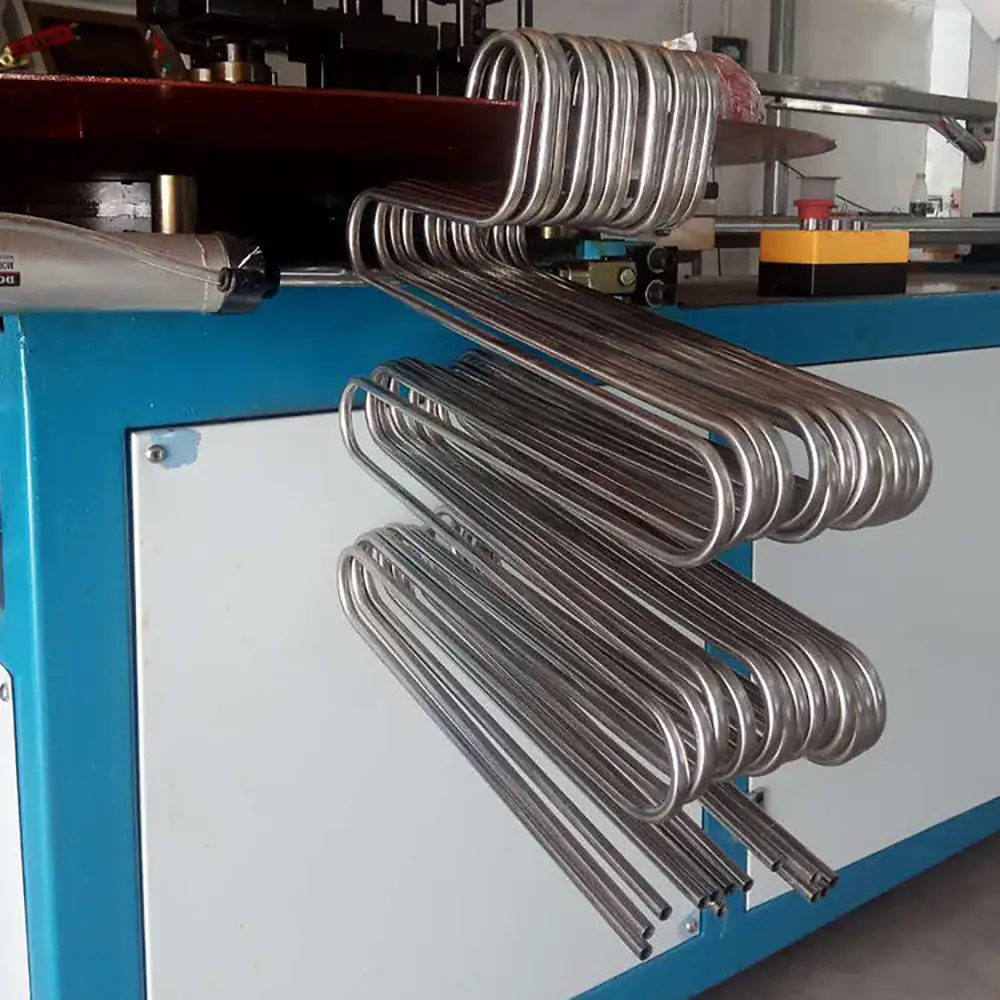

Serpentine tube forming is commonly used when a long tube needs to follow a repeated curved path within a compact space. S-shaped and serpentine configurations can help create the required flow path for heat transfer applications while making efficient use of available installation space.

The machine can be configured with suitable tooling to form copper tubing into programmed or specified curved patterns. The exact bending sequence depends on the machine design,workpiece dimensions,and required final geometry.

For repeated production,consistent positioning and controlled bending are important because small dimensional differences can affect the final assembly of coils and heat exchanger components.

S-Shaped Copper Tube Forming

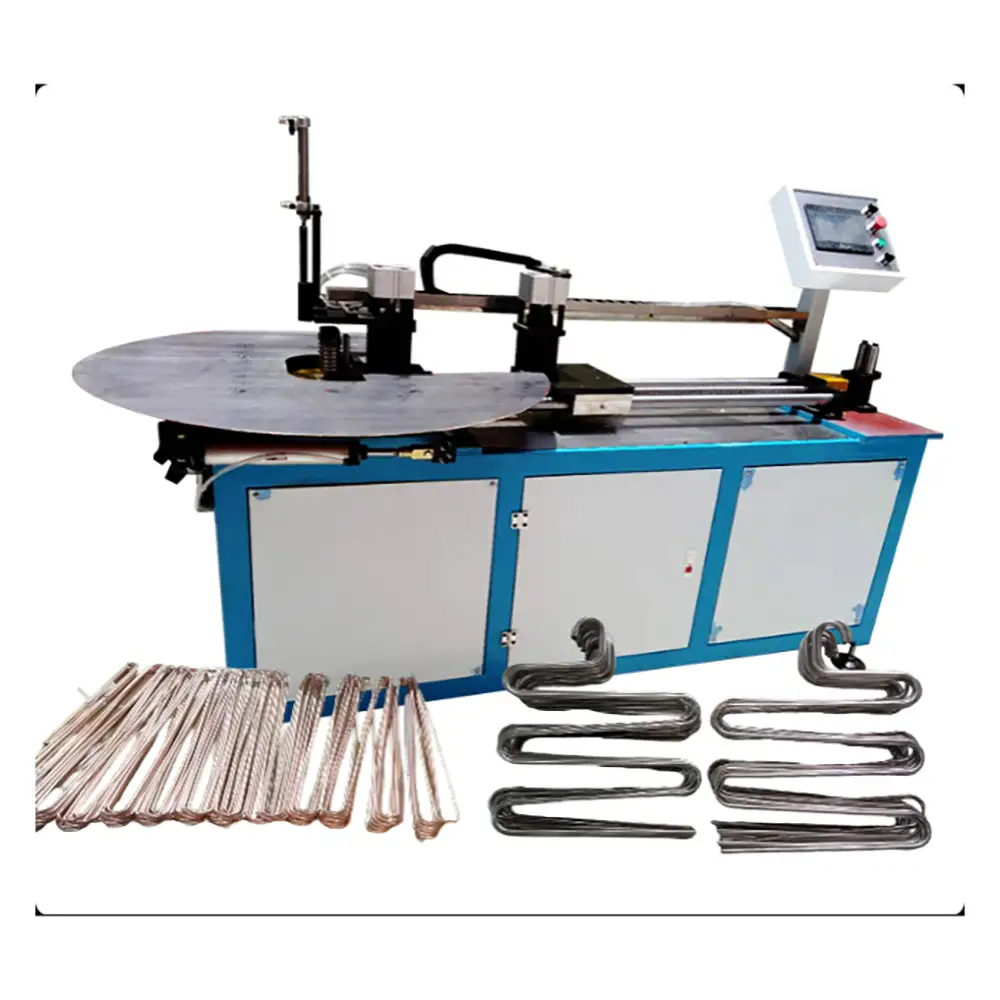

S-shaped tube bending is one of the important applications of this type of equipment. An S-shaped tube may contain two or more opposing bends that create a smooth transition between different positions.

Suitable S bends can be used in refrigeration tubing assemblies,heat exchanger components,HVAC equipment,and custom copper tube structures.

The final S shape depends on tube diameter,bending radius,bend angle,straight sections between bends,and tooling configuration. Customers should provide drawings or sample tubes when a specific geometry is required.

Copper Tube Bending Technology

Copper is relatively ductile compared with many steel materials,but improper bending can still cause flattening,kinking,wrinkling,or dimensional variation.

A suitable tube bending machine provides controlled positioning and forming force to help maintain the required tube geometry. Tooling should match the tube diameter and wall thickness.

For thin-wall copper tubing,careful control of bending parameters is particularly important. Depending on the application,a mandrel,pressure die,guide,or other supporting tooling may be required.

The actual tooling arrangement should be selected according to the copper tube specification and required bend quality.

Refrigeration and HVAC Applications

Copper tube bending equipment is widely applicable to refrigeration and HVAC component manufacturing.

Potential applications include:

Refrigeration coils

HVAC heat exchanger tubing

Air conditioning equipment

Condenser assemblies

Evaporator components

Cooling systems

Refrigeration units

Heat pump systems

Chiller components

Custom copper tube assemblies

The machine can support manufacturers that require repeated tube shapes for different equipment models.

For refrigeration systems,the finished tube must meet the dimensional requirements of the complete assembly. Tube bending should therefore be coordinated with brazing,connection,and leak-testing processes.

Heat Exchanger Tube Processing

Heat exchangers often use copper or other conductive metal tubing arranged in compact patterns to increase effective heat transfer within available space.

Serpentine and S-shaped tubes can be used in suitable heat exchanger designs. A controlled bending process can help manufacturers produce consistent tube geometry before assembly.

The final heat transfer performance depends on the complete heat exchanger design,including tube arrangement,material,fluid flow,heat transfer area,and operating conditions. The bending machine itself does not determine overall system efficiency.

Production Efficiency

For manufacturers producing large quantities of similar copper tube assemblies,automated or semi-automatic bending can reduce repetitive manual work.

A dedicated machine can help standardize bending positions and reduce repeated manual measurement. This may improve production workflow when the same tube configuration is manufactured repeatedly.

Production speed depends on tube dimensions,bending sequence,number of bends,machine configuration,loading method,and operator workflow.

For high-volume production,customers should evaluate the complete cycle time,including loading,clamping,bending,unloading,and inspection.

Tube Diameter and Wall Thickness

Different copper tube specifications require different forming conditions. Tube outer diameter,wall thickness,temper,and material properties can all influence bending performance.

Soft copper tubing may behave differently from harder tube material. Thin-wall tubing may require additional support to reduce deformation,while larger-diameter tubes may require stronger tooling.

Customers should provide the tube OD,wall thickness,material condition,minimum bend radius,and required S or serpentine geometry when requesting a quotation.

Bending Accuracy and Tube Quality

For refrigeration and HVAC applications,dimensional consistency is important because bent tubes must often fit into brackets,heat exchanger assemblies,or connection points.

Bending quality can be affected by tooling alignment,tube positioning,bending speed,clamping force,material properties,and machine rigidity.

Operators should inspect the first pieces of each production batch and verify bend dimensions against the required drawings.

Tube deformation should also be monitored. Excessive flattening or surface damage may affect subsequent assembly or system performance.

Tooling and Customization

Copper tube bending equipment can be configured with tooling according to the required tube dimensions and bending geometry.

Possible tooling may include bending dies,clamps,guides,rollers,mandrels,and positioning components,depending on the machine design.

For customized serpentine coils,manufacturers can provide CAD drawings,sample tubes,or dimensional specifications. This information can be used to evaluate suitable tooling and machine configuration.

OEM and ODM solutions may also include custom controls,feeding systems,automatic positioning,and production fixtures.

Applications Beyond Refrigeration

Although refrigeration systems are a major application,copper tube bending equipment can also be used for other tube-processing applications.

Potential industries include:

HVAC manufacturing

Heat exchanger production

Air conditioning equipment

Water heating equipment

Solar thermal systems

Cooling equipment

Industrial heat transfer systems

Copper tube fabrication

Electrical equipment

Custom tube assemblies

The suitability of the machine should always be evaluated according to the specific tube material,dimensions,and required bending geometry.

Maintenance and Safety

Regular maintenance helps maintain stable tube bending performance. Operators should inspect tooling,clamps,guides,moving parts,and electrical or hydraulic components according to the manufacturer's maintenance recommendations.

The bending area should remain clear during operation. Operators should avoid placing hands near moving tooling and should use appropriate personal protective equipment.

Emergency-stop systems,guards,and other safety features may vary according to machine configuration and applicable requirements.

OEM and Custom Copper Tube Bending Solutions

Different refrigeration and HVAC manufacturers may require different serpentine patterns,tube sizes,bending radii,and production methods.

OEM and ODM solutions can be developed around the required application. Customization may include bending dies,fixtures,automatic feeding,positioning systems,control functions,and tube support components.

For quotation and machine selection,customers should provide copper tube diameter,wall thickness,material condition,required S or serpentine shape,bend radius,bend angles,overall tube length,production volume,and drawings or samples if available.

Why Choose Us

Dedicated Copper Tube Processing – Designed specifically for suitable copper tube bending and forming applications.

Serpentine S Bending – Suitable for producing repeated curved,S-shaped,and serpentine tube configurations.

Refrigeration Applications – Designed for suitable HVAC,refrigeration,heat exchanger,and cooling equipment production.

Flexible Tube Tooling – Bending dies,clamps,guides,and other tooling can be selected according to tube specifications.

Consistent Production – Controlled bending and positioning can help improve repeatability across production batches.

Wide Application Range – Suitable for heat exchangers,air conditioning,refrigeration,and custom copper tube assemblies.

Production-Oriented Design – Can support both customized tube forming and repeated manufacturing applications.

OEM & ODM Support – Machine configuration and tooling can be adapted to specific copper tube dimensions and serpentine bending requirements.

FAQs

1. What is a serpentine copper tube bending machine?

It is a tube forming machine designed to bend suitable copper tubing into serpentine,S-shaped,and other curved configurations.

2. Can it make S-shaped copper tubes?

Yes. With suitable tooling and machine configuration,it can produce S-shaped copper tube configurations.

3. Is it suitable for refrigeration systems?

Yes. The machine is designed for suitable copper tube forming applications used in refrigeration and HVAC equipment.

4. Can it be used for heat exchanger tubes?

Yes. Suitable copper tubing used for heat exchangers can be processed when the tube dimensions and required geometry are within the machine's capabilities.

5. What copper tube sizes can it bend?

The applicable tube diameter and wall thickness depend on the specific machine model and tooling. Customers should provide their tube specifications before purchase.

6. Can it bend thin-wall copper tubing?

Potentially yes. Thin-wall tubing requires appropriate tooling and controlled bending parameters to reduce deformation.

7. What affects copper tube bending quality?

Tube diameter,wall thickness,material condition,bending radius,tooling,clamping,positioning,and machine settings can all affect the finished tube.

8. Can the machine produce custom serpentine shapes?

Yes,depending on the machine configuration and tooling. Drawings or sample tubes should be provided for customized geometries.

9. Is the machine automatic?

Automation level depends on the specific configuration. Models may use manual,semi-automatic,or automatic tube loading and bending systems.

10. Can it be used for HVAC production?

Yes. It can be used for suitable copper tube forming applications in HVAC,air conditioning,and thermal equipment manufacturing.

11. Can the machine be customized?

Yes. Depending on the manufacturer,custom bending dies,fixtures,positioning systems,feeding systems,and controls may be available.

12. What information is needed for a quotation?

Provide the copper tube diameter,wall thickness,material condition,bending radius,S or serpentine dimensions,number of bends,overall tube length,production volume,and drawings or samples if available.
