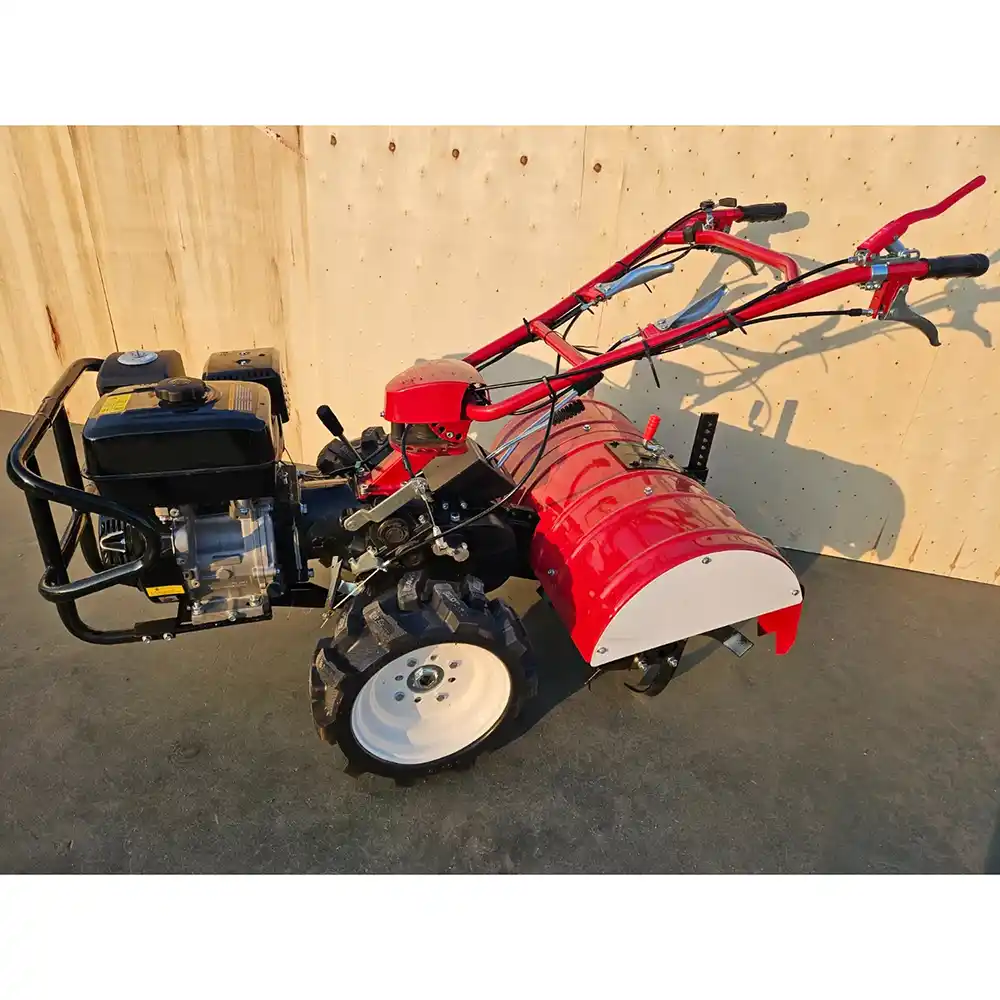

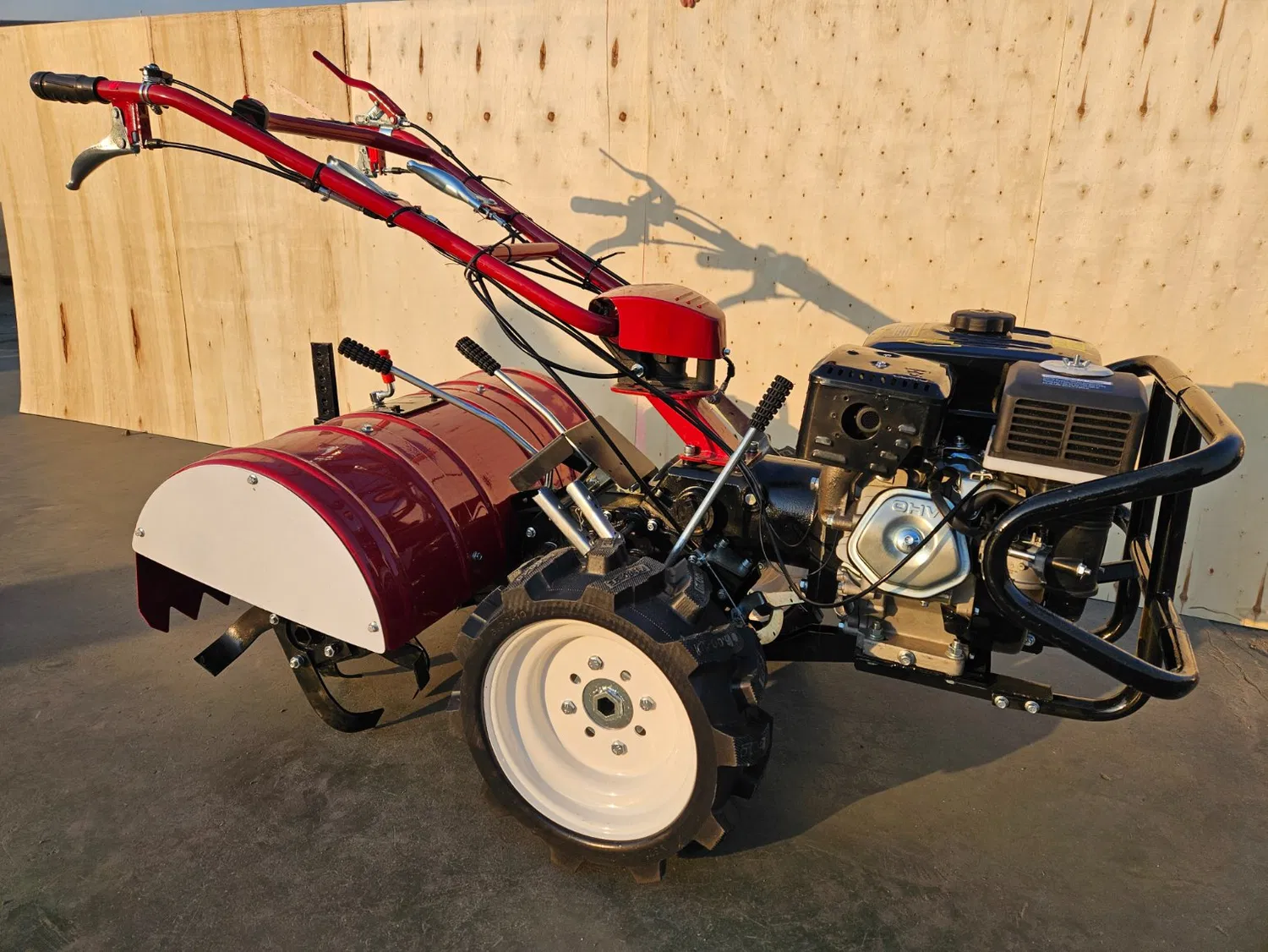

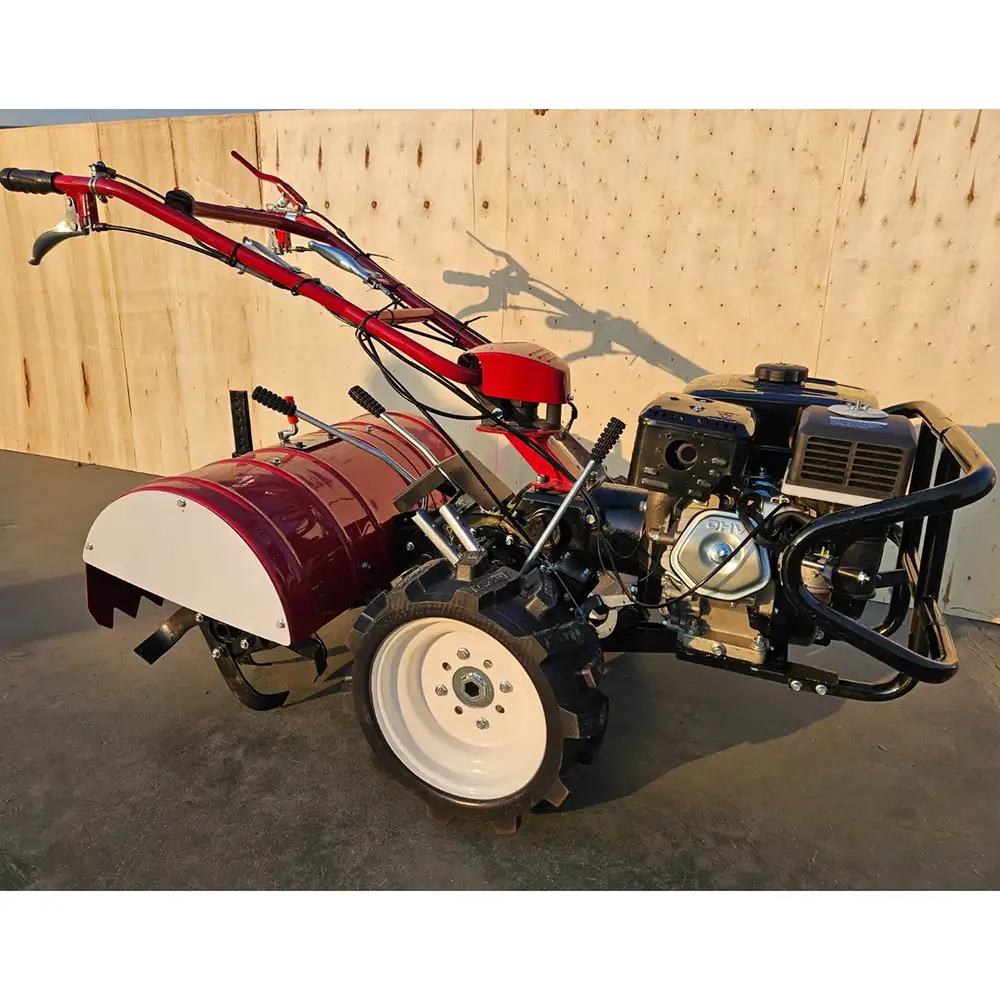

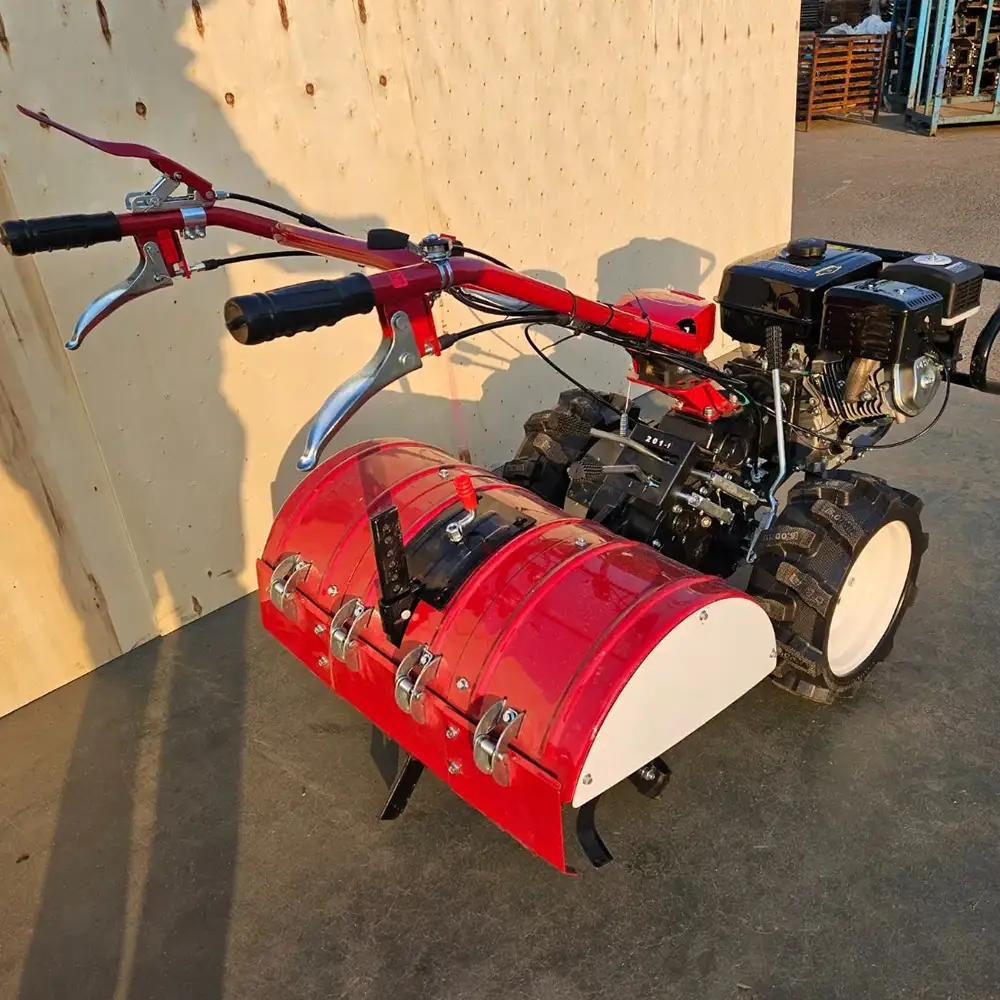

Multifunction Power Tiller Machine Technical Parameters

Multifunction Power Tiller Machine With dual direction blade design, suitable for soft and hard soils. rotation blades for soft soils, anti-clockwise rotation blades for hard soil. Fast and slow walking gears and available for rough tillage and intens.

With dual direction blade design, suitable for soft and hard soils.
 rotation blades for soft soils, anti-clockwise rotation blades for hard soil.
Fast and slow walking gears and available for rough tillage and intensive tillage.
With Optional weeding wheels for weeding application.
Direct gear clutch transmission: more reliable and durable.
Easy adjustable and operational handle; handle frame up/down, left/right can be adjustable with one lever.
Independent control of tilling and walking: blades' working can be stopped when transiting to other fields.
Blades rotate in dual directions on one shaft, providing a comfortable and stable tilling.

Parameters of Power Tiller
GASOLINE MODEL
Item 170 177 190
Engine 7hp 9hp 12hp
Transmission type Gear drive/belt drive
Start model Manual/electric starter
Working width 500mm ≥960mm 1050-1350mm
Working depth ≥100mm 200mm 200mm
Size of wheel 400-8/350-6
Adjustment of handle bar 360 degree horizon and 45 degree vertical
Fuel consumption ≤10kh/ha
Fuel tank 5L
Weight(KG) 120 132 150
Working efficiency o.1-0.2acre/h o.1-0.2acre/h 0.3-0.4acre/h
Working speed >0.3m/s
Package size 79*45.5*86cm 98*57*81cm 98*57*81cm
DIESEL MODEL
Item 173 178 186
Engine 7hp 9hp 12hp
Transmission type Gear drive
Start model Manual/electric starter
Working width 500mm ≥960mm 1050-1350mm
Working depth ≥100mm 200mm 200mm
Size of wheel 400-8/350-6
Adjustment of handle bar 360 degree horizon and 45 degree vertical
Fuel consumption ≤10kh/ha
Fuel tank 5L
Weight(KG) 164kg 178kg 182kg
Working efficiency o.1-0.2acre/h o.1-0.2acre/h 0.3-0.4acre/h
Working speed >0.3m/s
Package size 79*45.5*86cm 102*57*81cm 102*57*81cm
