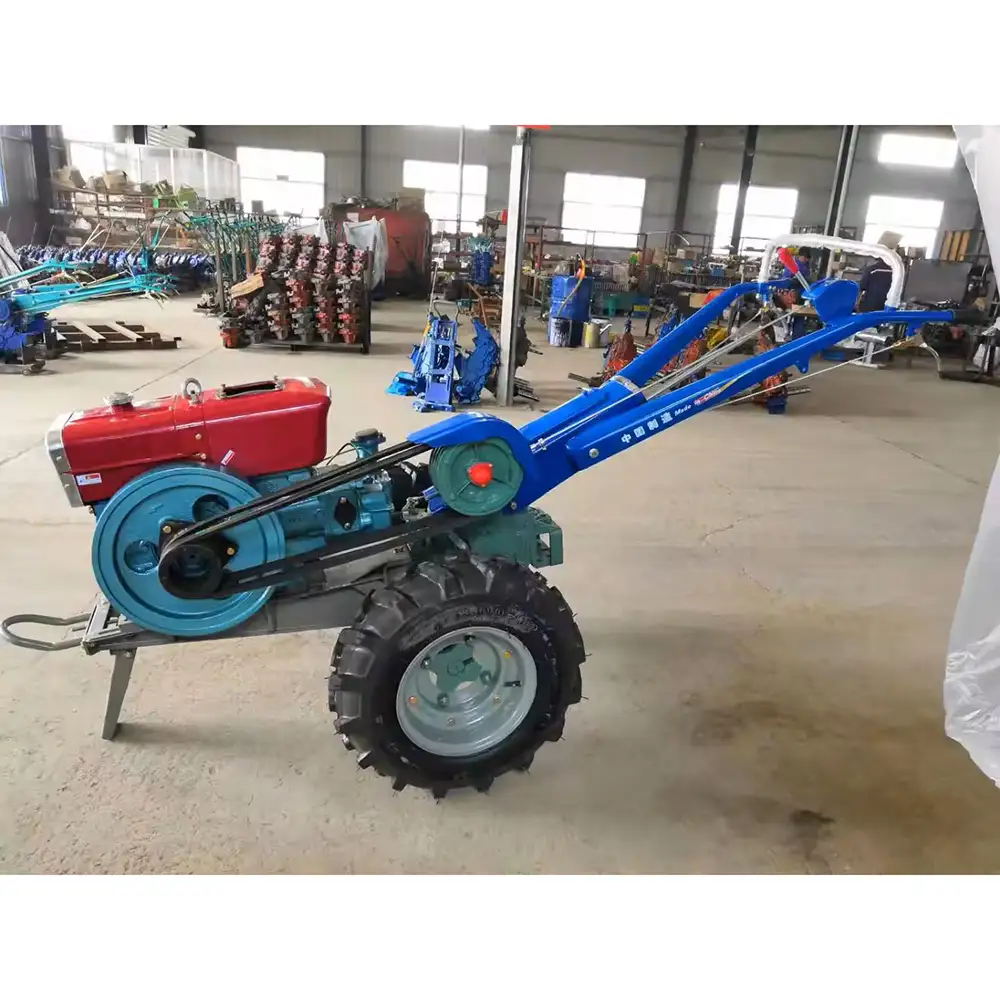

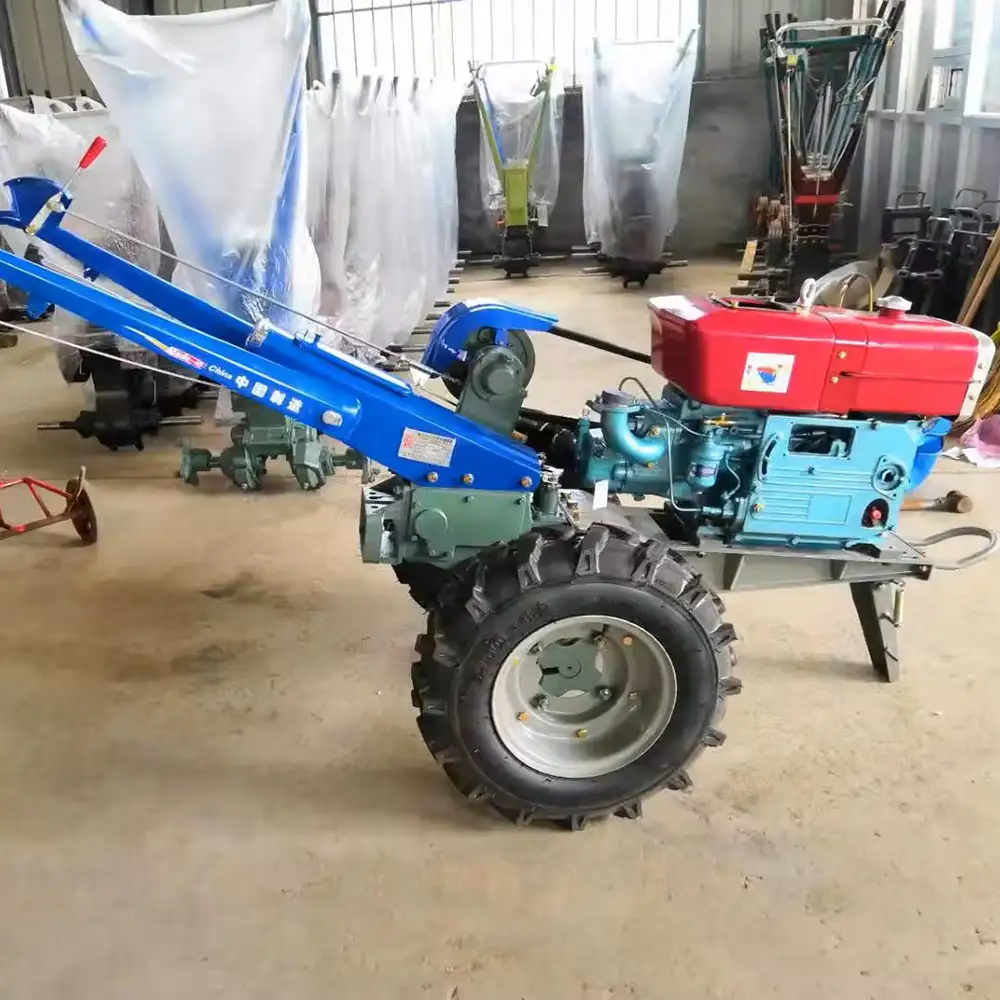

12hp 13hp 15hp 18hp Diesel Engine Power Tiller Motocultor Cultivator Two Wheel Walking Tractor Technical Parameters

8HP Walking tractor 10HP Walking tractor 11HP Walking tractor 12HP Walking tractor 13HP Walking tractor 15HP Walking tractor 18HP Walking tractor 20HP Walking tractor 22HP Walking tractor Diesel engine.

Model 8HP
Walking tractor
10HP
Walking tractor
11HP
Walking tractor
12HP
Walking tractor
13HP
Walking tractor
15HP
Walking tractor
18HP
Walking tractor
20HP
Walking tractor
22HP
Walking tractor
Diesel engine ZR180
8HP
ZR190
10HP
ZR192
11HP
ZR195
12HP
ZR196
13HP
ZS1100
15HP
ZS1105
18HP
ZS1110
20HP
ZS1115
22HP
Engine Type Single, horizontal, water cooled,four stroke
Starting method Hand start /Electric start
Combustion System Direct injection
Cooling way  Evaporative/Condensing
Power
(1 hour )
5.88kw
/8hp
7.92kw
/10hp
8.47kw
/11.5hp
9.68kw
/13hp
9.92kw
/13.5hp
12.13kw
/16hp
13.31kw
/18hp
14.56kw
/20hp
16.17kw
/22hp
Power
(12 hour )
5.35kw
/8hp
7.0kw
/9.5hp
7.7kw
/11hp
8.8kw
/12hp
9.5kw
/13hp
11.03kw
/15hp
12.1kw
/16hp
13.24kw
/18hp
14.7kw
/20hp
Dimensions(LxWxH) 2170×890×1150mm 2680×960×1250mm
Min.Ground Distance 210mm 185mm
Parameter Tread:640-800mm,Clutch:Sing/double friction disc of constant conjunction,6 pieces Forward gear,2 pieces Reverse gear.Tyre:6.00-12 Tread:580-600mm,Tyre:6.00-12,Weight 350kg
Tire Pressure Field Work: 80~200(0.8~2.0kgf/cm2)
Transportation Work:140~200(1.4~2.0kgf/cm2 )
Triangle belt 2 pcs  or 3 pcs B1750 3 pcs B1800 2 pcs  or 3 pcs B1850 4 pcs B1880

service

1, Training how to install the machine, training how to use the machine, free technical support for lifetime.
2, Warranty period of one year since machine arrives destination port. Our machine adopts modular design, if there have any damaged parts we will send you the free part, you just need pay the freight.
3, Big order, OEM for Module replacement even product design.
4, Engineers available to service overseas for Major clients.
