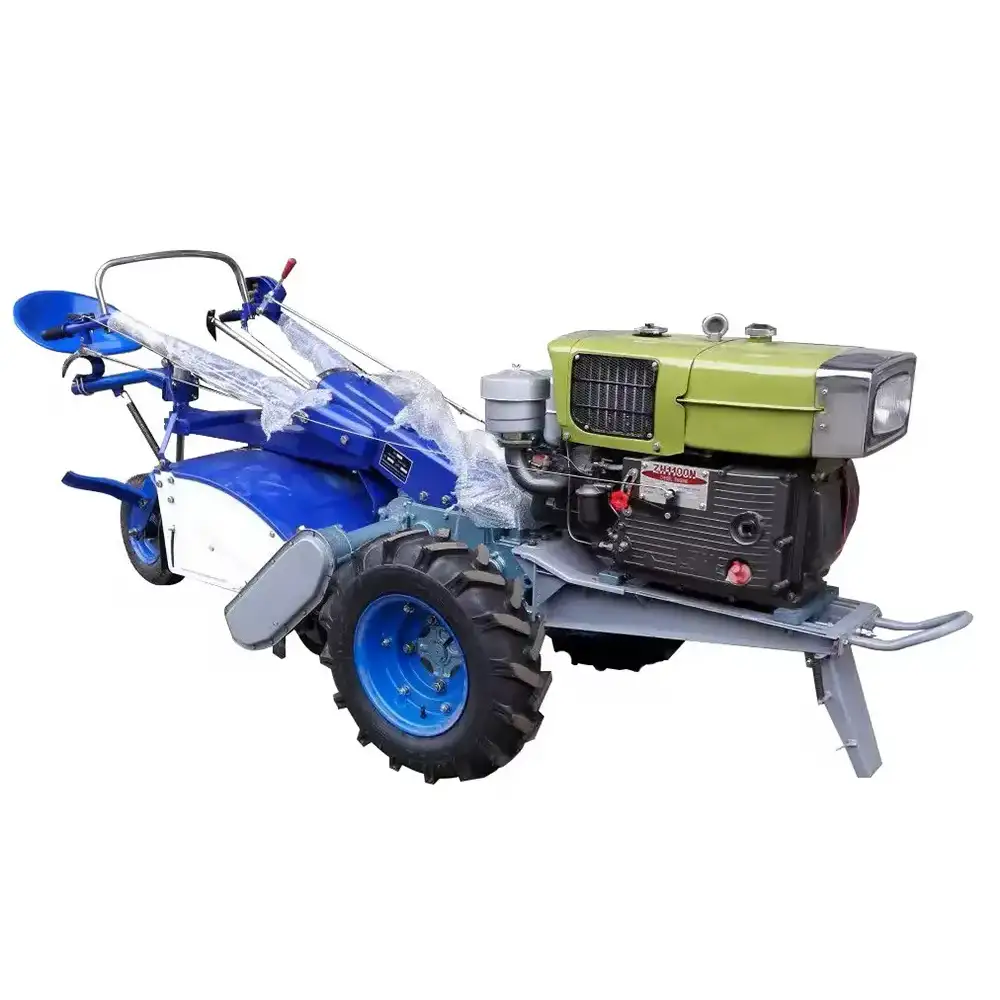

Dongfeng Power Tiller, DF-12L, DF-15L, DF-18L Technical Parameters

Dongfeng Power Tiller with diesel engine DF-15L DF-15SL DF-15KL DF-15EL DF-15ESL Structure weight without rotavator kg 360 368 390 393 396 with rotavator.

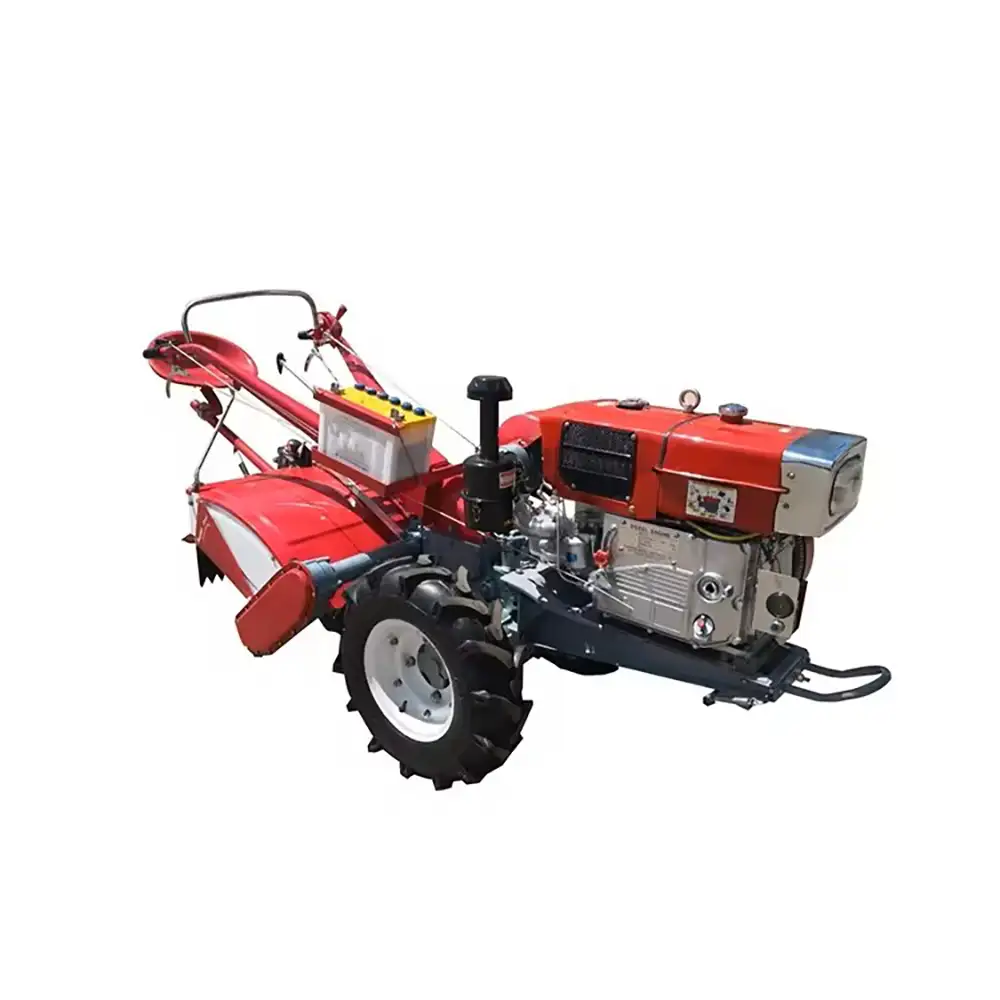

This best two wheel tractor offers great performance and a variety of configurations. Adopting advanced technology and high-quality materials, with a speed range of 750~2400rpm and a pulling force of 4.9kN, it can easily handle a variety of agricultural jobs. Complete with accessories including a plug-in tractor frame, motor tractor chassis, front bar assembly and multiple blades, this tractor is the perfect walk-behind tractor.
Model Unit DF-15L DF-15SL DF-15KL DF-15EL DF-15ESL
Structure weight without rotavator kg 360 368 390 393 396
with rotavator kg 475 478 500 503 506
Working weight (with rotavator) kg 509 512 534 534 540
Turning speed of roto-tilling shaft rpm 188 188 / 300 188 188 188 / 300
Overall dimension (L x W x H) mm 2680 x 960 x 1250 2680 x 1030 x 1250 3180 x 960 x 1250
Number of blades PCS 18 (22) 24 (28) 18 (22)
Roto-tilling width mm 600 800 600
Type of tractor Single axle, dual-purpose for both traction and drive
Traveling speed Forward kph 1.4,   2.5,   4.1,   5.3,   9.4,   15.3
Reverse 1.1,          3.8
Tire size 6.00 - 12
Wheel track mm  800,   740,   640,   580   (normally use 800)
Min. ground clearance mm 182
Min. turning radius m  0.9  (with no rotavator)
Engine Model S1100A2N
Engine type Horizontal   4-stroke
Bore x stroke mm 100 x 115
Total displacement L 0.903
Compression ratio 19.5 : 1
Turning speed of crankshaft rpm 2000
1-hour rated output kW/ HP 10.50 / 14.30
12-hour rated output kW/HP 9.80 / 13.33
Specific fuel consumption g/kW.hr 257
Specific lube oil consumption g/kW.hr </= 2.04
Cooling method condenser (radiator)
