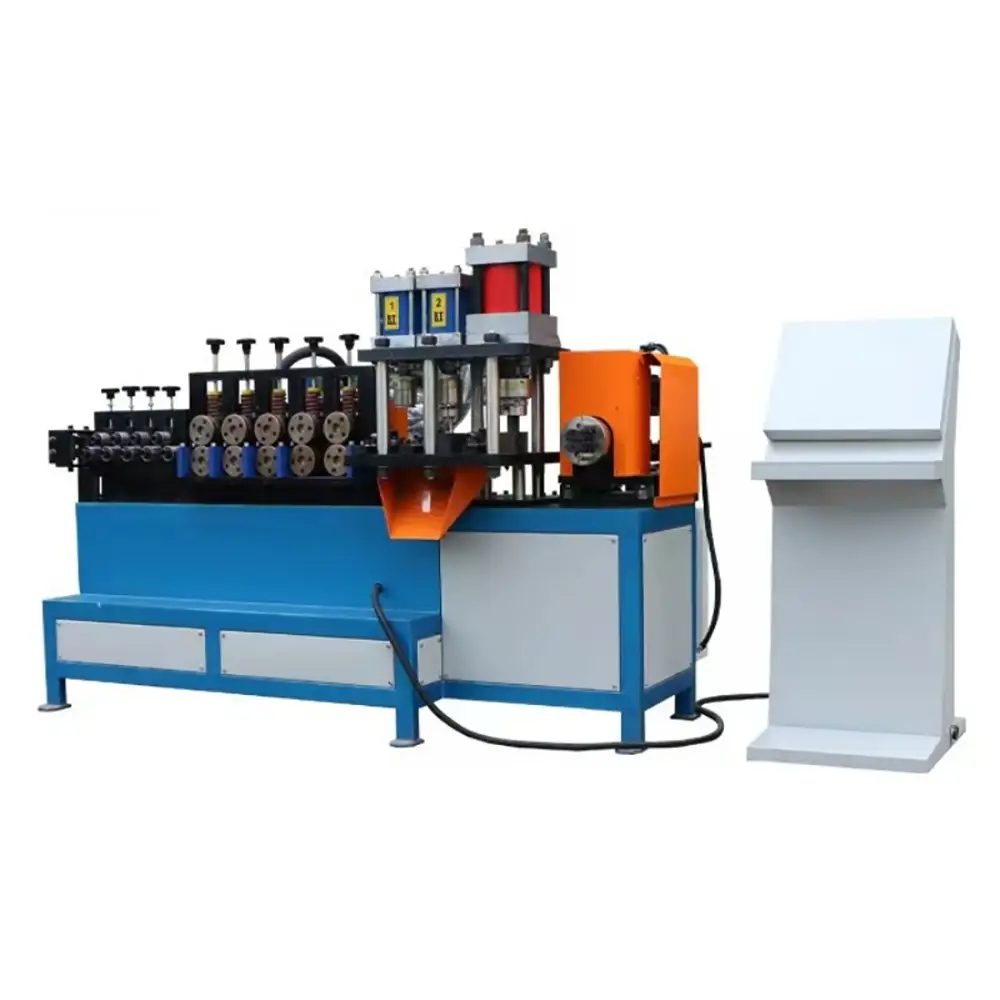

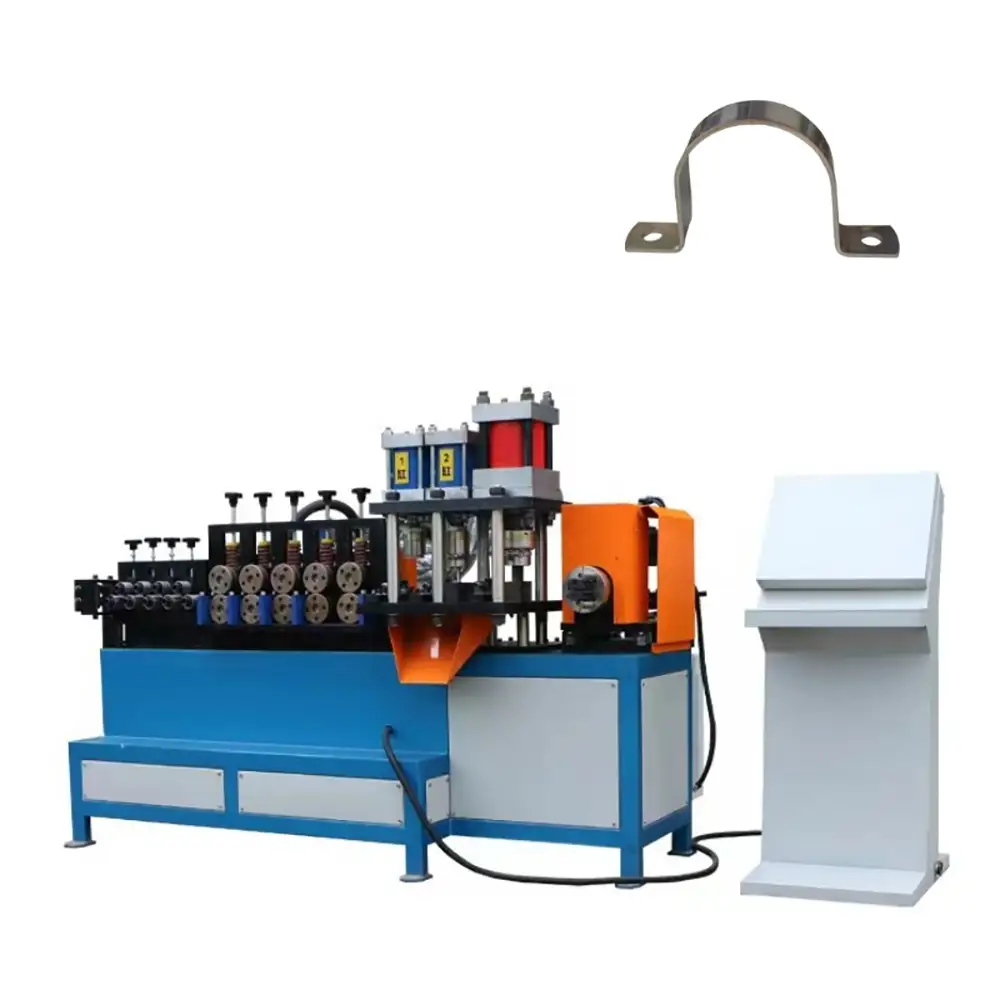

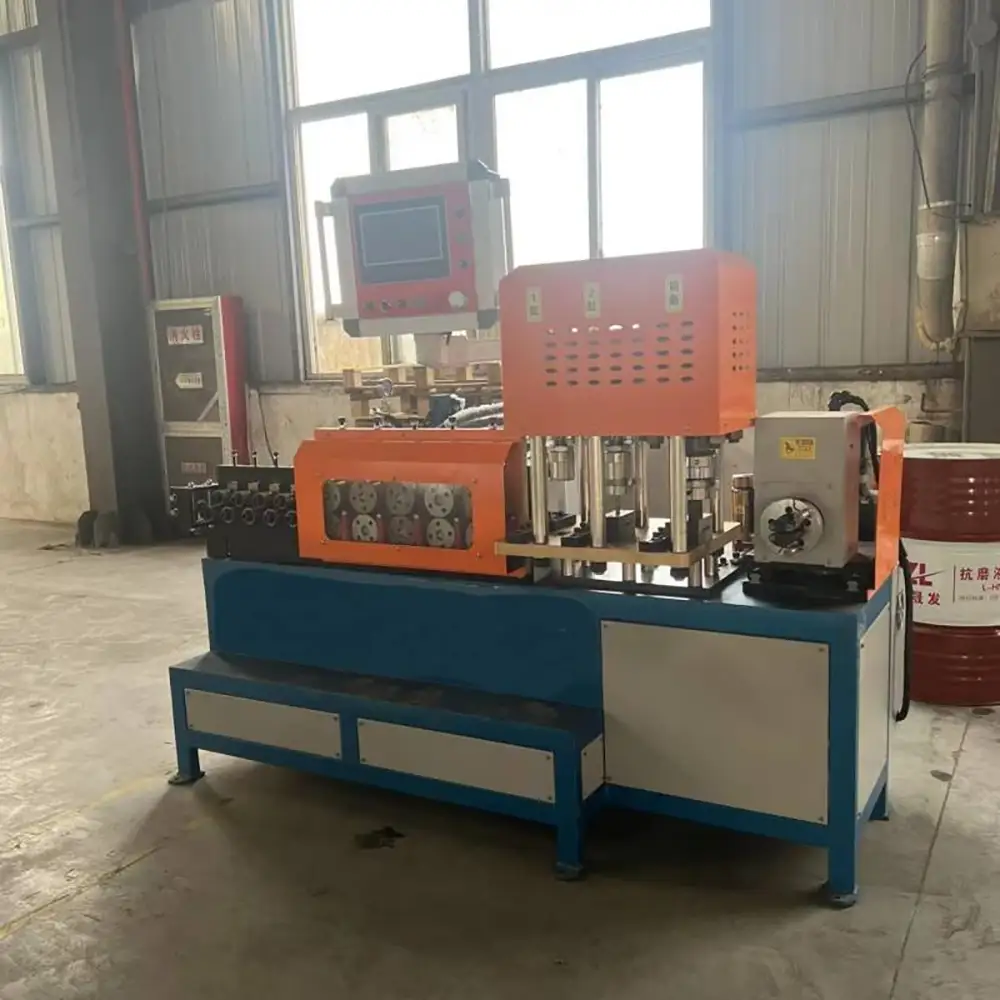

Multifunction Fully Automatic Flat Iron Forming Hoop Machine

Multifunction Fully Automatic Flat Iron Hoop Forming Machine

The Multifunction Fully Automatic Flat Iron Forming Hoop Machine is designed for automatic forming,bending,and shaping of flat iron,flat steel strips,and other compatible metal materials into hoops,rings,and customized curved components. Combining automatic feeding,controlled forming,and repeatable bending operations,the machine provides an efficient solution for manufacturers that require consistent metal hoop production.

Flat steel hoops and formed metal rings are widely used in industrial manufacturing,packaging,construction,agricultural equipment,furniture,hardware,and general metal fabrication. Depending on the tooling and machine configuration,the equipment can produce circular,oval,curved,or customized hoop profiles.

The actual material range,strip dimensions,forming diameter,and production speed depend on the machine configuration,material properties,tooling,and control system.

Automatic Flat Steel Feeding

Automatic feeding is an important part of a fully automatic hoop forming system. The flat iron or steel strip can be supplied continuously or in predetermined lengths according to the machine design.

Automated feeding can reduce repetitive manual loading and help maintain a consistent material position during the forming cycle.

Stable feeding is particularly important when producing multiple hoops with the same dimensions. Material thickness,width,surface condition,and straightness can all influence feeding performance.

Depending on the configuration,the machine may include feeding rollers,guides,straightening components,or other material-handling mechanisms.

Processing width	20-50MM
Processing thickness	2-5MM
Minimum side length	30MM
Maximum edge length	5000MM
Maximum feeding speed	55M/MIN
Maximum bending speed	800°/SEC
Feeding servo motor	3KW/1set
Bending servo motor	3KW/1set
Processing width	20-50MM
Processing thickness	2-5MM
Punching cylinder	125*30
Cutting cylinder	150*50
Feed wheel material	CR12MOV
Mould material	CR12MOV
Main oil pump	vane 25 pumps
Weight	1.6T
Overall Dimension	2.08M*1.1M*1.5M

Automatic Flat Steel Feeding

Automatic feeding is an important part of a fully automatic hoop forming system. The flat iron or steel strip can be supplied continuously or in predetermined lengths according to the machine design.

Automated feeding can reduce repetitive manual loading and help maintain a consistent material position during the forming cycle.

Stable feeding is particularly important when producing multiple hoops with the same dimensions. Material thickness,width,surface condition,and straightness can all influence feeding performance.

Depending on the configuration,the machine may include feeding rollers,guides,straightening components,or other material-handling mechanisms.

Flat Iron Hoop Forming

The primary function of the machine is to transform straight flat metal stock into a curved hoop or ring shape.

The forming process applies controlled bending force to the flat iron or steel strip. The tooling determines the final radius,diameter,and profile of the formed hoop.

Different forming dies may be required for different hoop sizes or shapes.

For applications involving several product dimensions,interchangeable tooling can provide greater flexibility.

Fully Automatic Operation

A fully automatic configuration can integrate material feeding,positioning,bending,forming,and workpiece discharge into a coordinated production process.

The operator typically loads the raw material and sets the required production parameters. The machine then performs the programmed forming cycle according to its control system.

Automation can reduce repetitive manual bending work and help standardize production procedures.

However,the exact level of automation depends on the machine configuration. Some systems may still require operator intervention for material loading,tool changes,setup,or finished-product handling.

Multifunction Metal Forming

The multifunction design allows the machine to support different flat metal forming applications when equipped with suitable tooling.

Potential forming operations may include:

Flat steel hoop forming

Metal ring bending

Flat bar bending

Steel strip bending

Circular hoop forming

Oval hoop forming

Curved profile forming

Custom ring forming

Closed-loop forming

Open-end hoop forming

The actual functions depend on the machine's mechanical structure,forming tools,and control system.

Flat Bar and Steel Strip Processing

Flat iron and flat steel are commonly supplied in different widths and thicknesses. The machine can be configured around suitable material dimensions according to the intended application.

Material properties are important because high-strength steel may require greater forming force than mild steel.

The surface condition of the material can also influence feeding and forming. Rust,oil,scale,or significant surface irregularities may affect material movement and finished appearance.

Customers should provide the material grade,width,thickness,and required hoop dimensions when selecting the machine.

Hoop Diameter and Forming Geometry

The required hoop diameter is one of the most important factors in machine selection.

A smaller diameter generally requires a tighter forming radius,while larger hoops require a different tooling arrangement and forming path.

The final shape can also vary depending on whether the product is a complete circular ring,partial hoop,oval shape,or another customized profile.

For special applications,the forming tooling can be designed around customer drawings or samples.

Applications in Packaging and Industrial Manufacturing

Steel hoops and metal rings are used in many industries.

Typical applications may include:

Packaging hoops

Metal drums

Industrial containers

Agricultural machinery

Construction equipment

Furniture components

Hardware products

Structural components

Metal frames

Pipe and tank accessories

General fabricated parts

The actual application depends on the material and finished hoop dimensions.

Furniture and Hardware Applications

Flat steel hoops and curved metal components are often used in furniture and hardware manufacturing.

Applications may include chair frames,table components,beds,metal brackets,decorative rings,and other formed parts.

Automatic forming can be useful for manufacturers producing repeated components because the same forming parameters can be used across a production batch.

Custom dies can also be developed when a product requires a special radius or profile.

Production Efficiency

Automation can improve production efficiency by reducing manual material handling and repetitive bending operations.

A typical automated production cycle may include material feeding,straightening or positioning,forming,bending,cutting or separation when required,and finished-part discharge.

Actual production speed depends on material thickness,material width,hoop diameter,forming geometry,feeding method,tooling,and machine configuration.

For high-volume production,the machine can potentially be integrated with automatic material feeding and collection systems.

Tooling and Forming Dies

Tooling determines the final shape of the flat steel hoop.

Different hoop diameters and profiles may require different forming rollers,dies,guides,or bending components.

Proper tooling selection can help reduce excessive deformation and improve repeatability between workpieces.

For OEM production,custom tooling can be developed according to drawings,samples,material specifications,and required finished dimensions.

Customers producing multiple hoop sizes can discuss quick-change or interchangeable tooling options according to the machine design.

Quality Control

Finished hoops should be inspected according to the customer's dimensional requirements.

Important inspection points may include:

Hoop diameter

Overall circumference

Material width

Material thickness

Circularity

Forming radius

Joint or end position

Surface condition

Dimensional consistency

First-piece inspection can help establish suitable forming parameters before starting a production batch.

Periodic inspections can identify tooling wear,material variation,or changes in machine performance.

For precision applications,the required dimensional tolerances should be specified before machine selection.

Maintenance and Safety

Automatic metal forming equipment contains moving components,rollers,forming tools,and electrical or mechanical drive systems.

Operators should be properly trained and follow the manufacturer's operating instructions.

Routine maintenance may include checking forming rollers,tooling,feeding components,drive systems,electrical connections,and fasteners.

Material feeding areas should be kept clean and free from unnecessary debris.

Operators should avoid reaching into moving forming areas during operation. Emergency stops,guards,and other safety features depend on the specific machine configuration and applicable local requirements.

Custom & OEM Hoop Forming Solutions

Different customers may require different hoop diameters,material widths,material thicknesses,forming profiles,and production volumes.

The machine can therefore be evaluated for customized production requirements.

For OEM and ODM projects,customers can provide:

Flat iron or steel grade

Strip width

Strip thickness

Hoop diameter

Hoop shape

Required forming radius

Production quantity

Finished-product drawings

Samples

Based on these specifications,the forming tooling,feeding system,control configuration,and machine structure can be selected accordingly.

The machine is suitable for manufacturers,factories,hardware suppliers,metalworking companies,distributors,and international B2B buyers seeking automatic steel hoop forming machines,flat bar bending machines,metal ring forming equipment,and customized flat steel forming machinery.

Why Choose Us

Fully Automatic Forming — Integrates material feeding and forming operations for efficient repetitive production.

Flat Steel Hoop Processing — Designed for suitable flat iron,flat steel,and metal strip forming applications.

Multifunction Forming Capability — Can support different hoop,ring,curve,and flat bar forming requirements with appropriate tooling.

Consistent Production — Automated positioning and controlled forming can help improve repeatability between workpieces.

Flexible Tooling — Forming rollers,dies,and guides can be selected or customized for different hoop dimensions.

Wide Industrial Applications — Suitable for packaging,furniture,hardware,construction,agricultural machinery,and general metal fabrication.

OEM & ODM Support — Machine configuration and tooling can be developed according to customer drawings,samples,and production requirements.

B2B Manufacturing Solution — Suitable for manufacturers,factories,distributors,wholesalers,and overseas machinery buyers.

FAQs

1. What is a flat iron hoop forming machine?

It is a metal forming machine designed to bend flat iron,flat steel,or compatible metal strips into hoops,rings,and curved components.

2. Is the machine fully automatic?

The specified configuration is fully automatic,but the exact automation functions depend on the machine design. Material loading,tool changes,and maintenance may still require operator involvement.

3. What materials can it process?

Depending on the machine configuration,it can process suitable mild steel,flat iron,flat steel strips,and other compatible metal materials.

4. Can it form circular steel hoops?

Yes. With suitable forming tooling,the machine can produce circular hoops or rings within its configured forming range.

5. Can it produce oval hoops?

Potentially. Oval or customized shapes require suitable forming tooling and machine programming or mechanical configuration.

6. Can different hoop diameters be produced?

Yes,when the machine is configured with suitable tooling or adjustable forming components for the required diameters.

7. What determines the forming capacity?

Material grade,width,thickness,hoop diameter,forming radius,tooling,and machine forming force all affect the actual capacity.

8. Can the machine process flat bar?

Yes,if the flat bar dimensions and material properties are within the machine's configured range.

9. Can custom forming dies be supplied?

Yes. Custom forming dies,rollers,guides,and fixtures can be developed according to product drawings or samples.

10. What industries use steel hoop forming machines?

Typical applications include packaging,furniture,hardware,construction,agricultural machinery,industrial containers,and general metal fabrication.

11. Can the machine be integrated into an automatic production line?

Depending on the configuration,it can be evaluated for integration with automatic feeding,cutting,collection,or other material-handling systems.
