Multi-Function 380V Stainless Steel Chamfer Tapping Machine for Pipe Internal Screw Threads

CE Certified Made in China Cheap Automatic Tapping Machine High precision drilling to ensure concentricity and vertical degree Simple operation, high efficiency rapidly Saving time ,labor,province
Model: 1) Automatic cycle operation, there is no requirement for the operateration experience, help you reduce labor costs
2) Support pedal-operated, and leave operator hand free to improve production efficiency
3) Timer function support long time high-speed continuous loop and one-way loop.
4) Could be equipped with multiple axes, Drilling multiple holes at the same time, Greatly improves the production efficiency and save labor cost, Increasing the competitiveness.

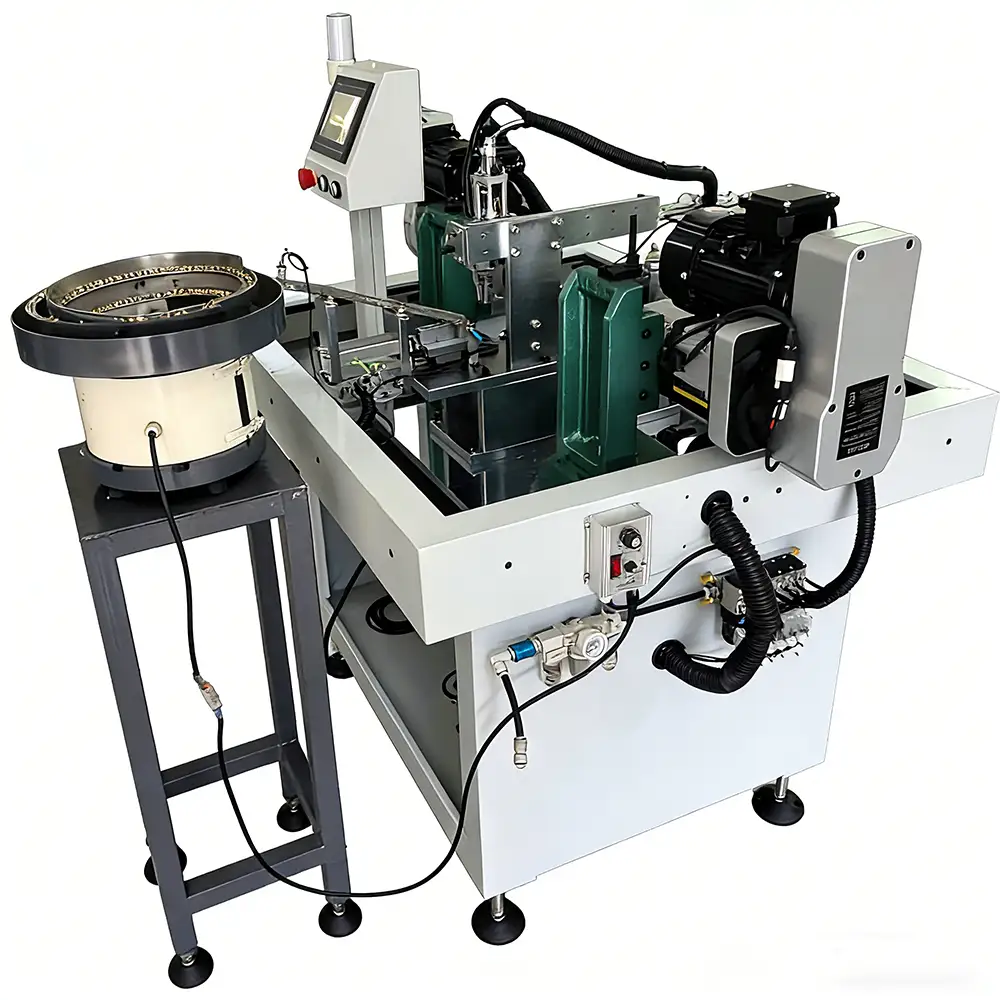

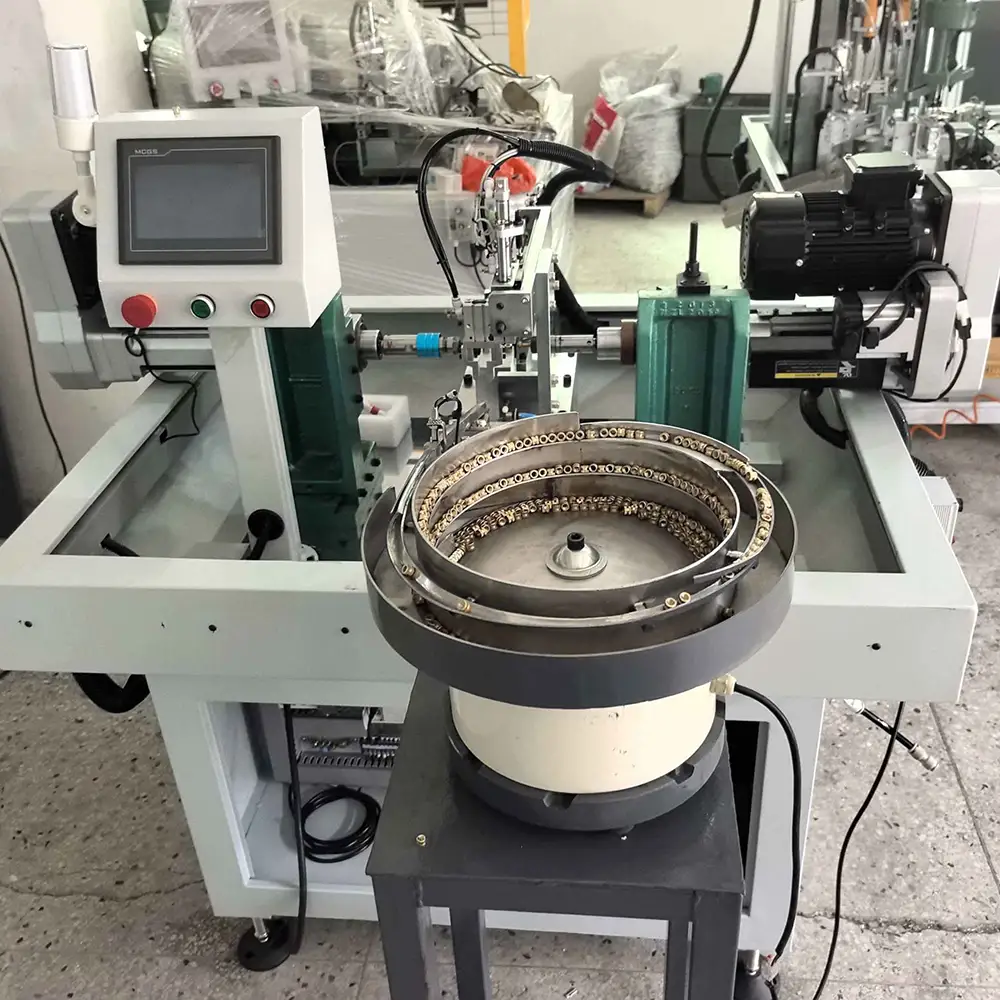

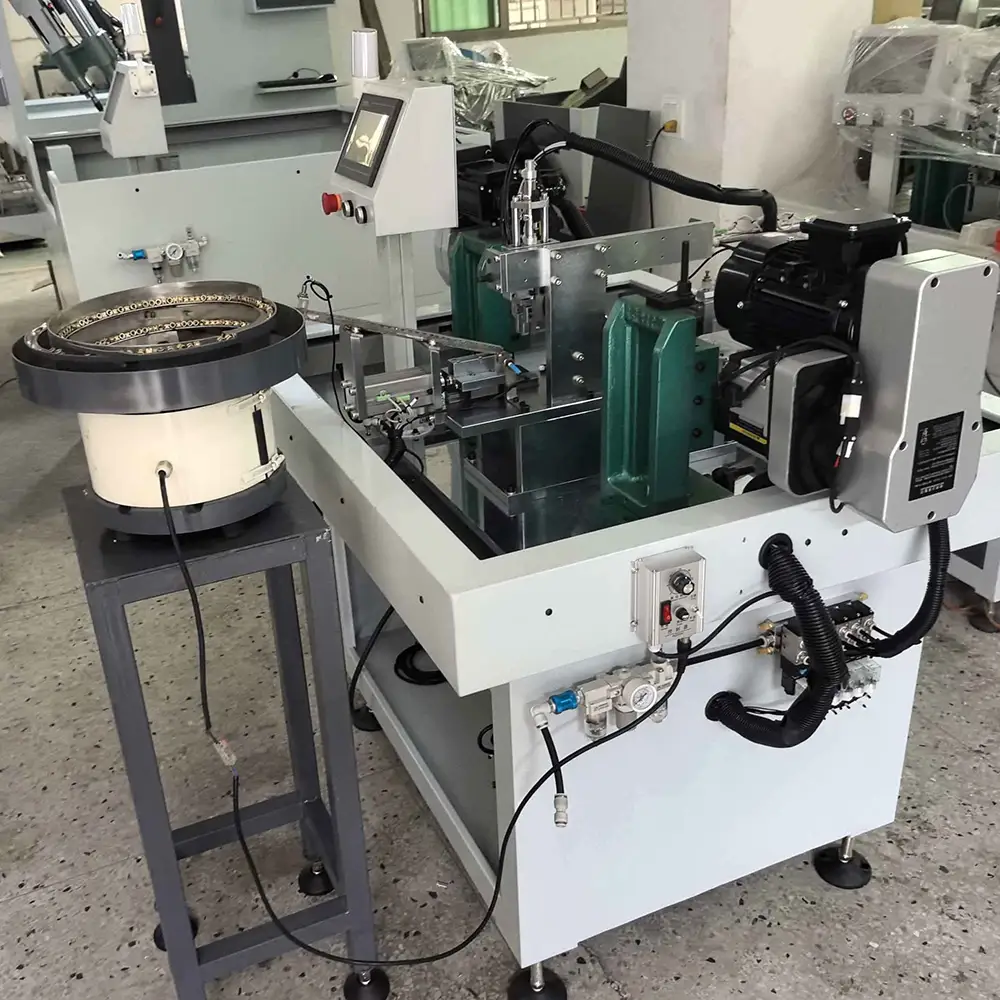

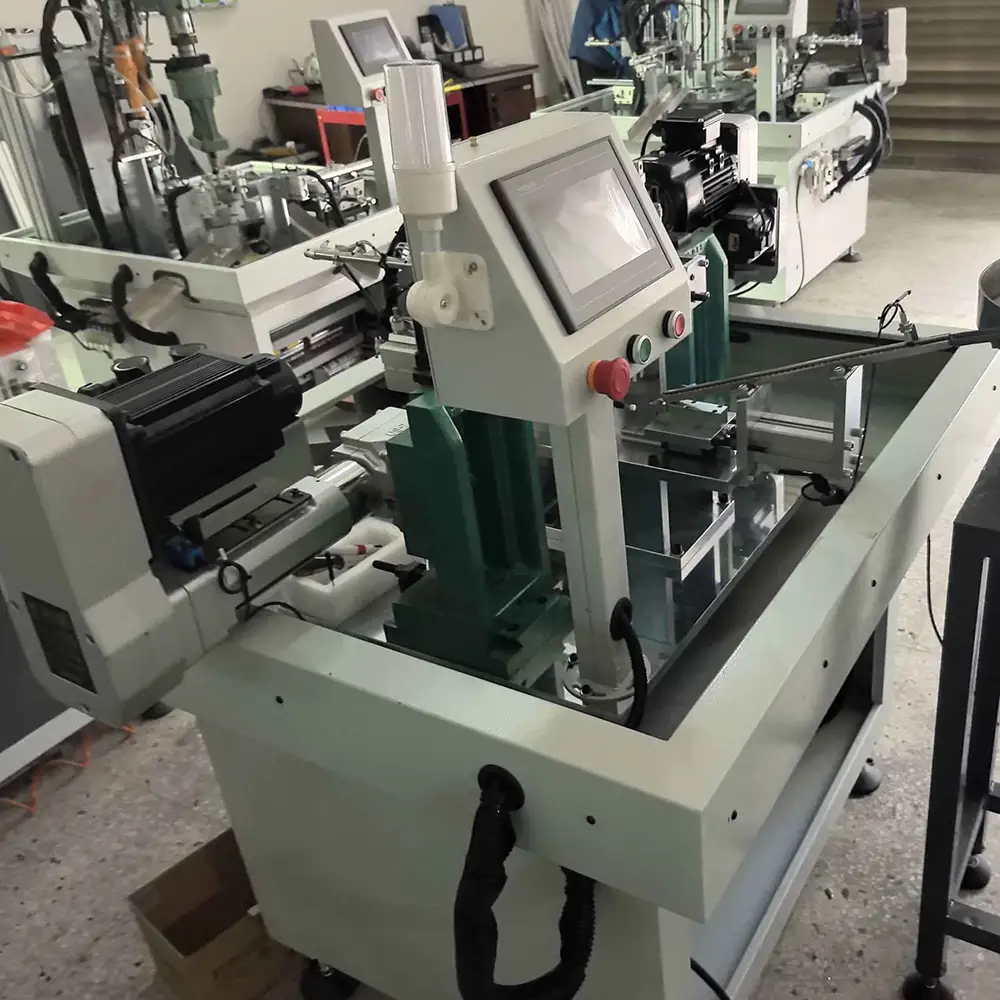

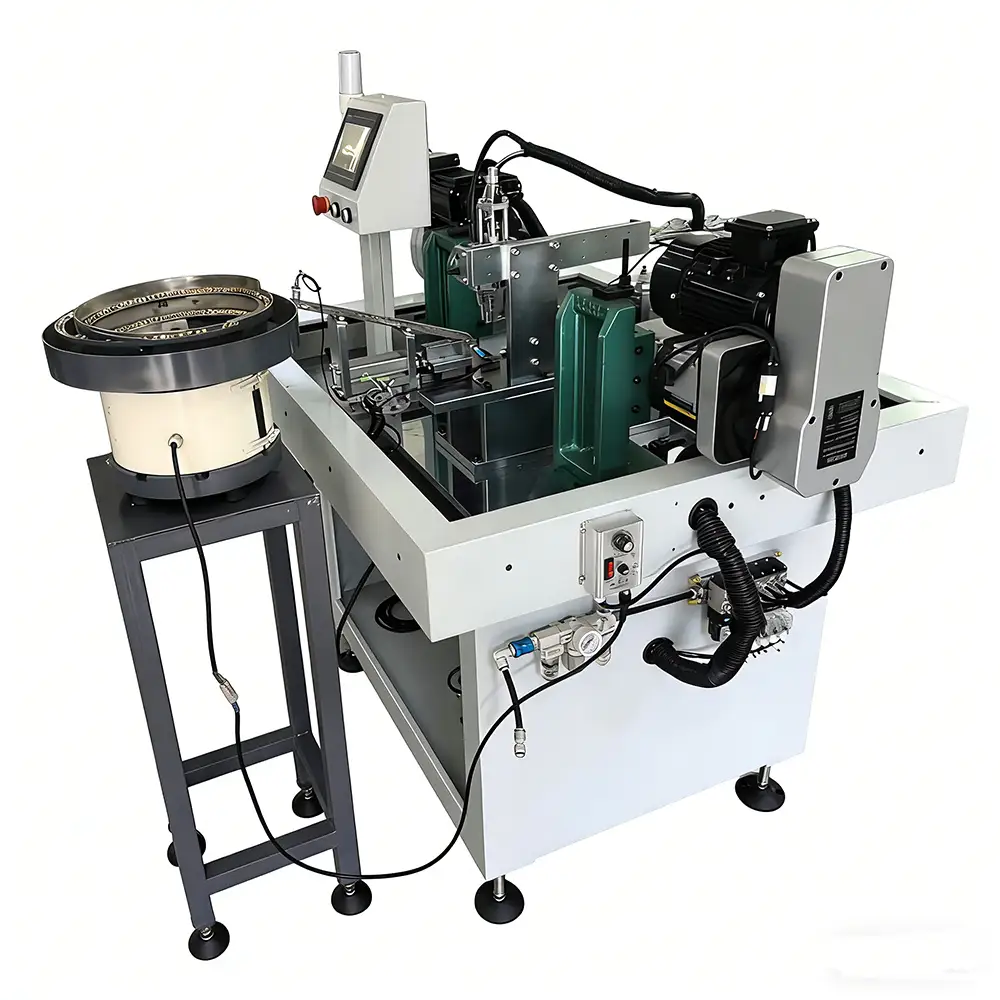

Multi-Function 380V Stainless Steel Pipe Chamfer and Tapping Machine

The Multi-Function 380V Stainless Steel Pipe Chamfer and Tapping Machine is designed for manufacturers that need efficient processing of stainless steel pipes,tubes,and other suitable metal tubular workpieces. Combining chamfering and internal thread tapping in one machine configuration,it provides a practical solution for preparing pipe ends and producing internal screw threads.

Pipe ends often require several machining operations before they can be assembled with fittings,connectors,fasteners,or other components. Chamfering can remove sharp edges and create a suitable lead-in area,while tapping forms an internal thread inside a prepared hole.

The 380V electrical configuration is suitable for industrial environments where a compatible three-phase power supply is available. The exact electrical specifications should be confirmed according to the machine model and destination market.

The multi-function design allows manufacturers to streamline related pipe processing operations and reduce repetitive manual handling.

Stainless Steel Pipe Internal Thread Tapping

Internal thread tapping creates a screw thread inside a prepared pipe or tube opening. The tapping tool follows the hole to form the required internal thread profile.

Stainless steel is widely used for plumbing components,industrial equipment,food-processing equipment,automotive parts,architectural products,and general metal fabrication. However,stainless steel can have different machining characteristics from carbon steel and aluminum.

Proper tap selection,cutting speed,lubrication,tool alignment,and chip evacuation are important for achieving consistent thread quality.

The actual thread size and processing range depend on the machine configuration,tooling,and pipe dimensions.

Pipe Chamfering Function

Chamfering creates a beveled edge around the pipe opening. This can remove sharp edges,improve the appearance of the pipe end,and provide a more suitable lead-in for subsequent assembly or tapping.

For internally threaded pipe components,a properly formed chamfer can help guide the tapping tool and reduce the risk of damaging the first thread.

Chamfering can also make handling easier by reducing sharp edges created during cutting or drilling.

The required chamfer size and geometry depend on the pipe drawing and application. Different workpieces may require different chamfering tools.

Multi-Function Pipe Processing

Combining chamfering and tapping functions can simplify the workflow for manufacturers producing threaded pipe components.

Instead of moving the workpiece between separate machines for every operation,the operator can perform related processes within one integrated machine setup,depending on the specific machine configuration.

Typical processing steps may include:

Positioning the stainless steel pipe.

Securing the workpiece with the appropriate fixture.

Preparing or locating the internal hole.

Chamfering the pipe opening.

Performing internal thread tapping.

Removing and inspecting the finished component.

The actual sequence depends on the machine design and production process.

380V Industrial Electrical Configuration

The 380V configuration is commonly associated with industrial three-phase electrical systems in many manufacturing environments.

A suitable power supply can support the machine's electric motor,drive system,and other electrical components according to the machine design.

Before installation,the customer should confirm the local voltage,frequency,phase requirements,and electrical standards. Electrical specifications can vary between countries and machine configurations.

For international B2B orders,the power configuration should be confirmed before production to ensure compatibility with the customer's factory electrical system.

Stainless Steel Tube Applications

The machine can be used for suitable stainless steel pipes and tubes requiring internal thread processing and chamfering.

Potential applications include:

Stainless steel pipe fittings

Industrial pipe components

Plumbing components

Machinery parts

Hydraulic and pneumatic components

Food-processing equipment parts

Architectural metal components

Stainless steel furniture components

Automotive tubular components

General engineering parts

The actual workpiece range depends on the machine's tooling,clamping system,and rated processing capability.

Other Suitable Metal Materials

Although stainless steel is a major application,the machine may also be evaluated for other suitable metals.

Depending on the machine configuration and tapping tools,possible materials can include carbon steel,mild steel,aluminum,copper,brass,and selected alloy steels.

Each material requires appropriate tooling and machining parameters.

For example,aluminum and copper can require attention to chip evacuation and lubrication,while stainless steel may require careful control of cutting conditions because of its work-hardening characteristics.

Customers should provide material grades and pipe specifications when selecting the machine.

Workholding and Pipe Positioning

Stable workholding is essential for accurate pipe tapping. The pipe should remain securely positioned while the chamfering and tapping tools perform their operations.

Depending on the machine design,fixtures,clamps,vises,or customized workholding systems may be used.

For round pipes,proper clamping is especially important because the workpiece can rotate if it is not sufficiently secured.

For customized pipe sizes or unusual shapes,custom fixtures can be considered to improve positioning and production repeatability.

Thread Quality and Processing Accuracy

The quality of an internal pipe thread depends on several factors. Hole diameter,tap geometry,tool alignment,material properties,cutting speed,lubrication,and chip removal all influence the final thread.

A correctly sized pilot hole is particularly important. If the hole is too small,the tapping torque can increase and the tap may be damaged. If the hole is too large,the resulting thread may not provide the required engagement.

For production applications,thread gauges or other suitable inspection tools can be used to verify finished threads according to the required standard.

Production Efficiency

A multi-function chamfering and tapping machine can reduce repetitive manual operations and improve workflow efficiency.

For batch production,the operator can establish a consistent loading,clamping,and processing procedure for repeated pipe components.

Actual production output depends on thread size,pipe dimensions,material,thread depth,number of operations,tool condition,and operator workflow.

For higher-volume production,the machine can be incorporated into a larger pipe processing line involving cutting,deburring,drilling,bending,welding,cleaning,and inspection.

Tooling and Maintenance

Tapping tools and chamfering cutters are consumable components and should be inspected regularly.

Tool life depends on material,thread size,cutting parameters,lubrication,production volume,and tool quality.

Routine maintenance may include removing metal chips,checking fixtures,inspecting electrical connections,cleaning moving components,and replacing worn tools.

Lubrication requirements should follow the manufacturer's recommendations and the specific machining application.

Safety and Operation

The machine contains rotating cutting tools and moving mechanical components. Operators should keep hands away from the machining area during operation and use appropriate personal protective equipment.

Metal chips can be sharp and may become hot during processing. Suitable chip collection and workplace housekeeping should be maintained.

The machine may include protective guards,emergency-stop devices,and electrical protection depending on its configuration. Operators should follow the manufacturer's instructions and applicable local safety requirements.

OEM and Custom Pipe Threading Solutions

Different customers may require different thread sizes,pipe diameters,wall thicknesses,thread depths,and chamfer dimensions.

OEM and ODM configurations can therefore be evaluated according to specific production requirements.

Customers can provide pipe drawings,samples,material specifications,thread standards,production volume,and electrical requirements. This information helps determine suitable tooling,fixtures,and machine configuration.

For stainless steel pipe manufacturers,industrial fitting suppliers,metalworking companies,and machinery distributors,the machine can provide a flexible B2B pipe processing solution.

Why Choose Us

Multi-Function Pipe Processing – Combines chamfering and internal thread tapping functions for suitable metal pipes.

Stainless Steel Applications – Designed around stainless steel pipe and tube processing with suitable tooling and parameters.

380V Industrial Configuration – Available with a 380V electrical configuration for compatible industrial power systems.

Internal Thread Processing – Provides a dedicated process for creating internal screw threads in prepared pipe openings.

Pipe End Chamfering – Helps remove sharp edges and create a suitable lead-in around pipe openings.

Flexible Material Processing – Can be evaluated for stainless steel,carbon steel,aluminum,copper,brass,and other suitable metals.

Production Efficiency – Combining related operations can reduce repetitive workpiece handling in batch production.

OEM and B2B Support – Machine configuration,tooling,fixtures,and electrical specifications can be evaluated according to customer requirements.

FAQs

1. What is a chamfer tapping machine?

A chamfer tapping machine is designed to perform chamfering and internal thread tapping operations on suitable metal workpieces,including pipes and tubes.

2. Can it process stainless steel pipes?

Yes. The machine is designed for suitable stainless steel pipes when the correct tapping tools,chamfering tools,and processing parameters are selected.

3. What is the purpose of chamfering?

Chamfering removes sharp edges and creates a beveled entrance that can improve thread lead-in and make the pipe end easier to handle and assemble.

4. What is internal thread tapping?

Internal thread tapping forms a screw thread inside a prepared hole so that the pipe or component can connect with a compatible threaded part.

5. What does the 380V specification mean?

380V refers to the machine's electrical configuration. Customers should confirm the required voltage,frequency,and phase according to their local industrial power supply.

6. Can it process carbon steel pipes?

Suitable carbon steel pipes can be processed when the machine and tapping tools are configured for the required material and dimensions.

7. Can it process aluminum or copper tubes?

Depending on the configuration and tooling,aluminum,copper,and brass tubes may also be suitable. Material-specific parameters should be confirmed before production.

8. Can different thread sizes be processed?

Different thread sizes may be possible with suitable tapping tools and machine configuration. The required thread range should be confirmed before ordering.

9. Does the pipe need a prepared hole before tapping?

In many tapping applications,a correctly sized pilot hole is required before the tap forms the internal thread. The actual process depends on the machine configuration.

10. What affects internal thread quality?

Hole diameter,tap quality,tool alignment,material,cutting speed,lubrication,chip evacuation,and tapping parameters can all affect thread quality.

11. Can customized fixtures be provided?

Depending on the machine configuration,custom fixtures and workholding systems can be developed or selected for specific pipe sizes and applications.

12. What information should I provide for a quotation?

Provide the pipe material,outside diameter,wall thickness,thread size,thread depth,chamfer dimensions,production volume,required electrical configuration,and drawings or samples if available.
