Automatic Electric Tapping and Chamfering Machine for Internal Screw Threads Precision CNC Threading Machine

High Efficiency Automatic Tapping Machine: Precisely threads internal screw threads with high precision.
Double Head Design: Dual heads for efficient and simultaneous chamfering and tapping operations.
Wide Voltage Range: Supports 120V/220V/240V/380V/415V/440V/480V for global compatibility.
Lightweight: Weighs only 1500 kg for easy transport and installation.
Comprehensive Warranty: Includes 1-year warranty for peace of mind.

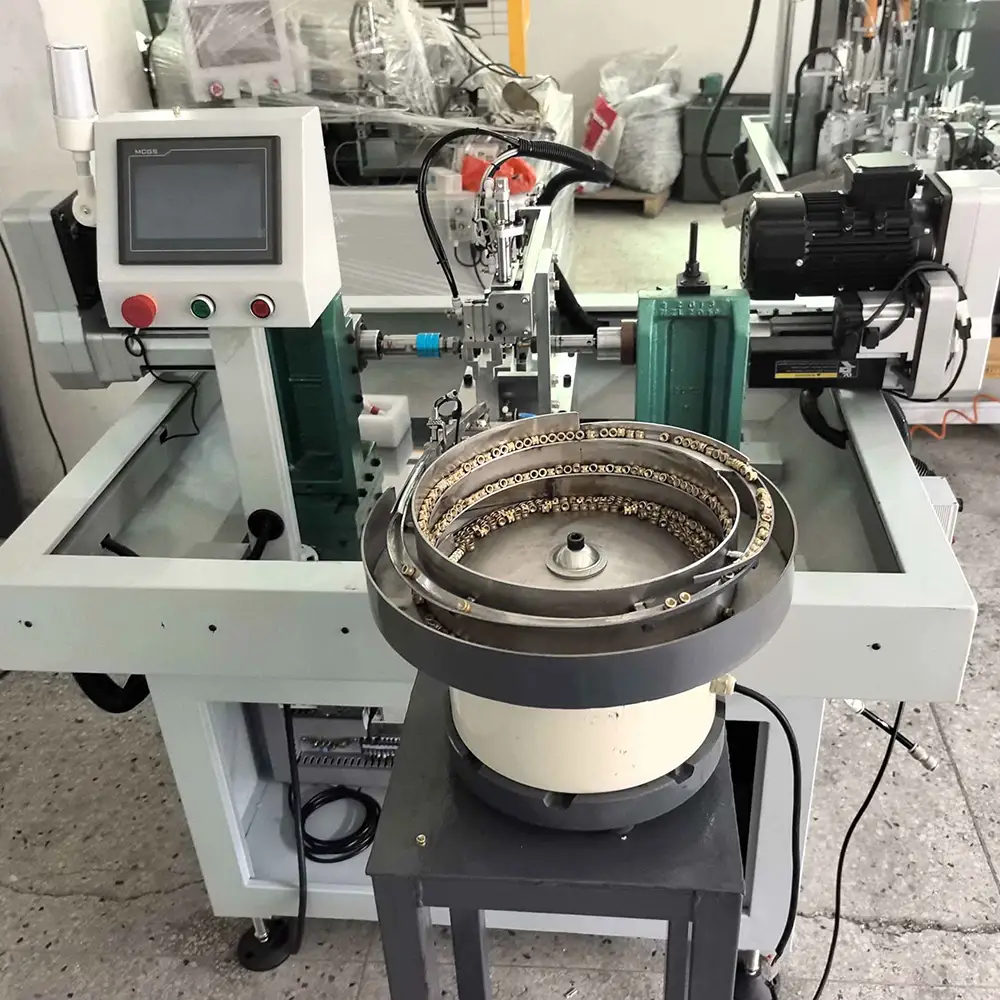

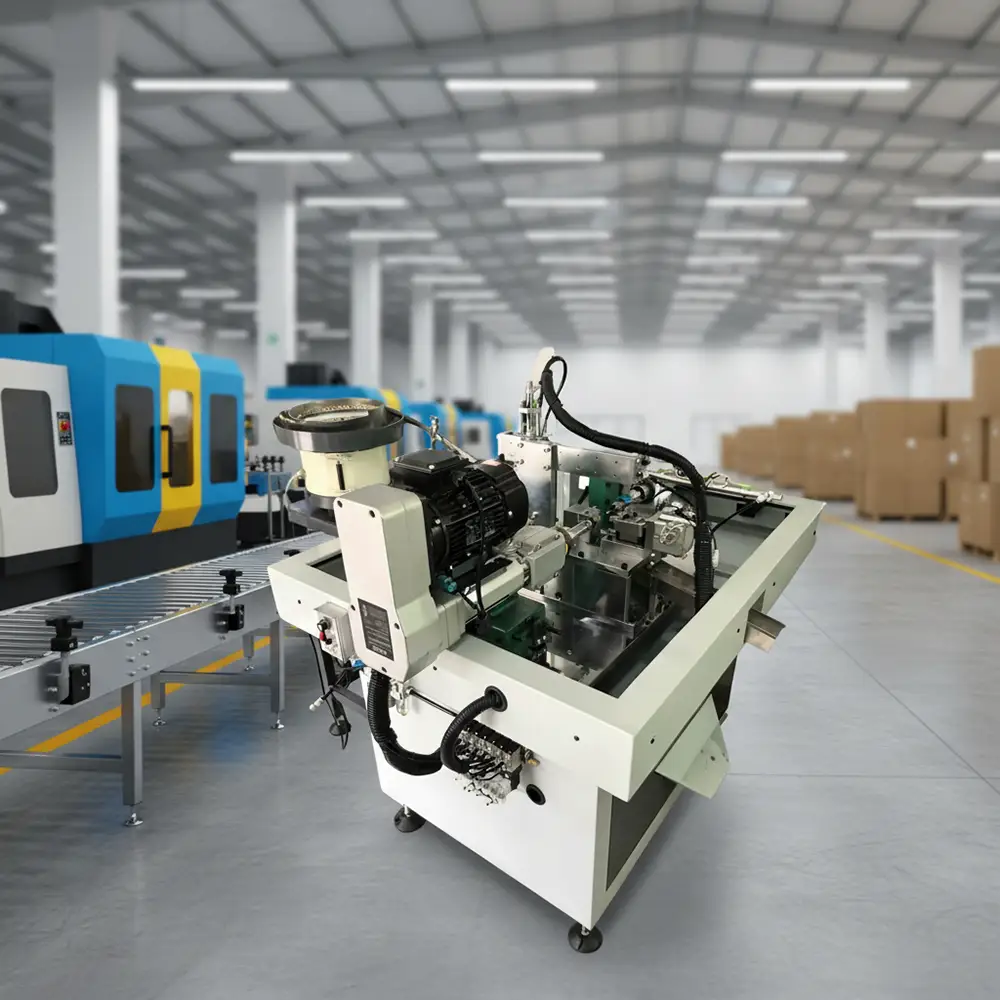

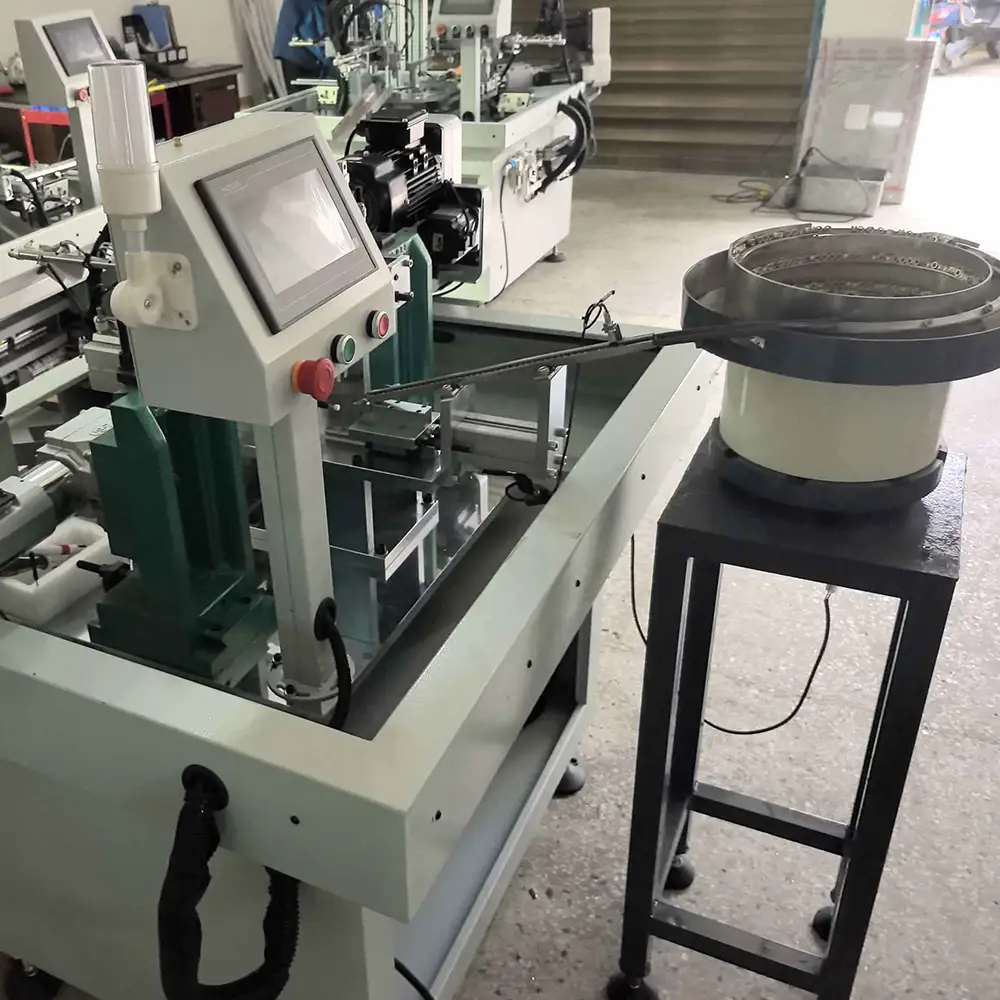

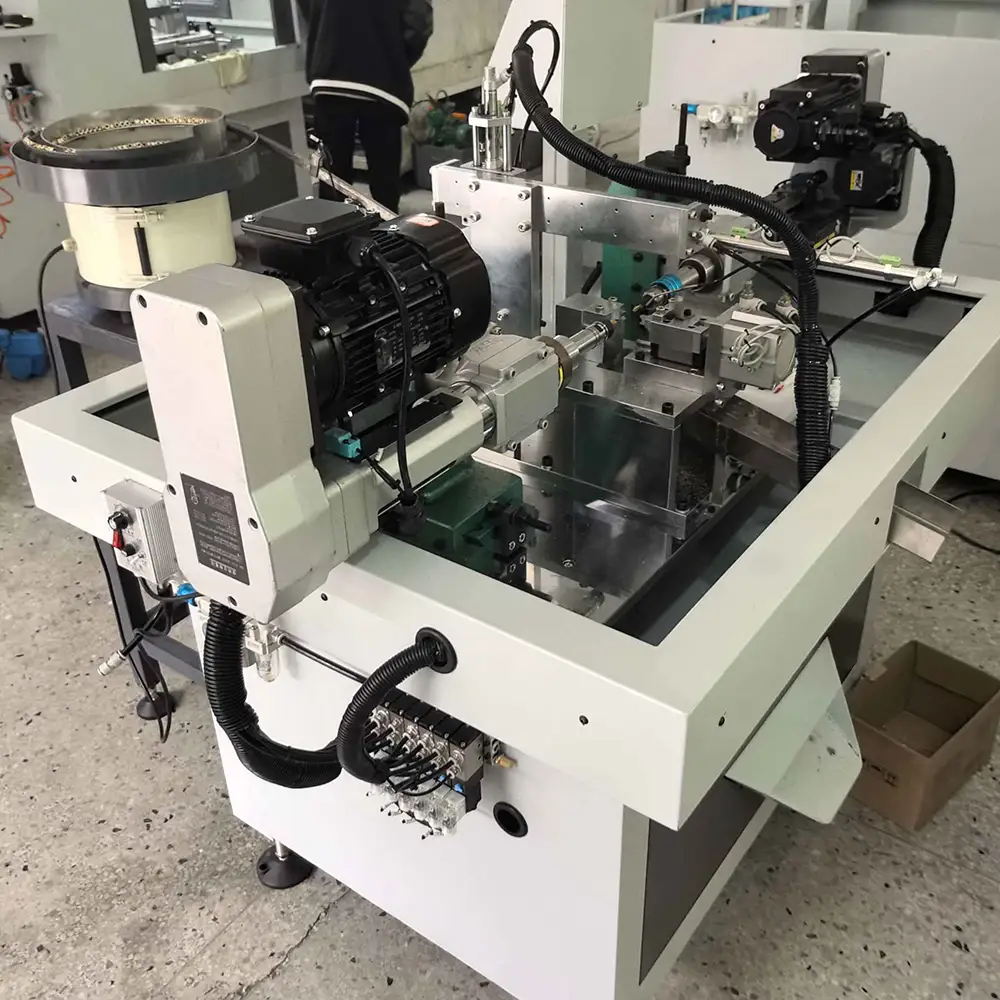

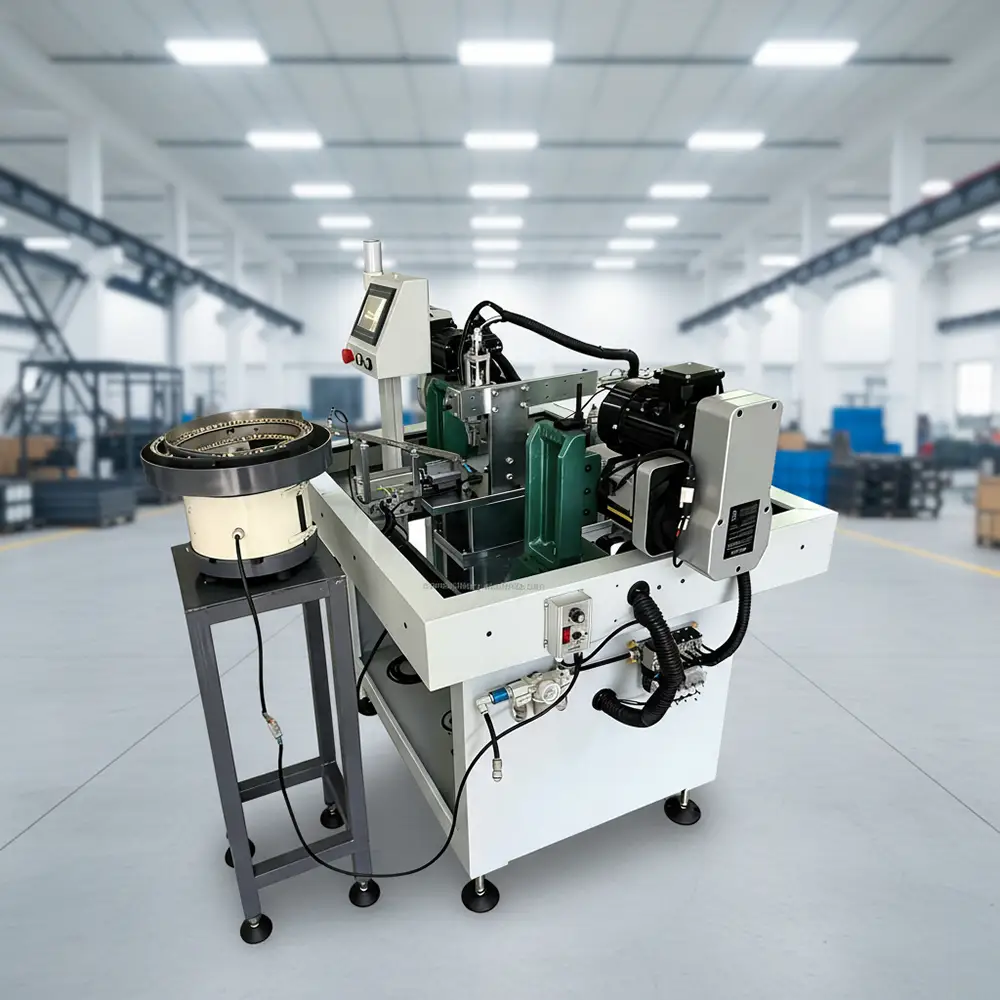

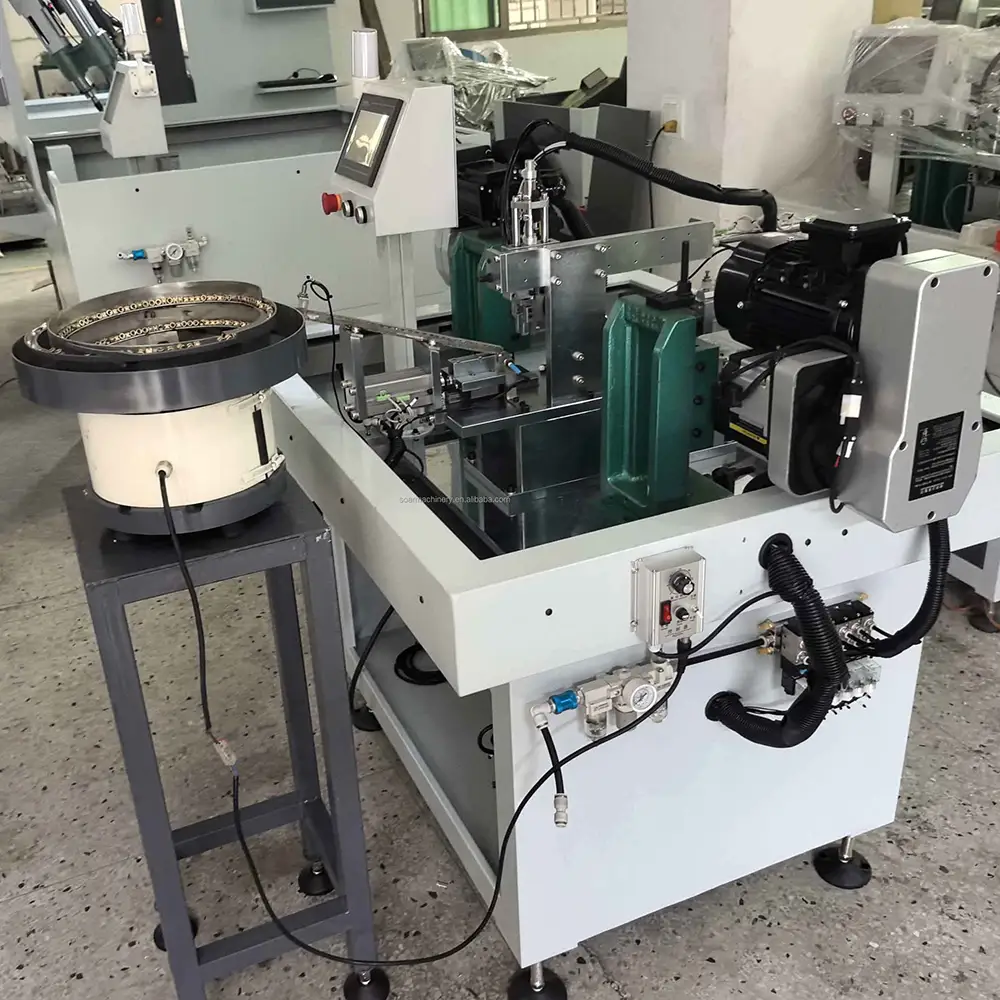

Automatic Electric Tapping and Chamfering Machine for Internal Screw Threads

The Automatic Electric Tapping and Chamfering Machine for Internal Screw Threads is designed for efficient processing of internal threads and chamfered openings on metal workpieces. Combining electric tapping with chamfering operations,the machine provides a practical solution for manufacturers that need repeatable thread processing for industrial components.

Internal screw threads are widely used in mechanical parts,fasteners,automotive components,hardware,fittings,flanges,machinery components,and fabricated metal products. Before or during tapping,the workpiece may also require chamfering around the hole entrance to improve thread starting conditions,remove sharp edges,and provide a cleaner finished appearance.

This type of machine combines dedicated tooling,workholding,and controlled tool movement to support repeatable processing. Depending on the machine configuration,it may use an electric drive system,servo-controlled movement,or CNC-related control functions.

The actual tapping range,workpiece dimensions,thread standards,and processing cycle depend on the selected model,tooling,and machine configuration.

Automatic Internal Thread Tapping

Internal tapping is the process of creating screw threads inside a previously drilled or prepared hole. A suitable tap enters the hole and forms the required internal thread profile.

The machine is designed to provide controlled tapping movement so that the tap can follow the workpiece hole and produce a consistent thread when the correct tooling and parameters are used.

Compared with purely manual tapping,an automatic or CNC-controlled system can help reduce repetitive operator movement and provide more consistent processing for repeated components.

Thread quality depends on hole diameter,material,tap specification,lubrication,cutting speed,tool condition,and machine alignment. Proper selection of the tap and processing parameters is therefore important.

Electric Tapping System

The electric drive system provides controlled rotational movement for the tapping operation. Depending on the machine design,the electric system may work together with mechanical or electronic feed control.

Electric tapping can be useful for production environments where manufacturers need repeatable internal threading without relying entirely on manual tapping tools.

For different workpiece materials,the appropriate tapping speed and torque should be selected according to the tap manufacturer's recommendations and machine capabilities.

Carbon steel,stainless steel,aluminum,copper,brass,and alloy materials can have different cutting characteristics. A suitable tap type and lubricant should therefore be selected for each application.

Chamfering Before Internal Threading

Chamfering creates a beveled edge around the entrance of a drilled hole. This operation can remove sharp edges and provide a more suitable lead-in area for the tapping process.

For internal threaded holes,an appropriate chamfer can help guide the tap into the hole and reduce the risk of damaging the first thread during assembly.

Chamfering can also improve the visual appearance of the finished component and make subsequent assembly easier.

The required chamfer angle,diameter,and depth depend on the workpiece drawing and thread specification. Tool selection should be based on the actual hole and material requirements.

CNC Threading and Process Control

A CNC or digitally controlled threading machine can provide programmed control over tool movement and processing sequences,depending on the selected machine configuration.

CNC control can be particularly useful when manufacturers produce repeated components or need to switch between different processing programs.

Digital control can help establish repeatable processing parameters and reduce variations caused by manual operation.

However,thread accuracy is influenced by many factors,including workpiece positioning,tool condition,material properties,spindle movement,feed control,and the relationship between tapping speed and feed.

The specific CNC controller and supported programming functions should be confirmed according to the machine model.

Metal Workpiece Applications

The machine can be used for suitable metal components requiring internal screw threads and chamfered holes.

Potential applications include:

Machinery components

Automotive parts

Metal brackets

Hardware components

Flanges

Mechanical fittings

Industrial frames

Aluminum components

Steel parts

Fabricated metal products

Equipment components

General engineering parts

The actual workpiece range depends on the machine's workholding system,tooling,and rated processing capacity.

Thread Tapping for Different Materials

Different metals require different tapping strategies.

Carbon steel and mild steel can generally be processed with suitable standard or application-specific taps. Stainless steel may require tooling designed to handle its work-hardening characteristics and cutting resistance.

Aluminum and brass can require attention to chip evacuation and lubrication. Certain alloy materials may require specialized taps and carefully controlled cutting parameters.

Before production,the manufacturer should select the appropriate tap geometry,coating,lubricant,cutting speed,and feed conditions according to the workpiece material.

Workholding and Positioning

Stable workholding is essential for accurate internal threading. The workpiece should remain securely positioned while the tapping tool enters and forms the internal thread.

Depending on the machine configuration,fixtures,clamps,vises,or customized workholding systems may be available.

For irregular or specialized components,custom fixtures can be developed to improve positioning and repeatability.

The fixture design should provide sufficient access to the threaded hole while maintaining the workpiece in the correct position throughout the tapping and chamfering process.

Production Efficiency

Automatic tapping and chamfering can help reduce repetitive manual operations in metalworking production.

For manufacturers producing batches of similar components,the machine can provide a consistent workflow in which workpieces are loaded,positioned,and processed using predefined operating procedures.

Actual production efficiency depends on thread size,thread depth,material,number of holes,workpiece geometry,tool changes,loading method,and machine configuration.

For higher-volume production,the machine can potentially be integrated into a broader machining process involving drilling,milling,turning,deburring,washing,and inspection.

Thread Quality and Inspection

Finished internal threads should be inspected according to the requirements of the final product.

Inspection methods may include suitable thread gauges,plug gauges,dimensional measurement,and visual inspection. The specific inspection method should be selected according to the required thread standard and tolerance.

Thread quality can be affected by incorrect hole size,misalignment,dull taps,excessive cutting force,poor lubrication,incorrect speed,or improper chip evacuation.

Regular tool inspection and process monitoring can help maintain consistent results during production.

Tool Life and Maintenance

Tapping tools are consumable components and their service life depends on material,thread size,cutting parameters,lubrication,tool quality,and production volume.

Operators should regularly inspect taps,chamfering tools,fixtures,and drive components for wear or damage.

Routine machine maintenance may include cleaning chips,checking electrical connections,inspecting moving components,lubricating designated parts,and verifying the workholding system.

Worn tapping tools should be replaced when thread quality or processing performance begins to deteriorate.

Safety and Operation

Thread tapping and chamfering machines contain rotating tools and moving mechanical components. Operators should keep hands away from the processing area during operation and use appropriate protective equipment.

Metal chips may be sharp and can become hot during machining. Suitable chip management and workplace housekeeping are important.

Safety features such as guards,emergency-stop devices,electrical protection,and interlocks may vary according to machine configuration. Operators should follow the manufacturer's instructions and applicable workplace safety requirements.

OEM and Custom CNC Threading Solutions

Different industries may require different thread sizes,workpiece dimensions,fixtures,tooling,and control systems. The machine can therefore be evaluated for OEM and ODM applications.

Customers can provide drawings,samples,thread specifications,material information,number of holes,and expected production volume.

Customized options may include workholding fixtures,tapping tools,chamfering tools,control functions,feeding arrangements,and other application-specific components.

For machinery manufacturers,automotive suppliers,hardware producers,metalworking companies,and B2B distributors,the machine provides a flexible solution for internal thread processing.

Why Choose Us

Automatic Internal Thread Processing – Designed for repeatable tapping of suitable internal screw threads.

Integrated Chamfering Function – Supports chamfering around hole entrances for improved thread lead-in and edge finishing.

Electric Drive System – Provides controlled tool rotation for efficient tapping operations.

CNC-Compatible Processing – Suitable configurations can provide programmed control for repeated thread processing.

Flexible Metal Applications – Can be evaluated for carbon steel,stainless steel,aluminum,copper,brass,and other suitable metals.

Repeatable Production – Controlled processing can help reduce variations associated with repetitive manual tapping.

Customized Workholding – Fixtures and clamping systems can be adapted for specific workpiece shapes and production requirements.

OEM and B2B Support – Machine configuration and tooling can be evaluated according to drawings,materials,thread specifications,and production volume.

FAQs

1. What is an automatic tapping and chamfering machine?

It is a metalworking machine designed to create internal screw threads and perform chamfering operations on suitable workpieces.

2. What is internal thread tapping?

Internal thread tapping is the process of forming screw threads inside a prepared hole using a tapping tool.

3. Why is chamfering used before tapping?

Chamfering creates a beveled entrance that can help guide the tap,remove sharp edges,and provide a cleaner thread lead-in.

4. What materials can the machine process?

Depending on the machine and tooling,it may process carbon steel,stainless steel,aluminum,copper,brass,and selected alloy materials.

5. Is the machine suitable for stainless steel?

Yes,when suitable tapping tools,lubrication,and processing parameters are selected for the stainless steel grade.

6. Can it process aluminum parts?

Suitable aluminum components can be processed with appropriate tapping and chamfering tools and cutting parameters.

7. Is it a CNC tapping machine?

The machine can be configured with CNC or digitally controlled functions depending on the specific model. The actual controller and programming capabilities should be confirmed before purchase.

8. Can tapping and chamfering be performed in one workflow?

Yes. The machine is designed around tapping and chamfering operations,although the exact sequence depends on the machine configuration.

9. What affects internal thread quality?

Hole diameter,tool alignment,tap condition,material properties,cutting speed,feed,tapping torque,lubrication,and chip evacuation can all affect thread quality.

10. Can the machine process multiple workpieces?

Yes. It can be used for batch processing when the workpieces and production workflow are suitable for the machine configuration.

11. Can customized fixtures be provided?

Depending on the machine configuration,custom workholding fixtures and tooling can be evaluated for specific workpiece shapes.

12. What information should I provide for a quotation?

Provide the workpiece material,thread size and standard,hole diameter,thread depth,number of holes,workpiece dimensions,production volume,and drawings or samples if available.
