Metal Tube Cutting Machine for Small Pipe High Precision Automatic Capillary Tube Cutting Machine

Chipless Cutting Technology: Smooth cutting surface without chips or secondary deburring
High Precision Cutting: Accurate cutting length with stable tolerance control
Burr Free Cutting Effect: Clean tube ends, suitable for precision industries
Suitable for Small Diameter Tubes: Ideal for capillary tubes and thin-wall stainless steel pipes
Automatic Feeding System: Improves production efficiency and reduces labor costs
Fast Cutting Speed: Stable continuous operation for mass production
Servo Control System: Precise positioning and easy parameter adjustment
Multi Length Adjustable: Flexible cutting lengths for different production needs
No Tube Deformation: Maintains roundness and protects thin-wall tubes
Wide Material Compatibility: Suitable for stainless steel, copper, aluminum, and other metal tubes

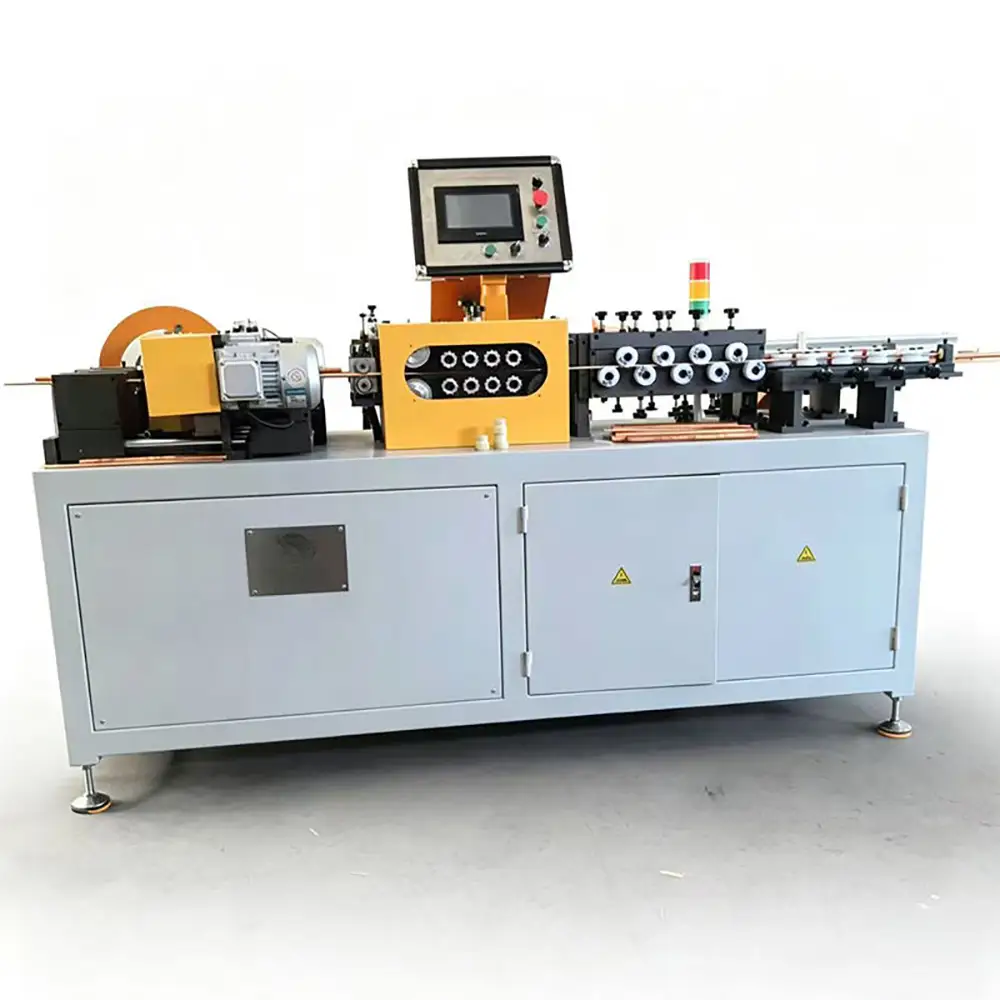

High Precision Automatic Metal Tube Cutting Machine for Small Pipe and Capillary Tube

The Metal Tube Cutting Machine for Small Pipe High Precision Automatic Capillary Tube Cutting Machine is designed for manufacturers that require accurate, consistent, and efficient cutting of small-diameter metal tubes and pipes. It is particularly suitable for capillary tubes, precision tubing, thin-wall tubes, and other small metal tubular components where cutting quality and dimensional consistency are important.

Compared with manual cutting methods, an automatic tube cutting machine can provide a more controlled production process. Material feeding, positioning, cutting, and finished-piece collection can be coordinated to reduce repetitive operator work and improve production consistency.

Small metal tubes are used in many industries, including medical equipment, refrigeration, automotive components, instrumentation, electronics, heat exchangers, hydraulic systems, furniture, and general precision fabrication. Depending on the machine configuration, suitable materials may include stainless steel, carbon steel, copper, aluminum, and other metal tubing.

The actual tube diameter, wall thickness, cutting length, cutting method, production speed, and material compatibility should be confirmed according to the machine configuration and customer requirements.

Precision Cutting for Small Metal Tubes

Small-diameter tubing requires stable material handling and accurate positioning. Because the workpieces are relatively small, excessive vibration, poor clamping, or inaccurate feeding can affect the finished cut.

A precision tube cutting machine is designed around these production requirements. The tube is guided and positioned before cutting so that each workpiece can be processed according to the programmed or mechanically controlled cutting length.

For applications requiring large quantities of identical components, automatic feeding and repeatable positioning can significantly simplify production. The machine can process tube sections continuously according to the selected configuration, helping manufacturers establish a more consistent manufacturing workflow.

For capillary tubes and thin-wall tubing, the cutting process should be selected according to material properties and wall thickness. The correct blade, wheel, tooling, clamping method, and cutting parameters can help reduce deformation and improve the finished edge.

Automatic Small Pipe Cutting Process

A typical automatic small tube cutting workflow can include several stages.

1. Material Loading

Metal tube stock is loaded into the feeding system. Depending on the machine design, the material can be supplied individually or from a longer tube stock.

2. Tube Feeding

The feeding mechanism advances the tube to the programmed or mechanically determined cutting position. Stable feeding is important for maintaining consistent piece length.

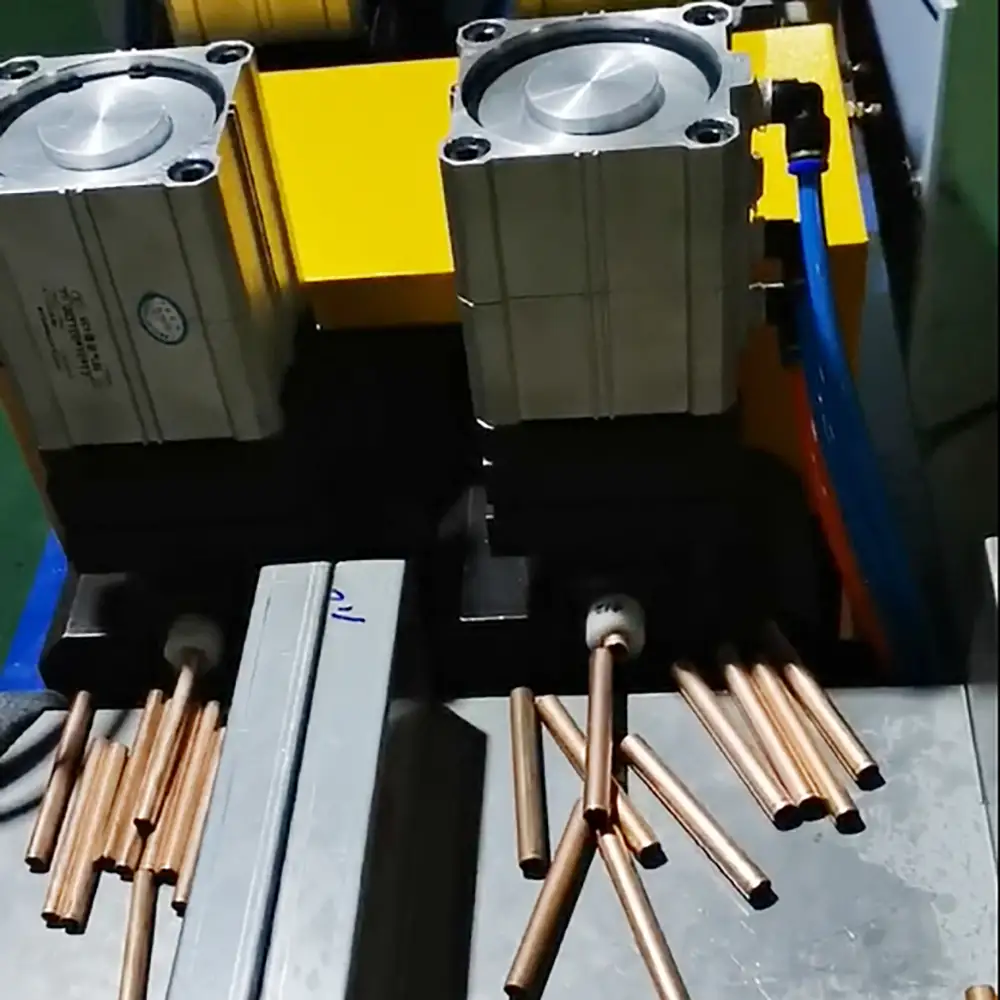

3. Positioning and Clamping

The tube is positioned and securely supported before cutting. Proper clamping helps minimize movement and vibration during the cutting operation.

4. Automatic Cutting

The cutting tool separates the tube at the specified position. The selected cutting technology depends on the tube material, diameter, wall thickness, surface requirements, and production goals.

5. Finished Tube Collection

After cutting, finished tube sections can be collected manually or transferred through an integrated collection system depending on the machine configuration.

6. Repeat Production

The feeding, positioning, clamping, and cutting cycle can be repeated to produce multiple tube sections with consistent target dimensions.

This workflow is especially useful for manufacturers producing large quantities of small tubular components.

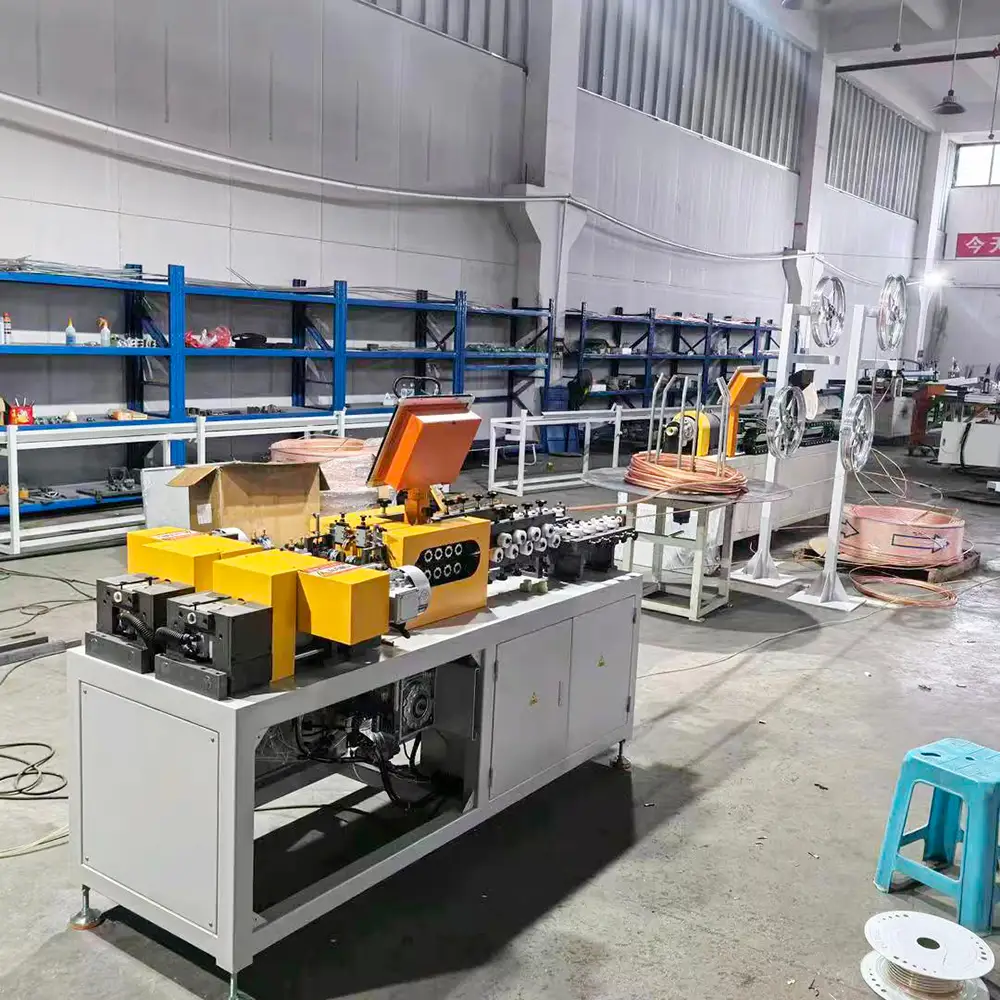

Capillary Tube Cutting Applications

Capillary tubes have relatively small internal diameters and are used in specialized applications where controlled dimensions and clean cutting are important.

They can be found in refrigeration and HVAC components, instrumentation, laboratory equipment, heat-transfer systems, medical-related equipment, and precision assemblies.

A capillary tube cutting machine should be selected according to the actual outside diameter, wall thickness, material, required cut length, and acceptable edge condition.

For very thin or delicate tubing, the production process should be tested before final equipment selection. Sample material and drawings can help determine the appropriate cutting technology and tooling.

Materials for Metal Tube Cutting

The machine can be configured for different metal tubing applications depending on its cutting system.

Stainless Steel Tube: Stainless steel tubing is widely used for corrosion-resistant and hygienic applications. Cutting parameters should be selected according to the grade and wall thickness.

Carbon Steel Tube: Carbon steel tubes are commonly used in industrial fabrication, mechanical components, structural applications, and general manufacturing.

Copper Tube: Copper tubing is widely used in refrigeration, HVAC, heat-transfer, plumbing, and electrical-related applications. Proper cutting tooling can help maintain the required tube shape.

Aluminum Tube: Aluminum tubing is lightweight and widely used in automotive, equipment, furniture, and fabrication applications. Clamping and cutting should be adjusted to minimize deformation.

Other compatible metal materials may also be considered depending on the machine design.

High Precision and Repeatability

For small tube production, repeatability can be just as important as individual cutting accuracy. When hundreds or thousands of components are required, even small variations can increase material waste or create assembly problems.

An automatic tube cutting machine helps establish a repeatable feeding and cutting process. Controlled positioning reduces dependence on manual measurement and can make production easier to standardize.

However, actual cutting accuracy depends on material condition, tube straightness, diameter, wall thickness, tooling condition, machine setup, feeding method, and other production factors. Customers should confirm the required tolerance with the machine supplier before ordering.

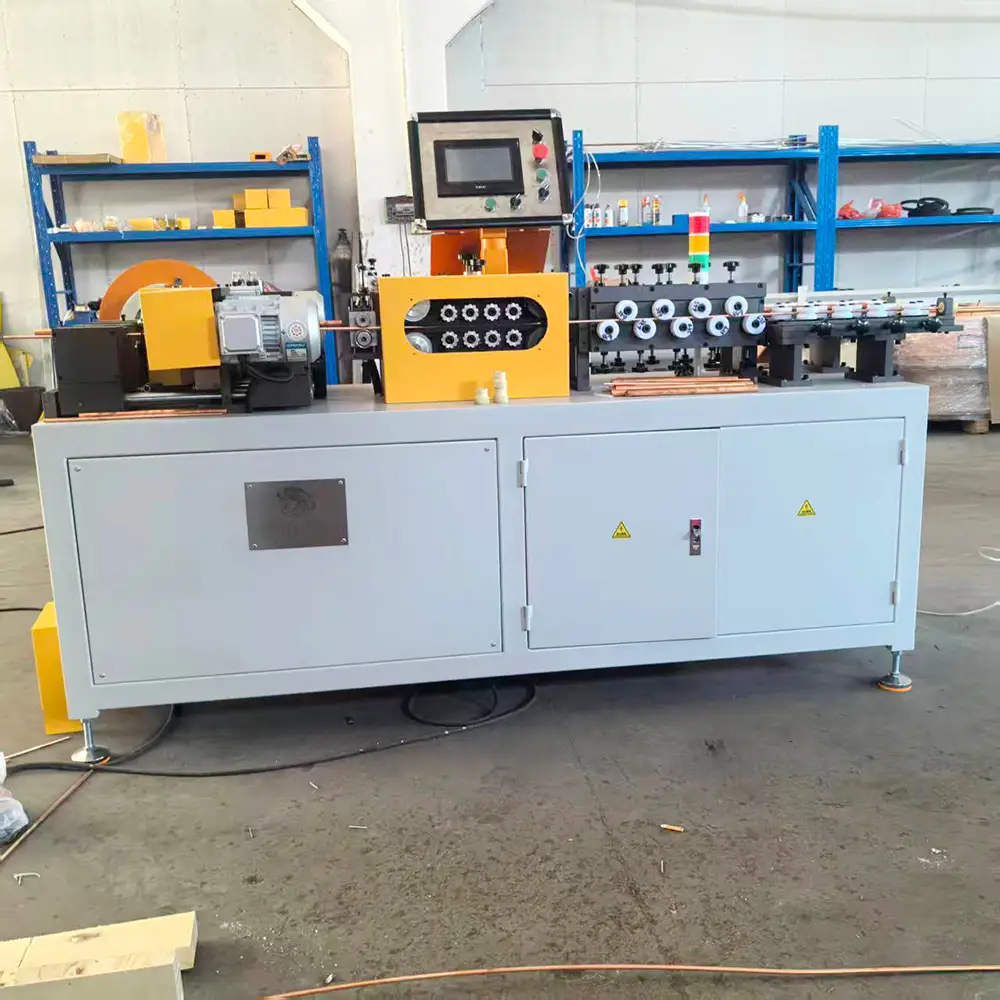

Small Diameter Tube Production

Small-diameter tubes are more sensitive to deformation than larger heavy-wall pipes. The feeding system, guides, clamps, and cutting tool therefore need to work together correctly.

For thin-wall or precision tubing, excessive clamping pressure can distort the tube. An appropriate support and clamping arrangement helps maintain the tube's original geometry during cutting.

The cutting edge is also important. Different cutting technologies can produce different levels of burr, heat generation, deformation, and surface finish. The ideal method should be selected according to the customer's tube material and finished-product requirements.

Industrial Applications

High precision automatic tube cutting equipment can be used across many industries.

In refrigeration and HVAC, small copper and metal tubes can be cut into controlled lengths for component assembly.

In automotive manufacturing, precision tubing may be used for selected fluid, structural, heat-transfer, and fabricated components.

In medical and laboratory equipment, stainless steel and other precision tubes can be processed for specialized assemblies where dimensional consistency is important.

In instrumentation, small tubing is often used in sensing, measurement, and fluid-handling systems.

In heat exchanger manufacturing, accurately cut tubes support downstream assembly and fabrication.

In furniture and metal fabrication, small tubes and profiles can be cut into repeatable lengths for frames and components.

For specialized applications, the final material and tube specifications should be verified before production.

Production Efficiency

Automatic feeding and cutting can reduce repetitive manual measuring and cutting operations. This is particularly valuable for factories producing large batches of identical tube components.

Production efficiency depends on tube dimensions, cutting length, material, tooling, feeding method, loading procedure, machine configuration, and operator workflow. Therefore, the advertised machine cycle should not be treated as a universal output rate for every application.

Manufacturers can also integrate the tube cutter into a broader production process when additional operations such as deburring, cleaning, bending, inspection, or packing are required.

Cutting Quality and Edge Finishing

The desired finished edge depends on the application. Some products may require a clean cut with minimal burrs, while others may receive additional deburring or finishing after cutting.

For precision components, the cutting method should be evaluated not only by speed but also by dimensional accuracy, tube deformation, burr formation, heat generation, and surface condition.

If the final product requires particularly strict edge specifications, additional deburring or finishing equipment can be incorporated into the production workflow.

Customization and OEM/ODM

Every tube cutting project can have different requirements. Machine selection should consider:

Tube outside diameter
Tube wall thickness
Tube material
Tube length
Cutting tolerance
Required production volume
Loading method
Cutting technology
Finished-edge requirements
Automation requirements

OEM and ODM solutions can be considered for specialized tube dimensions, feeding systems, tooling, controls, collection systems, and production-line integration.

Customers are encouraged to provide tube drawings, material specifications, samples, required cutting lengths, and expected production quantities when requesting a quotation.

Installation and Maintenance

Correct machine installation and setup are important for stable cutting performance. The machine should be installed on a suitable foundation or work surface according to its design and connected to the required electrical, pneumatic, or other utilities.

Routine maintenance should include inspection of cutting tools, guides, clamps, feeding components, bearings, transmission components, sensors, and electrical systems.

Cutting tools should be replaced or serviced when wear begins to affect cutting quality. Material guides should remain clean and correctly aligned, while lubrication should be performed according to the manufacturer's recommendations.

Regular preventive maintenance can help reduce downtime and maintain repeatable cutting performance.

FAQs
1. What is a capillary tube cutting machine?

It is a tube cutting machine configured to process small-diameter or thin-wall tubing, including capillary tubes, into controlled lengths.

2. Can this machine cut stainless steel tubes?

Yes, stainless steel tubes can be processed when the machine and cutting tooling are configured for the required stainless steel grade, diameter, and wall thickness.

3. Can it cut carbon steel pipes?

Yes. The machine can be configured for suitable carbon steel tube and pipe applications.

4. Can it cut copper and aluminum tubes?

Depending on the cutting system, tooling, and machine configuration, copper and aluminum tubes can also be processed.

5. Is the tube cutting process automatic?

The machine can integrate automatic feeding, positioning, clamping, and cutting. The exact automation level depends on the selected configuration.

6. What tube sizes can it cut?

The available diameter and wall-thickness range depends on the specific machine model and cutting system. These parameters should be confirmed before purchase.

7. Can it produce precise cutting lengths?

The machine is designed for repeatable tube cutting, but actual tolerance depends on material straightness, tube dimensions, tooling, feeding system, machine setup, and other factors.

8. Will the cutting process create burrs?

Burr formation depends on the material, tube thickness, cutting method, tooling condition, and process settings. Additional deburring can be added when required.

9. Can the machine be customized?

Yes. Feeding, tooling, control systems, cutting specifications, collection systems, and other functions can be customized according to project requirements.

10. What information should I provide for a quotation?

Provide the tube material, outside diameter, wall thickness, required cutting length, cutting tolerance, production quantity, and preferred finished-edge condition. Drawings or samples are highly recommended.

Why Choose Us

1. Precision-Oriented Tube Cutting
Our equipment is designed around repeatable feeding, positioning, clamping, and cutting for small metal tubes.

2. Small Tube and Capillary Applications
The machine can be configured for small-diameter tubing and specialized capillary tube cutting requirements.

3. Multiple Metal Materials
Suitable configurations can be considered for stainless steel, carbon steel, copper, aluminum, and other compatible metal tubes.

4. Automatic Production
Automatic feeding and repeat cutting functions can reduce repetitive manual measurement and improve production consistency.

5. Flexible Cutting Solutions
Cutting technology and tooling can be selected according to tube diameter, wall thickness, material, length, and finished-edge requirements.

6. Custom Tooling and Configuration
We can consider customized feeding systems, fixtures, tooling, controls, and collection arrangements for specific production requirements.

7. OEM and ODM Service
We support B2B customers with customized machine configurations and production solutions based on actual product specifications.

8. Complete Technical Support
We provide assistance with machine selection, sample evaluation, production configuration, commissioning, maintenance, spare parts, and technical communication.
