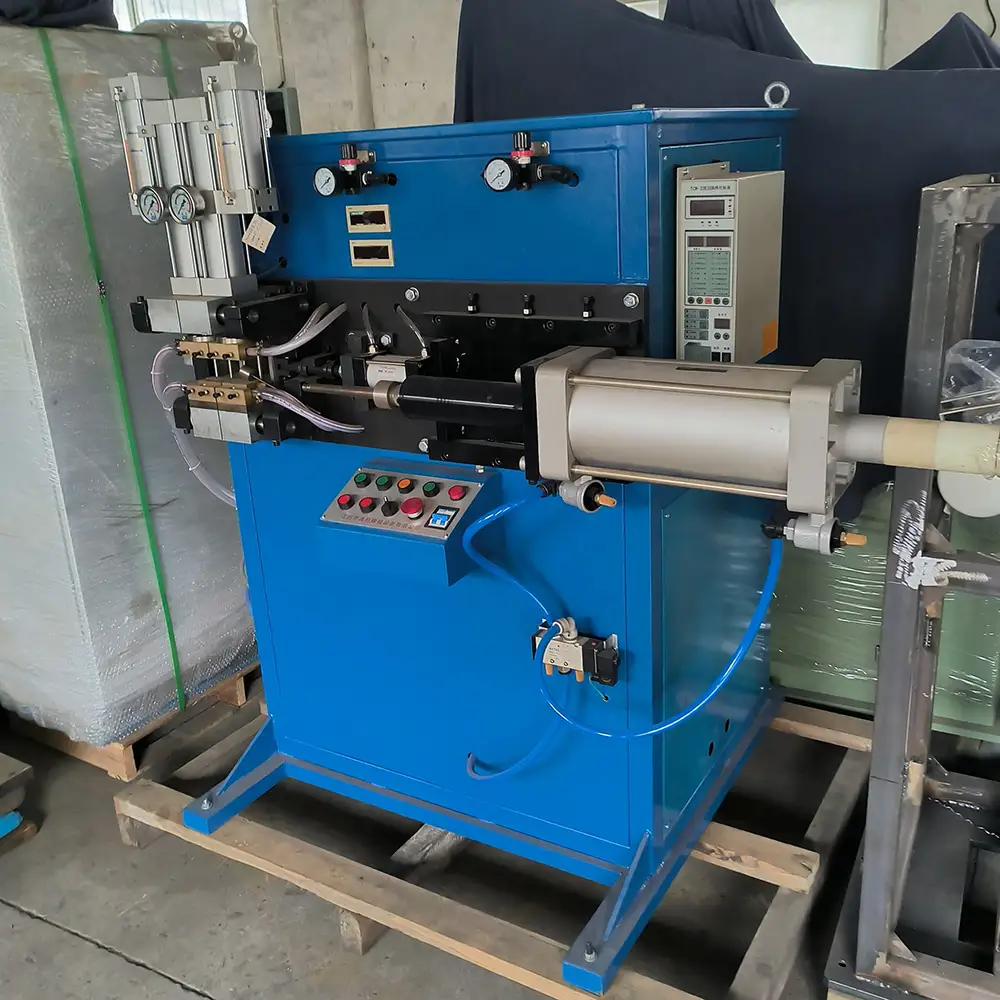

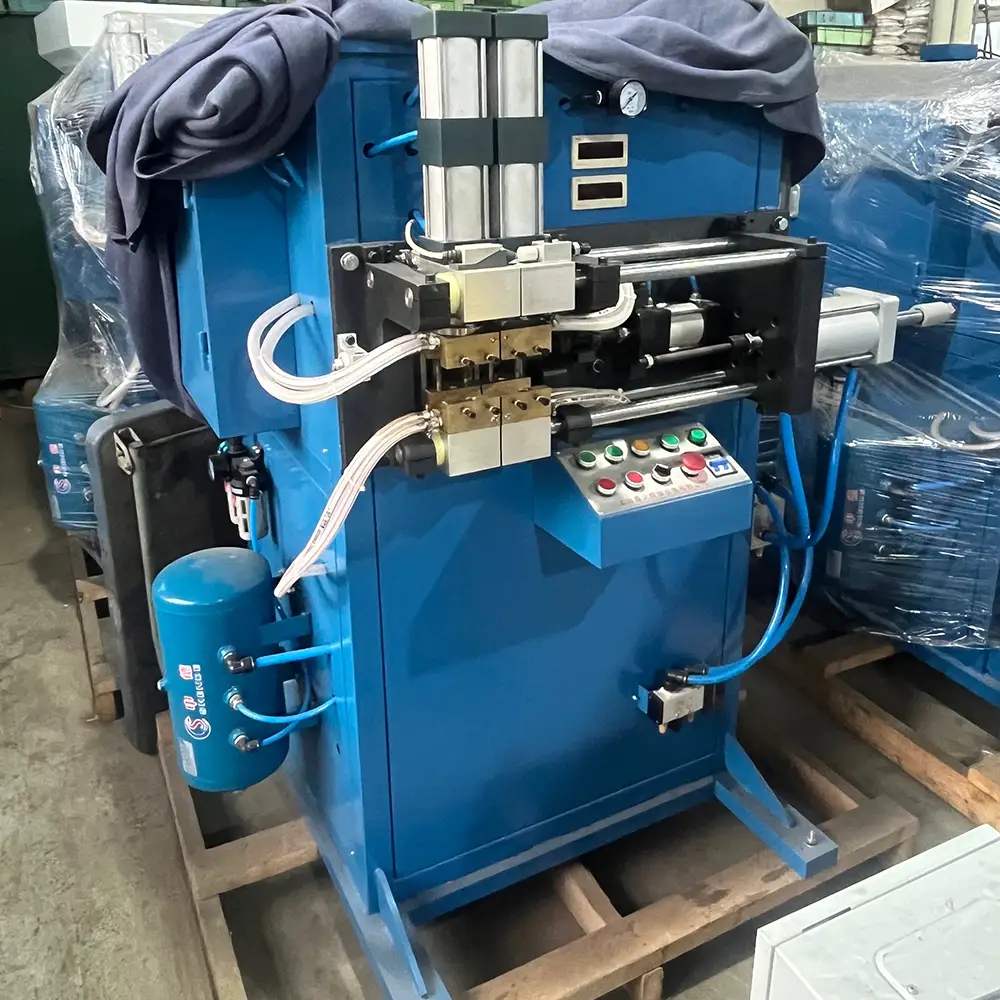

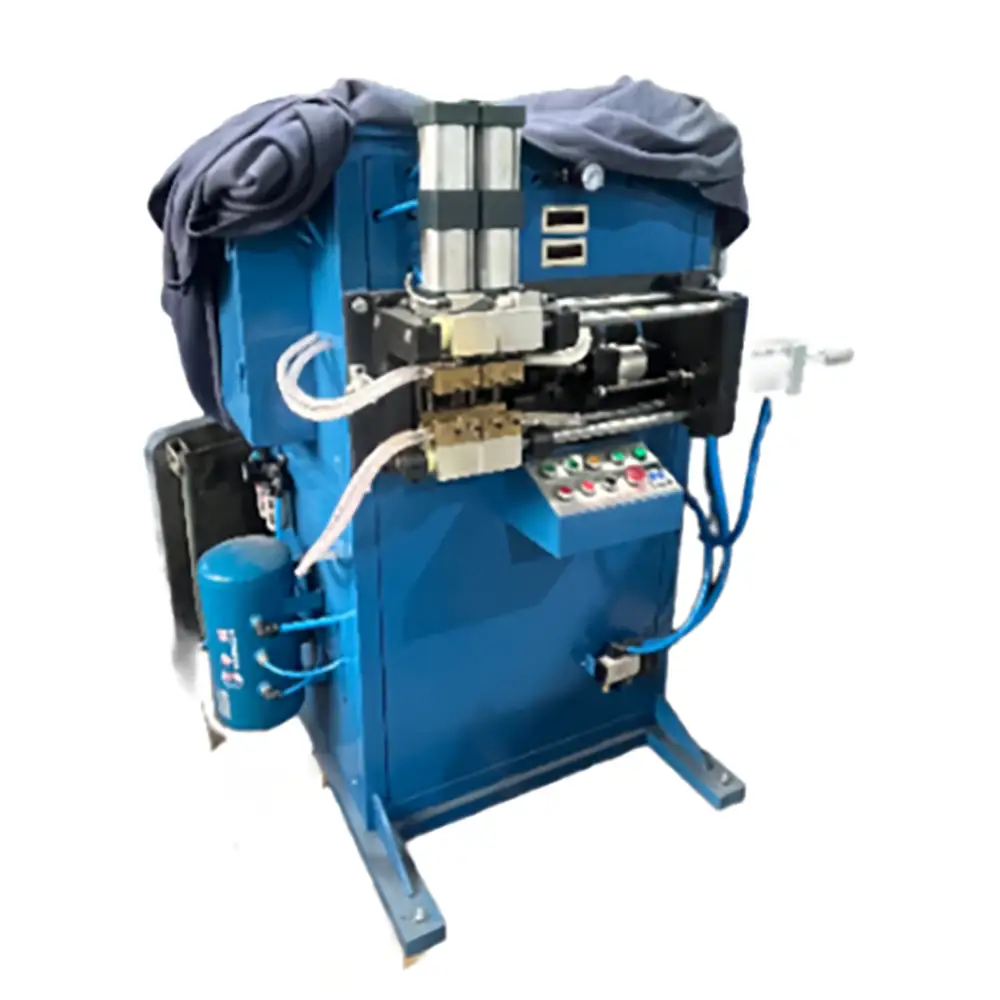

HVAC & AC Copper-Aluminum Pipe Butt Welding Machine - Refrigerant Line Dedicated Equipment

Our copper-aluminum pipe butt welder is a specialized dissimilar metal welding device, engineered exclusively for butt-jointing copper and aluminum pipes in air conditioning, HVAC, and refrigeration systems. It addresses the core challenge of welding two metals with distinct melting points and expansion coefficients, delivering reliable, high-quality joints through precise temperature and pressure control.
Equipped with advanced welding technology, the machine ensures firm metallurgical fusion between copper and aluminum, resulting in joints that are sealed, pressure-resistant, and leak-proof—critical for refrigerant transmission in AC and HVAC pipelines. It accommodates common small-diameter pipes used in air conditioning systems (typically 6–19mm), adapting to both production line assembly and on-site maintenance scenarios.

item	value
input voltage	380 V
Weld method	Electric welding
place of origin	SHANDONG,CHINA
condition	New
Frequency	60 Hz
brand name	SOAR
usage	Pipe welding
warranty	1 Year
weight (kg)	400
Diameter range	6-19mm
Industry	Air conditioning industry
MOQ	1 Set
Welding cycle	2-5 S

HVAC Copper-Aluminum Pipe Butt Welding Machine | Refrigerant Line Welder

The HVAC & AC Copper-Aluminum Pipe Butt Welding Machine is specialized equipment designed for joining copper and aluminum pipes used in air conditioning, refrigeration, heat pump, and HVAC applications. Also known as a Copper Aluminum Pipe Welding Machine, Refrigerant Line Welding Machine, or AC Pipe Welding Machine, this equipment provides a dedicated solution for butt welding dissimilar metal tubing used in refrigerant circuits and related thermal management systems.

Copper and aluminum are both widely used in HVAC and refrigeration manufacturing because of their different combinations of thermal conductivity, weight, corrosion resistance, cost, and processing characteristics. In certain assemblies, copper and aluminum tubes need to be joined securely to create a transition between different sections of a refrigerant line or heat-exchange system.

Butt welding these materials requires appropriate process control because copper and aluminum have significantly different physical and thermal properties. A dedicated welding machine helps manufacturers establish controlled joining conditions and repeatable production procedures.

The equipment is suitable for manufacturers of air conditioners, refrigeration equipment, heat pumps, HVAC components, heat exchangers, refrigerant tubing, and other products requiring copper-to-aluminum tube connections.

What Is a Copper-Aluminum Pipe Butt Welding Machine?

A Copper-Aluminum Pipe Butt Welding Machine is a specialized welding system designed to join copper and aluminum tubular components end-to-end.

In a typical butt-welding operation, the ends of two pipes are accurately aligned and brought into the required welding position. The welding process then creates a joint between the two prepared tube ends.

Copper and aluminum behave differently during welding because of their different melting temperatures, thermal conductivity, oxidation characteristics, and metallurgical properties. For this reason, the welding process must be carefully controlled according to the specific pipe materials, dimensions, joint design, and welding technology.

A dedicated machine provides controlled workpiece positioning and repeatable welding operation, helping manufacturers achieve consistent production results when properly configured.

Designed for HVAC and Air Conditioning Applications

The primary application of this equipment is the production of HVAC and AC refrigerant lines.

Modern air conditioning systems use interconnected tubing to circulate refrigerant between major system components. Depending on the product design, these systems may incorporate copper tubing, aluminum tubing, or specially designed copper-aluminum connections.

The machine can be used for suitable applications such as:

Air Conditioner Refrigerant Pipes
HVAC Tubing
Refrigeration Lines
Copper-Aluminum Tube Assemblies
Heat Pump Tubing
Condenser Connections
Evaporator Connections
Heat Exchanger Tubes
Refrigerant Pipe Components
AC Tubular Components

The exact application depends on the pipe material, dimensions, welding method, and product design.

Copper and Aluminum Pipe Joining

Joining copper to aluminum presents different challenges than welding two pieces of the same metal.

Copper has high thermal conductivity, while aluminum has different melting and oxidation characteristics. The difference in material properties means that welding parameters and process control are important factors in producing a reliable joint.

The HVAC Pipe Welding Machine is intended to provide a controlled production environment for these applications. Proper tube preparation, alignment, cleanliness, welding parameters, and cooling conditions should be established according to the selected welding process and material specifications.

For production environments, controlled machine operation can also help reduce variations associated with manual tube positioning and welding.

Butt Welding Process

The basic butt-welding process starts with preparing and aligning the two pipe ends.

The copper and aluminum tubes are positioned in the machine fixture so that their centerlines are properly aligned. The ends should be clean and appropriately prepared before welding.

The machine then applies the selected welding process according to predetermined parameters. The welding operation joins the two tube ends to create the required connection.

After welding, the joint can be inspected according to the manufacturer's quality-control procedures. Depending on the final application, manufacturers may perform dimensional inspection, visual inspection, pressure testing, leak testing, or other appropriate quality checks.

The exact welding process and sequence should be determined based on the machine configuration and the materials being joined.

Applications in Refrigeration Manufacturing

Refrigeration equipment manufacturers can use copper-aluminum tube joining equipment for various tubular components.

Potential applications include:

Air Conditioning Systems

The machine can be used for suitable copper-aluminum tubing assemblies in residential, commercial, and industrial AC equipment.

Refrigeration Equipment

Suitable for manufacturing refrigerant tubing and components used in refrigeration systems.

Heat Pumps

Heat pump manufacturers may use specialized tubing connections within heat-transfer and refrigerant circuits.

Heat Exchangers

The equipment can support production processes involving compatible copper and aluminum tubular components.

Condensing Units

Suitable pipe joining processes may be used for certain condenser-related tubular assemblies.

Evaporator Systems

Copper and aluminum tubing can be incorporated into various evaporator and heat-transfer assemblies.

Key Features
Dedicated HVAC Application

The machine is designed around the requirements of copper-aluminum tubing used in HVAC, AC, and refrigeration applications.

Butt Welding Configuration

The dedicated butt-welding design allows two compatible pipe ends to be positioned and joined end-to-end.

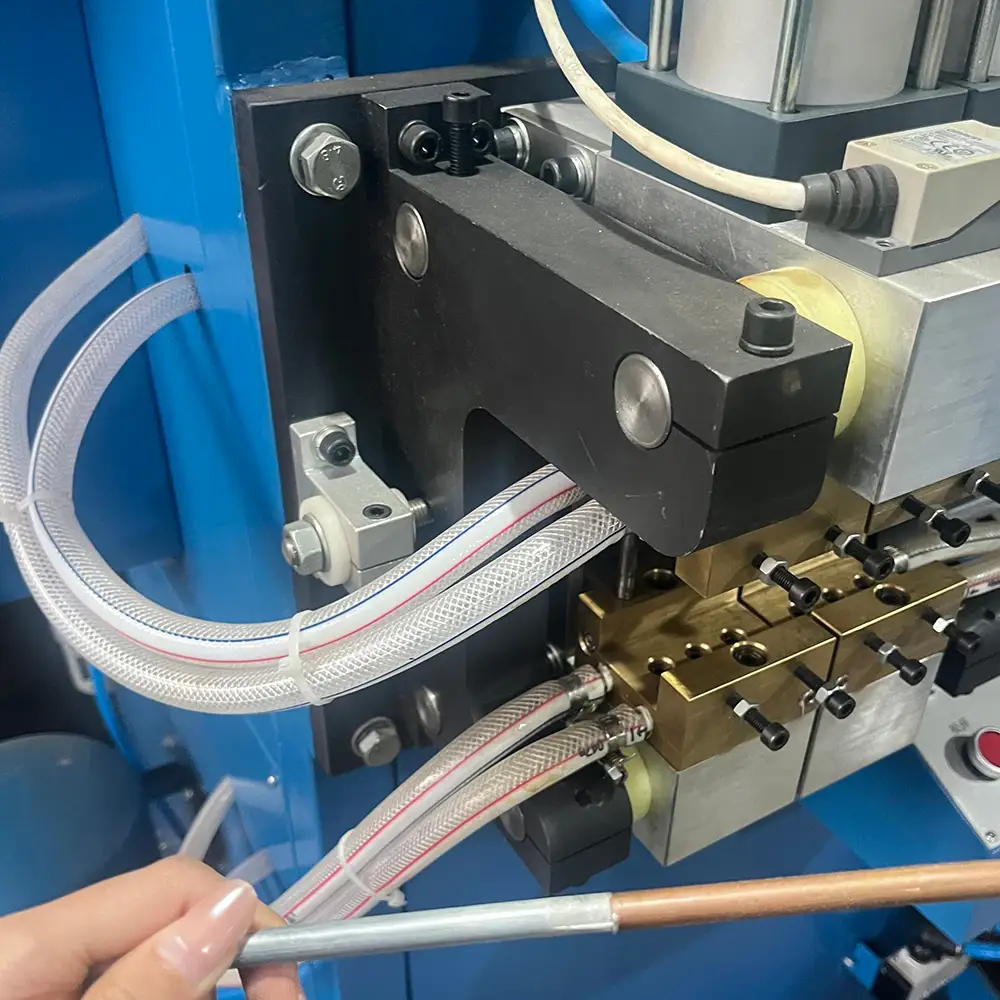

Accurate Pipe Alignment

Proper alignment is important when joining small-diameter tubing. The machine's fixture and clamping system help position the workpieces during welding.

Controlled Welding Process

Controlled welding parameters help manufacturers establish repeatable production conditions.

Suitable for Dissimilar Metals

The machine is intended for applications involving copper and aluminum tube joining when the selected welding process is suitable for the specific materials.

Production Efficiency

Automated or semi-automated operation can reduce repetitive manual welding tasks and improve production workflow.

Industrial Manufacturing

The equipment is suitable for HVAC manufacturers, refrigeration companies, heat pump producers, and component suppliers.

Benefits for HVAC Manufacturers

Using dedicated pipe welding equipment can provide several advantages for HVAC and refrigeration manufacturers.

Consistent Pipe Positioning:
A dedicated fixture helps maintain the relative position of the tube ends during welding.

Repeatable Production:
Controlled machine operation can help manufacturers establish repeatable welding procedures.

Reduced Manual Operations:
Automation can reduce repetitive positioning and welding tasks.

Improved Production Workflow:
A dedicated machine can be incorporated into a specialized HVAC tube fabrication workstation.

Suitable for Mass Production:
When machine capacity and cycle time match production requirements, automated tube welding can support repetitive manufacturing.

Specialized Application:
The machine is designed specifically for refrigerant-line and copper-aluminum tube joining applications rather than general metal fabrication alone.

Why Choose Our HVAC Pipe Welding Machine?
1. Designed for HVAC Manufacturing

The machine is specifically positioned for applications involving AC, refrigeration, heat pump, and HVAC tubing.

2. Copper-Aluminum Joining Capability

It is designed for suitable copper-to-aluminum pipe butt-welding applications using an appropriate welding process.

3. Stable Workpiece Positioning

Dedicated clamping and positioning help maintain tube alignment during the welding operation.

4. Repeatable Production

Controlled operating parameters help manufacturers establish consistent welding procedures for repetitive production.

5. Suitable for Industrial Production

The equipment can be used by HVAC factories, refrigeration equipment manufacturers, heat pump producers, and component suppliers.

6. Flexible Application

Different tube sizes and product configurations can be evaluated according to the machine's operating range.

7. B2B Manufacturing Solution

The machine is designed for professional manufacturing environments where production consistency and process control are important.

How to Select the Right Refrigerant Line Welding Machine

Before purchasing a Refrigerant Line Welder, manufacturers should provide detailed information about the intended application.

Pipe Material:
Specify the exact copper and aluminum grades or material specifications.

Pipe Diameter:
Provide the outside diameter or other relevant dimensional information for both tubes.

Wall Thickness:
Tube thickness affects welding parameters and equipment requirements.

Joint Configuration:
Provide details about the required butt joint and finished connection.

Production Capacity:
Specify the desired production quantity or cycle time.

Welding Method:
If a specific welding process is required, provide the process information.

Tube Length:
Provide the overall component dimensions and available working space.

Quality Requirements:
For refrigerant systems, determine whether leak testing, pressure testing, dimensional inspection, or other quality-control procedures are required after welding.

Production Quality Control

Quality control is particularly important for refrigerant-line components because the finished assembly may need to withstand pressure, temperature changes, vibration, and long-term operating conditions.

Manufacturers should establish appropriate procedures for:

Tube End Preparation
Surface Cleaning
Pipe Alignment
Welding Parameter Control
Joint Appearance
Dimensional Inspection
Leak Testing
Pressure Testing
Production Traceability

The appropriate quality-control method depends on the final application and applicable industry requirements.

Maintenance and Operation

Regular maintenance is important for reliable machine performance. Operators should inspect the welding system, clamps, fixtures, electrical connections, cables, cooling system, control components, and moving mechanisms according to the manufacturer's maintenance recommendations.

Tube surfaces and welding fixtures should be kept clean. Contamination can affect welding performance, particularly when joining materials with sensitive surface conditions.

Operators should also follow appropriate electrical and welding safety procedures. Proper ventilation, protective equipment, and safe handling of heated components should be part of the standard operating procedure.

Customization for Different HVAC Products

HVAC manufacturers may produce many different types of refrigerant tubing and assemblies. Pipe diameters, wall thicknesses, tube lengths, joint configurations, and production volumes can vary significantly.

For this reason, machine selection should be based on actual production requirements rather than a single standard specification.

Manufacturers can provide product drawings, tube dimensions, material specifications, desired welding method, production capacity, and sample components when requesting a machine configuration.

This information helps determine the appropriate fixture, welding system, control method, and overall machine configuration.

Conclusion

The HVAC & AC Copper-Aluminum Pipe Butt Welding Machine provides a specialized production solution for joining copper and aluminum tubing used in air conditioning, refrigeration, heat pump, and HVAC applications.

With controlled pipe positioning, dedicated butt-welding operation, and production-oriented design, the equipment can help manufacturers establish a more consistent process for copper-aluminum tube assemblies.

For the best results, machine selection should be based on pipe material, diameter, wall thickness, joint design, production volume, welding method, and required quality standards.

For HVAC and refrigeration manufacturers producing refrigerant lines, heat exchanger components, and copper-aluminum tube assemblies, a dedicated Copper Aluminum Pipe Welding Machine can provide a practical approach to improving production workflow and process consistency.

FAQs
1. What is a Copper-Aluminum Pipe Butt Welding Machine?

It is specialized equipment designed to join copper and aluminum tubes end-to-end using a controlled butt-welding process.

2. What is this machine used for?

Typical applications include HVAC tubing, air conditioning refrigerant lines, refrigeration equipment, heat pump components, heat exchangers, and other compatible copper-aluminum tube assemblies.

3. Can it weld copper to aluminum?

The machine is designed for suitable copper-to-aluminum joining applications. The exact welding process and parameters must be selected according to the specific copper and aluminum materials and tube dimensions.

4. Can it be used for AC refrigerant lines?

Yes. It is specifically intended for suitable HVAC and air conditioning refrigerant-line manufacturing applications.

5. What tube sizes can the machine weld?

The applicable tube diameter and thickness depend on the specific machine configuration. Buyers should provide the minimum and maximum tube dimensions when requesting a quotation.

6. Why is copper-to-aluminum welding different?

Copper and aluminum have different thermal and metallurgical properties, including differences in melting behavior, thermal conductivity, and oxide characteristics. Appropriate process control is therefore important.

7. Is the machine automatic?

The degree of automation depends on the selected configuration. Automated or semi-automated operation can reduce repetitive tube positioning and welding work.

8. Can it be used for heat pump production?

Yes. Suitable copper-aluminum tube assemblies used in heat pump manufacturing can be potential applications when the materials and dimensions match the machine's specifications.

9. What information is needed for a quotation?

Provide the copper and aluminum tube materials, outside diameters, wall thicknesses, tube lengths, joint design, required production capacity, welding method if known, and product drawings or samples.

10. Can the machine be customized?

Machine configuration can be discussed according to tube dimensions, welding requirements, production capacity, fixture design, control functions, and the intended HVAC or refrigeration application.
