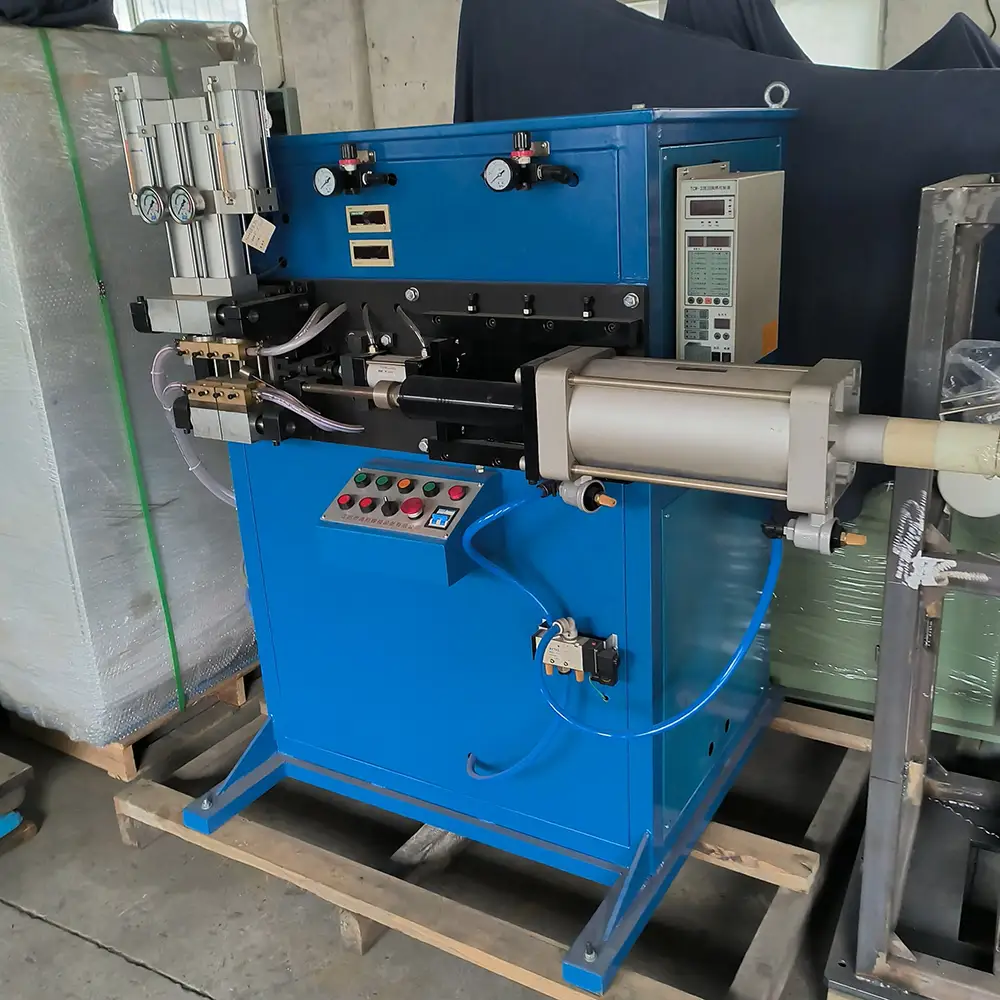

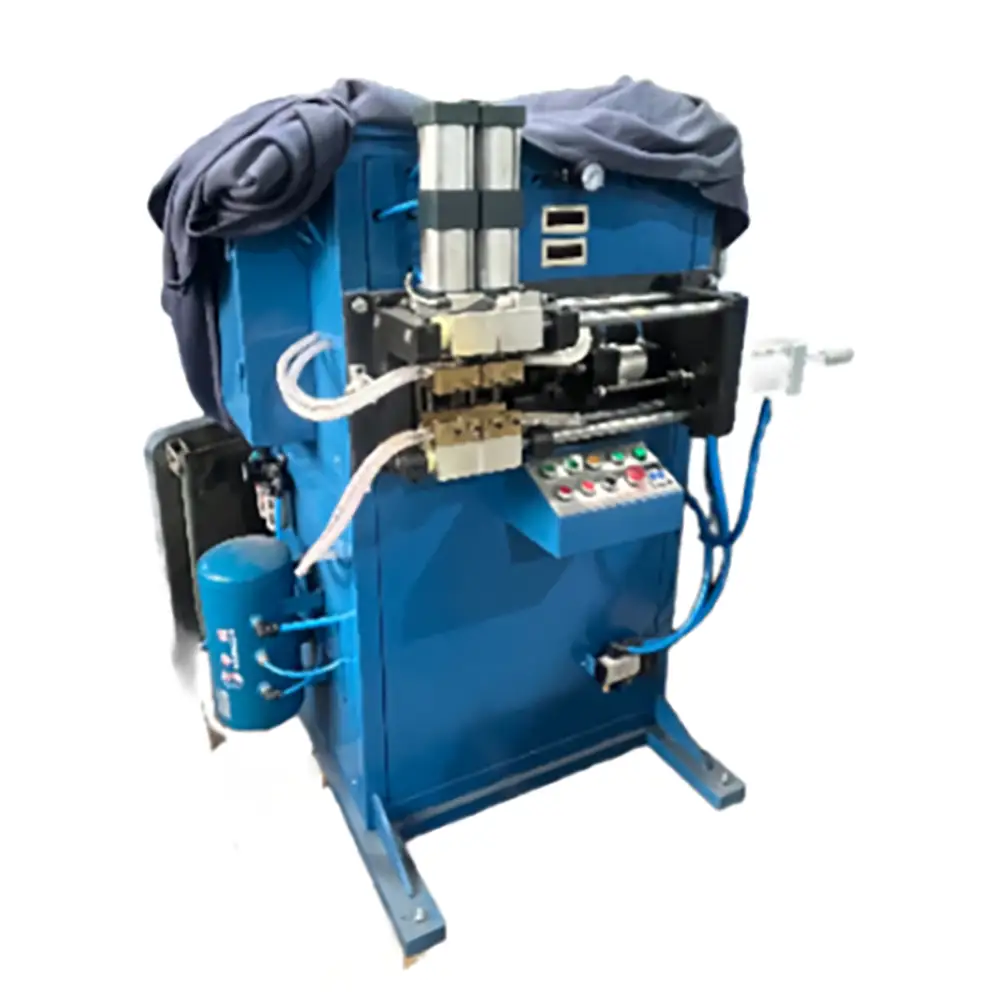

Air Conditioning Pipe Welding Equipment - Copper-Aluminum Butt Welder for Refrigerant Lines

item	value
input voltage	380 V
Weld method	Electric welding
place of origin	SHANDONG,CHINA
condition	New
Frequency	60 Hz
brand name	SOAR
usage	Pipe welding
warranty	1 Year
weight (kg)	400
Diameter range	6-19mm
Industry	Air conditioning industry
MOQ	1 Set
Welding cycle	2-5 S

Air Conditioning Pipe Welding Equipment | Copper-Aluminum Butt Welder for Refrigerant Lines

The Air Conditioning Pipe Welding Equipment is a specialized industrial welding solution designed for joining copper and aluminum pipes used in air conditioning, refrigeration, HVAC, and heat pump applications. This Copper-Aluminum Butt Welder is developed for production environments where reliable tube alignment, controlled welding, and repeatable joining processes are important.

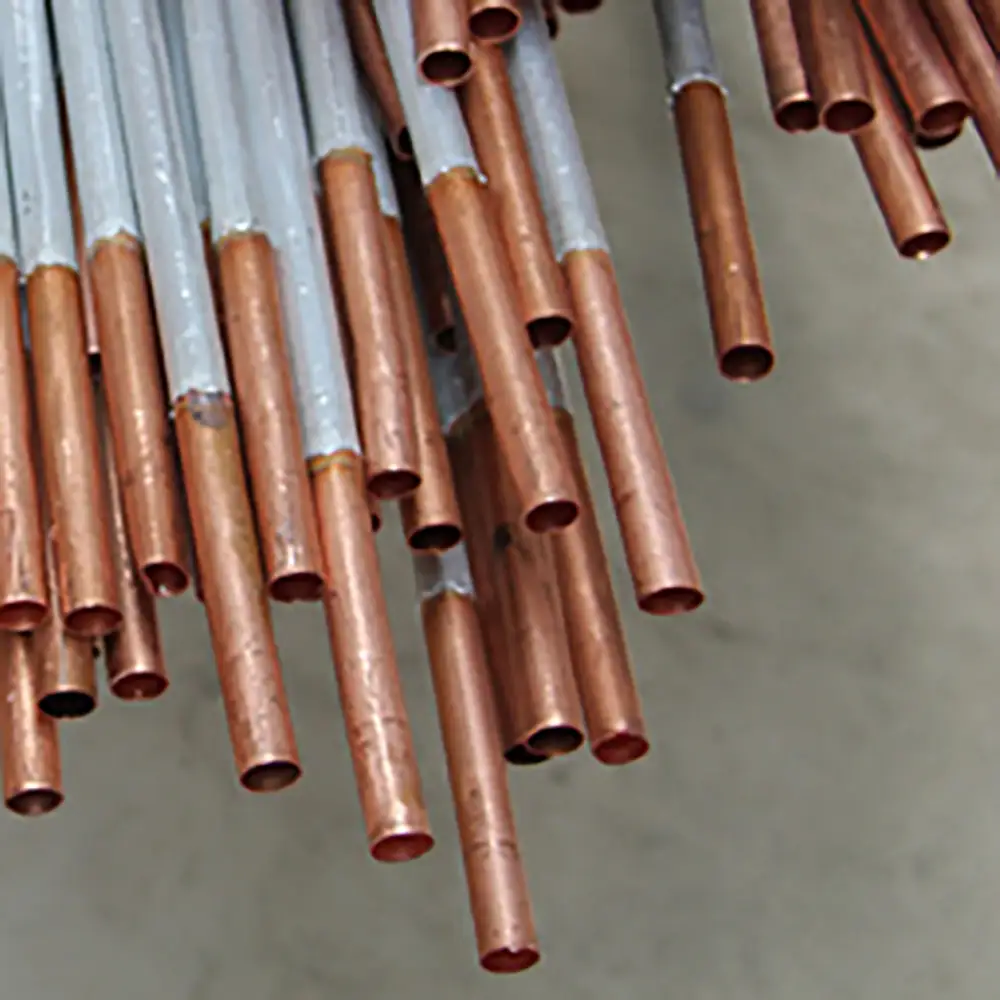

Copper and aluminum tubing are widely used in thermal management systems because each material offers different advantages in terms of thermal conductivity, weight, corrosion resistance, manufacturability, and cost. In certain HVAC and refrigeration products, copper and aluminum tubes need to be joined to create a suitable transition between different components or sections of a refrigerant circuit.

Joining dissimilar metals requires careful control because copper and aluminum have different physical and metallurgical characteristics. A dedicated pipe welding system provides controlled positioning and a repeatable production process, helping manufacturers improve consistency compared with purely manual welding operations.

The equipment is suitable for HVAC manufacturers, air conditioner factories, refrigeration equipment producers, heat pump manufacturers, heat exchanger suppliers, and industrial tube-processing companies.

What Is Air Conditioning Pipe Welding Equipment?

Air conditioning pipe welding equipment is designed specifically for welding or joining tubular components used in AC and HVAC manufacturing.

The machine holds and aligns the pipe ends before performing the selected welding process. For copper-aluminum applications, accurate positioning is particularly important because the two materials have different thermal and metallurgical properties.

A Copper-Aluminum Butt Welder joins two prepared tube ends in an end-to-end configuration. Depending on the machine design and selected welding technology, the process can be automated or semi-automated to reduce repetitive manual operations.

The exact welding process should be selected according to the tube material, diameter, wall thickness, joint configuration, production volume, and required finished-joint characteristics.

Designed for Refrigerant Lines

One of the primary applications of this equipment is the production of refrigerant lines for air conditioning and refrigeration systems.

Refrigerant tubing connects key components of thermal management systems and must be manufactured according to the requirements of the finished product. In suitable applications, copper and aluminum tube sections can be joined using a controlled production process.

Potential applications include:

Air Conditioning Refrigerant Lines
HVAC Tubing
Refrigeration Tubes
Copper-Aluminum Tube Assemblies
Heat Pump Tubing
Condenser Tubing
Evaporator Tubing
Heat Exchanger Components
AC Pipe Assemblies
Refrigerant Pipe Components

The specific application should be evaluated based on the tube materials, dimensions, welding technology, and requirements of the finished HVAC product.

Copper-Aluminum Butt Welding

Copper and aluminum require different welding considerations from conventional same-metal pipe joining.

Copper has high thermal conductivity, while aluminum has different melting characteristics and develops a persistent oxide layer on its surface. These differences can affect heat transfer, joint formation, and welding behavior.

For this reason, copper-aluminum tube welding should use appropriate equipment, tooling, joint preparation, and process parameters.

The Copper Aluminum Butt Welder provides a controlled fixture and welding environment for suitable dissimilar-metal tube applications. Proper material preparation and process qualification remain important for achieving the required production quality.

How the Welding Process Works

The general production process begins with preparing the two tube ends.

The tubes are cut to the required dimensions and cleaned according to the manufacturer's process requirements. The copper and aluminum sections are then positioned in the machine's dedicated fixture.

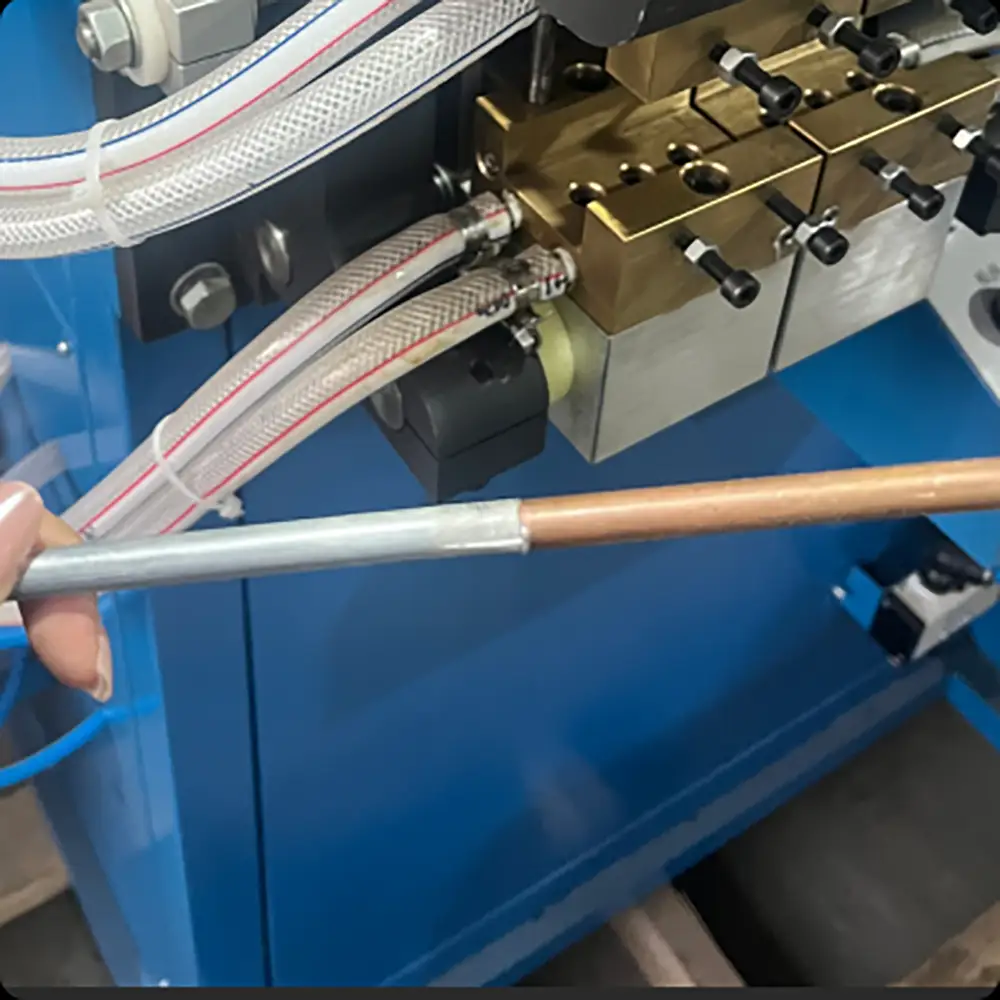

The clamping system holds the tubes in the required position and helps maintain alignment during the welding operation.

The selected welding system then performs the joining process according to predetermined parameters. Depending on the machine configuration, the operation may include automatic sequencing, controlled welding energy, timed welding cycles, and other process functions.

After welding, the finished joint can be inspected using appropriate quality-control procedures. Depending on the final application, inspection may include visual examination, dimensional checks, pressure testing, leak testing, or other production-specific tests.

Applications in Air Conditioner Manufacturing

Air conditioner manufacturers often require specialized tubing and connection processes for different product models.

The machine can be used for suitable components in:

Residential Air Conditioners

Suitable for manufacturing compatible refrigerant tube assemblies used in residential AC products.

Commercial HVAC Systems

The equipment can support production of suitable tubular components for commercial air conditioning systems.

Heat Pump Systems

Copper and aluminum tube joining can be used in suitable heat pump manufacturing applications.

Refrigeration Equipment

The machine can support production of compatible refrigeration pipe and tube assemblies.

Heat Exchangers

Suitable tubing components for heat exchangers can be processed when the dimensions and materials match the machine specifications.

Condensing And Evaporator Units

The equipment can be incorporated into manufacturing processes for suitable condenser and evaporator tubing assemblies.

Key Features
Dedicated HVAC Application

The equipment is designed for tube welding applications associated with air conditioning, refrigeration, HVAC, and related thermal-management products.

Copper-Aluminum Butt Welding

The machine is designed for suitable end-to-end joining of copper and aluminum tubes.

Controlled Tube Alignment

Dedicated fixtures and clamping mechanisms help position the tube ends before and during welding.

Repeatable Welding Operation

Controlled machine operation can help manufacturers establish repeatable production procedures.

Production-Oriented Design

The equipment is suitable for manufacturers that require repetitive tube joining operations.

Reduced Manual Handling

Automation can reduce repetitive manual positioning and welding tasks.

Flexible Tube Applications

Different tube dimensions can be evaluated according to the machine's working range and configuration.

Benefits for HVAC Manufacturers

A dedicated Refrigerant Line Welding Machine can provide several practical benefits in a production environment.

Consistent Tube Positioning:
The fixture helps maintain the relative position of the copper and aluminum tube ends during welding.

Repeatable Production:
Controlled operating sequences can help manufacturers maintain consistent production conditions.

Reduced Manual Work:
Automation can reduce repetitive manual tube alignment and welding operations.

Improved Production Flow:
A dedicated machine can be integrated into a specialized HVAC tube fabrication workstation.

Suitable for High-Volume Production:
When the machine capacity and cycle time match the production requirements, automated welding can support repetitive manufacturing.

Specialized Equipment:
The system is intended for HVAC and refrigeration tube applications rather than general-purpose welding alone.

Why Choose Our Air Conditioning Pipe Welding Equipment?
1. Designed for HVAC Applications

The equipment is designed around tube-joining requirements found in air conditioning, refrigeration, heat pump, and HVAC manufacturing.

2. Copper-Aluminum Welding Capability

The machine provides a dedicated solution for suitable copper-to-aluminum tube butt-welding applications.

3. Stable Tube Positioning

Dedicated fixtures help maintain alignment during the welding process.

4. Repeatable Production

Controlled welding sequences can help manufacturers establish repeatable production conditions.

5. Suitable for Industrial Manufacturing

The equipment can be used by AC manufacturers, refrigeration factories, heat pump producers, and HVAC component suppliers.

6. Flexible Configuration

The machine can be evaluated according to pipe diameter, wall thickness, material, joint design, production volume, and automation requirements.

7. B2B Production Solution

The equipment is intended for professional manufacturing environments where process consistency and production efficiency are important.

How to Choose a Copper-Aluminum Pipe Welder

Before purchasing a Copper-Aluminum Pipe Welder, buyers should provide detailed product information.

Pipe Material

Specify the exact copper and aluminum materials or grades being used.

Pipe Diameter

Provide the outside diameter or other relevant dimensions of each tube.

Wall Thickness

Tube wall thickness affects the welding process and equipment requirements.

Joint Design

Provide information about the required butt joint and finished connection.

Production Capacity

Specify the desired number of welded joints per hour, shift, or day if available.

Welding Method

If a particular welding technology is required, provide the preferred process.

Tube Length

Provide tube length and overall component dimensions to determine the required fixture and working area.

Quality Requirements

Specify whether the finished joint requires pressure resistance, leak tightness, dimensional accuracy, visual appearance, or other quality characteristics.

Quality Control for Refrigerant Lines

Quality control is an important part of refrigerant-line production. A finished joint may be exposed to pressure, temperature fluctuations, vibration, and long-term operating conditions.

Manufacturers should establish appropriate procedures for:

Tube End Preparation
Surface Cleaning
Accurate Tube Alignment
Welding Parameter Control
Joint Inspection
Dimensional Inspection
Leak Testing
Pressure Testing
Production Traceability

The exact testing procedure depends on the final product design and applicable industry requirements.

Maintenance and Operation

Regular maintenance helps ensure stable machine operation. Operators should inspect fixtures, clamps, welding components, cables, electrical connections, cooling components, control systems, and moving mechanisms according to the manufacturer's recommendations.

Tube-contact surfaces and fixtures should be kept clean. Proper tube preparation is also important because contamination can affect the quality and repeatability of the joining process.

Operators should follow appropriate welding safety procedures, including electrical safety, ventilation, personal protective equipment, and safe handling of heated components.

Customization for HVAC Tube Production

Different HVAC products require different tube sizes, materials, joint configurations, and production capacities. A machine designed for one tube diameter may not be suitable for another without appropriate tooling or configuration changes.

When requesting a quotation, buyers should provide:

Copper Tube Diameter
Aluminum Tube Diameter
Tube Wall Thickness
Tube Material
Tube Length
Joint Configuration
Required Production Capacity
Welding Method
Product Drawings Or Samples

This information allows the machine configuration to be evaluated more accurately.

Production Line Integration

The Air Conditioning Pipe Welding Equipment can be used as an independent workstation or integrated into a larger HVAC manufacturing line.

Depending on the production process, it may be combined with tube cutting machines, tube bending equipment, cleaning systems, inspection equipment, leak-testing systems, material handling equipment, and other automated production stations.

For higher-volume manufacturing, the overall line should be evaluated based on cycle time, loading and unloading requirements, fixture changes, inspection procedures, and production takt time.

Conclusion

The Air Conditioning Pipe Welding Equipment - Copper-Aluminum Butt Welder for Refrigerant Lines provides a specialized solution for joining copper and aluminum tubes used in HVAC, air conditioning, refrigeration, heat pump, and related applications.

With controlled tube positioning, dedicated butt-welding capability, and production-oriented operation, the equipment can help manufacturers establish a more consistent process for copper-aluminum tube assemblies.

For proper machine selection, buyers should consider tube material, diameter, wall thickness, joint configuration, production volume, welding method, and finished-product quality requirements.

For HVAC and refrigeration manufacturers looking to improve tube-joining efficiency, a dedicated Refrigerant Line Welder can be an important part of a modern production process.

FAQs
1. What is Air Conditioning Pipe Welding Equipment?

It is specialized equipment designed for joining pipes or tubes used in air conditioning, HVAC, refrigeration, and heat pump systems.

2. Can this machine weld copper to aluminum?

It is designed for suitable copper-to-aluminum butt-welding applications. The exact process must be selected according to the specific materials, tube dimensions, and required joint performance.

3. What is a Copper-Aluminum Butt Welder used for?

It is used to join copper and aluminum tube ends in suitable HVAC, refrigeration, heat pump, and thermal-management applications.

4. Can it weld refrigerant lines?

Yes. The equipment is intended for suitable refrigerant-line tube production and copper-aluminum tubing applications.

5. Can the machine be used for HVAC manufacturing?

Yes. It can be used for suitable HVAC, AC, refrigeration, heat pump, condenser, evaporator, and heat exchanger tube manufacturing applications.

6. What tube sizes can be welded?

The applicable tube diameter and wall thickness depend on the machine configuration. Buyers should provide the required tube dimensions when requesting a quotation.

7. Why is copper-aluminum welding challenging?

Copper and aluminum have different thermal and metallurgical properties. Their different melting behavior, thermal conductivity, and surface oxide characteristics require appropriate process control.

8. Is the welding process automatic?

The degree of automation depends on the selected configuration. Automated or semi-automated operation can reduce repetitive tube positioning and welding work.

9. What information is needed for a quotation?

Provide the copper and aluminum materials, tube diameters, wall thicknesses, tube lengths, joint design, required production capacity, welding method if known, and product drawings or samples.

10. Can the equipment be customized?

Machine configuration can be discussed according to tube dimensions, fixture requirements, welding process, production capacity, automation level, and specific HVAC manufacturing requirements.
