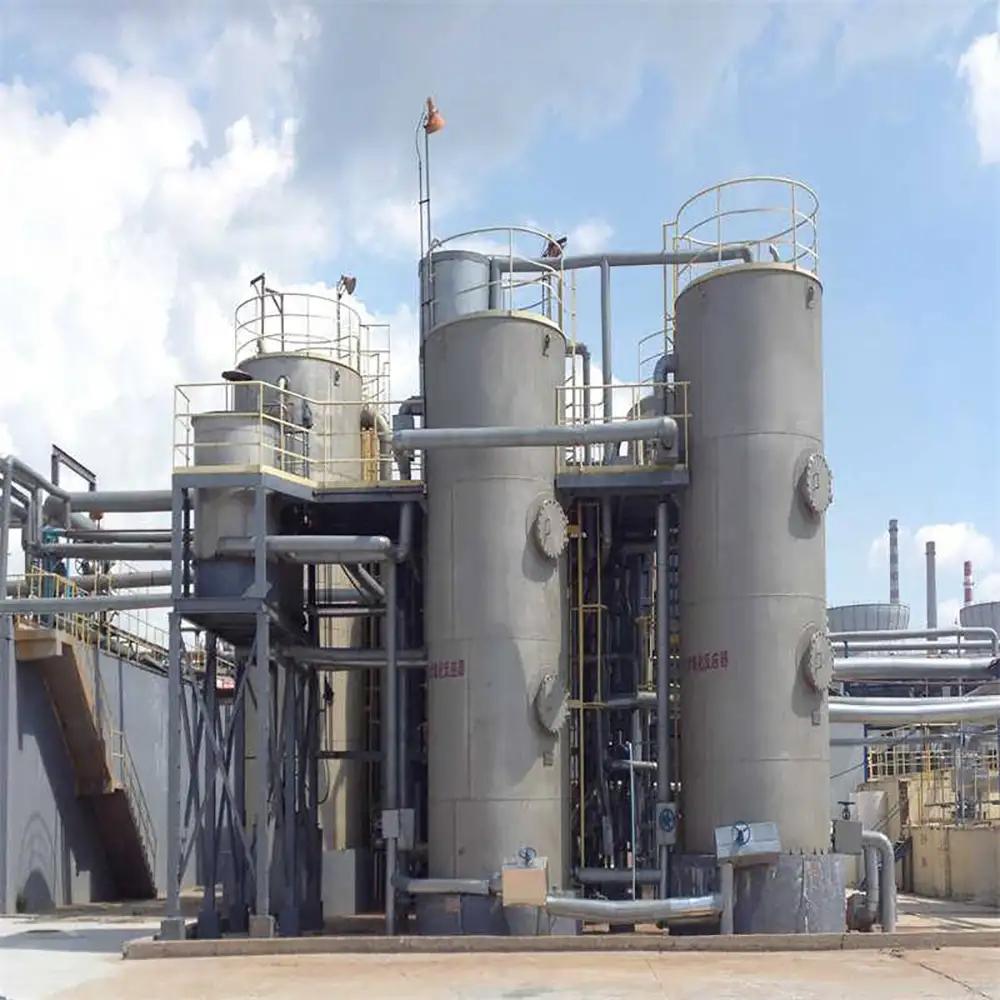

Fenton Oxidation Tower Process Sewage Treatment Equipment

Fenton oxidation tower is a device that uses the Fenton process for wastewater treatment, also known as a Fenton reactor or Fenton reaction tank. The following is a detailed explanation of the Fenton oxidation tower:

1. Definition and Principles

Definition: Fenton oxidation tower oxidizes and decomposes organic matter in wastewater through a specific chemical reaction process, thereby achieving the purpose of purifying water quality.

Principle: This device mainly uses the chain reaction between Fe²+ and H2O2to catalyze the formation of hydroxyl radicals (·OH) with strong oxidation properties. These radicals can oxidize various toxic and difficult-to-degrade organic compounds and convert them into none. Small molecule substances that are harmful, such as carbon dioxide and water.

2. Structure and composition
Fenton Oxidation Tower Process Sewage Treatment Equipment
Fenton oxidation tower usually includes an oxidation tower body, screen plate, filler, Fenton oxidation zone, iron carbon reaction zone, water inlet distribution zone, water outlet zone, water outlet tank, circulation device, and necessary pipe accessories.

The filler layer consists of materials with high surface area, such as quartz sand, bluestone, ceramic or plastic blocks, which provide microorganisms with a surface for settlement and growth, helps to form biofilms and further promotes the oxidative decomposition reaction.

Model NO.	WZSS	Handling method	physicochemical treatment
Usage	Industrial, agricultural, food factories, slaughterhouses	Trademark
Types	Package, Compact, Small, Mini	Applications	Industrial, Municipal, Domestic, Medical, Ship
Craft	Advanced oxidation catalysis	Features	Advanced oxidation catalysis
Service Life	20 Years	Operation	Automatic
Steel Plate Thickness	>8mm	Function	Remove Suspended solids
Voltage	220V/ 380V/ Customerized	Installation Type	Onground
Colour	Grey/Silver/Blue/Balck/Customerized	Use for	Mineral, Printing, Chemical, Dyeing, Starch
Material	Carbon Steel, Stain Steel, FRP, PE, PP	Certificate	SGS, ISO
Transport Package	Container Standard Packing	Specification	Carbon steel anti-corrosion
Production Capacity	1000 Sets/Year	Origin	China

3. Characteristics and Advantages

Strong oxidation capacity: Fenton oxidation tower can produce strong oxidative hydroxyl radicals, and has high degradation efficiency for organic pollutants.

Simple equipment: relatively simple structure, easy to manufacture and maintain.

Easy to operate: The operation process is simple and does not require complicated operation steps.

Low operating cost: Due to the simple and easy operational equipment, the operating cost is relatively low.

Wide applicability: Especially suitable for treating wastewater with high concentrations and difficult biodegradation, such as garbage leachate.


4. Application areas

Fenton oxidation towers have been widely used in urban sewage treatment, industrial wastewater treatment and rural domestic sewage treatment. Its efficient oxidative decomposition capability makes it excellent in handling a variety of organic pollutants.

5. Material selection

The materials of Fenton oxidation tower are mainly made of three materials: carbon steel, fiberglass and stainless steel. Since the fiberglass material itself has anti-corrosion properties and is relatively low in manufacturing costs, it has become a widely used material.

Fenton Oxidation Tower Process for Sewage Treatment Equipment

The Fenton Oxidation Tower Process is an advanced wastewater treatment technology designed for sewage and industrial wastewater containing refractory organic pollutants, residual COD, color, toxic compounds, and other contaminants that may be difficult to remove through conventional biological treatment alone. As a Fenton-based advanced oxidation system, the process uses an iron catalyst and hydrogen peroxide to generate highly reactive oxidizing species for the transformation and degradation of organic pollutants.

The Fenton process has been widely investigated for industrial wastewater treatment because poorly biodegradable organic matter can limit the effectiveness of conventional treatment technologies. Iron-catalyzed H₂O₂ systems can generate hydroxyl radicals and other reactive species that attack organic contaminants.

A properly designed oxidation tower can provide controlled chemical dosing, wastewater distribution, mixing, reaction contact, and oxidation conditions within a compact treatment configuration.

How the Fenton Oxidation Tower Works

The conventional Fenton reaction is based on the interaction between ferrous iron and hydrogen peroxide:

Fe²⁺ + H₂O₂ → Fe³⁺ + •OH + OH⁻

The reaction generates hydroxyl radicals, which are highly reactive and can attack a wide range of organic molecules. Depending on wastewater characteristics and operating conditions, these reactions can transform complex organic compounds into smaller intermediates and potentially further oxidize them.

The Fenton process is not limited to a single chemical reaction. Iron cycling, hydrogen peroxide decomposition, radical reactions, organic oxidation, and subsequent coagulation or precipitation can all contribute to the overall treatment process.

The oxidation tower provides the reaction environment needed for controlled contact between the wastewater, iron catalyst, and hydrogen peroxide.

Fenton Oxidation for Sewage Treatment

Conventional sewage treatment relies heavily on biological processes to remove biodegradable organic matter. However, sewage and industrial wastewater can contain refractory compounds that microorganisms cannot easily degrade.

The Fenton oxidation tower can be used as an additional treatment stage when biological treatment alone does not provide the required performance.

Depending on project requirements, the tower may be installed:

Before biological treatment
After biological treatment
Between physicochemical and biological treatment
As an advanced polishing stage
As part of an integrated oxidation and coagulation process

When installed before biological treatment, the Fenton process can transform selected refractory compounds and potentially improve the biodegradability of the wastewater. When installed after biological treatment, it can provide additional treatment of residual organic pollutants.

COD Reduction and Organic Pollutant Oxidation

Chemical oxygen demand, or COD, is one of the key parameters used to evaluate organic pollution in wastewater.

Fenton oxidation can contribute to COD reduction by oxidizing susceptible organic compounds and transforming refractory organic matter. However, wastewater COD consists of different fractions, and Fenton oxidation is not necessarily the most economical technology for readily biodegradable COD.

For this reason, Fenton treatment is often used strategically for refractory or toxic organic fractions while biological treatment handles biodegradable organic matter.

Actual COD reduction depends on wastewater composition, initial COD concentration, hydrogen peroxide dosage, iron concentration, pH, reaction time, temperature, and mixing conditions.

Pilot testing can help determine the optimum process conditions before full-scale equipment selection.

Improving Wastewater Biodegradability

One of the important applications of Fenton oxidation is biodegradability improvement.

Some industrial sewage contains high-molecular-weight or chemically stable organic compounds that are difficult for microorganisms to utilize. Controlled oxidation can break or modify certain molecular structures and produce smaller intermediates.

These oxidation products may be more suitable for subsequent biological treatment.

A combined treatment process can therefore be arranged as:

Screening → Equalization → Fenton Oxidation → Neutralization → Biological Treatment → Clarification

The optimum process sequence depends on the wastewater characteristics and treatment objectives.

Research on Fenton and related oxidation systems has identified the generation of biodegradable intermediates as an important potential benefit when treating recalcitrant wastewater.

Color and Chromaticity Removal

The Fenton oxidation tower can also be applied to wastewater containing color-causing organic compounds.

Dyeing, textile, printing, pharmaceutical, and chemical wastewater may contain chromophoric structures that resist conventional biological degradation. Hydroxyl radicals generated during Fenton oxidation can attack these structures and contribute to wastewater decolorization.

Color removal performance depends on the type and concentration of dyes or colored compounds, wastewater chemistry, pH, iron concentration, hydrogen peroxide dosage, and reaction time.

For wastewater treatment plants receiving industrial wastewater, the Fenton process can therefore serve as an additional oxidation stage when conventional treatment does not adequately control color.

Fenton Oxidation Tower Design

A complete Fenton oxidation tower system may include several functional components:

Wastewater Equalization Tank
pH Adjustment System
Iron Catalyst Dosing System
Hydrogen Peroxide Dosing System
Rapid Mixing Section
Fenton Oxidation Tower
Reaction Zone
Neutralization Tank
Flocculation Tank
Sedimentation or Clarification Unit
Sludge Collection System

The tower dimensions and internal configuration should be determined according to wastewater flow rate, pollutant concentration, required reaction time, chemical demand, and site conditions.

The system may be configured for continuous operation or incorporated into a batch treatment process depending on the application.

Chemical Dosing and pH Control

Chemical dosing is one of the most important aspects of Fenton process operation.

Conventional Fenton systems generally perform best under acidic conditions, and pH strongly influences iron speciation, hydrogen peroxide decomposition, radical generation, and overall oxidation efficiency.

The oxidation tower system can therefore incorporate online pH monitoring and chemical adjustment.

Hydrogen peroxide and iron dosage should also be optimized according to the wastewater. Excessive H₂O₂ can increase chemical consumption and may participate in unwanted radical-scavenging reactions, while insufficient dosage may limit oxidation.

Important operating parameters include:

Influent COD
Wastewater pH
Iron Dosage
H₂O₂ Dosage
Reaction Time
Hydraulic Retention Time
Wastewater Temperature
Organic Pollutant Concentration
Mixing Conditions
Fenton Oxidation and Coagulation

Fenton treatment can provide both oxidation and physicochemical separation effects.

During the reaction, iron can change between oxidation states. Ferric iron species may subsequently participate in coagulation and precipitation, helping remove some suspended or oxidized pollutants.

A practical treatment sequence may therefore be:

Fenton Oxidation → Neutralization → Flocculation → Sedimentation

This integrated configuration can improve the overall removal of oxidation products and suspended materials.

Sludge generated during this stage should be collected, characterized, dewatered where necessary, and managed according to applicable regulations.

Suitable Wastewater Applications

The Fenton Oxidation Tower Process can be considered for:

Municipal Sewage Treatment
Industrial Sewage Treatment
Chemical Wastewater
Pharmaceutical Wastewater
Textile Wastewater
Dyeing Wastewater
Printing Wastewater
Petrochemical Wastewater
Coking Wastewater
Pesticide Wastewater
Landfill Leachate
High-COD Wastewater
Refractory Organic Wastewater

Fenton and Fenton-like systems have been studied across numerous industrial wastewater categories, especially where poorly biodegradable organic matter creates challenges for conventional treatment.

Integration With Biological Treatment

Fenton oxidation does not necessarily need to replace biological treatment.

In many wastewater treatment plants, the two processes can complement each other. Biological treatment can efficiently remove biodegradable organic matter, while Fenton oxidation can target selected refractory compounds.

A pretreatment configuration may be:

Pretreatment → Fenton Oxidation Tower → Neutralization → Biological Treatment

An advanced polishing configuration may be:

Pretreatment → Biological Treatment → Fenton Oxidation → Filtration

The appropriate configuration depends on whether the project prioritizes COD reduction, biodegradability improvement, color removal, toxicity reduction, or final effluent polishing.

The integration of Fenton processes with biological treatment is an active area of wastewater treatment engineering, particularly for difficult industrial effluents.

Sludge Management and Equipment Maintenance

Conventional Fenton treatment can produce iron-containing sludge, so sludge management should be considered during the design stage. Chemical consumption and sludge generation are among the practical considerations when applying Fenton technology at full scale.

Routine equipment maintenance should include inspection of:

Hydrogen Peroxide Dosing Pumps
Iron Dosing Equipment
pH Sensors
Mixers
Reaction Tower
Pipelines
Valves
Neutralization Equipment
Flocculation Equipment
Sludge Removal Equipment

Monitoring COD, pH, color, suspended solids, and project-specific contaminants can help maintain stable operation.

Why Choose Us

We provide wastewater treatment equipment designed according to actual water-quality conditions, process requirements, treatment capacity, and installation environment.

Key advantages of the Fenton Oxidation Tower Process include:

Designed for sewage and industrial wastewater treatment
Advanced oxidation for refractory organic pollutants
Supports COD reduction
Can improve wastewater biodegradability
Suitable for color and chromaticity reduction
Controlled iron catalyst and H₂O₂ dosing
Flexible oxidation tower configurations
Integrated pH adjustment options
Compatible with biological treatment
Suitable for pretreatment or advanced polishing
Supports neutralization and solid-liquid separation
Flexible integration into complete WWTP systems
Laboratory and pilot testing support
Process design based on actual wastewater characteristics

The Fenton Oxidation Tower is particularly suitable for treatment projects where conventional biological or physicochemical treatment requires an additional oxidation stage to address refractory organic pollutants.

Frequently Asked Questions

1. What is a Fenton Oxidation Tower?
A Fenton oxidation tower is a wastewater treatment reactor designed to provide controlled contact between wastewater, an iron catalyst, and hydrogen peroxide for advanced oxidation.

2. What is the main purpose of Fenton oxidation?
Its primary purpose is to oxidize selected organic pollutants that may be difficult to remove using conventional treatment technologies.

3. Can the Fenton tower reduce COD?
Yes. Fenton oxidation can contribute to COD reduction, especially for susceptible refractory organic fractions. Actual performance depends on wastewater characteristics and operating conditions.

4. Can Fenton oxidation improve biodegradability?
Yes. Under suitable conditions, oxidation can transform certain refractory compounds into smaller intermediates that may be more suitable for subsequent biological treatment.

5. Can it remove wastewater color?
Yes. Hydroxyl-radical oxidation can attack chromophoric organic structures and contribute to decolorization.

6. What chemicals are used?
Conventional Fenton treatment generally uses an iron source and hydrogen peroxide. pH adjustment chemicals may also be required.

7. What pH is used for Fenton oxidation?
Traditional Fenton systems generally operate under acidic conditions. The optimum pH should be established according to the specific wastewater and catalyst system.

8. Does the Fenton process produce sludge?
Conventional iron-based Fenton treatment can produce iron-containing sludge. Sludge handling should therefore be included in the overall system design.

9. Can the oxidation tower replace biological treatment?
Not necessarily. Fenton oxidation is often more effective as a complementary pretreatment or polishing process, while biological treatment can handle biodegradable organic matter.

10. Can it be combined with MBBR?
Yes. The Fenton oxidation tower can be installed before MBBR to improve wastewater characteristics or after biological treatment for advanced polishing.

11. What factors affect Fenton treatment performance?
Important factors include pH, iron dosage, hydrogen peroxide dosage, reaction time, wastewater composition, temperature, and water-matrix effects.

12. How should a Fenton oxidation tower be sized?
Sizing should consider wastewater flow, COD, pollutant composition, target treatment level, chemical demand, hydraulic retention time, sludge production, and downstream treatment. Laboratory or pilot testing is recommended before final sizing.
