Water Purification Reverse Osmosis Membrane Treatment Equipment for Sewage Treatment Plant

Water Purification Reverse Osmosis Membrane Treatment Equipment is designed for advanced wastewater treatment, sewage purification and water reuse applications. By combining pretreatment, membrane filtration and reverse osmosis, the system can provide multiple treatment barriers for suspended solids, colloids, microorganisms, dissolved solids, salts and selected contaminants.

A modern sewage treatment plant may use biological treatment as the main organic pollutant removal stage, followed by membrane filtration and advanced treatment when higher-quality effluent is required. Membrane systems can be configured according to wastewater characteristics and the final water-use objective, including industrial reuse, process water, utility water or other approved applications.

Reverse osmosis is a pressure-driven membrane process. Feed water is pressurized and passed through a semipermeable membrane, producing a treated permeate stream and a concentrated reject stream. EPA identifies RO as a technology capable of reducing many dissolved solids, salts, inorganic contaminants and selected synthetic organic chemicals.

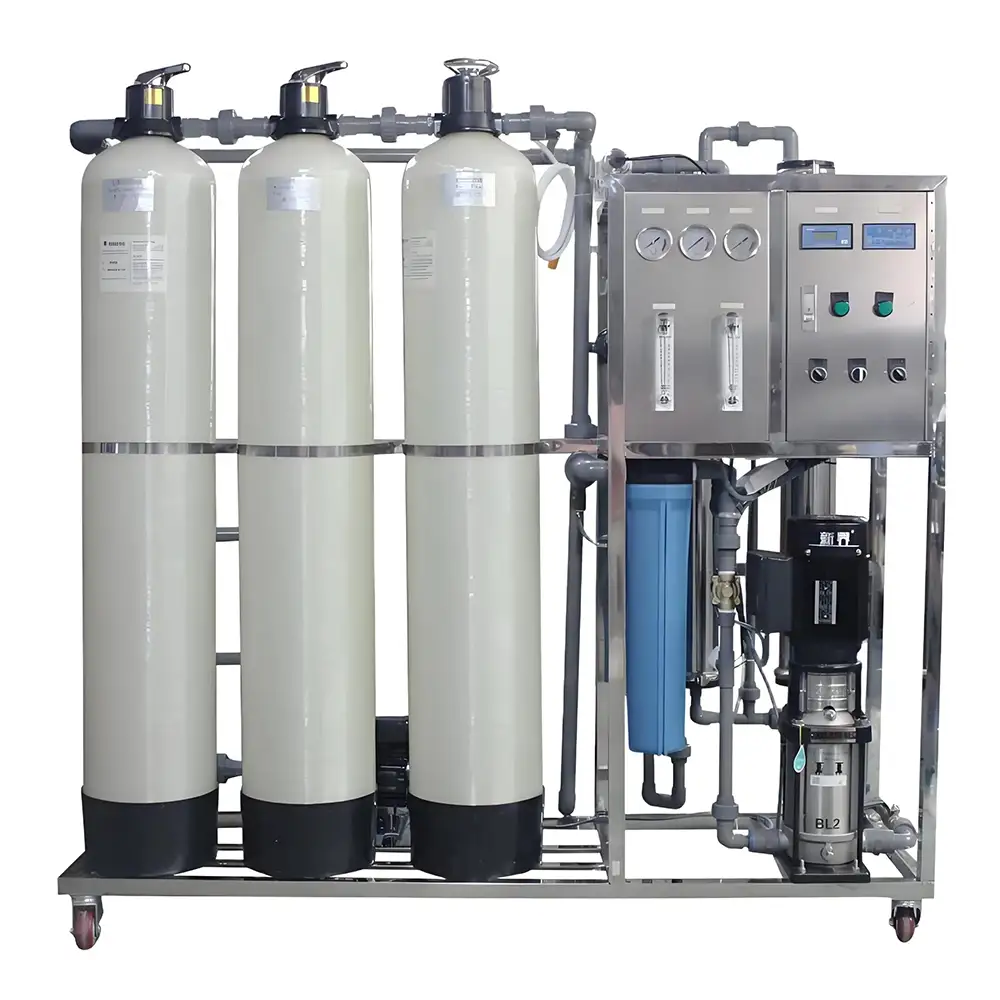

The reverse osmosis equipment passes the raw water through fine filters, granular activated carbon filters, compressed activated carbon filters, etc., and then pressurizes it through a pump, utilizing a pore size of 1/10000 μ The reverse osmosis membrane (RO membrane) of m (equivalent to 1/6000 of the size of Escherichia coli and 1/300 of the size of the virus) separates high concentration water into extremely low concentration water (i.e. pure water) and higher concentration water. Low concentration water is used, and high concentration water is discharged or reused as resources

Integrated Sewage Treatment and Water Purification

The equipment can be designed as part of a complete sewage treatment plant rather than functioning as an isolated RO unit. A typical process may include:

Screening → Equalization → Biological Treatment → Clarification → UF/MF Membrane Filtration → RO Reverse Osmosis → Disinfection → Water Reuse

The actual process depends on the wastewater source, flow rate, pollutant concentration, required effluent quality and intended reuse.

Pretreatment is particularly important for membrane systems. Suspended solids, biological solids and other particles can contribute to membrane fouling. EPA water reuse guidance describes membrane pretreatment as an important measure for protecting downstream membranes and maintaining sustainable operation.

Reverse Osmosis Membrane Treatment

The RO stage provides a finer separation barrier than conventional filtration. Unlike ordinary media filtration, which primarily removes particulate matter, RO operates at high pressure and separates water from many dissolved substances.

During operation, treated water passing through the membrane is collected as permeate. Substances retained by the membrane remain in the concentrate or reject stream.

RO is especially useful when treated wastewater needs additional reduction of dissolved salts, total dissolved solids or other dissolved contaminants. It can also be used in industrial water reuse systems where biological treatment and conventional clarification alone cannot provide the required water quality.

However, RO is not intended to replace every upstream treatment stage. Good pretreatment is important because high suspended solids, scaling potential and biological fouling can reduce membrane performance.

Membrane Filtration Before RO

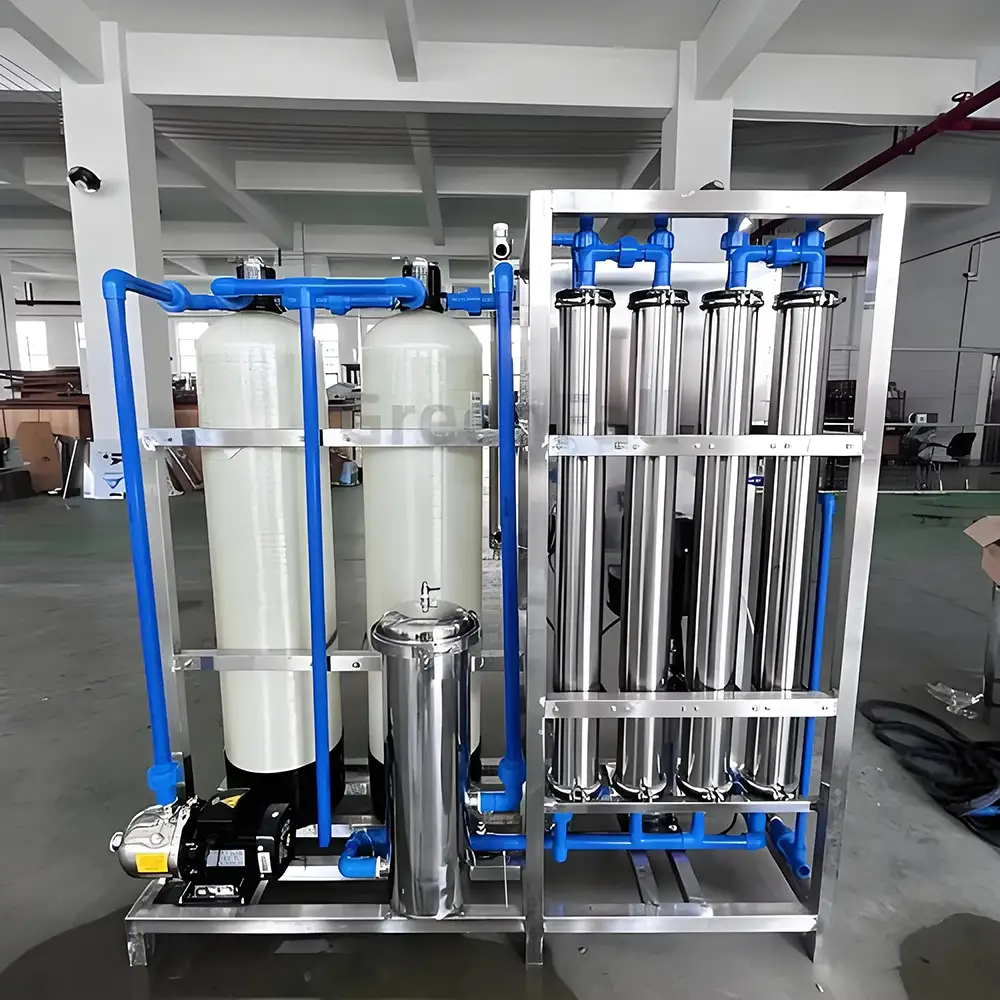

Ultrafiltration or microfiltration can be installed before the RO system to provide additional solids separation. EPA's water reuse guidance describes MF and UF as membrane processes that can be used in wastewater treatment and can help reduce fouling on downstream RO membranes.

UF membrane treatment can remove suspended solids, colloids and biological material while providing a consistent feed stream for the RO stage.

A dual-membrane configuration can therefore provide:

Biological treatment for biodegradable organic matter
UF/MF for suspended solids and biological solids
RO for dissolved solids and salts
Disinfection for microbial control
Post-treatment for specific reuse requirements

This configuration provides a flexible platform for advanced wastewater treatment and water recycling.

Sewage Treatment Plant Applications

The RO membrane treatment equipment can be integrated into different types of sewage and wastewater treatment plants.

Municipal Sewage Treatment

Municipal wastewater can be treated through biological processes followed by membrane filtration and advanced treatment. Where water reuse is required, additional membrane treatment can help produce a higher-quality water stream.

Industrial Wastewater Treatment

Industrial wastewater often contains more complex mixtures of organic and inorganic contaminants. Depending on the industry, pretreatment may include coagulation, sedimentation, activated carbon, chemical oxidation, biological treatment or other processes before membrane filtration.

RO can then be used as an advanced treatment stage for dissolved contaminants and water reuse.

Commercial and Institutional Wastewater

Hotels, schools, hospitals, commercial buildings and industrial parks can use packaged or modular sewage treatment plants for decentralized wastewater treatment. Where suitable, RO can be added for water recycling or higher-quality treated water.

Industrial Water Reuse

Water reuse is one of the most important applications for advanced membrane treatment. EPA describes water reuse as treating wastewater and repurposing it for beneficial uses, including industrial and other applications.

RO Water Reuse Treatment

An RO-based water reuse system can help reduce demand for freshwater by treating suitable wastewater for secondary applications. Depending on local regulations and the intended end use, reclaimed water may be used for industrial processes, cooling, cleaning, irrigation or other approved purposes.

For higher-risk applications, additional treatment and monitoring are required. EPA emphasizes that the level of treatment needed depends on the intended use and potential human-health or environmental exposure.

For potable reuse, the treatment train is substantially more demanding than ordinary industrial water reuse. For example, California's direct potable reuse framework includes RO together with other advanced treatment barriers and extensive monitoring requirements.

Therefore, an RO sewage treatment plant should always be designed according to the specific water quality target rather than assuming that RO alone is sufficient for every application.

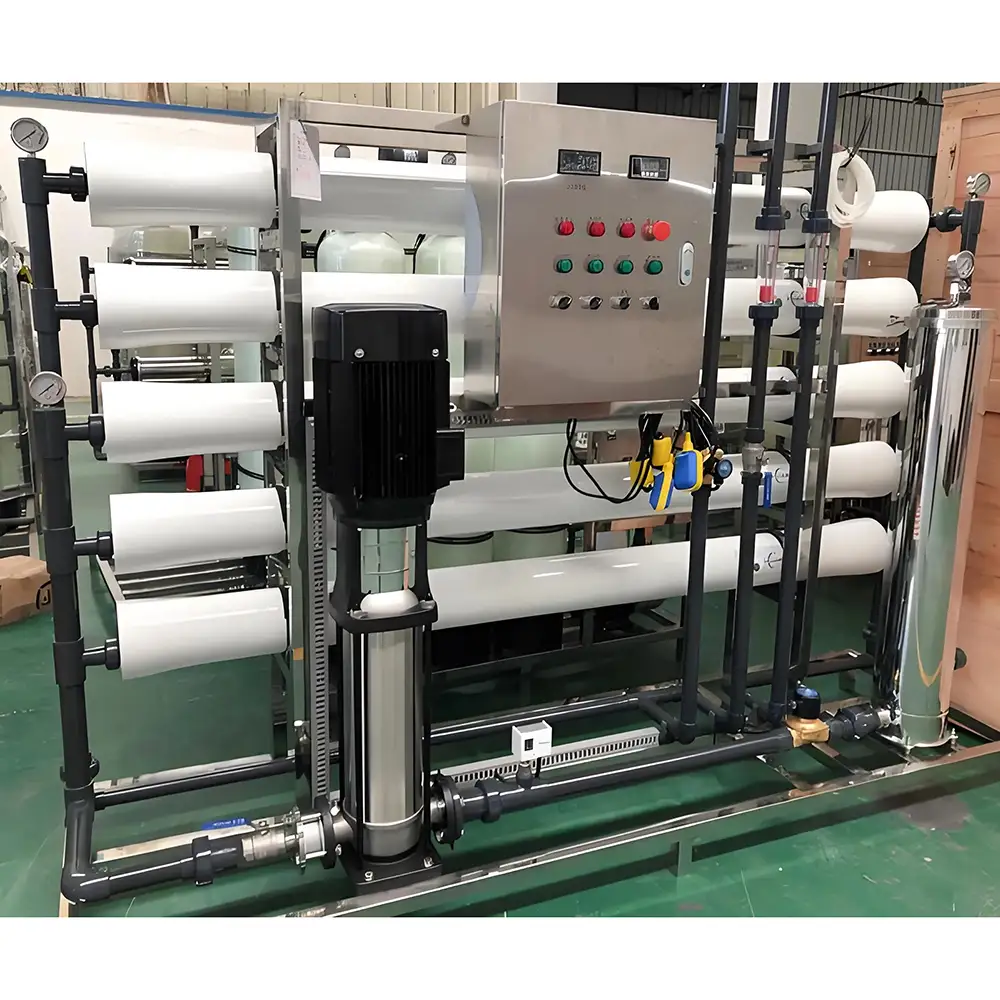

Automatic RO Water Treatment Equipment

The system can be equipped with an automatic control cabinet and instrumentation for monitoring important operating parameters.

Typical monitoring points include:

Feed-water pressure
RO operating pressure
Permeate flow
Concentrate flow
Conductivity
Tank level
Pump status
Membrane differential pressure
Automatic valve position

PLC controls can coordinate pumps, valves, filtration cycles, alarms and shutdown functions. Conductivity monitoring can also help operators identify changes in RO permeate quality.

For larger sewage treatment plants, the RO system can be integrated with SCADA or centralized plant control systems.

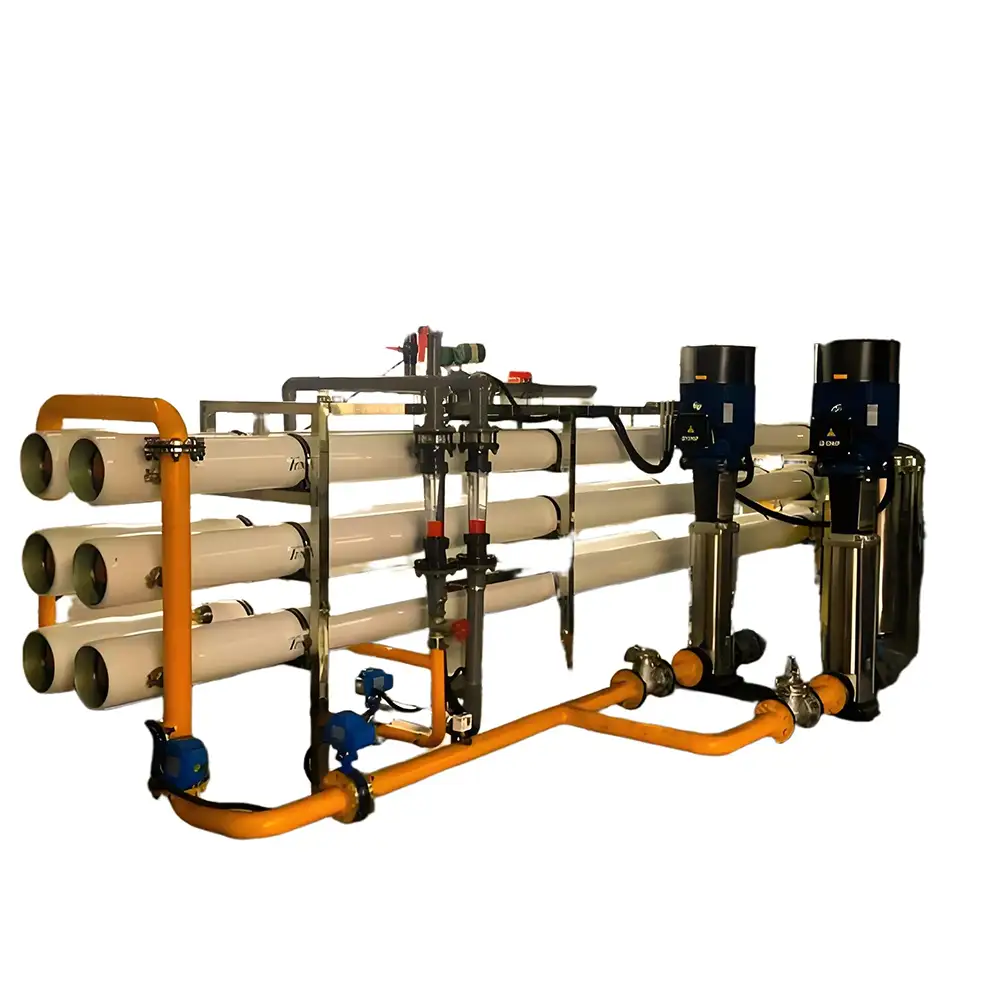

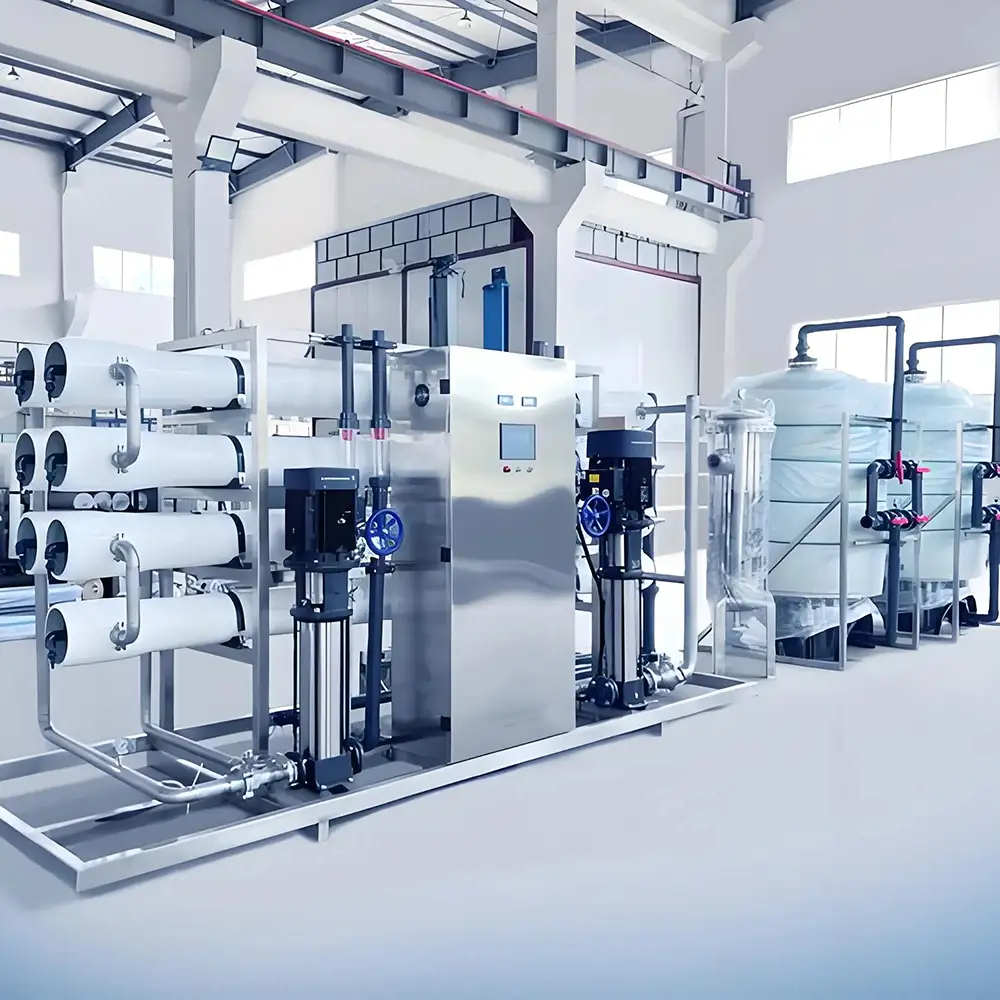

Compact and Modular Sewage Treatment Plant

The equipment can be configured as a skid-mounted, containerized or modular water treatment plant. Compact configurations are useful where installation space is limited or where a decentralized wastewater treatment solution is required.

A modular design also allows treatment capacity to be expanded by adding additional membrane trains or process modules.

Typical equipment may include:

Feed Pumps
Pretreatment Filters
UF or MF Membrane Modules
High-Pressure RO Pumps
RO Membrane Pressure Vessels
Control Cabinet
Flow Meters
Pressure Gauges
Conductivity Instruments
Automatic Valves
Chemical Dosing Equipment
CIP Cleaning System
Permeate Storage Tank

The exact configuration should be selected according to the water analysis and required production capacity.

RO Membrane Maintenance

RO membrane performance depends strongly on feed-water quality and pretreatment. Fouling and scaling can reduce membrane flux and increase operating pressure.

Routine maintenance may include pretreatment filter replacement, membrane performance monitoring, pressure inspection, chemical cleaning and equipment inspection.

EPA notes that membrane fouling can occur as organics, particles, bacteria and other residues accumulate on membrane surfaces.

A properly designed pretreatment system can therefore play an important role in protecting RO membranes and maintaining stable operation.

RO Concentrate Management

An RO sewage treatment plant generates both permeate and concentrate. The concentrate contains a higher concentration of substances rejected by the membrane and requires appropriate handling.

Concentrate management may involve regulated discharge, further treatment, evaporation, beneficial reuse or other site-specific options. EPA notes that RO concentrate can be a significant consideration in water reuse projects because it contains concentrated contaminants.

The final concentrate management strategy should be determined during engineering based on wastewater composition, local regulations and site conditions.

Why Choose Our RO Membrane Sewage Treatment Equipment?
Integrated Treatment: Combines membrane filtration and RO with upstream wastewater treatment processes.
Advanced Water Purification: Provides an additional treatment barrier for dissolved solids and selected contaminants.
Flexible Process Design: Suitable for municipal, industrial, commercial and decentralized applications.
UF/MF Pretreatment: Membrane filtration can provide suitable RO feed-water quality.
Water Reuse Ready: Can be configured for suitable industrial and non-potable reuse applications.
Automatic Operation: PLC control and instrumentation simplify system management.
Modular Construction: Skid-mounted and modular options support different installation requirements.
Scalable Capacity: Multiple membrane trains can be used for larger flow requirements.
Application-Based Engineering: System design can be based on wastewater analysis and final water-quality requirements.
Complete System Integration: Pumps, membranes, filtration, dosing, controls and monitoring can be coordinated into one treatment system.
FAQs
1. What Is RO Membrane Sewage Treatment Equipment?

It is advanced wastewater treatment equipment that uses reverse osmosis membranes to further purify treated sewage or industrial wastewater, particularly when reduction of dissolved solids and salts is required.

2. Can RO Be Used in a Sewage Treatment Plant?

Yes. RO can be used as an advanced treatment or water-reuse stage after suitable biological treatment and membrane or conventional pretreatment.

3. What Does Reverse Osmosis Remove?

RO can reduce many dissolved solids, salts, inorganic contaminants and selected organic chemicals. Actual removal depends on the membrane, feed water and operating conditions.

4. Why Is Pretreatment Important Before RO?

Pretreatment reduces particles, suspended solids and other substances that can cause membrane fouling, scaling or damage. This helps maintain stable RO operation.

5. Can UF Be Used Before RO?

Yes. UF is commonly used as a membrane pretreatment stage because it can remove suspended solids and biological material and provide a more consistent feed stream for RO.

6. Can This Equipment Treat Municipal Sewage?

It can be integrated into municipal wastewater treatment and water reuse systems when the wastewater has been appropriately pretreated and the RO system is properly designed.

7. Can It Treat Industrial Wastewater?

Yes. Industrial wastewater applications are possible, but the process must be selected according to the specific contaminants, organic load, suspended solids, dissolved solids and other wastewater characteristics.

8. Can RO Treated Water Be Reused?

Potentially, yes. Treated water can be considered for suitable reuse applications when it meets the applicable quality requirements. The required treatment level depends on the intended use.

9. Does RO Produce Wastewater?

RO produces a concentrate or reject stream in addition to permeate. The concentrate requires appropriate management or further treatment.

10. Can the RO System Operate Automatically?

Yes. Automatic systems can include PLC controls, automatic valves, pressure monitoring, flow measurement, conductivity monitoring and pump protection.

11. How Often Do RO Membranes Need Cleaning?

There is no universal cleaning interval. Cleaning frequency depends on feed-water quality, pretreatment, membrane fouling, operating pressure, flow and permeate quality.

12. How Do I Select the Right Sewage RO Treatment Plant?

The design should consider wastewater flow, peak flow, COD, BOD, TSS, conductivity, TDS, hardness, scaling potential, temperature, required permeate quality and concentrate-disposal conditions. A complete water or wastewater analysis is recommended before equipment selection.

Conclusion

Water Purification Reverse Osmosis Membrane Treatment Equipment provides an advanced treatment option for sewage treatment plants, industrial wastewater systems and water reuse projects. By combining biological or conventional pretreatment, UF/MF membrane filtration, RO reverse osmosis and optional disinfection, the system can create a multi-barrier treatment process for producing higher-quality treated water.

The final configuration should always be engineered according to the wastewater characteristics, treatment objective, local requirements and intended water reuse application.
