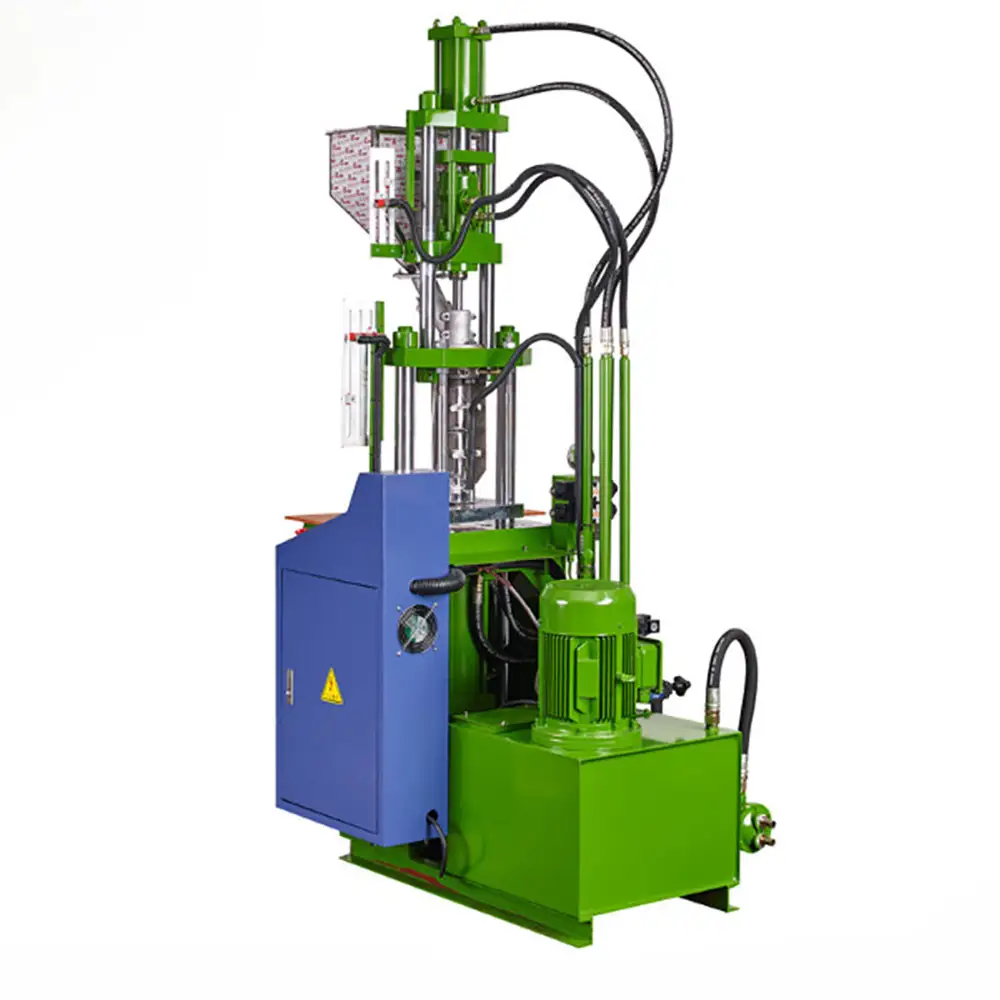

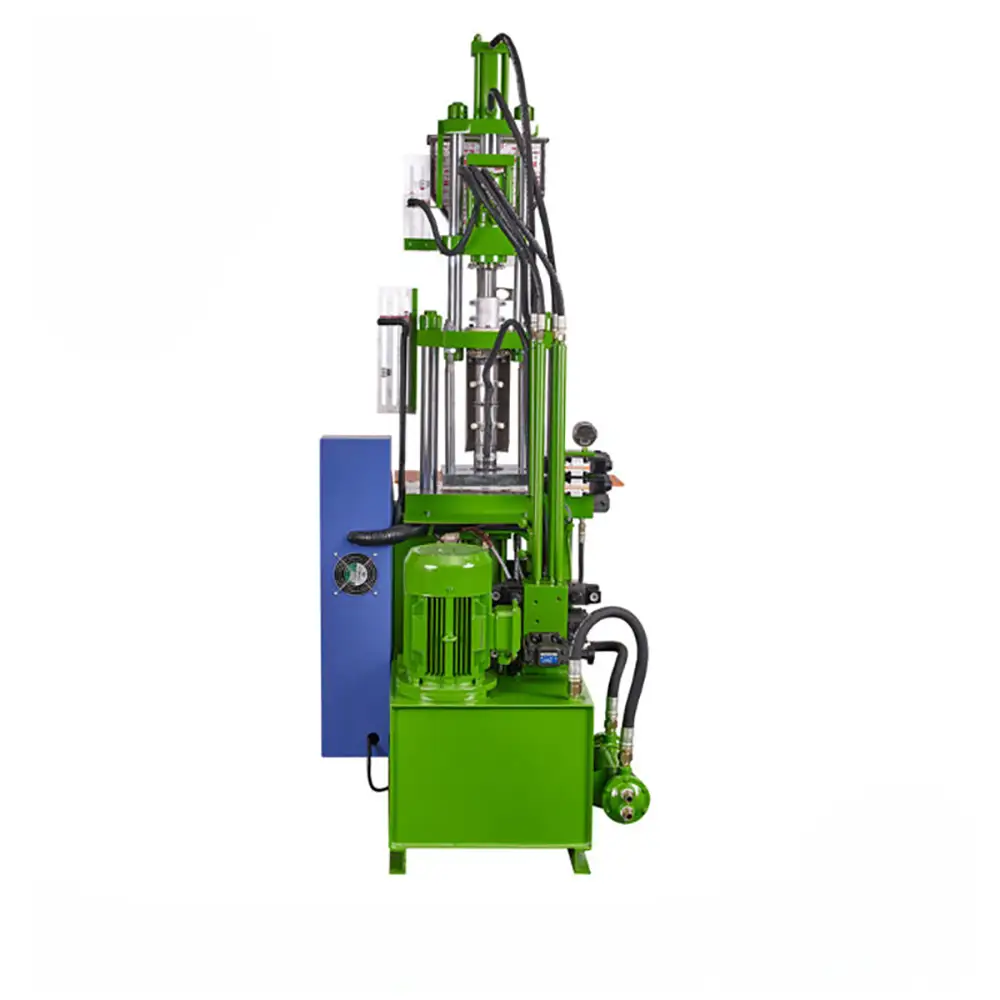

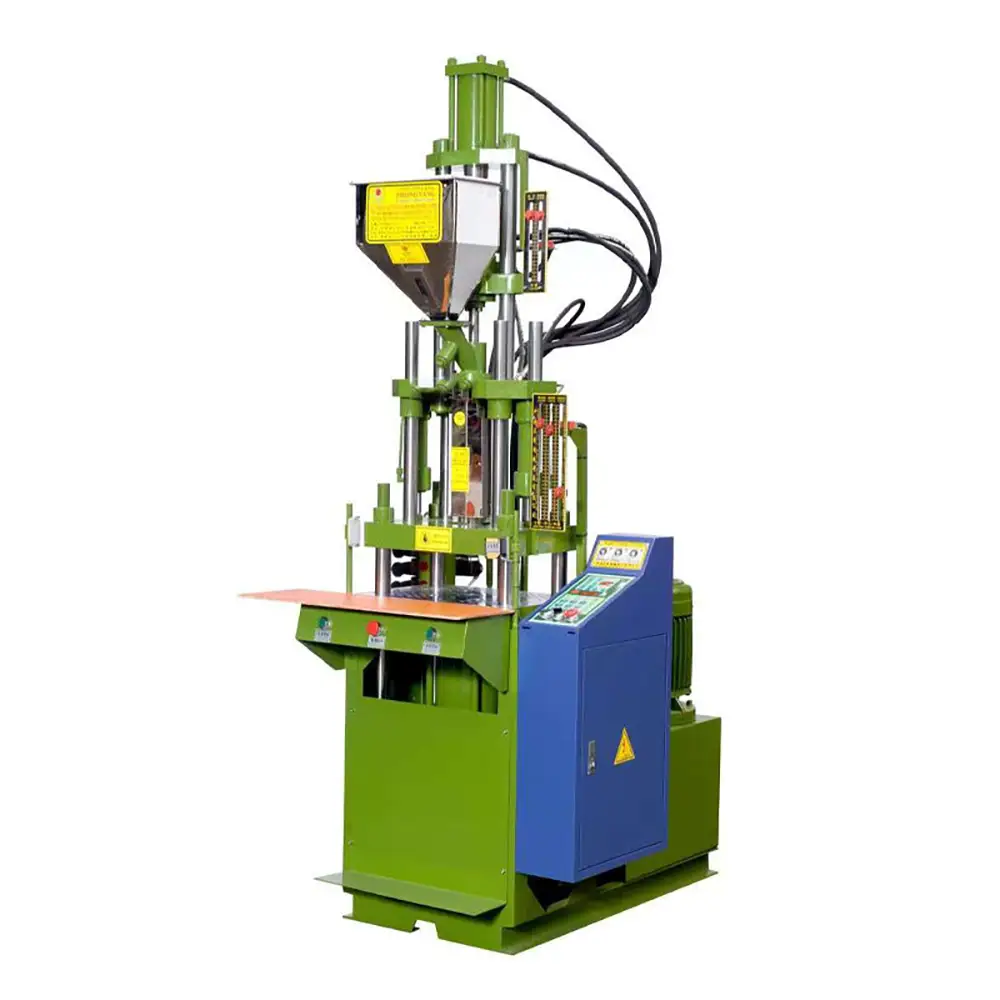

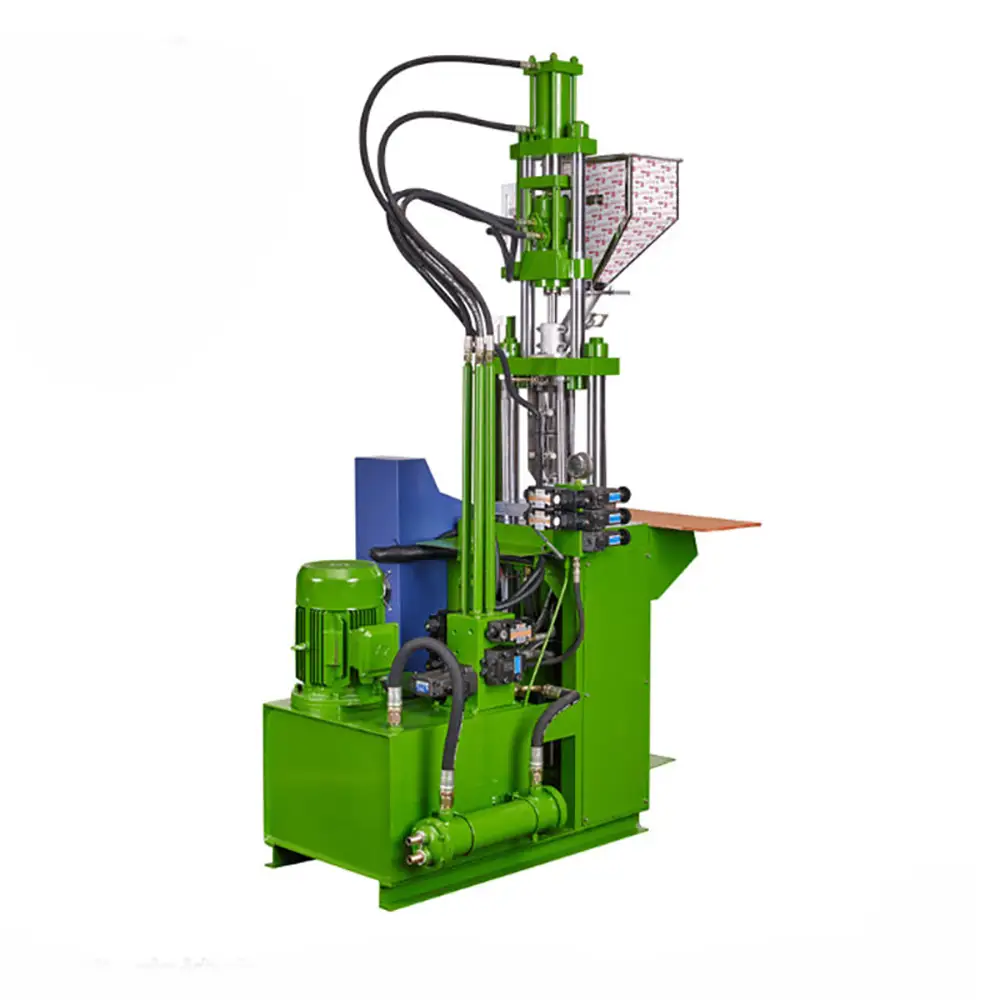

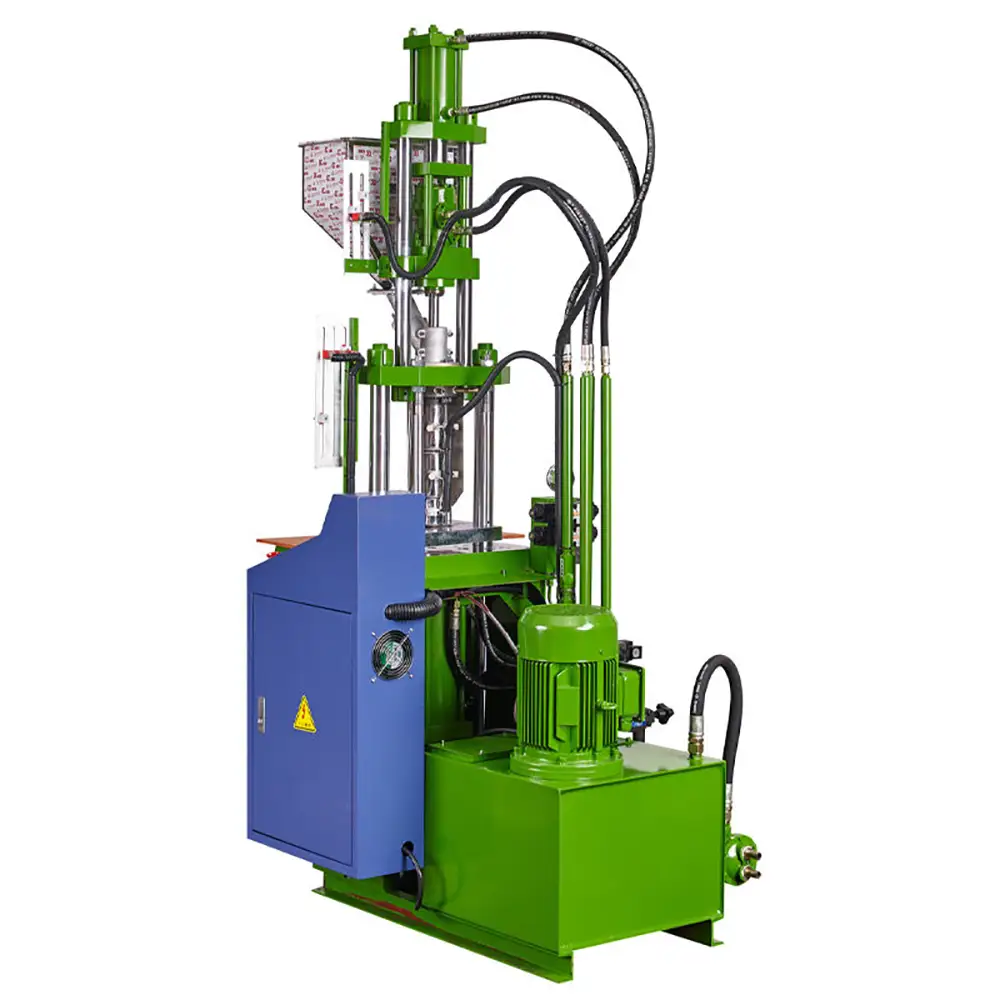

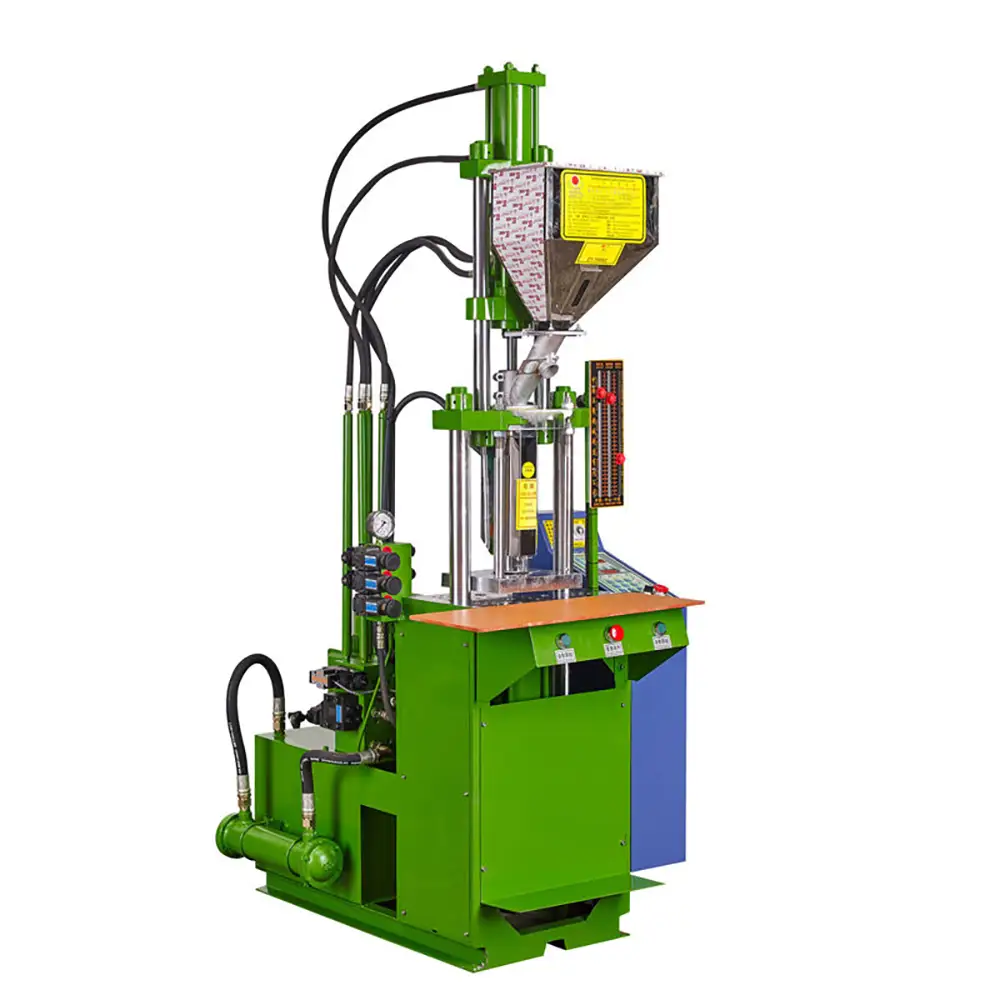

Vertical Injection Molding Machine for ABS PET PP EPS PC PA

The Vertical Injection Molding Machine for ABS, PET, PP, EPS, PC, and PA is designed for manufacturers that need a flexible and efficient solution for producing molded plastic components. With a vertical machine configuration, this injection molding equipment is suitable for a wide range of industrial applications, including plastic parts manufacturing, insert molding, overmolding, electrical components, automotive parts, consumer products, and customized plastic components.

Vertical injection molding machines use a vertically arranged injection and clamping structure, providing a practical layout for certain molding applications. Compared with horizontal injection molding equipment, the vertical configuration can be particularly useful for insert molding, where metal or other preformed components need to be positioned in the mold before plastic injection.

The machine can be configured for different plastic materials and production requirements. ABS, PET, PP, EPS, PC, and PA each have different processing characteristics, so the appropriate screw, barrel, temperature control, mold, injection parameters, and machine configuration should be selected according to the material and final product.

Vertical Injection Molding Machine Design

A vertical injection molding machine generally integrates the injection system, clamping system, hydraulic or servo drive components, temperature control, control cabinet, and operating system into a compact industrial machine.

The vertical structure provides convenient access to the mold area for applications requiring manual or automated insertion of components. This can make the equipment suitable for insert molding and overmolding processes where the operator or automation system needs to position an insert before the molding cycle.

Machine configuration can vary according to clamping force, injection capacity, mold dimensions, material requirements, production speed, and automation requirements. Buyers can select the appropriate configuration based on product size and production volume.

Material Compatibility

This injection molding machine can be used for a variety of thermoplastic materials, including ABS, PET, PP, EPS, PC, and PA, when the machine configuration and processing parameters are appropriate.

ABS, or acrylonitrile butadiene styrene, is widely used for housings, automotive components, electronic products, appliances, and consumer products because of its combination of strength, impact resistance, and surface appearance.

PET, or polyethylene terephthalate, is commonly used in packaging, containers, technical components, and other applications. PET processing requires appropriate drying and temperature control because material moisture can affect molding quality.

PP, or polypropylene, is widely used for automotive components, household products, packaging, containers, and industrial parts. Its relatively low density and versatile processing characteristics make it one of the most widely used injection molding materials.

EPS, or expanded polystyrene, requires application-specific processing and machine configuration. Buyers should confirm the exact material type and molding process because EPS applications can differ from conventional thermoplastic injection molding.

PC, or polycarbonate, is used for components requiring good impact resistance, dimensional performance, and transparency or appearance characteristics. Proper temperature control and material preparation are important when molding PC.

PA, or polyamide, is commonly used for engineering components, automotive parts, gears, bushings, connectors, and other applications requiring mechanical performance. Different PA grades may require specific processing conditions.

Insert Molding and Overmolding Applications

One of the important advantages of a vertical injection molding configuration is its suitability for insert molding. Metal terminals, wires, connectors, bushings, fasteners, and other inserts can be positioned in the mold before the plastic material is injected.

The process can combine plastic with another component in a single molding cycle, potentially reducing secondary assembly operations and improving production consistency.

Vertical machines can also be used for selected overmolding applications. For example, plastic material may be molded around a prepared component to create an integrated finished assembly.

The exact molding method depends on the product structure, insert material, mold design, plastic material, and production requirements.

Applications

Vertical injection molding machines are suitable for a broad range of manufacturing industries. Depending on machine configuration and mold design, applications can include:

Automotive Plastic Parts
Electrical Components
Electronic Connectors
Cable And Wire Overmolding
Plastic Housings
Appliance Components
Industrial Plastic Parts
Consumer Products
Medical-Related Plastic Components
Hardware Insert Molding
Rubber And Plastic Composite Components
Custom Injection Molded Parts

The machine can be integrated into manual, semi-automatic, or automated production lines according to the requirements of the customer.

Precision and Production Efficiency

Consistent injection molding requires accurate control of temperature, injection pressure, injection speed, holding pressure, cooling time, and mold movement. The machine control system allows operators to establish repeatable molding parameters for different production jobs.

For high-volume manufacturing, stable cycle control can help manufacturers maintain consistent part quality while reducing unnecessary material waste and production interruptions.

For precision components, mold quality and machine setup are equally important. Injection molding equipment should be properly matched with the mold, plastic material, part geometry, and required tolerances.

Machine Configuration

The final machine configuration should be selected according to the product and manufacturing process. Important factors may include:

Required Clamping Force
Injection Capacity
Screw Diameter
Injection Pressure
Injection Speed
Mold Dimensions
Mold Opening Requirements
Product Weight
Material Type
Production Cycle
Automation Requirements
Electrical Standards

Customers can provide drawings, product dimensions, material information, mold specifications, and target production capacity so the machine configuration can be evaluated for the intended application.

Automation Options

Depending on the production process, the vertical injection molding machine can be incorporated into an automated production system. Options may include automatic feeding, insert positioning, part removal, conveyor systems, sensors, and other peripheral equipment.

Automation can be particularly useful for repetitive insert molding and high-volume production. For lower-volume or frequently changing production, manual loading may provide greater flexibility.

The appropriate automation level depends on production volume, labor requirements, product design, cycle time, and investment objectives.

Mold Compatibility

The mold is a critical part of the injection molding process. Mold dimensions, cavity layout, runner system, cooling channels, gate design, insert position, and ejection system should all be considered when selecting an injection molding machine.

A machine should have sufficient clamping force and mold space for the selected mold. At the same time, injection capacity should be appropriate for the shot size and material requirements.

For customers using existing molds, providing mold drawings or detailed specifications can help confirm machine compatibility before purchasing.

Operation and Maintenance

Routine maintenance is important for maintaining reliable injection molding machine performance. Operators should follow the equipment manufacturer's maintenance schedule and regularly inspect hydraulic or servo systems, lubrication points, heating components, electrical connections, cooling circuits, and moving components.

The barrel and screw should also be maintained according to the plastic material and production schedule. Material changes may require appropriate purging procedures to reduce contamination between different production materials.

Keeping the mold clean and properly maintained is equally important because mold condition directly affects finished product quality.

OEM and Customized Manufacturing

For injection molding machine distributors, plastic processing companies, and industrial manufacturers, customized machine supply can be an important part of equipment procurement.

We can support OEM and ODM projects according to machine configuration, electrical requirements, control system preferences, mold specifications, automation requirements, branding, packaging, and other customer requirements.

For international buyers, machine specifications can be coordinated according to the destination market's electrical standards and installation requirements.

Why Choose Our Vertical Injection Molding Machine?
Versatile Material Compatibility – Designed for selected applications using ABS, PET, PP, EPS, PC, and PA with appropriate machine configuration.
Vertical Machine Configuration – Suitable for applications where vertical clamping and injection provide convenient mold and insert access.
Insert Molding Capability – Well suited to applications involving metal inserts, connectors, terminals, bushings, and other components.
Flexible Production Applications – Suitable for automotive, electrical, electronic, industrial, consumer, and customized plastic parts.
Custom Machine Configuration – Machine specifications can be selected according to product size, mold requirements, material, and production capacity.
Automation Support – Can be integrated with selected feeding, insert loading, part removal, and other automation equipment.
OEM & ODM Service – Supports customized equipment configurations, branding, packaging, and project-specific requirements.
B2B Wholesale Supply – Suitable for plastic manufacturers, injection molding companies, equipment distributors, importers, and industrial buyers.
Frequently Asked Questions
1. What is a vertical injection molding machine?

A vertical injection molding machine is plastic molding equipment with a vertically arranged injection and clamping configuration. It is commonly used for plastic parts and insert molding applications.

2. Can this machine process ABS?

Yes. ABS can be processed when the machine, screw, barrel, mold, and temperature parameters are appropriately configured for the selected ABS grade.

3. Can it process PP and PA?

Yes. PP and PA can be used for suitable injection molding applications. Processing parameters should be adjusted according to the specific material grade and product requirements.

4. Is the machine suitable for PC?

Yes, selected PC applications can be supported with appropriate temperature control, material preparation, mold design, and machine configuration.

5. Can PET be injection molded?

Yes, certain PET molding applications can be performed with suitable equipment and processing conditions. Proper drying and material handling are particularly important for PET.

6. Can this machine be used for insert molding?

Yes. The vertical configuration is well suited to many insert molding applications because inserts can be positioned in the mold before injection.

7. Can the machine be automated?

Yes. Depending on the application, automation can include material feeding, insert loading, part removal, conveyors, sensors, and other peripheral equipment.

8. How do I select the correct machine size?

The required machine size depends on product weight, mold dimensions, projected area, material, injection volume, required clamping force, and production cycle. Product and mold specifications should be reviewed before selection.

9. Can you customize the machine?

Yes. OEM/ODM customization can be discussed for machine configuration, electrical standards, control systems, branding, packaging, automation, and other requirements.

10. Can you supply machines for international markets?

Yes. International B2B supply can be arranged according to destination-market requirements, machine specifications, electrical standards, packaging, and shipping conditions.
