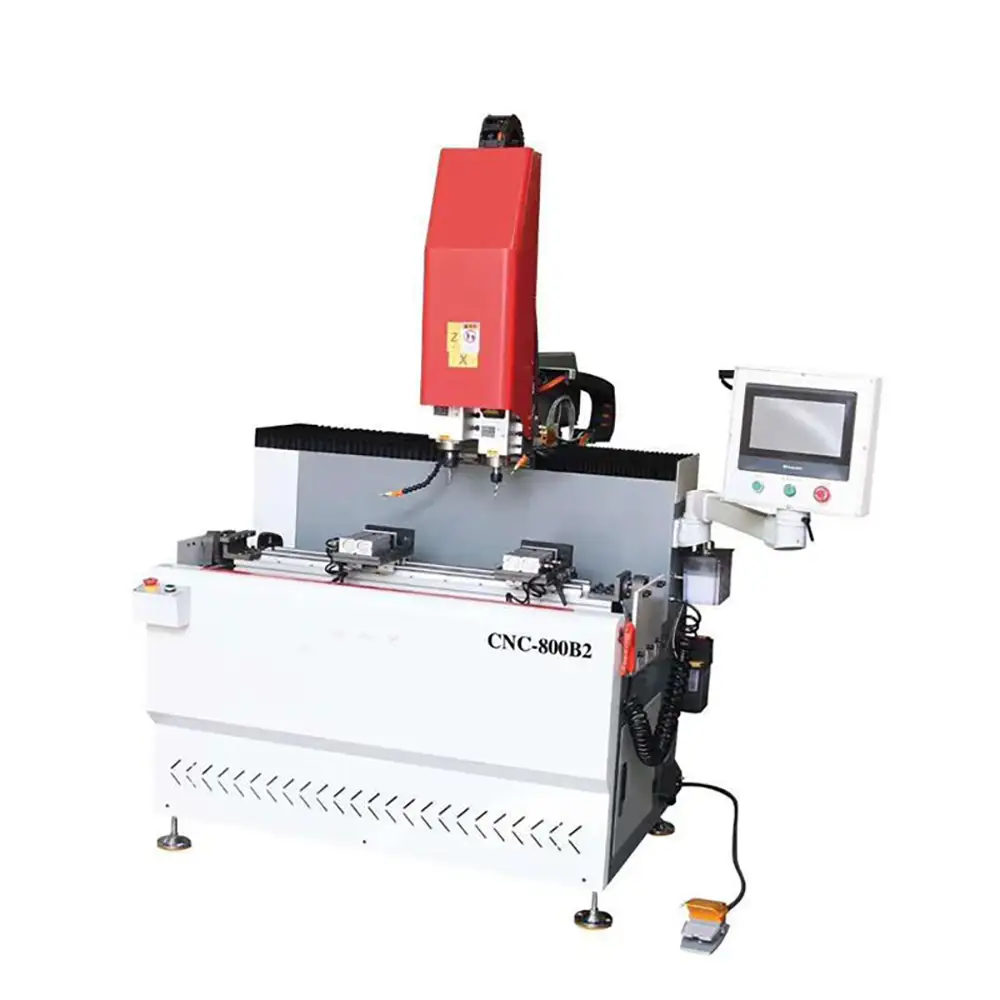

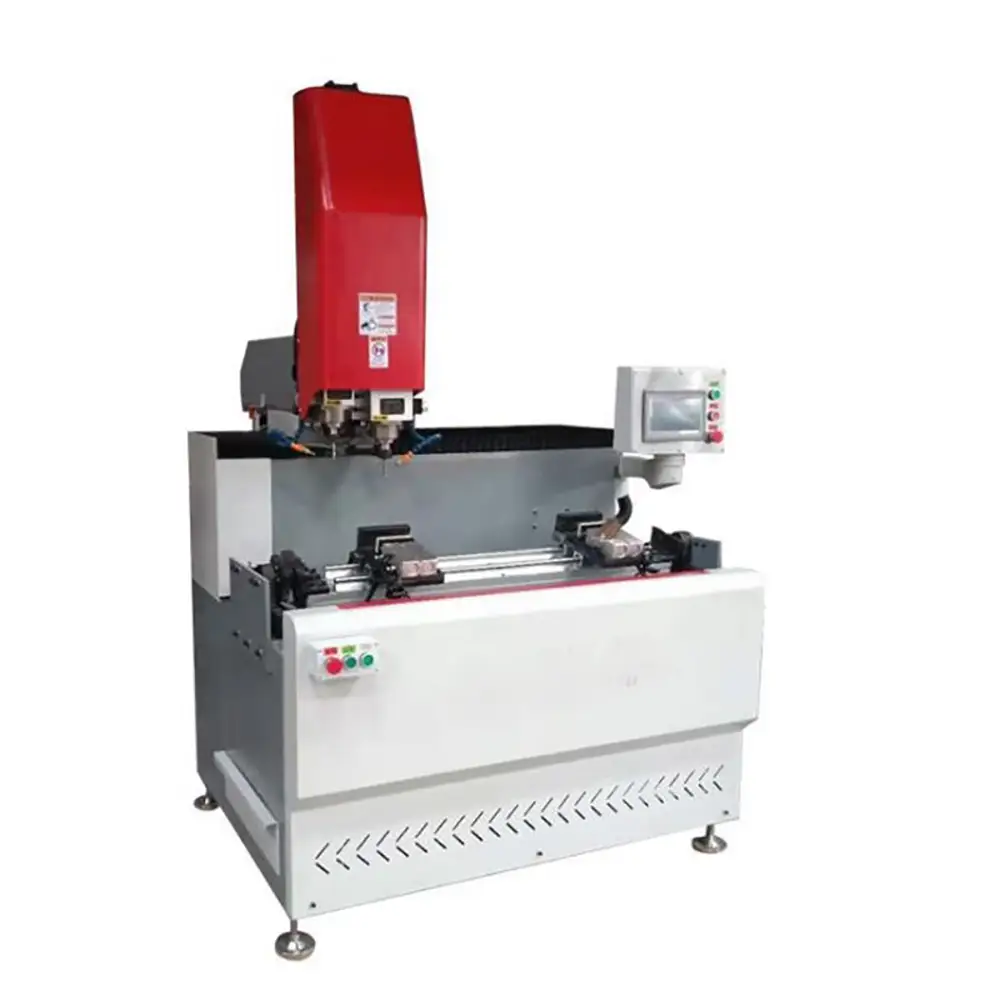

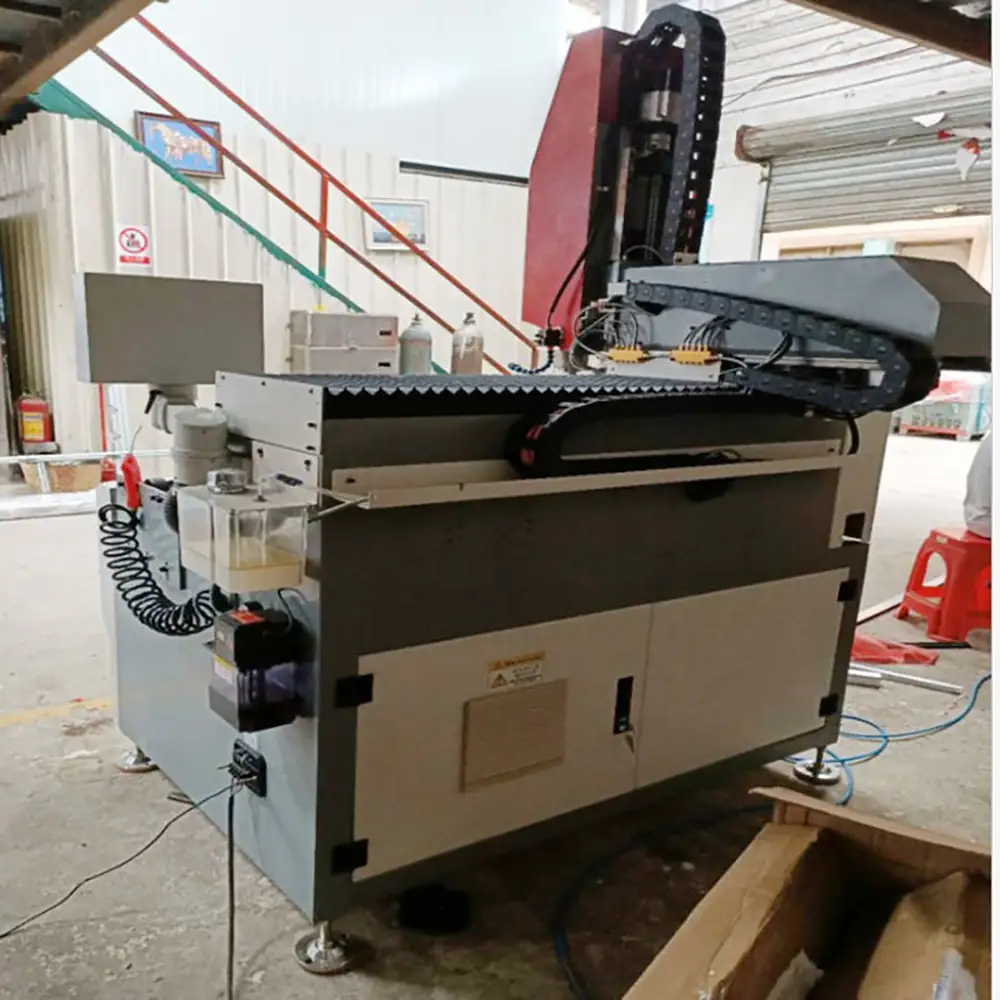

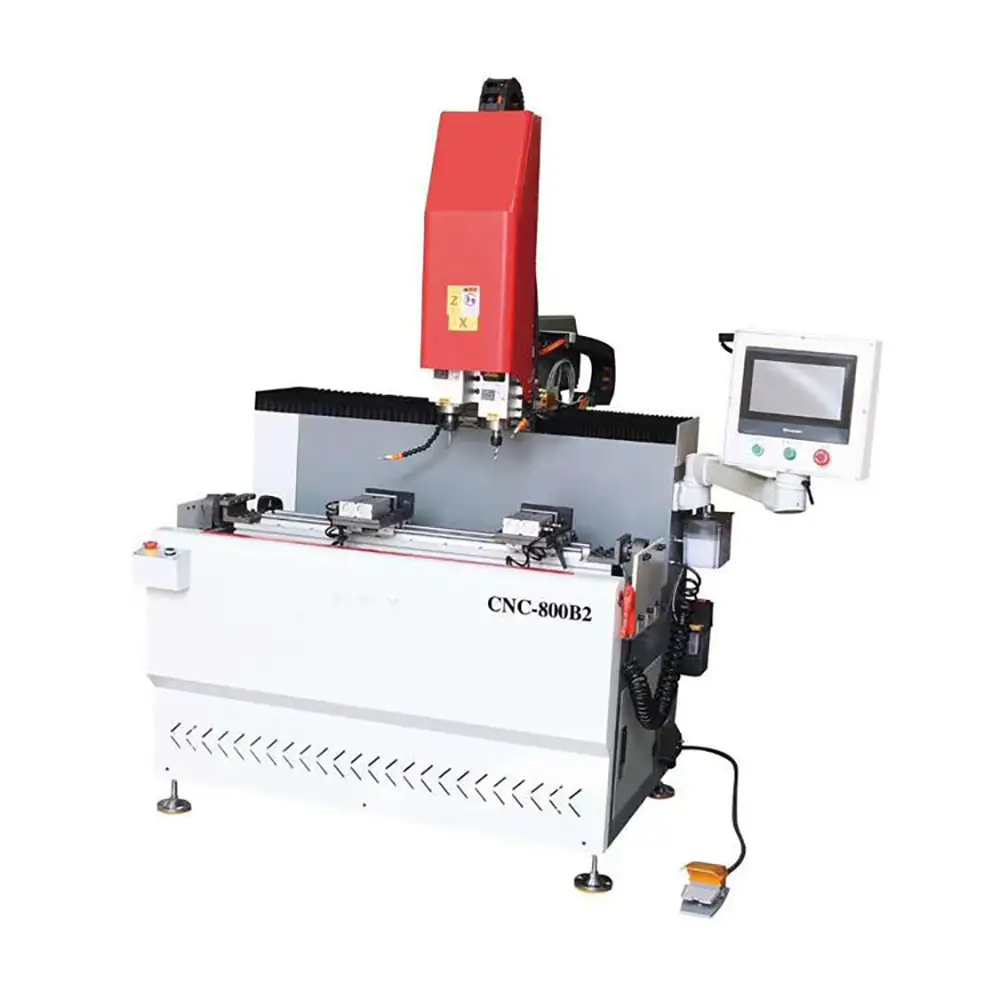

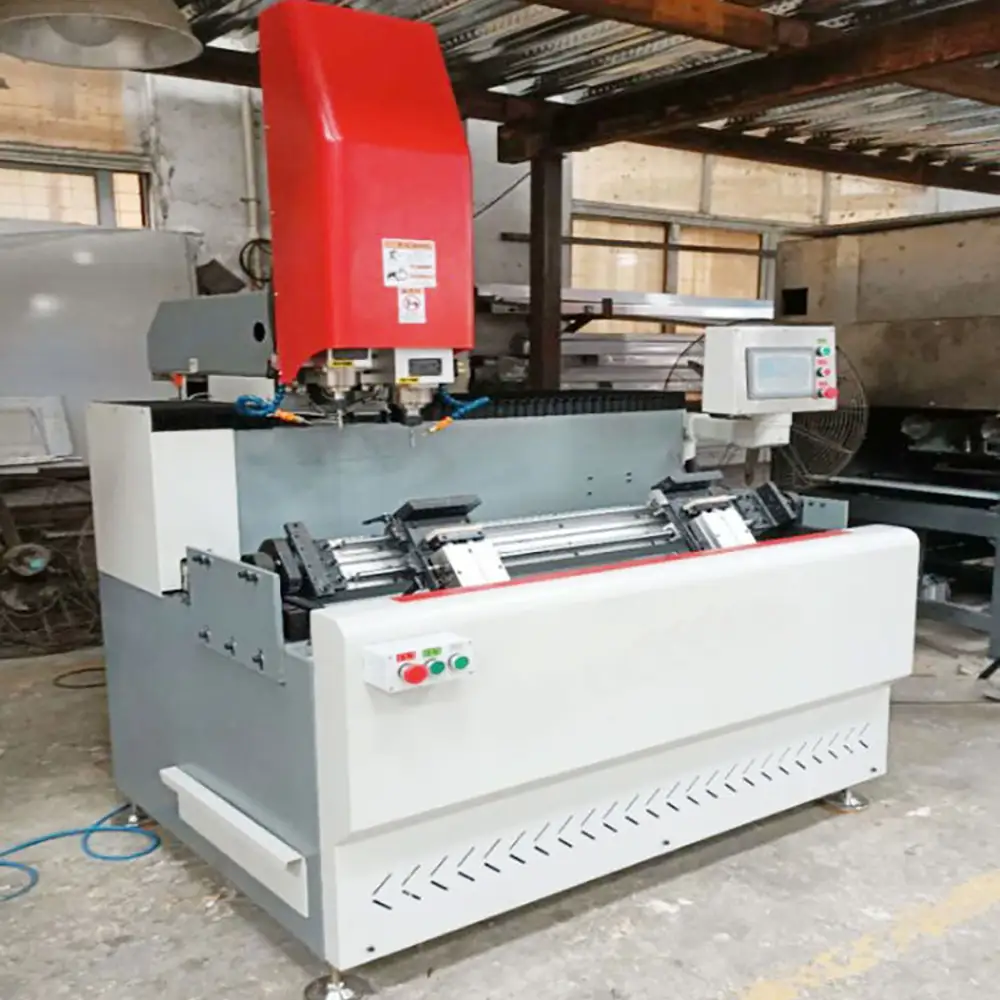

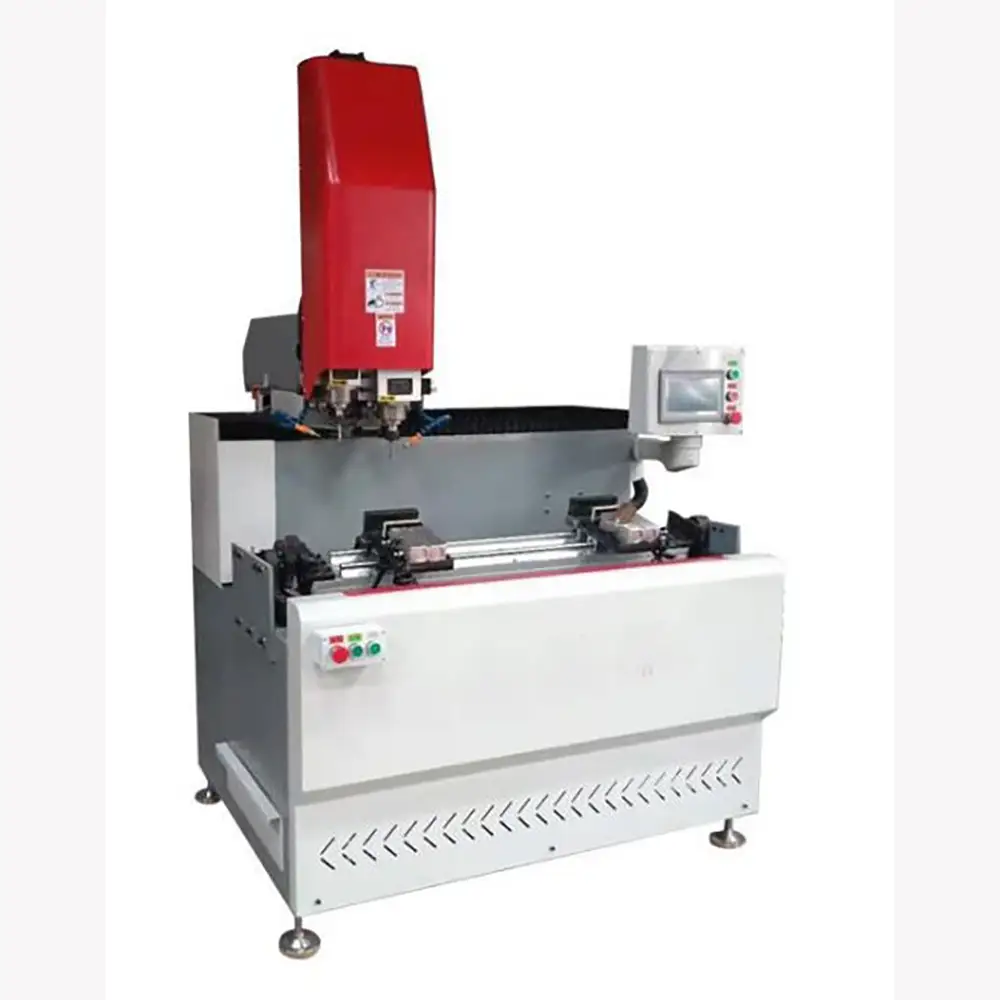

Automatic Multi - Functional Milling and Drilling Machine

Automatic Multi-Functional Milling and Drilling Machine

The Automatic Multi-Functional Milling and Drilling Machine is a versatile metalworking solution designed to combine milling and drilling operations in one machine. By integrating multiple machining functions into a single working platform, the equipment can help manufacturers simplify production processes, reduce workpiece repositioning, and improve machining efficiency.

Milling and drilling are two of the most common operations used in metal fabrication and component manufacturing. Traditional production may require a workpiece to be transferred between different machines for drilling, slotting, face milling, or other machining processes. A multi-functional milling and drilling machine can perform several of these operations within one setup, depending on the machine configuration and available tooling.

The automatic design makes the machine suitable for workshops and industrial manufacturers that need repeatable machining processes. CNC or automatic control functions, depending on the selected configuration, can help control machine movement and machining parameters for consistent production.

Multi-Functional Machining Capability

The main advantage of a multi-functional milling and drilling machine is its ability to combine different machining operations.

Depending on the machine configuration and tooling, typical operations may include:

Drilling
Milling
Slot Milling
Face Milling
Hole Processing
End Milling
Tapping
Counterboring
Reaming
Profile Machining

The exact operations supported depend on the spindle configuration, tooling, control system, machine structure, and workpiece requirements.

For manufacturers producing components that require multiple operations, completing more processes in a single setup can help reduce handling time and improve workflow efficiency.

Automatic Milling and Drilling Process

Automatic operation helps reduce repetitive manual intervention during machining. Once the workpiece is properly positioned and the machining program or operating parameters are established, the machine can perform the required machining cycle according to its configuration.

This can be particularly useful for batch production. Instead of manually positioning the cutting tool for every individual operation, the machine can follow a standardized machining sequence.

Automation does not eliminate the need for proper setup. Operators still need to select suitable tooling, secure the workpiece, verify machining parameters, check tool condition, and inspect finished components.

CNC Metal Machining Applications

The machine is suitable for various metalworking applications where drilling and milling operations are required.

Typical workpieces may include metal plates, blocks, brackets, flanges, frames, machine components, industrial fittings, and customized mechanical parts.

Common industries include:

General Metal Fabrication:
Machining holes, slots, edges, and surfaces on fabricated metal components.

Machinery Manufacturing:
Processing machine parts, brackets, supports, housings, and structural components.

Automotive Components:
Producing selected metal components requiring drilling and milling operations.

Agricultural Machinery:
Machining parts and components used in tractors, agricultural equipment, and implements.

Construction Equipment:
Processing brackets, mounting components, structural parts, and equipment fittings.

Industrial Equipment:
Producing customized mechanical parts for industrial machinery and production systems.

Reduced Workpiece Repositioning

One of the practical benefits of combining milling and drilling functions is reduced workpiece handling.

When multiple operations are performed on separate machines, operators may need to remove the workpiece, transport it to another machine, reposition it, and establish a new reference point. Each additional setup can increase production time and introduce positioning variation.

With a multi-functional machine, several operations can be completed while the workpiece remains secured in the same general setup.

This can help improve workflow efficiency and maintain better positional consistency between related machining operations.

Precision Drilling

Drilling is a fundamental machining operation for many industrial components. The machine can be used for creating holes according to the specified diameter and location within its applicable working range.

For production applications, proper tool selection and cutting parameters are important. Drill diameter, material type, workpiece thickness, spindle speed, feed rate, coolant requirements, and tool condition can all affect the finished hole.

When precise hole positioning is required, the machine should be correctly aligned and calibrated according to the manufacturer's instructions.

Milling Performance

Milling allows material to be removed from a workpiece using a rotating cutting tool. Depending on the machine configuration, milling can be used to produce flat surfaces, slots, steps, pockets, profiles, and other features.

The machine's spindle capacity, travel range, table dimensions, rigidity, tooling system, and motor configuration influence its milling capability.

For heavy-duty machining, customers should provide detailed workpiece information so the appropriate machine specification can be selected.

Flexible Tooling

Different machining operations require different tools. A multi-functional milling and drilling machine can use suitable drilling and milling tools according to the spindle and tooling configuration.

Common tools may include drills, end mills, face mills, reamers, countersinks, and other compatible cutting tools.

Tool selection should be based on workpiece material, required machining operation, cutting depth, hole diameter, surface finish, and production volume.

For automated production, tool management and tool condition monitoring can also become important factors in maintaining stable machining performance.

Workpiece Compatibility

The machine can be used for a broad range of metal workpieces depending on its table size, travel range, spindle capacity, and machine structure.

Common materials may include carbon steel, stainless steel, aluminum, cast iron, and other machinable metals. The appropriate cutting tools and machining parameters vary according to material characteristics.

Before ordering, customers should provide the material type, workpiece dimensions, maximum weight, required machining operations, and desired production capacity.

This information helps determine whether the machine configuration is suitable for the intended application.

Suitable for Small-Batch and Production Work

The automatic multi-functional design makes the machine suitable for both prototype and batch manufacturing applications.

For small-batch production, it can provide a flexible platform for producing different component designs without requiring multiple dedicated machines.

For repetitive production, standardized programs and machining parameters can help establish a consistent manufacturing process.

The actual production capacity depends on the machining cycle, workpiece size, number of operations, tool changes, cutting parameters, and operator workflow.

CNC Control and Automation

A CNC-controlled configuration can provide programmable control over machine movement and machining operations. Digital programs can be created for repeated production, allowing manufacturers to reproduce machining sequences for similar components.

Depending on the selected control system, the machine may support functions such as programmable positioning, coordinate management, machining cycles, and tool-related operations.

Customers with existing CAD/CAM workflows should confirm software compatibility and controller requirements before purchasing.

Machine Structure and Stability

Machining accuracy depends not only on the control system but also on machine rigidity, spindle performance, guide systems, transmission components, workholding, tooling, and installation conditions.

A stable machine structure helps reduce unwanted vibration during machining. Proper workpiece clamping is equally important because movement during milling or drilling can affect dimensional accuracy and surface quality.

For heavy or oversized components, customers should confirm table capacity, working envelope, and maximum workpiece weight before ordering.

Installation and Operation

The machine should be installed on a suitable foundation with adequate space around the equipment for loading, unloading, operation, inspection, and maintenance.

Before production, operators should verify machine alignment, tooling installation, workpiece clamping, cutting parameters, and program settings.

Trial machining can be performed to confirm the machining sequence before full production begins.

Operators should follow the manufacturer's operating instructions and applicable workplace safety requirements.

Maintenance

Routine maintenance helps maintain reliable machining performance. Operators should regularly inspect the spindle, tooling system, guide components, lubrication system, electrical system, fasteners, and other machine components.

Cutting tools should be inspected regularly and replaced when worn. Workholding components should also be checked to ensure that workpieces remain securely positioned.

Keeping the machine clean and following the recommended lubrication and maintenance schedule can help reduce unnecessary downtime and extend equipment service life.

OEM, ODM, and Custom Machinery

The Automatic Multi-Functional Milling and Drilling Machine can be supplied for manufacturers, machinery distributors, wholesalers, metalworking companies, and industrial buyers.

OEM and ODM cooperation can be discussed according to application requirements. Potential customization areas may include machine dimensions, spindle configuration, control system, tooling, table specifications, automation functions, electrical requirements, labeling, packaging, and documentation.

Customers can provide workpiece drawings, material specifications, machining requirements, production volume, and desired automation level for machine evaluation.

FAQ
1. What is a multi-functional milling and drilling machine?

It is a metalworking machine designed to combine milling and drilling operations in one machine, reducing the need to move workpieces between separate machines.

2. Is this machine automatic?

The machine is designed for automatic or CNC-controlled machining depending on the selected configuration. The exact automation functions should be confirmed before ordering.

3. What operations can it perform?

Depending on configuration, operations may include drilling, milling, slotting, face milling, tapping, counterboring, reaming, and other compatible machining processes.

4. What materials can be machined?

Suitable materials may include carbon steel, stainless steel, aluminum, cast iron, and other machinable metals. Tooling and cutting parameters must be selected according to the material.

5. Can the machine be used for batch production?

Yes. Automatic or CNC control makes it suitable for repetitive machining applications when appropriate programs and tooling are established.

6. What are the benefits of combining milling and drilling?

Combining the operations can reduce workpiece handling, shorten setup time, and simplify production workflows for components requiring multiple machining operations.

7. Can it perform precision hole drilling?

Yes. The machine can perform programmed drilling operations within its applicable accuracy and working range. Proper setup, tooling, and workpiece clamping are important for drilling accuracy.

8. Can different cutting tools be used?

Yes. Compatible drills, end mills, face mills, reamers, countersinks, and other tools can be used according to the spindle and tooling system.

9. Can the machine be customized?

Depending on project requirements, machine dimensions, spindle configuration, control system, tooling, automation functions, and other specifications may be customized.

10. What information should I provide when requesting a quotation?

Provide workpiece material, dimensions, maximum weight, required milling and drilling operations, hole sizes, machining accuracy, production quantity, and preferred automation level.

Why Choose Us

1. Multi-Functional Machining
Combines milling and drilling operations to provide a versatile solution for metal component manufacturing.

2. Automatic Production Support
Automatic or CNC control options can reduce repetitive manual machining operations and support consistent production.

3. Reduced Workpiece Handling
Multiple machining operations can be completed within a single setup, depending on the component and machine configuration.

4. Wide Industrial Applications
Suitable for machinery manufacturing, metal fabrication, agricultural equipment, construction equipment, automotive components, and industrial parts.

5. Flexible Tooling
Compatible tooling can be selected according to material, machining operation, hole size, surface requirements, and production volume.

6. Production Flexibility
Suitable for prototype, small-batch, customized, and repetitive production applications.

7. OEM & ODM Support
Machine configuration, control systems, dimensions, tooling, automation, electrical specifications, packaging, and documentation can be discussed.

8. B2B Machinery Supply
We support manufacturers, distributors, wholesalers, workshops, and industrial buyers with application-focused milling and drilling solutions.
