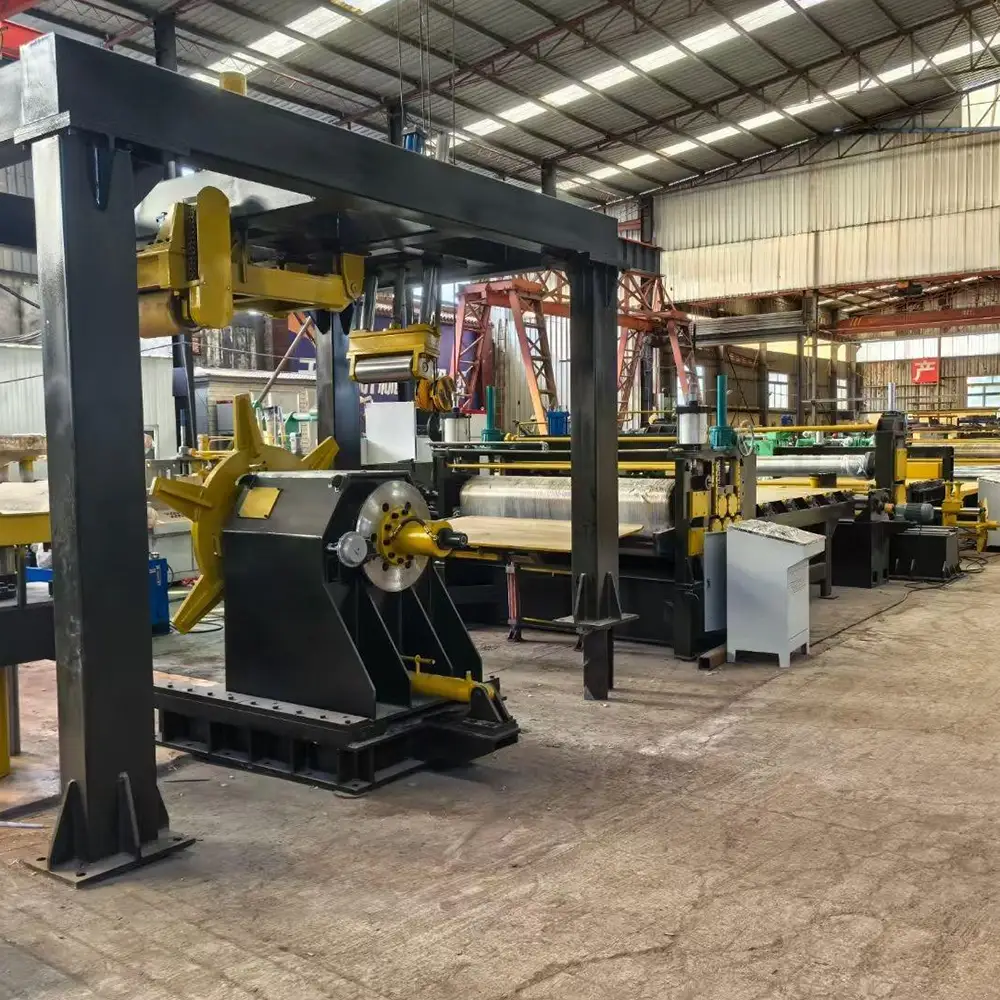

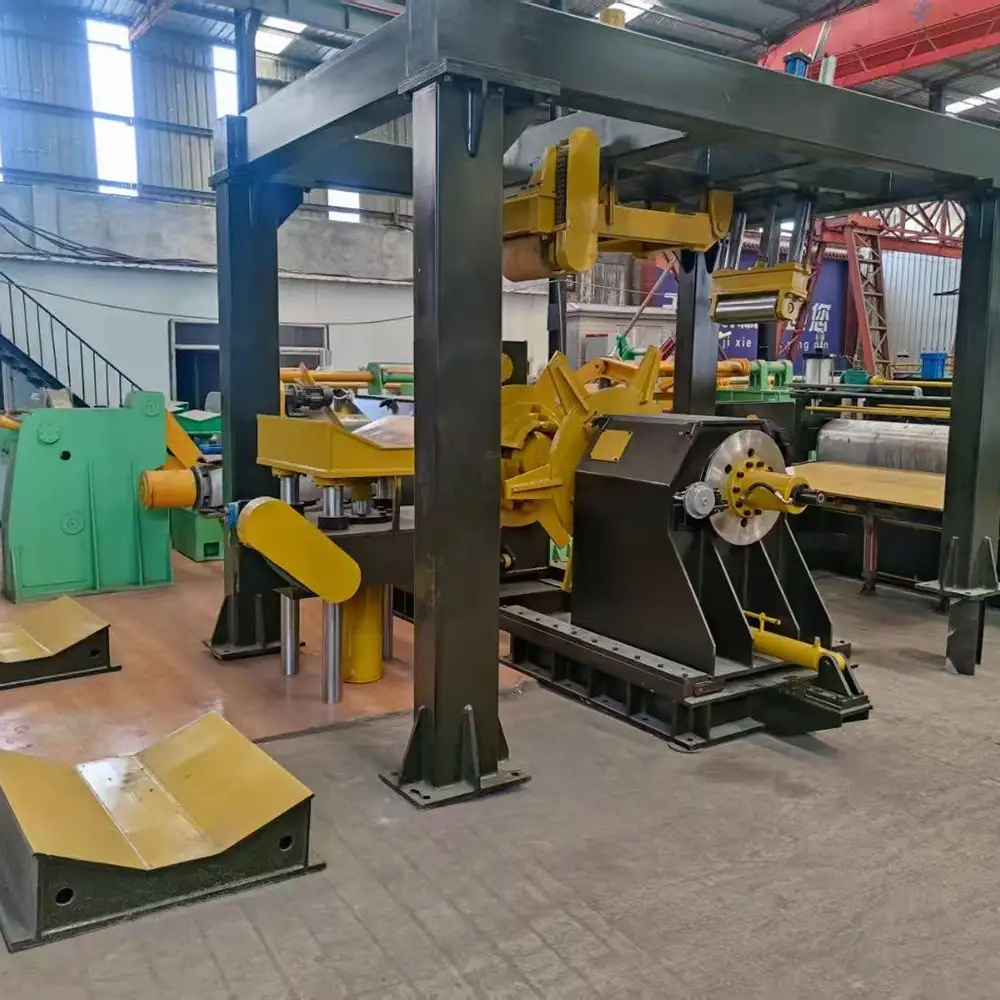

Coil Uncoiler Thick Coil Cut to Length Mandrel Uncoiler Coil Uncoiler Machine Automatic Cutting Machine

The Coil Uncoiler Machine is an essential piece of equipment for modern sheet metal processing and automatic coil-fed production lines. Designed for unwinding metal coils before straightening, leveling, cutting, stamping, forming, or other downstream operations, this automatic mandrel uncoiler provides controlled and continuous coil feeding for industrial applications.

When processing thick steel, stainless steel, aluminum, galvanized steel, and other metal coils, stable coil unwinding is critical to maintaining production efficiency and material handling safety. A properly configured uncoiler supports the coil at the required weight and dimensions while supplying strip material to the next machine at a controlled rate.

This Coil Uncoiler is particularly suitable for cut-to-length lines, where a continuous metal coil is unwound, leveled, and cut into predetermined sheet lengths. Depending on the production configuration, the uncoiler can be integrated with a straightener, feeder, shear, measuring system, and automatic stacking equipment to create a complete coil processing line.

Steel coil cut to length line or coil cutting line or cut to length machineThis equipment is used to decoil, level, fix-length, shear the coil of different specifications into the flatplate with required length. It is suitable to process cold rolled coil, hot rolled coil, galvanized coil,color-coated coil, aluminum coil, stainless steel coil etc.(lf final plates need to change width, slittingmachine need to add into this line to realize this function.)

Inside coil diameter	Φ460mm～Φ530mm
Max.coil outside diameter	Φ1400mm
Max.coil weight	5T

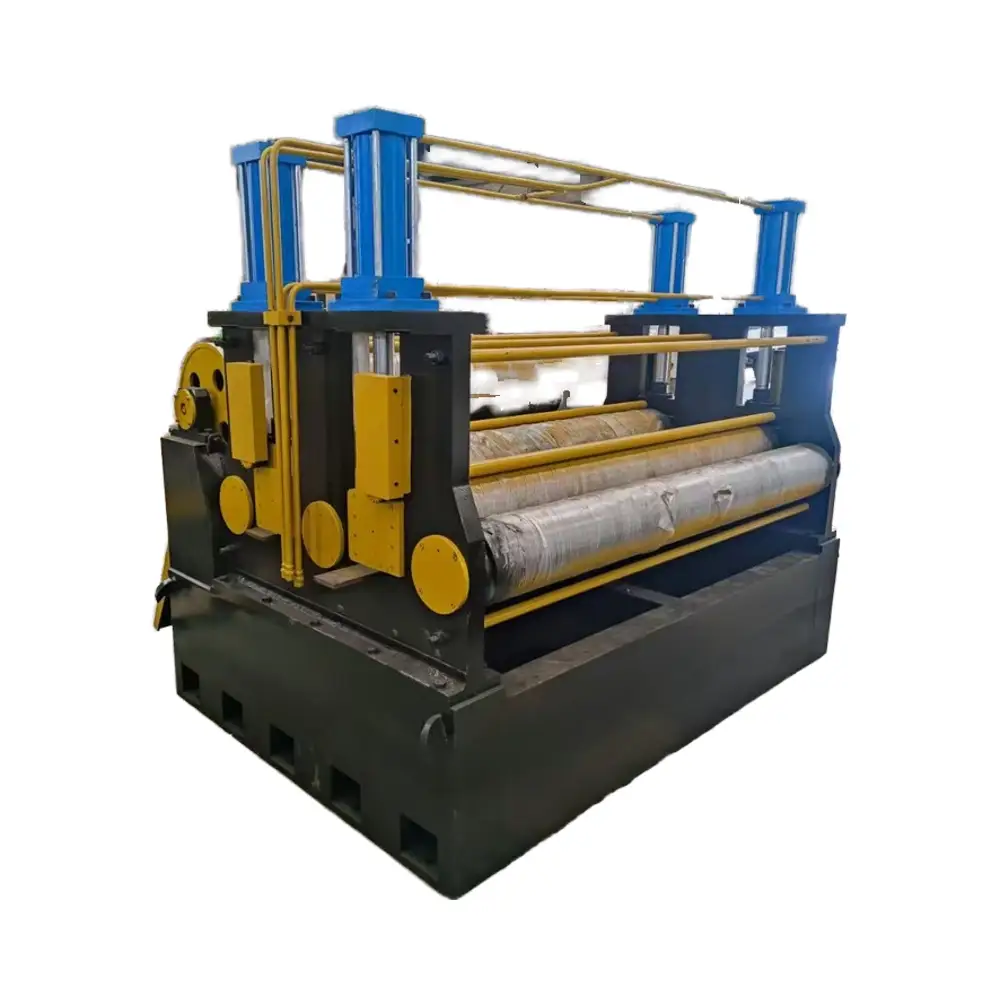

Straightening roll diameter	Φ88mm×7（up4/down3）
Material of straightening roll	GCr15（HRC58-62）
Feeding roll diameter	Φ120mm
Decoiler power	2.2Kw
Straightening power	5.5Kw
Feeding speed	0～20m/min
Feeding precision	<±0.2mm

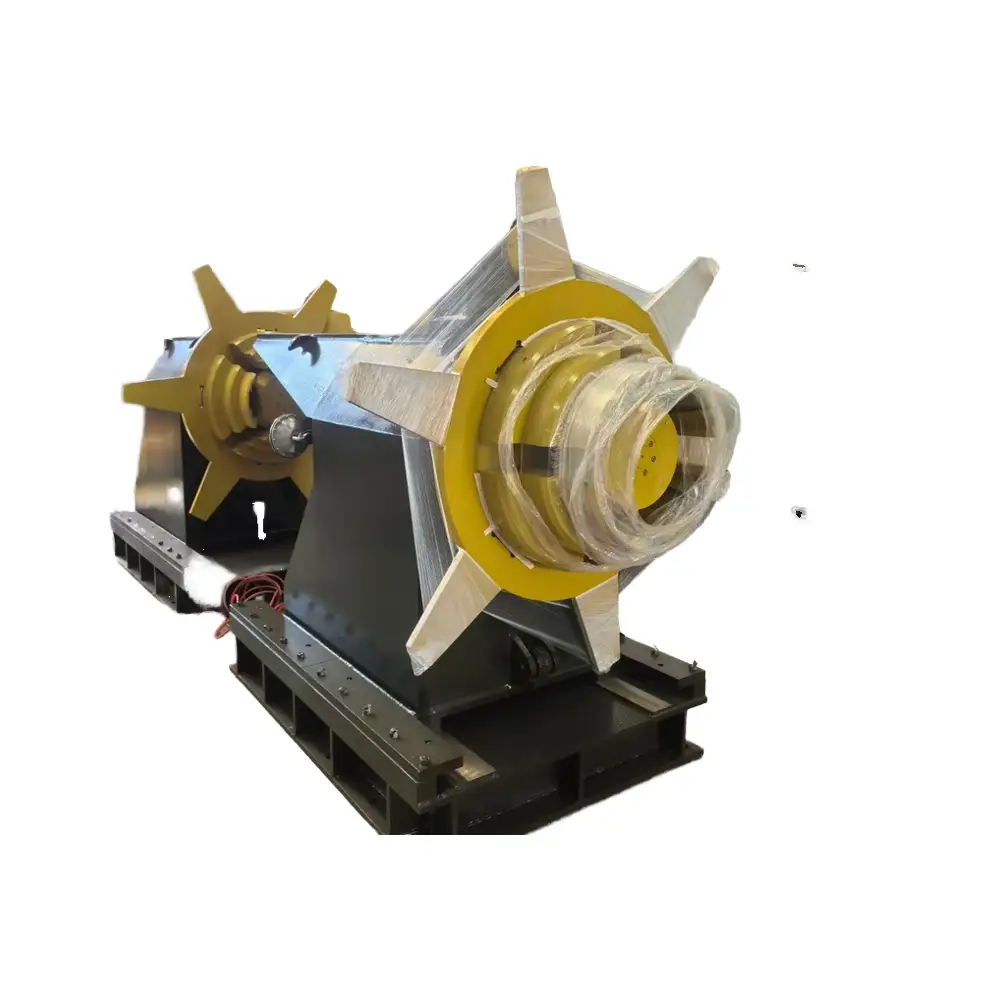

Mandrel Uncoiler Design

The mandrel is the primary component used to support the inner diameter of the metal coil. During operation, the mandrel expands or otherwise engages with the coil ID according to the machine configuration, helping secure the coil during unwinding.

For thick and heavy coils, appropriate mandrel construction and load capacity are especially important. The machine should be selected according to maximum coil weight, coil width, inner diameter, outer diameter, material thickness, and production speed.

A correctly matched mandrel helps maintain stable coil positioning while reducing unwanted coil movement during production.

Automatic Coil Unwinding

The automatic coil uncoiler is designed to reduce manual handling during continuous production. Once the coil is properly loaded and secured, the uncoiling system feeds material toward the downstream equipment.

Automatic operation can improve production workflow by coordinating coil rotation and material feeding with the requirements of the processing line. Depending on the machine configuration, features may include motorized coil rotation, expansion control, braking, speed regulation, and synchronization with the leveling or cutting system.

The actual automation level can be customized according to the production process and line requirements.

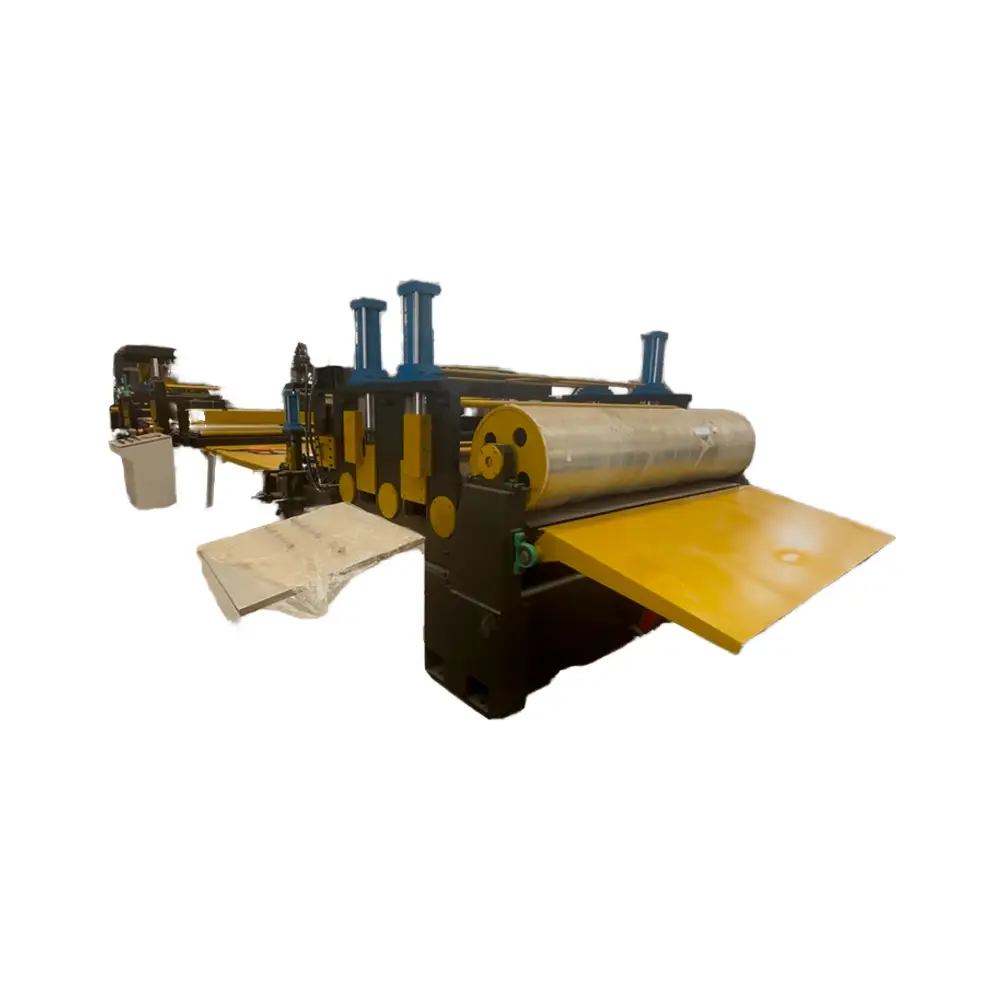

Thick Coil Processing

Thick metal coils require equipment with suitable structural strength and load-bearing capacity. Compared with light-gauge material, thick coils are generally heavier and can require greater unwinding torque and stronger support components.

When specifying a thick coil uncoiler, buyers should consider:

Maximum Coil Weight
Maximum Coil Width
Material Thickness
Coil Inner Diameter
Coil Outer Diameter
Coil Material
Uncoiling Speed
Mandrel Capacity
Required Production Cycle
Downstream Machine Configuration

Providing these parameters allows the machine configuration to be matched more accurately with the intended application.

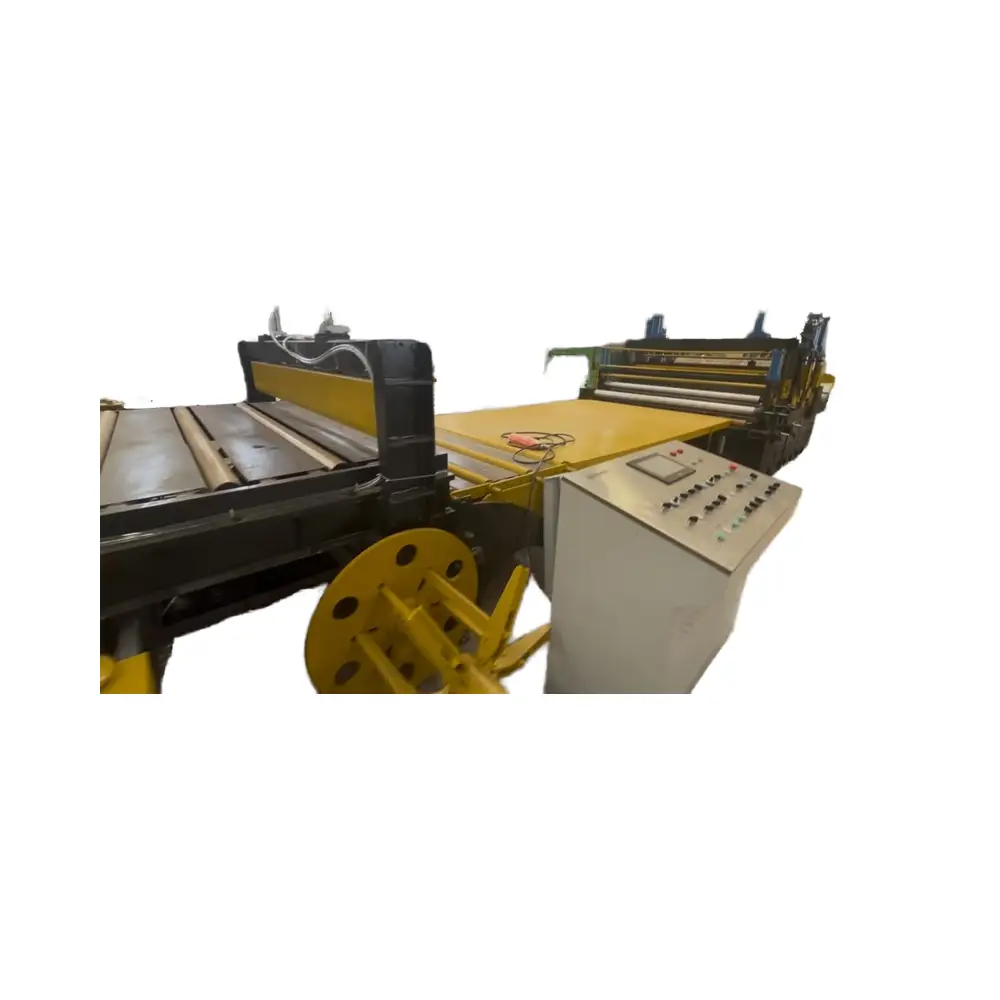

Cut-to-Length Line Applications

One of the main applications for this Coil Uncoiler is a cut-to-length production line. In a typical process, the metal coil is loaded onto the uncoiler and then unwound toward a straightening or leveling machine.

The strip can then be measured and cut into sheets according to the programmed length. Depending on the line configuration, finished sheets can be transferred to an automatic stacking system.

A complete cut-to-length line may include:

Coil Loading Equipment
Coil Uncoiler
Straightener Or Leveler
Servo Feeder
Measuring System
Hydraulic Or Mechanical Shear
Conveyor
Automatic Stacker

The exact configuration depends on material specifications, sheet dimensions, production speed, and automation requirements.

Stable Material Feeding

Consistent strip feeding is important for maintaining cutting accuracy and production efficiency. Uncontrolled coil movement can create tension fluctuations, strip deviation, or feeding instability that may affect downstream processing.

The Coil Uncoiler is designed to provide controlled material release while working together with the straightener and feeding system.

For high-speed lines, synchronization between the uncoiler and downstream equipment becomes particularly important. The machine configuration can therefore be selected according to the required production speed and line control system.

Suitable Metal Materials

Depending on the machine specification, coil uncoilers can be used with different metal materials, including:

Carbon Steel
Stainless Steel
Galvanized Steel
Aluminum
Pre-Painted Steel
Cold Rolled Steel
Hot Rolled Steel
Other Metal Strip Materials

Material thickness and mechanical properties should be confirmed before selecting the machine because different materials may require different unwinding capacities and control configurations.

Industrial Applications

Coil uncoiler machines are widely used in metal processing and manufacturing industries. Typical applications include:

Cut-To-Length Lines
Sheet Metal Processing
Steel Coil Processing
Stainless Steel Processing
Aluminum Coil Processing
Metal Fabrication
Automotive Parts Manufacturing
Appliance Manufacturing
Construction Materials
Electrical Cabinet Production
Roofing And Building Materials
General Industrial Metal Processing

The machine can also be integrated into customized coil processing systems according to production requirements.

Coil Loading and Operation

Proper coil loading is important for safe and reliable operation. The coil should be positioned correctly on the mandrel and secured according to the equipment operating procedure.

Operators should verify coil weight and dimensions before loading. The coil should be compatible with the machine's maximum capacity and mandrel specifications.

After loading, the material strip can be guided toward the straightener or feeder. The line can then be started after confirming that all relevant safety systems and machine settings are ready.

Safety and Maintenance

Coil processing equipment handles heavy metal materials, so proper operating procedures and safety practices are essential. Operators should remain within designated safe areas and follow the machine manufacturer's instructions.

Routine maintenance should include inspection of the mandrel, bearings, drive components, braking system, hydraulic or electrical components, fasteners, sensors, and material-guiding parts.

Lubrication and inspection intervals should follow the machine manufacturer's recommendations. Any abnormal vibration, noise, coil movement, or control behavior should be investigated before continuing production.

Customized Coil Uncoiler Solutions

Different customers require different coil dimensions and production capacities. For this reason, coil uncoilers can be configured according to specific production parameters.

For example, customers may require a machine for relatively light coils, heavy-duty thick coils, wide steel strip, narrow metal strip, high-speed cut-to-length lines, or customized coil processing systems.

OEM and ODM solutions can include machine dimensions, mandrel specifications, coil capacity, motor configuration, control system, electrical standards, safety components, surface treatment, branding, and packaging.

Why Choose Our Coil Uncoiler Machine?
Heavy-Duty Coil Support – Designed for industrial coil unwinding applications, including selected thick and heavy metal coils.
Mandrel Uncoiling System – Provides controlled support and rotation of the coil during material processing.
Automatic Operation – Can be integrated with automated feeding and downstream coil processing equipment.
Cut-To-Length Compatibility – Suitable for integration into complete cut-to-length sheet metal production lines.
Flexible Coil Specifications – Machine configuration can be selected according to coil weight, width, thickness, ID, and OD.
Multiple Metal Materials – Suitable for selected steel, stainless steel, aluminum, galvanized steel, and other coil materials.
OEM & ODM Support – Customized machine configurations and branding options are available for qualified projects.
B2B Industrial Supply – Suitable for metal processing companies, equipment distributors, manufacturers, importers, and production-line integrators.
Frequently Asked Questions
1. What is a coil uncoiler?

A coil uncoiler is a machine used to support and unwind coiled metal strip so that it can be continuously supplied to downstream equipment such as straighteners, feeders, presses, and cut-to-length machines.

2. What is a mandrel uncoiler?

A mandrel uncoiler uses a mandrel to support the inside diameter of the metal coil during unwinding. The mandrel configuration can be selected according to the coil dimensions and machine capacity.

3. Can this machine handle thick coils?

Yes, heavy-duty configurations can be designed for selected thick and heavy coils. Maximum coil weight and material thickness should be confirmed before ordering.

4. Can the uncoiler be used in a cut-to-length line?

Yes. Coil uncoilers are commonly integrated with straighteners, feeders, shears, measuring systems, conveyors, and stackers in cut-to-length production lines.

5. What materials can be processed?

Depending on the machine configuration, suitable materials may include carbon steel, stainless steel, galvanized steel, aluminum, cold rolled steel, hot rolled steel, and other metal strip materials.

6. How do I choose the correct uncoiler?

Important parameters include coil weight, width, thickness, inner diameter, outer diameter, material type, unwinding speed, and downstream equipment specifications.

7. Is automatic feeding available?

Yes. Automatic coil rotation and feeding functions can be configured depending on the machine model and production-line requirements.

8. Can the uncoiler work with a straightening machine?

Yes. The uncoiler can be integrated with a straightener or leveler to create a continuous coil processing system.

9. Can you customize the coil uncoiler?

Yes. OEM/ODM customization can cover machine capacity, mandrel specifications, electrical standards, control systems, branding, and other project requirements.

10. Can you supply complete cut-to-length lines?

Yes. Depending on the project, the coil uncoiler can be supplied as part of a complete cut-to-length or customized metal coil processing line.
