Small Hardware Auto Feeding Hollow PCB Circuit Board Clutch Plate Pneumatic Mini Eyelet Riveting Press Machine

Small Hardware Auto Feeding Pneumatic Mini Eyelet Riveting Press Machine

The Small Hardware Auto Feeding Hollow PCB Circuit Board Clutch Plate Pneumatic Mini Eyelet Riveting Press Machine is designed for efficient riveting and fastening of small components, hollow rivets, eyelets, hardware parts, and precision assemblies. Its compact pneumatic press design and automatic feeding concept make it suitable for repetitive industrial riveting applications where stable positioning and consistent fastening are important.

Small components often require accurate riveting because excessive force, poor alignment, or inconsistent rivet placement can affect the final assembly. A dedicated mini riveting press provides a controlled working process while reducing repetitive manual operations.

Depending on the tooling and configuration, the machine can be adapted for applications involving PCB-related components, clutch plate assemblies, small metal hardware, eyelets, hollow rivets, and other suitable products.

Model	J5E
Operation way	Semi automatic
Feeding	Single rail
Oval eyelet diameter	Φ6-28mm
Oval eyelet barrel diameter	Φ3-12mm
Oval eyelet length	3-8mm
Throat depth	130mm
Power	1/2, HP
Machine dimensions(L×W×H)	720×660×1430mm3
Net weight	90kg
Gross weight	120kg
Packing	Wooden cases

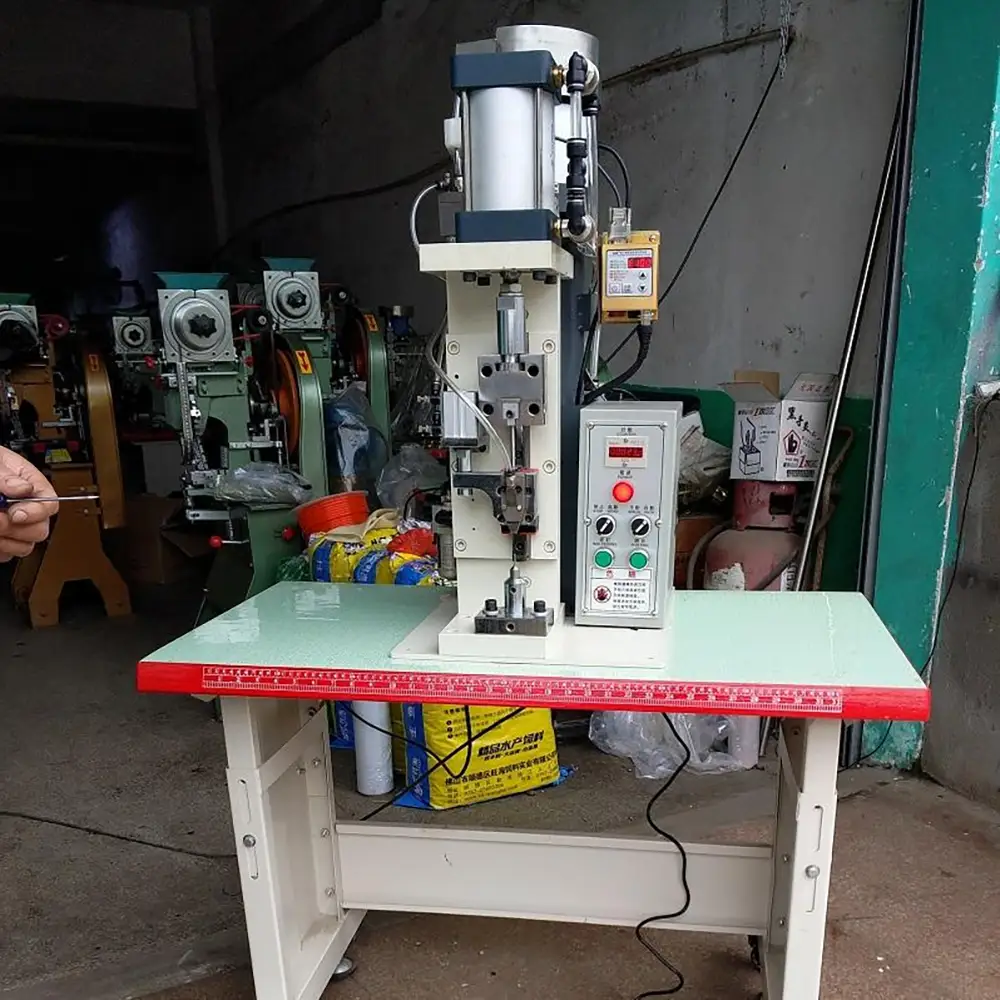

Mini Pneumatic Riveting Machine

The mini pneumatic riveting machine uses compressed air to provide the pressing force required for riveting. Its compact design makes it suitable for production workstations where manufacturers need dedicated equipment for small parts.

Compared with manual riveting, pneumatic operation can provide a more repeatable pressing cycle. This is useful for production environments where the same riveting operation needs to be performed repeatedly throughout the day.

The actual riveting pressure and tooling should be selected according to the rivet material, diameter, workpiece construction, and required finished rivet shape.

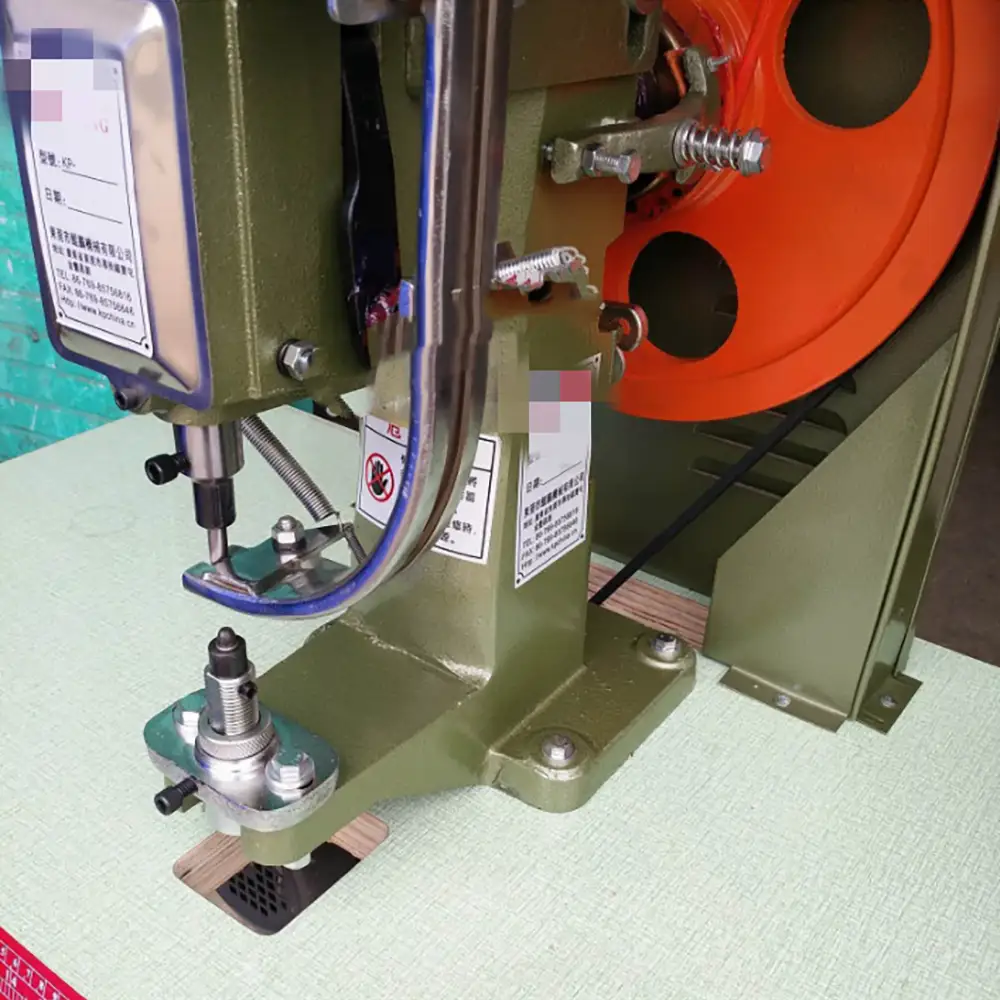

Automatic Feeding Riveting Machine

Automatic feeding is an important feature for repetitive small-rivet applications. Instead of manually placing every rivet into the riveting position, a compatible feeding system can deliver rivets to the working area.

This can reduce operator handling and help establish a more continuous production workflow.

The feeding system should be matched to the shape, size, length, and material of the rivet. Hollow rivets, eyelets, tubular rivets, and other small fasteners may require different feeding configurations.

For special fasteners, customers can provide samples for evaluation before selecting the final feeding system.

Hollow Rivet Press Machine

Hollow rivets and tubular rivets are widely used in applications where a lightweight but secure mechanical connection is required. The hollow structure also allows the rivet end to be formed during the riveting process.

A hollow rivet press machine uses suitable tooling to position and form the rivet. The punch and die should be matched to the rivet dimensions to achieve a consistent finished connection.

The machine can be considered for small hardware, electrical components, textile accessories, leather goods, metal assemblies, and other products using compatible hollow rivets.

Mini Eyelet Riveting Machine

The mini eyelet riveting machine is designed for applications requiring small eyelets or similar tubular fasteners.

Eyelets are commonly used to reinforce holes and provide a clean finished connection. With appropriate tooling, the machine can perform the pressing or forming operation needed to secure the eyelet to the workpiece.

This type of equipment can be useful for manufacturers processing small batches as well as factories requiring continuous production of small hardware components.

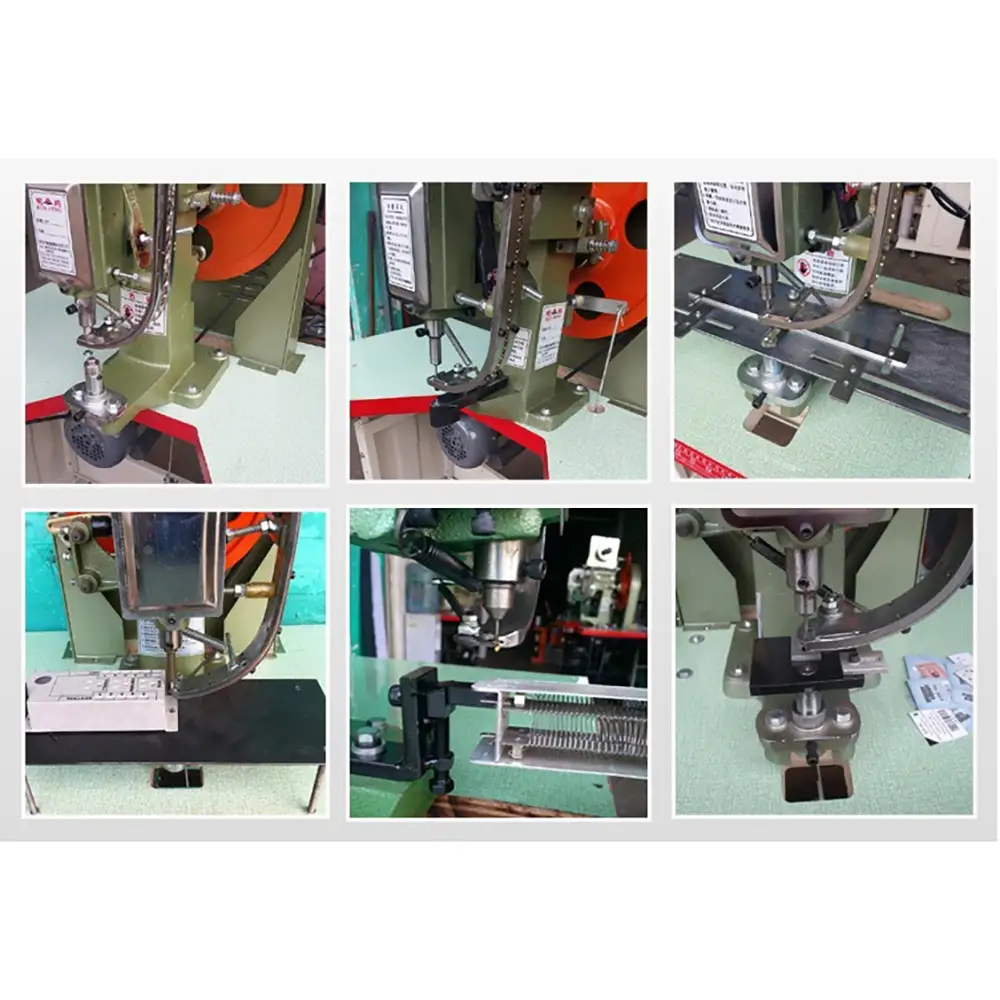

PCB Circuit Board Riveting Applications

PCB and electronic component manufacturing may involve small hardware and fastening components that require controlled installation.

For PCB-related applications, the machine configuration must be selected carefully according to the actual board structure, hole dimensions, hardware specifications, and fastening requirements.

Potential applications may include compatible PCB hardware, small terminal components, spacers, tubular fasteners, and other mechanical components used in electronic assemblies.

The machine should not be selected based only on the product name. Actual PCB samples and hardware specifications should be tested to confirm tooling compatibility and avoid damage to the circuit board or surrounding components.

Clutch Plate Riveting Applications

Clutch plate and automotive component production can involve repetitive riveting operations for suitable components.

The machine can be configured for certain small clutch-related riveting applications when the rivet size, component structure, and required riveting force are compatible with the equipment.

Dedicated fixtures can help hold the clutch component in a stable position during the riveting cycle. This is particularly useful when multiple rivets need to be installed at repeatable positions.

For automotive applications, manufacturers should provide the clutch component and rivet specifications so the appropriate machine configuration can be evaluated.

Small Hardware Riveting Machine

Small hardware components are often difficult to process efficiently using large general-purpose machines. A compact riveting press can provide a dedicated solution for small parts.

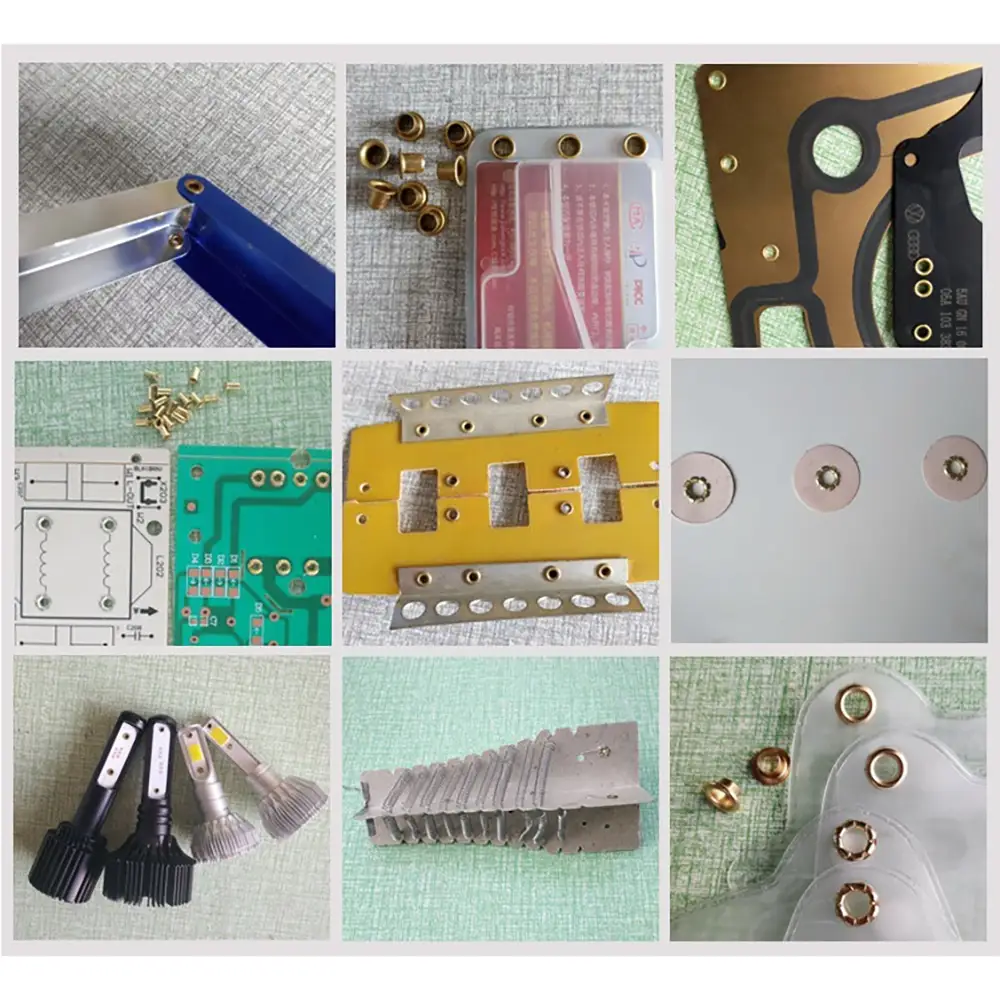

Typical compatible applications may include:

Small Metal Hardware
Hollow Rivets
Tubular Rivets
Eyelets
Small Brackets
Metal Fittings
Electronic Hardware
PCB Hardware
Automotive Hardware
Clutch Components
Textile Hardware
Leather Hardware

The machine's actual application range depends on the selected dies, fixtures, feeding system, and pneumatic configuration.

Precision Riveting for Small Components

Small components require careful alignment between the rivet, workpiece, punch, and die.

A suitable fixture helps maintain the workpiece position during the riveting process. This is particularly important for small parts where even a small positioning error can affect the finished product.

The machine can be configured with application-specific fixtures and tooling to support different workpiece shapes.

Manufacturers should test the actual product before mass production to verify the rivet forming result and workpiece protection.

Automatic Rivet Feeding

Automatic rivet feeding can significantly reduce repetitive manual placement. The feeder supplies individual rivets to the riveting position according to the machine's operating cycle.

For high-volume production, this can help improve workflow efficiency and reduce operator fatigue.

Different fasteners may require different feeding methods. Hollow rivets, eyelets, tubular rivets, and small hardware components should be evaluated individually to ensure reliable feeding.

If the rivets have irregular shapes or unusual dimensions, customized feeding solutions may be considered.

Pneumatic Pressing and Riveting

The pneumatic press system provides a practical power source for repetitive riveting. Compressed air drives the pressing mechanism, allowing the machine to perform repeated cycles with controlled operation.

Pneumatic riveting is widely applicable to production environments because it can reduce the physical effort required from operators compared with manual pressing.

The machine can be used as an independent workstation or potentially integrated into a larger assembly process depending on the required production workflow.

Flexible Tooling and Customization

One of the key considerations for small-component riveting is tooling compatibility.

Different products may require different punches, dies, fixtures, feeding rails, and positioning systems. The machine can therefore be configured according to the actual application.

For OEM and custom projects, customers can provide:

Product Samples
Rivet Samples
Rivet Dimensions
Workpiece Dimensions
Material Information
Required Hole Size
Riveting Position
Production Volume

These details help determine the appropriate machine and tooling configuration.

Improve Production Efficiency

Manual installation of hundreds or thousands of small rivets can consume considerable labor. Automatic feeding combined with pneumatic riveting can create a more efficient production process.

The operator can focus on loading workpieces, monitoring production, and inspecting finished components rather than manually positioning every rivet.

For manufacturers with stable and repetitive production requirements, a dedicated automatic feeding riveting machine can help standardize the riveting process and improve production consistency.

Production Quality and Process Control

A reliable riveting process depends on correct tooling, feeding, alignment, and pneumatic settings.

Manufacturers should inspect:

Rivet Diameter
Rivet Length
Rivet Material
Hole Diameter
Workpiece Material
Workpiece Thickness
Rivet Position
Finished Rivet Shape
Fastening Quality

Regular inspection can help identify problems such as feeding errors, tooling wear, misalignment, or inconsistent rivet forming.

Why Choose Our Mini Pneumatic Eyelet Riveting Machine?

Compact Industrial Design
The mini format is suitable for small-component riveting workstations and production environments with limited workspace.

Automatic Feeding Capability
Compatible automatic feeding systems can reduce repetitive manual rivet placement.

Pneumatic Press Operation
Compressed-air operation provides a practical solution for repetitive pressing and riveting cycles.

Suitable for Small Hardware
The machine can be configured for compatible hollow rivets, eyelets, tubular rivets, and small hardware.

Flexible Tooling
Different dies, punches, fixtures, and feeding components can be selected according to the application.

Wide Industrial Applications
Potential applications include electronic hardware, PCB-related components, clutch components, automotive parts, textile hardware, leather goods, and other small assemblies.

OEM and Custom Solutions
Custom tooling and machine configurations can be evaluated based on product samples and production requirements.

Main Applications

The machine can be used for suitable:

Small Hardware Riveting
Hollow Rivet Installation
Eyelet Riveting
Tubular Rivet Setting
PCB Hardware Assembly
Circuit Board Hardware Installation
Clutch Plate Riveting
Automotive Component Riveting
Metal Hardware Fastening
Electronic Component Assembly
Textile Hardware Riveting
Leather Hardware Riveting
Small Metal Component Assembly
How to Choose the Right Mini Riveting Machine?

First, identify the exact rivet or eyelet you need to install. Provide the rivet diameter, length, material, and shape.

Second, identify the workpiece. PCB boards, clutch plates, metal hardware, textile materials, and other components may require different tooling.

Third, confirm the required hole size and riveting position. This information is essential for selecting the punch, die, and fixture.

Fourth, determine the desired production volume. Automatic feeding is especially useful for repetitive high-volume applications.

Finally, provide samples whenever possible. Testing the actual rivet and workpiece is the best way to confirm machine and tooling compatibility.

FAQS

Q1: What is a mini pneumatic riveting machine?
It is a compact riveting press that uses compressed air to perform repetitive riveting and fastening operations on small components.

Q2: Can this machine automatically feed hollow rivets?
Yes, an automatic feeding system can be configured when the hollow rivet dimensions and geometry are suitable for automated feeding.

Q3: Can it install eyelets?
Yes. With suitable punching and forming tooling, the machine can be configured for compatible eyelet applications.

Q4: Can it be used for PCB circuit boards?
It can be considered for compatible PCB hardware and mechanical fastening applications. The actual PCB and fastener should be tested before production.

Q5: Can the machine be used for clutch plates?
Yes, suitable clutch plate riveting applications can be evaluated according to the rivet, component structure, and required fastening process.

Q6: What types of rivets can be used?
Depending on the configuration, the machine may be suitable for hollow rivets, tubular rivets, eyelets, and other compatible small fasteners.

Q7: Can the riveting tooling be customized?
Yes. Punches, dies, fixtures, and feeding components can be customized according to specific application requirements.

Q8: Is automatic feeding suitable for high-volume production?
Automatic feeding can improve the workflow for repetitive riveting operations and reduce manual rivet placement.

Q9: What information is needed for a quotation?
Provide rivet samples or dimensions, workpiece samples, material information, hole size, riveting position, and expected production volume.

Q10: Can this machine be integrated into an automated production line?
Depending on the application and machine configuration, it can be considered for integration into a larger assembly or production process.

Conclusion

The Small Hardware Auto Feeding Hollow PCB Circuit Board Clutch Plate Pneumatic Mini Eyelet Riveting Press Machine is a compact and flexible solution for manufacturers requiring repetitive riveting of small hardware and components. Its pneumatic press design, automatic feeding capability, and configurable tooling make it suitable for a wide range of industrial fastening applications.
