Fully Automatic Plastic Eyelet / Grommet Riveting Machine for Shoes

Automatic Plastic Eyelet Riveting Machine

The automatic plastic eyelet riveting machine is developed for repetitive eyelet installation in footwear production. Automatic operation can reduce manual handling and help maintain a consistent production rhythm.

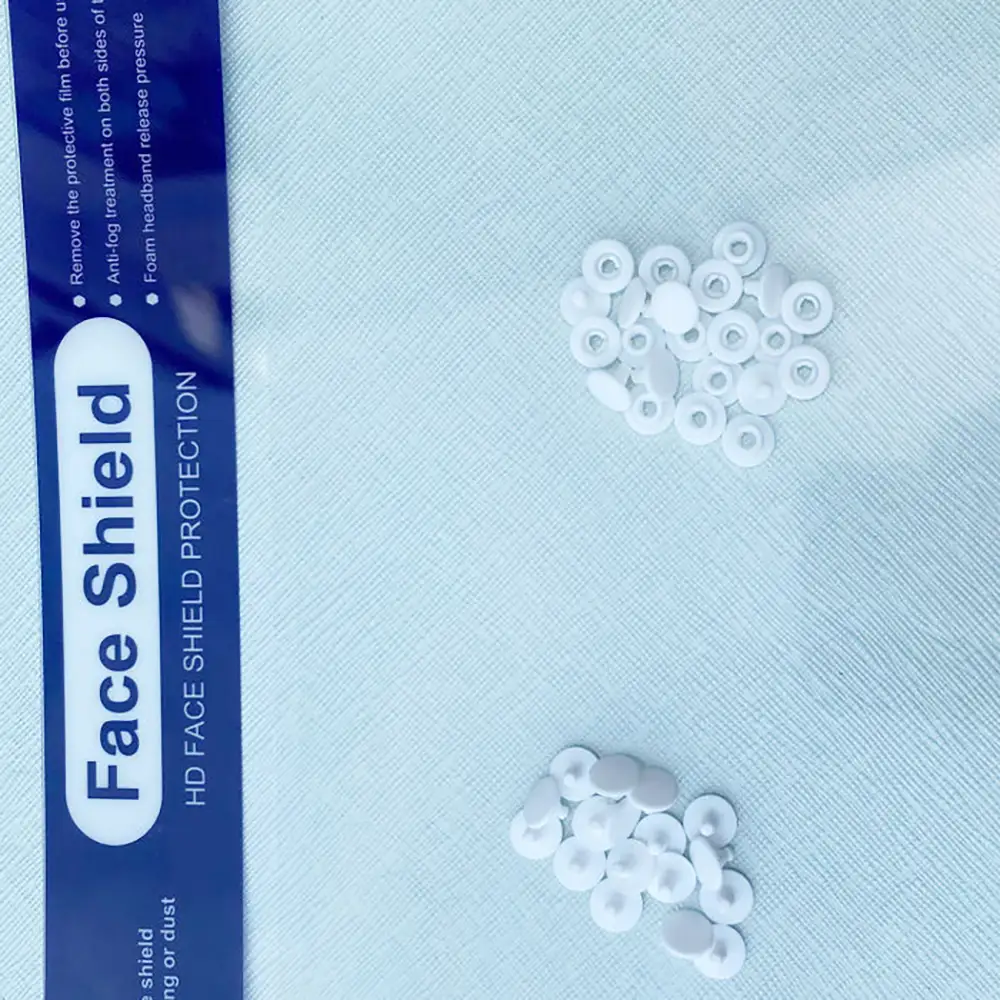

Plastic eyelets are lightweight and may have different shapes, diameters, heights, and material characteristics compared with metal eyelets. The feeding and setting system therefore needs to be matched to the actual eyelet design.

Manufacturers can provide eyelet samples and shoe materials when selecting the machine so that the appropriate feeding mechanism, punch, die, and fixture can be configured.

Plastic Grommet Riveting Machine

Plastic grommets are commonly used when manufacturers need a reinforced or decorative opening without using traditional metal hardware.

The plastic grommet riveting machine positions the grommet around the prepared hole and applies controlled pressure to secure it to the shoe material. Suitable tooling helps maintain alignment between the grommet, hole, and workpiece.

Depending on the product structure, the machine can be used for different footwear materials, including compatible leather, synthetic leather, textile, mesh, and composite shoe materials.

Shoe Eyelet Riveting Machine

The shoe eyelet riveting machine is designed specifically for footwear production. Shoe eyelets must be positioned accurately because incorrect spacing can affect both the appearance and function of the finished shoe.

Automatic positioning and dedicated fixtures can help maintain consistent eyelet placement throughout production. This is particularly useful for shoes with multiple eyelets along the same lace line.

The machine can be used for different shoe styles and production designs when the appropriate tooling is selected.

Automatic Shoe Grommet Machine

An automatic shoe grommet machine can simplify the repetitive process of installing grommets into footwear uppers.

Typical applications may include:

Athletic Shoes
Casual Shoes
Sports Footwear
Work Shoes
Fashion Shoes
Boots
Children's Shoes
Canvas Shoes
Textile Shoes
Leather Shoes

Different shoe materials have different thicknesses and flexibility. Testing the actual shoe upper and plastic grommet is recommended before mass production.

Automatic Eyelet Feeding

One of the key advantages of a fully automatic system is automatic eyelet or grommet feeding.

The feeding mechanism supplies individual eyelets to the riveting station without requiring the operator to manually position every component. This can reduce repetitive hand work and improve production efficiency.

Feeding performance depends on the geometry and dimensions of the plastic eyelet. Eyelets with unusual shapes or irregular surfaces may require customized feeding components.

For high-volume footwear production, reliable feeding is important because feeding interruptions can affect the entire production workflow.

Consistent Eyelet Positioning

Accurate eyelet positioning is essential in footwear manufacturing. Eyelets that are unevenly spaced or incorrectly aligned may affect shoelace movement and create an inconsistent appearance.

The machine can use dedicated fixtures and positioning mechanisms to help maintain repeatable placement. Manufacturers can configure the workstation according to the shape and structure of the shoe upper.

For different shoe models, customized fixtures may be required to accommodate different curves, sizes, and eyelet patterns.

Plastic Eyelet Setting Process

The plastic eyelet setting process normally involves several basic stages.

First, the shoe material is positioned in the fixture. The hole can be prepared using an appropriate punching process when required. The plastic eyelet is then supplied to the working position through the feeding system.

The machine aligns the eyelet with the prepared hole and applies the required setting force. The eyelet is then secured to the material through the appropriate forming or pressing process.

The exact sequence depends on the machine configuration and the specific plastic eyelet design.

Suitable Footwear Materials

The machine can be evaluated for various shoe upper materials, depending on the plastic eyelet and tooling.

Potential materials include:

Leather
Synthetic Leather
PU Materials
PVC Materials
Canvas
Textile
Mesh
Fabric
Composite Materials

Material thickness, flexibility, surface structure, and resistance to deformation should be considered when selecting the tooling.

Improve Footwear Production Efficiency

Manual eyelet installation can become a bottleneck in high-volume shoe production. Each shoe may require multiple eyelets, meaning that thousands of individual installation operations may be required during a production run.

Automation can reduce repetitive manual operations and create a more consistent production workflow.

A fully automatic shoe eyelet riveting machine can help manufacturers improve processing efficiency while reducing the amount of manual component placement required from operators.

This makes the machine suitable for footwear factories, shoe hardware manufacturers, OEM footwear suppliers, and contract manufacturers.

Consistent Riveting Quality

A stable riveting process requires correct alignment between the eyelet, shoe material, punch, and die.

Proper tooling can help reduce problems such as:

Loose Eyelets
Misaligned Grommets
Material Damage
Uneven Eyelet Setting
Incorrect Eyelet Position
Deformed Plastic Components

Manufacturers should conduct sample testing before mass production to confirm that the eyelet is securely installed without damaging the shoe upper.

Flexible Tooling and Customization

Different footwear products use different eyelet sizes, shapes, and installation positions. For this reason, tooling flexibility is important.

The machine can be configured with appropriate feeding components, punches, dies, and fixtures according to the plastic eyelet and shoe design.

OEM customers can provide shoe samples, plastic eyelet samples, product drawings, and production requirements. Based on this information, a suitable machine configuration can be evaluated.

OEM and Custom Footwear Solutions

Footwear manufacturers may require customized solutions for special eyelet designs or unique shoe structures.

Custom fixtures can be developed to support different shoe sizes and upper shapes. Feeding systems can also be evaluated for special plastic eyelets or grommets.

For automated production projects, the machine may be considered as part of a larger footwear assembly process depending on the factory workflow and automation requirements.

Why Choose Our Fully Automatic Plastic Eyelet Riveting Machine?

Fully Automatic Operation
Automatic feeding and riveting can reduce repetitive manual operations and improve production workflow.

Designed for Footwear
The machine is suitable for shoe eyelet and plastic grommet installation applications.

Plastic Eyelet Compatibility
Dedicated tooling and feeding systems can be configured according to different plastic eyelet designs.

Consistent Positioning
Fixtures and positioning systems help maintain repeatable eyelet placement.

Flexible Tooling
Punches, dies, feeders, and fixtures can be selected according to the product.

High Production Efficiency
Automatic component feeding reduces manual handling and supports continuous production.

OEM and Custom Support
Customized machine configurations can be evaluated according to shoe samples, eyelets, and production requirements.

Main Applications

The machine can be used for:

Shoe Eyelet Installation
Plastic Eyelet Riveting
Plastic Grommet Setting
Shoe Grommet Installation
Footwear Eyelet Riveting
Shoe Lace Hole Reinforcement
Sports Shoe Production
Casual Shoe Manufacturing
Leather Shoe Production
Canvas Shoe Manufacturing
Boot Eyelet Installation
Textile Footwear Production
Fashion Footwear Manufacturing
How to Choose the Right Shoe Eyelet Riveting Machine?

First, confirm the eyelet or grommet material. Plastic eyelets may require different feeding and tooling solutions from metal eyelets.

Second, provide the eyelet dimensions, including outside diameter, inner diameter, height, and overall shape.

Third, identify the shoe material and thickness. Leather, synthetic leather, canvas, mesh, and composite materials can behave differently during riveting.

Fourth, determine the required eyelet spacing and production volume. High-volume production may benefit from a fully automatic configuration.

Finally, provide actual shoe samples and plastic eyelet samples whenever possible. Sample testing helps determine whether the feeding and riveting tooling is suitable.

FAQS

Q1: What is a plastic eyelet riveting machine?
It is a machine designed to automatically install plastic eyelets into suitable materials by feeding, positioning, and setting the eyelet.

Q2: Can this machine install plastic grommets on shoes?
Yes. With compatible tooling, the machine can be configured for plastic grommet installation on footwear.

Q3: Is the machine fully automatic?
The machine is designed for fully automatic eyelet feeding and riveting, depending on the selected configuration.

Q4: Can it be used for leather shoes?
It can be used for compatible leather footwear applications after confirming the material and eyelet specifications.

Q5: Can it work with canvas and textile shoes?
Yes. Canvas, textile, mesh, and other suitable shoe materials can be evaluated through sample testing.

Q6: Can different plastic eyelet sizes be used?
Different sizes and shapes may require corresponding feeding and riveting tooling. The exact configuration should be confirmed according to the eyelet specifications.

Q7: Can the eyelet spacing be customized?
The positioning and fixture configuration can be adapted according to the shoe design and required eyelet arrangement.

Q8: Does automatic feeding reduce labor?
Automatic feeding reduces the need for operators to manually place individual eyelets, helping streamline repetitive production work.

Q9: Can the machine be customized for special shoes?
Yes. Custom fixtures and tooling can be evaluated for special shoe shapes, eyelet patterns, and plastic grommet designs.

Q10: What information is needed for a quotation?
Provide shoe samples, plastic eyelet or grommet samples, dimensions, shoe material, eyelet spacing, production volume, and any special requirements.
