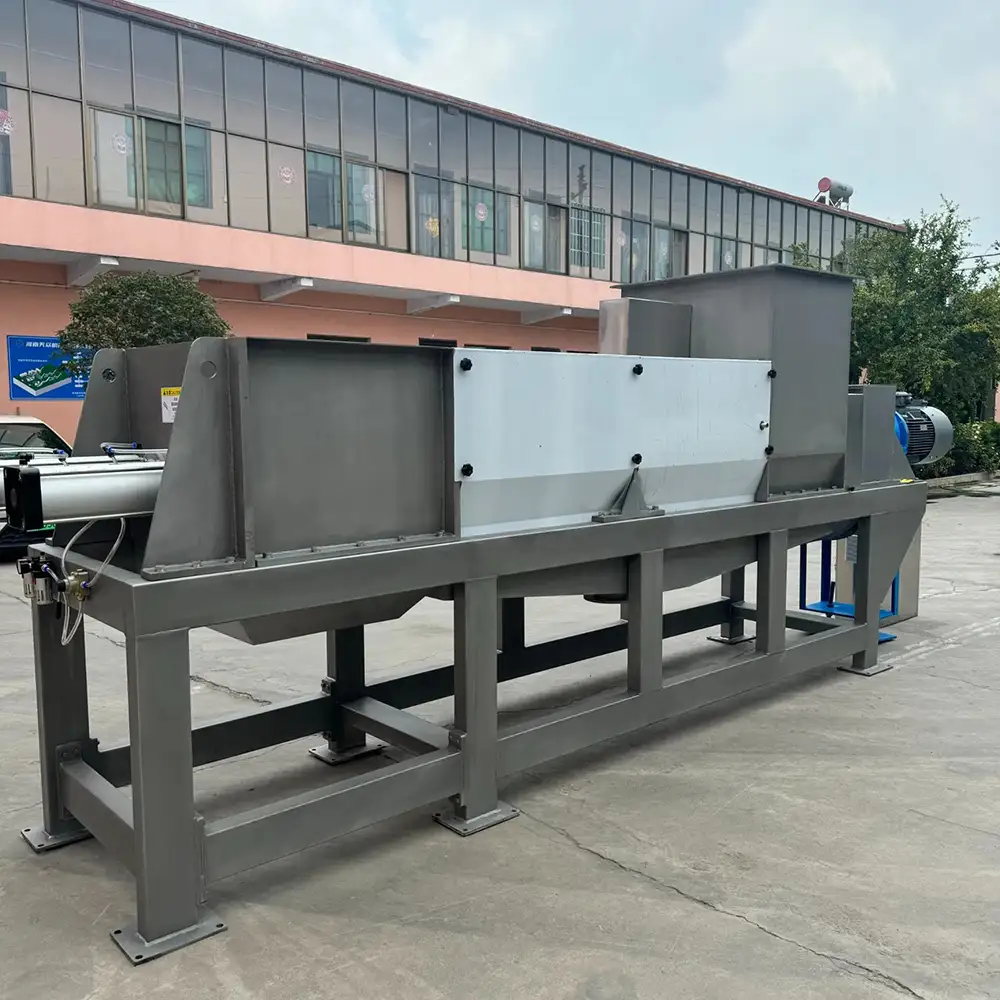

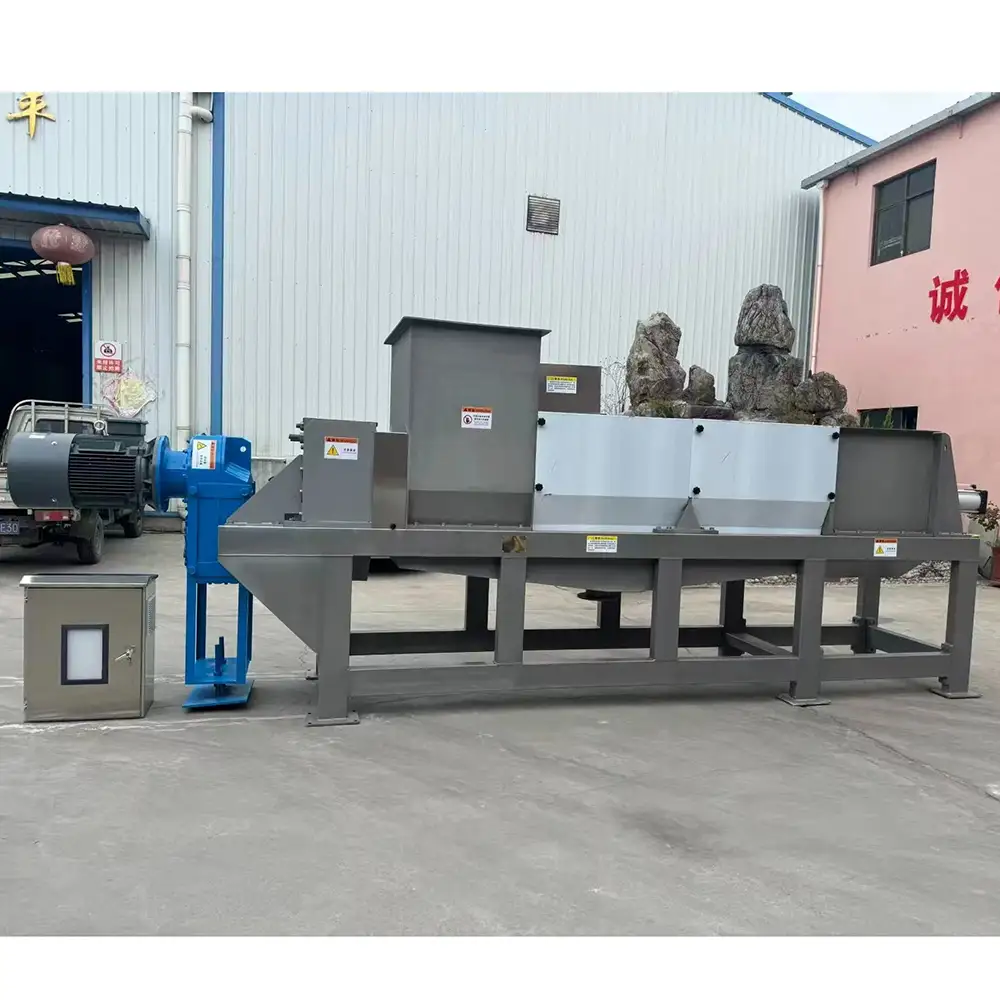

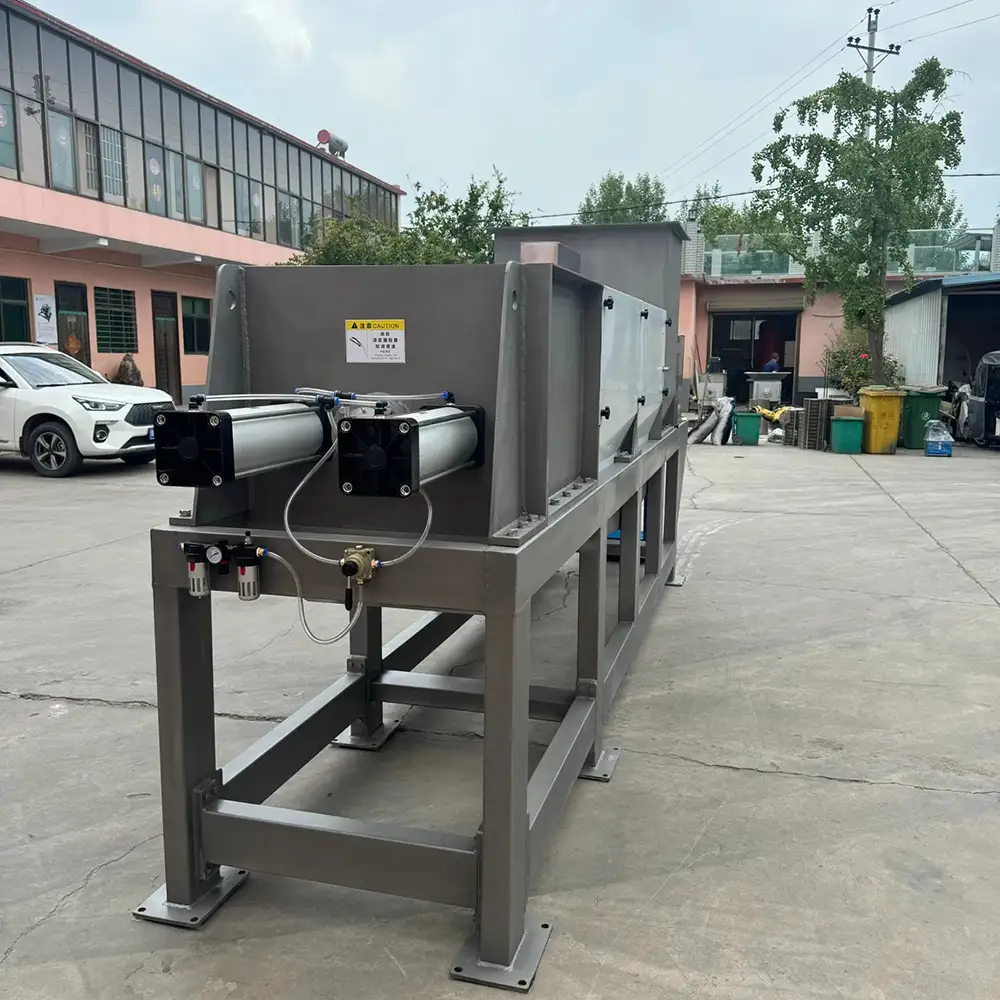

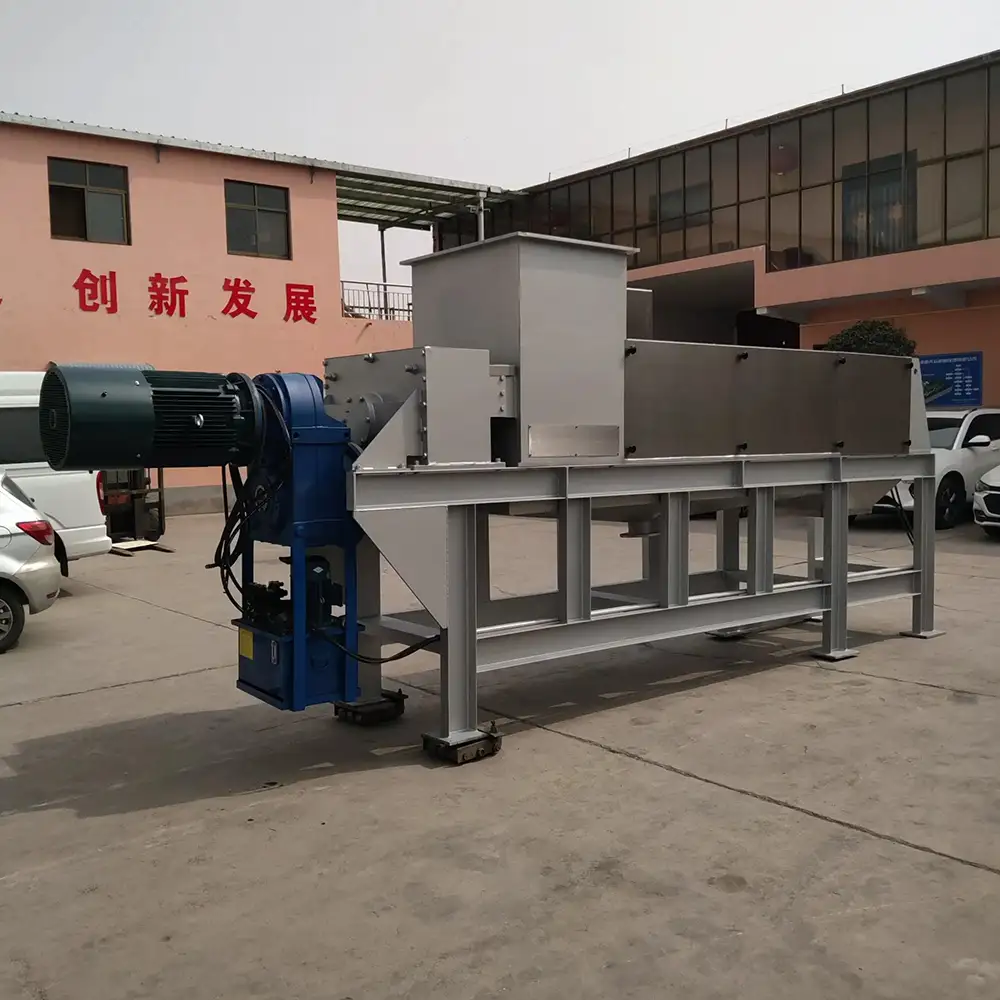

Screw Press Machine - High-Efficiency - Sludge Dewatering

the screw press filter uses the rotation of a screw shaft to propel the material forward.  Simultaneously, it applies compressive pressure to the material through a gradually decreasing screw pitch and increasing shaft diameter, or through the gradually narrowing space between fixed and movable rings. This forces the liquid in the material to be expelled through the screen or the gaps between the rings, while the solid material is compressed and discharged from the outlet, thus achieving solid-liquid separation.

The Screw Press Machine - High-Efficiency - Sludge Dewatering is a continuous solid-liquid separation system designed to reduce the water content of sludge and other wet materials. It is widely used in municipal wastewater treatment plants, industrial wastewater facilities, food processing plants, livestock farms, agricultural operations, and other applications that require reliable sludge dewatering.

Compared with traditional batch-type dewatering equipment, a screw press system can provide continuous sludge thickening, compression, and dewatering within a compact machine. The rotating screw gradually conveys the material through the dewatering chamber while controlled pressure helps separate liquid from the solids.

The separated liquid can be directed to further wastewater treatment, while the dewatered sludge is discharged for transportation, composting, disposal, drying, incineration, digestion, or other downstream processing.

Continuous Sludge Dewatering

One of the main advantages of a screw press machine is its continuous operating principle. Sludge enters the feed section and is gradually transported forward by the rotating screw.

As the sludge moves through the dewatering zone, the available space becomes progressively restricted. Mechanical compression encourages free water and liquid to pass through the filtration structure while the concentrated solids continue toward the discharge end.

This continuous process reduces the need for frequent batch loading and unloading and can provide a stable sludge processing workflow.

High-Efficiency Solid-Liquid Separation

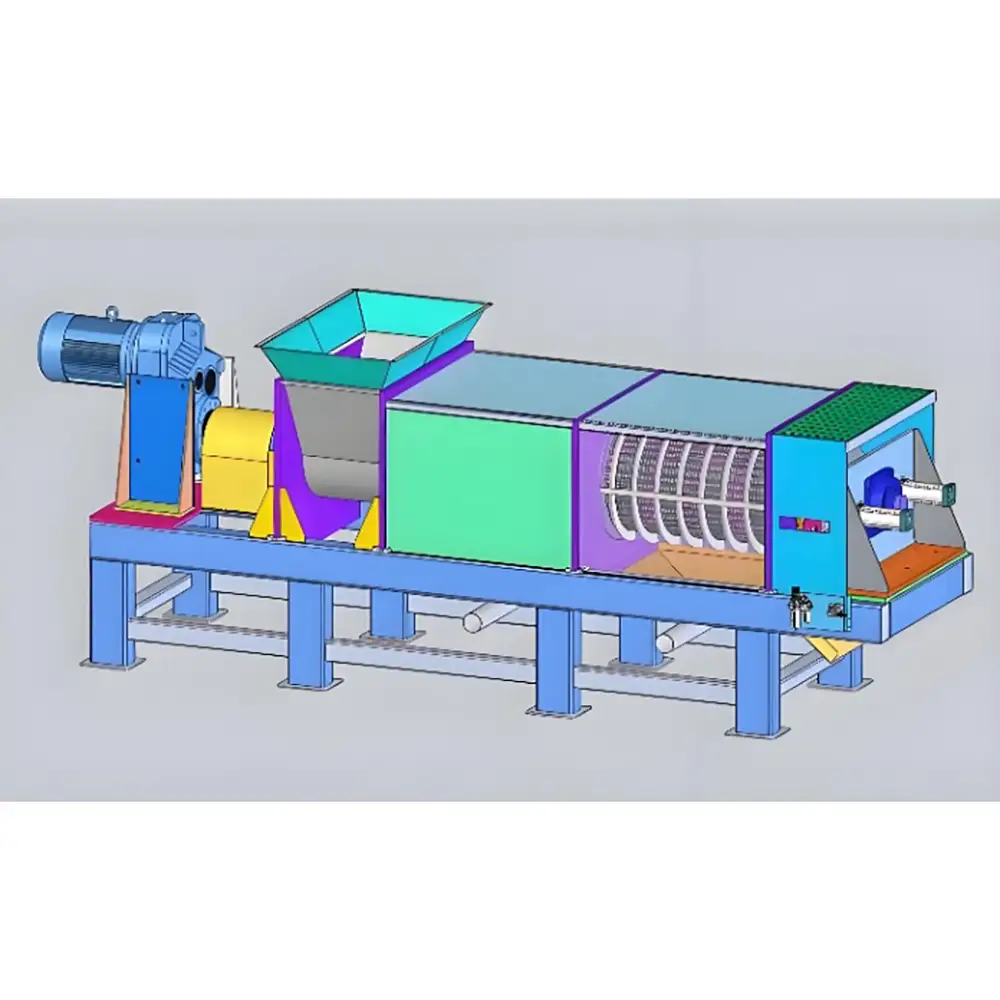

The screw press combines conveying, thickening, compression, and filtration in a single processing unit.

A specially designed screw shaft transports the sludge while the filtration section allows separated liquid to drain from the material. As the sludge advances, increasing compression helps remove additional free and interstitial water.

Actual dewatering performance depends on sludge characteristics, polymer conditioning, solids concentration, temperature, and machine configuration. Therefore, equipment selection should be based on the characteristics of the customer's feed material.

Sludge Thickening And Compression

Before intensive dewatering, sludge generally needs to be concentrated to improve the efficiency of the separation process.

The screw press gradually thickens the incoming sludge as it moves through the machine. The filtration structure allows liquid to escape while retaining a greater proportion of solids.

At the compression stage, mechanical pressure further reduces the moisture content of the sludge cake.

This integrated thickening and compression process makes the screw press suitable for continuous wastewater sludge treatment without requiring a separate thickening machine in every application.

Low-Speed Screw Press Operation

The screw shaft operates at a relatively controlled rotational speed, allowing the sludge to move gradually through the dewatering chamber.

Low-speed operation can help create a stable separation process while reducing unnecessary mechanical agitation. It can also contribute to lower wear and practical energy consumption compared with some high-speed separation technologies.

The actual operating speed and configuration depend on the sludge type, treatment capacity, machine model, and process requirements.

Automatic Self-Cleaning Filtration

A screw press can use a moving filtration structure to help prevent excessive clogging during operation.

As the screw rotates, the filtration mechanism can continuously move and clean the filtration surfaces. This reduces the need for frequent manual cleaning under suitable operating conditions.

Automatic or semi-automatic cleaning functions can be incorporated according to the machine configuration and process requirements.

Proper cleaning and maintenance remain important when processing sludge containing fibers, grease, sand, or other abrasive or sticky materials.

Suitable For Different Sludge Types

The Sludge Dewatering Machine can be applied to various types of sludge and wet solid materials.

Typical applications include municipal wastewater sludge, industrial wastewater sludge, food processing sludge, paper mill sludge, chemical process sludge, textile wastewater sludge, livestock waste, agricultural residues, and other compatible materials.

Because different sludge types have different filtration and compression characteristics, testing or feedstock analysis may be recommended before selecting the final machine configuration.

Municipal Wastewater Treatment

Municipal wastewater treatment plants generate primary sludge, secondary sludge, biological sludge, and mixed sludge that require further handling.

A screw press dewatering machine can be installed after sludge thickening or conditioning to reduce the volume of wet sludge.

Lower sludge water content can make subsequent transportation, storage, disposal, composting, or other treatment processes easier to manage.

The system can be integrated with existing wastewater treatment equipment according to the plant's process flow.

Industrial Wastewater Applications

Industrial facilities often generate sludge with characteristics that differ significantly from municipal wastewater.

Industries such as food processing, beverage production, chemical manufacturing, textiles, paper production, metal processing, and other manufacturing operations may require customized sludge dewatering solutions.

The screw press can be configured according to the feed sludge concentration, particle characteristics, chemical properties, and desired downstream treatment.

For corrosive or abrasive applications, suitable material and wear-resistant components can be selected according to the process conditions.

Food Processing And Organic Sludge

Food processing facilities can generate wet organic residues and sludge containing high levels of biodegradable solids.

A screw press can help separate liquid from suitable organic materials and concentrated solids.

Depending on the material and process design, the separated solids may be sent to composting, anaerobic digestion, fertilizer processing, or other resource recovery processes.

The suitability of the dewatered solids for a particular reuse application depends on the composition of the feedstock and applicable local requirements.

Livestock Manure Dewatering

Screw press separation is also commonly associated with livestock manure processing.

Pig manure, cattle manure, dairy manure, and other suitable agricultural waste streams can be processed through a screw press solid-liquid separator.

The machine can separate a wetter liquid fraction from a more concentrated solid fraction, making the material easier to transport and manage.

The separated solids may be used as a feedstock for composting or organic fertilizer processing where appropriate.

Compact Equipment Design

A screw press dewatering machine combines several functions within one relatively compact processing unit.

Its integrated conveying, filtration, compression, and discharge structure can help reduce the amount of floor space required compared with systems that use multiple separate dewatering stages.

The compact design can be useful for wastewater treatment facilities with limited installation space.

Equipment layout can be customized around existing tanks, pumps, conveyors, sludge storage areas, and other treatment equipment.

Reduced Chemical And Energy Requirements

Depending on the sludge characteristics, a screw press may require less mechanical energy than some high-speed centrifugal dewatering systems.

Polymer conditioning may be used when necessary to improve flocculation and separation. However, the actual chemical requirement depends on sludge composition and the desired dewatering result.

Energy and chemical consumption should be evaluated according to the complete treatment process rather than assuming a fixed performance level for all sludge types.

Automatic Operation And Control

The screw press system can be integrated with pumps, polymer dosing systems, conveyors, control cabinets, sensors, and other auxiliary equipment.

Automatic control can coordinate sludge feeding, polymer dosing, screw operation, cleaning, and discharge according to the selected configuration.

This helps reduce repetitive manual operation and allows operators to monitor important operating parameters.

Control system design can be customized according to the customer's treatment process and automation requirements.

Dewatered Sludge Discharge

After passing through the compression zone, the concentrated sludge is discharged through the outlet.

The discharged sludge can then be transported by conveyor, screw conveyor, belt conveyor, or other material handling equipment depending on the plant layout.

Reducing the amount of free water in sludge can help reduce transportation volume and improve the handling characteristics of the material.

The final cake condition depends on sludge properties, conditioning, machine settings, and operating conditions.

Corrosion And Wear Resistance

Wastewater sludge can contain chemicals, salts, abrasive particles, fibers, and other substances that may affect equipment components.

Depending on the application, the screw press can be manufactured with suitable stainless steel components, reinforced structures, wear-resistant parts, and corrosion-resistant materials.

Material selection should be based on the actual chemical and mechanical conditions of the sludge.

Easy Maintenance

A practical screw press system is designed for routine inspection and maintenance.

Operators should regularly inspect the screw shaft, filtration components, bearings, seals, discharge section, pumps, and other wear parts.

Keeping the filtration system clean and maintaining the correct operating conditions can help support stable performance.

The maintenance schedule depends on operating hours, sludge characteristics, material selection, and machine configuration.

Customized Sludge Dewatering Solutions

Different wastewater treatment projects require different equipment configurations.

Important selection factors include sludge type, sludge concentration, feed flow rate, solids content, temperature, pH, viscosity, fiber content, abrasive particles, and desired final cake condition.

Customers can provide sludge samples, laboratory analysis, process information, and required treatment capacity for equipment evaluation.

Based on these details, the screw press, filtration system, feed pump, polymer dosing system, conveyor, control system, and other auxiliary equipment can be selected accordingly.

Wide Range Of Applications

The High-Efficiency Screw Press Machine can be used in municipal wastewater treatment, industrial wastewater treatment, food processing, livestock farming, agricultural waste management, paper manufacturing, textile processing, and other industries.

Its continuous operating principle, compact structure, and integrated solid-liquid separation functions make it suitable for both new treatment facilities and upgrades to existing wastewater systems.

Key Features
High-Efficiency Sludge Dewatering
Continuous Solid-Liquid Separation
Integrated Sludge Thickening
Mechanical Sludge Compression
Low-Speed Screw Operation
Automatic Filtration Cleaning
Compact Equipment Structure
Reduced Manual Operation
Automatic Sludge Discharge
Suitable For Municipal And Industrial Sludge
Suitable For Livestock Manure Separation
Customized Equipment Configuration
FAQs
1. What Is A Screw Press Machine?

A screw press machine is a continuous solid-liquid separation device that uses a rotating screw and filtration structure to thicken, compress, and dewater sludge or other suitable wet materials.

2. What Is A Screw Press Used For?

It is primarily used for sludge dewatering, manure separation, organic waste dewatering, and other applications requiring continuous separation of liquid from solids.

3. What Types Of Sludge Can Be Processed?

Suitable materials may include municipal sludge, industrial wastewater sludge, food processing sludge, paper mill sludge, textile sludge, livestock manure, and other compatible wet solids.

4. Does The Machine Require Polymer?

Polymer may be used to improve flocculation and dewatering for certain sludge types. The actual requirement depends on sludge characteristics and process testing.

5. Is The Screw Press A Continuous Machine?

Yes. Sludge can be continuously fed into the machine while separated liquid is discharged through the filtration section and concentrated solids leave through the sludge outlet.

6. How Does A Screw Press Dewater Sludge?

The rotating screw conveys sludge through a gradually compressed filtration chamber. Liquid passes through the filtration structure while the solids become progressively concentrated and are discharged as dewatered sludge.

7. Can It Be Used For Industrial Wastewater?

Yes. The machine can be configured for suitable industrial sludge from food processing, chemical, textile, paper, manufacturing, and other wastewater treatment applications.

8. Can It Process Livestock Manure?

Yes. Suitable pig, cattle, and dairy manure can be processed for solid-liquid separation and dewatering when the equipment is correctly configured for the material.

9. Can The Screw Press Be Automated?

Yes. Automatic feeding, polymer dosing, cleaning, discharge, conveying, and control functions can be integrated according to the project requirements.

10. How Do I Select The Right Screw Press Machine?

Provide the sludge type, feed concentration, flow rate, solids content, moisture characteristics, treatment capacity, and desired output condition. Sludge samples or laboratory test data can help determine the appropriate configuration.

Why Choose Us
Specialized Sludge Dewatering Equipment

We focus on solid-liquid separation and sludge dewatering equipment for wastewater treatment, agricultural waste, and industrial processing applications.

Application-Based Configuration

We select machine configuration according to sludge characteristics, processing requirements, treatment capacity, and downstream handling requirements rather than using a one-size-fits-all solution.

Integrated Treatment Solutions

The screw press can be supplied with feeding pumps, polymer dosing systems, conveyors, control cabinets, cleaning systems, and other auxiliary equipment for an integrated dewatering process.

Durable Industrial Construction

Suitable stainless steel, wear-resistant components, filtration parts, and structural materials can be selected according to the chemical and mechanical conditions of the application.
