Auto Screw Filter Press - Intelligent - Sludge Drying Machine

Spiral screw press filter
The screw press filter uses the rotation of a screw shaft to propel the material forward.  Simultaneously, it applies compressive pressure to the material through a gradually decreasing screw pitch and increasing shaft diameter, or through the gradually narrowing space between fixed and movable rings. This forces the liquid in the material to be expelled through the screen or the gaps between the rings, while the solid material is compressed and discharged from the outlet, thus achieving solid-liquid separation.
Specification
Auto Screw Filter Press - Intelligent - Sludge Drying
Auto Screw Filter Press - Intelligent - Sludge Drying
Key Advantages:
Core Working Principles

1.Continuous operation: Capable of continuous solid-liquid separation, resulting in high production efficiency and meeting the needs of large-scale production.
2.High pressing force: The spiral structure design generates a large pressing force, resulting in excellent dewatering performance and effectively reducing the moisture content of the filter cake.
3.Low power consumption: Compared to some traditional solid-liquid separation equipment, such as centrifugal filters, the screw press filter has lower energy consumption and lower operating costs.
4.Simple structure: The equipment has a relatively simple structure with fewer parts, making it easy to install, maintain, and repair.

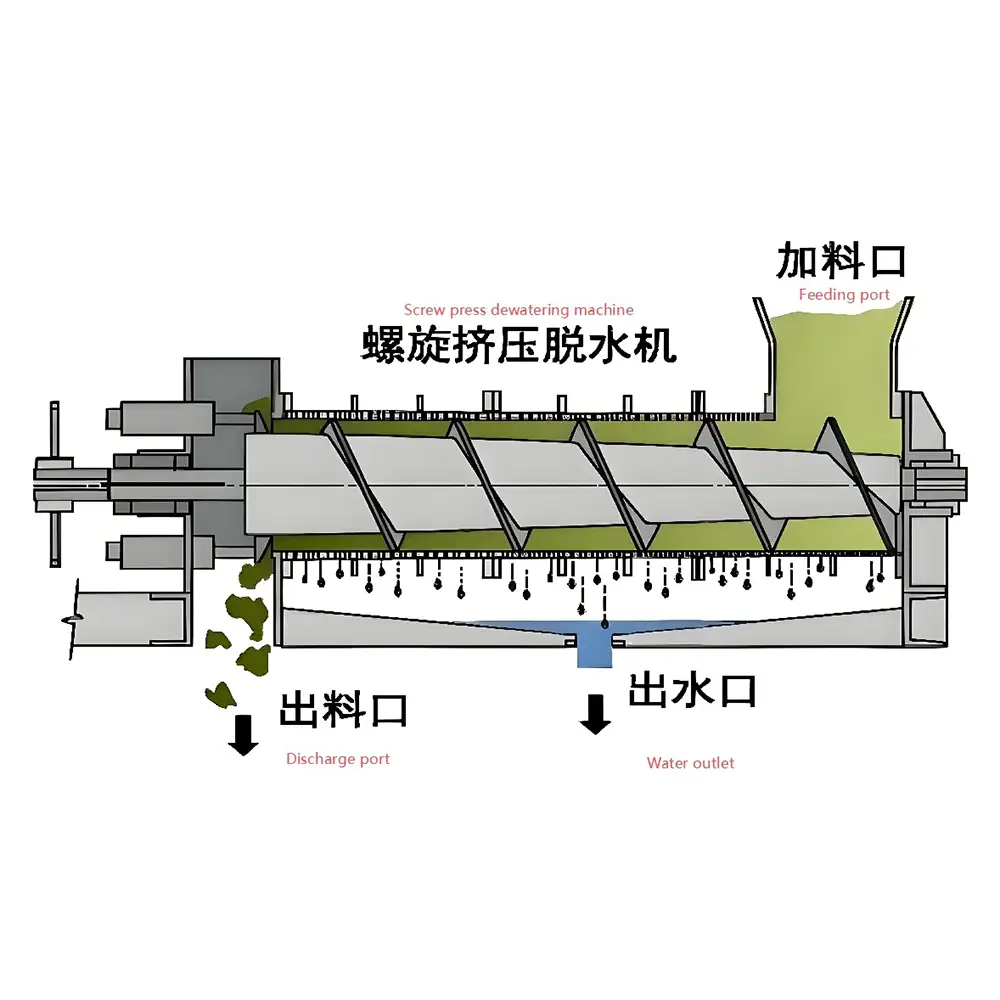

The core working principle of the screw press filter is: using a screw shaft as the core, it forcibly separates the solid and liquid phases of the material through a dual action of "pushing + gradient compression," operating continuously throughout the process with gradually increasing pressure, ultimately achieving the goals of solid dewatering and liquid recovery.

The Auto Screw Filter Press - Intelligent - Sludge Drying Machine is an automated sludge treatment system designed for continuous solid-liquid separation, sludge thickening, mechanical dewatering, and efficient sludge handling. It combines screw conveying, filtration, compression, and automatic operation in a compact equipment structure, making it suitable for wastewater treatment plants, industrial facilities, food processing operations, livestock farms, and other industries generating wet sludge or organic residues.

Unlike conventional batch filter presses that require repeated filling, pressing, opening, and cake removal, an automatic screw filter press can continuously transport and compress sludge through a filtration chamber. Liquid passes through the filtration structure while concentrated solids are gradually conveyed toward the discharge section.

The resulting dewatered sludge contains substantially less free water than the original feed material, making it easier to transport, store, compost, digest, dry, or process further. Actual moisture reduction depends on sludge characteristics, feed concentration, polymer conditioning, machine configuration, and operating conditions.

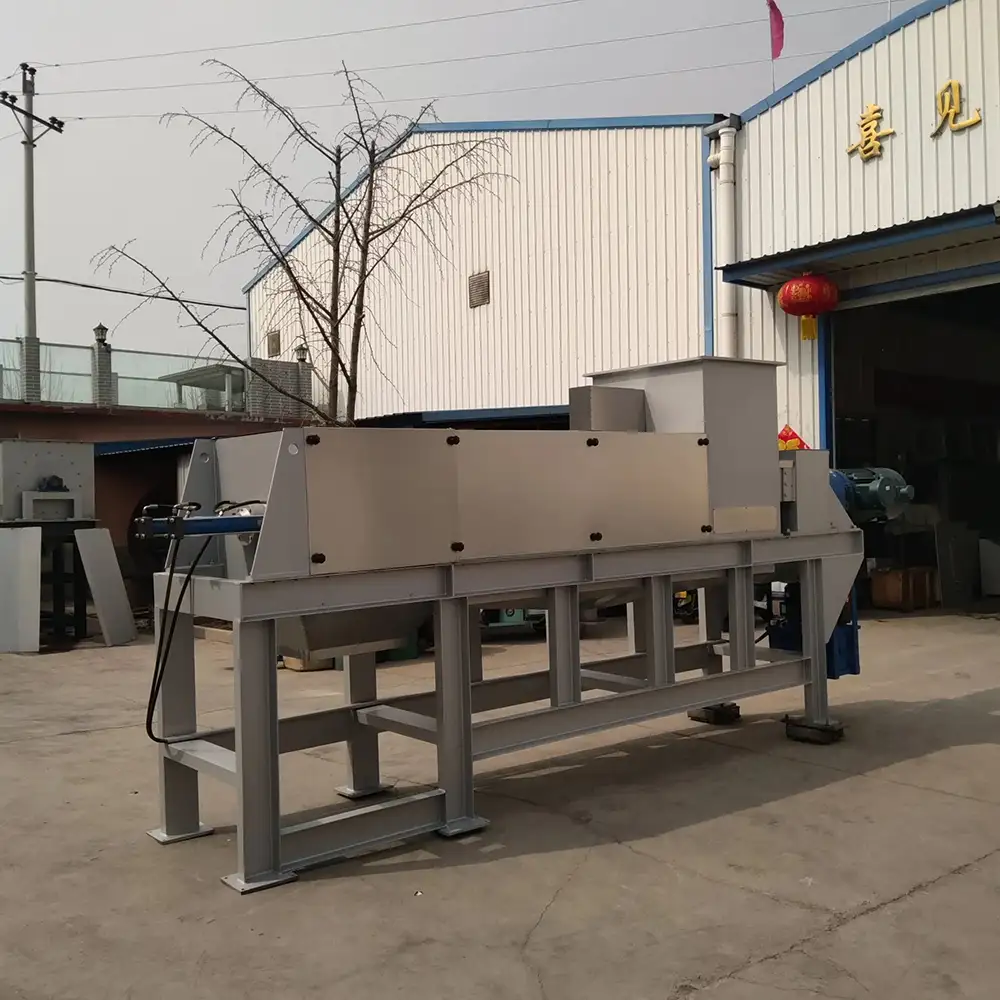

Automatic Screw Filter Press Operation

The Automatic Screw Filter Press uses a rotating screw shaft to move sludge through a specially designed filtration and compression zone.

Sludge enters through the feeding section and is gradually conveyed forward. During this process, free water passes through the filtration components while the solids become increasingly concentrated.

As the available space becomes more restricted toward the discharge end, mechanical compression increases. The concentrated sludge is then discharged through the outlet for subsequent treatment or disposal.

This continuous operating principle allows the machine to perform feeding, conveying, thickening, filtration, compression, and discharge within one integrated process.

Intelligent Sludge Dewatering

Intelligent control is an important feature of modern sludge dewatering equipment.

The system can be integrated with sensors, pumps, polymer dosing equipment, motor controls, cleaning mechanisms, and other auxiliary components. Depending on the configuration, operating parameters can be monitored and adjusted to maintain a stable sludge treatment process.

Automatic operation reduces repetitive manual intervention and helps operators manage feeding, dewatering, cleaning, and sludge discharge more efficiently.

The exact automation level can be configured according to the requirements of the wastewater treatment plant.

Continuous Sludge Dewatering

The screw filter press is designed for continuous sludge processing rather than conventional batch operation.

Continuous feeding allows wastewater sludge to enter the machine while separated liquid and dewatered solids are discharged through their respective outlets.

This operating method can help simplify the sludge handling process and reduce the need for frequent manual loading and unloading.

For facilities with relatively stable sludge production, continuous dewatering can provide a practical way to integrate sludge treatment into the overall wastewater process.

Screw Press Filtration System

The filtration section is a key component of the screw press.

As the sludge moves through the filtration chamber, liquid drains through the screen or filter structure while the solids remain within the conveying path.

The screw shaft simultaneously performs material conveying and compression, creating a gradual dewatering process.

Filtration components can be selected according to sludge characteristics, particle size, fiber content, viscosity, and other process conditions.

For sludge containing significant fibers, grease, or abrasive particles, appropriate filtration and material configurations should be selected to reduce clogging and wear.

Sludge Thickening And Compression

Efficient sludge dewatering normally involves progressive thickening before final compression.

The screw press gradually concentrates the incoming sludge as liquid is separated during transportation. Further compression near the discharge end helps remove additional free and interstitial water.

This integrated thickening and compression process allows the machine to perform multiple treatment functions within a relatively compact structure.

The final sludge cake condition depends on the type of sludge, initial solids concentration, conditioning method, screw configuration, operating parameters, and machine model.

Automatic Self-Cleaning

Sludge and wastewater treatment processes can cause filtration surfaces to become contaminated over time.

An automatic or continuous cleaning mechanism can help maintain filtration performance by reducing excessive accumulation on the filtration components.

The self-cleaning structure can operate during normal machine operation, minimizing the need for frequent manual intervention.

Regular inspection and maintenance are still recommended, especially when processing sludge with high fiber content, grease, sand, or other difficult contaminants.

Sludge Drying And Moisture Reduction

The term Sludge Drying Machine is commonly associated with equipment used to reduce the moisture content of sludge. A screw filter press primarily performs mechanical dewatering, removing free and some bound water through filtration and compression.

For applications requiring much lower moisture content than mechanical dewatering can achieve, the screw press can be integrated with downstream thermal drying, air drying, solar drying, or other sludge drying systems.

This combination allows the screw press to serve as a pretreatment stage, reducing the water load before the final drying process.

Using mechanical dewatering before thermal drying can help create a more practical overall sludge treatment process, depending on the feed material and required final moisture level.

Municipal Wastewater Sludge Treatment

Municipal wastewater treatment plants produce different forms of sludge, including primary sludge, biological sludge, and mixed sludge.

The automatic screw filter press can be installed after sludge collection, thickening, or conditioning to reduce the volume of wet sludge.

The dewatered material can then be transferred to storage, transportation, composting, digestion, drying, incineration, or other downstream treatment processes.

The equipment can be integrated with existing wastewater treatment infrastructure according to the plant's process layout.

Industrial Wastewater Applications

Industrial wastewater sludge can vary considerably in composition and physical properties.

Food processing, beverage production, paper manufacturing, textile processing, chemical production, and other industrial facilities may generate sludge requiring specialized dewatering.

The screw press system can be configured according to sludge concentration, viscosity, particle size, fiber content, chemical characteristics, and required processing capacity.

For corrosive or abrasive applications, suitable stainless steel, wear-resistant components, and other material options can be selected according to the operating environment.

Food And Organic Waste Processing

Food processing plants can generate wet organic residues, suspended solids, and sludge with significant moisture content.

Suitable organic materials can be processed through screw press separation to produce a more concentrated solid fraction and a separated liquid stream.

Depending on material composition and local requirements, the dewatered solids may be suitable for composting, anaerobic digestion, organic fertilizer processing, or other resource recovery applications.

The suitability of any recovered material for reuse should be evaluated according to its composition and intended application.

Livestock Manure Separation

The equipment can also be used for suitable livestock waste streams.

Pig manure, cattle manure, dairy manure, and other agricultural organic waste can contain substantial amounts of liquid. A screw press separator can separate a more concentrated solid fraction from the liquid fraction.

The separated solids may be easier to transport and can potentially be used for composting or fertilizer processing where appropriate.

Equipment selection should consider manure consistency, fiber content, sand content, solids concentration, and required processing capacity.

Compact And Space-Saving Design

A screw filter press combines conveying, filtration, thickening, compression, cleaning, and discharge functions in one machine.

Its compact configuration can reduce the installation space required for sludge dewatering compared with systems consisting of multiple independent treatment units.

This can be especially useful when upgrading existing wastewater treatment facilities where available floor space is limited.

The equipment layout can be adapted to connect with sludge pumps, polymer dosing systems, conveyors, tanks, and downstream treatment equipment.

Intelligent Automatic Control

The system can be equipped with an intelligent control cabinet and integrated operating functions.

Depending on the selected configuration, automatic control can coordinate sludge feeding, polymer dosing, screw operation, cleaning, alarm functions, and sludge discharge.

Sensors and control components can be used to monitor selected operating conditions.

The level of automation can range from basic automatic operation to a more integrated control system designed to communicate with the customer's wastewater treatment process.

Reduced Manual Handling

Automatic feeding, continuous dewatering, self-cleaning, and automatic discharge can reduce repetitive manual operations.

Operators can focus on monitoring equipment status, checking sludge characteristics, replenishing chemicals when required, and performing routine maintenance.

Reducing manual sludge handling can also help create a cleaner and more organized working environment around the dewatering area.

Durable Industrial Construction

Sludge treatment equipment operates in environments where moisture, chemicals, abrasive particles, and organic materials may be present.

Depending on the application, the machine can use corrosion-resistant components, stainless steel sections, reinforced structures, wear-resistant screw components, and suitable filtration materials.

Material selection should be based on the actual sludge composition and operating conditions.

Regular inspection of the screw shaft, filter components, bearings, seals, drive system, and discharge section helps maintain long-term operating reliability.

Easy Maintenance And Operation

The screw press is designed to provide practical operation and routine maintenance.

Operators can monitor feeding, dewatering, discharge, and cleaning conditions through the control system.

Routine maintenance may include checking the filtration structure, inspecting wear components, cleaning relevant areas, checking bearings and seals, and confirming correct operation of pumps and motors.

Maintenance requirements vary according to operating hours, sludge characteristics, machine configuration, and installation conditions.

Customized Sludge Treatment Solutions

Different sludge treatment projects have different requirements. A suitable system should therefore be selected based on actual feed characteristics rather than relying only on nominal machine specifications.

Important factors include sludge type, feed flow, solids concentration, moisture content, viscosity, pH, temperature, fiber content, abrasive materials, and desired dewatered sludge condition.

Customers can provide sludge samples, laboratory analysis, production information, and treatment capacity requirements for equipment evaluation.

The system can then be configured with the appropriate screw press, filtration structure, feed pump, polymer dosing unit, control cabinet, conveyor, drying equipment, and other auxiliary components.

Wide Range Of Applications

The Auto Screw Filter Press can be used in municipal wastewater treatment, industrial wastewater treatment, food processing, agricultural waste management, livestock farms, paper production, textile processing, and other industries requiring continuous sludge separation and dewatering.

Its automated operation, compact structure, continuous processing capability, and flexible integration make it suitable for both new wastewater treatment projects and upgrades to existing sludge handling systems.

Key Features
Automatic Screw Filter Press Operation
Intelligent Sludge Dewatering
Continuous Solid-Liquid Separation
Integrated Sludge Thickening
Mechanical Sludge Compression
Automatic Filtration Cleaning
Continuous Sludge Discharge
Compact Equipment Design
Reduced Manual Sludge Handling
Intelligent Control System
Suitable For Municipal And Industrial Sludge
Compatible With Downstream Sludge Drying
FAQs
1. What Is An Auto Screw Filter Press?

An auto screw filter press is a continuous sludge dewatering machine that uses a rotating screw, filtration structure, and controlled compression to separate liquid from sludge.

2. Is A Screw Filter Press The Same As A Sludge Drying Machine?

Not exactly. A screw filter press primarily performs mechanical dewatering. It can be combined with a downstream sludge drying system when a much lower final moisture content is required.

3. How Does The Screw Filter Press Work?

Sludge enters the machine and is gradually transported by a rotating screw through a filtration and compression zone. Liquid passes through the filtration structure while concentrated solids move toward the discharge outlet.

4. Is The Machine Fully Automatic?

The machine can be configured for automatic operation, including feeding, cleaning, dewatering, discharge, and other functions. The automation level depends on the selected system configuration.

5. What Types Of Sludge Can Be Dewatered?

Suitable applications may include municipal wastewater sludge, industrial sludge, food processing sludge, organic sludge, livestock manure, and other compatible wet solid materials.

6. Does The Machine Need Polymer Dosing?

Some sludge types benefit from polymer conditioning before dewatering. The actual chemical requirement depends on sludge characteristics and process testing.

7. Can It Be Used For Industrial Wastewater?

Yes. The system can be configured for suitable industrial wastewater sludge from food, beverage, paper, textile, chemical, and manufacturing processes.

8. Can It Process Pig And Cow Manure?

Yes. Suitable pig, cattle, and dairy manure can be processed for continuous solid-liquid separation and dewatering when the equipment is properly configured.

9. Can The Machine Be Connected To A Sludge Dryer?

Yes. The screw press can be used as a mechanical dewatering pretreatment stage before thermal or other drying equipment when a lower final moisture level is required.

10. How Do I Choose The Right Screw Filter Press?

Provide the sludge type, feed flow, solids concentration, moisture content, treatment capacity, required dewatered condition, and downstream process. Sludge samples or laboratory analysis can help determine the appropriate configuration.

Why Choose Us
Specialized Sludge Dewatering Equipment

We provide screw press, sludge dewatering, solid-liquid separation, and related wastewater treatment equipment for municipal, industrial, agricultural, and commercial applications.

Intelligent Equipment Configuration

Automatic controls, sensors, feeding systems, cleaning functions, polymer dosing, and discharge systems can be integrated according to the customer's process and automation requirements.

Application-Based Solutions

We evaluate sludge characteristics, treatment capacity, material properties, and downstream requirements to develop a suitable dewatering configuration rather than relying on a fixed equipment package.

Durable Construction

Appropriate stainless steel, corrosion-resistant materials, wear-resistant components, and filtration structures can be selected according to the specific operating environment.
