SBR Rubber Sheet, NBR EPDM Neoprene SBR Silicone Rubber Sheet

Proudct Name: SBR, NR Rubber Sheet
Character: Width : 2000mm(max)
Length : Any length
Thickness : From 1.2mm to 50 mm
Standard Color : Black,Green,Red
HardnessShore A 45-85
Tensile Strength2mpa
Elongation: 180%


SBR Rubber Sheet, NBR EPDM Neoprene SBR Silicone Rubber Sheet

Rubber sheets are widely used in industrial manufacturing, sealing, gasketing, insulation, equipment protection, vibration control and material handling. Different rubber compounds provide different combinations of flexibility, abrasion resistance, weather resistance, oil resistance, temperature performance and chemical compatibility. SBR Rubber Sheet, NBR Rubber Sheet, EPDM Rubber Sheet, Neoprene Rubber Sheet and Silicone Rubber Sheet are among the most commonly selected materials for industrial applications.

Choosing the correct rubber compound is important because no single rubber material provides the same performance in every working environment. SBR is commonly selected for general-purpose applications and good abrasion resistance, while NBR is widely used where resistance to oils and fuels is required. EPDM performs well in outdoor environments and offers strong resistance to weather, ozone and water. Neoprene provides a balanced combination of mechanical properties, weather resistance and resistance to many oils and chemicals. Silicone rubber is often selected for applications requiring a broad temperature range and good flexibility.

As an experienced rubber sheet manufacturer and supplier, we can provide different rubber compounds, thicknesses, widths, surface finishes and custom-cut configurations according to application requirements.

What Is a Rubber Sheet?

A rubber sheet is a flat, flexible elastomeric material manufactured in rolls, sheets or custom-cut pieces. Depending on the rubber compound and manufacturing process, rubber sheets can be produced with different levels of hardness, elasticity, tensile strength, abrasion resistance, chemical resistance and temperature performance.

Industrial rubber sheets can be used as gaskets, seals, liners, protective pads, vibration-damping materials, insulation layers and equipment components. They can also be die-cut, punched, slit or fabricated into custom shapes.

The appropriate material should be selected according to the actual operating environment, including contact with oil, water, chemicals, sunlight, heat, abrasion and mechanical pressure.

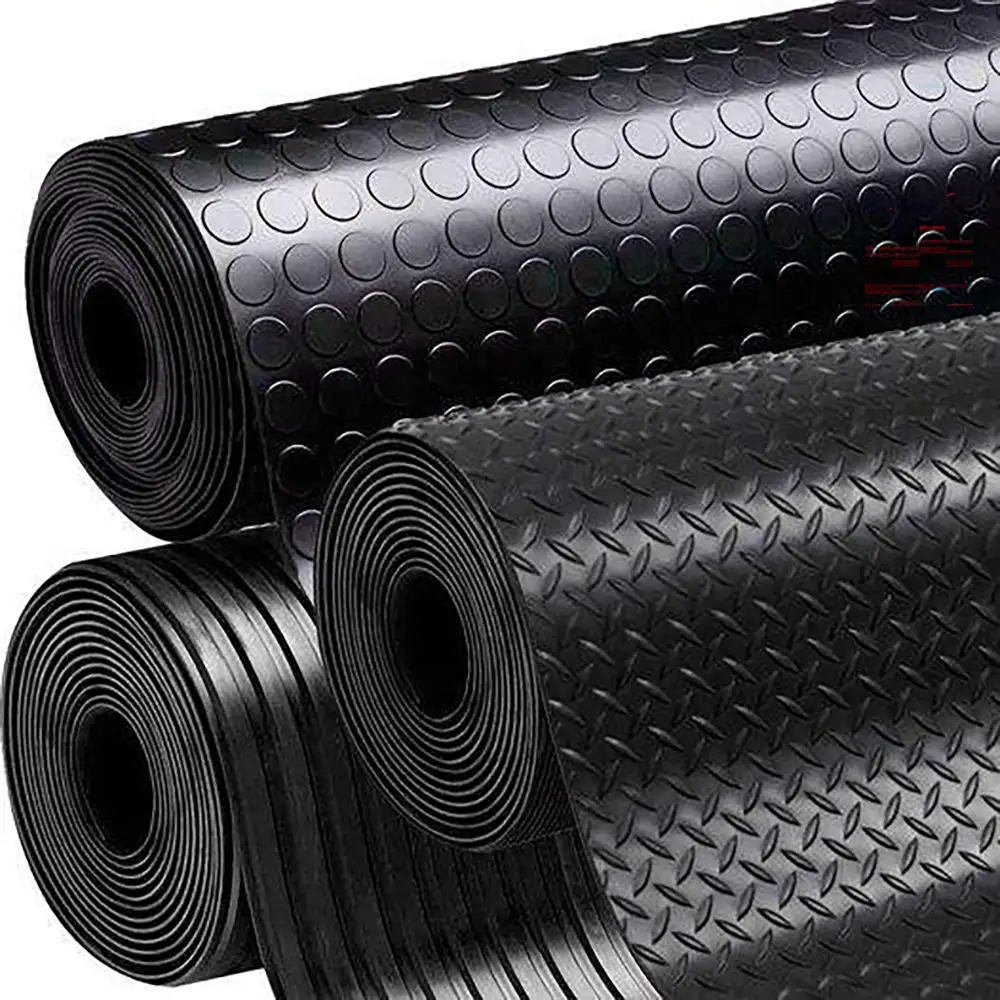

SBR Rubber Sheet

SBR, or Styrene-Butadiene Rubber, is a widely used synthetic rubber for general industrial applications. SBR rubber sheets provide a useful balance of abrasion resistance, flexibility and mechanical performance.

SBR sheets are commonly used for industrial gaskets, protective pads, vibration isolation, general sealing, equipment lining and material handling applications. They are often considered when the application does not require specialized resistance to petroleum oils or extreme environmental conditions.

SBR rubber sheet can be manufactured in different thicknesses, hardness levels and surface finishes to meet specific industrial requirements.

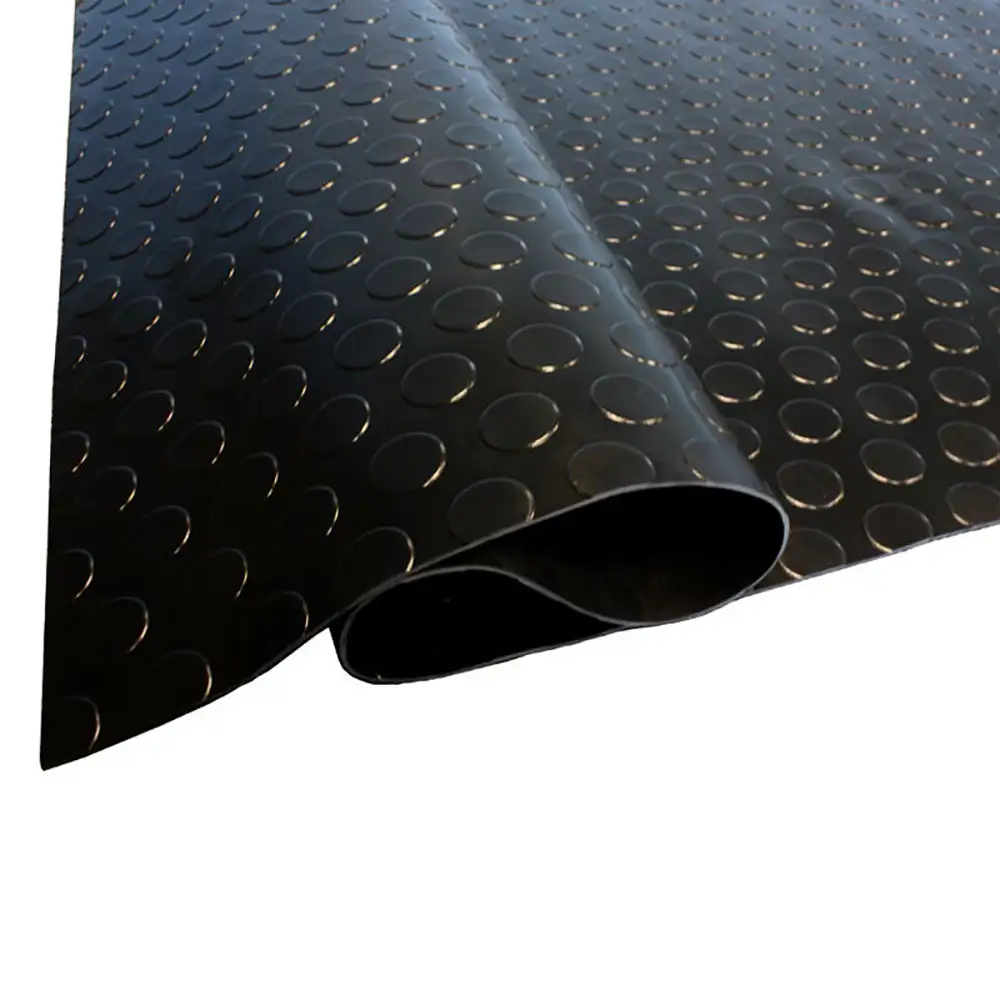

NBR Rubber Sheet

NBR, or Nitrile Butadiene Rubber, is commonly selected for applications involving petroleum-based oils, lubricants and greases. NBR rubber sheets are frequently used for gaskets, seals, oil-resistant pads, machinery components and industrial equipment protection.

The actual oil resistance depends on the NBR formulation and the type, concentration and temperature of the fluid. For this reason, application compatibility should be evaluated before selecting a particular grade.

NBR rubber sheet is particularly useful in automotive, mechanical, hydraulic, manufacturing and industrial maintenance applications where oil exposure is an important consideration.

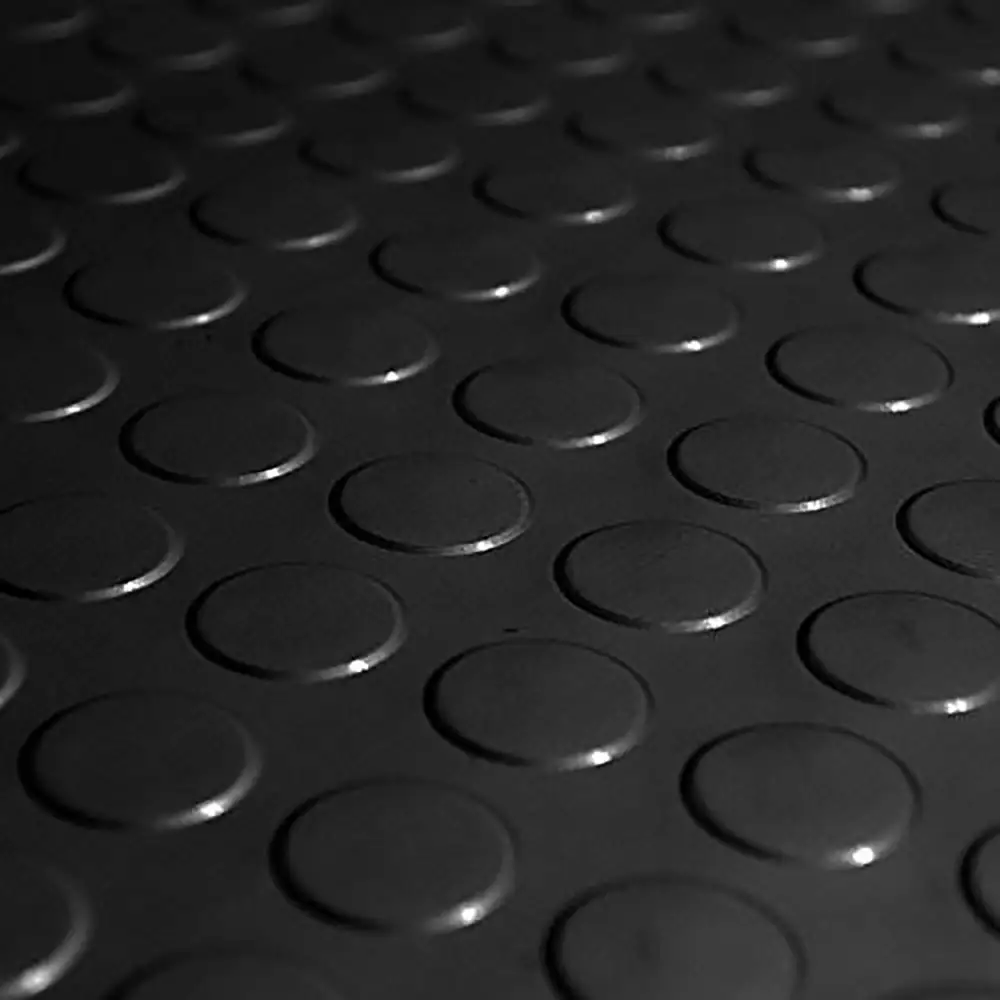

EPDM Rubber Sheet

EPDM, or Ethylene Propylene Diene Monomer, is widely used in outdoor and environmental applications. EPDM rubber sheets offer strong resistance to weathering, ozone, moisture and water exposure.

Typical applications include outdoor sealing, water-system components, roofing-related applications, HVAC components, industrial gaskets and protective liners. EPDM can also provide useful resistance to steam and many diluted chemicals, depending on the formulation.

EPDM is generally not the first choice for applications involving petroleum-based oils and fuels, so fluid compatibility should always be considered.

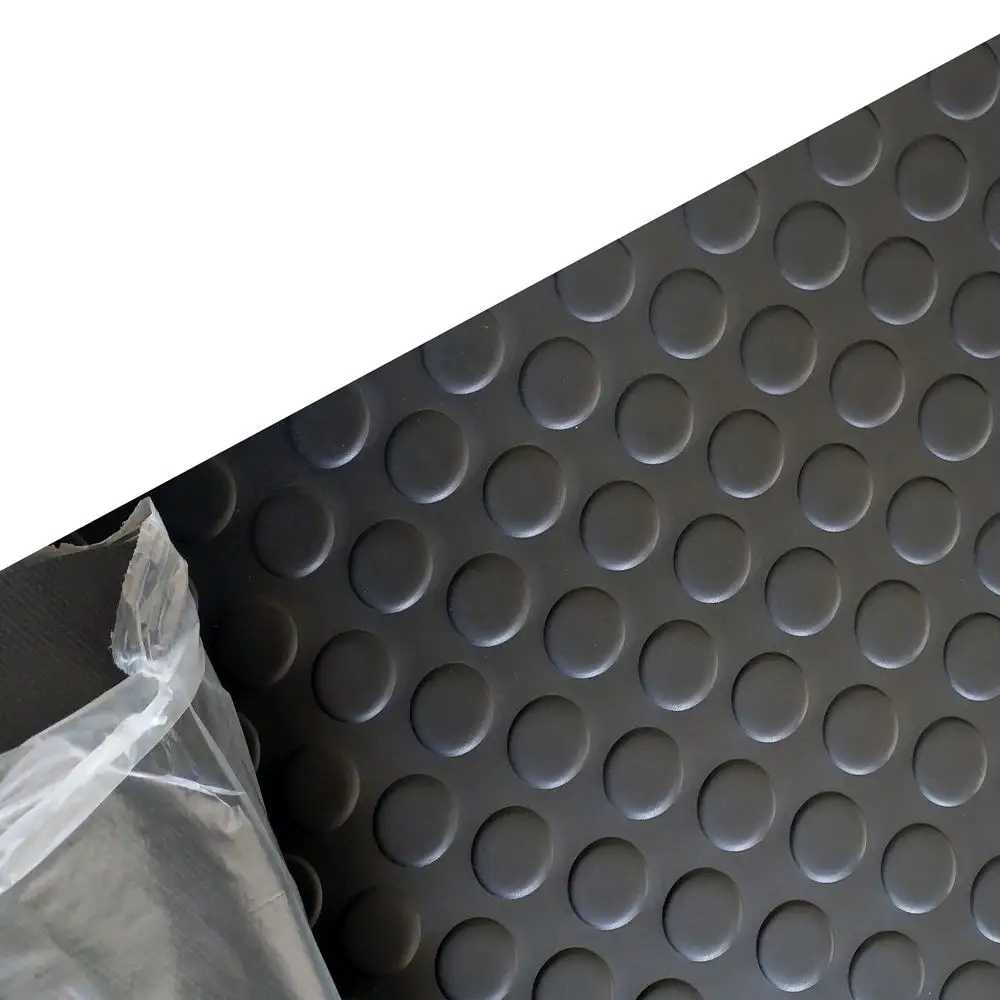

Neoprene Rubber Sheet

Neoprene, also known as Chloroprene Rubber or CR, provides a versatile combination of mechanical strength, flexibility, weather resistance and resistance to many oils and chemicals.

Neoprene rubber sheets are used in industrial gaskets, seals, vibration pads, expansion joints, equipment protection, construction applications and outdoor components. They can be suitable for environments where a balanced combination of mechanical and environmental resistance is required.

Different Neoprene formulations can provide different hardness, reinforcement and performance characteristics.

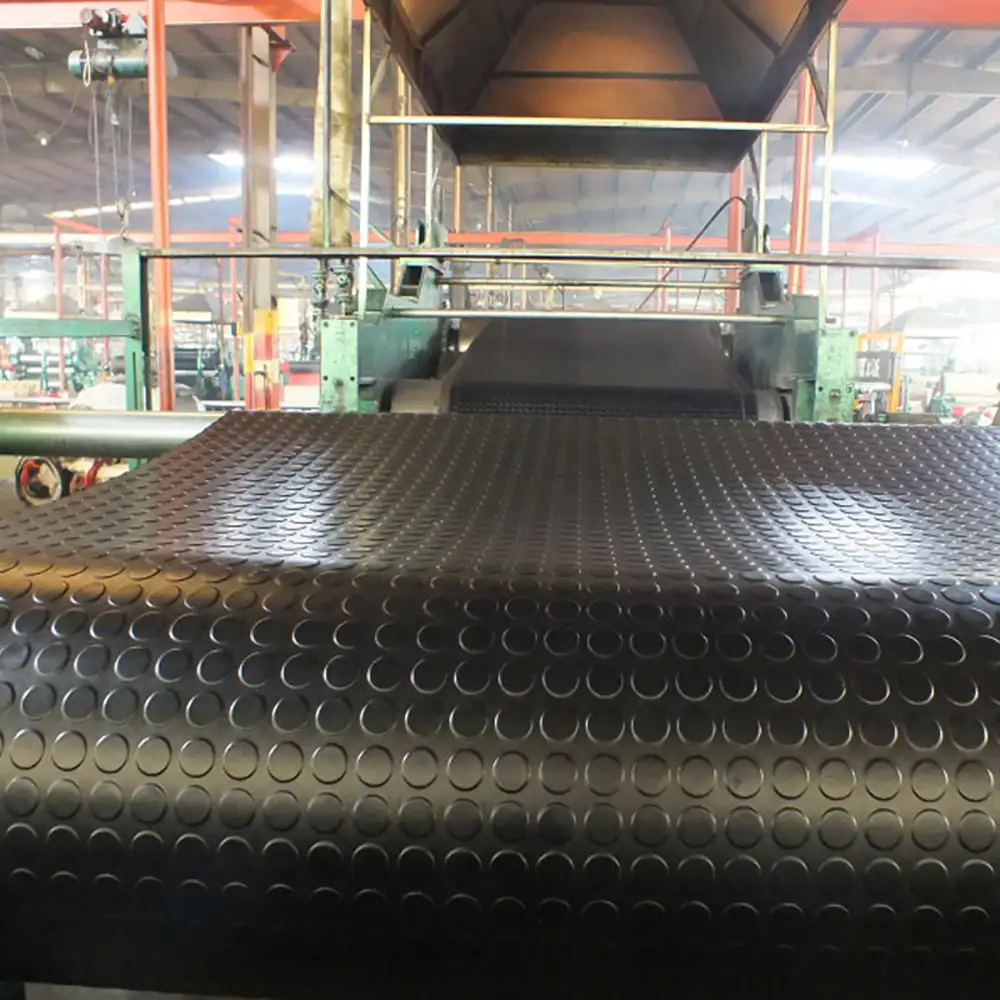

Silicone Rubber Sheet

Silicone rubber sheets are commonly selected for applications requiring excellent flexibility and a broad operating temperature capability. Silicone also provides good resistance to weathering and aging and maintains useful flexibility over a wide temperature range.

Typical applications include industrial sealing, electrical insulation, heat-resistant components, food-processing equipment applications where the appropriate grade is specified, laboratory equipment and custom gaskets.

Silicone should be selected according to the actual temperature, chemical exposure, mechanical load and regulatory requirements of the application.

Key Features And Benefits

Depending on the selected compound, rubber sheets can provide:

Flexible and resilient construction
Good sealing performance
Abrasion resistance
Oil and grease resistance with suitable NBR grades
Weather and ozone resistance with suitable EPDM and Neoprene grades
Good outdoor durability with appropriate compounds
Broad temperature capability with suitable Silicone formulations
Vibration and impact absorption
Electrical insulation properties for suitable grades
Custom thickness and dimensions
Roll, sheet and custom-cut formats
Smooth or textured surface options

Because rubber performance varies by compound, the material should always be matched to the actual service conditions.

Industrial Applications

SBR, NBR, EPDM, Neoprene and Silicone rubber sheets can be used in many industries, including:

Machinery Manufacturing
Automotive Manufacturing
Mining And Quarrying
Construction
Agriculture
Oil And Gas Equipment
Chemical Processing
HVAC Systems
Electrical Equipment
Water Treatment
Industrial Maintenance
Material Handling
Manufacturing Plants
Sealing And Gasket Production

They can be supplied as complete sheets, rolls or fabricated components according to the customer's requirements.

How To Choose The Right Rubber Sheet

The first step is identifying the working environment. Consider whether the rubber will contact oil, fuel, water, steam, chemicals, sunlight or abrasive materials.

Next, consider mechanical requirements such as compression, flexibility, impact, vibration, tensile loading and wear. Thickness and hardness should be selected according to the sealing, cushioning or protective function.

Temperature is another important factor. SBR, NBR, EPDM, Neoprene and Silicone have different temperature capabilities, so the actual operating temperature and exposure duration should be considered.

For outdoor applications, weather and ozone resistance may be more important than oil resistance. For oil-contact applications, NBR may be considered. For water and weather exposure, EPDM is often evaluated. For general-purpose applications, SBR can be a practical option, while Silicone may be selected when broad temperature flexibility is required.

Custom Rubber Sheet Manufacturing

We can support custom rubber sheet requirements based on application and drawing specifications. Available options can include different rubber compounds, thicknesses, widths, lengths, hardness levels, colors, surface finishes and edge configurations.

Rubber sheets can also be supplied as custom-cut gaskets, washers, pads, strips, seals and other fabricated parts. Depending on the project, die cutting, punching, slitting and other fabrication processes can be considered.

For OEM and industrial purchasing projects, customers can provide drawings, dimensions, samples or application information so the appropriate material construction can be evaluated.

Installation And Maintenance

Before installation, check the rubber sheet for cracks, cuts, contamination and dimensional damage. The contact surface should be clean, dry and free from sharp edges that could damage the material.

When used as a gasket or seal, avoid excessive compression or improper installation. For lining and protective applications, make sure the rubber compound is compatible with the surface and operating environment.

During maintenance, inspect the rubber periodically for swelling, hardening, cracking, abrasion, tearing or other signs of material degradation. Replacement intervals depend on the application and actual service conditions.

Why Choose Us

We provide industrial rubber sheet solutions for distributors, manufacturers, engineering companies and equipment buyers.

Multiple Rubber Materials: SBR, NBR, EPDM, Neoprene and Silicone options for different applications.
Custom Manufacturing: Thickness, width, length, hardness and dimensions can be customized.
Industrial Applications: Solutions for sealing, lining, insulation, cushioning and equipment protection.
OEM Support: Custom-cut rubber components can be manufactured according to drawings or samples.
Application-Based Selection: We help match rubber compounds with operating conditions and material requirements.
B2B Supply Capability: Suitable for wholesalers, distributors, manufacturers and industrial purchasing projects.
Quality-Focused Production: Manufacturing processes are controlled according to the specified product requirements.
Flexible Packaging: Rubber sheets and rolls can be prepared according to shipping and handling requirements.
Frequently Asked Questions
1. What Is SBR Rubber Sheet?

SBR rubber sheet is a flat synthetic rubber material made from Styrene-Butadiene Rubber. It is commonly used for general industrial sealing, cushioning, protection and abrasion-related applications.

2. What Is NBR Rubber Sheet Used For?

NBR rubber sheet is commonly used for applications involving oils, lubricants and greases. Typical uses include gaskets, seals, machinery components and industrial equipment protection.

3. Is EPDM Rubber Sheet Suitable For Outdoor Applications?

EPDM is commonly selected for outdoor applications because of its resistance to weathering, ozone and moisture. The exact grade should be selected according to the actual environment.

4. What Is Neoprene Rubber Sheet?

Neoprene rubber sheet is made from Chloroprene Rubber. It offers a balanced combination of flexibility, mechanical performance and resistance to weathering and many industrial environments.

5. When Should I Choose Silicone Rubber Sheet?

Silicone rubber sheet can be considered when flexibility, aging resistance and broad temperature capability are important requirements. The specific grade should be matched to the operating conditions.

6. Can Rubber Sheets Be Custom Cut?

Yes. Rubber sheets can be supplied in rolls or sheets and may also be custom cut into gaskets, pads, strips, washers and other shapes according to drawings or dimensions.

7. Can You Supply Different Rubber Hardness Levels?

Yes. Hardness can be selected according to the rubber compound and application requirements. The appropriate hardness should be determined based on sealing, cushioning, wear and compression requirements.

8. What Thicknesses Are Available?

Rubber sheets can be manufactured in different thicknesses depending on the material, production process and application. Custom thickness requirements can be discussed for specific projects.

9. How Do I Select Between SBR, NBR And EPDM?

Consider the actual operating environment. SBR is commonly used for general-purpose applications, NBR is often selected for oil exposure, and EPDM is widely evaluated for outdoor, water, weather and ozone exposure.

10. Do You Offer OEM Rubber Sheet Services?

Yes. OEM and custom rubber sheet services can include material selection, dimensions, thickness, hardness, surface finish and custom-cut components based on customer drawings, samples or specifications.

We mainly export SBR,NBR,EPDM,Viton to Canada,USA,and some South America countries,such as Argentina and Colombia. They are satisfied with the quality based on reasonable price.
