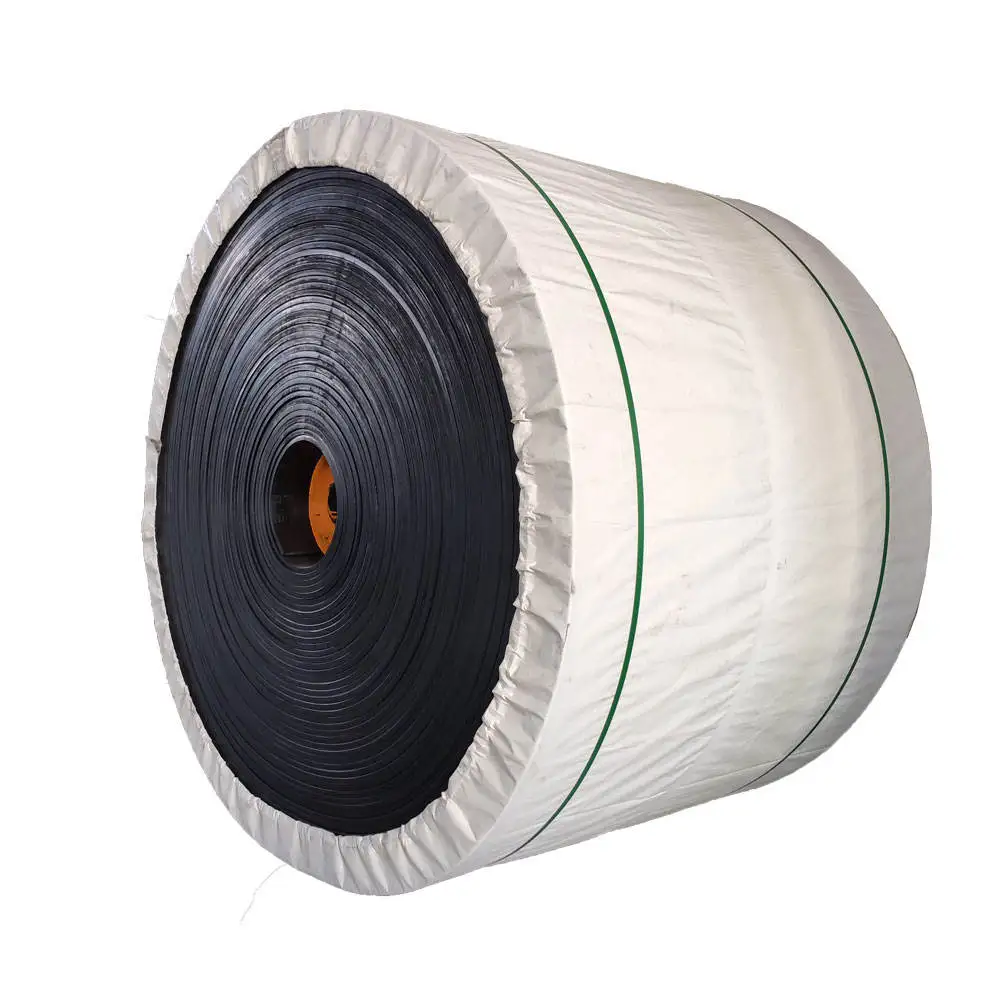

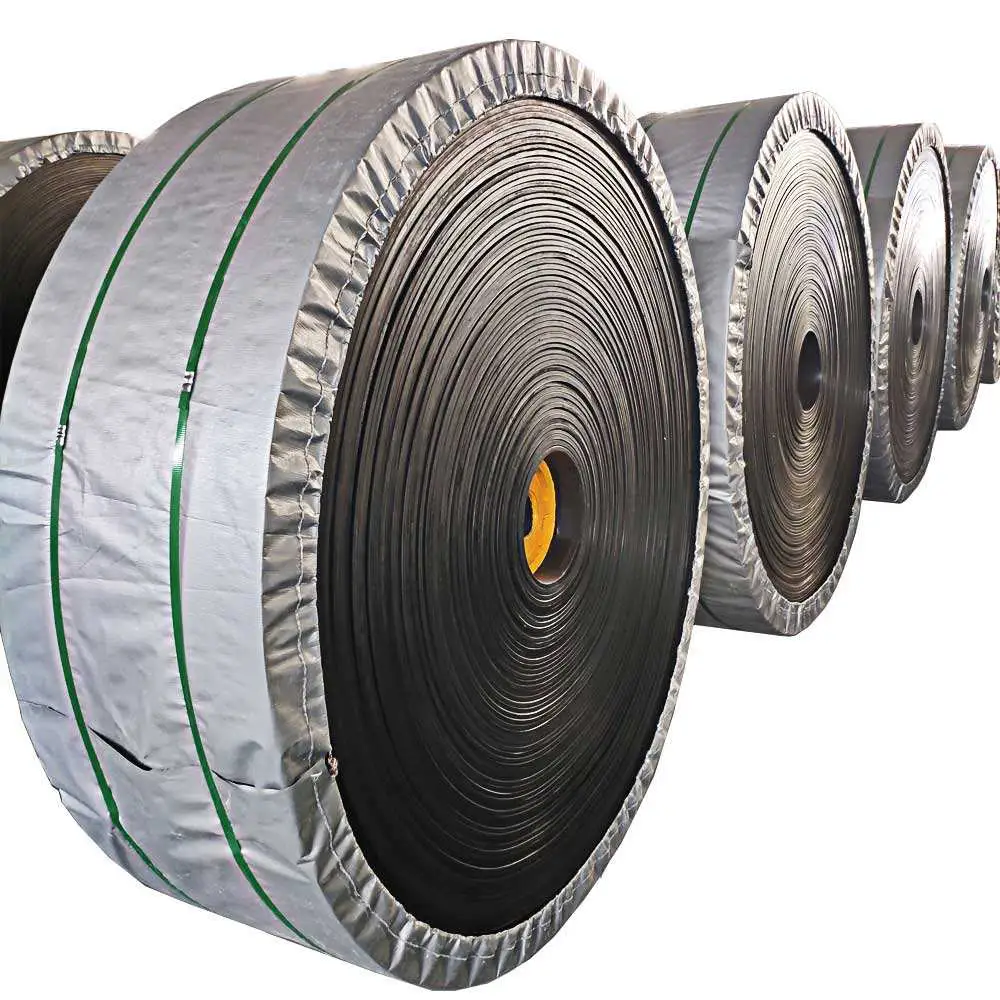

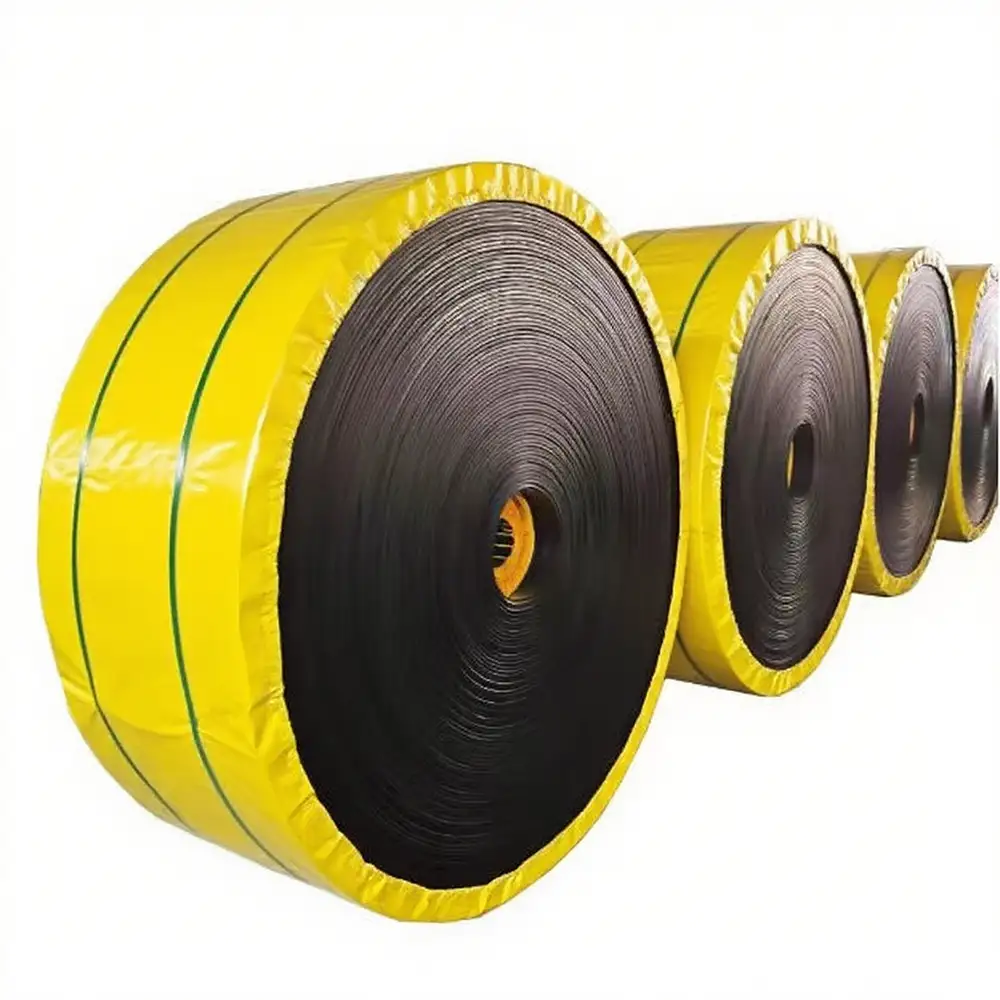

PVG Weave Whole Core Fire Resistant Conveyor Belt For Mining

Rubber belt uses composite structure, which means waveform curb is bonded to the parallel rubber belt. This kind of structure makes the curb more flexible, can reduce damage on the roller while changing direction and can prevent the leaking of slurry. Maintenance is easy.

PVG Weave Whole Core Fire Resistant Conveyor Belt For Mining

PVG Weave Whole Core Fire Resistant Conveyor Belt For Mining is a specialized conveyor belt designed for demanding underground mining, coal handling, and bulk material transportation applications. Combining a solid-woven whole-core carcass with a PVG rubber cover, this type of conveyor belt is engineered for applications where strength, flexibility, abrasion resistance, traction, and fire-resistant performance are important.

PVG whole core conveyor belts are widely associated with underground coal mine conveyor systems because their integrated woven carcass provides a compact and durable belt structure. The PVG cover can be formulated to provide suitable resistance to wear and other operating conditions while maintaining flexibility around conveyor components.

For mining projects, selecting the correct conveyor belt requires more than simply matching the belt width. Conveyor length, belt speed, material characteristics, inclination, loading conditions, pulley diameter, tension, environmental conditions, and applicable mining safety standards should all be considered.

What Is A PVG Whole Core Conveyor Belt?

A PVG whole core conveyor belt is a solid-woven conveyor belt constructed with an integrated textile carcass and a PVG rubber-based covering. The woven carcass acts as the primary load-bearing structure, while the upper and lower cover layers provide protection and the conveying surface.

The term whole core or solid woven refers to the integrated construction of the belt carcass. Instead of relying on multiple individually assembled fabric plies, the woven structure forms a unified core. This design can provide good dimensional stability and flexibility for underground conveyor applications.

The PVG cover is particularly useful where a rubber-like conveying surface is preferred. Compared with PVC-covered solid-woven belts, PVG construction is often selected for applications where enhanced grip, flexibility, and cover performance are required.

The actual construction and performance depend on the specific belt grade and manufacturer specification.

Fire Resistant Performance For Mining

Fire resistance is one of the most important considerations for conveyor belts used in underground mining. Conveyor systems can operate in enclosed environments, making control of ignition and flame propagation an important part of overall mine safety.

A PVG fire resistant conveyor belt is manufactured with materials and construction intended for applications requiring flame-resistant performance. Depending on the belt grade, additional properties such as antistatic performance may also be required.

However, fire resistance should always be evaluated against the applicable mining regulations and certification requirements for the intended country and mine. Not every PVG conveyor belt automatically satisfies every regional standard.

When purchasing a mining conveyor belt, buyers should identify the required standard, test method, certification, and application conditions before placing an order.

Key Features And Benefits
Solid Woven Whole Core Construction

The integrated woven carcass provides the structural foundation of the belt. This construction can offer a combination of tensile strength, flexibility, and dimensional stability suitable for mining conveyor systems.

PVG Rubber Cover

PVG provides a rubber-based cover surface designed for demanding material handling. The cover formulation can be selected according to the required wear resistance and operating environment.

Fire Resistant Design

Fire-resistant versions are available for applications where flame resistance is required. This is particularly important for underground coal mining and enclosed material handling systems.

Good Flexibility

Mining conveyor belts must travel around pulleys and through conveyor curves while maintaining stable operation. The whole-core woven structure provides flexibility appropriate for properly designed conveyor systems.

Abrasion Resistance

Coal, rock, ore, and other mined materials can cause continuous surface wear. Suitable PVG cover compounds can be selected to provide the required abrasion resistance for the intended material.

High-Grip Surface

PVG rubber covers can provide good traction between the belt surface and conveyed material. This can be useful for certain inclined mining conveyor systems.

Antistatic Options

Where required by the application and applicable standard, suitable antistatic construction can be specified. Mining projects should confirm the exact electrical and safety requirements before ordering.

Custom Manufacturing

Belt width, length, tensile grade, cover thickness, edge configuration, and other construction details can be specified according to the conveyor system and production capabilities.

Mining Applications

PVG weave whole core fire resistant conveyor belts are suitable for a range of mining and bulk material handling applications, including:

Underground coal mining
Coal transportation
Coal preparation plants
Underground material handling
Mining belt conveyor systems
Ore and mineral transportation
Tunneling material handling
Aggregate transportation
Quarry material handling
Industrial bulk material conveyors
Power plant fuel handling systems

For underground coal mines, the belt should be selected together with the complete conveyor system. Loading chutes, idlers, pulleys, belt cleaners, take-up systems, and emergency protection equipment all influence actual operating performance.

How To Select A PVG Mining Conveyor Belt

The first step is to identify the material being transported. Coal, ore, rock, aggregate, and other bulk materials can have significantly different characteristics.

Next, determine the conveyor width, center-to-center length, belt speed, conveying capacity, conveyor inclination, material lump size, loading impact, and operating environment.

Pulley diameter and belt tension are also important because the belt must flex appropriately around the conveyor structure without excessive mechanical stress.

For underground mining, buyers should also specify whether flame resistance, antistatic performance, or particular mine certification is required.

A professional conveyor belt supplier can use these operating conditions to determine an appropriate belt construction instead of selecting a product based only on nominal width.

Installation And Maintenance

Correct installation is essential for reliable conveyor operation. The conveyor structure should be properly aligned, and pulleys and idlers should be correctly positioned before commissioning.

During operation, regularly inspect belt tracking, tension, joints, edges, cover surfaces, pulleys, idlers, and loading areas. Material buildup should be removed before it causes tracking or belt damage.

Cuts, tears, abnormal abrasion, cover separation, or other damage should be investigated promptly. Conveyor belt cleaners should be adjusted correctly to avoid unnecessary surface wear.

For mining operations, inspection and maintenance procedures should follow the site's safety requirements and applicable regulations.

Why Choose Us

We provide industrial conveyor belt solutions for mining, coal handling, aggregate, quarrying, and other bulk material transportation applications.

Our PVG whole-core conveyor belts can be specified according to different conveyor requirements, including belt dimensions, tensile grade, cover construction, application environment, and required performance characteristics.

We understand that mining conveyor projects can involve different material sizes, conveyor lengths, belt speeds, inclines, and safety requirements. Our technical team can assist customers in organizing these requirements into a practical belt specification.

We support B2B customers including mine operators, conveyor system integrators, engineering contractors, distributors, wholesalers, and industrial purchasing companies.

OEM and customized requirements can also be discussed for suitable projects, including belt dimensions, labeling, packaging, and other production requirements.

From technical communication and production coordination to quality inspection and export support, we aim to provide a complete conveyor belt sourcing solution for international customers.

Frequently Asked Questions
1. What is a PVG whole core conveyor belt?

It is a solid-woven conveyor belt with an integrated textile carcass and PVG rubber-based cover. The whole-core construction provides the belt's main load-bearing structure.

2. What does PVG mean?

PVG generally refers to a rubber-covered solid-woven conveyor belt construction. The exact compound and performance depend on the specific belt grade and manufacturer's formulation.

3. Is a PVG conveyor belt suitable for underground mining?

PVG belts are commonly used in underground mining and coal handling applications. The selected belt must meet the specific operating and safety requirements of the mine.

4. Is the PVG belt fire resistant?

Fire-resistant PVG belts are manufactured for applications requiring flame-resistant performance. The exact performance and certification must be confirmed for the specific belt grade.

5. What is the difference between PVC and PVG belts?

Both can use a solid-woven whole-core construction. PVC uses a PVC-based cover, while PVG uses a rubber-based cover formulation and is often selected when a rubber-like surface and additional grip or flexibility are desired.

6. Can PVG belts be used on inclined conveyors?

Yes, depending on the conveyor design, material, inclination, and belt surface. The appropriate belt should be selected according to the complete conveying system.

7. Can the belt width and length be customized?

Yes. Custom belt dimensions can generally be discussed according to the conveyor design and manufacturer's production capabilities.

8. Are PVG belts abrasion resistant?

PVG cover compounds can be formulated for abrasion resistance. The appropriate grade depends on the conveyed material, particle size, loading conditions, and expected operating environment.

9. What information should I provide for a quotation?

Provide belt width, length, tensile grade, cover requirements, conveyor speed, material type, conveyor inclination, application environment, and any required fire-resistant or antistatic standards.

10. Can you provide OEM PVG conveyor belts?

Yes. OEM and customized production can be discussed according to belt construction, dimensions, performance requirements, packaging, labeling, and order quantity.

Request A Quote

If you are sourcing a PVG weave whole core fire resistant conveyor belt for mining, send us your belt width, length, tensile grade, application, material conveyed, conveyor conditions, and applicable standards. We can help develop a suitable specification for your mining conveyor system.
