Portable Lightweight Plasma Pipe Cutting Machine Cutting Angle Pipe Cutter for Stainless Steel Pipe

Portable Lightweight Plasma Pipe Cutting Machine 45 Degrees 90 Degrees Cutting Angle Pipe Cutter for Stainless Steel Pipe

No	Item
Cutting stroke	6000mm
Function	Cut off, cut hole, cut notching
Measure	6750*550*1350mm(Subject to the actual object)
Weight	300KG (Subject to the actual object)
Power	220V(Control part)
Output voltage	24V
Accuracy of positioning	±0.1mm
Rack type	2M precision straight teeth
Mode of cutting	plasma
Cutting torch	Non-contact P80 (plasma)
Air supply	It should be brought by oneself (≥0.8MPa)
Pipe of frame size	50x100mm

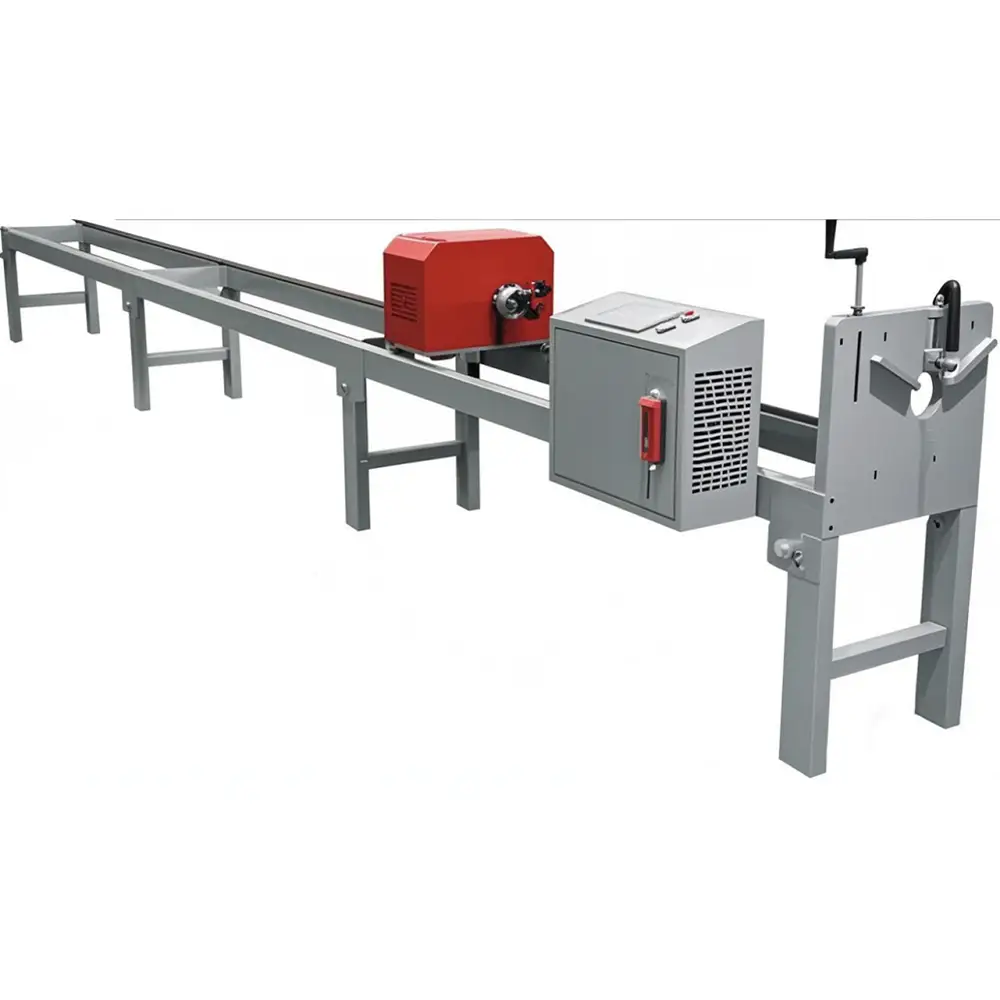

Portable Lightweight Plasma Pipe Cutting Machine for Stainless Steel Pipe

The Portable Lightweight Plasma Pipe Cutting Machine is a compact and flexible metal pipe cutting solution designed for efficient cutting of stainless steel pipes and other electrically conductive metal tubes. Its lightweight and portable design makes it suitable for workshops, fabrication sites, maintenance operations, installation projects, and production environments where mobility and flexible pipe processing are important.

Unlike large fixed cutting systems, a portable plasma pipe cutter can be moved between work areas according to production or installation requirements. This makes it particularly useful for contractors, maintenance teams, metal fabricators, pipe manufacturers, and other users who need a practical cutting solution without dedicating a large amount of workshop space.

The machine can be configured for straight and angled pipe cutting, depending on the specific mechanical and plasma cutting system. With the appropriate setup, it can process stainless steel, mild steel, carbon steel, and other compatible conductive metal pipes.

What Is a Portable Plasma Pipe Cutting Machine?

A portable plasma pipe cutting machine uses a plasma torch to cut electrically conductive metal while the cutting system follows the required pipe geometry.

The plasma arc generates concentrated heat that melts the metal at the cutting point, while the plasma gas removes the molten material from the cut area.

The portable design allows the equipment to be transported or repositioned more easily than a large stationary CNC pipe cutting machine.

This can be particularly valuable for:

On-Site Pipe Fabrication
Workshop Metal Cutting
Maintenance Operations
Construction Projects
Stainless Steel Fabrication
Industrial Pipe Installation
HVAC and Ventilation Work
Exhaust and Chimney Fabrication

The exact cutting capacity and pipe size range depend on the selected machine configuration.

Lightweight Design for Flexible Operation

One of the main advantages of this type of equipment is portability.

A lightweight pipe plasma cutter can be easier to move, install, and position compared with large industrial pipe cutting systems. For businesses that work at different job sites, this flexibility can reduce the need to transport large stationary equipment.

The compact structure can also be beneficial for smaller workshops where floor space is limited.

When selecting a portable machine, users should consider not only total machine weight but also:

Pipe Diameter Range
Maximum Material Thickness
Plasma Power
Cutting Speed
Cutting Angle Range
Pipe Positioning Method
Available Power Supply
Required Working Environment

A machine should be selected according to the actual application rather than portability alone.

Stainless Steel Pipe Cutting

The machine is suitable for cutting stainless steel pipe when equipped with an appropriate plasma power source, torch, consumables, and cutting parameters.

Stainless steel is widely used in:

Food Processing Equipment
Chemical Equipment
Exhaust Systems
Ventilation Systems
Architectural Structures
Industrial Piping
Decorative Metal Fabrication
Machinery Components

Plasma cutting can provide efficient cutting performance without requiring a conventional mechanical saw blade.

The final cut quality depends on material grade, wall thickness, plasma power, cutting speed, gas selection, torch height, and other operating parameters.

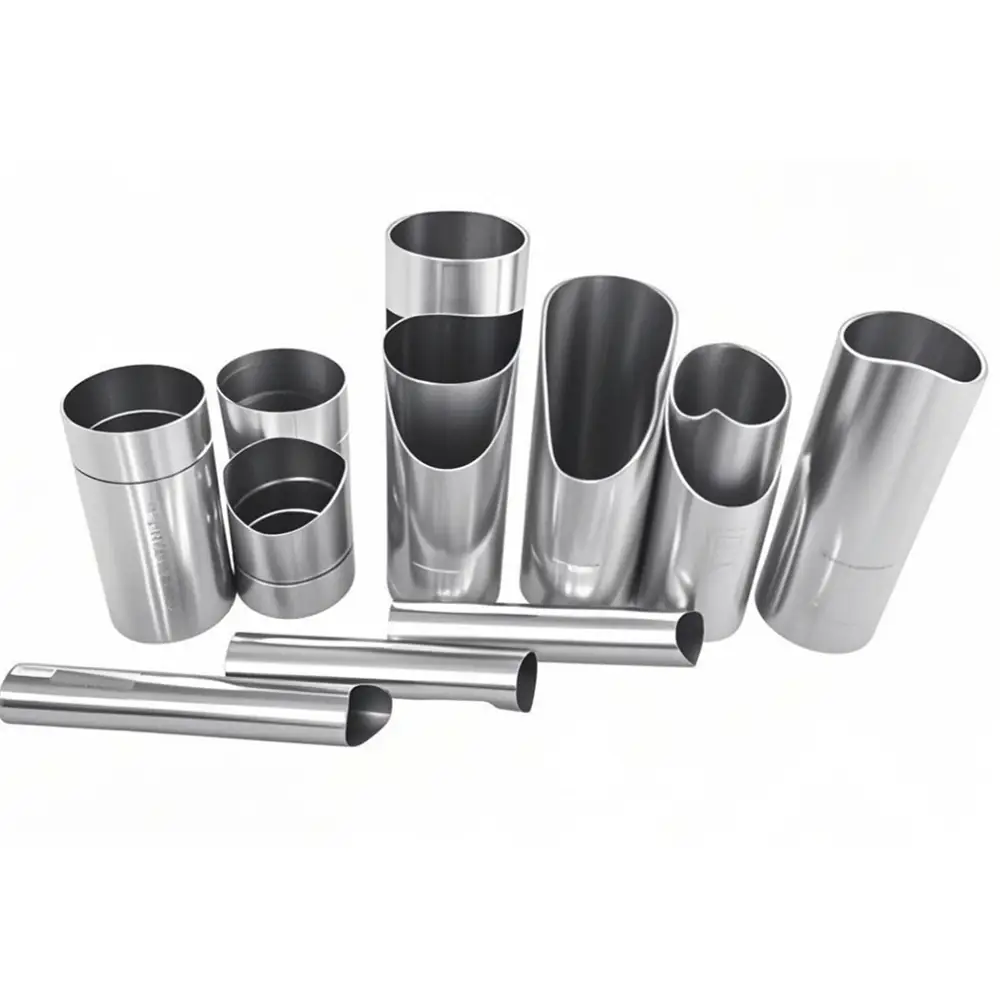

Angle Pipe Cutting

A key application of this machine is angle pipe cutting.

Many pipe fabrication projects require pipes to be cut at an angle rather than simply making a 90-degree straight cut. Angled pipe ends are often needed for welding, joining, assembly, exhaust fabrication, structural frameworks, and custom pipe components.

Depending on the machine configuration, the equipment can support:

Straight Pipe Cutting
Angled Pipe Cutting
Miter Pipe Cutting
Pipe End Cutting
Custom Angle Cutting
Repetitive Angle Cutting

The available angle range should be confirmed according to the specific machine model and mechanical design.

For applications requiring highly accurate compound angles or complex pipe intersections, a more advanced CNC pipe cutting system may be recommended.

Plasma Cutting for Metal Pipes

Plasma cutting is a non-contact thermal cutting process suitable for electrically conductive metals.

Compared with mechanical cutting methods, plasma cutting can provide several advantages for suitable applications:

Fast Cutting
Flexible Cutting Paths
No Conventional Saw Blade
Easy Cutting Pattern Changes
Suitable for Different Metal Types
Good Productivity for Repetitive Work

For stainless steel and other metals, the correct plasma parameters are important for maintaining stable cutting performance.

Users should select plasma power according to the thickest pipe wall that needs to be processed.

Portable Pipe Cutter Applications

The portable plasma pipe cutter can be used in a variety of industries.

Stainless Steel Fabrication

The machine can be used for stainless steel pipe preparation, custom fabrication, equipment manufacturing, and architectural metalwork.

Construction and Installation

Contractors can use portable pipe cutting equipment for pipe preparation during construction and installation work.

HVAC and Ventilation

Round metal pipes and ducts used for ventilation systems may require straight or angled cuts during fabrication and installation.

Exhaust Systems

The equipment can be used for processing compatible stainless steel and carbon steel exhaust pipe components.

Chimney and Flue Systems

Portable pipe cutting equipment can be useful for preparing chimney, flue, and ventilation pipe sections.

Industrial Maintenance

Maintenance teams can use compact cutting equipment for repair and modification work where a large stationary cutting line is impractical.

Cutting Accuracy and Repeatability

Although the machine is portable, cutting accuracy remains an important consideration.

A properly designed pipe support and positioning system can help keep the workpiece stable during cutting.

For repetitive production, consistent positioning can help produce similar pipe sections with reduced dimensional variation.

Actual cutting accuracy depends on:

Machine Structure
Pipe Positioning
Plasma Power
Pipe Diameter
Wall Thickness
Cutting Speed
Torch Height
Consumables
Operator Setup

For demanding precision applications, buyers should evaluate sample cuts before selecting the final machine configuration.

Portable vs. Fixed Pipe Cutting Systems

Portable equipment is particularly useful when mobility is important.

A fixed CNC pipe cutting machine may be more appropriate for high-volume production, larger pipe diameters, automated loading and unloading, or complex multi-axis cutting.

A portable plasma pipe cutter is often better suited to:

Small and Medium Workshops
Field Fabrication
Maintenance Work
Installation Sites
Small-Batch Production
Repair Operations
Flexible Manufacturing

Choosing between portable and fixed equipment should be based on production volume, pipe size, cutting complexity, workshop conditions, and mobility requirements.

Machine Configuration

Depending on the model, a portable plasma pipe cutting system may include:

Plasma Cutting Torch
Plasma Power Source
Pipe Positioning System
Pipe Support
Cutting Control System
Drive Mechanism
Angle Adjustment Mechanism
Electrical Control Components
Torch Holder
Safety Components

Optional equipment and accessories can be selected according to the intended application.

Why Choose Our Portable Plasma Pipe Cutting Machine?
1. Lightweight and Portable

The compact design makes the machine easier to move between workshops, workstations, or job sites.

2. Designed for Pipe Cutting

The machine is specifically configured for round metal pipe and tube cutting applications.

3. Stainless Steel Cutting Capability

With suitable plasma power and consumables, the equipment can process stainless steel pipe efficiently.

4. Straight and Angle Cutting

The machine can be configured for straight and angled pipe cutting according to the application.

5. Flexible Industrial Applications

It is suitable for fabrication, construction, HVAC, exhaust, chimney, maintenance, and general metalworking applications.

6. Compact Workshop Footprint

The portable structure can be useful for workshops where floor space is limited.

7. Custom Configuration

Pipe size range, plasma power, cutting angle, positioning system, and control configuration can be customized according to requirements.

8. OEM and B2B Support

Customers can provide pipe drawings, material specifications, wall thickness, cutting angles, and production requirements for customized solutions.

How to Choose a Portable Plasma Pipe Cutter

Before purchasing, determine the pipe diameter range that will be processed most frequently.

Next, confirm the material type and maximum wall thickness. Stainless steel may require different plasma parameters from mild or carbon steel.

The required cutting method should also be considered. If the application requires simple straight cuts, a compact system may be sufficient. If the application requires repeated angled cuts, holes, notches, or complex intersections, a more advanced CNC configuration may be appropriate.

Portability is another important consideration. Users who frequently move equipment between job sites should consider machine weight, power requirements, setup time, and transportation requirements.

For OEM projects, providing drawings or sample pipe components can help the manufacturer recommend the appropriate configuration.

FAQS
1. What materials can this portable plasma pipe cutter process?

It can be configured for electrically conductive metals such as stainless steel, mild steel, carbon steel, and other compatible metal pipes.

2. Can it cut stainless steel pipe?

Yes. With suitable plasma power, consumables, gas, and cutting parameters, the machine can cut stainless steel pipe.

3. Can it perform angled pipe cuts?

Yes. Depending on the machine configuration, it can support straight and angled pipe cutting.

4. Is the machine easy to move?

The machine is designed with portability and a lightweight structure in mind, making it easier to relocate than many large fixed pipe cutting systems.

5. Can it be used on a construction site?

Yes. Its portable design can make it suitable for certain on-site fabrication, installation, and maintenance applications.

6. What pipe sizes can it cut?

The applicable pipe diameter range depends on the specific model. Buyers should provide the minimum and maximum pipe diameters required.

7. Can it cut thick stainless steel pipe?

The maximum cutting thickness depends on the plasma power source, stainless steel grade, wall thickness, cutting speed, and machine configuration.

8. Can it cut mild steel and carbon steel?

Yes. Plasma cutting is commonly used for mild steel and carbon steel pipe within the machine's specified capacity.

9. Can it cut galvanized steel pipe?

Yes, when the material and thickness are within the plasma system's capability. Appropriate ventilation and fume control should be used.

10. Is it a CNC pipe cutting machine?

The control level depends on the selected model. CNC or controlled positioning systems can be configured for applications requiring repeatable cutting.

11. Can the cutting angle be customized?

The available angle range depends on the mechanical configuration. Customized angle-cutting solutions can be developed according to project requirements.

12. What information is needed for a quotation?

Please provide pipe diameter, pipe length, material type, wall thickness, required cutting angle, production volume, and desired automation level.

13. Can the machine be customized for OEM projects?

Yes. Machine configuration can be customized according to pipe dimensions, materials, cutting requirements, plasma power, positioning method, and application.
