50 MM 120 MM 219 MM Round Pipe Plasma Cutting Machine SS MS Iron Galvanized Steel Tube Cutter for Chimney

No	Item
Cutting stroke	6000mm
Function	Cut off, cut hole, cut notching
Measure	6750*550*1350mm(Subject to the actual object)
Weight	300KG (Subject to the actual object)
Power	220V(Control part)
Output voltage	24V
Accuracy of positioning	±0.1mm
Rack type	2M precision straight teeth
Mode of cutting	plasma
Cutting torch	Non-contact P80 (plasma)
Air supply	It should be brought by oneself (≥0.8MPa)
Pipe of frame size	50x100mm

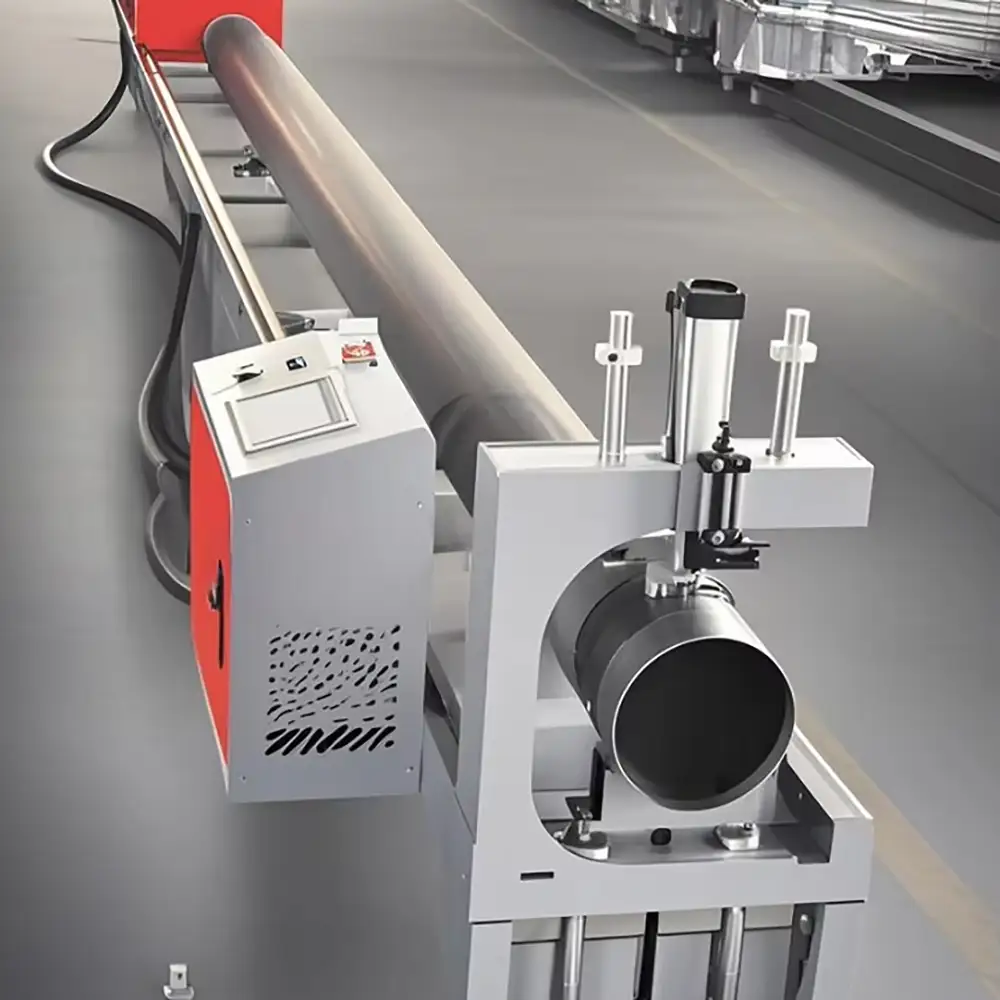

Round Pipe Plasma Cutting Machine for 50mm, 120mm and 219mm Pipes

The Round Pipe Plasma Cutting Machine is an efficient CNC plasma cutting solution designed for processing round metal pipes and tubes in different diameter ranges, including approximately 50mm, 120mm, and 219mm, depending on the machine configuration. It is suitable for cutting stainless steel, mild steel, iron, galvanized steel, and other compatible electrically conductive metal pipes.

Designed for industrial tube fabrication, the machine combines plasma cutting technology with controlled pipe positioning to provide repeatable and efficient cutting. It can be used for chimney pipe fabrication, ventilation ducts, exhaust components, structural tube processing, metal fabrication, heating systems, industrial piping, and other applications where round pipe cutting is required.

Compared with manual cutting methods, a CNC pipe plasma cutting system can improve cutting consistency and reduce repetitive positioning work. It is especially useful for manufacturers that need to process multiple pipe sizes or produce repeated components according to standardized drawings.

What Is a Round Pipe Plasma Cutting Machine?

A round pipe plasma cutting machine uses a plasma torch to cut electrically conductive metal while the pipe and cutting torch are controlled according to the required cutting path.

The plasma arc melts the metal at the cutting point, while the plasma gas removes molten material from the cut area.

For round pipe applications, the machine must maintain stable positioning between the tube and cutting torch. Depending on the machine configuration, the pipe can be rotated, indexed, or positioned while the CNC system controls the cutting operation.

The machine can be designed for different pipe diameters and lengths according to the customer's production requirements.

50mm, 120mm and 219mm Pipe Cutting Capacity

The specified 50mm, 120mm and 219mm dimensions represent common pipe diameter requirements that can be accommodated by the corresponding machine configuration.

Depending on the equipment design, the machine can be used for different round pipe sizes within its working range.

For example:

50mm Round Pipe
120mm Round Pipe
219mm Round Pipe
Stainless Steel Tube
Mild Steel Pipe
Iron Pipe
Galvanized Steel Tube

The actual maximum and minimum pipe diameter should always be confirmed according to the specific machine model.

Different pipe diameters can also influence torch positioning, rotation, cutting speed, consumable selection, and CNC parameters.

Suitable for Stainless Steel, Mild Steel and Galvanized Steel

The machine is designed for electrically conductive metals commonly used in pipe fabrication.

Stainless Steel Pipe

Stainless steel tubes are widely used in exhaust systems, ventilation, food-processing equipment, architectural structures, industrial equipment, and decorative applications.

Mild Steel Pipe

Mild steel is commonly used for structural components, frames, fabrication projects, industrial piping, and general metalworking.

Iron Pipe

Iron and compatible ferrous metal tubes can be processed when the material falls within the plasma system's specified cutting range.

Galvanized Steel Tube

Galvanized steel is frequently used for ventilation systems, construction, ducts, frames, and other applications requiring a zinc-coated steel surface.

When cutting galvanized material, appropriate ventilation, fume extraction, and workplace safety procedures should be followed.

Chimney Pipe Cutting Applications

One important application for this type of machine is chimney pipe fabrication.

Chimney and flue systems often require accurately cut round metal sections. Depending on the product design, the machine can be used to process chimney pipe components, flue sections, connectors, ventilation pipes, and related metal parts.

Typical chimney-related applications may include:

Chimney Pipe Sections
Flue Pipes
Ventilation Pipes
Exhaust Pipes
Stove Pipes
Furnace Pipes
Industrial Flue Components
Pipe Connectors

The exact cutting operation depends on the finished product design.

CNC Controlled Pipe Cutting

A CNC control system can make round pipe cutting more consistent and repeatable.

Instead of manually controlling the torch for every operation, the operator can program the required cutting path and production parameters.

Depending on the machine configuration, CNC functions may include:

Automatic Cutting Path Control
Pipe Positioning
Pipe Rotation
Length Setting
Cutting Parameter Adjustment
Repetitive Cutting
Program Storage
Automatic Start and Stop

This makes the machine suitable for manufacturers producing multiple batches of similar pipe components.

Plasma Cutting for Round Tubes

Plasma cutting is widely used for conductive metals because it can provide high cutting efficiency without requiring mechanical contact between a conventional cutting blade and the workpiece.

For round pipes, plasma cutting can be used for a variety of operations, depending on the CNC system and machine design.

Possible operations include:

Straight Pipe Cutting
Cross Cutting
Angled Cutting
Pipe End Cutting
Hole Cutting
Slot Cutting
Notching
Opening Cutting
Custom Contour Cutting

The actual available functions depend on the machine's mechanical structure, CNC software, pipe positioning system, and plasma cutting configuration.

Pipe Cutting Accuracy and Repeatability

For industrial pipe fabrication, consistent dimensions are important because components often need to fit together during welding or assembly.

A CNC-controlled cutting process can help maintain repeatable positioning between production cycles.

The final cutting quality depends on several factors, including:

Plasma Power
Pipe Diameter
Material Thickness
Material Type
Cutting Speed
Gas Selection
Torch Height
Consumables
CNC Parameters
Pipe Positioning Accuracy

Proper machine setup and parameter selection are therefore important for achieving stable production results.

Production Efficiency

The round pipe plasma cutting machine is suitable for both prototype production and repetitive manufacturing.

For small-batch production, CNC programming can reduce setup and manual marking requirements.

For larger production runs, stored programs can help operators reproduce the same cutting patterns across multiple workpieces.

The machine can also reduce repetitive manual cutting operations, helping manufacturers improve workflow efficiency.

Actual production capacity will vary according to pipe diameter, wall thickness, cutting pattern, number of cuts, and machine configuration.

Machine Configuration

A typical round pipe plasma cutting system may include:

CNC Control System
Plasma Power Source
Plasma Torch
Pipe Rotation or Positioning System
Pipe Support System
Drive Motor
Transmission Components
Electrical Control Cabinet
Cutting Software
Fume and Slag Management System

Additional feeding, loading, unloading, or material handling equipment can be considered for higher-volume production environments.

How to Choose the Right Pipe Plasma Cutter

Before purchasing a round pipe plasma cutting machine, buyers should provide accurate information about the pipe dimensions.

Important specifications include:

Minimum Pipe Diameter
Maximum Pipe Diameter
Pipe Length
Wall Thickness
Material Type
Required Cutting Shapes
Production Volume
Required Automation Level

For example, if the required pipe range includes 50mm, 120mm, and 219mm, the machine should be selected based on the complete diameter range rather than a single pipe size.

The required plasma power should also be matched to the thickest material that will be processed.

Providing pipe drawings and sample cutting requirements to the machine manufacturer can help ensure the equipment is correctly configured.

Why Choose Our Round Pipe Plasma Cutting Machine?
1. Multiple Pipe Diameter Options

The machine can be configured for round pipe applications including approximately 50mm, 120mm, and 219mm diameters.

2. Suitable for Multiple Steel Materials

It can be configured for stainless steel, mild steel, iron, galvanized steel, and other compatible conductive metals.

3. Efficient Plasma Cutting

Plasma technology provides an efficient method for cutting metal tubes and pipes without mechanical blade contact.

4. CNC Automation

CNC control helps improve repeatability and reduces repetitive manual cutting and positioning work.

5. Chimney and Flue Applications

The machine is suitable for chimney pipe, flue pipe, ventilation pipe, exhaust pipe, and related fabrication applications.

6. Flexible Cutting Patterns

Depending on the machine configuration, it can perform straight, angled, hole, slot, notch, and customized contour cutting.

7. Custom Machine Configuration

Pipe diameter, working length, plasma power, control system, positioning method, and automation can be configured according to production requirements.

8. B2B and OEM Support

Manufacturers can provide pipe drawings, material specifications, sample parts, and production requirements for customized machine solutions.

FAQS
1. What pipe diameters can this machine cut?

The machine can be configured for pipe sizes including approximately 50mm, 120mm, and 219mm. The exact working range depends on the machine model.

2. Can it cut 219mm round pipe?

Yes, a suitable machine configuration can be designed for round pipes up to approximately 219mm in diameter.

3. Can it cut 50mm and 120mm pipes?

Yes. The machine can be configured to accommodate different pipe diameters within its specified working range.

4. Can it cut stainless steel?

Yes. Plasma cutting is suitable for stainless steel when the appropriate plasma power, gas, consumables, and cutting parameters are selected.

5. Can it cut mild steel and iron pipe?

Yes. Mild steel and compatible ferrous metal pipes can be processed within the machine's specified cutting capacity.

6. Can it cut galvanized steel tube?

Yes. Galvanized steel can be processed with suitable parameters and appropriate ventilation and fume extraction.

7. Is it suitable for chimney pipe manufacturing?

Yes. It can be used for chimney pipe, flue pipe, ventilation pipe, stove pipe, and related round metal tube fabrication.

8. Can the machine cut holes in round pipes?

Depending on the CNC system and pipe positioning configuration, the machine can be equipped for hole and opening cutting.

9. Can it perform angled pipe cuts?

Yes, angled cuts can be supported when the machine's CNC system and mechanical configuration are designed for this operation.

10. Does it use CNC control?

Yes. CNC control can be used for programmed cutting paths, positioning, and repeat production.

11. What is the maximum cutting thickness?

The maximum cutting thickness depends on the plasma power source, material type, pipe diameter, cutting speed, and machine configuration.

12. Can the machine be customized?

Yes. Pipe diameter range, working length, plasma power, CNC system, positioning method, and automation level can be customized.

13. What information should I provide for a quotation?

Please provide pipe diameter range, pipe length, material type, wall thickness, required cutting shapes, daily production volume, and desired automation level.
