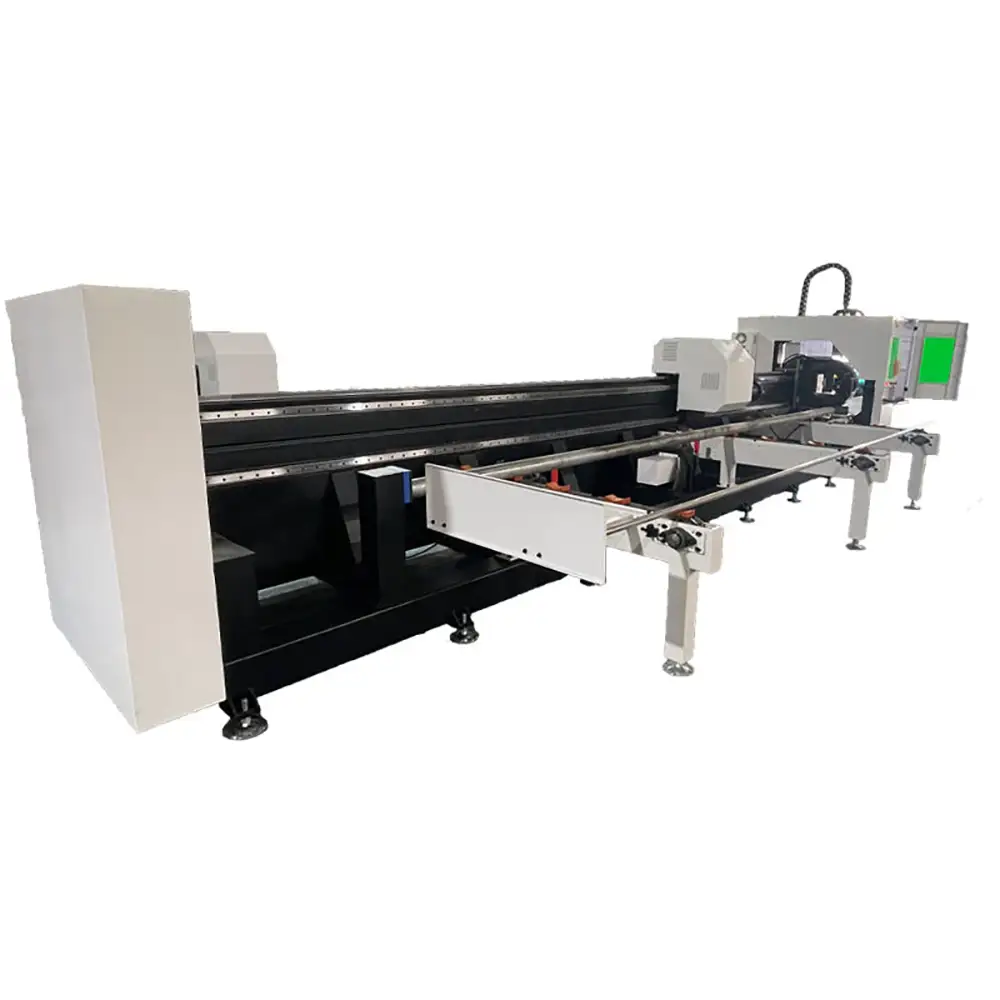

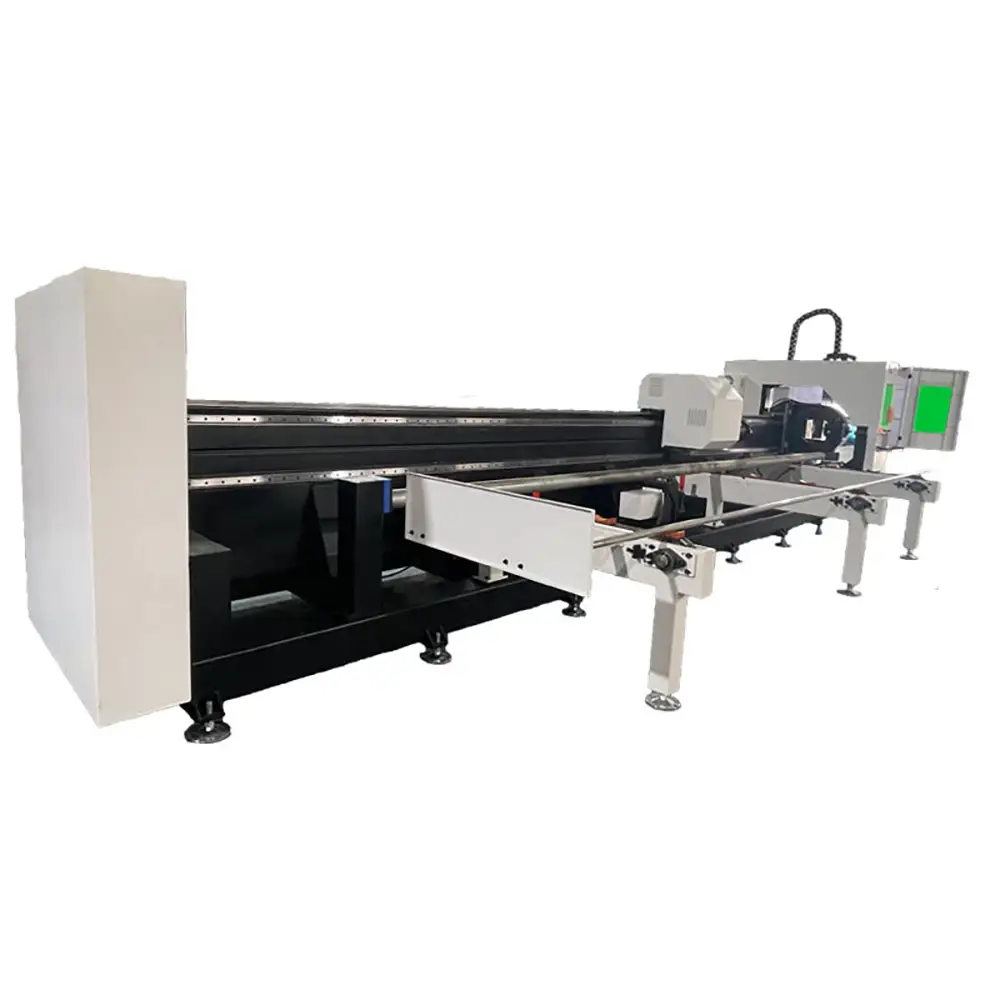

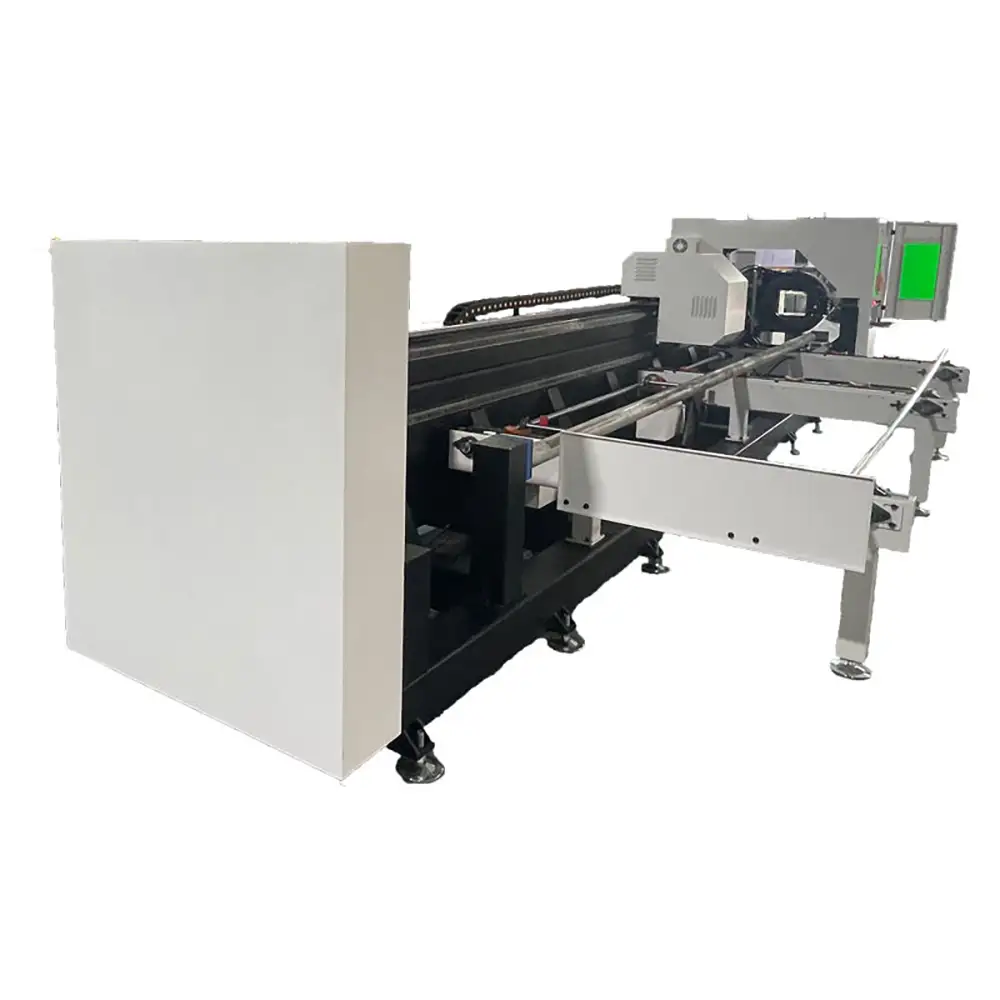

Heavy Duty Side Mounted Dual Chuck Laser Tube Cutting Machine Automatic Feeding Pipe

Heavy-Duty Machine Construction

Industrial pipe cutting requires a stable machine platform. During high-speed laser cutting, vibration and mechanical movement can affect cutting quality, positioning accuracy and repeatability. This heavy-duty laser tube cutting machine is designed with a rigid machine bed and reinforced structural components to provide stable support during continuous production.

The machine structure is suitable for industrial applications where the equipment may operate for extended periods. A strong bed design also helps maintain alignment between the laser cutting system, chuck system and workpiece throughout the production process.

For customers processing large-diameter or heavier pipes, the machine can be configured according to the required material dimensions and production capacity.

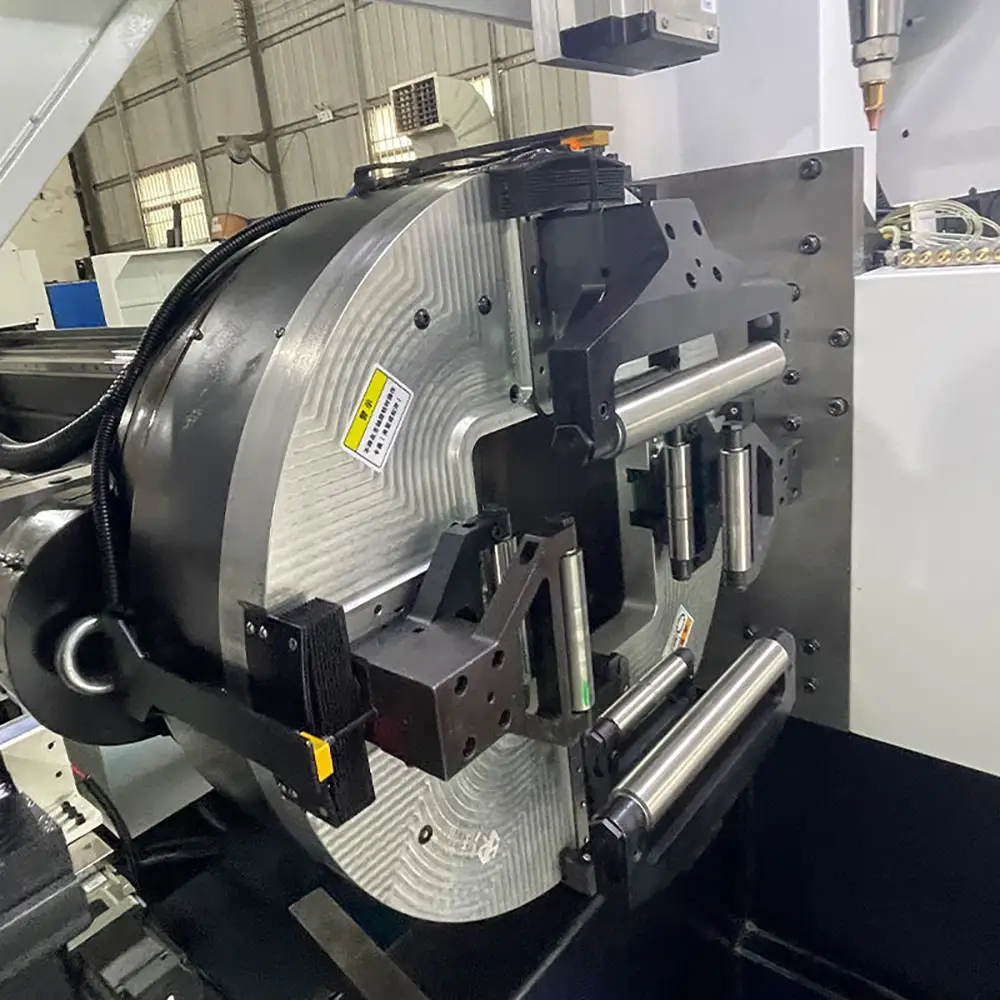

Side-Mounted Dual Chuck System

The dual chuck system is one of the key features of this automatic tube laser cutting machine. Two chucks provide additional support and positioning for long or heavy workpieces, helping reduce unwanted movement during cutting.

The chuck system can accommodate different tube shapes and sizes depending on the selected configuration. Round tubes, square tubes, rectangular tubes and other compatible profiles can be processed with suitable tooling and software settings.

Dual-chuck technology can also provide advantages when cutting complex features along a tube because the workpiece can remain securely positioned while the laser head follows programmed cutting paths.

For manufacturers producing structural components, frames, machinery parts, steel furniture, automotive components or fabricated tube assemblies, stable clamping is particularly important for maintaining consistent results.

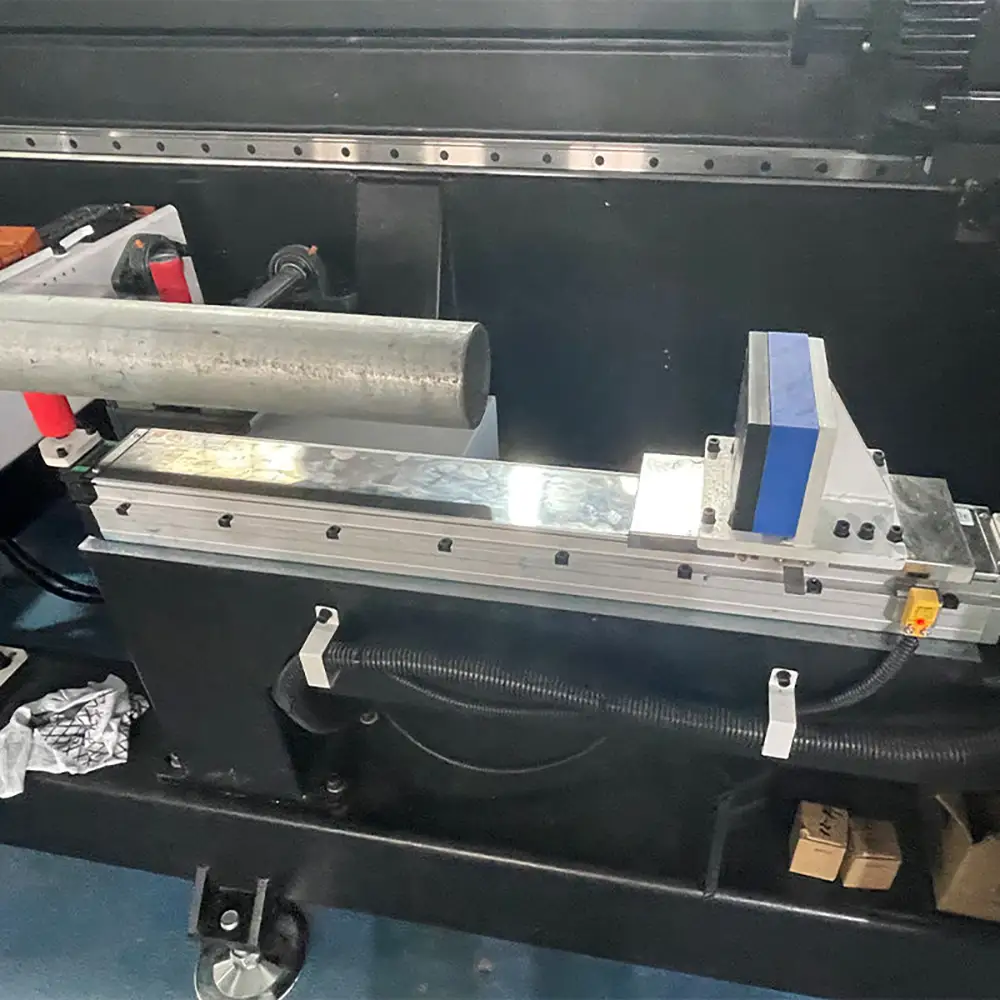

Automatic Pipe Feeding

Automatic feeding reduces the amount of manual material handling required between production cycles. After loading the raw material, the feeding system can continuously supply pipes or tubes to the cutting area according to the machine's configured operating sequence.

Automatic feeding is especially useful for high-volume manufacturing where operators need to process large quantities of similar tubes. It can help reduce loading time, improve production consistency and make better use of available labor.

Depending on the selected configuration, automatic loading and feeding systems can be integrated with material storage, tube racks or other handling equipment to create a more complete tube laser cutting production line.

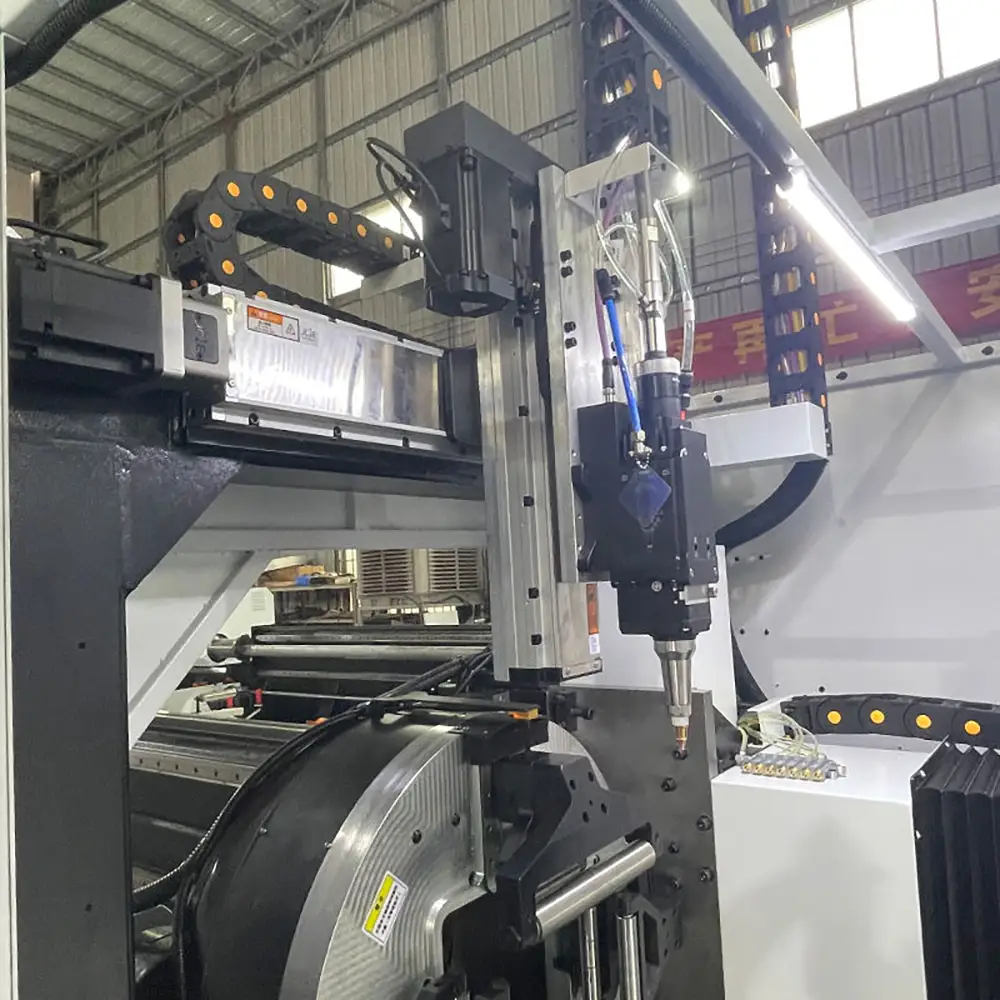

CNC Laser Cutting Technology

The CNC control system coordinates tube rotation, chuck movement, laser head positioning and cutting parameters according to the programmed cutting pattern. Operators can import or create cutting programs for different pipe components and production orders.

Laser cutting provides a narrow cutting kerf and concentrated heat input, making it suitable for producing accurate holes, slots, contours and end cuts. Compared with conventional mechanical cutting methods, laser processing can reduce the need for multiple secondary operations when the correct parameters and tooling are selected.

The machine can be configured with an appropriate fiber laser source according to the customer's material, thickness, tube diameter and production requirements.

Cutting Pipes, Tubes and Profiles

A major advantage of a CNC laser tube cutting machine is its ability to process more than simple straight cut-off operations.

Depending on machine configuration and software capabilities, it can be used for:

Tube Cut-Off
Pipe End Cutting
Hole Cutting
Slot Cutting
Notching
Profile Cutting
Angled Cutting
Tube Contour Cutting
Structural Tube Processing
Customized Tube Patterns

These capabilities allow manufacturers to produce finished or semi-finished components directly from standard metal tubes, reducing additional drilling, milling and cutting operations.

Wide Material Compatibility

The machine can be used for various metal materials when matched with the appropriate laser power, cutting head and process parameters.

Typical applications include:

Carbon Steel: Suitable for structural pipes, machinery components, frames and fabricated steel parts.

Stainless Steel: Suitable for equipment frames, furniture, architectural structures, food-processing equipment and decorative components.

Aluminum: Suitable for lightweight structures, transportation components, machinery parts and fabricated profiles.

Galvanized Steel: Commonly used for construction, HVAC, structural and general fabrication applications.

Other compatible metals may also be processed depending on the machine configuration and laser source.

High-Efficiency Industrial Production

For manufacturers processing hundreds or thousands of pipe components, production efficiency is an important consideration. Automatic feeding combined with CNC control and dual-chuck clamping can help reduce manual operations and provide a more consistent workflow.

The operator can prepare cutting programs in advance, load raw materials and monitor the production process. Different cutting patterns can be programmed for different components, making the system suitable for both repetitive production and flexible manufacturing.

The actual cutting speed and production capacity depend on material type, tube dimensions, wall thickness, laser power, cutting geometry and machine configuration.

Applications

The Heavy Duty Side Mounted Dual Chuck Laser Tube Cutting Machine is suitable for a wide range of industries, including:

Steel Structure Manufacturing
Metal Fabrication
Automotive Parts Manufacturing
Agricultural Machinery
Construction Machinery
Fitness Equipment
Steel Furniture
Lighting Equipment
HVAC Manufacturing
Machinery Manufacturing
Bicycle and Motorcycle Parts
Architectural Metalwork
Industrial Equipment
Pipe and Tube Fabrication

It can process structural tubes, machine frames, supports, brackets, rails, pipes, tubular components and customized metal profiles.

How to Choose the Right Tube Laser Cutting Machine

Before purchasing a heavy-duty laser pipe cutting machine, buyers should evaluate several important factors.

First, determine the maximum and minimum tube diameter that needs to be processed. Tube length and maximum workpiece weight are also important for selecting the appropriate chuck and feeding system.

Second, identify the main materials and maximum wall thickness. Carbon steel, stainless steel and aluminum may require different laser power and process parameters.

Third, consider the production volume. For high-volume manufacturing, automatic feeding and dual-chuck systems can provide significant productivity advantages.

Fourth, consider the required cutting functions. If the application involves only straight cutting, a simpler machine may be sufficient. If the production requires holes, slots, notches, angled cuts and complex contours, a dedicated CNC tube laser cutting system is more appropriate.

Finally, evaluate the software, laser source, cutting head, chuck configuration, automation system and after-sales support before making a final purchasing decision.

Why Choose Us
Heavy-Duty Industrial Design

Our laser tube cutting solutions are designed around stable machine construction and reliable operation for demanding metal fabrication environments.

Dual-Chuck Technology

The dual-chuck configuration provides secure workpiece support and is particularly useful for longer and heavier tubes.

Automatic Material Feeding

Automatic feeding helps reduce manual loading operations and supports efficient continuous production.

Flexible Tube Processing

The machine can be configured for round, square, rectangular and other compatible tube or profile shapes.

CNC Precision

CNC control enables repeatable cutting programs and consistent processing for production orders with multiple components.

Flexible Laser Configuration

Laser power, cutting components, chuck specifications and automation can be selected according to material, tube size and production requirements.

OEM & Custom Solutions

Machine configuration can be customized for different pipe dimensions, production volumes, automation requirements and application conditions.

B2B Technical Support

We focus on providing complete industrial equipment solutions, technical communication, machine configuration support and production-oriented recommendations for international customers.

Frequently Asked Questions
1. What materials can this laser tube cutting machine process?

It can be configured for carbon steel, stainless steel, aluminum, galvanized steel and other compatible metals depending on laser power and machine specifications.

2. What is the advantage of a dual chuck laser tube cutter?

A dual-chuck system provides additional workpiece support and clamping, which can improve stability when processing long or heavy tubes.

3. What does automatic pipe feeding do?

The automatic feeding system supplies raw tubes to the cutting area with reduced manual handling, making it suitable for repetitive and high-volume production.

4. Can it cut round and square tubes?

Yes. With the appropriate chuck configuration and software, the machine can process round, square and rectangular tubes and other compatible profiles.

5. Can it cut holes in metal pipes?

Yes. CNC laser tube cutting systems can be configured for hole, slot and contour cutting in addition to standard tube cut-off operations.

6. Can it perform pipe notching?

Depending on the machine software and cutting configuration, it can perform various tube notching and contour cutting operations.

7. Is this machine suitable for carbon steel?

Yes. Carbon steel pipe and structural tubing are common applications for industrial fiber laser tube cutting machines.

8. Can stainless steel tubes be cut?

Yes. Stainless steel tubing can be processed with suitable laser power, cutting parameters and machine configuration.

9. Is automatic loading available?

Automatic loading and feeding can be integrated or configured according to the customer's production requirements.

10. Is the machine suitable for high-volume production?

Yes. The combination of CNC control, dual-chuck clamping and automatic feeding makes it suitable for repetitive industrial tube-cutting production.

11. Can the machine be customized?

Yes. Machine dimensions, laser power, chuck configuration, feeding system, software and other components can be configured according to application requirements.

12. How do I choose the correct laser power?

Laser power should be selected according to material, maximum wall thickness, tube dimensions, required cutting speed and production requirements.

13. What information should I provide for a quotation?

It is helpful to provide the material type, tube shape, maximum and minimum diameter or profile size, wall thickness, tube length, required cutting functions and expected production volume.
