Cnc Automatic Pipe Plasma Cutting Machine Carbon Steel Pipe Cutter to Cut off Cut Holes Notches

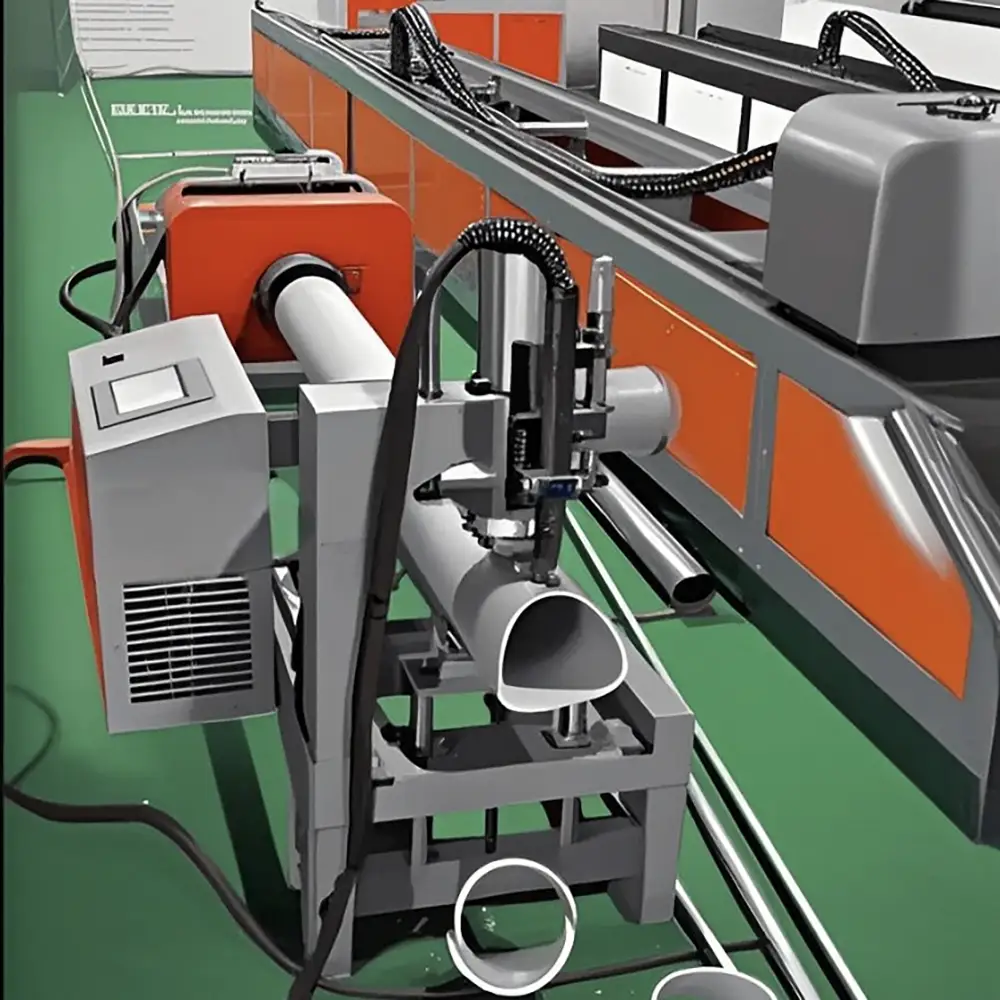

CNC Automatic Pipe Plasma Cutting Machine for Carbon Steel Pipe

The CNC Automatic Pipe Plasma Cutting Machine is an advanced metal pipe processing solution designed for automatic cutting of carbon steel pipes and other compatible metal tubes. It combines CNC-controlled movement with plasma cutting technology to perform pipe cut-off, hole cutting, notching, and other programmed cutting operations.

Designed for modern metal fabrication, the machine can help manufacturers improve production efficiency, cutting consistency, and repeatability. Instead of relying on manual marking and torch positioning, the CNC system controls the cutting path according to programmed parameters.

This makes the equipment suitable for structural steel fabrication, machinery manufacturing, construction, agricultural equipment, trailer production, steel frames, pipe assemblies, and general metalworking.

Depending on the machine configuration, the system can process different pipe diameters and wall thicknesses and can be customized according to production requirements.

Factory Direct Diameter 19 mm- 100 mm Round Tube Cutting Machine Carbon Steel Stainless Steel Iron Plasma Pipe Cutter

No	Item
Cutting stroke	6000mm
Function	Cut off, cut hole, cut notching
Measure	6750*550*1350mm(Subject to the actual object)
Weight	300KG (Subject to the actual object)
Power	220V(Control part)
Output voltage	24V
Accuracy of positioning	±0.1mm
Rack type	2M precision straight teeth
Mode of cutting	plasma
Cutting torch	Non-contact P80 (plasma)
Air supply	It should be brought by oneself (≥0.8MPa)
Pipe of frame size	50x100mm

SP-97R
The 6-meter pipe cutting machine is an expert in round pipe cutting! Easily controlled by a remote controller, it can be optionally equipped with plasma or laser cutting. There's no worry about drawing, and it's the first choice for construction sites!
No need for complex drawing, just one-click cutting! The 6-meter pipe cutting machine supports plasma and laser cutting. It's convenient to carry on construction sites and can handle all cutting tasks of stainless steel round pipes!

The intelligent 6-meter pipe cutting machine, with the remote controller in hand, there's no trouble in cutting! You can choose either plasma or laser cutting. It can handle various complex hole shapes and angles with ease, and it's a great helper for construction sites!

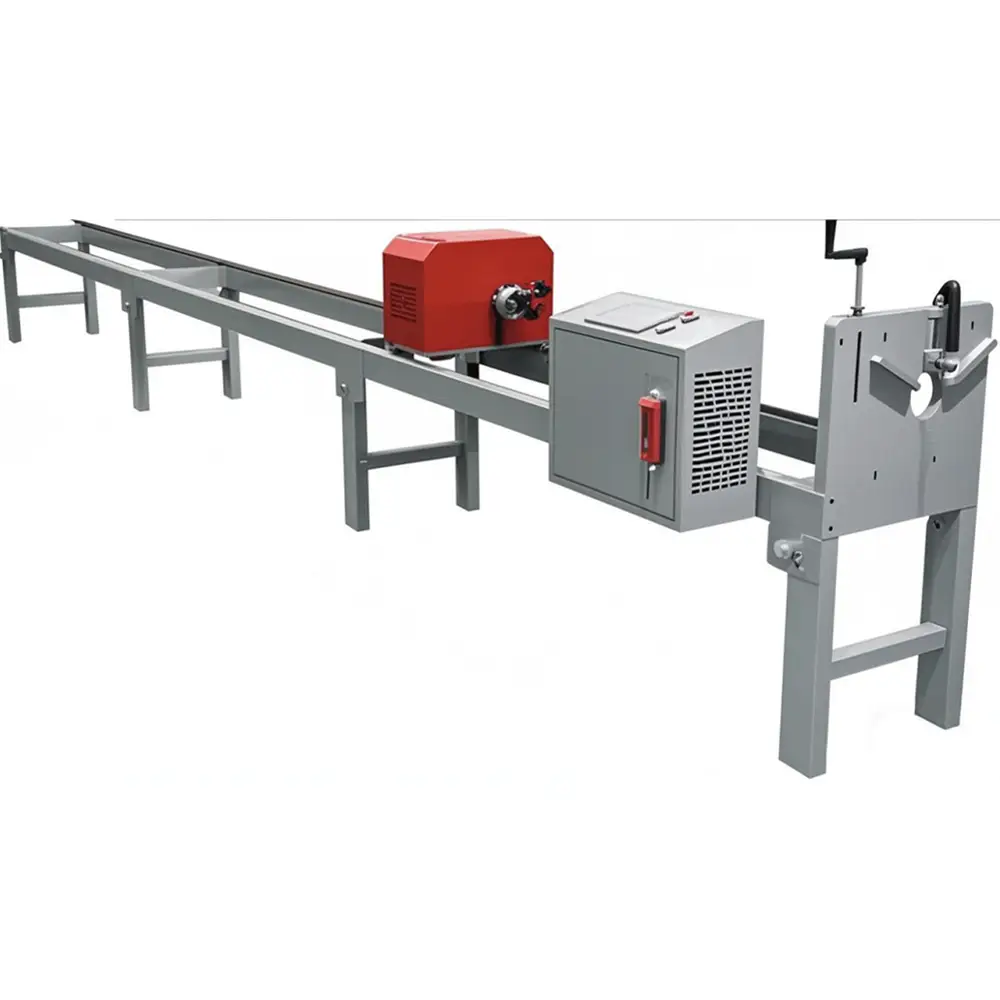

Plasma Pipe cutter
6000 mm Feeding Rack
Cutting length reaches up to 6000mm
Available Diameter of Pipe :19-100mm
Single Pipe weight reaches up to 30KG

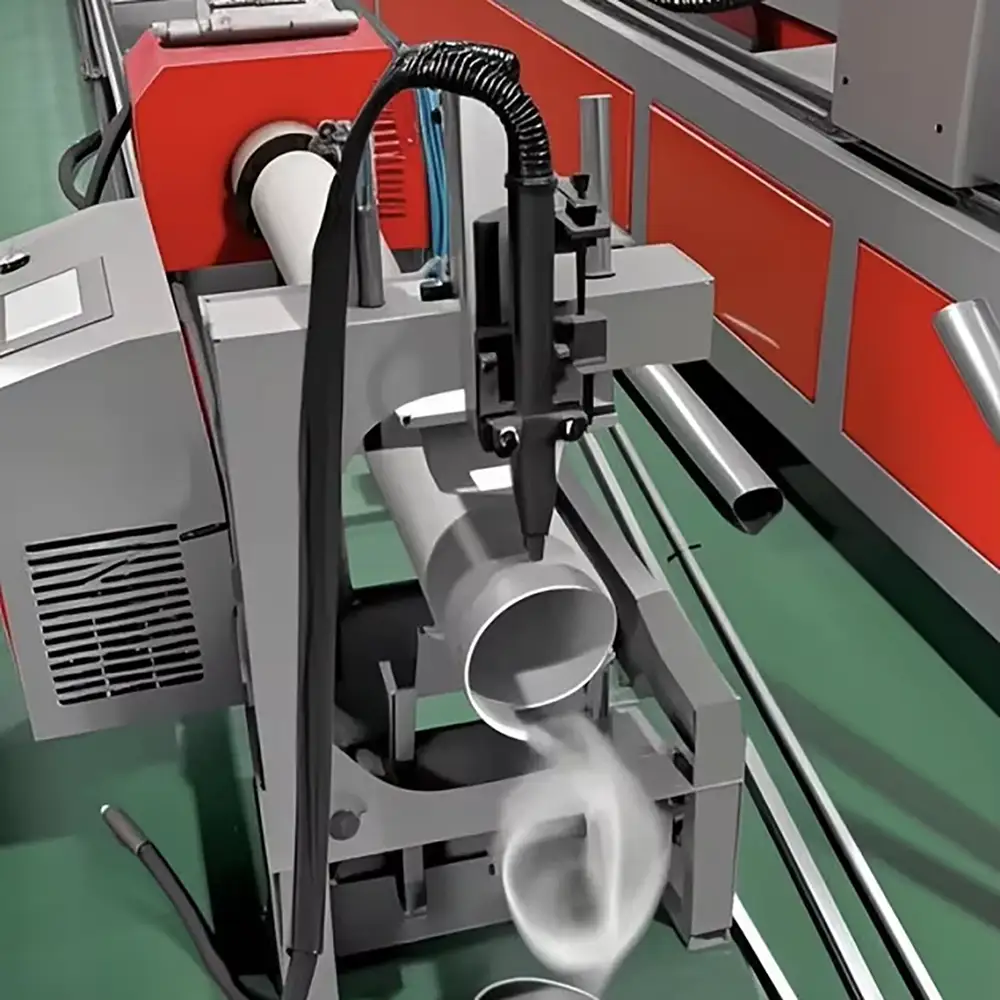

What Is a CNC Automatic Pipe Plasma Cutting Machine?

A CNC automatic pipe plasma cutting machine uses a plasma torch combined with a controlled pipe positioning system to process round or other compatible metal tubes.

The plasma torch generates a high-temperature plasma arc that melts electrically conductive metal at the cutting point. High-velocity plasma gas removes molten material and creates the cut.

The CNC system controls the movement of the cutting torch and, depending on the machine design, the rotation or positioning of the pipe.

A typical production process includes:

Pipe Loading → Positioning → CNC Programming → Plasma Cutting → Hole/Notch Processing → Cut-Off → Finished Part Removal

This integrated process reduces repetitive manual operations and is particularly useful for production environments where multiple pipe components must be manufactured according to standardized drawings.

Carbon Steel Pipe Cutting

Carbon steel is one of the most widely used materials in industrial pipe fabrication.

The machine can be configured for cutting compatible carbon steel and mild steel pipes used in:

Structural Frames
Steel Buildings
Machinery
Trailers
Agricultural Equipment
Industrial Supports
Pipe Assemblies
Construction Components

The appropriate plasma power source should be selected according to pipe wall thickness and required production performance.

Cutting parameters such as plasma current, cutting speed, gas selection, torch height, and consumable type also influence final cut quality.

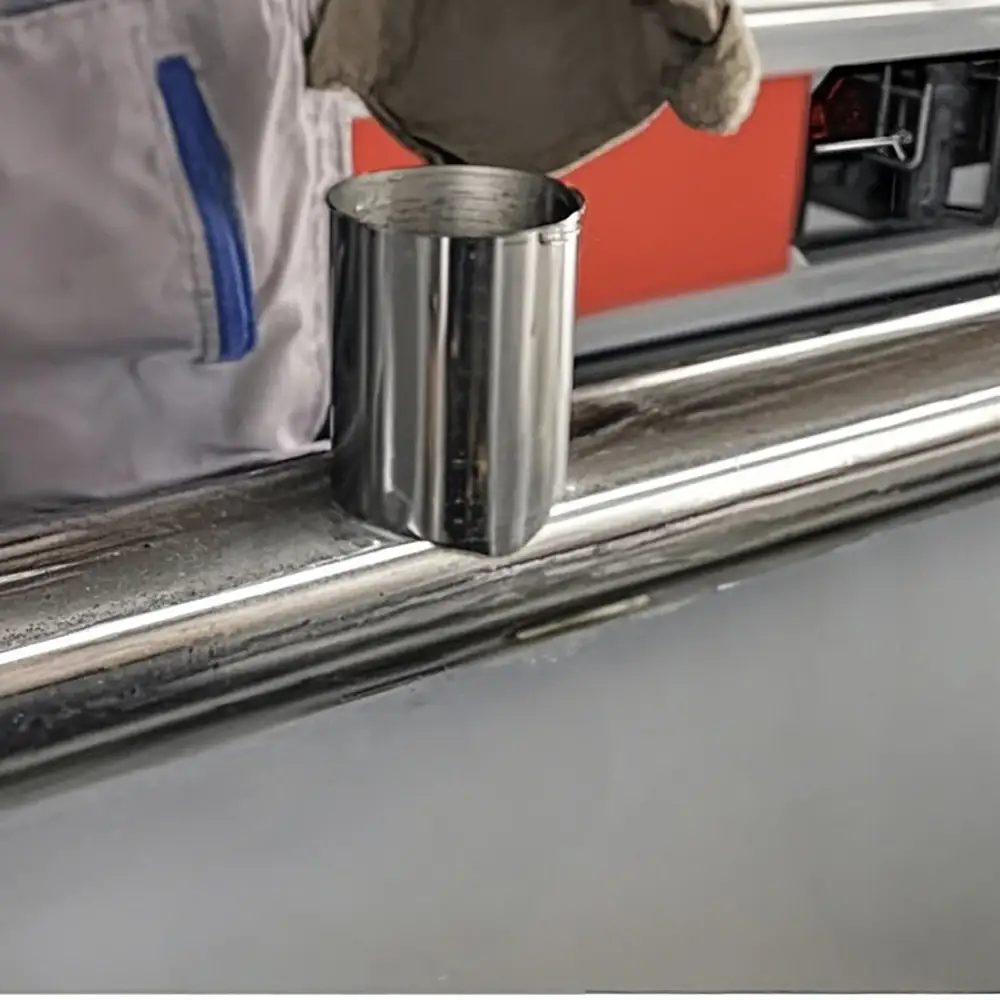

Pipe Cut-Off Operations

One of the basic functions of the machine is pipe cut-off.

The CNC system can control the cutting torch to separate a pipe into predetermined lengths. This is useful when producing standardized pipe sections for subsequent welding, assembly, or fabrication.

Automatic length control can reduce manual measuring and marking.

Depending on the machine configuration, operators can enter the required pipe length into the CNC control system and repeat the same cutting operation across multiple workpieces.

This can improve production consistency and reduce material handling time.

Pipe Hole Cutting

A major advantage of CNC pipe plasma cutting technology is the ability to cut holes directly into the pipe.

Pipe holes are commonly required when pipes need to connect with other structural components, fittings, brackets, supports, or intersecting tubes.

Possible applications include:

Round Pipe Holes
Connection Holes
Bolt Holes
Branch Pipe Openings
Ventilation Openings
Assembly Openings
Custom Cutouts

The CNC system controls the cutting path to produce the required hole geometry.

The actual hole size, shape, and cutting capability depend on the machine configuration and plasma cutting system.

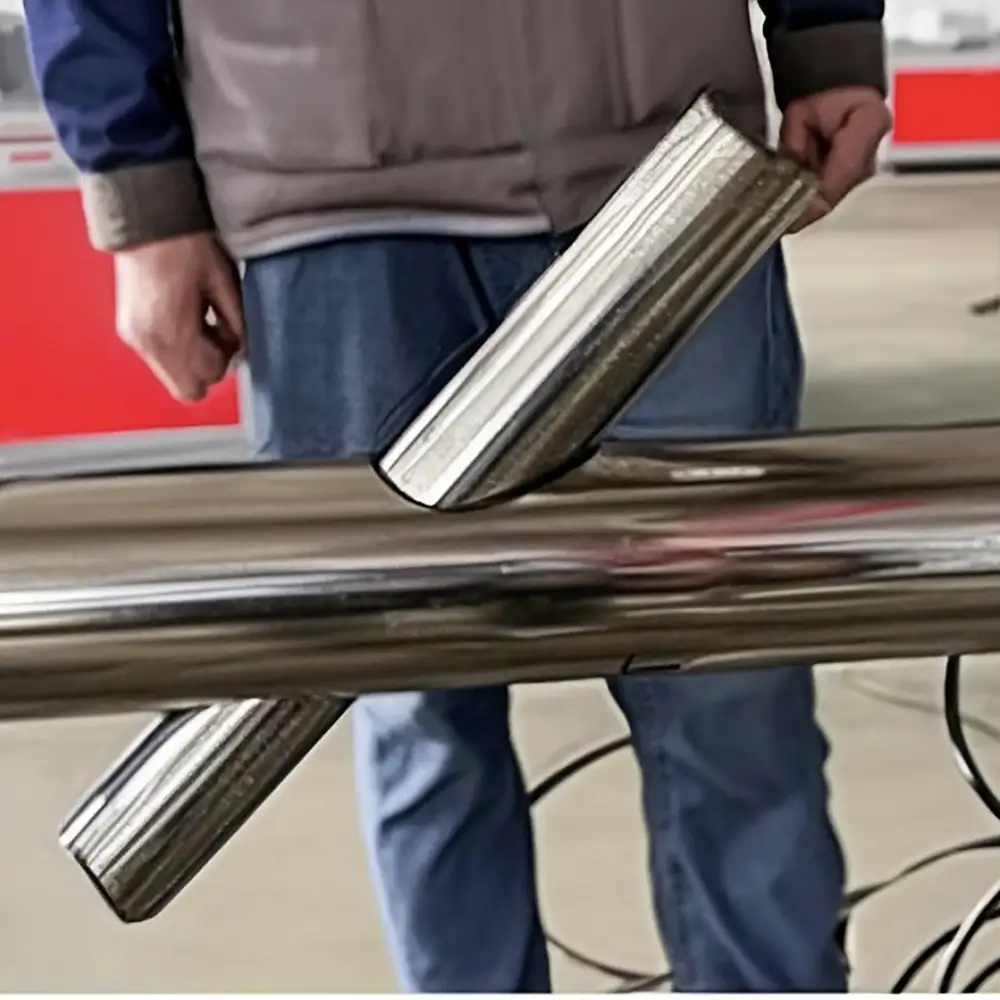

Pipe Notching

The machine can also be configured for pipe notching applications.

Pipe notches are frequently used when two tubes need to be joined together by welding. Accurate notching can help prepare the pipe ends for better fitting before welding.

Typical applications include:

Tube Frame Manufacturing
Structural Steel Fabrication
Bicycle and Equipment Frames
Trailer Frames
Agricultural Machinery
Railings
Steel Furniture
Industrial Pipe Structures

CNC-controlled notching can reduce manual grinding, cutting, and fitting operations.

Complex Pipe Cutting Patterns

Depending on the CNC system and mechanical configuration, the machine can perform more than simple straight pipe cutting.

Possible operations include:

Straight Cut-Off
Angled Cutting
Hole Cutting
Slot Cutting
Notching
End Cutting
Branch Openings
Custom Contours
Repetitive Cutting Patterns

For complex tube intersections, the CNC software and number of controlled axes should be selected according to the required geometry.

Automatic CNC Control

The CNC control system is one of the most important components of the machine.

It allows operators to program cutting paths and manage production parameters without manually guiding the plasma torch through every operation.

Typical functions may include:

Programmed Cutting Paths
Automatic Positioning
Pipe Rotation Control
Cutting Length Setting
Hole Position Programming
Notch Programming
Production Counting
Parameter Storage
Automatic Start and Stop

The exact software functions depend on the selected CNC system and machine configuration.

Production Efficiency

For manufacturers processing large quantities of similar pipe components, CNC automation can significantly improve workflow.

Once a cutting program has been prepared, the same pattern can be reproduced across multiple workpieces.

This is especially valuable for companies producing:

Standard Pipe Components
Steel Frames
Structural Tubes
Machine Frames
Trailer Components
Agricultural Equipment
Industrial Pipe Assemblies

Reducing repetitive manual measurement and cutting can help operators focus on material handling, inspection, and production management.

Actual production speed depends on pipe diameter, wall thickness, cutting pattern, plasma power, number of holes or notches, and machine configuration.

Machine Configuration

A complete CNC pipe plasma cutting machine may include:

CNC Control System
Plasma Power Source
Plasma Cutting Torch
Pipe Rotation System
Pipe Support System
Servo or Drive System
Transmission Components
Electrical Cabinet
Cutting Software
Fume and Slag Management System

Additional loading, unloading, feeding, or material handling systems can be integrated for higher-volume production.

Applications
Structural Steel

The machine can produce structural pipe components for steel frames, supports, platforms, and building structures.

Machinery Manufacturing

Carbon steel tubes used for machine frames, brackets, supports, and structural components can be processed using CNC plasma cutting.

Trailer Manufacturing

Pipe cut-off, holes, and notches are commonly required when fabricating trailer frames and related structural components.

Agricultural Equipment

The equipment can process tube components used in agricultural machinery, implements, equipment frames, and supports.

Construction

Pipe and tube components for construction frameworks, railings, supports, and prefabricated structures can be manufactured efficiently.

Metal Furniture

The machine can also be used for tube furniture, shelving, racks, tables, chairs, and other fabricated metal products.

Why Choose Our CNC Automatic Pipe Plasma Cutting Machine?
1. Automatic CNC Pipe Processing

The CNC system provides controlled cutting paths for repeatable pipe processing.

2. Cut-Off, Hole and Notch Functions

The machine can be configured for pipe cut-off, hole cutting, notching, slots, and other programmed geometries.

3. Designed for Carbon Steel

It is suitable for carbon steel and mild steel pipe applications within the specified cutting capacity.

4. Improved Production Consistency

CNC positioning and programmed cutting help reduce variations caused by repetitive manual operations.

5. Flexible Cutting Patterns

The machine can process different pipe geometries and cutting patterns according to the selected CNC configuration.

6. Suitable for Industrial Production

It can be used in structural steel, construction, machinery, trailer, agricultural, and general metal fabrication industries.

7. Custom Machine Configuration

Pipe diameter, working length, plasma power, CNC system, rotation mechanism, and automation can be configured according to requirements.

8. OEM and B2B Support

Customers can provide pipe drawings, material specifications, cutting samples, and production requirements for customized equipment solutions.

How to Choose a CNC Pipe Plasma Cutting Machine

Before purchasing the equipment, determine the complete range of pipe sizes that will be processed.

The maximum pipe diameter, minimum diameter, wall thickness, pipe length, and material type all affect machine configuration.

If the machine will be used for hole and notch cutting, buyers should also provide sample drawings or CAD files showing the required geometries.

Plasma power should be selected according to the thickest material that needs to be processed.

For high-volume production, automation features such as automatic loading, unloading, pipe rotation, CNC programming, and production counting may provide additional benefits.

A machine should therefore be selected based on the complete production process rather than cutting speed alone.

FAQS
1. What materials can the machine cut?

It is primarily designed for electrically conductive metals such as carbon steel, mild steel, stainless steel, and other compatible pipe materials.

2. Can it cut carbon steel pipe?

Yes. Carbon steel pipe is one of the main applications for CNC plasma pipe cutting.

3. Can it cut holes in pipe?

Yes. The CNC system can be configured for programmed hole and opening cutting.

4. Can it perform pipe notching?

Yes. Depending on the machine configuration, it can perform various pipe notching operations for fabrication and welding preparation.

5. Can it cut pipe to different lengths?

Yes. CNC-controlled cut-off operations can produce pipe sections according to programmed lengths.

6. Can it cut angled pipe ends?

Yes, angled cutting can be supported depending on the machine's mechanical and CNC configuration.

7. Is the machine fully automatic?

The automation level depends on the selected configuration. CNC cutting and automatic positioning can be integrated, with additional loading and unloading automation available for some production requirements.

8. Can it process round tubes?

Yes. The machine can be configured for round pipe and tube processing.

9. Can it cut stainless steel?

Yes. With suitable plasma power, consumables, gas, and cutting parameters, stainless steel pipe can be processed.

10. What is the maximum cutting thickness?

The maximum thickness depends on the plasma power source, material type, pipe diameter, cutting speed, and machine configuration.

11. Can the cutting program be saved?

Depending on the CNC system, programs and cutting parameters can be stored for repeat production.

12. Can the machine be customized?

Yes. Pipe size range, working length, plasma power, CNC control, rotation system, automation, and other components can be customized.

13. What information is needed for a quotation?

Please provide pipe diameter range, pipe length, material, wall thickness, required cut-off lengths, hole and notch drawings, production volume, and desired automation level.
