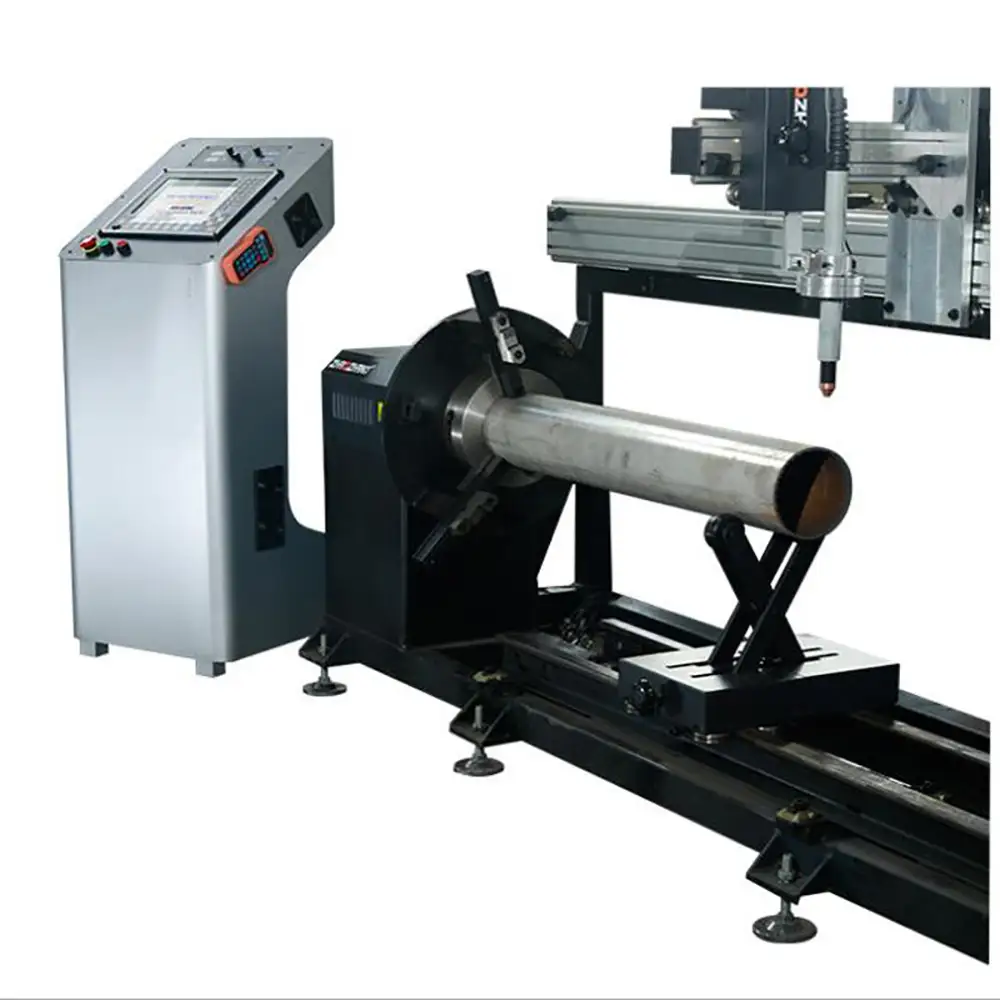

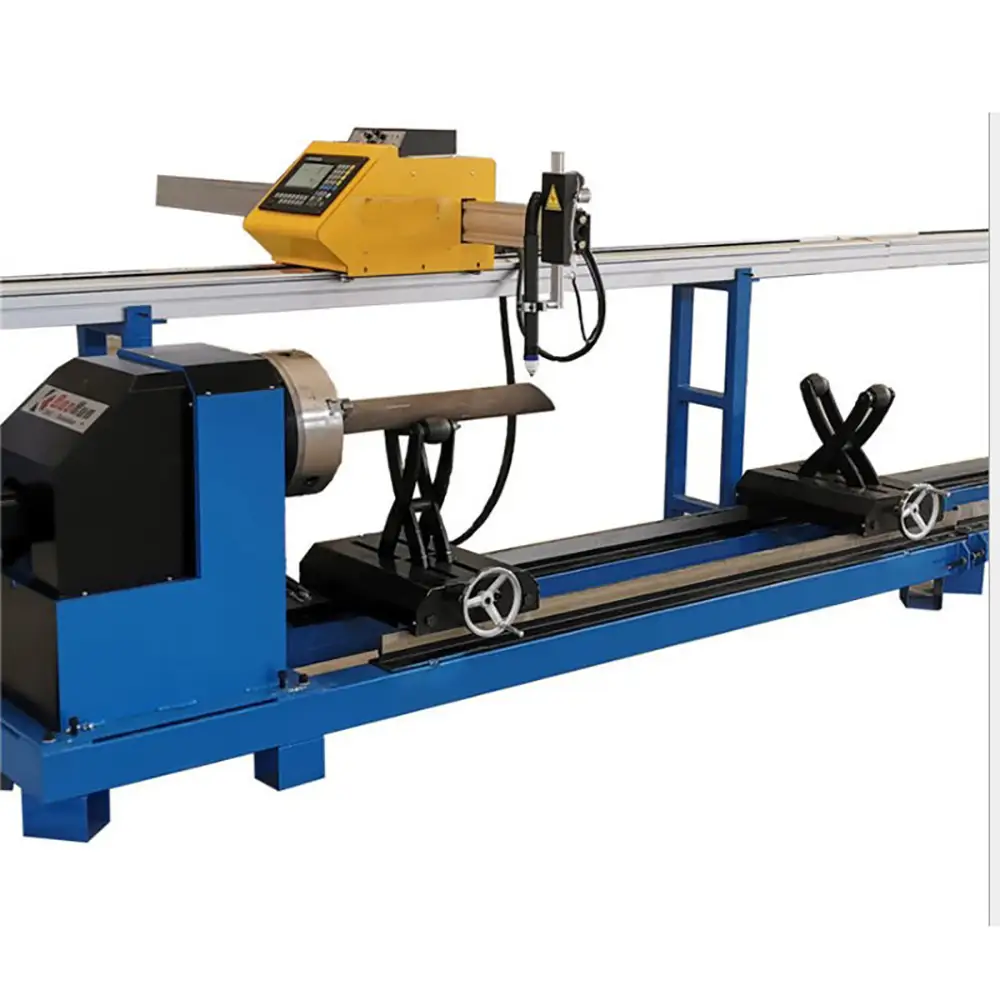

Numerical Control Stepper Motor Circular Tube Intersection Line Plasma Cutting Machine

High Quality Stepper Motor: Ensures precise control for accurate cutting.

Heavy-Duty Design: Suitable for cutting pipes weighing over 1 ton.

Customizable Lengths: Tailored to fit various pipe lengths.

Integrated Solutions: Offers options for bevel cutting and tube-sheet integration.

TUV Certified: Ensures reliability and safety.

Numerical Control Stepper Motor Circular Tube Intersection Line Plasma Cutting Machine

The Numerical Control Stepper Motor Circular Tube Intersection Line Plasma Cutting Machine is designed for efficient and repeatable cutting of circular metal tubes and pipes, particularly where intersecting lines, branch connections, notches and complex tube profiles are required. Combining numerical control technology, stepper motor drive and plasma cutting, this machine provides a practical solution for metal tube fabrication and structural pipe processing.

Unlike a basic pipe cut-off machine that only performs straight cuts, an intersection line plasma cutting machine is designed to create more complex profiles on cylindrical tubes. These profiles are commonly required when one pipe needs to connect with another pipe at a specific angle.

The machine can be configured for carbon steel, mild steel, stainless steel and other electrically conductive metals, depending on the selected plasma system and machine configuration.

It is suitable for steel structure manufacturers, metal fabrication workshops, machinery manufacturers, construction equipment producers, pipeline fabricators and other industrial users.

CNC Numerical Control System

The numerical control system coordinates the movement of the cutting torch and the rotation or positioning of the circular tube.

A programmed cutting path allows the machine to reproduce the required intersection geometry with greater consistency than manual marking and handheld plasma cutting.

The CNC system can be used to prepare different cutting programs for different tube sizes, intersection angles and component designs.

Depending on the software configuration, the machine can support:

Circular Tube Cutting
Pipe Intersection Cutting
Branch Pipe Cutting
Saddle Cutting
Tube Notching
Hole Cutting
Slot Cutting
Tube End Cutting
Profile Cutting
Angled Cutting

This makes the equipment suitable for both standard production and customized tube fabrication.

Stepper Motor Drive System

The stepper motor provides controlled mechanical movement for the cutting mechanism. Stepper motor technology is commonly used in CNC equipment where accurate incremental positioning and repeatable movement are required.

The drive system coordinates the movement of the cutting components according to the programmed cutting path.

Stable motor movement is particularly important when producing intersection profiles because even small deviations can affect the fit between two tubes during welding.

The actual positioning accuracy and cutting performance depend on the machine structure, drive system, CNC controller, plasma system and workpiece dimensions.

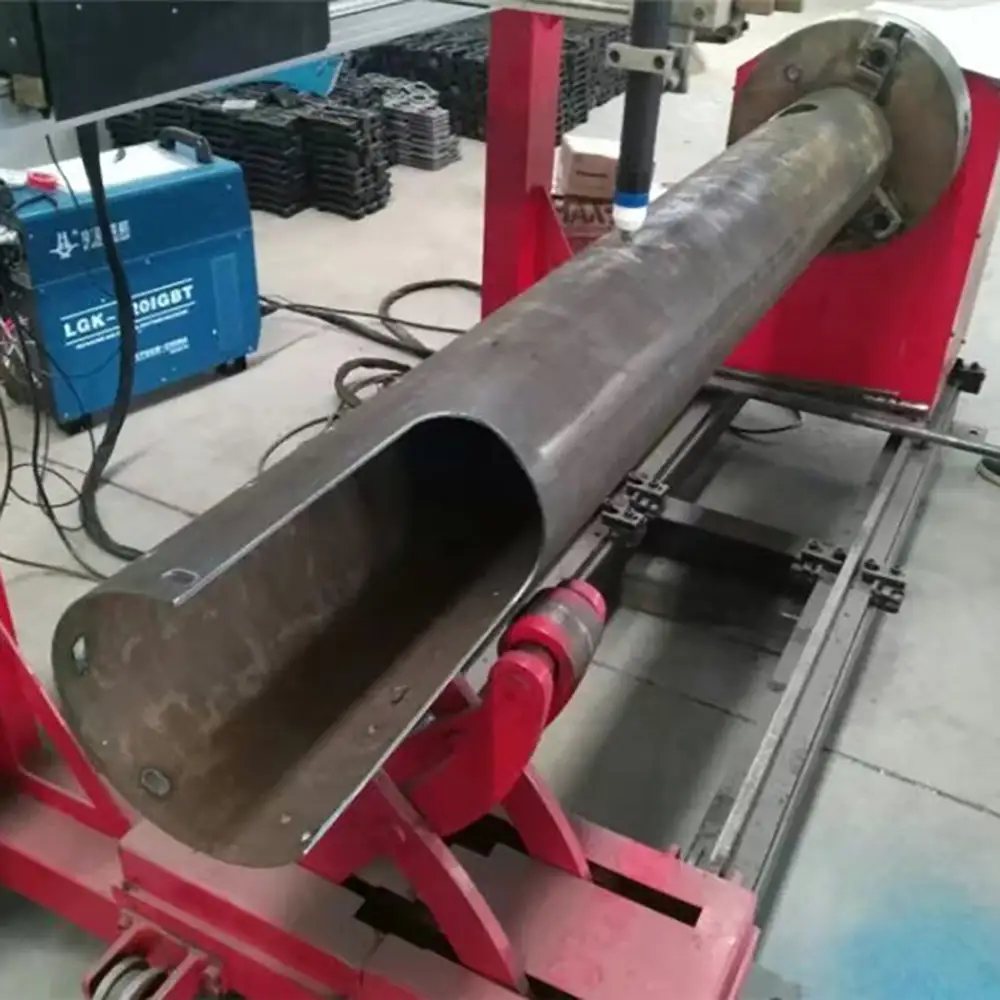

Circular Tube Intersection Line Cutting

The main application of this machine is cutting intersection lines on circular tubes.

When two pipes are joined together, the end of one pipe may need to be shaped to match the curved surface of another pipe. A simple straight cut cannot produce the required joint.

The CNC intersection cutting system calculates or follows the required profile so the tube can be prepared for welding.

This process is commonly used for:

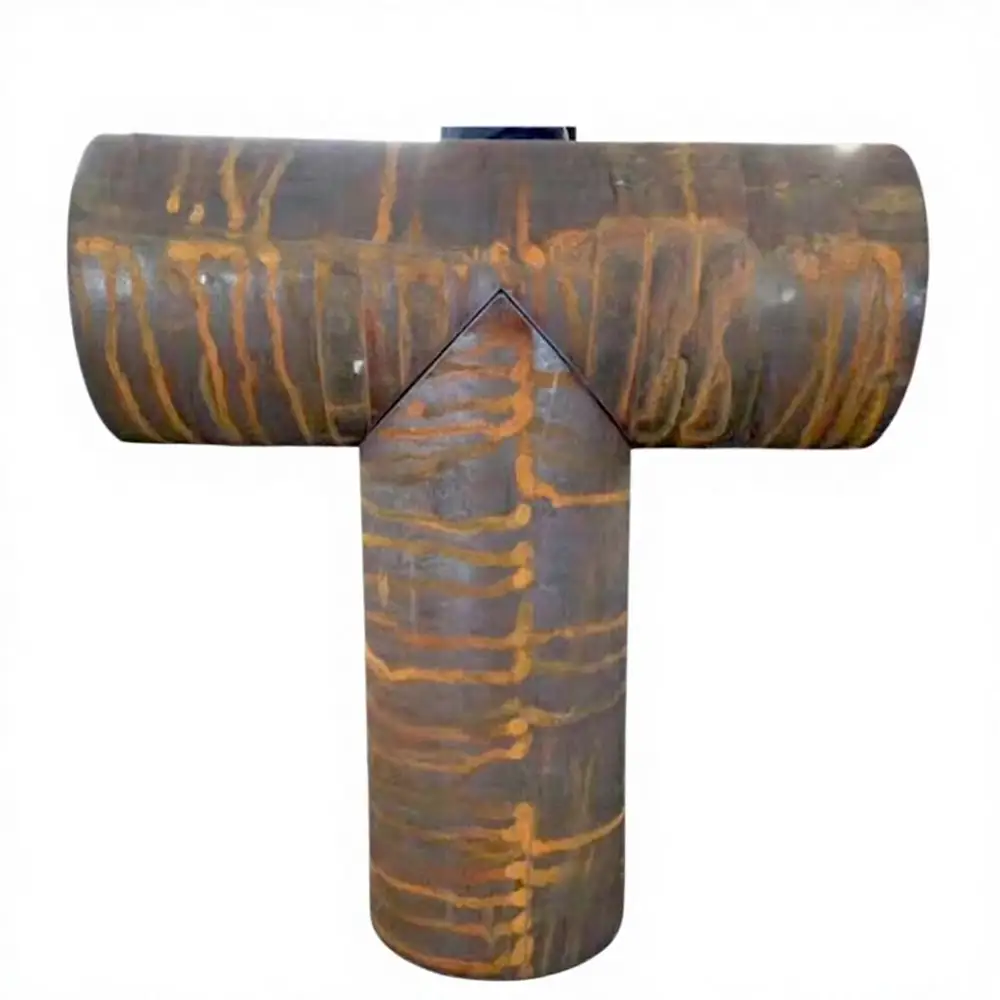

Pipe Branch Connections
Steel Pipe Structures
Tubular Frames
Industrial Piping
Structural Tubes
Construction Components
Mechanical Frames
Pipeline Components

The resulting tube profile can help reduce manual grinding, fitting and adjustment before welding.

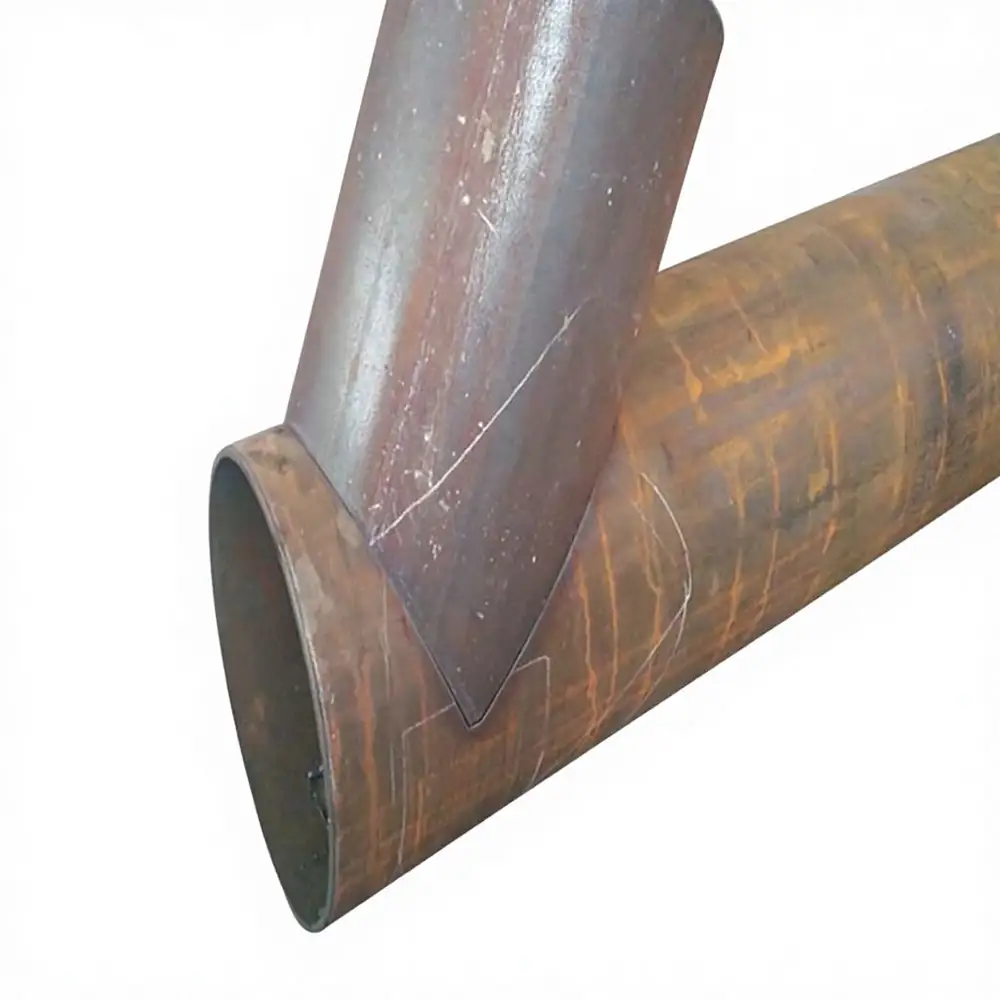

Pipe Saddle and Branch Cutting

Saddle cutting is an important application for tube intersection equipment.

A saddle profile allows one cylindrical tube to fit against another cylindrical pipe. This is frequently required when fabricating pipe frames, structural assemblies and branch connections.

The CNC system can control the cutting path according to the required intersection geometry.

Depending on software capability, operators may be able to input tube diameter, intersection angle and other parameters to generate or select the appropriate cutting program.

This can simplify production of repeated pipe branch components.

Plasma Cutting Technology

The plasma cutting system uses a high-temperature plasma arc to cut electrically conductive metals.

Compared with mechanical saw cutting, plasma can perform more complex profiles without requiring a dedicated cutting tool for every geometry.

For circular tube applications, plasma cutting can be used to create holes, notches, intersections and customized contours.

The appropriate plasma power should be selected according to the material and maximum wall thickness.

Carbon steel and mild steel are common applications, while stainless steel and aluminum can also be processed when the plasma system is configured accordingly.

Tube Profile Cutting

The machine is not limited to simple circumferential cuts. CNC programming allows the cutting torch to follow curved and customized profiles around the tube.

Possible applications include:

Branch Openings
Pipe Saddles
Tube Notches
Connection Holes
Structural Openings
End Profiles
Welding Preparation
Custom Tube Contours

This makes the machine suitable for manufacturers that need to produce complex tubular components without extensive manual layout.

Applications in Steel Structures

Circular steel tubes are widely used in structural fabrication.

The machine can help prepare tubes for:

Steel Frames
Canopies
Trusses
Railings
Supports
Structural Columns
Tubular Buildings
Architectural Structures

Accurate intersection profiles can simplify assembly and welding because the tube ends can be prepared to match the connecting member.

Applications in Pipe Fabrication

Pipe fabrication is another important application.

The equipment can be used to prepare pipe branch connections, openings and profiles before welding.

It can support production for:

Industrial Pipelines
Water Systems
Chemical Piping
HVAC Systems
Steel Pipe Assemblies
Machinery Piping
Construction Pipelines

For industrial applications, the machine should be configured according to pipe diameter, wall thickness and required intersection geometry.

Production Efficiency

Manual tube intersection cutting often requires measurement, marking, template preparation, torch cutting and subsequent grinding.

CNC plasma cutting can reduce several of these manual steps.

Once a cutting program has been prepared, the same profile can be reproduced across multiple workpieces.

This can help improve:

Production Consistency
Cutting Repeatability
Operator Productivity
Tube Assembly Efficiency
Welding Preparation
Batch Production

Actual productivity depends on tube size, cutting pattern, plasma power, material thickness and operator workflow.

Material Compatibility

The machine can be configured for various conductive metals.

Carbon Steel

Suitable for structural tubes, machinery frames, pipe assemblies and general steel fabrication.

Mild Steel

Commonly used for general metal fabrication and structural applications.

Stainless Steel

Suitable for corrosion-resistant pipe structures and industrial components when an appropriate plasma system is selected.

Aluminum

Can be processed with a suitable plasma configuration for conductive non-ferrous materials.

Material thickness should always be confirmed before selecting the plasma power and cutting torch.

How to Choose the Right Tube Intersection Cutter

The first factor is tube diameter. Provide the minimum and maximum circular tube diameter that needs to be processed.

Next, determine the maximum wall thickness. This will help determine the required plasma power.

The required intersection angle is also important. If the application includes different branch angles, the CNC software should support the required geometries.

Production volume should also be considered. For repetitive production, CNC programming provides greater benefits than manual cutting.

Finally, evaluate the tube clamping method, stepper motor system, CNC controller, plasma power supply and software functions.

Why Choose Us
CNC Tube Intersection Technology

Our machines are designed for controlled cutting of circular tube intersection lines, branch profiles and pipe connection openings.

Stepper Motor Drive

The stepper motor system provides controlled and repeatable movement for programmed cutting operations.

Plasma Cutting

Plasma technology provides flexible cutting capability for conductive metals and complex tube profiles.

Flexible Tube Processing

The machine can be configured for different circular tube diameters, wall thicknesses and intersection requirements.

Efficient Welding Preparation

Accurately cut intersection profiles can help reduce manual fitting and grinding before welding.

Multiple Cutting Functions

The system can support tube cutting, holes, slots, notches, saddles and customized profiles depending on configuration.

Custom CNC Configuration

Tube diameter range, plasma power, motor system, CNC controller and workpiece support can be selected according to production needs.

B2B Technical Support

We provide equipment recommendations based on material, tube diameter, wall thickness, intersection angle and production volume.

Frequently Asked Questions
1. What is a tube intersection line cutting machine?

It is a CNC cutting machine designed to produce profiles where one circular tube intersects or connects with another tube.

2. What is saddle cutting?

Saddle cutting creates a curved tube-end profile designed to fit against another cylindrical pipe for welding.

3. What materials can the machine cut?

It can be configured for carbon steel, mild steel, stainless steel, aluminum and other conductive metals.

4. What is the role of the stepper motor?

The stepper motor provides controlled movement of the cutting mechanism according to the CNC program.

5. Can it cut circular tubes?

Yes. Circular tube and pipe processing is the primary application of this machine.

6. Can it cut pipe branch openings?

Yes. CNC tube intersection cutting systems can be programmed for branch connection openings and related profiles.

7. Can it perform notching?

Yes. Tube notching can be supported depending on the CNC software and machine configuration.

8. Can it cut holes in tubes?

Yes. The plasma torch can produce programmed holes and openings in compatible circular tubes.

9. Is it suitable for steel structures?

Yes. It is suitable for tubular structural components, frames, supports and other steel fabrication applications.

10. Can it process stainless steel?

Yes. Stainless steel can be processed when the plasma power supply and cutting parameters are suitable.

11. Does the machine require CNC programming?

Yes. CNC programming is used to control the cutting path and create repeatable tube profiles.

12. Can the machine be customized?

Yes. Tube diameter range, plasma power, drive system, CNC controller and workpiece support can be configured according to requirements.

13. What information is required for machine selection?

Please provide tube diameter, wall thickness, material, tube length, intersection angle, required cutting profiles and expected production volume.
