Portable Orbital Gas Cutter Flame Magnetic Pipe Cutting Machine for Metal Tubes

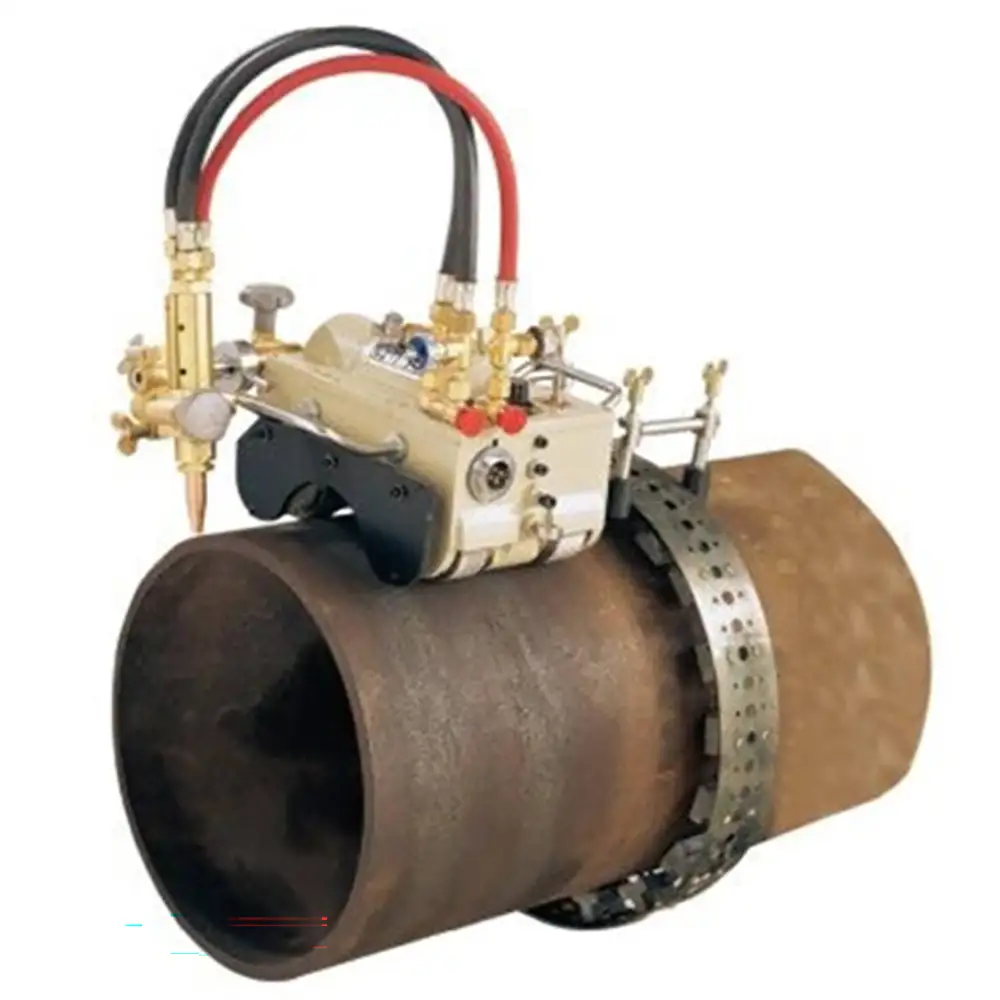

Portable Pipe Cutting Design

Portability is one of the key advantages of this flame pipe cutting machine. The compact design allows operators to transport the equipment between different workstations or job sites.

For fabrication workshops, maintenance teams and construction projects, not every pipe can be conveniently transported to a large CNC cutting machine. A portable orbital cutter provides an alternative by bringing the cutting equipment directly to the workpiece.

Typical applications include:

Workshop Pipe Cutting
Construction Site Cutting
Pipeline Maintenance
Steel Structure Fabrication
Industrial Equipment Repair
Boiler and Pressure Pipe Work
HVAC Pipe Processing
Oil and Gas Maintenance
Metal Tube Fabrication

The machine can be particularly useful when large or installed pipes cannot easily be moved to conventional cutting equipment.

Orbital Flame Cutting

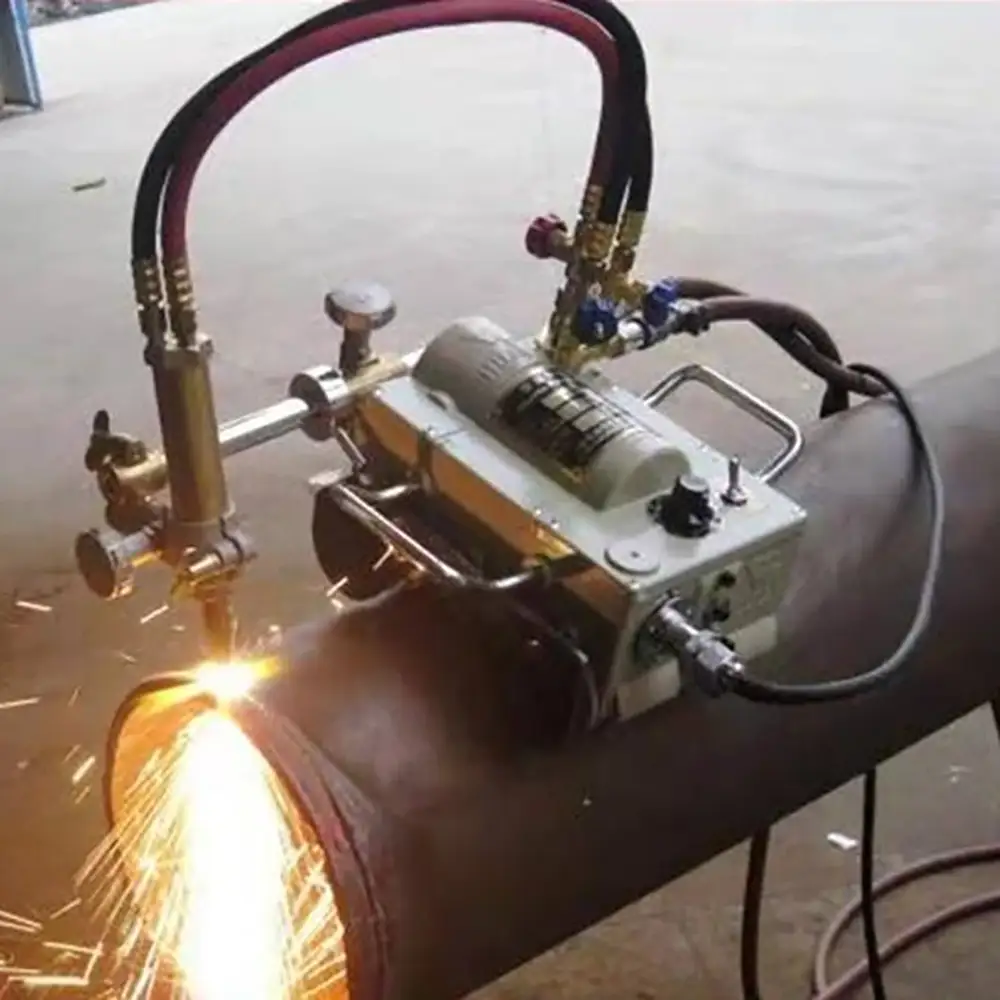

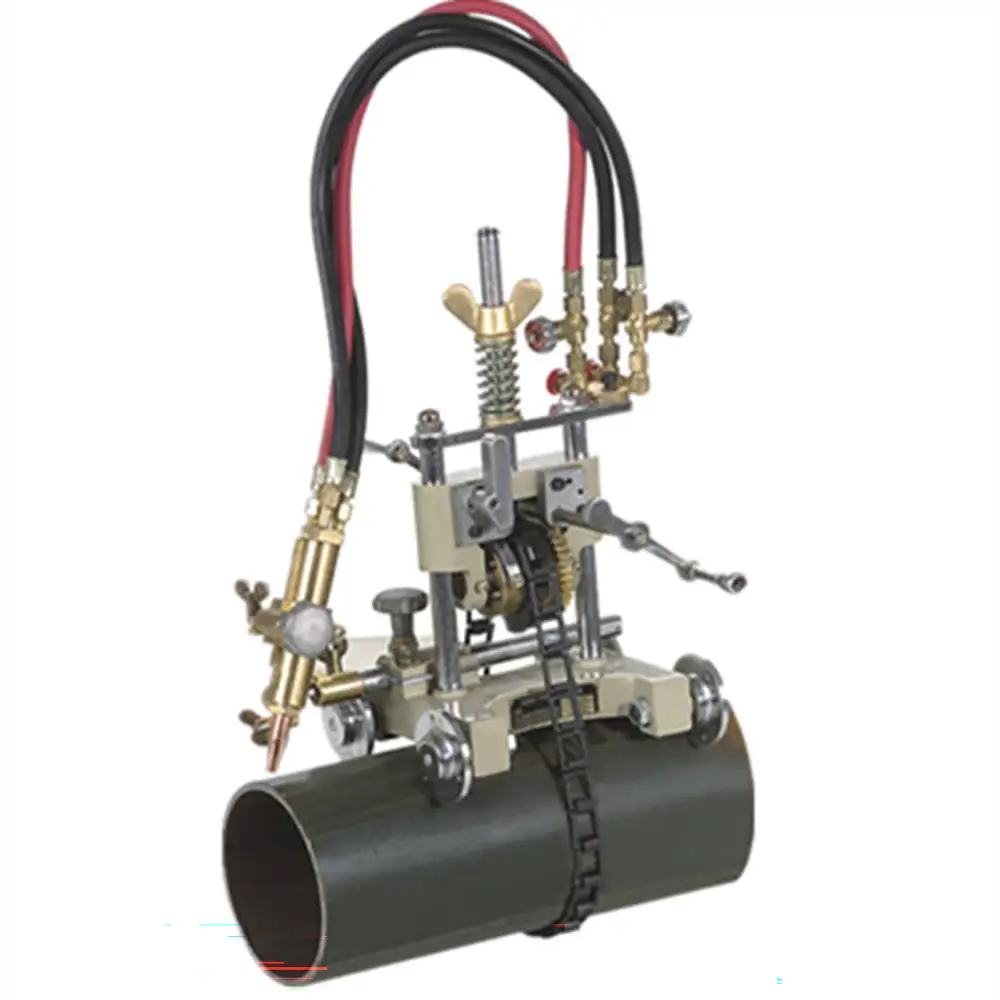

The orbital cutting mechanism allows the torch to travel around the outside surface of a cylindrical pipe. Instead of relying entirely on manual torch movement, the machine controls the travel path mechanically.

This can improve cutting consistency, particularly when producing repeated circumferential cuts.

The operator normally positions the machine on the pipe, connects the appropriate gas supply, adjusts the cutting torch and sets the required travel parameters. Once cutting begins, the machine travels around the pipe while maintaining the torch position relative to the workpiece.

The actual cutting process depends on the selected fuel gas, oxygen pressure, nozzle, pipe material, wall thickness and machine configuration.

Magnetic Drive System

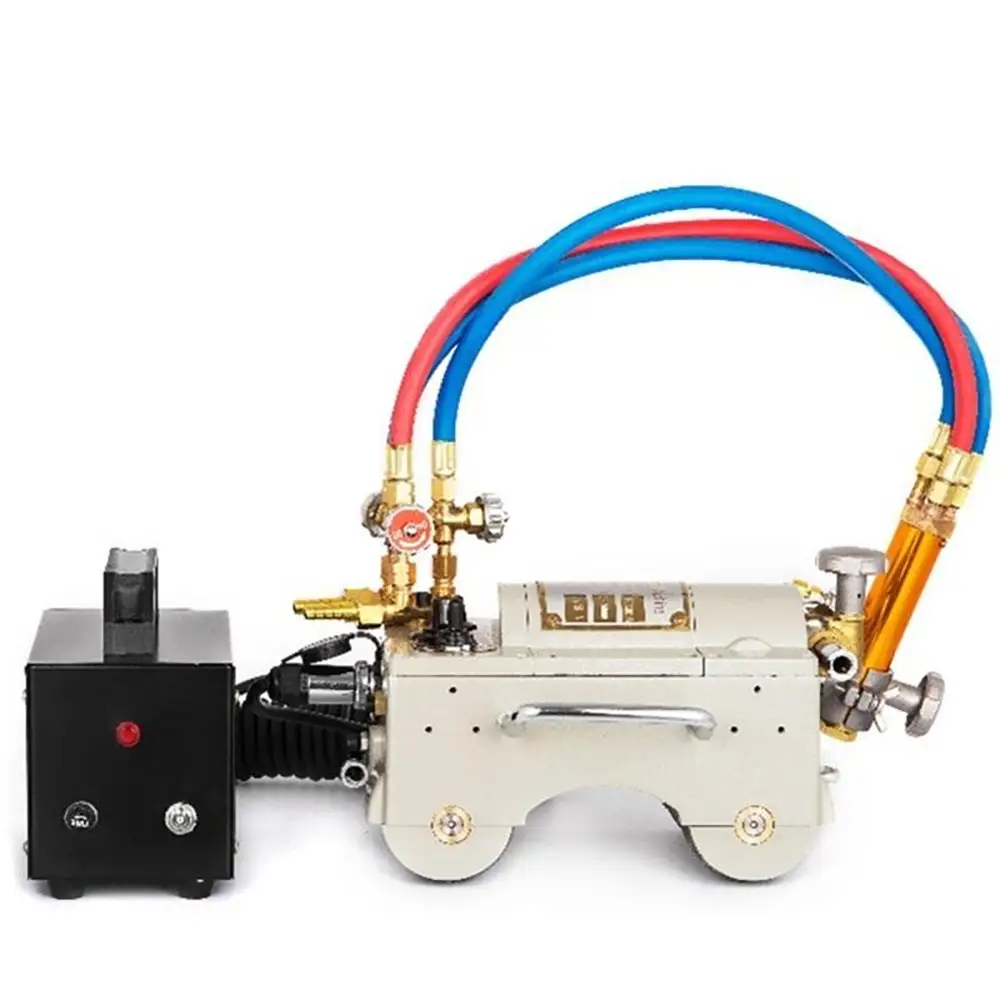

The magnetic drive system is designed to help the machine remain attached to compatible steel pipe surfaces during operation.

This feature is particularly useful when cutting carbon steel and other ferromagnetic materials. The magnetic mechanism provides traction while the machine moves around the pipe.

Because magnetic adhesion depends on the workpiece material and surface condition, buyers should confirm compatibility before selecting the equipment. Non-magnetic materials such as many aluminum and stainless steel grades may require a different cutting machine or mounting solution.

The magnetic drive can be especially valuable for field applications where the machine needs to travel around large steel pipes without a dedicated support track.

Oxy-Fuel Gas Cutting

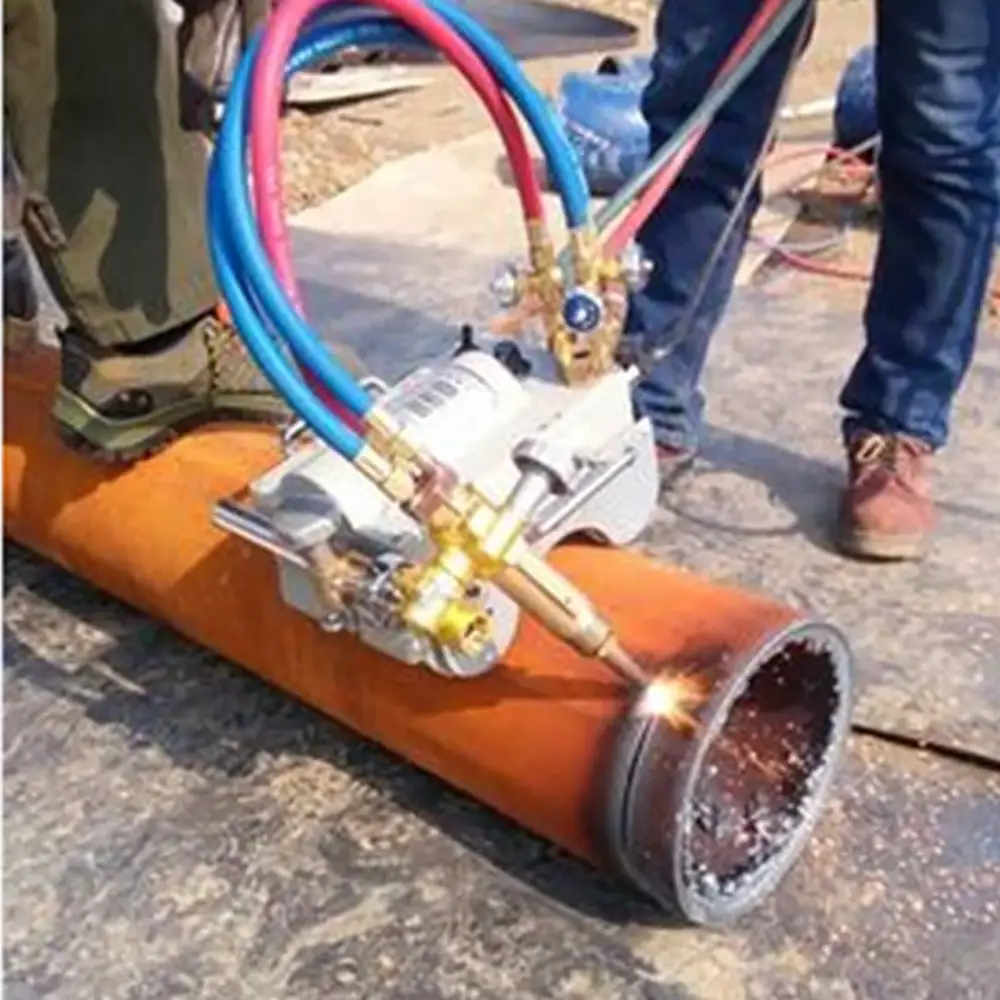

The machine uses flame cutting technology based on oxygen and a compatible fuel gas. Acetylene, propane or other suitable fuel gases may be used depending on the torch and equipment configuration.

During oxy-fuel cutting, the flame preheats the metal to the required temperature, while the cutting oxygen stream assists in removing the heated material from the cutting zone.

This technology is widely used for carbon steel because it can process medium and heavy steel pipe economically.

The correct torch, nozzle and gas settings are important for achieving stable cutting performance. Operators should always use the recommended operating parameters and appropriate safety equipment.

Metal Pipe and Tube Applications

The Portable Orbital Gas Cutter can be used for a wide range of metal pipe cutting applications.

Typical workpieces include:

Carbon Steel Pipes
Mild Steel Tubes
Structural Steel Tubes
Industrial Steel Pipes
Large-Diameter Steel Pipes
Boiler Pipes
Construction Pipes
Pipeline Components
Machinery Tubes
Steel Fabrication Tubes

The equipment is particularly suitable for applications where straight circumferential cuts are required.

Depending on the machine configuration, it may also be suitable for preparation cuts before welding, replacement of damaged pipe sections or fabrication of new pipe assemblies.

Controlled Cutting Speed

Consistent travel speed is important for flame cutting quality. If the torch moves too quickly, the cutting process may not fully penetrate the material. If it moves too slowly, excessive heat input can affect the cut edge.

The orbital drive system helps maintain a more controlled travel speed around the pipe.

The appropriate speed depends on pipe material, wall thickness, fuel gas, oxygen pressure, nozzle selection and cutting conditions.

For repeated production work, consistent travel movement can help reduce variation between individual pipe components.

Field and On-Site Applications

One of the strongest applications for a portable magnetic pipe cutter is on-site maintenance.

Large industrial pipes may be difficult or expensive to remove from their installed position. Transporting them to a conventional cutting machine can require additional lifting equipment, labor and downtime.

A portable orbital pipe cutting machine allows operators to perform suitable cutting operations directly at the work location.

This can be useful for:

Pipeline Repair
Steel Pipe Replacement
Industrial Maintenance
Construction Projects
Plant Maintenance
Structural Steel Work
Heavy Equipment Repair
Pipe Section Removal

For field applications, portability, power requirements, gas connection requirements and workpiece accessibility should all be evaluated before purchase.

Advantages Over Manual Pipe Cutting

Handheld gas cutting provides flexibility, but maintaining a consistent cutting path around a pipe can be difficult, especially for large-diameter workpieces.

A portable orbital gas cutter provides mechanical guidance around the pipe, helping improve repeatability and reduce operator effort.

Key advantages include:

Portable Machine Design
Magnetic Pipe Attachment
Controlled Orbital Movement
Reduced Manual Torch Movement
Suitable for Steel Pipe Cutting
Compact Equipment Footprint
Useful for Field Applications
Suitable for Repetitive Circumferential Cuts
Flexible Gas Cutting Configuration

For applications requiring extremely high dimensional accuracy or complex profiles, a CNC tube laser or CNC plasma pipe cutting system may be more appropriate.

How to Choose the Right Portable Pipe Cutter

Before purchasing a magnetic orbital pipe cutting machine, confirm the pipe diameter range. The machine must be mechanically compatible with the intended workpiece.

Next, check the pipe material. Magnetic systems are primarily intended for ferromagnetic materials such as carbon steel.

Wall thickness is another important factor because it determines the required flame, nozzle and cutting parameters.

Fuel gas compatibility should also be confirmed. Different torches may be designed for acetylene, propane or other gases.

Finally, consider the intended application. Workshop production, field maintenance and heavy industrial pipe cutting may require different configurations.

Why Choose Us
Portable Industrial Design

The compact design makes the machine convenient for workshop and field pipe-cutting applications.

Magnetic Drive System

The magnetic mechanism provides stable traction on compatible steel pipe surfaces during orbital movement.

Orbital Cutting Performance

Mechanical movement around the pipe helps provide more consistent circumferential cuts than purely manual torch movement.

Oxy-Fuel Compatibility

The cutting system can be configured for suitable oxygen and fuel gas combinations according to application requirements.

Flexible Pipe Applications

The machine is suitable for carbon steel pipes, structural tubes and other compatible ferromagnetic metal workpieces.

Easy Field Deployment

Its portable design allows the cutting equipment to be transported to locations where large stationary machines are impractical.

Custom Configuration

Pipe diameter range, torch arrangement, drive system and other components can be selected according to customer requirements.

B2B Technical Support

We help international customers select suitable pipe cutting equipment based on pipe material, diameter, wall thickness, gas type and application.

Frequently Asked Questions
1. What is a portable orbital gas cutter?

It is a compact flame cutting machine that travels around the circumference of a pipe to perform controlled circumferential cutting.

2. What is the purpose of the magnetic system?

The magnetic drive helps the machine remain attached to compatible ferromagnetic pipe surfaces while moving around the workpiece.

3. Can it cut carbon steel pipes?

Yes. Carbon steel and mild steel pipes are typical applications for magnetic oxy-fuel pipe cutting machines.

4. Can it cut stainless steel?

Standard magnetic flame cutters are primarily intended for ferromagnetic materials. Stainless steel compatibility depends on the specific grade and machine configuration.

5. Can it cut aluminum pipes?

A magnetic drive system is generally not suitable for aluminum because aluminum is non-magnetic. A different pipe cutting solution may be required.

6. What fuel gases can be used?

Depending on the torch configuration, oxygen can be combined with acetylene, propane or another compatible fuel gas.

7. Is it suitable for large steel pipes?

It can be suitable for large steel pipes when the pipe diameter falls within the machine's specified operating range.

8. Can it be used on construction sites?

Yes. Its portable design makes it useful for suitable on-site steel pipe cutting and maintenance applications.

9. Does the machine cut automatically?

The machine provides mechanical orbital movement, but the operator normally controls setup, flame adjustment and the cutting process.

10. Can it make circumferential cuts?

Yes. Circumferential pipe cutting is one of the primary applications of an orbital flame cutting machine.

11. What determines cutting performance?

Material, pipe wall thickness, diameter, fuel gas, oxygen pressure, nozzle type, flame adjustment and travel speed all affect cutting performance.

12. Can the machine be customized?

Yes. Configuration can be selected according to pipe diameter range, material, thickness and cutting requirements.

13. What information is needed for a quotation?

Please provide pipe material, outside diameter, wall thickness, required cutting method, fuel gas and expected application so the appropriate configuration can be recommended.
