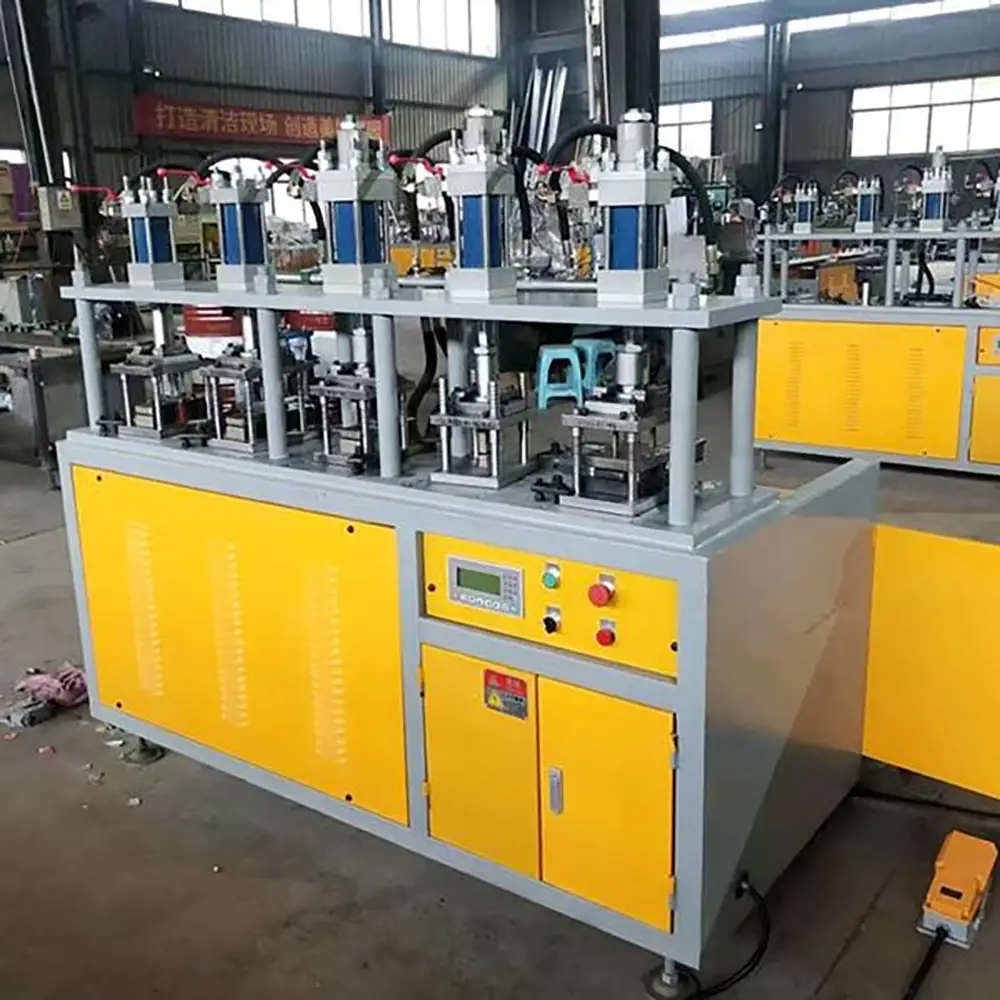

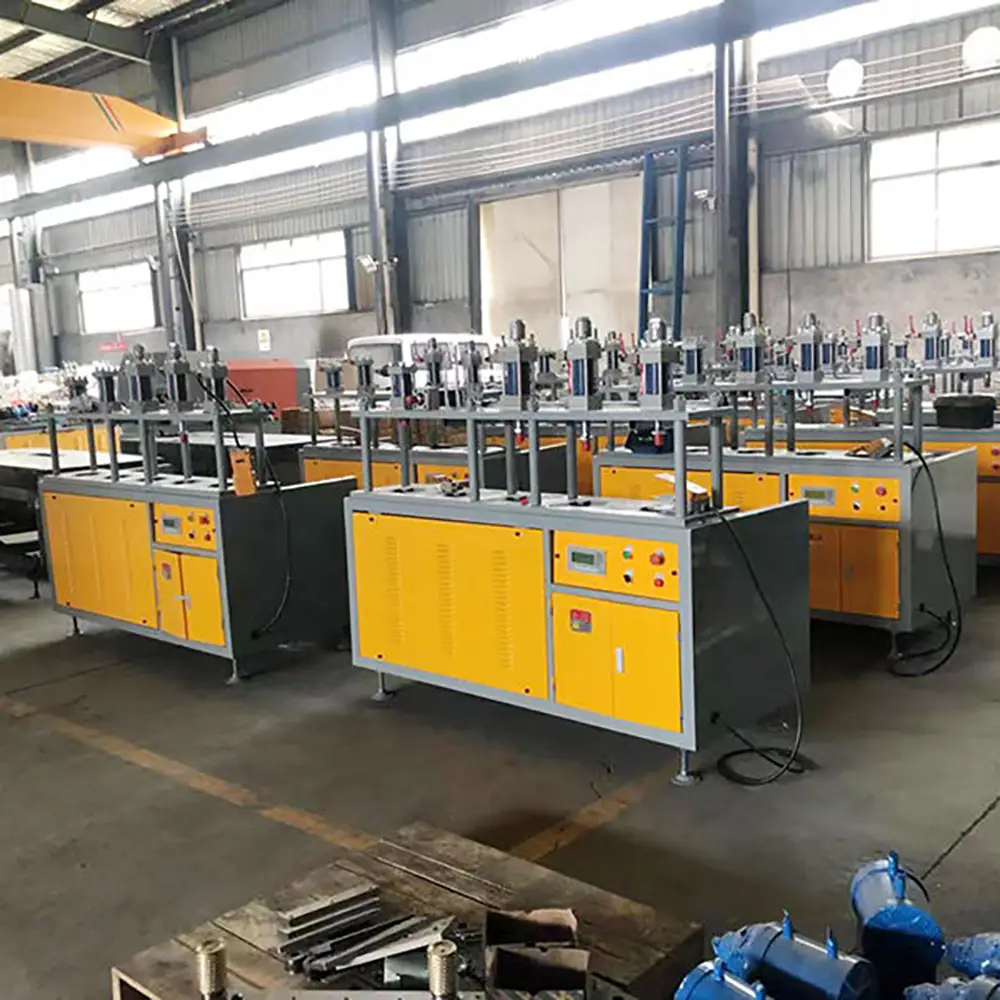

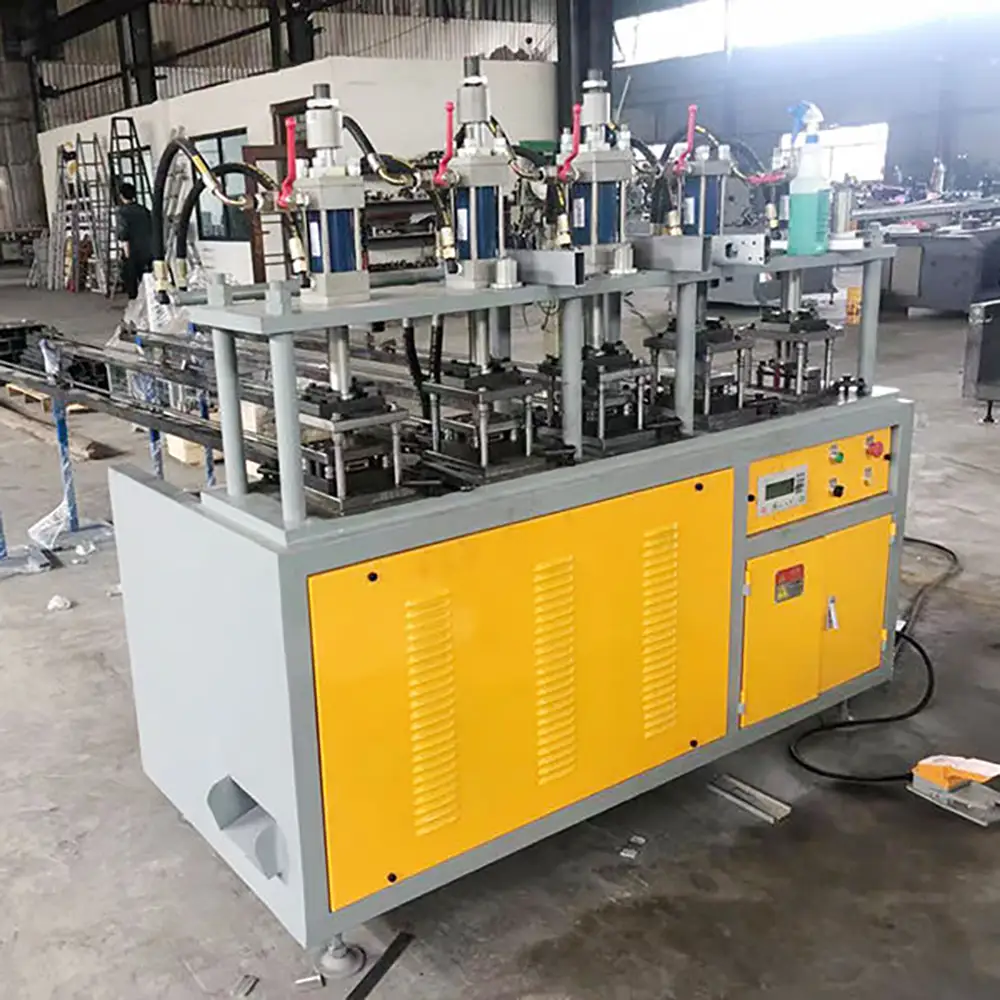

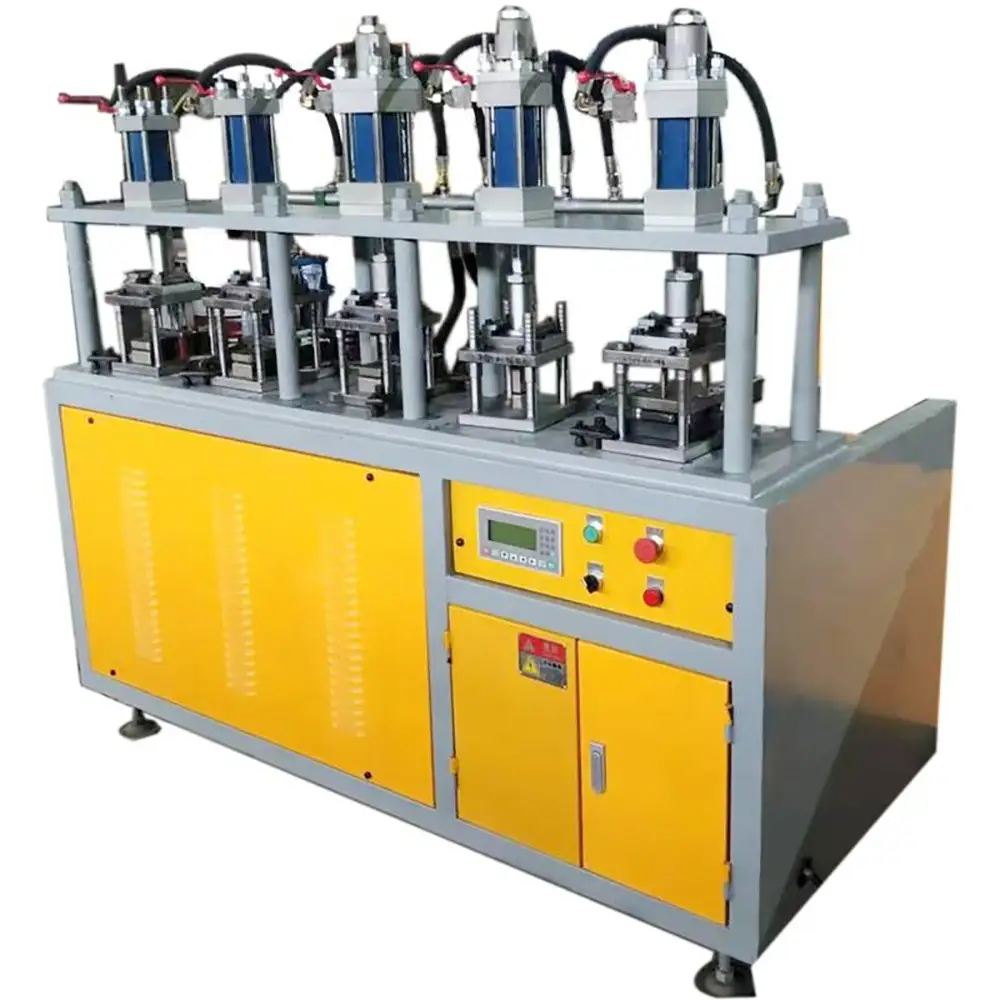

Multifunction 5 Work Station Punching Ladder Hole Machine

 Multifunction 5-Station Punching Machine For Ladder Hole Punching

The Multifunction 5-Station Punching Machine is designed for efficient hole punching and profile processing in ladder manufacturing and other metal fabrication applications. With five dedicated working stations, the machine provides a versatile solution for processing aluminum ladder profiles and compatible metal components with different punching requirements.

Ladder manufacturing often involves repeated hole-making operations on side rails, steps, supports, brackets, and connecting components. When these operations are performed manually, workers may need to repeatedly measure, mark, drill, and reposition profiles. This can increase labor requirements and make production consistency more difficult to maintain.

A multi-station punching machine helps organize these repetitive operations by providing multiple dedicated processing positions. Depending on the machine configuration, different stations can be equipped with different punches, dies, fixtures, or processing functions to meet specific ladder production requirements.

Five-Station Punching System

The five-station design allows multiple punching operations to be arranged within one machine. Each station can be configured according to the required processing function, profile position, hole size, or production sequence.

For ladder production, different stations may be used for different hole patterns or processing positions. This can reduce the need to repeatedly change tooling during production.

The exact function of each station depends on the machine design and customer requirements. Buyers should provide their ladder profile drawings, hole patterns, and processing sequence so that the station configuration can be evaluated accurately.

Ladder Hole Punching

Ladder profiles frequently require repeated holes for installing rungs, hinges, brackets, fasteners, supports, and other components. Consistent hole location is important because inaccurate positioning can affect final ladder assembly.

The punching system uses suitable punches and dies to create holes in compatible ladder profiles. CNC, mechanical, hydraulic, pneumatic, or other positioning and driving methods may be used depending on the machine configuration.

Hole diameter, spacing, shape, and profile dimensions should be confirmed before tooling is selected. Customized punch-and-die sets can be developed for specific ladder designs.

Aluminum Ladder Profile Processing

Aluminum extrusion profiles are widely used for household ladders, extension ladders, folding ladders, telescopic ladders, and industrial access equipment. These profiles can have different cross-sections, wall thicknesses, channels, and surface finishes.

The five-station punching machine can be configured with profile supports, guides, clamps, and fixtures to accommodate specific aluminum ladder profiles.

Stable profile positioning is important during punching. A suitable fixture helps keep the extrusion in the correct position and reduces unwanted movement during processing.

Actual material compatibility depends on aluminum alloy, profile dimensions, wall thickness, tooling, and machine capacity. Sample testing is recommended for customized production requirements.

Multifunction Processing

The multifunction design allows one machine to support several punching requirements. Instead of using several individual machines for different hole patterns, manufacturers can arrange multiple stations within the same equipment.

This can be especially useful for ladder manufacturers producing several models or profile designs. Different stations can be equipped for different processing requirements, subject to the machine configuration.

The machine may also be considered for other aluminum or metal profile applications with similar hole-punching requirements.

Applications

Typical applications include:

Aluminum Step Ladders

Aluminum Extension Ladders

Folding Ladders

Telescopic Ladders

Industrial Ladders

Household Ladders

Ladder Side Rails

Ladder Rung Components

Aluminum Support Profiles

Ladder Brackets

Aluminum Extrusion Components

Customized Metal Profiles

The equipment can also support general aluminum profile punching where the profile dimensions and tooling requirements are compatible.

Punches And Dies

Punches and dies are critical components of the machine because they directly affect hole quality, dimensional consistency, and tooling life.

Different hole diameters and shapes may require different punch-and-die combinations. Tooling should be selected according to the material, wall thickness, hole dimensions, profile geometry, and production volume.

For customized ladder profiles, special punches, dies, profile guides, and fixtures can be developed. Buyers should provide drawings or physical samples to support tooling design.

Regular tooling inspection is also important. Worn punches or dies may increase burr formation, reduce hole quality, or affect dimensional consistency.

Workholding And Positioning

Ladder profiles can be long and relatively lightweight compared with steel structural sections. Proper support and clamping are therefore important during punching.

Profile guides and fixtures can help maintain consistent positioning between operations. For repeated hole patterns, fixed stops, measurement references, or automated positioning systems can be incorporated depending on the machine design.

The appropriate workholding solution depends on profile shape, length, hole arrangement, and production requirements.

Production Efficiency

Five dedicated stations can help reduce tooling changes and repeated setup operations. For manufacturers producing large quantities of similar ladder profiles, this can contribute to a more streamlined production workflow.

The machine can also help reduce repetitive manual drilling and measuring. Once the correct tooling and positioning system have been established, operators can focus more on material loading, quality inspection, and production monitoring.

Actual production capacity depends on hole quantity, profile length, station configuration, punching method, material properties, operator workflow, and machine cycle.

Quality Control

Quality control should include inspection of hole diameter, hole position, hole spacing, profile deformation, burrs, and overall surface condition.

Before mass production, sample profiles should be processed and inspected to confirm the selected punches, dies, fixtures, and machine settings.

For high-volume ladder manufacturing, standardizing tooling and production procedures can help maintain consistent results between batches.

Maintenance And Safety

Regular maintenance helps ensure reliable operation. Operators should inspect punches, dies, fixtures, profile guides, fasteners, hydraulic or pneumatic components where applicable, electrical systems, and other machine components according to the manufacturer's maintenance recommendations.

Tooling should be cleaned and inspected regularly. Worn components should be serviced or replaced when necessary.

Because punching operations involve mechanical force, operators should follow appropriate workplace safety procedures. Guards, emergency stops, electrical protection, and other safety features should be used according to the specific machine configuration and local requirements.

Custom & OEM Solutions

We provide Custom & OEM solutions for ladder manufacturers with specialized production requirements. The five work stations can be evaluated according to the customer's ladder profile, hole pattern, production sequence, and automation requirements.

Customization may include punches, dies, fixtures, profile guides, clamps, positioning systems, feeding arrangements, and other machine components.

Customers can provide aluminum profile drawings, samples, hole dimensions, hole spacing, ladder model information, and expected production volume for machine configuration evaluation.

Why Choose Us

Five-Station Design — Multiple punching stations provide a flexible solution for repetitive ladder profile processing.

Ladder Manufacturing Focus — The machine is designed for hole punching requirements commonly found in aluminum ladder production.

Multifunction Processing — Different stations can be configured for different punching operations and profile positions.

Custom Tooling — Punches, dies, guides, fixtures, and clamps can be customized according to ladder profile requirements.

Aluminum Profile Compatibility — Suitable configurations can be developed for different aluminum extrusion profiles.

Production Efficiency — Multiple stations can reduce repeated tooling changes and manual repositioning.

OEM And ODM Support — Machine configuration and tooling can be adapted to specific ladder designs and production processes.

B2B Export Service — We support international customers with technical communication, customization, packaging, and export coordination.

Frequently Asked Questions

1. What is a five-station ladder punching machine?

It is a multifunction punching machine equipped with five working stations designed to perform different or repeated punching operations on ladder profiles and compatible metal components.

2. What ladder materials can it process?

The machine is primarily suitable for compatible aluminum ladder profiles. Other materials may be possible depending on machine capacity, tooling, and material properties.

3. Can it punch aluminum ladder side rails?

Yes. Aluminum ladder side rails can be processed when their dimensions and material characteristics are compatible with the machine configuration.

4. Why use five punching stations?

Multiple stations can reduce repeated tooling changes and allow different punching operations or positions to be arranged within one machine.

5. Can the hole spacing be customized?

Yes. Hole positions and spacing can be configured according to the ladder design and selected positioning system.

6. Can different hole sizes be processed?

Yes. Different punch-and-die sets can be used for different hole sizes, subject to the machine's tooling and capacity.

7. Can the machine process different ladder models?

It can support multiple ladder models when the profiles, tooling, fixtures, and machine capacity are compatible.

8. Can custom punches and dies be provided?

Yes. Custom punching tools can be developed according to profile drawings, hole dimensions, material thickness, and production requirements.

9. Is the machine fully automatic?

The actual automation level depends on the selected configuration. Buyers should confirm feeding, positioning, punching, unloading, and other automated functions before ordering.

10. Can it be used for aluminum extrusion profiles other than ladders?

Yes. Other compatible aluminum profiles can be considered when their dimensions and punching requirements match the machine configuration.

11. Can you provide OEM customization?

Yes. OEM customization can include punching stations, tooling, fixtures, guides, clamps, positioning systems, and other machine components.

12. What information is needed to design the machine?

Provide the aluminum profile drawing or sample, profile dimensions, material, hole diameter, hole spacing, number of holes, production volume, and required automation level.
