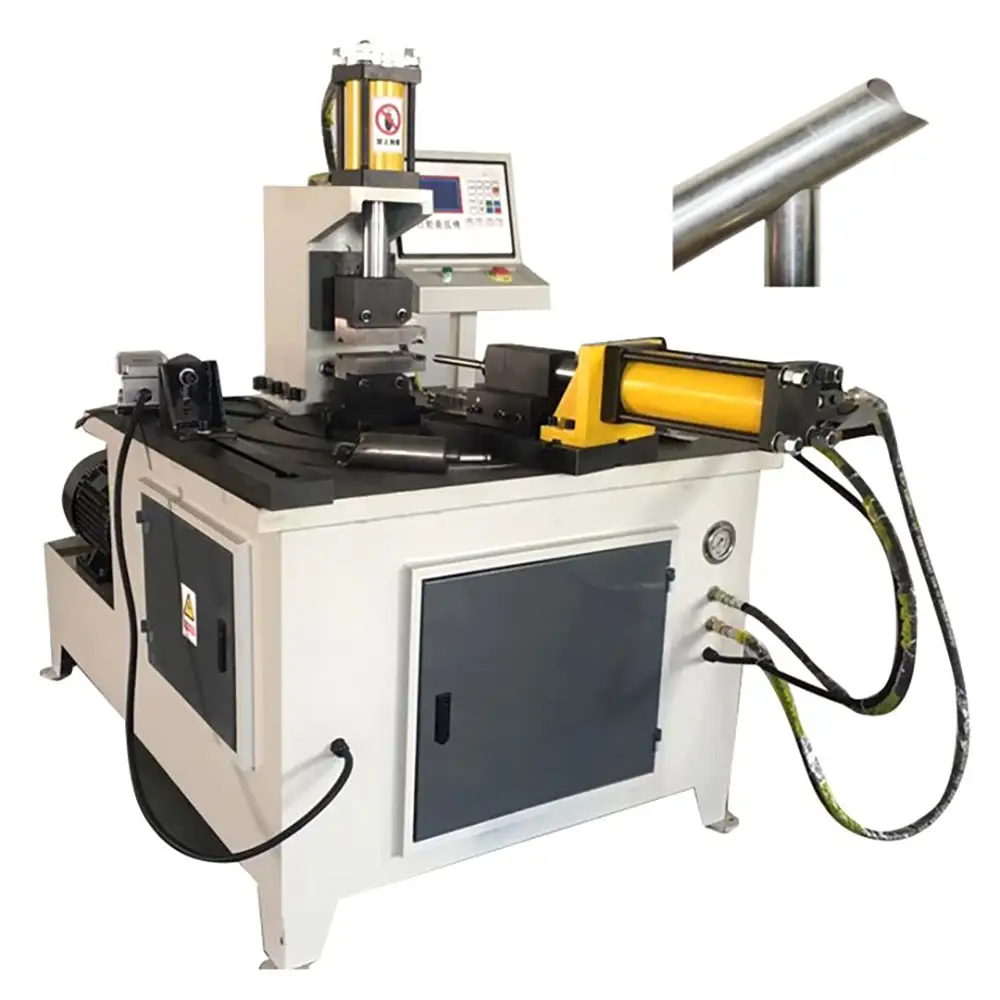

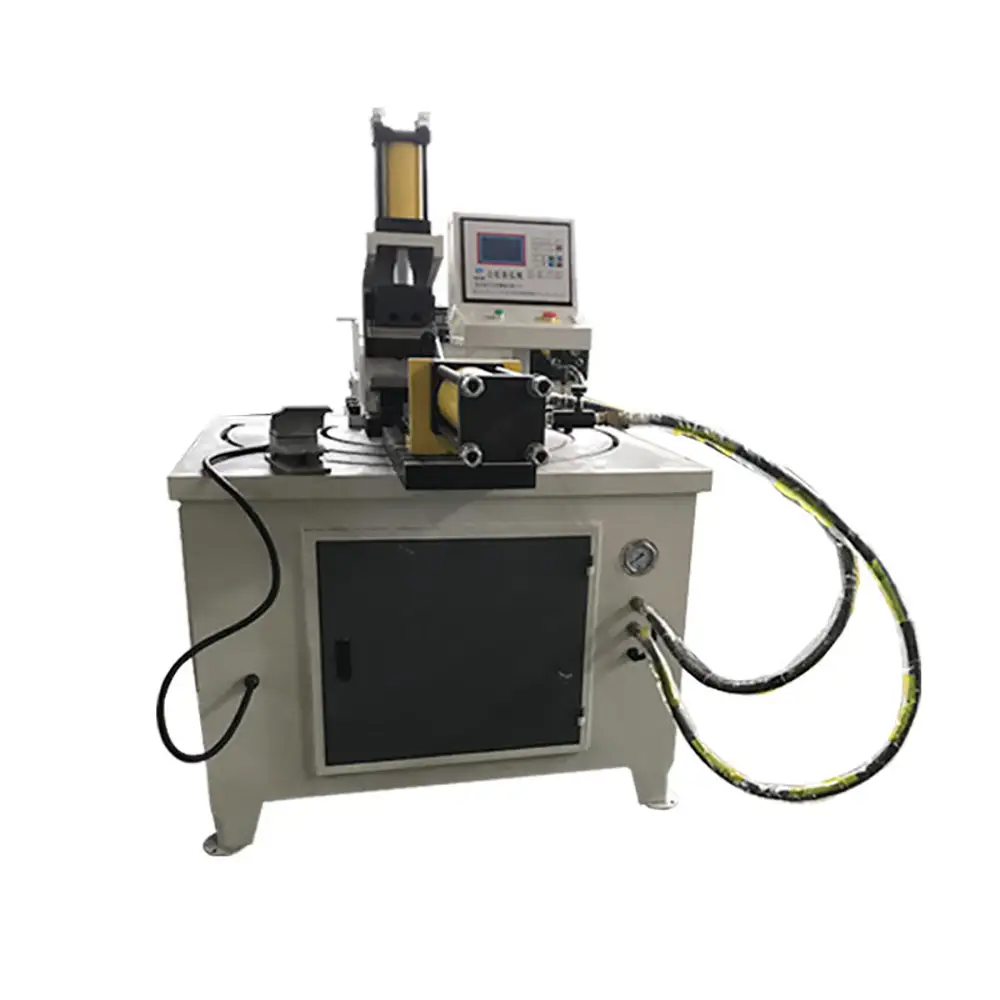

Horizontal Hydraulic Metal Pipe End Arc Punching Machine

1 The notching range is 30-90 degrees, which can be adjusted arbitrarily
2 Semi-automatic NC control.   3.Both straight and curving pipe can be processed.
4.Compared with punch, it has wider machining scope, is safer to operate, easier to change mould and has lower noise.



Model	60nc
The max processing tube	60x2mm
Angle of notching	30-90 degree
Cylinder Stroke	200mm
Power	5.5kw
Measure	1800x1100x1600mm
Weight	900kg

Horizontal Hydraulic Metal Pipe End Arc Punching Machine

The Horizontal Hydraulic Metal Pipe End Arc Punching Machine is designed for efficient processing of metal pipe and tube ends where arc-shaped punches, end openings, notches, or formed profiles are required. With a horizontal working arrangement and hydraulic punching force, the machine provides a practical solution for repetitive pipe-end processing in metal fabrication and industrial production.

Pipe and tube components are widely used in frames, furniture, automotive parts, agricultural machinery, construction structures, exhaust components, railings, equipment supports, and general fabrication. Many of these applications require specially processed pipe ends so that tubes can be connected, welded, fitted, or assembled with other components.

Traditional manual cutting, drilling, or grinding can require multiple operations and considerable operator involvement. A dedicated hydraulic pipe end punching machine can simplify repetitive processing by using dedicated tooling and controlled hydraulic force.

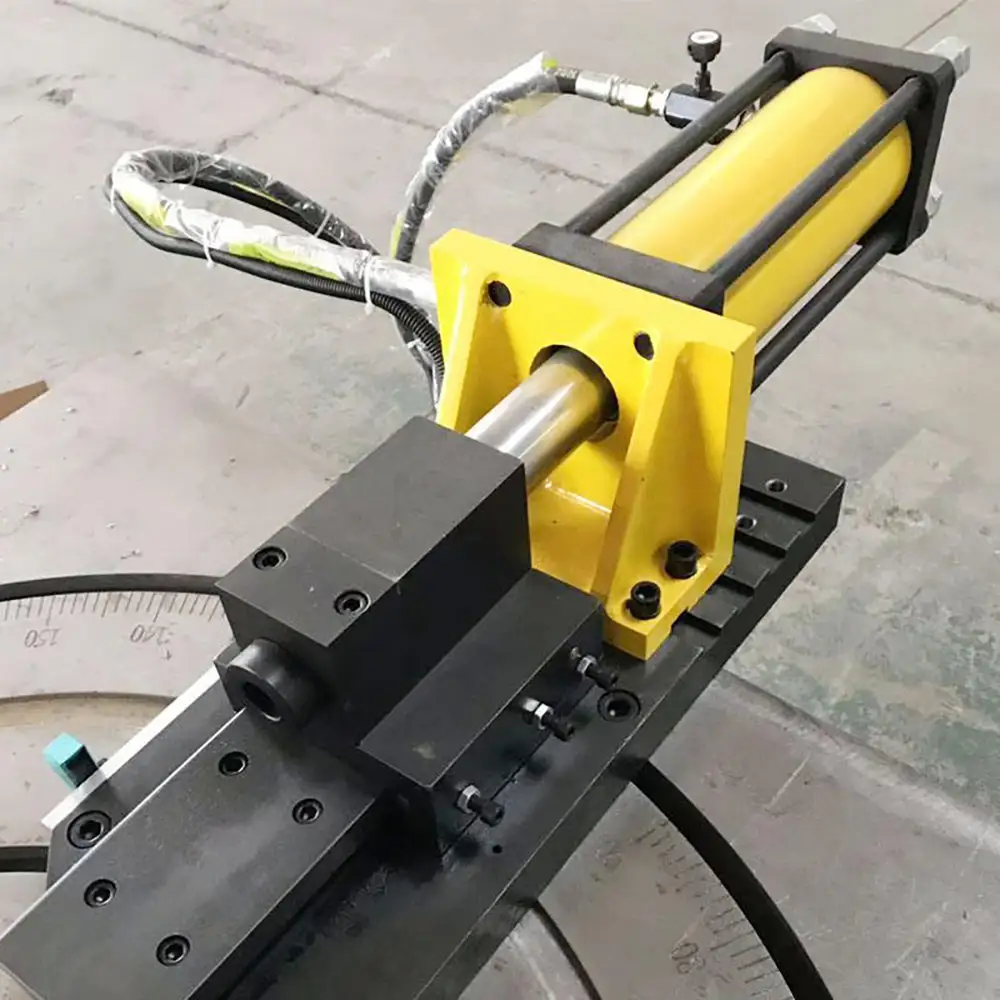

Horizontal Working Design

The horizontal configuration provides a practical arrangement for positioning and processing metal tubes and pipes. The workpiece can be supported and aligned before the hydraulic punching operation.

Horizontal processing can be especially useful for long tube sections because the workpiece can be supported along its length while the end is positioned in the punching area.

The actual suitable pipe length, diameter, wall thickness, and profile depend on the specific machine design, tooling, hydraulic system, and workholding arrangement.

Proper positioning is important for achieving consistent arc shapes and end dimensions. Customized fixtures and profile supports can be developed for specific pipe designs.

Hydraulic Pipe End Punching

The hydraulic system provides controlled mechanical force for punching compatible metal tube ends. Compared with manual cutting and grinding, hydraulic punching can provide a more repeatable method for repetitive production.

The punching tooling consists of suitable punches, dies, and supporting components designed around the pipe or tube profile. The punch shape can be developed according to the required end opening, arc, notch, or other processing feature.

Actual punching capacity depends on hydraulic pressure, cylinder force, punch geometry, die design, material strength, wall thickness, and machine structure. These factors should be evaluated before selecting the machine configuration.

Pipe End Arc Punching

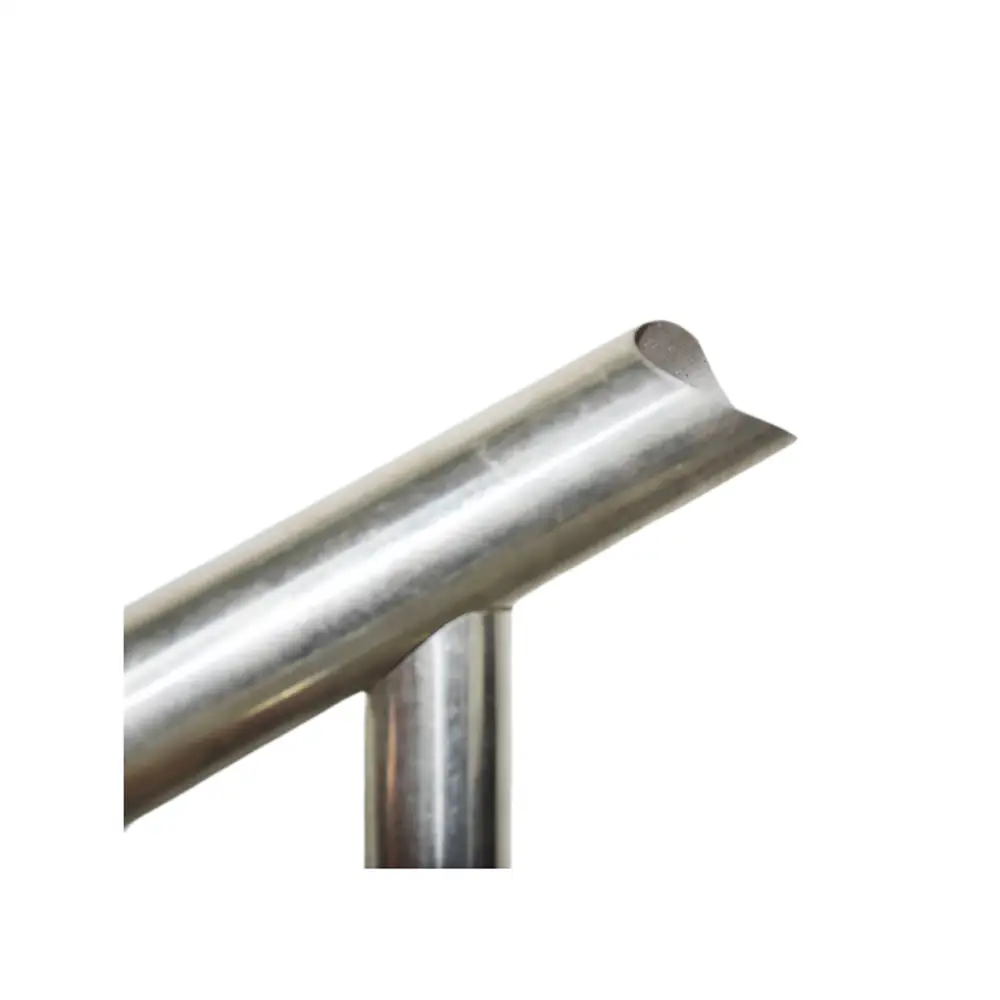

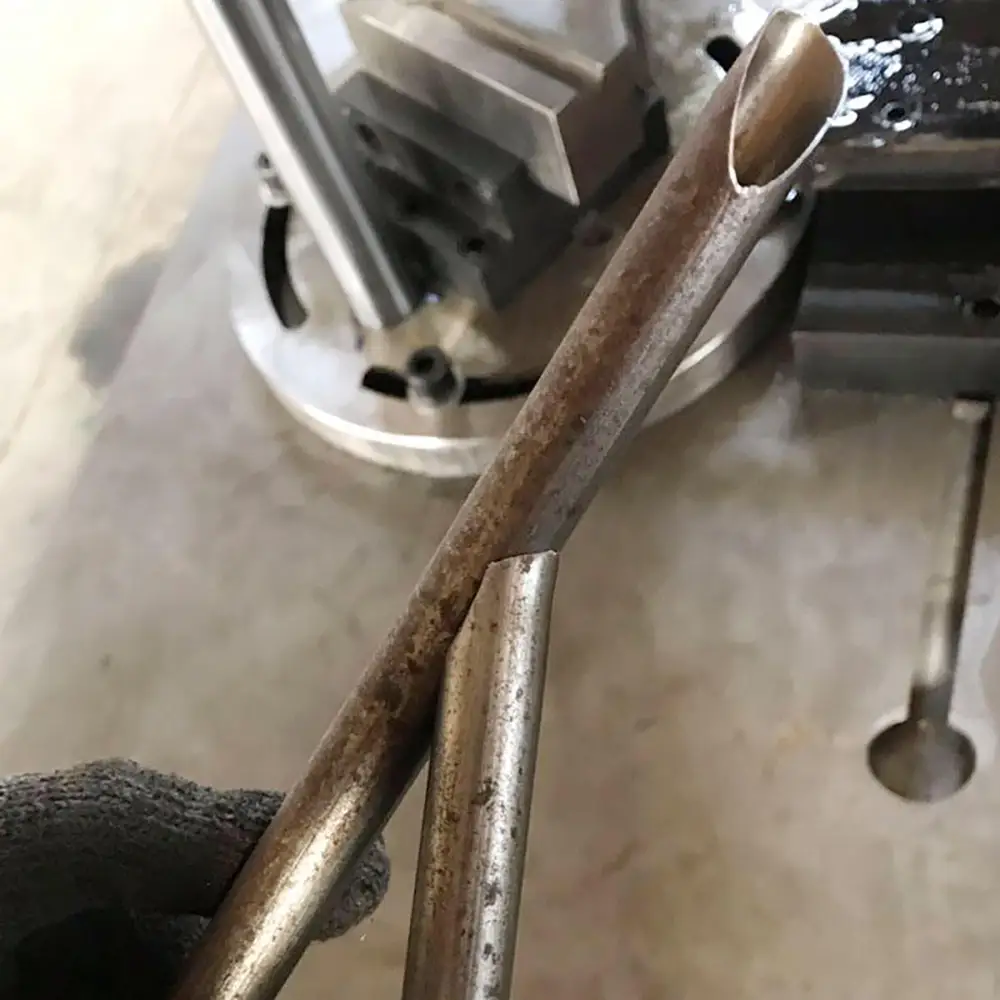

The arc punching function is particularly useful when the end of a tube needs to form a curved or saddle-like profile for joining another tube or component.

Arc-shaped pipe ends can be used in applications where tubes intersect or require a closer fit before welding. Depending on the tooling design, the machine can be configured for specific arc shapes and pipe dimensions.

The final geometry depends on the punch and die design, tube dimensions, material properties, and machine settings. For customized applications, sample testing can help confirm the required end profile before mass production.

Tube End Forming Applications

The machine can support a variety of tube and pipe end processing requirements, including:

Tube End Arc Punching

Pipe End Notching

Tube End Forming

Curved End Processing

Pipe End Opening

Tube Joint Preparation

Welding Preparation

Metal Pipe End Processing

The exact operation depends on the tooling installed on the machine. Buyers should provide drawings or samples when a specific end shape is required.

Suitable Materials

The machine can be configured for compatible metal tubes and pipes, including common steel and stainless steel tube applications. Material compatibility depends on the machine's hydraulic capacity, tooling, tube dimensions, wall thickness, and material strength.

For aluminum and other non-ferrous tubes, specialized tooling and machine settings may be required.

Material characteristics should be confirmed before production. Sample testing is recommended when processing a new material, unusual tube profile, or specialized end geometry.

Custom Punches And Dies

The punch and die are among the most important components of a pipe end punching machine. Different pipe diameters, wall thicknesses, arc shapes, and end profiles require appropriately designed tooling.

We support Custom & OEM tooling based on customer drawings, tube samples, and production requirements.

Custom tooling can include arc punches, dies, tube supports, positioning fixtures, clamps, profile guides, and other components needed to maintain stable workpiece positioning.

For manufacturers processing several pipe sizes, interchangeable tooling can also be considered where suitable.

Production Efficiency

A dedicated hydraulic pipe end punching machine can help simplify repetitive tube processing. Once the correct tooling and positioning system are established, operators can repeat the same processing sequence with reduced manual cutting and grinding.

This can be particularly useful for manufacturers producing large quantities of frames, tubular structures, furniture components, machinery parts, or other products requiring repeated pipe-end shapes.

Actual productivity depends on pipe size, wall thickness, punching operation, tooling, workpiece handling, machine cycle, and operator workflow.

Welding And Assembly Preparation

Many tubular structures require accurately prepared ends before welding. A properly formed arc or notch can improve the fit between intersecting tubes and help create a more consistent welding joint.

Applications may include metal frames, railings, furniture structures, machinery frames, agricultural equipment, exercise equipment, and other tubular assemblies.

The suitability of the processed end for welding depends on the specific tube design, joint geometry, welding process, and dimensional requirements.

Workholding And Positioning

Stable workholding is essential during hydraulic punching. The tube should be supported and positioned correctly so that the punch engages the intended processing area.

Fixtures can be customized according to tube diameter, cross-section, length, and end-processing requirements. Stops and guides may also be incorporated to improve repeatability for batch production.

For multiple tube models, interchangeable fixtures can provide additional flexibility when supported by the machine design.

Quality Control

Finished tubes should be inspected for arc dimensions, end profile, hole or notch geometry, burrs, deformation, and overall appearance.

Tooling condition should also be monitored. Worn punches and dies can affect the finished shape and increase burr formation.

For production orders with strict dimensional requirements, sample testing and inspection should be performed before mass production. This allows tooling and machine settings to be verified against the customer's drawings.

Maintenance And Safety

Regular maintenance helps keep the hydraulic pipe punching machine operating reliably. Operators should inspect hydraulic hoses, fittings, cylinders, punches, dies, clamps, guides, fasteners, and electrical components according to the manufacturer's recommendations.

Punches and dies should be cleaned and checked regularly. Worn tooling should be serviced or replaced when necessary.

Hydraulic punching involves substantial mechanical force. Operators should follow appropriate workplace safety procedures and use guards, emergency stops, electrical protection, and other safety features according to the specific machine configuration and local requirements.

Custom & OEM Solutions

We provide Custom & OEM solutions for manufacturers with specialized pipe-end processing requirements.

Machine customization may include hydraulic capacity, punching tooling, arc punches and dies, tube fixtures, profile supports, positioning systems, and other production components.

Customers can provide tube drawings, samples, material specifications, outside diameter, wall thickness, required arc shape, processing length, and production volume for machine evaluation.

Why Choose Us

Horizontal Processing Design — The horizontal arrangement provides a practical solution for positioning and processing metal tube ends.

Hydraulic Punching Force — Controlled hydraulic force supports repetitive pipe-end punching and forming operations.

Arc End Processing — Dedicated tooling can be designed for curved, arc-shaped, or saddle-type tube-end profiles.

Custom Tooling — Punches, dies, fixtures, guides, and supports can be customized according to tube dimensions.

Wide Application Range — Suitable for frames, furniture, machinery, construction, agricultural equipment, and other tubular products.

Efficient Batch Production — Dedicated tooling can reduce repetitive manual cutting, drilling, and grinding operations.

OEM And ODM Support — Machine configurations can be developed around customer drawings, samples, and production processes.

B2B Export Service — We support international buyers with technical communication, machine configuration, packaging, and export coordination.

Frequently Asked Questions

1. What is a pipe end arc punching machine?

It is a machine designed to process the ends of metal pipes or tubes using specially shaped punching tooling to create arc, notch, or other end profiles.

2. Why is the machine designed horizontally?

The horizontal configuration provides a practical way to support and position long tube sections during end processing.

3. What materials can be processed?

Compatible steel, stainless steel, and other metal tubes may be processed depending on the hydraulic capacity, tooling, dimensions, and material properties.

4. Can it process stainless steel tubes?

Yes, suitable stainless steel tubes can be considered when the machine and tooling are properly configured for the material.

5. Can it create a saddle-shaped pipe end?

With appropriate custom punch and die tooling, the machine can be configured for certain curved or saddle-type tube-end profiles.

6. What determines the punching capacity?

Capacity depends on hydraulic force, tube material strength, wall thickness, tube diameter, punch geometry, die design, and machine structure.

7. Can different pipe diameters be processed?

Different pipe sizes can be processed when compatible tooling and fixtures are available. Interchangeable tooling can be considered for multiple tube sizes.

8. Can the tooling be customized?

Yes. Custom punches, dies, fixtures, guides, and supports can be developed according to tube drawings or samples.

9. Is the machine suitable for welding preparation?

It can be used for certain tube-end forming and notching operations that prepare components for subsequent welding, depending on the required joint geometry.

10. Can the machine process square or rectangular tubes?

This depends on the tooling and machine configuration. Square and rectangular tube applications should be evaluated based on the profile dimensions and required end shape.

11. Can you provide OEM customization?

Yes. Custom & OEM solutions can include hydraulic systems, punching tooling, fixtures, positioning components, and machine configurations.

12. What information should I provide for a quotation?

Provide the tube material, outside diameter or profile dimensions, wall thickness, required arc or end shape, processing length, drawings or samples, and expected production volume.
