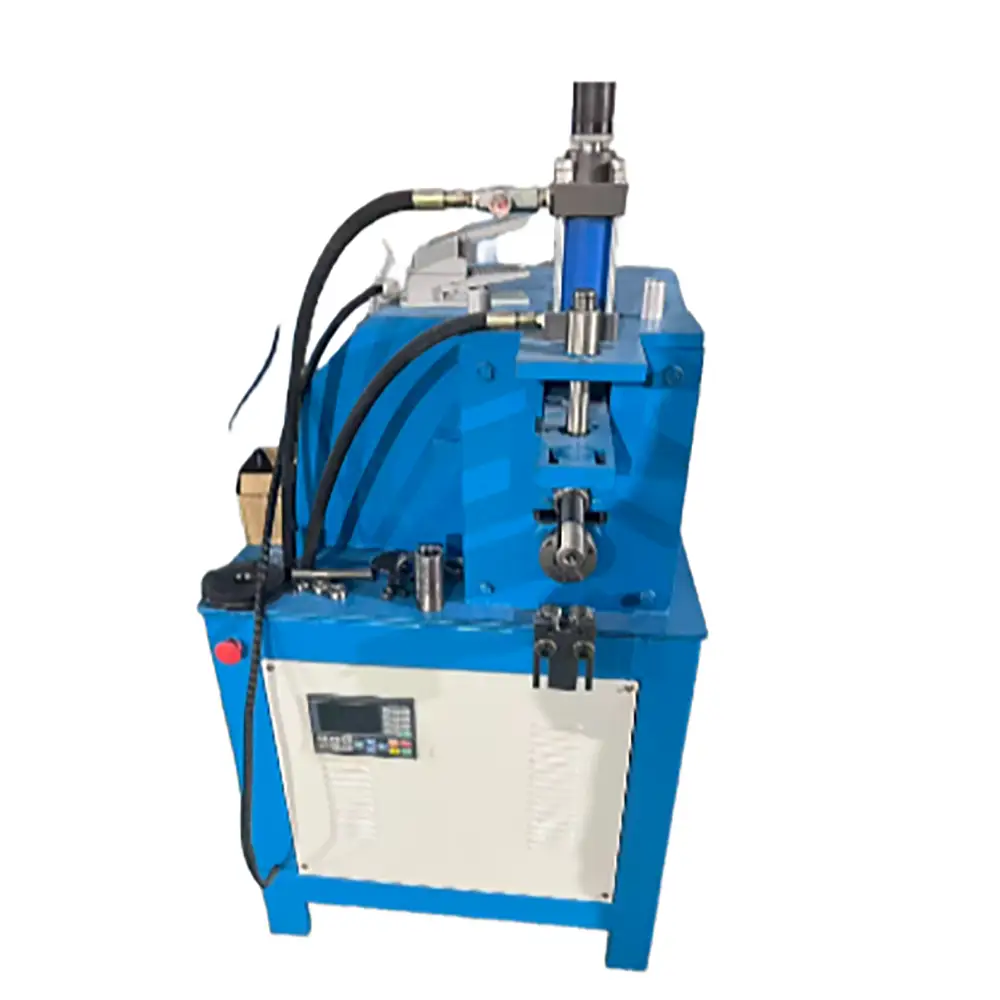

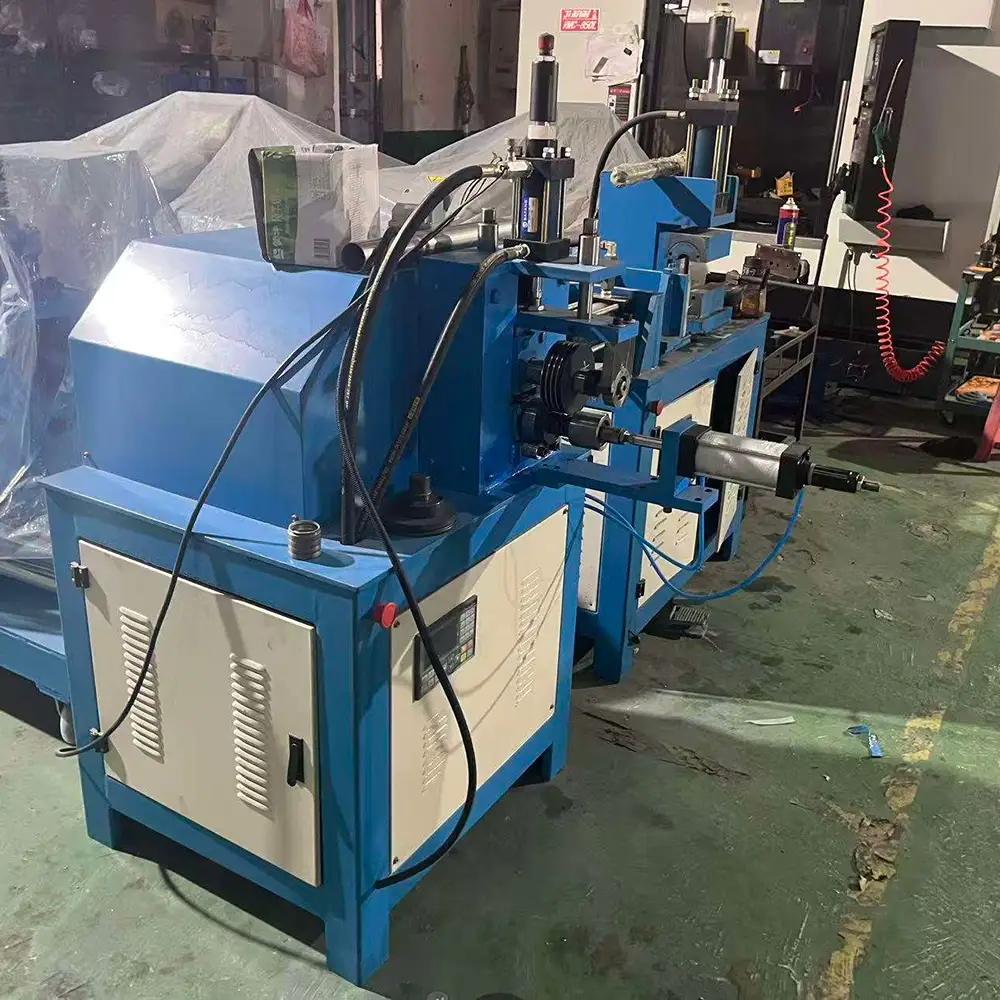

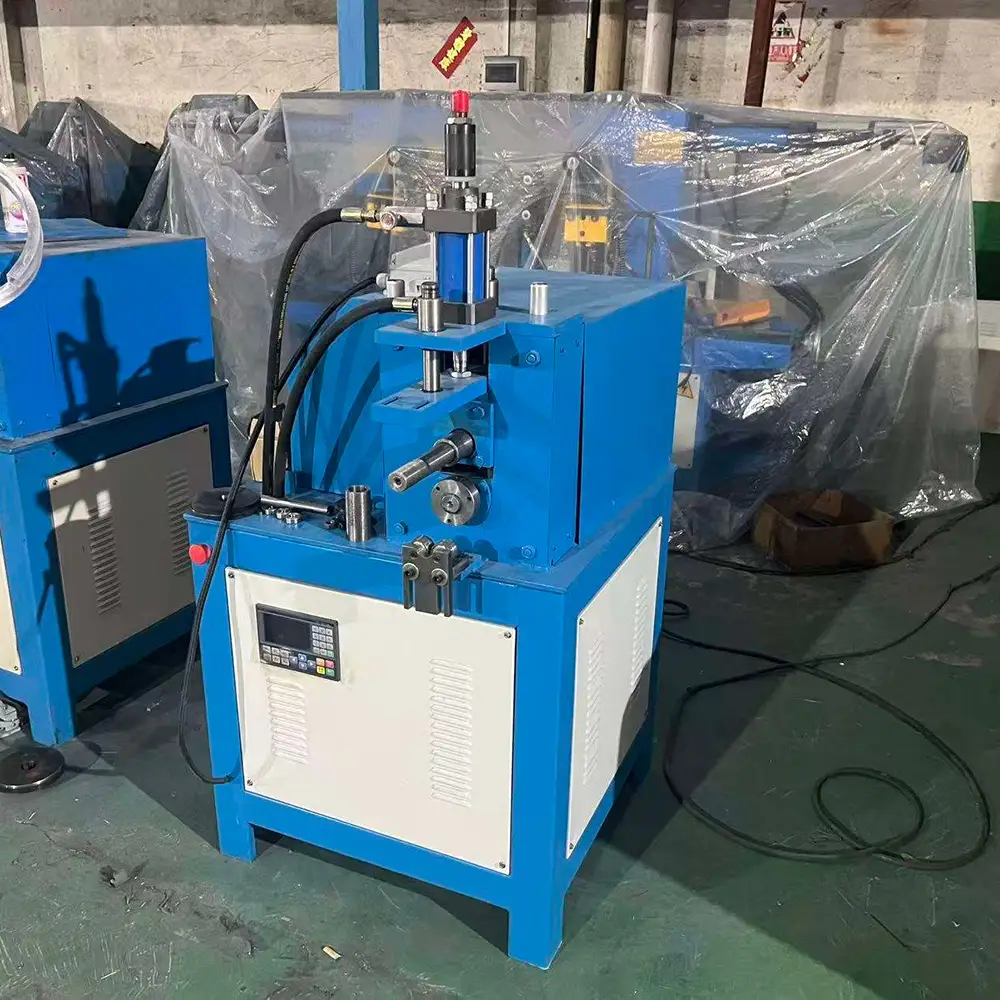

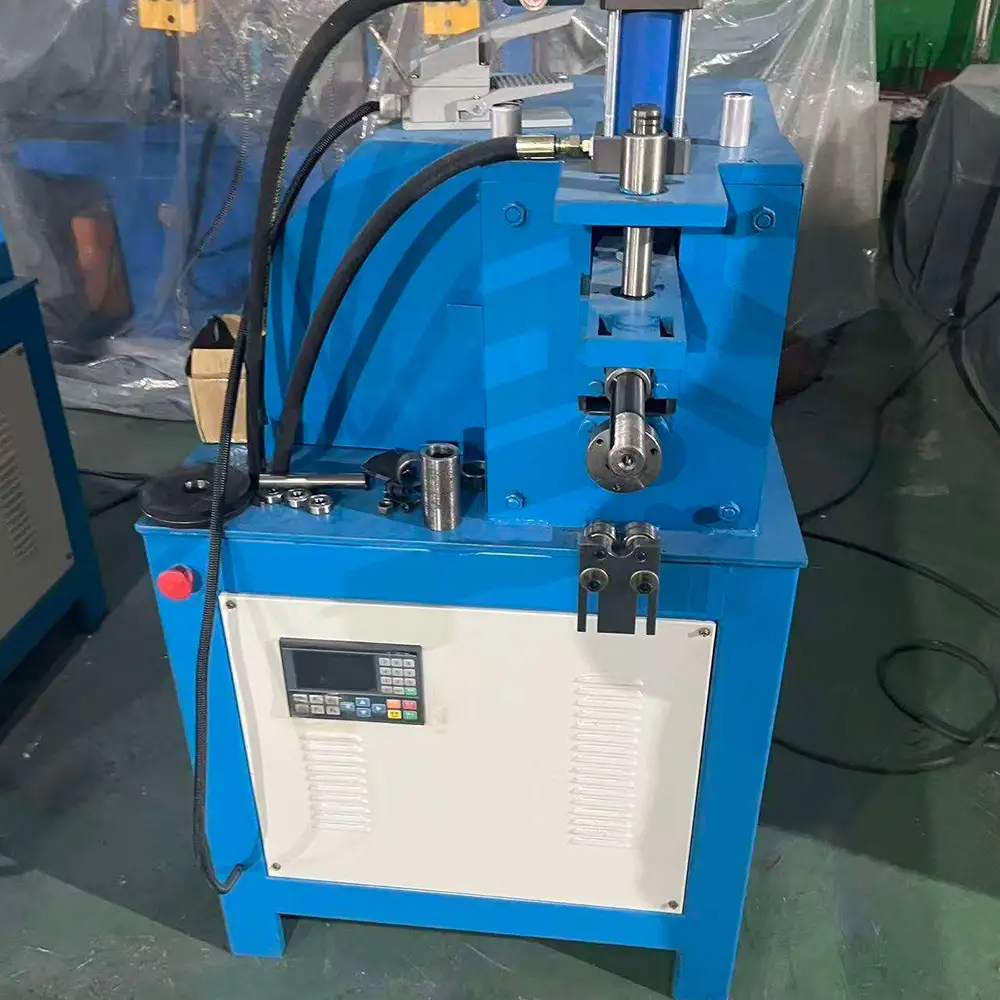

Multi-Purpose Hydraulic Pipe Grooving Machine

28-60mm Multi-Purpose Hydraulic Pipe Grooving Machine

The Multi-Purpose Hydraulic Pipe Grooving Machine is an industrial pipe processing machine designed for forming accurate and consistent grooves on suitable steel and metal pipes. Using a hydraulic-powered grooving system, the machine provides controlled forming force and stable pipe processing for applications where grooved pipe connections are required.

Grooved pipe systems are widely used in fire protection, water supply, HVAC, industrial pipelines, and mechanical piping because they allow pipes to be connected using compatible couplings and fittings. Consistent groove formation is important for proper pipe assembly and connection performance. This hydraulic pipe grooving machine provides a practical solution for manufacturers, pipe fabrication workshops, contractors, and industrial processing companies.

Voltage	380 V
Power (kW)	3
machine type	Pipe grooving machine
weight (kg)	280
core components	Motor, Bearing
key selling points	Easy To Operate, Low Maintenance Cost
Applicable Pipe Diameter	28mm - 60mm
Grooving Depth Range	Customizable according to customer requirements
Feeding System	Manual feeding.
Production rhythm	≤10 seconds per item (single-tube grooving cycle)
Applicable wall thickness	≤2.0mm

Hydraulic Pipe Grooving System

The machine uses a hydraulic mechanism to provide controlled force during the pipe grooving process. Compared with purely manual operation, hydraulic power can provide more stable forming pressure for suitable pipe processing applications.

The hydraulic system helps the grooving rollers form the required groove on the pipe surface according to the selected tooling and machine settings. Proper hydraulic pressure, roller selection, and machine adjustment should be matched to the pipe material, diameter, and wall thickness.

Multi-Purpose Pipe Processing

The multi-purpose design allows the machine to be used for different suitable pipe grooving applications. Depending on the configuration and tooling, it can process various steel pipe sizes and support different production requirements.

This flexibility makes the equipment suitable for factories that handle multiple pipe specifications instead of producing only one standardized pipe product. Customers can provide their pipe dimensions and groove requirements for configuration evaluation.

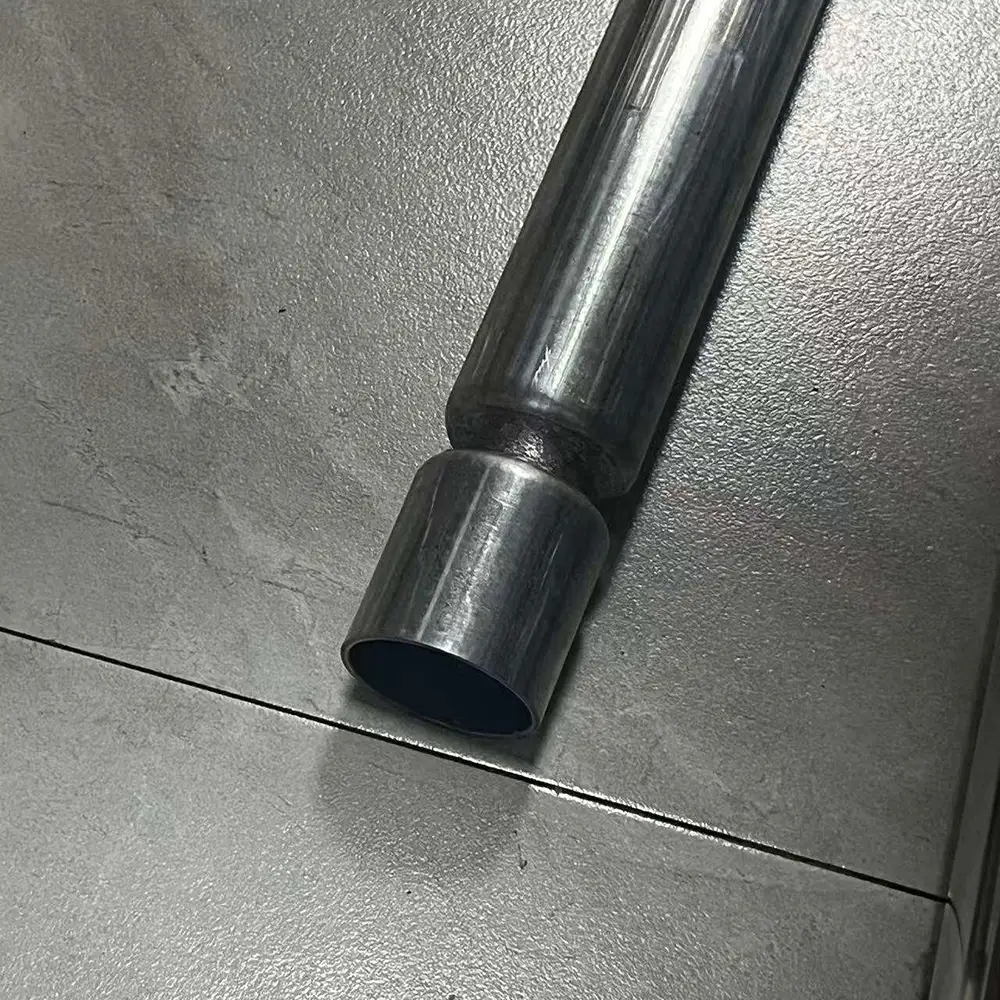

Steel Pipe Groove Forming

The machine is designed for groove forming on suitable steel pipes. During operation, the pipe is positioned and securely supported while the grooving roller applies controlled forming force to create the required groove.

Unlike conventional cutting operations, roll grooving forms the groove through controlled deformation of the pipe wall. The actual groove profile and dimensions depend on the pipe specification, coupling system, tooling, and machine settings.

Stable Pipe Clamping

Stable pipe positioning is important for consistent groove formation. The machine can use suitable clamping and supporting components to hold the workpiece during processing.

Proper pipe support helps reduce movement and improves the repeatability of groove positioning. For long or heavy pipes, additional support equipment may be considered according to the production layout and pipe dimensions.

Accurate Groove Processing

Accurate groove dimensions are important when the processed pipe will be connected with grooved couplings. The hydraulic grooving mechanism allows controlled forming of the pipe groove when the machine is correctly adjusted.

Tooling can be selected according to pipe diameter, wall thickness, material, and required groove specifications. Customers should provide technical drawings or groove standards when requesting a specific machine configuration.

Fire Protection Applications

Grooved steel pipes are widely used in fire sprinkler, fire hydrant, and fire protection pipeline systems. The hydraulic pipe grooving machine can be used to prepare suitable pipe ends for compatible grooved fire protection connections.

It is suitable for pipe manufacturers, fire protection equipment suppliers, contractors, and fabrication workshops that need repeatable groove processing for fire protection projects.

Water Supply And Pipeline Applications

The machine can also be used for suitable water supply and industrial pipeline applications. Grooved connections are commonly used where fast pipe installation, maintenance, and component replacement are important.

Depending on pipe specifications and tooling, the machine can support pipe fabrication workflows for commercial buildings, factories, warehouses, water systems, and other pipeline projects.

HVAC Pipe Processing

HVAC and mechanical piping systems can also use grooved steel pipes for suitable applications. The machine provides an efficient method for preparing pipe ends before coupling and installation.

For HVAC contractors and pipe fabrication companies, a hydraulic grooving machine can help improve the consistency of repetitive pipe-end processing operations.

Improved Production Efficiency

Manual pipe grooving can require significant operator effort, especially when processing multiple pipes in production batches. Hydraulic operation reduces the physical effort required for groove forming and helps establish a more repeatable production process.

Operators can focus on pipe loading, positioning, machine monitoring, groove inspection, and finished-product handling.

Flexible Tooling

Different pipe sizes and groove specifications may require different grooving rollers, dies, clamping components, or machine adjustments. The machine can be equipped with suitable tooling according to the intended application.

Customers can provide the pipe diameter range, wall thickness, material, groove dimensions, and expected production volume so the appropriate tooling configuration can be discussed.

Suitable For Industrial Production

The machine is suitable for pipe fabrication workshops, steel pipe manufacturers, fire protection equipment suppliers, mechanical contractors, and industrial pipeline companies.

Its hydraulic drive and configurable tooling make it suitable for repetitive pipe grooving operations where stable processing and consistent production quality are required.

Reduced Manual Labor

Hydraulic operation reduces the physical force required from the operator during groove forming. This can make repetitive processing more practical in production environments.

Combined with suitable pipe supports and workholding equipment, the machine can help reduce unnecessary manual handling and improve the overall workflow.

Consistent Production Quality

Consistent pipe groove dimensions are important when pipes are assembled with standardized couplings. Controlled hydraulic operation, stable clamping, and suitable tooling can help reduce variations between processed pipes.

Routine inspection of groove dimensions and proper maintenance of the grooving rollers are recommended to maintain stable production results.

B2B Customized Pipe Grooving Solution

Different customers may process different pipe materials, diameters, wall thicknesses, and groove profiles. Therefore, machine configuration should be selected according to the actual production requirements.

Customers can provide pipe samples, drawings, dimensions, groove specifications, material information, and production volume. Based on these details, suitable hydraulic grooving equipment and tooling can be evaluated.

Key Features
Multi-Purpose Hydraulic Grooving System
Hydraulic Steel Pipe Grooving
Controlled Groove Forming
Stable Pipe Clamping
Suitable For Multiple Pipe Sizes
Pipe Roll Grooving Technology
Flexible Grooving Tooling
Consistent Groove Positioning
Reduced Manual Labor
Efficient Batch Pipe Processing
Industrial Pipe Fabrication Applications
Customized Configuration Available
Main Applications
Steel Pipe Grooving
Fire Protection Pipelines
Fire Sprinkler Systems
Fire Hydrant Pipelines
Water Supply Pipes
HVAC Piping
Industrial Pipelines
Commercial Building Pipelines
Warehouse Pipeline Systems
Mechanical Pipe Fabrication
Steel Pipe Processing
Pipe Fabrication Workshops
FAQs
1. What Is A Multi-Purpose Hydraulic Pipe Grooving Machine?

It is an industrial machine that uses hydraulic power to form grooves on suitable steel and metal pipes for grooved coupling and pipeline connection applications.

2. What Type Of Pipes Can It Process?

The machine is primarily designed for suitable steel pipes. Specific material compatibility depends on the machine model, tooling, pipe diameter, and wall thickness.

3. Is It Suitable For Fire Protection Pipes?

Yes. It can be used for suitable fire sprinkler, fire hydrant, and fire protection steel pipe grooving applications.

4. What Is Hydraulic Pipe Grooving?

Hydraulic pipe grooving uses hydraulic force to drive a grooving roller against the pipe and form a controlled groove. The exact groove dimensions depend on the pipe and tooling specifications.

5. Can It Process Different Pipe Sizes?

Yes. Suitable pipe size ranges can be supported by selecting the appropriate rollers, dies, supports, and machine configuration.

6. Can The Groove Dimensions Be Customized?

The machine can be configured with suitable tooling according to the required groove profile and pipe specifications. Customers should provide drawings or technical groove requirements before ordering.

7. Is It Suitable For HVAC Pipes?

Yes. Suitable grooved steel pipes used in HVAC and mechanical piping systems can be processed when the pipe dimensions and groove requirements match the machine configuration.

8. Can The Machine Be Used For Long Pipes?

Yes. Long pipes can be processed when suitable supporting equipment and machine configuration are provided. The actual pipe length capability depends on the selected model and production setup.

9. How Do I Select The Right Machine?

Provide the pipe material, diameter range, wall thickness, pipe length, groove dimensions, coupling requirements, and expected production volume. These details help determine the appropriate machine and tooling.

10. Can The Machine Be Customized?

Yes. Hydraulic systems, pipe supports, clamping components, grooving rollers, tooling, and other configuration details can be discussed according to the customer's application.

Why Choose Us
Professional Pipe Grooving Equipment

We provide industrial machinery for hydraulic pipe grooving, steel pipe processing, fire protection pipe fabrication, and pipeline manufacturing applications.

Flexible Multi-Purpose Configuration

The machine can be configured for suitable pipe sizes and groove requirements, making it practical for factories processing different pipe specifications.

Customized Grooving Tooling

Different pipe diameters, wall thicknesses, and groove profiles require suitable tooling. We can provide configuration recommendations based on customer samples and technical specifications.

Factory-Direct B2B Service

We support international customers with machine selection, technical communication, export packaging, shipping coordination, operating documentation, and after-sales service.

Sample-Based Technical Support

Customers can provide pipe samples, drawings, dimensions, material information, and groove requirements so that suitable machine configurations can be evaluated before ordering.

Reliable Industrial Production

Hydraulic drive, stable workholding, controlled groove forming, and suitable tooling help create a repeatable pipe processing workflow for industrial production environments.

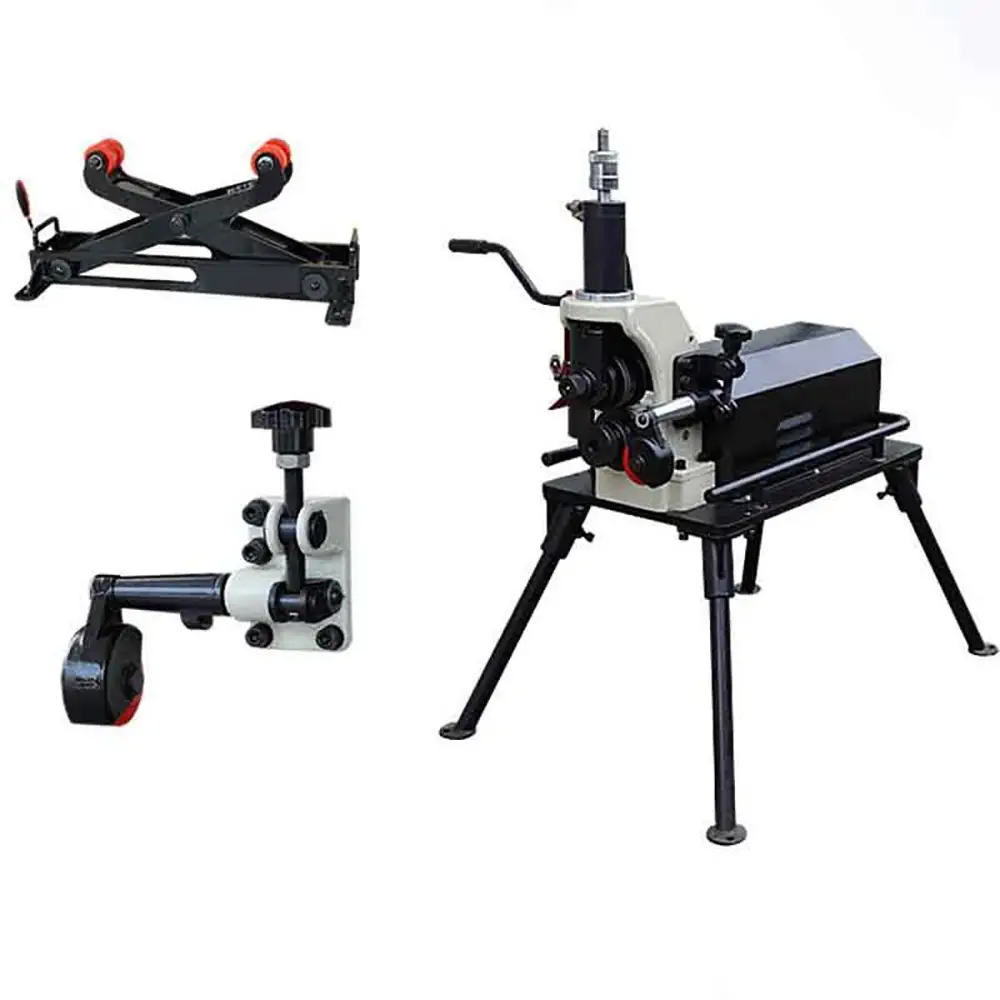

Prev：Small Electric Hydraulic Grooving Machine for 1-16 inch Pipe
