Muffler Production Line Equipment

The Muffler Production Line Equipment is an integrated manufacturing solution designed for efficient production of automotive mufflers and exhaust system components. It combines multiple manufacturing processes into a coordinated production workflow, helping manufacturers improve productivity, production consistency and process control.

Automotive mufflers are composed of multiple components, including outer shells, internal tubes, baffles, end caps, inlet and outlet pipes, mounting brackets and other structural parts. Each component must be manufactured to the required dimensions before being assembled and welded into a finished muffler.

A dedicated muffler production line can be configured around the specific design of the muffler, production volume, material and required automation level. Depending on the application, the line can integrate material cutting, tube processing, shell forming, punching, flanging, bending, welding, assembly, leak testing and final inspection.

The equipment can be designed for suitable stainless steel, carbon steel, aluminum and other metal materials according to the product requirements.

Automotive Muffler Manufacturing Equipment

Modern automotive muffler manufacturing requires more than a single machine. A complete production process often involves several interconnected operations.

A customized muffler production system may include:

Sheet Metal Cutting
Tube Cutting
Tube Bending
Muffler Shell Forming
Rolling
End Forming
Flanging
Expanding
Reducing
Hole Punching
Perforating
Baffle Forming
Internal Tube Processing
Component Positioning
Welding
Muffler Assembly
Leak Testing
Dimensional Inspection

The exact process configuration depends on the muffler structure and production requirements.

For example, a simple muffler may require fewer forming and welding processes, while a complex multi-chamber muffler may require additional internal tubes, baffles and assembly stations.

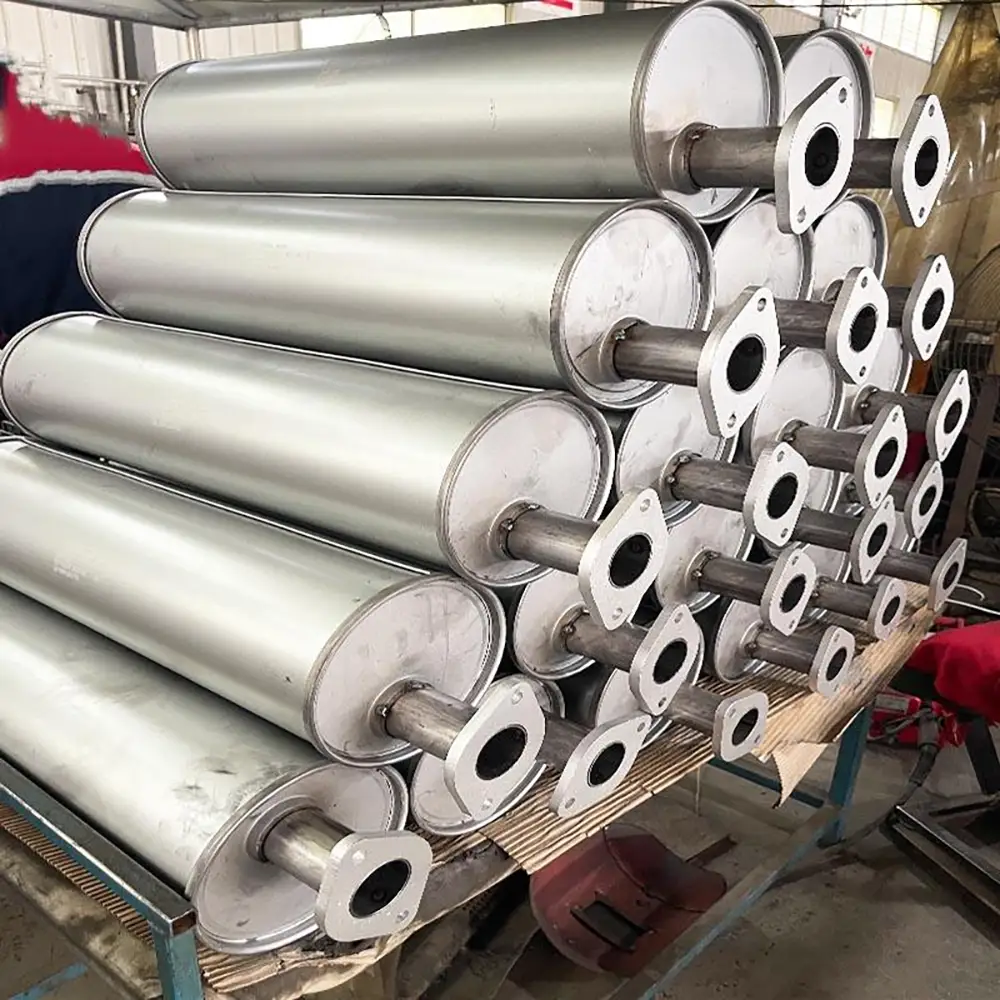

Muffler Shell Production

The outer shell is one of the most important components of a muffler. It provides the main enclosure for the internal exhaust components and must maintain consistent dimensions during manufacturing.

Depending on the product design, sheet metal can be cut and formed into a cylindrical, oval or customized muffler shell. Rolling, forming and welding processes can then be used to create the required shell structure.

A production line can incorporate dedicated fixtures and forming equipment to maintain consistent dimensions between production batches.

Accurate shell dimensions also make subsequent installation of internal tubes and end caps easier.

For manufacturers producing different muffler sizes, adjustable tooling and changeable fixtures can provide additional production flexibility.

Internal Tube and Baffle Manufacturing

Internal muffler components are responsible for creating the required internal exhaust flow path and acoustic structure.

These components can include:

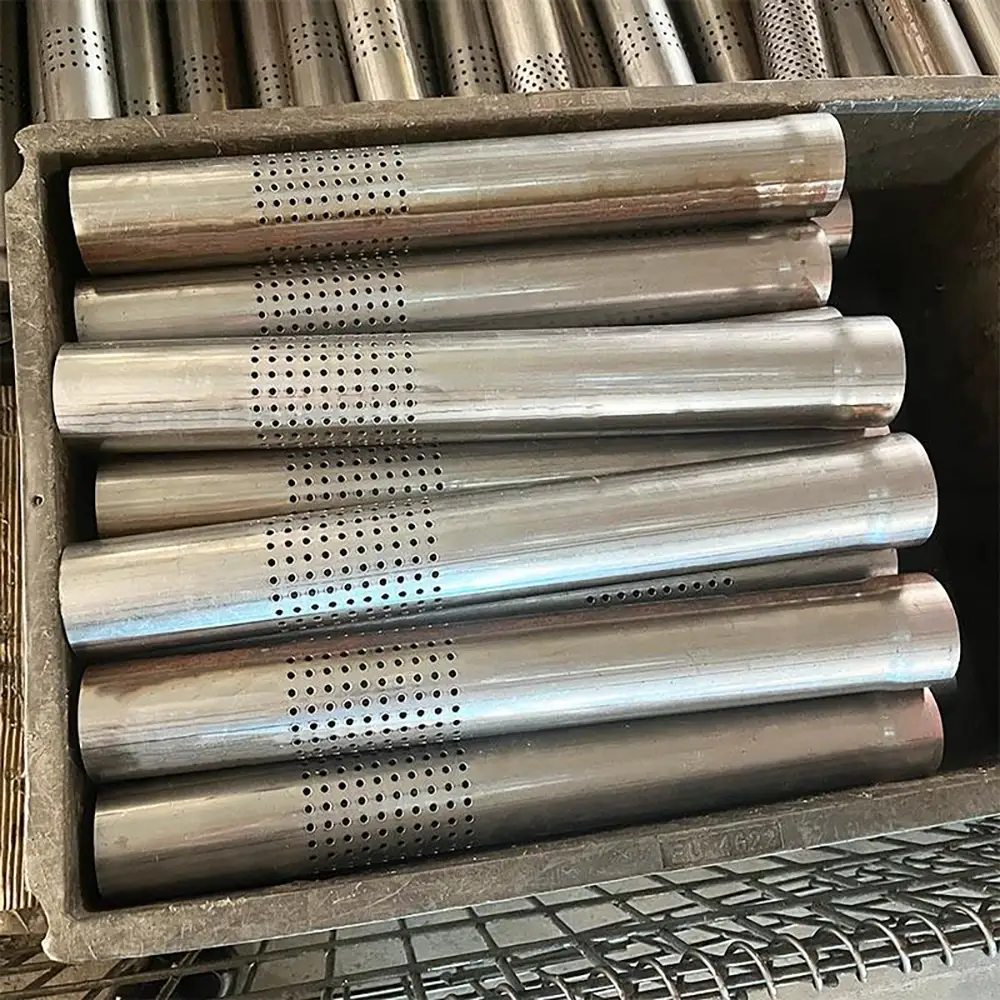

Perforated Tubes
Internal Pipes
Baffles
Chambers
Connecting Tubes
End Plates
Support Components

Depending on the product, internal tubes may require cutting, bending, perforating, expanding or flanging before assembly.

A customized muffler manufacturing line can integrate these operations into separate processing stations, allowing components to be prepared before entering the final assembly and welding stage.

The exact dimensions and structure should be determined from the customer's muffler drawings.

Stainless Steel Muffler Production

Stainless steel is a common material for many exhaust components because of its corrosion resistance, durability and suitability for high-temperature applications.

A stainless steel muffler production line can be configured to process suitable stainless steel sheet and tube materials.

The production process may include cutting, forming, rolling, tube bending, end forming and welding. Material grade and thickness should be considered when selecting tooling and welding equipment.

Stainless steel muffler production is common in automotive aftermarket products, performance exhaust systems and applications where corrosion resistance and appearance are important.

Carbon Steel Muffler Manufacturing

Carbon steel can also be used for suitable muffler and exhaust system applications.

Compared with stainless steel, carbon steel may require different forming and surface-treatment considerations. The production equipment can be selected according to material thickness, muffler dimensions and production volume.

For high-volume manufacturing, automated forming, welding and material handling can help improve production efficiency and reduce repetitive manual operations.

Muffler Welding Production Line

Welding is a critical part of muffler manufacturing because many muffler components must be permanently joined.

Typical welding areas may include:

Muffler Shell Seams
End Caps
Inlet Pipes
Outlet Pipes
Internal Tubes
Baffles
Mounting Brackets

The production line can use manual, semi-automatic or robotic welding depending on the product and required output.

Welding fixtures can help maintain component positioning during the welding process. Accurate positioning is especially important when multiple tubes, baffles or brackets must be installed at specific locations.

For high-volume production, automated welding can reduce repetitive labor and help improve process consistency.

Muffler Assembly Line

After individual components have been processed, they must be assembled into the finished muffler.

A dedicated muffler assembly line can provide organized workstations for installing internal components and completing final welding.

Typical assembly operations include:

Positioning the muffler shell
Installing internal tubes
Positioning baffles
Installing inlet and outlet pipes
Installing end caps
Installing mounting brackets
Welding components
Checking dimensions
Performing leak testing
Final inspection

The assembly sequence can be customized according to the actual muffler structure.

Automatic Muffler Production

Automation is an important consideration for manufacturers with high production volumes.

Depending on the project, the production line can incorporate automatic or semi-automatic functions such as:

Automatic Material Feeding
Automatic Tube Loading
CNC Tube Bending
Automatic Component Positioning
Automatic Transfer
Robotic Welding
Automatic Assembly Assistance
Inline Inspection
Leak Testing
Automatic Unloading

The appropriate level of automation depends on production volume, product variety, labor costs, available factory space and investment budget.

For high-volume automotive production, automation can help reduce repetitive handling and improve production flow.

For smaller production volumes or highly customized mufflers, semi-automatic equipment may provide better flexibility.

Muffler Quality Control

Quality control should be considered throughout the manufacturing process rather than only at the final stage.

Important inspection points can include:

Shell Diameter
Muffler Length
Tube Diameter
Tube Length
Bend Angle
End Form Dimensions
Baffle Position
Internal Component Alignment
Weld Quality
Bracket Position
Overall Dimensions
Air Tightness

Leak testing can be incorporated into the production line when required. This helps identify unwanted leakage before the finished muffler is delivered to the customer.

Inspection requirements should be determined according to the customer's product specifications and applicable quality standards.

Flexible Production for Multiple Muffler Models

Automotive exhaust manufacturers may need to produce different muffler models for different vehicle applications.

A flexible production line can be designed with adjustable fixtures, interchangeable tooling and programmable equipment where appropriate.

This allows manufacturers to support different product dimensions without completely rebuilding the production system.

Before selecting equipment, manufacturers should evaluate the complete product range and identify common manufacturing processes between different muffler models.

This approach can help create a production system that balances flexibility, automation and production efficiency.

Why Choose Our Muffler Production Line Equipment?
1. Integrated Production Solution

Multiple manufacturing operations can be combined into one coordinated production workflow.

2. Flexible Automation

The line can be designed as manual, semi-automatic or highly automated according to production requirements.

3. Stainless Steel Compatibility

Suitable equipment and tooling can be configured for stainless steel muffler manufacturing.

4. Customized Tooling

Fixtures, dies and processing equipment can be designed according to muffler dimensions and component geometry.

5. Efficient Welding

Manual, semi-automatic or robotic welding solutions can be considered according to production volume.

6. Multiple Muffler Models

Adjustable fixtures and interchangeable tooling can support different muffler configurations where technically practical.

7. B2B and OEM Applications

The production line is suitable for automotive component manufacturers, exhaust system suppliers, aftermarket manufacturers and OEM projects.

8. Complete Production Engineering

The equipment configuration can be developed around product drawings, materials, dimensions, production capacity and required automation.

Main Applications

The Muffler Production Line Equipment can be used for manufacturing:

Automotive Mufflers
Car Exhaust Mufflers
Truck Mufflers
Bus Mufflers
Motorcycle Mufflers
Performance Exhaust Mufflers
Stainless Steel Mufflers
Carbon Steel Mufflers
Exhaust System Components
Muffler Shells
Internal Muffler Components
Exhaust Pipe Assemblies
Custom Exhaust Components
FAQS
1. What is Muffler Production Line Equipment?

It is a combination of machines, tooling and workstations used to manufacture muffler components and assemble them into finished exhaust mufflers.

2. What materials can be used?

Depending on the machine configuration and application, the production line can process suitable stainless steel, carbon steel, aluminum and other metal materials.

3. Can it manufacture stainless steel mufflers?

Yes. The production line can be configured for stainless steel sheet and tube processing, including forming, cutting and welding.

4. Can the equipment produce different muffler sizes?

Yes. Production flexibility can be achieved through adjustable fixtures, interchangeable tooling and appropriate machine configuration.

5. Can robotic welding be integrated?

Yes. Robotic welding can be integrated into suitable high-volume production applications.

6. What processes are normally included?

Common processes include cutting, forming, rolling, tube bending, punching, flanging, welding, assembly, inspection and leak testing.

7. Can the line manufacture internal muffler components?

Yes. Equipment can be configured for internal tubes, perforated tubes, baffles, end plates and other components.

8. Is leak testing available?

Yes. Leak testing can be included according to the customer's quality requirements and production process.

9. Can the line be fully automatic?

A highly automated or fully automatic production line can be designed for suitable high-volume manufacturing applications.

10. Can it be used for aftermarket mufflers?

Yes. The equipment can be configured for aftermarket mufflers, performance exhaust components and customized exhaust products.

11. How many mufflers can the line produce?

Production capacity depends on muffler size, product complexity, number of processes, automation level and required cycle time. Capacity should be determined during project engineering.

12. Can the production line be customized?

Yes. The equipment layout, tooling, fixtures, welding stations, automation and inspection system can be customized.

13. What information is needed for a quotation?

Customers should provide muffler drawings or samples, material type, material thickness, dimensions, required production capacity, product models and desired automation level.

  Especially for Muffler/Exhaust Making machine production, including cutting machine, Three-roller rolling machine， Hydraulic folding machine, Hydraulic Mouth Rolling Machine, Hydraulic molding and flanging machine，Hydraulic core loading machine, Hydraulic single/double-head sealing machine，Hydraulic tube expanding and contracting machine，Hydraulic core tube rolling machine，Spinning machine，etc.
