Automatic Exhaust Pipe/Muffler Production Line Equipment Stainless Steel Aluminum Welding, Bending, Forming

Automatic Exhaust Pipe Production

Exhaust pipe manufacturing typically involves several important processes, including material preparation, tube cutting, bending, end forming, flanging, expanding, reducing and welding.

An automatic exhaust pipe production line can integrate these processes according to the required product design. Tubes can be cut to predetermined lengths before being transferred to bending or forming equipment. CNC tube bending technology can be incorporated for applications requiring repeatable bends and complex tube geometries.

Depending on the product design, additional forming operations may include:

Tube End Forming
Pipe Expanding
Pipe Reducing
Flanging
Beading
Swaging
Hole Punching
Profile Forming
End Flattening

This flexible configuration allows the production line to manufacture different exhaust pipe designs while maintaining consistent dimensions throughout production.

Stainless Steel Exhaust Pipe Manufacturing

Stainless steel is widely used in automotive exhaust applications because of its corrosion resistance, durability and suitability for high-temperature environments.

The production line can be configured for stainless steel exhaust tubes and muffler components. Processing may include automatic tube cutting, CNC bending, end forming and welding. Depending on the material grade, thickness and product structure, suitable tooling and welding processes can be selected for the application.

Stainless steel exhaust pipe manufacturing requires careful control of dimensions and welding quality. A properly configured production line can help manufacturers achieve consistent tube geometry and reliable welded joints while reducing manual handling.

Aluminum Exhaust Pipe Production

For applications where lightweight construction is important, aluminum can be considered for selected exhaust-related components and tubing applications.

Aluminum processing requires tooling and forming parameters appropriate for the material. Depending on the product design, the production line can incorporate aluminum tube cutting, bending, forming and welding equipment.

For manufacturers producing multiple material types, machine configurations can be selected according to the required production range, tube diameter, wall thickness, forming method and welding process.

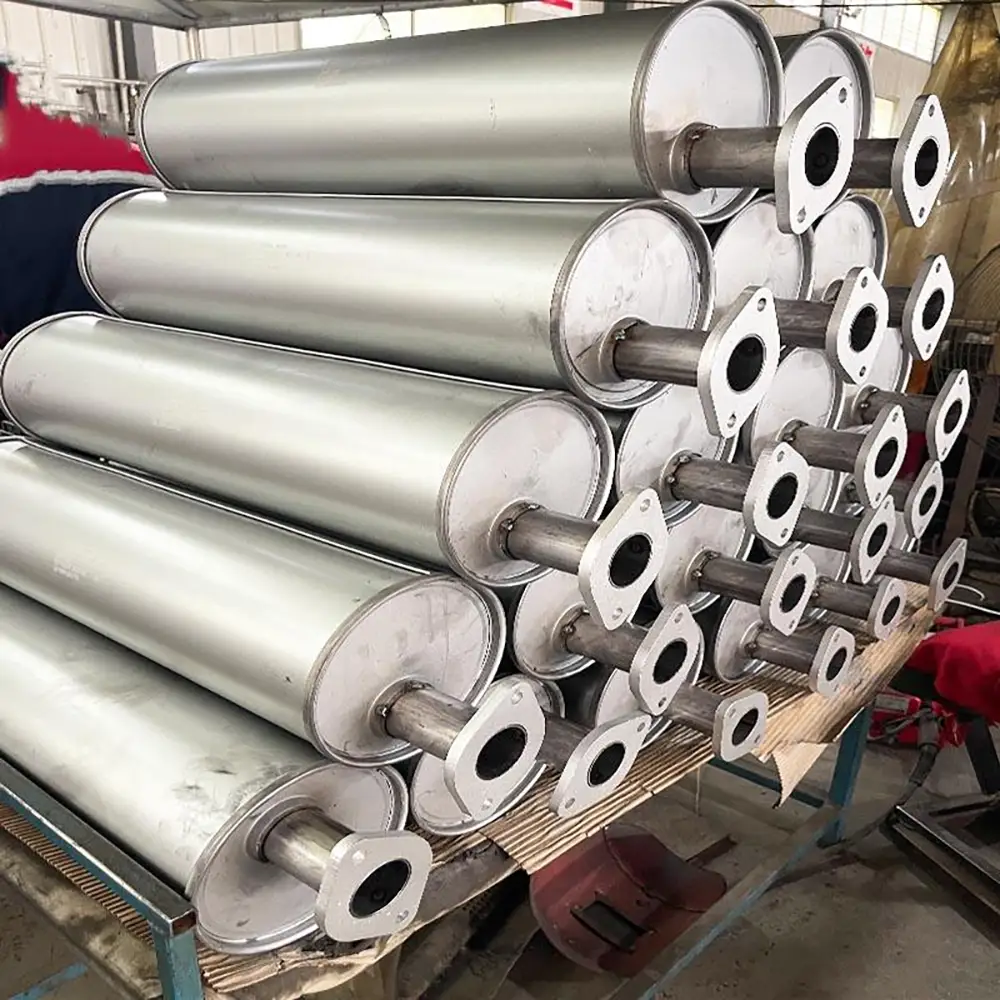

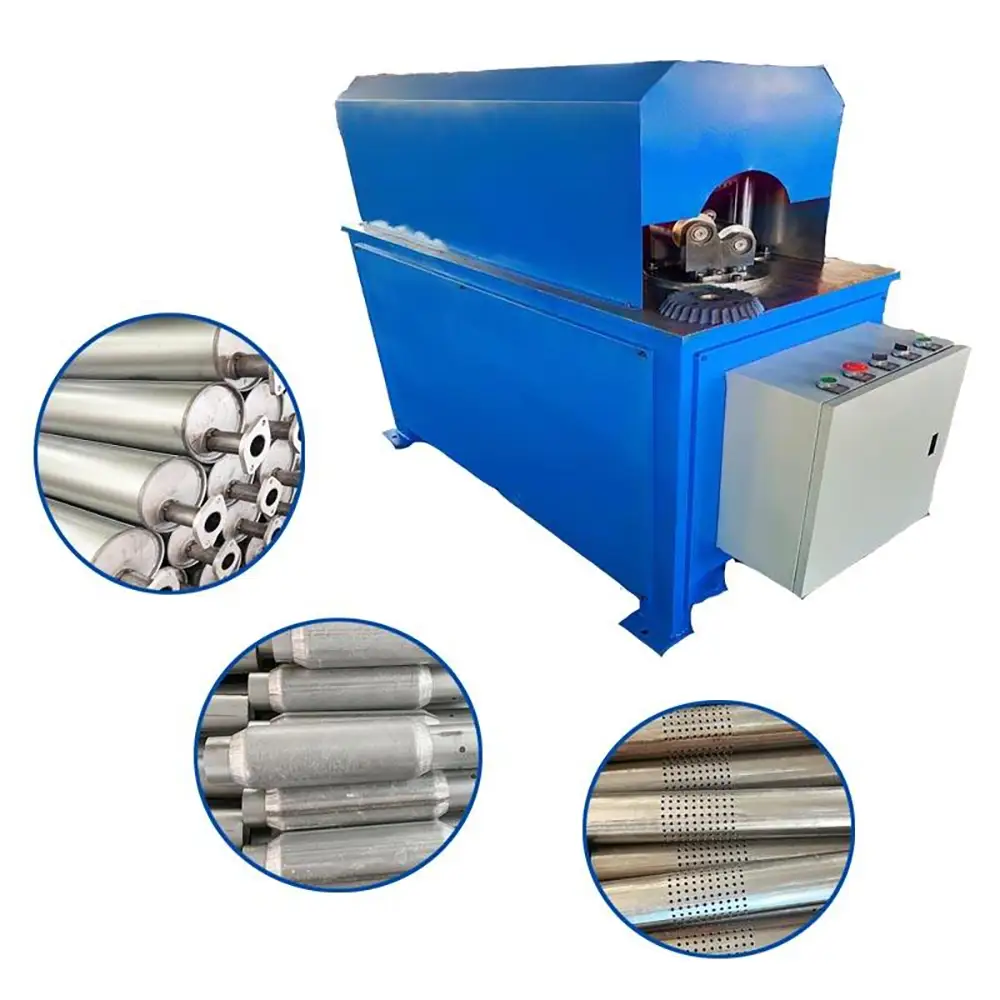

Muffler Production Line Equipment

In addition to exhaust pipes, the production system can be configured for automotive muffler manufacturing.

A typical muffler production process may include outer shell forming, internal tube processing, baffle manufacturing, tube insertion, welding and final assembly. Individual machines can be integrated into a semi-automatic or fully automated production workflow according to production volume and automation requirements.

Muffler components may include:

Muffler Shells
Internal Tubes
Baffles
End Caps
Inlet Pipes
Outlet Pipes
Connecting Tubes
Mounting Components

The production line can be designed around the manufacturer's specific muffler structure and production process.

Exhaust Pipe Bending and Forming

Accurate tube bending is one of the most important processes in exhaust pipe manufacturing. Exhaust pipes often require multiple bends to fit within limited vehicle underbody space.

CNC tube bending equipment can provide repeatable bending angles and tube positioning for different exhaust pipe geometries. Depending on the configuration, the production system can support single-bend or multi-bend components and different tube diameters.

Forming operations can also be incorporated to create required pipe ends and connection profiles. Proper tooling selection is important for minimizing deformation and achieving consistent dimensions.

Exhaust Pipe Welding

Welding is a critical process for exhaust pipe and muffler manufacturing. Production lines can be configured with suitable welding equipment for joining tubes, shells, baffles, end caps and other exhaust components.

Depending on the product and material, manufacturers may select different welding technologies and automation levels. Automated or robotic welding can improve production consistency and reduce dependence on manual welding operations for repetitive products.

For high-volume manufacturing, welding stations can be integrated with positioning fixtures, material handling systems and inspection procedures.

Integrated Production Workflow

A complete exhaust manufacturing line may combine several operations into one coordinated production system:

Material Loading → Tube Cutting → Tube Bending → End Forming → Flanging/Expanding → Component Welding → Muffler Shell Forming → Internal Component Assembly → Final Welding → Inspection → Finished Product

The actual configuration can be customized according to the manufacturer's product structure, production volume and automation requirements.

Integration helps reduce unnecessary transportation between individual machines and creates a more organized production workflow.

Production Efficiency and Consistency

For automotive exhaust manufacturers, production efficiency depends not only on machine speed but also on material handling, tooling changes, positioning accuracy, welding consistency and process integration.

An automated production line can help reduce repetitive manual operations and improve consistency between batches. Standardized tooling and programmable production parameters also make it easier to reproduce the same product geometry.

For manufacturers producing multiple exhaust pipe models, flexible tooling and programmable machine configurations can provide greater production adaptability.

Applications

The Automatic Exhaust Pipe & Muffler Production Line can be used for manufacturing:

Automotive Exhaust Pipes
Car Exhaust Pipes
Truck Exhaust Pipes
Motorcycle Exhaust Components
Mufflers
Exhaust Tubes
Exhaust Manifolds
Exhaust Connecting Pipes
Stainless Steel Exhaust Systems
Aluminum Exhaust Components
Custom Exhaust Components
OEM Exhaust System Parts

The equipment can be used by automotive component manufacturers, exhaust system suppliers, metal fabrication companies and OEM/ODM manufacturers.

Custom Exhaust Manufacturing Solutions

Every exhaust manufacturer may have different requirements for tube diameter, wall thickness, material, product length, bending radius, number of bends, welding method and production capacity.

For this reason, an exhaust pipe production line should be configured according to the actual product drawings and manufacturing process.

Customized solutions may include:

Tube Diameter Range
Maximum Tube Length
Bending Configuration
Forming Tooling
Welding Stations
Muffler Shell Forming
Automatic Material Transfer
Production Line Layout
Inspection Equipment
Semi-Automatic or Automatic Operation

Providing product drawings, material information and expected production capacity can help determine the appropriate production line configuration.

Why Choose Us
Complete Exhaust Manufacturing Solution

We provide integrated solutions covering exhaust pipe cutting, bending, forming, welding and muffler manufacturing processes.

Flexible Production Line Configuration

The equipment can be configured according to product dimensions, materials, production volume and automation requirements.

Stainless Steel and Aluminum Processing

Machine configurations can be selected for different materials and exhaust component applications.

Improved Production Efficiency

Integrated production processes can reduce manual handling, streamline workflow and support higher manufacturing efficiency.

Consistent Product Quality

CNC-controlled processing, dedicated tooling and controlled welding operations help improve dimensional consistency and repeatability.

OEM & Custom Engineering

Production line configurations can be customized according to product drawings, manufacturing processes and factory requirements.

B2B Manufacturing Support

The equipment is designed for industrial manufacturers, automotive component suppliers, exhaust system factories and OEM/ODM production projects.

Main Applications

The production line is suitable for automotive exhaust pipe manufacturing, muffler manufacturing, stainless steel exhaust systems, aluminum tube processing, exhaust component fabrication, OEM exhaust production and high-volume automotive component manufacturing.

FAQS
1. What materials can the exhaust pipe production line process?

Depending on the machine configuration, the line can be designed for stainless steel, carbon steel, aluminum and other suitable metal tubes.

2. Can the line manufacture both exhaust pipes and mufflers?

Yes. The production system can be configured for exhaust pipe processing as well as muffler shell, internal component, welding and assembly operations.

3. Does the production line include tube bending?

Yes. Tube bending equipment can be integrated according to the required exhaust pipe geometry and production process.

4. Can stainless steel exhaust pipes be welded automatically?

Yes. Suitable automatic or robotic welding equipment can be incorporated depending on the material, joint design and production requirements.

5. Can aluminum exhaust components be manufactured?

Yes, aluminum processing can be supported when the selected forming and welding equipment is appropriate for the material and product design.

6. Can the production line be customized?

Yes. The line can be customized according to tube dimensions, product drawings, production capacity, automation level and factory layout.

7. What operations can be included?

Depending on the product, operations may include cutting, bending, forming, flanging, expanding, reducing, welding, assembly and inspection.

8. Is the line suitable for OEM production?

Yes. It is suitable for automotive component manufacturers, OEM suppliers and custom exhaust system production.

9. Can multiple exhaust pipe models be produced?

Yes. With appropriate CNC programming, tooling and fixtures, the production line can support different product models and configurations.

10. Can the equipment be used for high-volume production?

Yes. Automation and integrated material handling can be configured for continuous and high-volume manufacturing requirements.

11. How do I select the right exhaust pipe production line?

Important factors include tube diameter, wall thickness, material, tube length, bending radius, number of bends, product structure, welding requirements and expected production volume.

12. Can you design the line according to our product drawings?

Yes. Product drawings, material specifications and production requirements can be used to develop a suitable customized production solution.

13. What information should I provide for a quotation?

Manufacturers should provide product drawings or samples, tube material, diameter, wall thickness, dimensions, production quantity and desired automation level.
