Exhaust Pipe Production Line

Exhaust pipe manufacturing normally involves several stages, starting with tube preparation and cutting. The prepared tube is then bent, formed and processed according to the required exhaust system geometry.

A production line can integrate different machines and stations, including:

• Tube Cutting
• Tube Bending
• End Forming
• Flanging
• Expanding
• Reducing
• Beading
• Punching
• Welding
• Inspection

The exact configuration depends on the exhaust pipe design, tube diameter, wall thickness, material and production volume.

For products requiring multiple bends or complex three-dimensional shapes, CNC tube bending equipment can be incorporated into the production line. Programmable bending parameters help manufacturers reproduce the required geometry across different production batches.

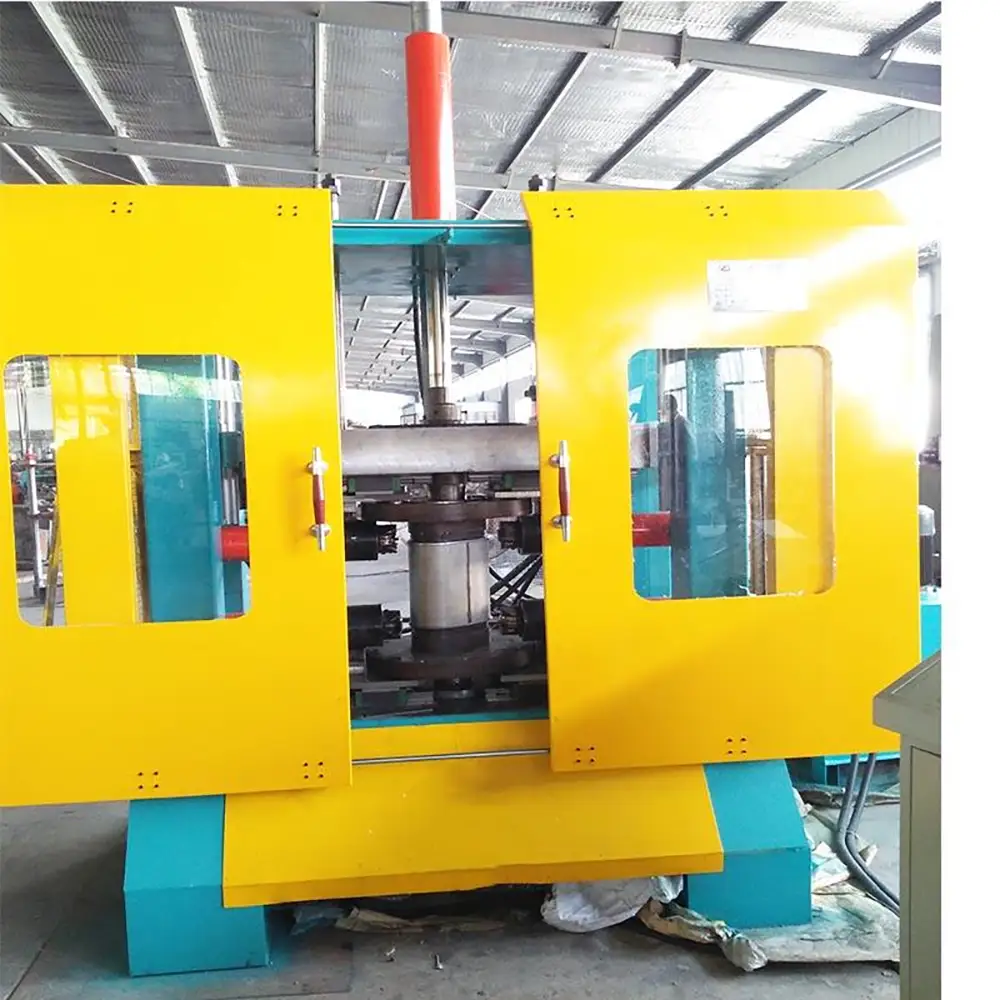

Muffler Production Equipment

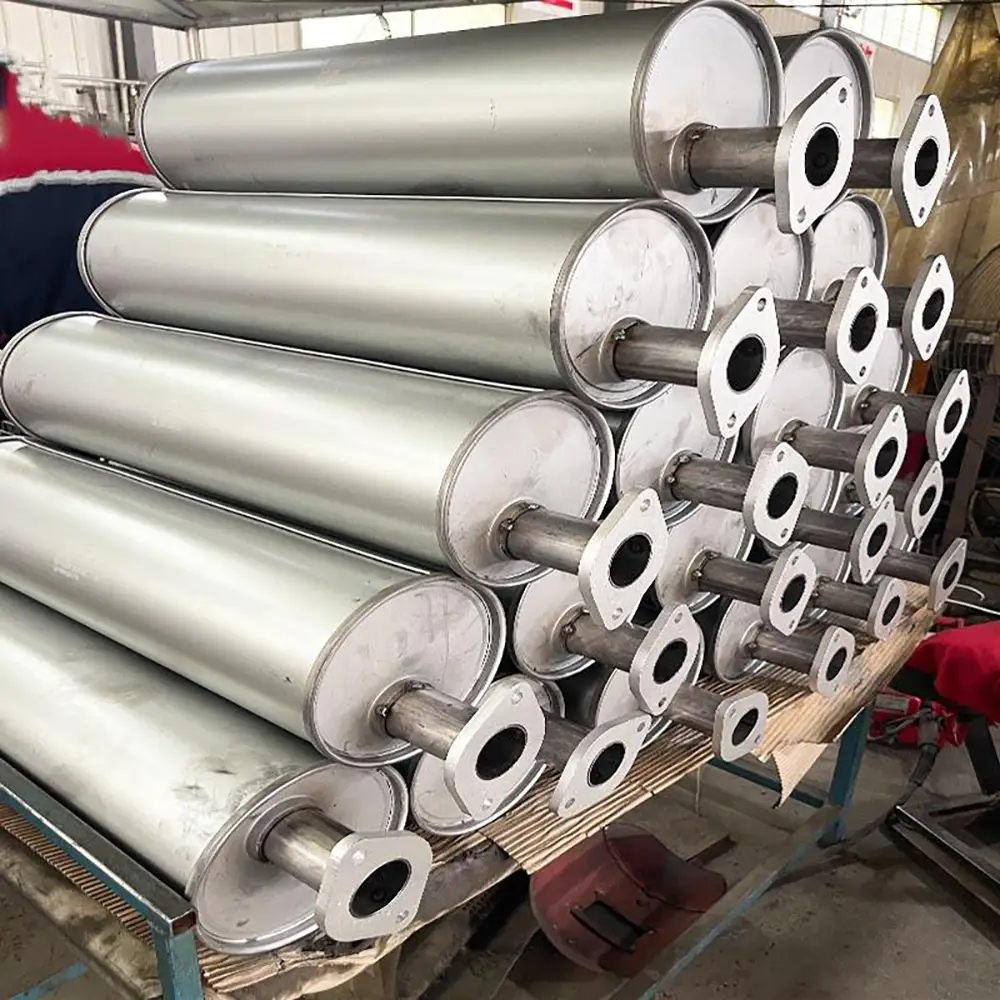

In addition to exhaust pipes, the production line can be configured for manufacturing automotive mufflers.

A muffler typically consists of several components, including an outer shell, internal tubes, baffles, end caps, inlet pipes and outlet pipes. These components must be accurately formed, positioned and welded before final assembly.

A typical muffler production process may include:

Shell Forming → Component Processing → Internal Tube Manufacturing → Baffle Production → Positioning → Welding → Final Assembly → Inspection

Dedicated fixtures can be used to position components during welding and assembly. For repetitive manufacturing, automated handling and welding stations can help improve production consistency and reduce manual operations.

Exhaust Pipe Cutting

Tube cutting is the first major processing stage for many exhaust pipe manufacturing applications. The cutting machine can be selected according to tube diameter, wall thickness, material and required cutting accuracy.

Automatic tube cutting can help provide consistent tube lengths and reduce preparation time before bending and forming.

Depending on the production line configuration, cutting equipment can be connected with automatic feeding and material transfer systems to create a more continuous production workflow.

Exhaust Pipe Bending

Exhaust pipes often require multiple bends to follow the installation space of an automobile or other vehicle. Accurate bending is therefore an important part of exhaust component manufacturing.

A CNC exhaust pipe bending machine can be integrated into the production line for programmable bending operations. The system can be configured according to tube diameter, bending radius, material and product geometry.

Proper tooling selection is important for maintaining tube shape and minimizing deformation during bending.

For manufacturers producing multiple exhaust models, programmable CNC bending equipment can make it easier to switch between different bending programs and product designs.

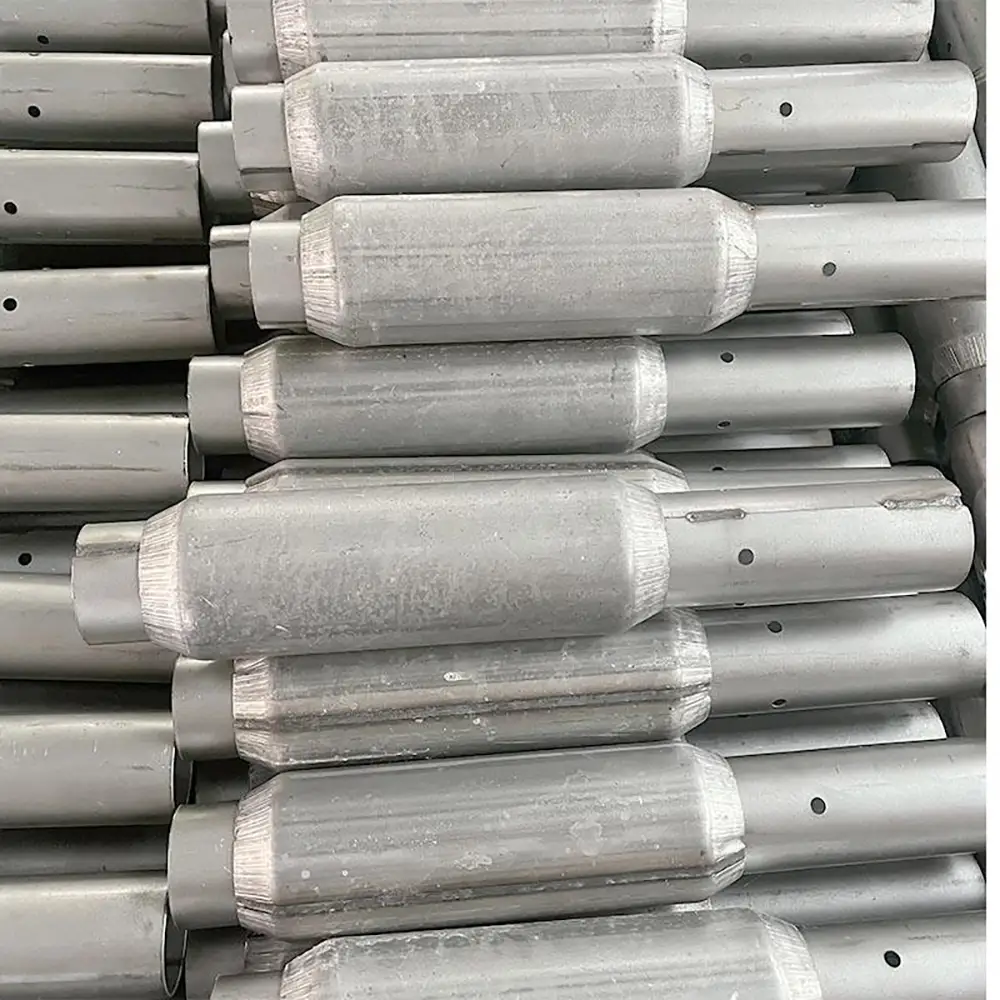

Exhaust Pipe Forming

End forming is used to create specific pipe-end profiles required for connecting exhaust components.

Depending on the product design, forming operations may include:

• Pipe End Forming
• Expanding
• Reducing
• Flanging
• Beading
• Swaging
• Necking
• Flattening

Dedicated forming dies and tooling can be developed for different tube dimensions and end profiles.

Combining bending and forming processes within an integrated production line can reduce unnecessary material handling and help improve overall production efficiency.

Exhaust Pipe and Muffler Welding

Welding is one of the most important processes in exhaust system manufacturing. Exhaust pipes, muffler shells, baffles, internal tubes and end caps may all require welded connections.

The welding section can be configured according to the material, joint design, product structure and production volume.

For high-volume applications, automatic or robotic welding systems can be integrated with positioning fixtures and material handling equipment. Automated welding can help improve repeatability for repetitive products while reducing dependence on manual positioning.

Different welding configurations can be selected based on the specific exhaust component and manufacturing requirements.

Stainless Steel Exhaust Pipe Manufacturing

Stainless steel is widely used for exhaust components because of its corrosion resistance and durability.

The production line can be configured for stainless steel tube cutting, bending, forming and welding. Appropriate tooling and welding equipment should be selected according to the material grade, tube thickness and product structure.

Stainless steel mufflers can also be produced through integrated shell forming, internal component processing, welding and assembly operations.

Aluminum Exhaust Component Manufacturing

Aluminum can be used in selected exhaust-related applications where lightweight construction is required.

Because aluminum has different forming and welding characteristics from steel and stainless steel, the equipment configuration should be selected according to the material specification and product design.

The production line can be configured for aluminum tube cutting, bending, forming and welding when suitable equipment and tooling are selected.

Integrated Exhaust Manufacturing Workflow

A complete exhaust pipe and muffler production system may use the following workflow:

Material Loading → Tube Cutting → Tube Bending → End Forming → Flanging/Expanding → Component Positioning → Welding → Muffler Assembly → Final Welding → Inspection

The actual production process can be modified according to the customer's product structure.

For example, a simple exhaust pipe may require only cutting, bending, end forming and inspection, while a complex muffler assembly may require shell forming, baffle manufacturing, internal tube assembly and multiple welding operations.

Production Efficiency

An integrated production line can improve manufacturing efficiency by reducing unnecessary transportation between individual machines and organizing multiple processes into a coordinated workflow.

Automation can also reduce repetitive manual operations such as material transfer, positioning and loading/unloading.

For manufacturers producing several exhaust models, CNC programming, interchangeable tooling and dedicated fixtures can provide greater flexibility.

The production line can be configured for different production capacities depending on the required output, product range and automation level.

Custom Exhaust Manufacturing Solutions

Every exhaust manufacturer has different requirements. Before selecting equipment, important factors include:

• Tube Diameter
• Tube Wall Thickness
• Tube Material
• Tube Length
• Bending Radius
• Number of Bends
• End Forming Type
• Welding Method
• Muffler Structure
• Production Capacity
• Automation Level
• Factory Layout

Based on these requirements, the production line can be configured with suitable cutting, bending, forming, welding, assembly and inspection equipment.

Product drawings or samples can also be used to determine appropriate tooling and machine configuration.

Applications

Exhaust Pipe/Muffler Production Line Equipment can be used for:

• Automotive Exhaust Pipes
• Car Exhaust Pipes
• Truck Exhaust Pipes
• Motorcycle Exhaust Components
• Automotive Mufflers
• Stainless Steel Mufflers
• Exhaust Tubes
• Exhaust Connecting Pipes
• Exhaust System Components
• Custom Exhaust Components
• OEM Exhaust Parts
• Commercial Vehicle Exhaust Systems

The equipment is suitable for automotive parts factories, exhaust system manufacturers, metal fabrication companies and OEM/ODM suppliers.

Why Choose Us

Integrated Production Solution

We provide equipment solutions covering exhaust pipe cutting, bending, forming, welding, muffler manufacturing and assembly.

Flexible Configuration

Production line equipment can be configured according to product drawings, materials, dimensions, production capacity and automation requirements.

Multi-Material Processing

The production system can be configured for stainless steel, carbon steel, aluminum and other suitable metal materials.

Improved Manufacturing Efficiency

Integrated production stations can reduce unnecessary material handling and streamline repetitive manufacturing processes.

Consistent Product Quality

CNC-controlled processing, dedicated tooling and positioning fixtures help improve dimensional consistency and production repeatability.

Custom OEM Solutions

The production line can be developed around specific exhaust pipe and muffler designs for OEM and ODM projects.

Industrial B2B Support

The equipment is suitable for automotive component manufacturers, exhaust system suppliers and industrial production facilities.

Main Applications

The equipment is suitable for automotive exhaust pipe production, muffler manufacturing, stainless steel exhaust manufacturing, aluminum tube processing, exhaust component fabrication, OEM exhaust production and high-volume automotive exhaust system manufacturing.

FAQS

1. What products can this production line manufacture?

It can be configured to manufacture exhaust pipes, mufflers, exhaust tubes, connecting pipes and other automotive exhaust components.

2. What materials can be processed?

Depending on the machine configuration, materials can include stainless steel, carbon steel and aluminum.

3. Does the equipment include exhaust pipe bending?

Yes. CNC or automatic tube bending equipment can be integrated according to the required product geometry.

4. Can stainless steel exhaust pipes be manufactured?

Yes. The line can be configured for stainless steel tube cutting, bending, forming and welding.

5. Can the line manufacture mufflers?

Yes. Muffler shell forming, internal component processing, welding and assembly can be integrated according to the product structure.

6. Can different exhaust pipe models be produced?

Yes. Programmable CNC equipment, interchangeable tooling and dedicated fixtures can support different product models.

7. Can the production line include automatic welding?

Yes. Automatic or robotic welding stations can be incorporated according to the product and production volume.

8. Can aluminum exhaust components be processed?

Yes. Suitable aluminum processing and welding equipment can be selected according to the material and product requirements.

9. Can the production line be customized?

Yes. Machine configuration, tooling, fixtures, material handling and automation can be customized.

10. Is this equipment suitable for OEM manufacturing?

Yes. The production line is suitable for OEM and ODM automotive exhaust component manufacturers.

11. What factors should be considered when selecting the equipment?

Important factors include tube diameter, wall thickness, material, length, bending radius, number of bends, forming requirements, welding method and expected production volume.

12. Can the production line be designed according to product drawings?

Yes. Product drawings or samples can be used to determine machine configuration, tooling and production workflow.

13. Is the production line suitable for high-volume production?

Yes. Automated cutting, bending, forming, welding, material handling and assembly systems can be configured for high-volume manufacturing.
