Exhaust Pipe and Muffler Production Line Machines

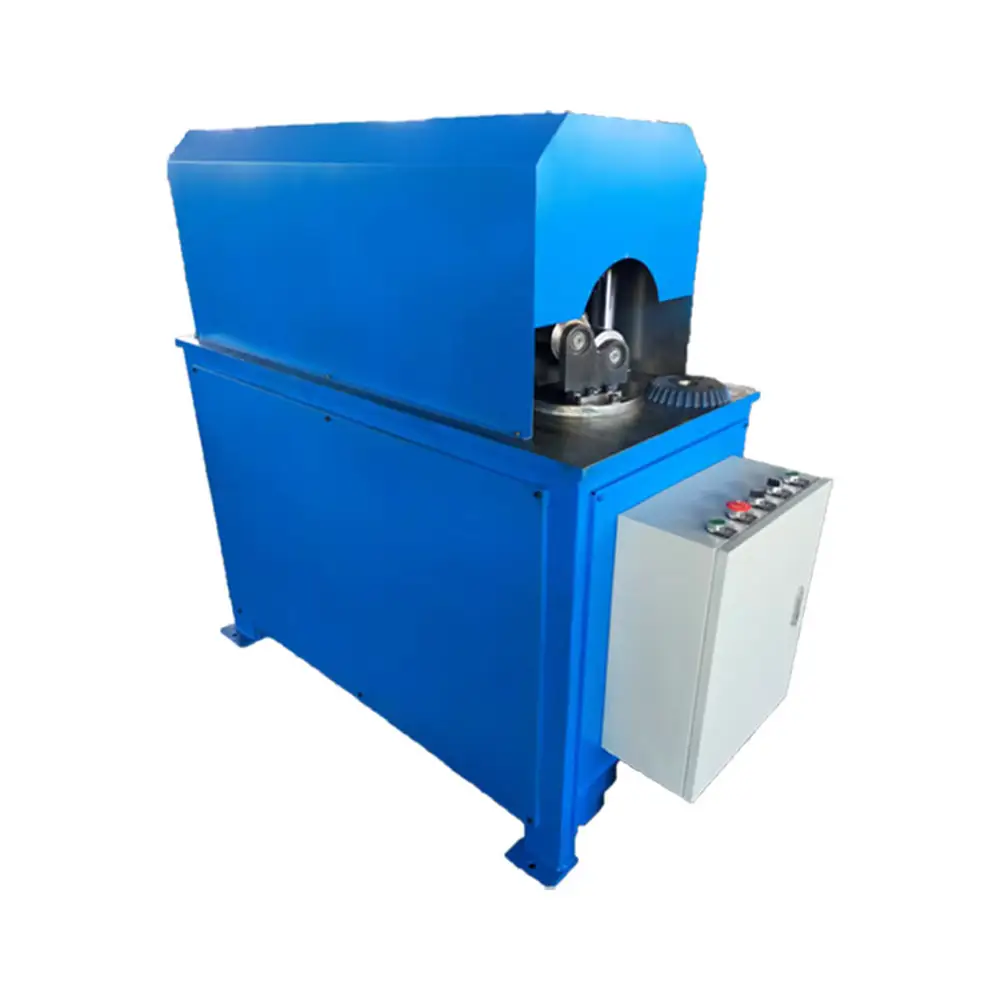

Exhaust Pipe Production Line

Exhaust pipe manufacturing typically begins with tube preparation and cutting. The tubes are then processed through bending, forming and end-processing operations according to the required exhaust system design.

A complete exhaust pipe production line can integrate:

Tube Cutting
Tube Bending
End Forming
Flanging
Expanding
Reducing
Beading
Hole Punching
Welding
Inspection

CNC tube bending equipment can be incorporated when precise and repeatable bending is required. This is particularly useful for automotive exhaust pipes with multiple bends and complex three-dimensional geometries.

The production process can be adapted to different pipe configurations, helping manufacturers produce exhaust components for passenger vehicles, commercial vehicles, motorcycles and other applications.

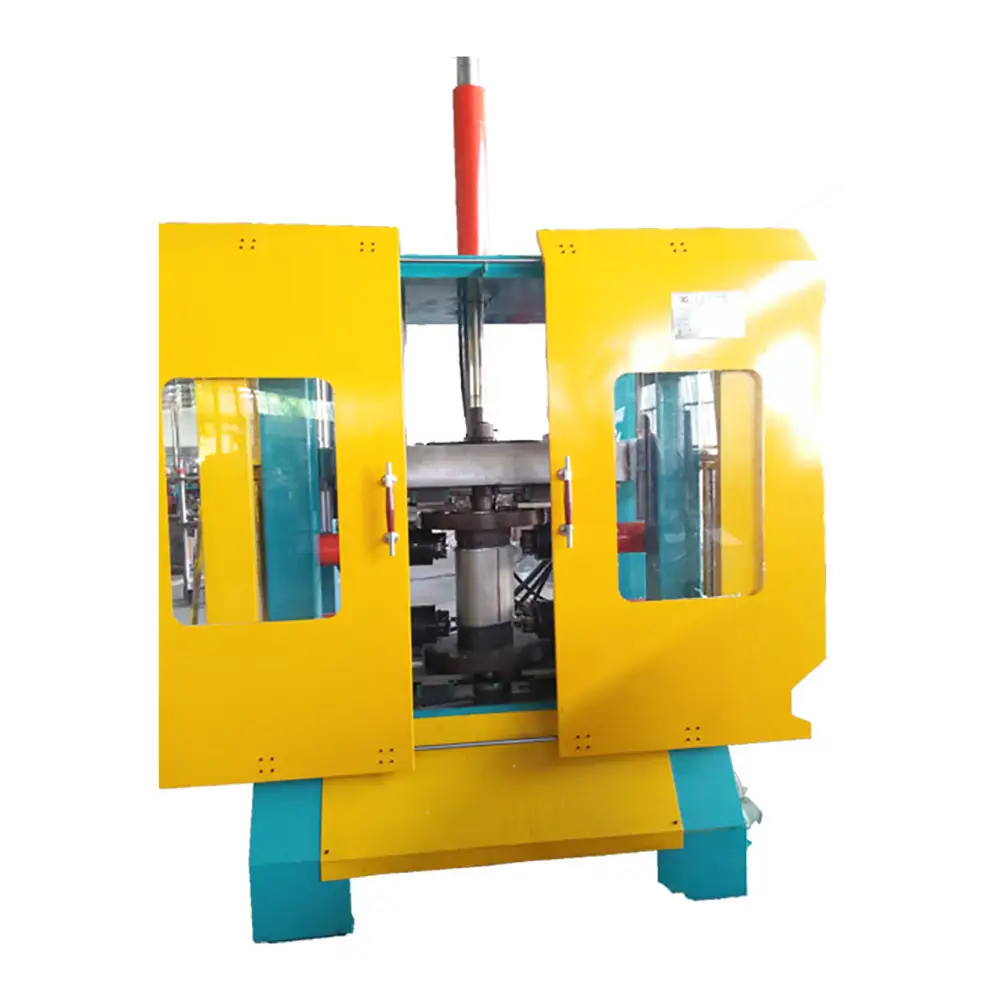

Muffler Production Line

The production line can also be configured for muffler manufacturing. A muffler consists of multiple components that must be accurately formed, positioned and welded before final assembly.

Typical muffler production may include outer shell forming, end cap processing, internal tube manufacturing, baffle production, component assembly and welding.

Major components may include:

Muffler Shell
Internal Tube
Baffle
End Cap
Inlet Pipe
Outlet Pipe
Connecting Tube
Mounting Bracket

Automated fixtures and material handling systems can be integrated to improve positioning accuracy and production consistency.

For high-volume manufacturing, multiple processing stations can be connected into a continuous production workflow.

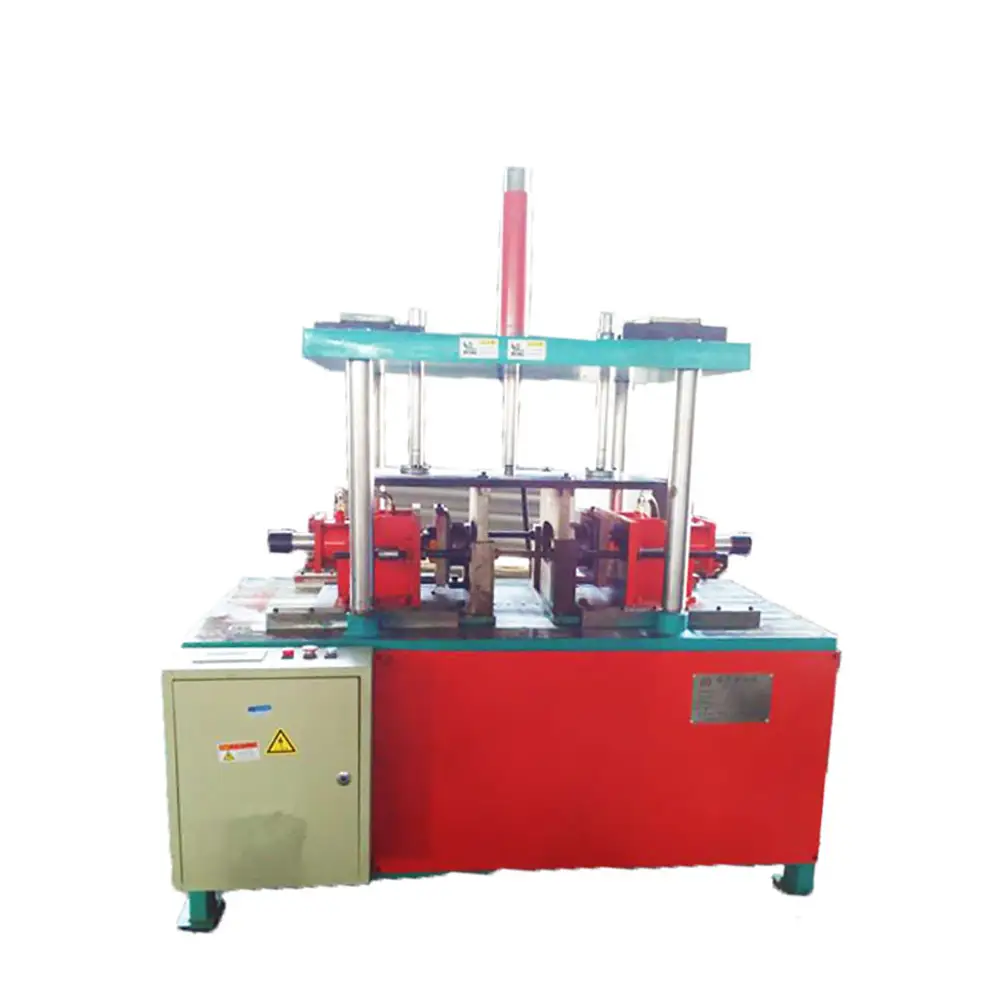

Exhaust Pipe Cutting and Bending

Tube cutting and bending are essential processes in exhaust pipe production. Exhaust pipes must often follow complex paths to fit within the available space of an automotive chassis.

An exhaust pipe bending machine can be integrated into the production line to create required bending angles, radii and tube geometries.

CNC control allows bending parameters to be programmed according to different product models. This can help manufacturers reproduce the same bending geometry across multiple production batches.

The appropriate bending method depends on tube diameter, wall thickness, material, bending radius and product requirements.

Exhaust Pipe Forming

Exhaust pipe end forming is used to create connection profiles and specific pipe-end geometries required for exhaust system assembly.

Depending on the product design, forming operations may include:

Pipe End Forming
Tube Expanding
Tube Reducing
Flanging
Swaging
Beading
Flattening
Necking

Dedicated tooling can be developed for different pipe sizes and end profiles. Proper tooling selection helps improve dimensional consistency and reduce deformation during forming.

Exhaust Pipe and Muffler Welding

Welding is an important part of exhaust component manufacturing. Exhaust pipes, muffler shells, internal tubes, baffles and end caps may require different welding operations.

The production line can be equipped with suitable welding stations according to the product material, joint structure and required production capacity.

For repetitive high-volume applications, automatic or robotic welding can help reduce manual operations and provide more consistent weld positioning.

Welding fixtures can also be used to hold components in the correct position during the welding process.

Stainless Steel Exhaust Manufacturing

Stainless steel is commonly selected for exhaust components because of its corrosion resistance, durability and suitability for demanding operating environments.

The production line can be configured for stainless steel tube cutting, bending, forming and welding. Machine tooling and welding systems should be selected according to the specific stainless steel grade, tube thickness and product design.

Stainless steel muffler production may include shell forming, internal component manufacturing, assembly and final welding.

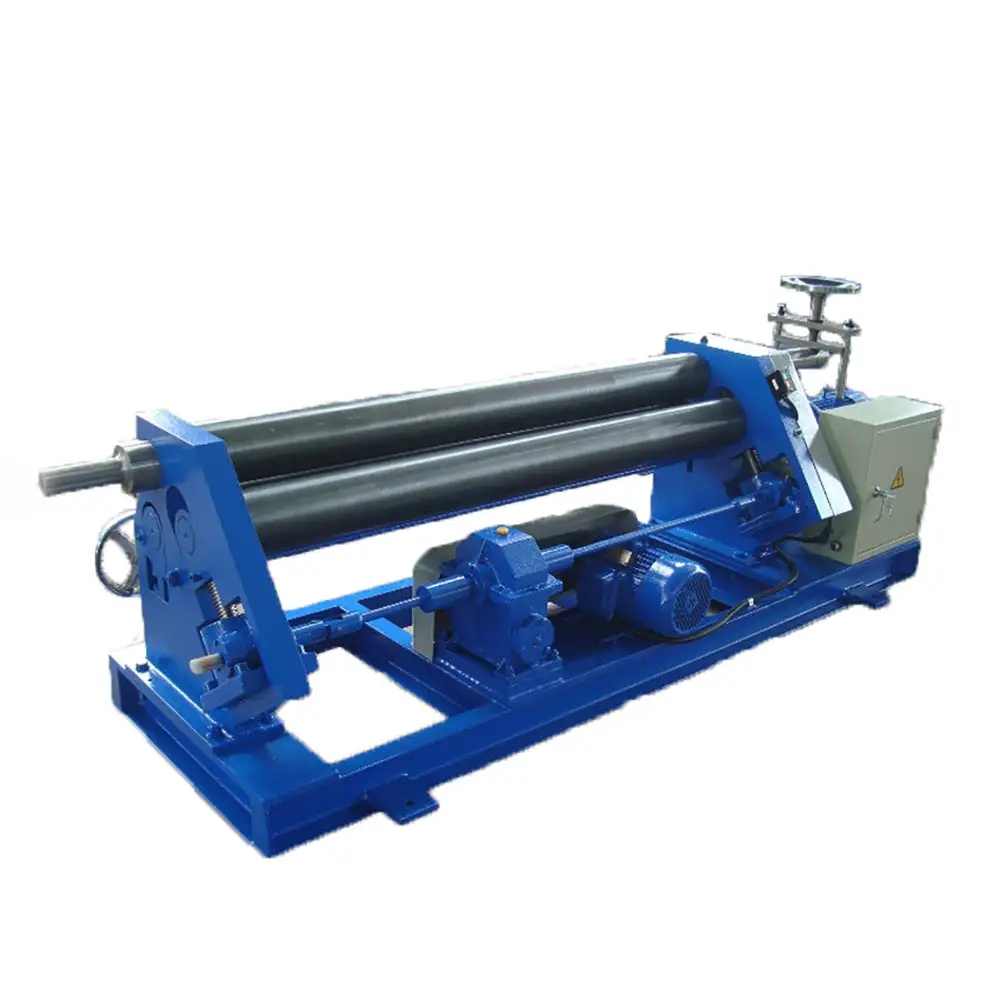

Aluminum Exhaust Component Production

Aluminum is used in selected exhaust-related applications where lightweight construction is important. Aluminum processing requires suitable forming and welding equipment designed for the material.

Depending on the configuration, the production line can support aluminum tube cutting, bending, forming and welding.

Manufacturers producing multiple materials can select machine configurations and tooling according to the specific production requirements of stainless steel, aluminum or carbon steel components.

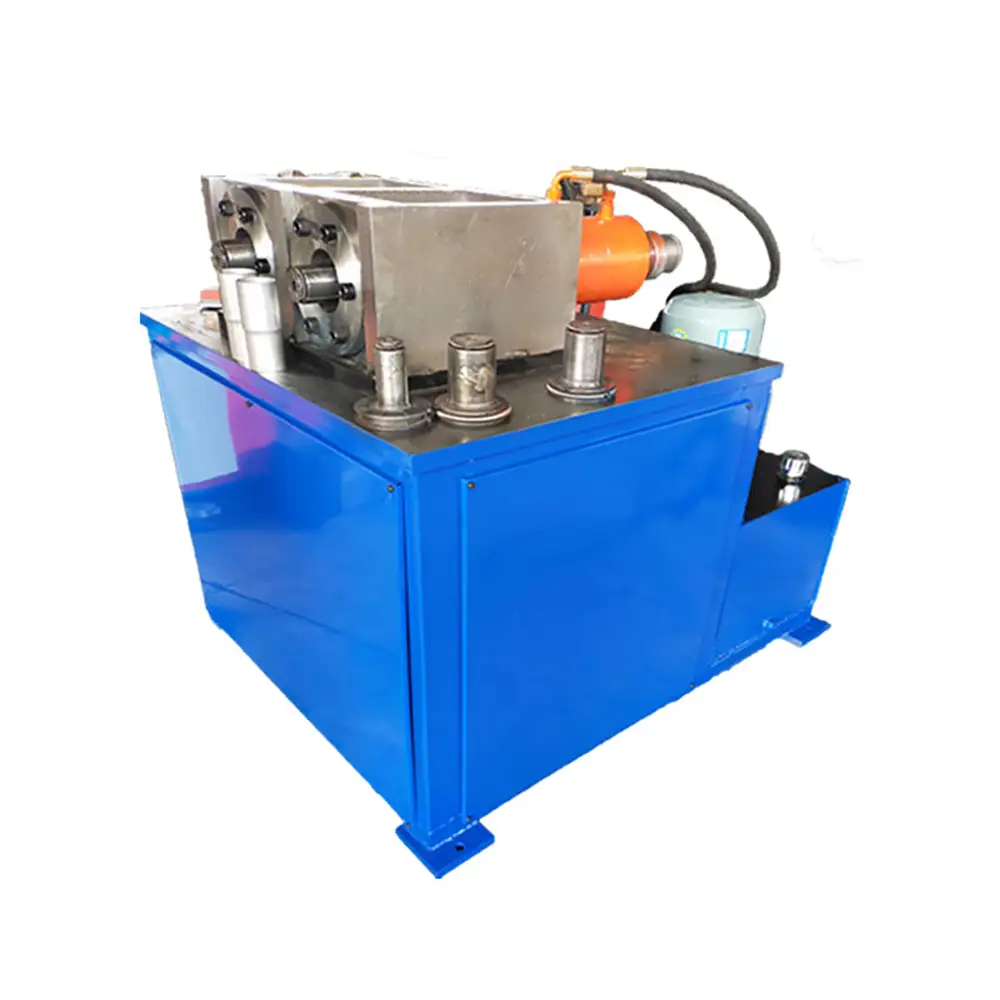

Automated Exhaust Manufacturing Workflow

A typical production workflow can be configured as:

Material Loading → Tube Cutting → Tube Bending → End Forming → Flanging/Expanding → Component Positioning → Welding → Muffler Assembly → Final Welding → Inspection

The exact workflow depends on the exhaust component structure and manufacturing requirements.

Automation can reduce unnecessary material movement and repetitive manual handling. Production stations can be arranged according to factory space, production capacity and required automation level.

Flexible Production for Multiple Models

Automotive exhaust manufacturers often produce different pipe lengths, bending geometries and muffler designs.

A flexible production line can support multiple product models by using programmable CNC equipment, interchangeable tooling and dedicated fixtures.

Before selecting equipment, manufacturers should consider:

Tube Diameter
Tube Wall Thickness
Tube Length
Material Type
Bending Radius
Number of Bends
End Forming Requirements
Welding Method
Production Volume
Automation Level

This information helps determine the appropriate equipment configuration and production line layout.

Applications

Exhaust Pipe and Muffler Production Line Machines are suitable for manufacturing:

Automotive Exhaust Pipes
Car Exhaust Pipes
Truck Exhaust Pipes
Motorcycle Exhaust Components
Automotive Mufflers
Stainless Steel Mufflers
Exhaust Tubes
Exhaust Connecting Pipes
Exhaust System Components
Custom Exhaust Pipes
OEM Exhaust Components
Commercial Vehicle Exhaust Systems

The equipment is suitable for automotive component manufacturers, exhaust system factories, metal fabrication companies and OEM/ODM suppliers.

Why Choose Us
Integrated Production Solution

We provide equipment solutions covering exhaust pipe cutting, bending, forming, welding, muffler manufacturing and assembly.

Flexible Machine Configuration

Production line configurations can be adjusted according to product drawings, materials, dimensions and production capacity.

Suitable for Multiple Materials

The equipment can be configured for stainless steel, carbon steel, aluminum and other suitable metal tubes.

Improved Production Efficiency

Integrated processing stations help reduce material handling and streamline repetitive manufacturing operations.

Consistent Manufacturing Quality

CNC-controlled processing, dedicated tooling and fixtures help improve dimensional consistency and repeatability.

Custom OEM Solutions

Production lines can be designed around specific exhaust pipe and muffler designs for OEM and ODM manufacturing.

Industrial B2B Support

The solution is designed for automotive component manufacturers, exhaust system suppliers and industrial production facilities.

Main Applications

The production line is suitable for automotive exhaust pipe manufacturing, muffler manufacturing, stainless steel exhaust production, aluminum tube processing, exhaust component fabrication, OEM automotive component production and high-volume exhaust system manufacturing.

FAQS
1. What products can these production line machines manufacture?

They can be configured to manufacture automotive exhaust pipes, mufflers, exhaust tubes, connecting pipes and other exhaust system components.

2. What materials can be processed?

Depending on the machine configuration, suitable materials can include stainless steel, carbon steel and aluminum.

3. Does the production line include tube bending?

Yes. Tube bending equipment can be integrated according to the required exhaust pipe geometry.

4. Can the machines process stainless steel exhaust pipes?

Yes. The production line can be configured for stainless steel tube cutting, bending, forming and welding.

5. Can aluminum tubes be processed?

Yes. Suitable aluminum tube processing and welding equipment can be selected according to the product requirements.

6. Can mufflers be manufactured on the same production line?

Yes. Muffler shell forming, internal component processing, assembly and welding stations can be integrated according to the production process.

7. Can exhaust pipes with multiple bends be produced?

Yes. CNC tube bending equipment can be configured for products requiring multiple bending operations.

8. Can the welding process be automated?

Yes. Automatic or robotic welding stations can be incorporated for suitable high-volume production applications.

9. Can the production line be customized?

Yes. Machine configuration, tooling, fixtures, material handling and automation can be customized according to product requirements.

10. Is the equipment suitable for OEM manufacturing?

Yes. It is suitable for OEM and ODM exhaust component manufacturers and automotive parts suppliers.

11. Can one production line produce different exhaust pipe models?

Yes. Depending on the configuration, programmable CNC equipment and interchangeable tooling can support multiple product models.

12. What information is needed to design the production line?

Important information includes product drawings, tube material, diameter, wall thickness, length, bending requirements, production quantity and desired automation level.

13. Is the production line suitable for high-volume manufacturing?

Yes. Automated processing, material handling and integrated production stations can be configured for high-volume industrial manufacturing.
