High-efficiency Muffler and Exhaust Pipe Production Line Machines

Integrated Muffler and Exhaust Pipe Manufacturing

A major advantage of an integrated production line is the ability to organize multiple manufacturing processes within a single production system.

Depending on the product structure, the line can include:

Tube Cutting
Sheet Metal Cutting
Tube Bending
CNC Tube Bending
End Forming
Expanding
Reducing
Flanging
Punching
Perforating
Muffler Shell Forming
Baffle Manufacturing
Tube Processing
Welding
Component Assembly
Leak Testing
Dimensional Inspection

The actual configuration can be customized according to the customer's product drawings, materials, dimensions and required production capacity.

Not every exhaust product requires every process. A production line should be designed around the actual manufacturing sequence of the customer's muffler and exhaust pipe products.

High-Efficiency Exhaust Pipe Production

Exhaust pipes frequently require complex geometries because they must follow the available space within an automotive exhaust system.

Tube bending is therefore an important manufacturing process.

A CNC tube bending machine can be integrated into the production line when repeatable bending angles and tube geometry are required. Depending on the tube and product design, the bending process can produce multiple angles and radii within a controlled manufacturing sequence.

Accurate tube bending helps manufacturers maintain consistent product dimensions and improves assembly compatibility.

Additional end-forming processes may include expanding, reducing, flaring, beading or other customized tube-end configurations.

Muffler Manufacturing Production Line

The muffler production section can include equipment for manufacturing the outer shell and internal components.

A typical muffler may contain:

Outer Shell
Inlet Tube
Outlet Tube
Internal Tubes
Perforated Tubes
Baffles
End Caps
Mounting Brackets
Internal Chambers
Connecting Components

Each component may require different processing methods.

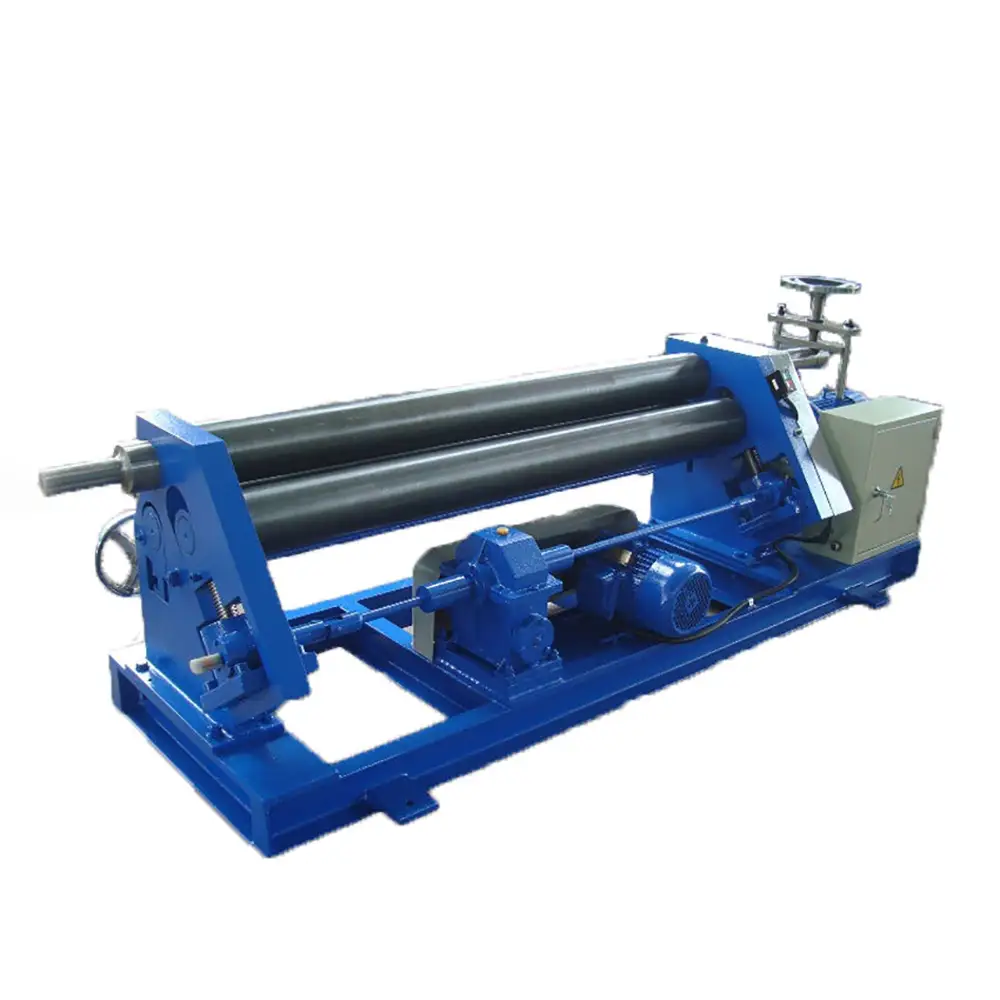

For example, the outer shell may require cutting, rolling and welding, while internal tubes may require cutting, bending and perforating. Baffles may require stamping, forming or punching.

A coordinated production line allows these components to move through the required processes before final assembly and welding.

Stainless Steel Exhaust Pipe and Muffler Production

Stainless steel is widely used for automotive exhaust components because of its corrosion resistance, durability and suitability for demanding environments.

A stainless steel exhaust pipe production line can be configured for suitable stainless steel tubes and sheet materials.

Manufacturing stainless steel components requires appropriate tooling and welding processes. Material grade, thickness, tube diameter and product geometry should be considered when selecting the equipment.

Stainless steel muffler production can also be integrated into the same overall manufacturing system, allowing manufacturers to produce both exhaust pipes and muffler assemblies.

Carbon Steel and Aluminum Applications

Carbon steel is another commonly used material for suitable exhaust components. Depending on the product design and surface treatment requirements, carbon steel can be processed through cutting, forming, bending and welding operations.

Aluminum may also be suitable for certain lightweight tubing and exhaust-related applications where its material properties meet the product requirements.

The production line can be configured according to the material being processed. Tooling, welding technology, bending parameters and forming methods should be selected according to the specific material and component design.

Exhaust Pipe Welding and Muffler Welding

Welding is a key operation in exhaust system manufacturing.

Exhaust pipes may require welded connections between tubes, flanges, brackets and connectors, while mufflers typically require welding of shells, end caps, internal components and mounting brackets.

Depending on production volume, the line can incorporate manual, semi-automatic or robotic welding stations.

Dedicated fixtures help maintain the correct position of components during welding. This is especially important for exhaust assemblies containing multiple bends and connections.

For high-volume manufacturing, automated welding can reduce repetitive manual operations and help improve production consistency.

Automated Material Handling

Production efficiency is influenced not only by individual machine performance but also by how materials move between manufacturing operations.

An integrated line can incorporate automatic or semi-automatic material transfer between processing stations.

Possible functions include:

Automatic Tube Loading
Automatic Material Feeding
Part Positioning
Automatic Transfer
CNC Bending
Robotic Welding
Automatic Assembly Assistance
Finished-Part Unloading

The appropriate automation level depends on production volume, product variety, labor requirements and investment budget.

For high-volume automotive production, automation can help reduce repetitive handling and improve overall production flow.

Exhaust Pipe and Muffler Assembly

After individual components are manufactured, they must be assembled into complete exhaust products.

The assembly process may include:

Positioning Exhaust Tubes
Installing Flanges and Connectors
Positioning Muffler Shells
Installing Internal Tubes
Installing Baffles
Installing End Caps
Installing Mounting Brackets
Welding Components
Checking Dimensions
Performing Leak Testing

The assembly sequence depends on the specific product design.

Fixtures can be customized to hold components in the correct position during assembly and welding.

Quality Control and Leak Testing

Quality control is an important part of exhaust component manufacturing.

The production line can incorporate inspection processes for:

Tube Diameter
Tube Length
Bend Angle
Bend Radius
End Form Dimensions
Muffler Dimensions
Baffle Position
Weld Quality
Bracket Position
Overall Assembly Dimensions
Air Tightness

Leak testing can be incorporated when required to verify the integrity of the finished exhaust component.

Inspection methods should be selected according to product requirements and the manufacturer's quality-control procedures.

Production Flexibility

Automotive exhaust manufacturers often produce multiple models and sizes. A flexible production line can help support product variations through adjustable fixtures, interchangeable tooling and programmable equipment.

Before designing the line, manufacturers should evaluate the complete product range and identify common processes.

For example, several exhaust pipe models may use the same cutting and welding processes but require different bending programs and fixtures. A flexible configuration can make model changeovers easier while maintaining production efficiency.

Why Choose Our High-Efficiency Exhaust Production Line?
1. Integrated Manufacturing

Muffler and exhaust pipe processes can be organized into a coordinated production workflow.

2. High Production Efficiency

Automated or semi-automatic processing can reduce repetitive material handling and improve workflow.

3. Flexible Configuration

The production line can be configured according to product drawings, materials, dimensions and production capacity.

4. Stainless Steel Compatibility

Suitable equipment can be configured for stainless steel exhaust pipes and mufflers.

5. CNC Tube Bending

CNC tube bending technology can provide repeatable tube geometry for suitable exhaust pipe applications.

6. Automated Welding Options

Manual, semi-automatic and robotic welding solutions can be considered depending on production requirements.

7. Multiple Product Models

Adjustable fixtures and interchangeable tooling can support multiple exhaust product configurations where technically practical.

8. OEM and B2B Manufacturing

The equipment is suitable for automotive parts manufacturers, exhaust system suppliers, aftermarket producers and OEM production projects.

9. Production Engineering Support

The line can be developed around actual product drawings, material specifications, cycle-time requirements and factory layout.

Main Applications

The production line can be used for:

Automotive Exhaust Pipes
Car Mufflers
Truck Exhaust Systems
Bus Exhaust Components
Motorcycle Exhaust Systems
Stainless Steel Exhaust Pipes
Stainless Steel Mufflers
Carbon Steel Exhaust Components
Exhaust Tubes
Muffler Shells
Exhaust Connectors
Exhaust Brackets
Complete Exhaust Assemblies
Aftermarket Exhaust Components
FAQS
1. What is a muffler and exhaust pipe production line?

It is an integrated manufacturing system that combines equipment for producing exhaust pipes, mufflers and related exhaust system components.

2. What processes can be included?

Depending on the product, processes can include cutting, tube bending, end forming, flanging, expanding, punching, shell forming, welding, assembly, inspection and leak testing.

3. Can the line manufacture stainless steel exhaust pipes?

Yes. The production line can be configured for suitable stainless steel tube and sheet applications.

4. Can it manufacture stainless steel mufflers?

Yes. Suitable equipment can be integrated for stainless steel muffler shell production, internal component processing, welding and assembly.

5. Can CNC tube bending be included?

Yes. CNC tube bending can be integrated for applications requiring accurate and repeatable exhaust tube geometry.

6. Can robotic welding be used?

Yes. Robotic welding can be considered for suitable high-volume exhaust pipe and muffler manufacturing applications.

7. Can the line process carbon steel?

Yes. Carbon steel exhaust components can be produced when the equipment and tooling are properly configured for the required material thickness and product design.

8. Can aluminum be processed?

Suitable aluminum applications can be considered depending on the alloy, component design, welding requirements and production process.

9. Can different exhaust models be produced?

Yes, depending on the line configuration. Adjustable fixtures, interchangeable tooling and programmable machines can support different models.

10. Can leak testing be integrated?

Yes. Leak testing can be included according to the customer's product specifications and quality requirements.

11. Is the production line fully automatic?

The automation level can be customized. Solutions can range from semi-automatic production cells to highly automated manufacturing lines.

12. What determines production capacity?

Production capacity depends on product complexity, cycle time, number of processing stations, automation level, product size and required production schedule.

13. What information is required for a quotation?

Product drawings or samples, material type, tube diameter, wall thickness, component dimensions, required processes, target production capacity and desired automation level are recommended.
